    Color Coated Steel System > Production Equipment > roof sheet making machine

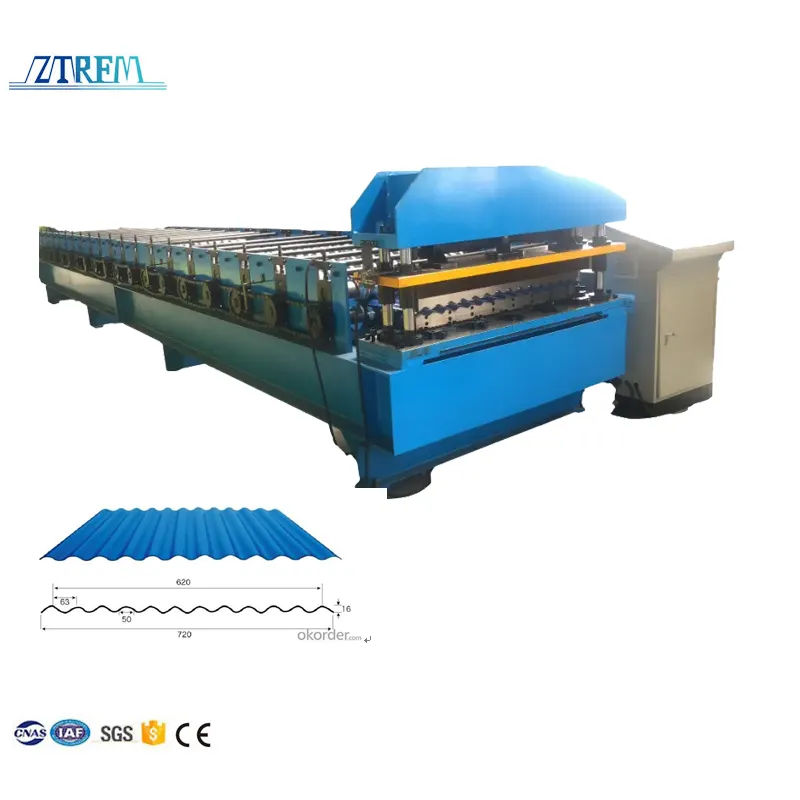

    Corrugated Roof Sheet Machine Corrugated Sheet Metal Roof Makingmachine 20 M/Min+11kw
    Cangzhou Zhongtuo International Trade Co., Ltd
    Supplier Qualification

    Corrugated Roof Sheet Machine Corrugated Sheet Metal Roof Makingmachine 20 M/Min+11kw

    $***/ Set
    Min. Order:1 Set

    Coupons: More >

    You can log in to view more discounted prices.Login Now

    Price:
    $***
    Quantity:
    ≥1Set

    Order CodeZT49632711
    Shipping:
    Delivery to:
    • Select country
    • 中国
    • Afghanistan
    • Aland Islands
    • Albania
    • Algeria
    • American Samoa
    • Andorra
    • Angola
    • Anguilla
    • Antarctica
    • Antigua and Barbuda
    • Argentina
    • Armenia
    • Aruba
    • Australia
    • Austria
    • Azerbaijan
    • Bahamas
    • Bahrain
    • Bangladesh
    • Barbados
    • Belarus
    • Belgium
    • Belize
    • Benin
    • Bermuda
    • Bhutan
    • Bolivia
    • Bonaire, Saint Eustatius and Saba
    • Bosnia and Herzegovina
    • Botswana
    • Bouvet Island
    • Brazil
    • British Indian Ocean Territory
    • British Virgin Islands
    • Brunei
    • Bulgaria
    • Burkina Faso
    • Burundi
    • Cabo Verde
    • Cambodia
    • Cameroon
    • Canada
    • Cayman Islands
    • Central African Republic
    • Chad
    • Chile
    • Christmas Island
    • Cocos Islands
    • Colombia
    • Comoros
    • Cook Islands
    • Costa Rica
    • Croatia
    • Cuba
    • Curacao
    • Cyprus
    • Czechia
    • Democratic Republic of the Congo
    • Denmark
    • Djibouti
    • Dominica
    • Dominican Republic
    • Ecuador
    • Egypt
    • El Salvador
    • Equatorial Guinea
    • Eritrea
    • Estonia
    • Eswatini
    • Ethiopia
    • Falkland Islands
    • Faroe Islands
    • Fiji
    • Finland
    • France
    • French Guiana
    • French Polynesia
    • French Southern Territories
    • Gabon
    • Gambia
    • Georgia
    • Germany
    • Ghana
    • Gibraltar
    • Greece
    • Greenland
    • Grenada
    • Guadeloupe
    • Guam
    • Guatemala
    • Guernsey
    • Guinea
    • Guinea-Bissau
    • Guyana
    • Haiti
    • Heard Island and McDonald Islands
    • Honduras
    • Hungary
    • Iceland
    • India
    • Indonesia
    • Iran
    • Iraq
    • Ireland
    • Isle of Man
    • Israel
    • Italy
    • Ivory Coast
    • Jamaica
    • Japan
    • Jersey
    • Jordan
    • Kazakhstan
    • Kenya
    • Kiribati
    • Kosovo
    • Kuwait
    • Kyrgyzstan
    • Laos
    • Latvia
    • Lebanon
    • Lesotho
    • Liberia
    • Libya
    • Liechtenstein
    • Lithuania
    • Luxembourg
    • Madagascar
    • Malawi
    • Malaysia
    • Maldives
    • Mali
    • Malta
    • Marshall Islands
    • Martinique
    • Mauritania
    • Mauritius
    • Mayotte
    • Mexico
    • Micronesia
    • Moldova
    • Monaco
    • Mongolia
    • Montenegro
    • Montserrat
    • Morocco
    • Mozambique
    • Myanmar
    • Namibia
    • Nauru
    • Nepal
    • Netherlands Antilles
    • New Caledonia
    • New Zealand
    • Nicaragua
    • Niger
    • Nigeria
    • Niue
    • Norfolk Island
    • North Korea
    • North Macedonia
    • Northern Mariana Islands
    • Norway
    • Oman
    • Pakistan
    • Palau
    • Palestinian Territory
    • Panama
    • Papua New Guinea
    • Paraguay
    • Peru
    • Philippines
    • Pitcairn
    • Poland
    • Portugal
    • Puerto Rico
    • Qatar
    • Republic of the Congo
    • Reunion
    • Romania
    • Russia
    • Rwanda
    • Saint Barthelemy
    • Saint Helena
    • Saint Kitts and Nevis
    • Saint Lucia
    • Saint Martin
    • Saint Pierre and Miquelon
    • Saint Vincent and the Grenadines
    • Samoa
    • San Marino
    • Sao Tome and Principe
    • Saudi Arabia
    • Senegal
    • Serbia
    • Serbia and Montenegro
    • Seychelles
    • Sierra Leone
    • Singapore
    • Sint Maarten
    • Slovakia
    • Slovenia
    • Solomon Islands
    • Somalia
    • South Africa
    • South Georgia and the South Sandwich Islands
    • South Korea
    • South Sudan
    • Spain
    • Sri Lanka
    • Sudan
    • Suriname
    • Svalbard and Jan Mayen
    • Sweden
    • Switzerland
    • Syria
    • Tajikistan
    • Tanzania
    • Thailand
    • The Netherlands
    • Timor Leste
    • Togo
    • Tokelau
    • Tonga
    • Trinidad and Tobago
    • Tunisia
    • Turkey
    • Turkmenistan
    • Turks and Caicos Islands
    • Tuvalu
    • U.S. Virgin Islands
    • Uganda
    • Ukraine
    • United Arab Emirates
    • United Kingdom
    • United States
    • United States Minor Outlying Islands
    • Uruguay
    • Uzbekistan
    • Vanuatu
    • Vatican
    • Venezuela
    • Vietnam
    • Wallis and Futuna
    • Western Sahara
    • Yemen
    • Zambia
    • Zimbabwe
    • Select province
    • Select city

    Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

    Specification:

    Production Capacity:
    20 M/Min
    Power(W):
    11kw
    Payment:
    Transaction Protection:
    • Secure payments
    • Money-back protection
    • 24/7 support
    • Data privacy
    ZT49632711
    Quantity:
    -
    +
    Add to CartBuy Now
    • Product Details
    • Reviews(0)

    • Technical Specifications

      • Type
        Tile Forming Machine
      • Tile Type
        Colored Steel
      • Use
        ROOF
      • Voltage
        380V,50HZ,3P
      • Rolling Thinckness
        0.3-0.8mm
      • Feeding Width
        1220 mm

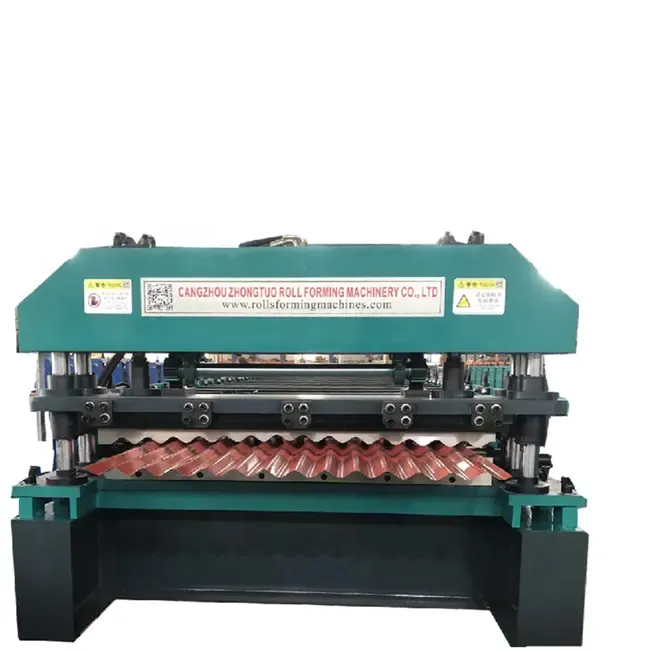

      ZTRFM corrugated sheet making machine metal roof forming machine

      ZTRFM corrugated sheet making machine metal roof forming machine has advanced PLC control system & Omron encoder and is capable to run both automatically and manually. Metal round wave plate roofing sheet Corrugated iron sheet roll forming machine for different models based on different designs or customer's samples. As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

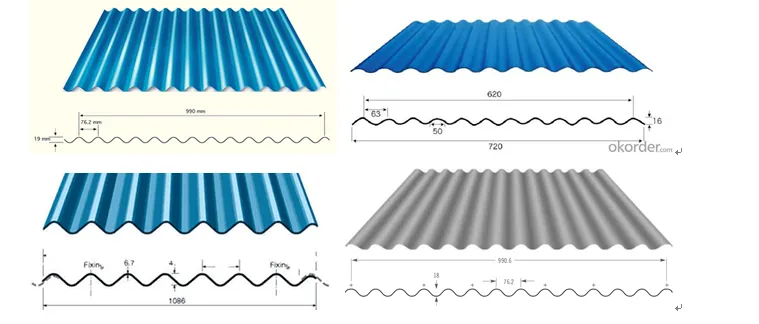

      Profile drawing for reference:
      ZTRFM corrugated sheet making machine metal roof forming machine
      Formed Material
      PPGI,GI,AI
      Thickness
      0.3-0.8mm
      Roller station
      16 stations
      Diameter of shaft
      80mm solid shaft
      Material of Roller
      45# steel, hard chrome plated on the surface
      Machine body frame
      350 H steel
      Drive
      Chain transmission
      Cutter
      cr12mov material, no scratches, no deformation
      Motor Power
      5.5KW
      Hydraulic system power
      5.5KW
      Voltage
      380V 50Hz 3Phase(As your requirement)
      Forming Speed
      0-20m/min


      Manual decoiler
      1. Capacity: 5 tons /7 tons/10 tons
      2. Coil diameter: 450-550mm
      3. Coil outer diameter: 1500mm
      4. Coil width: 1250mm(as customers' profile drawing)



      Feeding Device
      with two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.

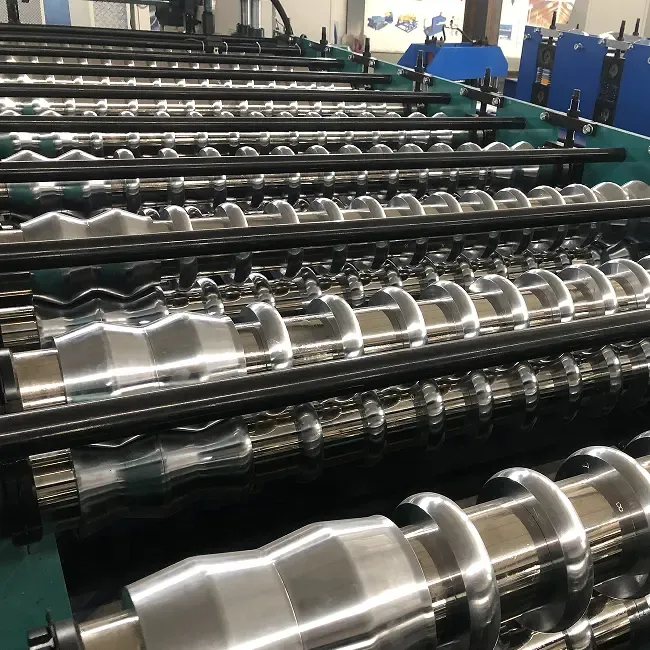

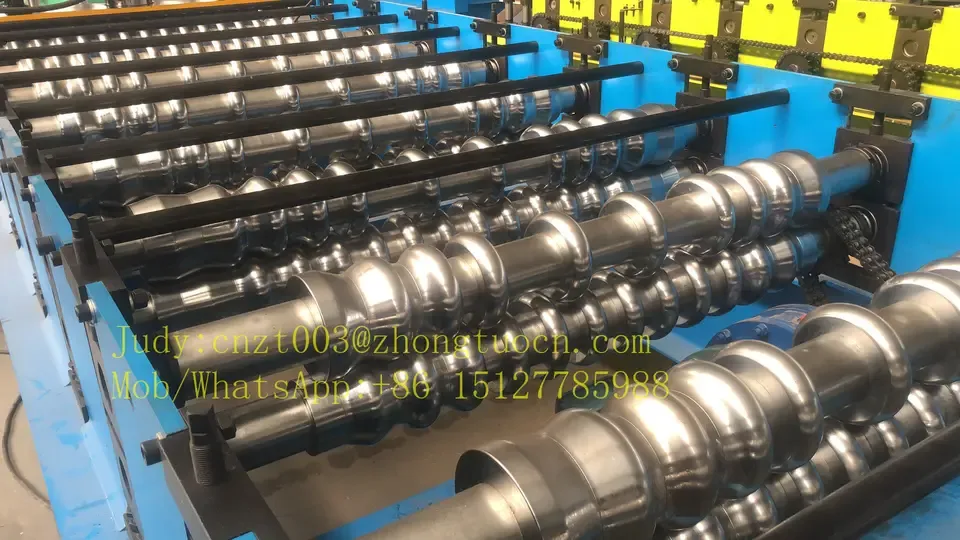

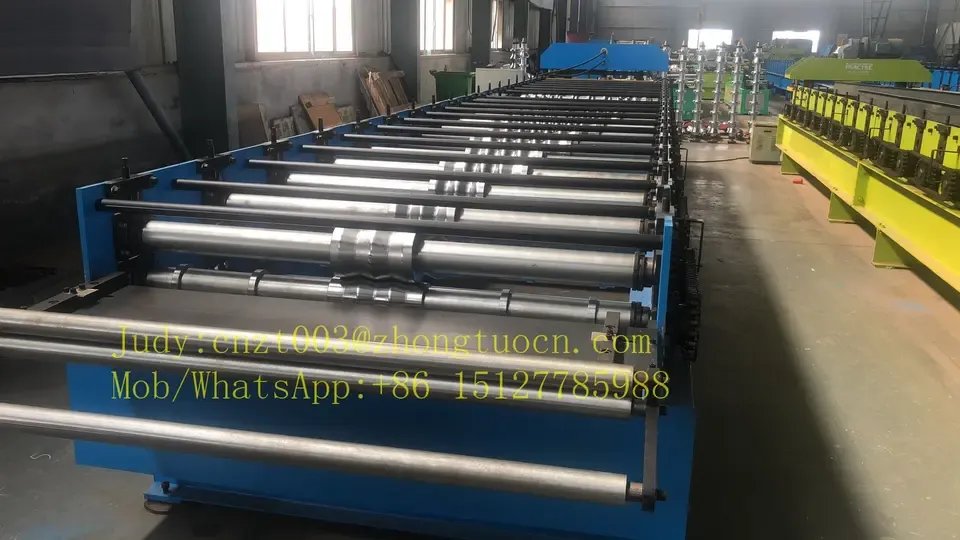

      Main Roll Forming System
      1. Machine body: 350H steel welded
      2. Machine frame: 18mm middle plate welded
      3. Roller station: 16 stations
      4. Roller material: 45# steel with quenched treatment and hard chroming
      5. Shaft diameter: 80mm, solid
      6. Shaft material: 45# steel with tempering treatment
      7. Motor power: 5.5 kw
      8. Speed: 0-20m/min

      Cutting system
      1. Blade material: Cr12, with quenched treatment
      2. Hydraulic power: 4 kw
      3. Cutting tolerance: +/-1 mm
      4. Cooling system: With fan cooling
      5. Pressing & Cutting type: Hydraulic
      6. Feature: Low noise and high performance

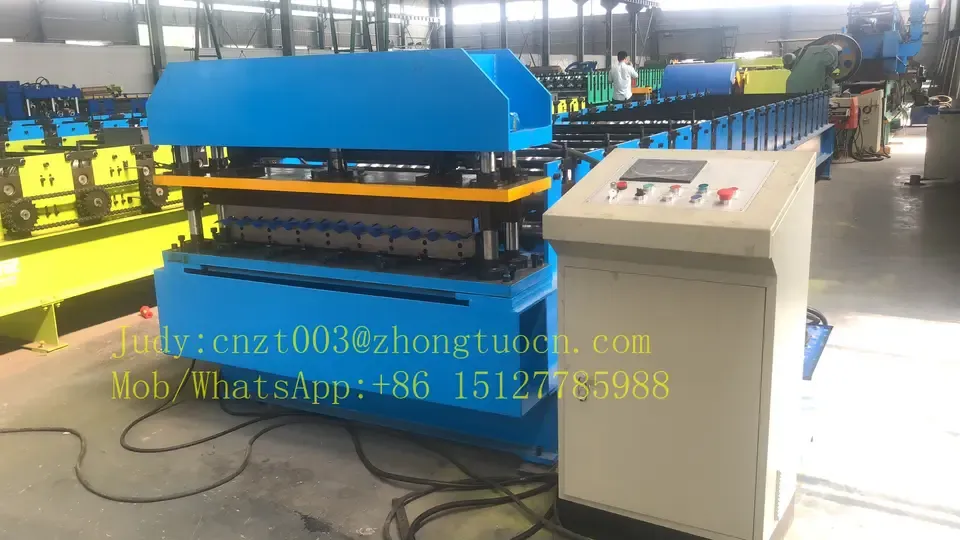

      PLC control system
      1. Control system: PLC
      2. PLC brand: Delta from Taiwan
      3. Frequency converter brand: Delta from Taiwan
      4. 5 Encoder: Omron
      5. Function: Automatic
      control the length, quantity and batch
      CE(No.OP180719.CZIDC95)
      ISO 9001(No:ZL92090220234630)
