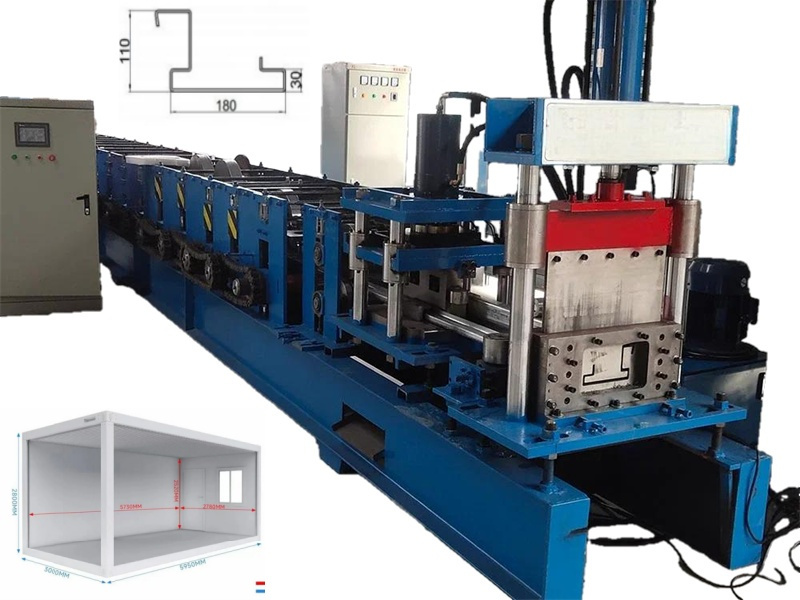

Container House Beam Roll Forming Machine 4mm Steel Frame Beam Forming Equipment Manufacturer 2.0-3.0mm

With the rapid development of modular construction and prefabricated buildings, the demand for efficient steel frame manufacturing equipment continues to increase. The Container House Steel Frame Roll Forming Machine is specially developed for producing structural steel beams, roof frames, floor beams, posts, and other components used in container houses and modular buildings.

Designed for 2.0-4.0mm galvanized steel, this heavy-duty roll forming system combines automatic feeding, leveling, profile forming, punching, hydraulic cutting, and finished-product handling. The continuous production process significantly reduces manual operations while maintaining consistent dimensions and reliable structural strength.For manufacturers of foldable container houses, modular homes, portable buildings, and prefabricated steel structures, this machine provides an efficient solution for large-scale frame component production.

Automatic Steel Frame Production for Container Houses

The Container House Steel Frame Machine uses a heavy-duty welded structure and a customized roller configuration to process relatively thick galvanized steel coils. During production, the strip is first unwound and guided into the leveling section, where material deformation is corrected before entering the forming stations.

The steel strip then passes through multiple precision rollers, which gradually transform the flat material into the required structural profile. This progressive forming method helps maintain profile accuracy and minimizes surface damage to galvanized material.

After roll forming, the integrated punching and hydraulic cutting systems process the profile according to the programmed dimensions. The finished sections can then be discharged automatically for subsequent assembly.

The complete manufacturing sequence is:

Coil Loading → Uncoiling → Guiding → Leveling → Roll Forming → Straightening → Punching → Hydraulic Cutting → Product Output

This integrated workflow is particularly suitable for container house factories that require repeatable production and reduced secondary processing.

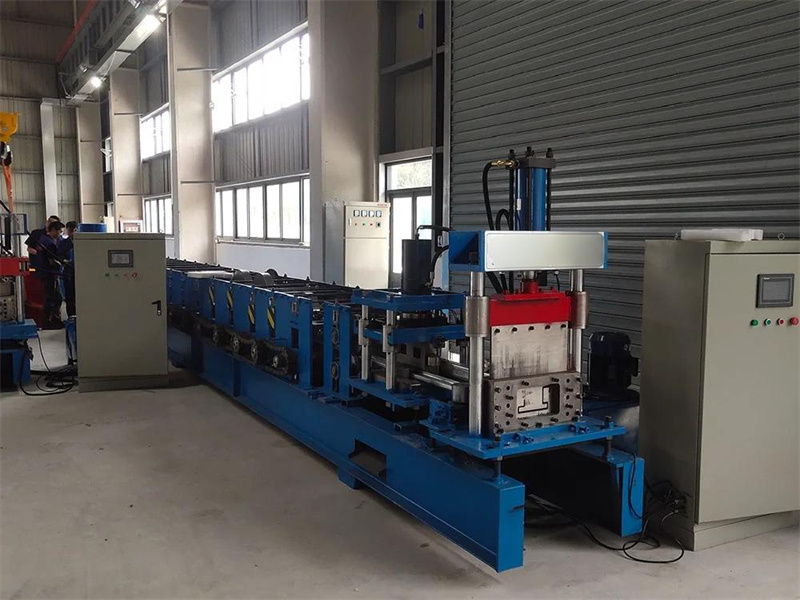

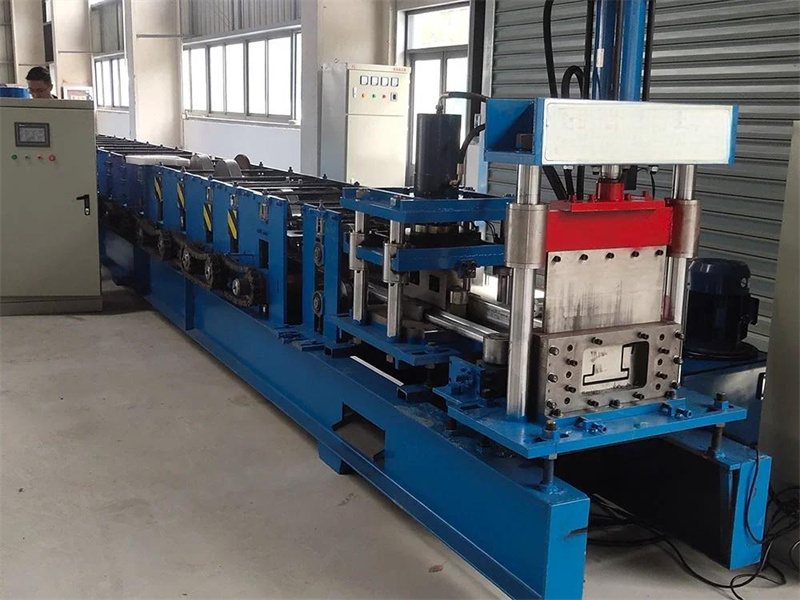

Heavy-Duty Beam Roll Forming Equipment

Unlike light-gauge framing machines, this Heavy Steel Beam Roll Former is designed for thicker steel materials and demanding structural applications. The machine uses a reinforced base frame manufactured from 40# I-beam, providing sufficient rigidity during continuous forming.

The forming section consists of 33 main rollers, 6 auxiliary rollers, 2 guide rollers, and 1 correction roller. This customized configuration helps maintain stable material guidance and accurate profile geometry throughout the forming process.

The main drive adopts a 1.5-inch chain transmission system with double-chain drive, while the K127 gearbox provides reliable power transmission for heavy-duty operation.

With a forming speed of approximately 13-14 m/min, the equipment can support continuous production while maintaining stable forming quality.

Main Technical Parameters

The specifications can also be adjusted according to the customer's required profile dimensions, material thickness, punching layout, and production capacity.

Precision Forming, Punching and Cutting

For structural components used in modular buildings, dimensional accuracy is extremely important because even small deviations can affect subsequent assembly.

The Steel Frame Roll Forming Line therefore uses specially processed forming components. The rollers are manufactured from Gr15SiMn bearing steel and treated through quenching and chrome plating to improve wear resistance and service life.

The main shafts use 40Cr steel with tempering treatment, providing sufficient strength for continuous heavy-load forming. For the cutting tools, Cr12MoV die steel with vacuum quenching is used to achieve clean and stable cutting performance.

The punching unit can also be configured according to the customer's structural design, including:

• Connection hole punching

• Drainage hole punching

• Bolt hole punching

• Assembly hole punching

• Customized punching patterns

By combining forming, punching, and cutting in one line, the finished steel sections can be prepared for direct frame assembly with less secondary machining.

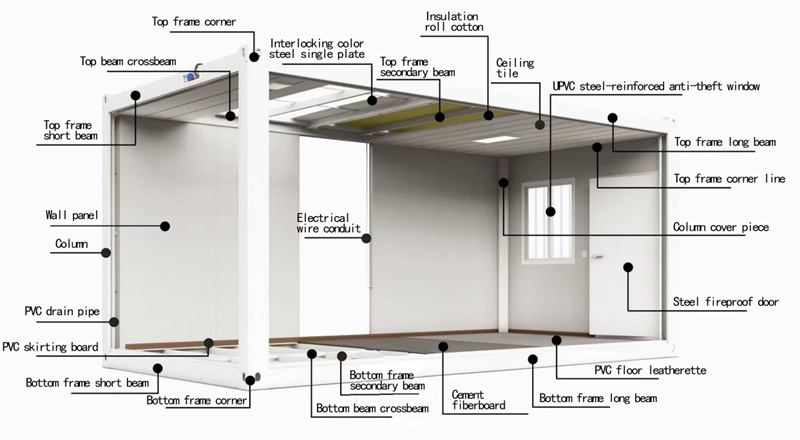

Applications of Container House Frame Manufacturing Machine

The Container House Frame Roll Forming Equipment can be used to manufacture various structural components for modular and prefabricated buildings.

Typical applications include:

• Container house roof beams

• Container house floor beams

• Structural frame members

• Corner and side frame sections

• Foldable house components

• Portable building structures

• Modular housing steel frames

• Customized prefabricated building profiles

It is suitable for manufacturers producing standard container homes as well as companies developing customized modular building systems.

Integrated Production System for Modular Construction

One of the major advantages of this Modular Building Frame Roll Forming Machine is its integrated production concept. Traditional steel fabrication often requires separate cutting, drilling, forming, and preparation processes, resulting in additional labor and handling.

This automatic line combines the major operations into a continuous production system. Once the production parameters are entered through the PLC control system, the machine can automatically coordinate material feeding, forming, punching, length measurement, and cutting.

This helps manufacturers achieve:

• More consistent profile dimensions

• Reduced manual handling

• Higher production efficiency

• Lower secondary processing requirements

• Better material utilization

• Easier production management

The PLC control system and encoder work together to improve length measurement and cutting accuracy, while the hydraulic system provides stable power for the cutting operation.

Heavy-Duty Configuration for Long-Term Production

The machine is designed for industrial production environments where equipment stability and durability are essential. Major structural components are manufactured and processed with attention to mechanical strength, while the hydraulic and electrical systems are selected for reliable continuous operation.

The standard configuration can include a 7-ton manual tension uncoiler, independent discharge rack, hydraulic station, and dedicated power cable system.

The hydraulic unit uses No. 46 anti-wear hydraulic oil, helping maintain stable hydraulic performance during long-term operation.

The equipment can also be customized according to the customer's factory layout, production requirements, profile drawings, and local electrical standards.

Why Invest in a Container House Steel Frame Roll Former?

For modular building manufacturers, a dedicated Container House Beam Roll Forming Machine can greatly simplify structural component production. Instead of relying on multiple independent machines and manual fabrication, manufacturers can establish a continuous production process from steel coil to finished structural section.

The key advantages include:

• Heavy-duty forming capability for thick galvanized steel

• Automatic continuous production at approximately 13-14 m/min

• Integrated punching and hydraulic cutting

• High dimensional accuracy with PLC and encoder control

• Durable forming rollers and shafts

• Reduced labor and secondary processing

• Flexible profile and punching customization

• Suitable for container houses and modular buildings

With its combination of strong forming capacity, automated processing, and customizable production functions, the Container House Steel Frame Roll Forming Machine is a practical choice for manufacturers looking to increase the efficiency and consistency of prefabricated steel frame production.
