Composite Floor Deck Roll Forming Machine for Steel Production High Percision

Composite Floor Deck Roll Forming Machine：High-efficiency Custom Roll Former

Description:A composite floor deck roll forming machine is a professional cold roll forming equipment designed for manufacturing composite steel floor deck panels widely used in modern high-rise buildings, commercial plazas, industrial workshops, and steel structure construction projects. Different from ordinary single-layer floor deck machines, this composite roll former can produce profiled steel sheets that form a firm composite structure with concrete after pouring, effectively improving the overall bearing capacity, seismic performance, and construction efficiency of building floors.

As a core equipment in steel structure building material production lines, our composite floor deck roll forming machine integrates feeding, leveling, rolling forming, punching, cutting, and discharging into one automatic process. It solves the pain points of low manual production efficiency, inconsistent product size, and high material waste in traditional floor deck processing. With fully automatic PLC control, the equipment supports continuous 24-hour stable operation, becoming the preferred production equipment for building material manufacturers and engineering contractors worldwide.

Core Working Principle of Composite Floor Deck Roll Forming Machine

The working process of the composite floor deck forming machine follows scientific cold roll forming technology, without high-temperature processing, which ensures the physical properties and tensile strength of the steel plate remain intact. The entire production process is automated and intelligent, with precise process steps as follows:

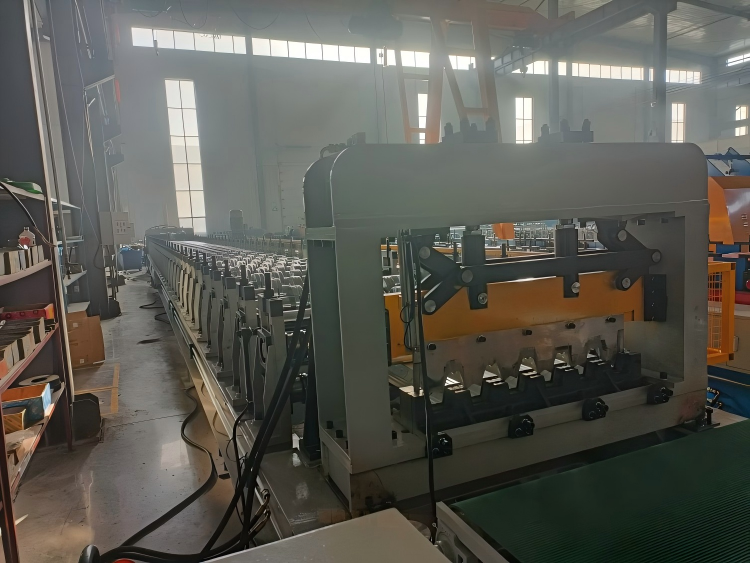

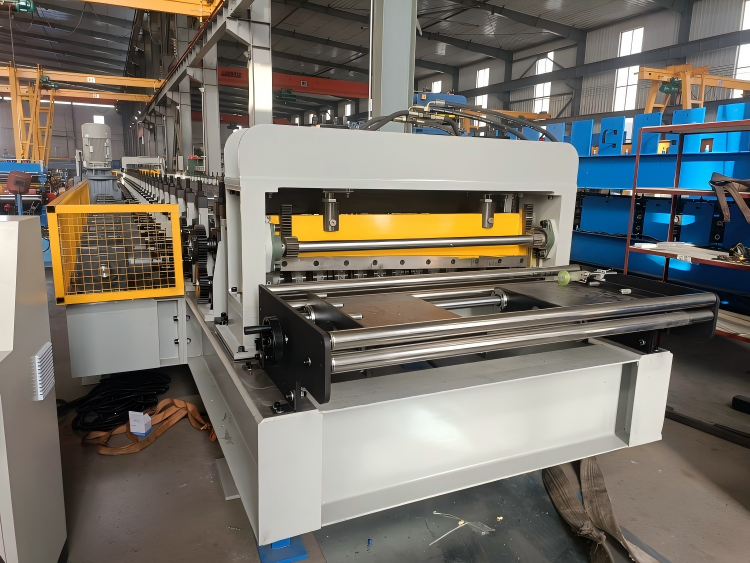

First, the raw galvanized steel coil or color steel coil is placed on the hydraulic uncoiler, and the equipment automatically completes material feeding and tension adjustment. Then the steel strip enters the leveling device to eliminate plate bending and deformation, ensuring flat raw materials and laying a foundation for precise forming. After leveling, the steel strip is sent to the multi-group rolling roller system. Through gradual rolling and extrusion of precision rollers, the flat steel plate is pressed into standard composite floor deck profiles with specific rib heights and groove structures.

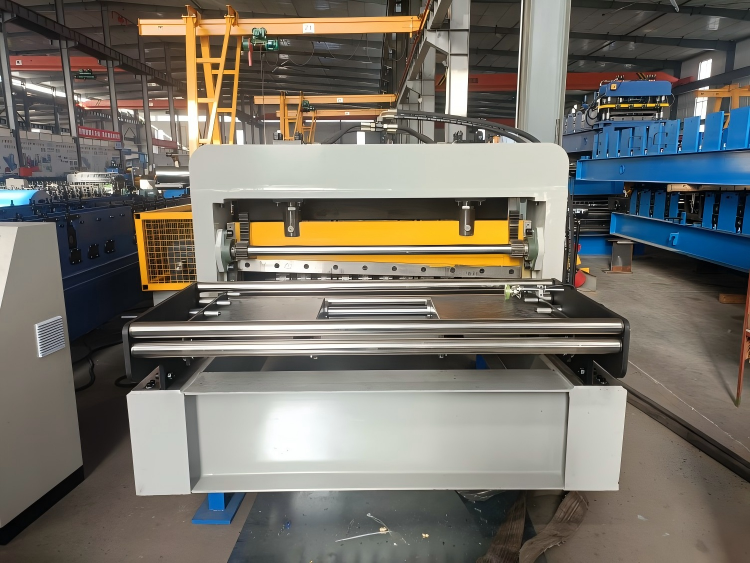

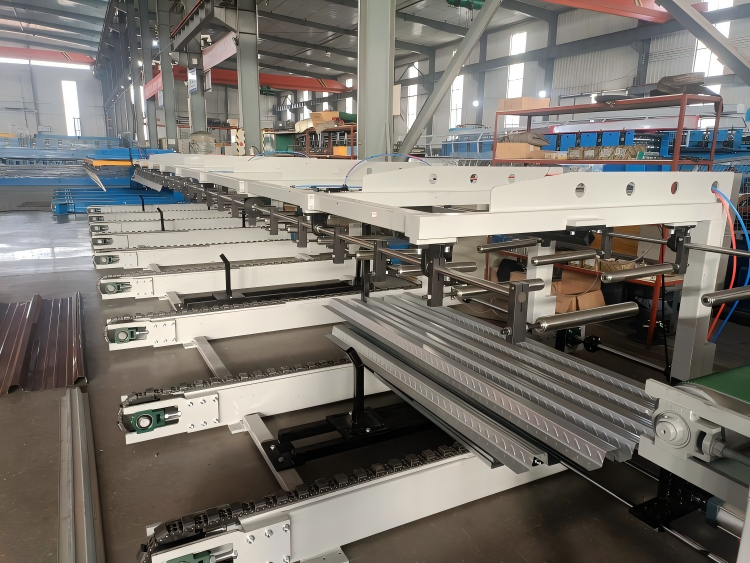

In the middle process, the equipment can complete automatic punching of positioning holes and connecting holes according to customized requirements, which facilitates on-site splicing and installation of floor decks. Finally, the hydraulic cutting system accurately cuts the formed profiles according to the set length, and the finished products are automatically discharged. The whole process is controlled by a professional PLC system, with adjustable production speed and customizable product specifications, realizing one-stop intelligent production of composite floor decks.

Key Advantages of Our Composite Floor Deck Forming Equipment

Compared with ordinary floor deck forming machines on the market, our composite floor deck roll forming machine has obvious advantages in structural design, production performance, energy saving and durability, fully meeting the high-standard production needs of global construction projects:

High Forming Precision and Stable Product Quality

The equipment adopts high-precision CNC machined rollers made of high-quality alloy steel with quenching treatment, which features high hardness, wear resistance and non-deformation. The multi-stage gradual rolling design avoids plate wrinkling, scratching and dimensional deviation. The forming precision error is controlled within ±0.5mm, and the produced composite floor decks have uniform groove spacing, flat surfaces and standard profiles, which can perfectly match concrete composite construction standards.

Fully Automatic Operation and High Production Efficiency

Equipped with an intelligent PLC control system and touch screen operation panel, the machine supports one-key parameter setting, automatic material feeding, forming, punching and cutting. No manual intervention is required in the whole production process. The maximum production speed can reach 15-20 meters per minute, which is 2-3 times higher than traditional manual auxiliary equipment. It can efficiently complete large-scale order production and greatly shorten the production cycle of building materials.

Strong Customization Compatibility

Our composite floor deck forming machine supports customized production of various specifications of composite floor decks, including different rib heights (50mm-120mm), plate thicknesses (0.8mm-1.5mm) and profile types. It can process galvanized steel sheets, aluminum-zinc coated sheets and other raw materials, adapting to different building load-bearing requirements and construction scenarios. We can provide personalized equipment transformation and mold customization services according to customers’ drawings and production needs.

Durable Structure and Low Maintenance Cost

The main frame of the equipment adopts thickened steel plate welding structure, with strong rigidity and stable operation, effectively avoiding vibration and deformation during long-term operation. The core transmission components adopt famous brand accessories, with low failure rate and long service life. The equipment is designed with an open maintenance structure, which is convenient for daily cleaning, lubrication and parts replacement, reducing later operation and maintenance costs for customers.

Energy Saving and Environmental Protection, Low Noise Operation

The equipment is equipped with a high-efficiency energy-saving motor and closed transmission system, which reduces power consumption during operation. The whole production process adopts cold forming technology, no waste gas, waste water and industrial waste residue are generated, meeting international environmental protection standards. At the same time, the silent vibration reduction design effectively reduces operation noise, creating a green and safe production environment.

Main Technical Parameters of Composite Floor Deck Forming Machine

We provide standardized and customized technical configurations to meet different production demands. The core parameters of our mainstream composite floor deck roll forming machine are as follows:

Applicable raw materials: Galvanized steel coil, aluminum-zinc steel coil, color steel coil

Applicable plate thickness: 0.8mm - 1.5mm

Forming speed: 15 - 20 m/min (adjustable)

Forming precision: Dimensional error ≤ ±0.5mm

Control system: PLC intelligent full-automatic control

Power configuration: 22KW - 30KW (customizable)

Cutting mode: Hydraulic automatic fixed-length cutting

Machine weight: About 5.5 tons

Equipment size: 8500mm × 1200mm × 1500mm

Application Scenarios of Composite Floor Deck Panels

The composite floor decks produced by our automatic composite floor deck forming machine have excellent structural performance and wide application range, covering mainstream steel structure building fields worldwide:

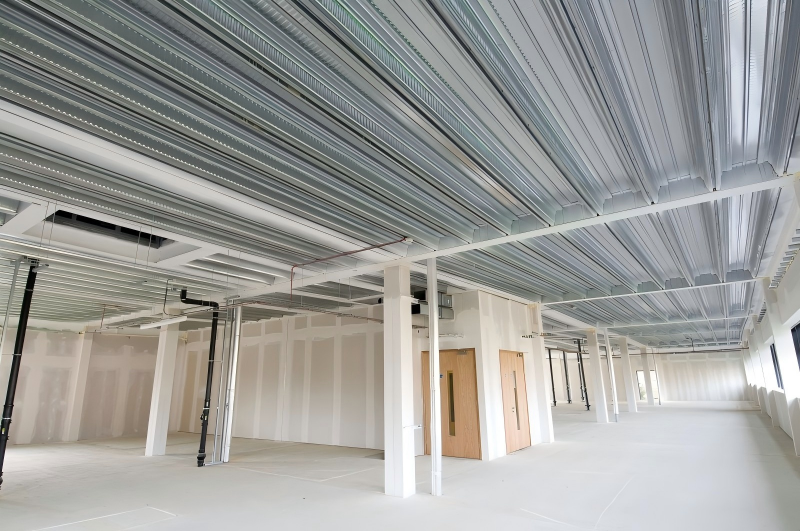

First, high-rise steel structure buildings such as office buildings, residential buildings and hotel buildings. The composite floor deck can reduce the self-weight of the building floor, improve seismic resistance, and speed up on-site construction progress. Second, large industrial buildings including factory workshops, warehouses and logistics parks, which require high load-bearing floor structures and long-term stable use.

In addition, it is also widely used in public construction projects such as commercial plazas, exhibition halls, parking lots and subway auxiliary buildings. The composite structure formed by floor deck and concrete can effectively reduce floor thickness, save building materials and reduce comprehensive engineering costs, which is highly recognized by engineering contractors and building material suppliers in Europe, Southeast Asia, the Middle East and other regions.

Why Choose Our Composite Floor Deck Forming Machine?

As a professional manufacturer of steel profile roll forming equipment with more than 20 years of export experience, we have core advantages in product quality, technical service and after-sales guarantee, providing one-stop solutions for global customers:

Firstly, professional R&D and manufacturing strength. We have a professional technical team focusing on roll forming equipment research and development, continuously optimizing equipment structure and production technology. All equipment undergoes strict factory testing and quality inspection to ensure stable operation and compliant performance.

Secondly, flexible customization services. We can adjust equipment parameters, mold specifications and functional configurations according to customers’ local building standards and market demands, helping customers produce high-competitive floor deck products suitable for local markets.

Thirdly, perfect export after-sales system. We provide overseas door-to-door installation guidance, equipment commissioning, operator training and long-term after-sales maintenance services. The core accessories are supplied in stock globally, which can quickly solve customer equipment operation problems and ensure stable production.

Fourthly, cost-effective products. Direct factory sales eliminate intermediate links, providing customers with high-quality and low-price equipment. The equipment has low energy consumption and high production efficiency, which can effectively reduce customers’ long-term production costs and create higher economic benefits.

After-sales Service & Cooperation Support

We adhere to the service concept of "quality first, customer foremost" and provide comprehensive guarantee for every overseas customer. All our composite floor deck forming machines enjoy a 12-month warranty period and lifelong technical maintenance services. During the warranty period, any non-human damage to core components will be repaired and replaced free of charge.

We support multiple international trade methods (FOB, CIF, CFR, DDP) and provide professional export documents such as CE certification, ISO quality certification, and customs declaration materials to meet the import standards of various countries. Whether you are a building material factory, engineering contractor or equipment distributor, we can provide customized production solutions, competitive quotation and professional technical support.

Final Summary

The composite floor deck forming machine is indispensable core equipment for modern steel structure building material production. Our fully automatic, high-precision and energy-saving composite floor deck roll former has stable performance, strong customization and wide application, which can help global customers efficiently produce high-quality composite floor deck panels and occupy the market advantage in the construction building material industry.
