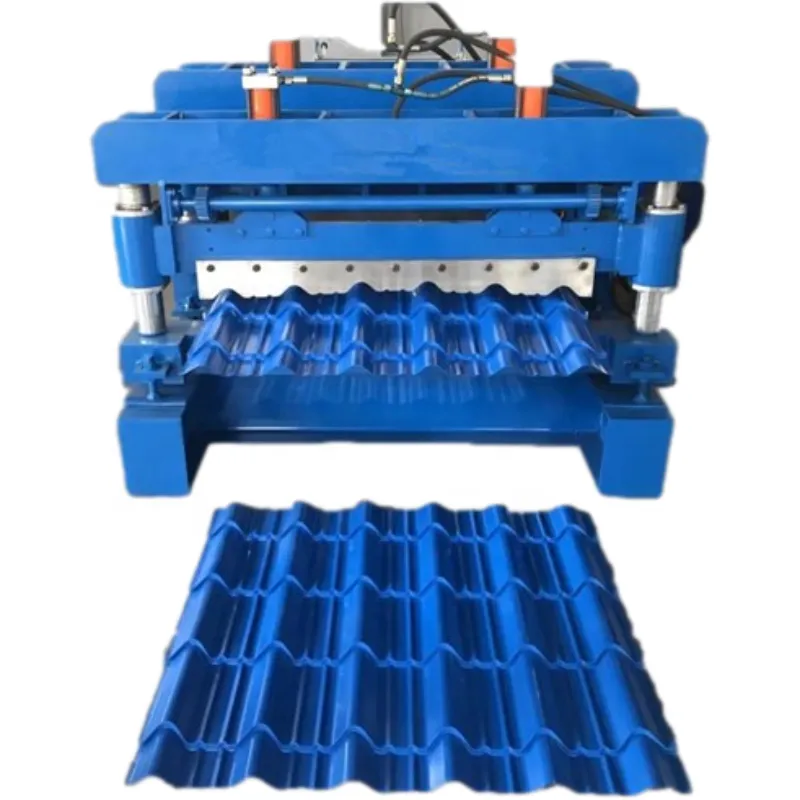

Color Steel Glazed Tile Roofing Tile Making Machine Roll Forming Machine ZT-1000+9.5KW

Cangzhou Zhongtuo International Trade Co., Ltd

Color Steel Glazed Tile Roofing Tile Making Machine Roll Forming Machine ZT-1000+9.5KW

Name: Color Steel Glazed Tile Roofing Tile Making Machine Roll Forming Machine ZT-1000+9.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT81243311

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZT-1000

Power(W):

9.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380V,50HZ,3P
Rolling Thinckness
0.3-0.8mm
Feeding Width
1250 mm

Product Description

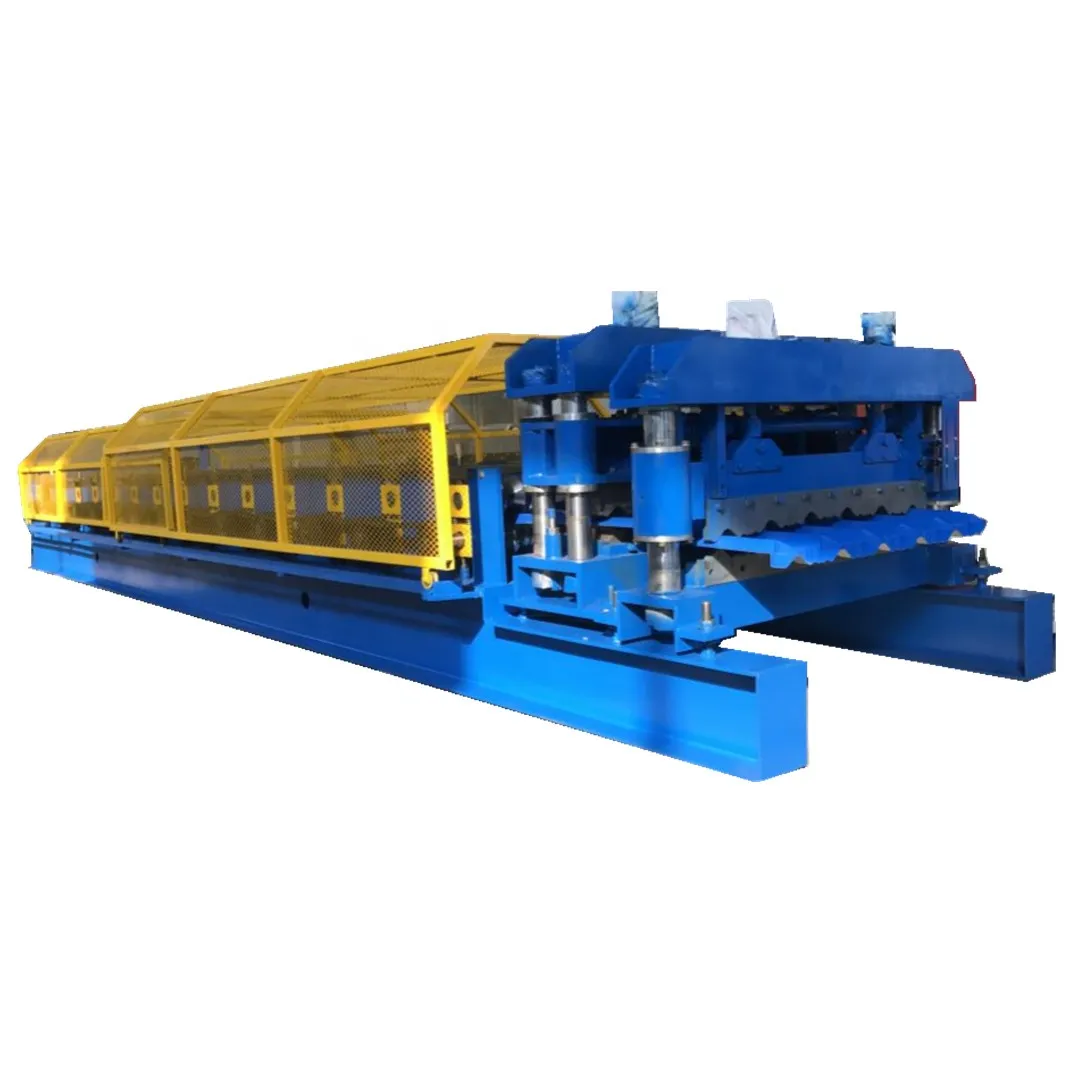

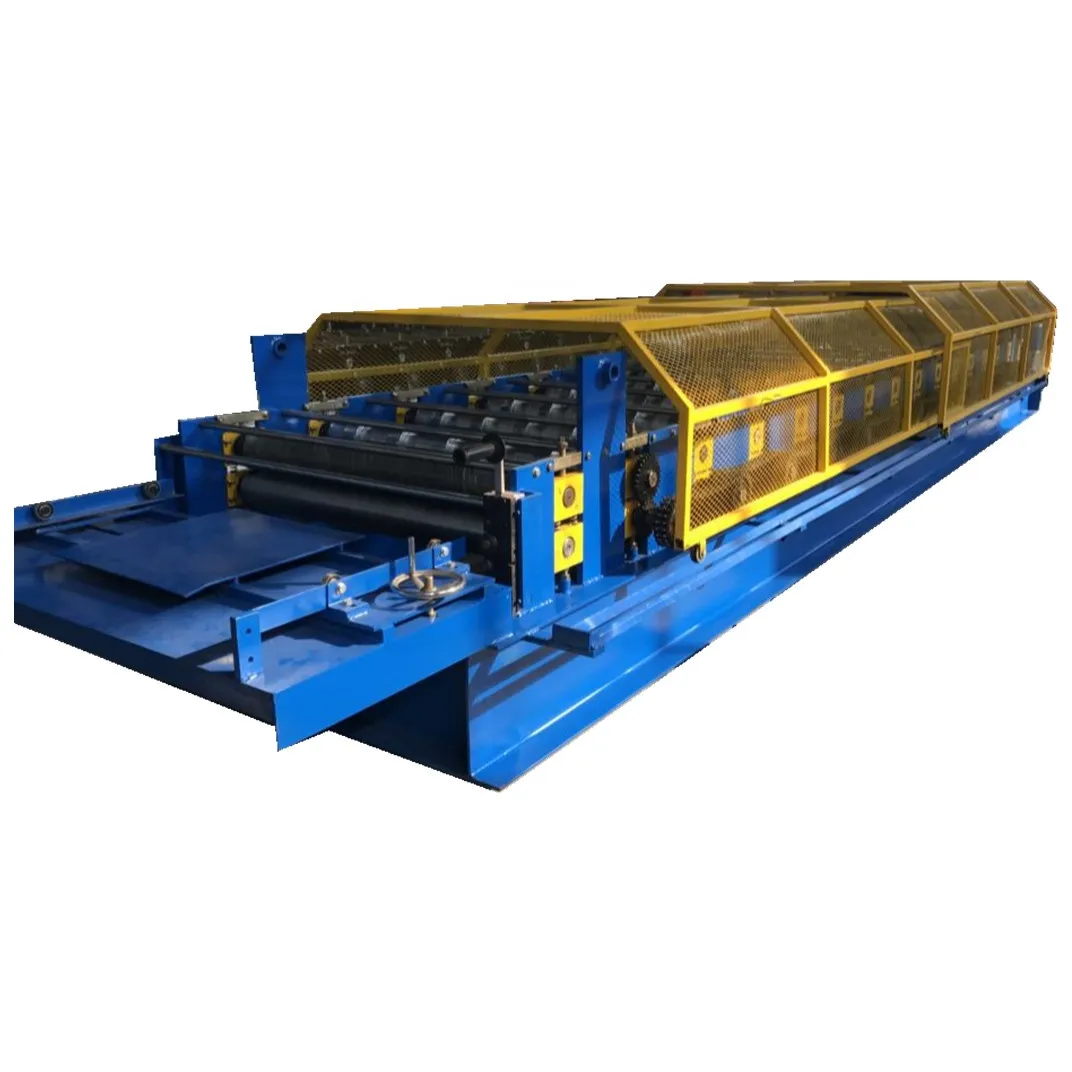

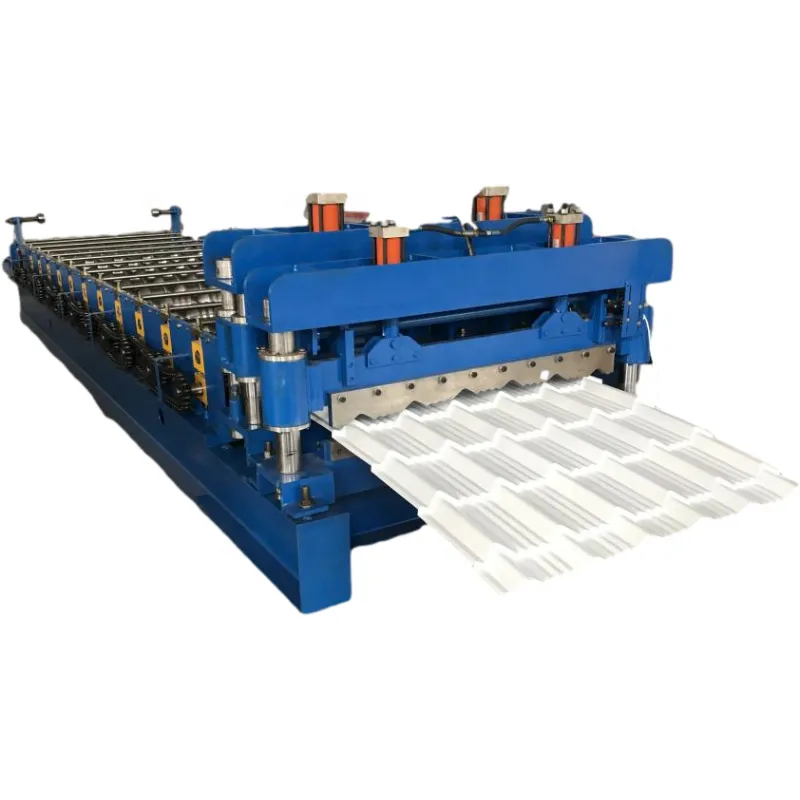

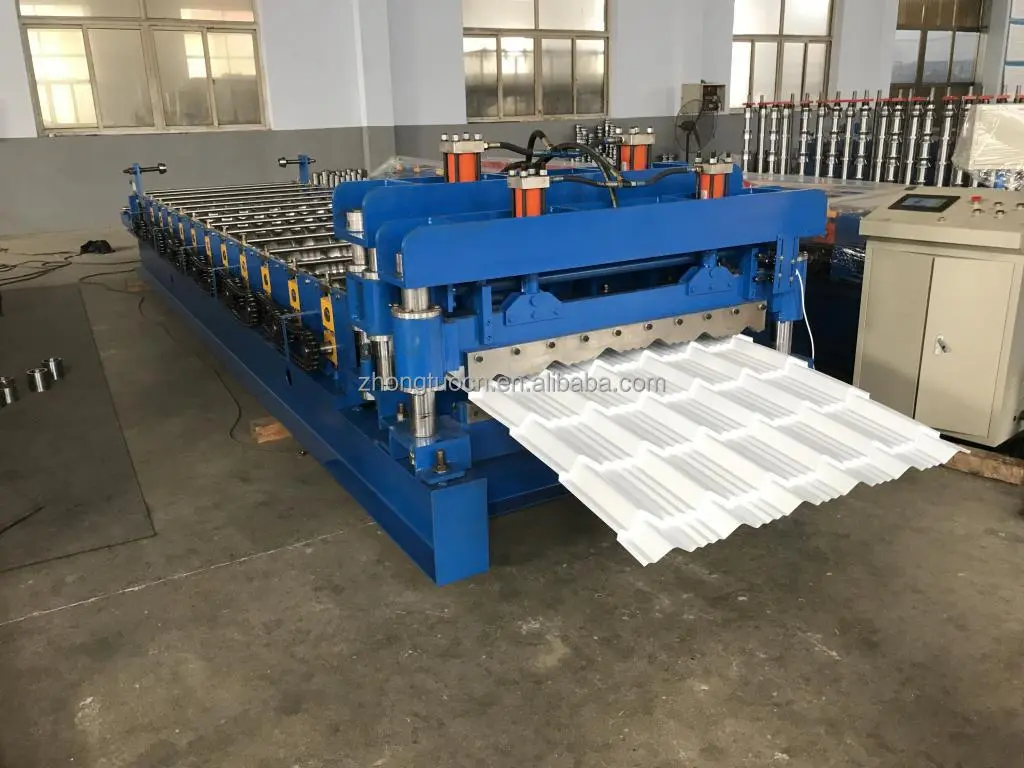

Color steel Glazed tile roofing tile making machine roll forming machine

Color steel Glazed tile roofing tile making machine roll forming machine is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

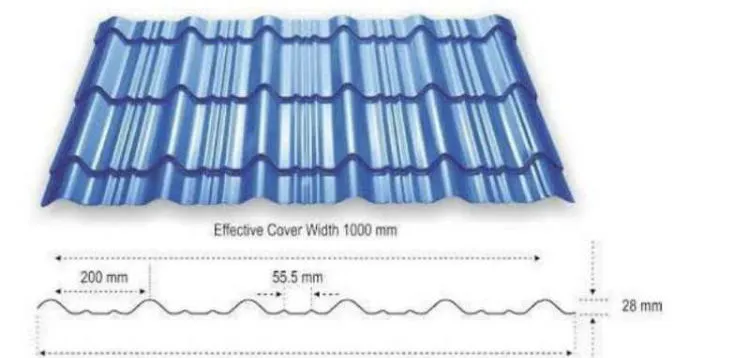

Roofing sheet profile drawing:

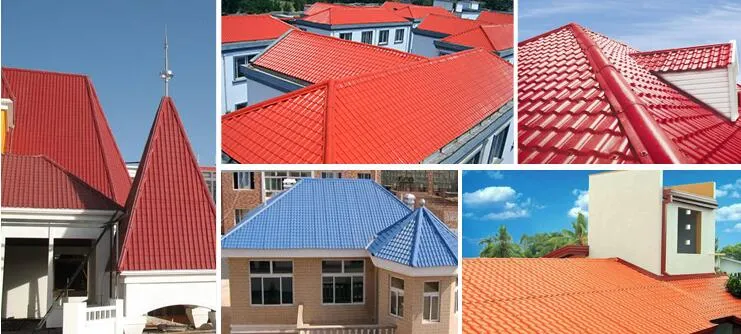

Roofing sheet installation and application:

Color steel Glazed tile roofing tile making machine roll forming machine
1.Formed Material	PPGI,GI,AI,GL		Thickness:0.3-0.8mm Width:1250mm(As per profile drawing)
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		13 rows(As your requirement)

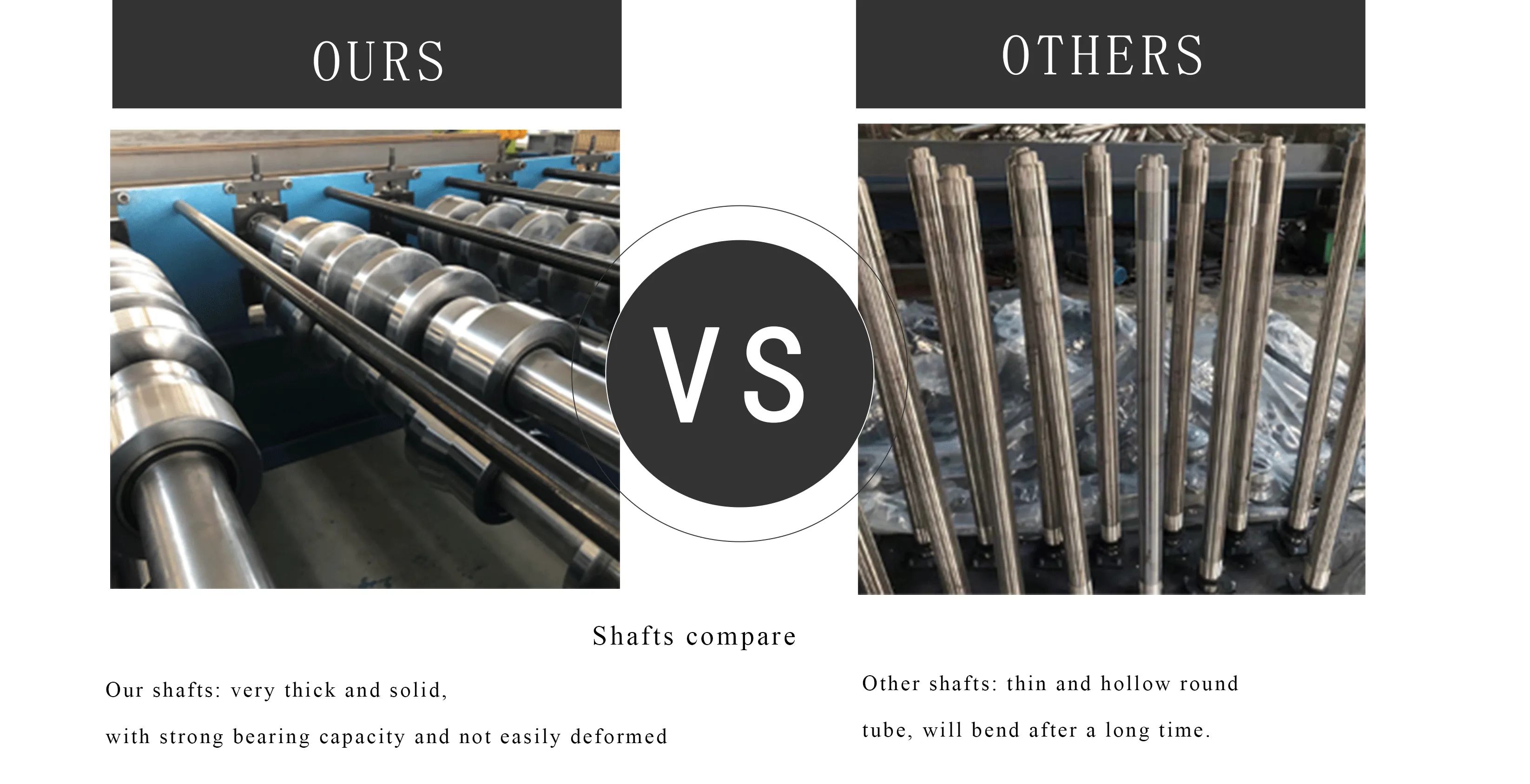

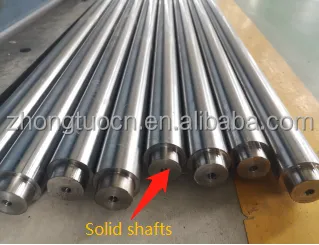

		Diameter of shaft		80mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		350 H steel
		Drive		Chain transmission
		Dimension(LWH)		750016001600(customize)
		Weight		7.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement

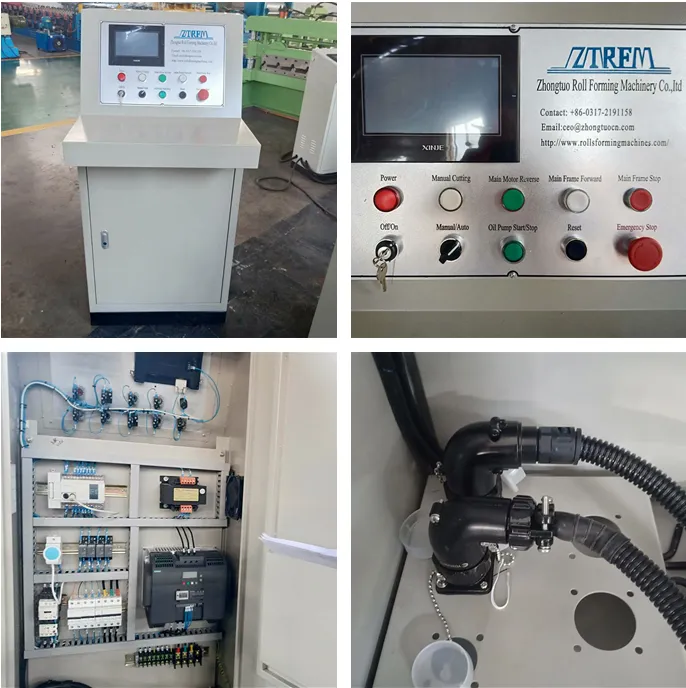

7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	3-5m/min		The speed is adjustable

More Detail

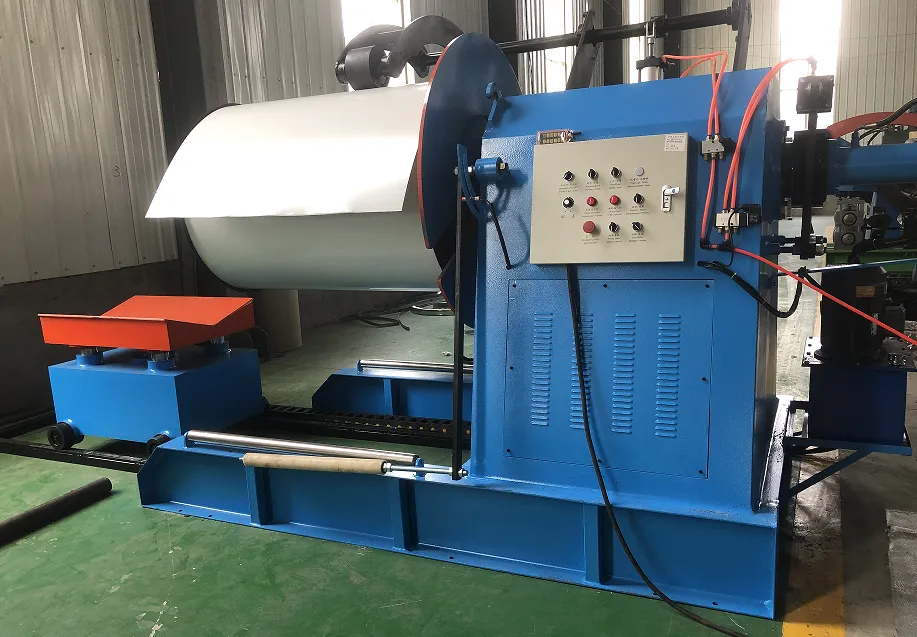

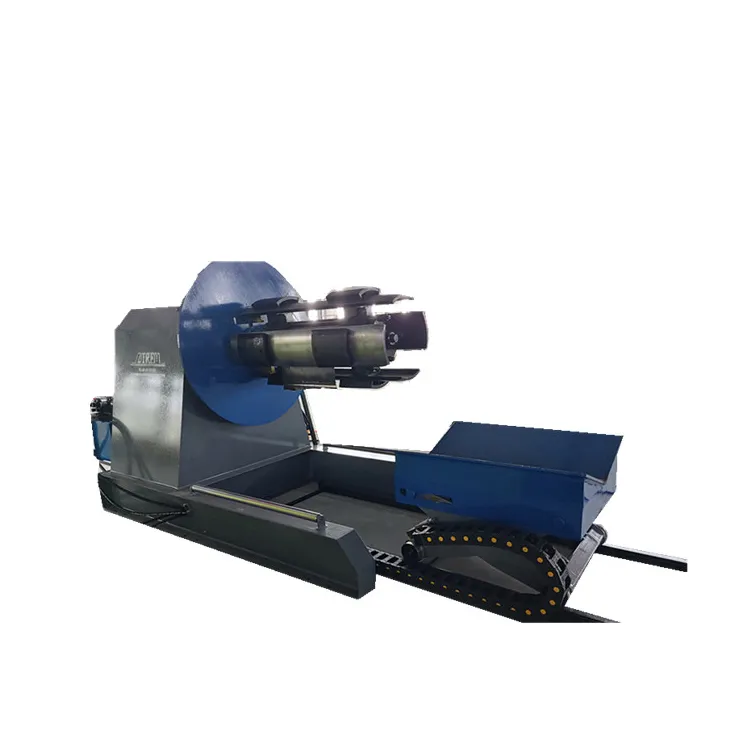

Hydraulic decoiler

1.Automatic working

2.Hydraulic expansion

3.With press arm to keep the coil from loosing

4.With braking system and speed sensor to match the speed with other machines

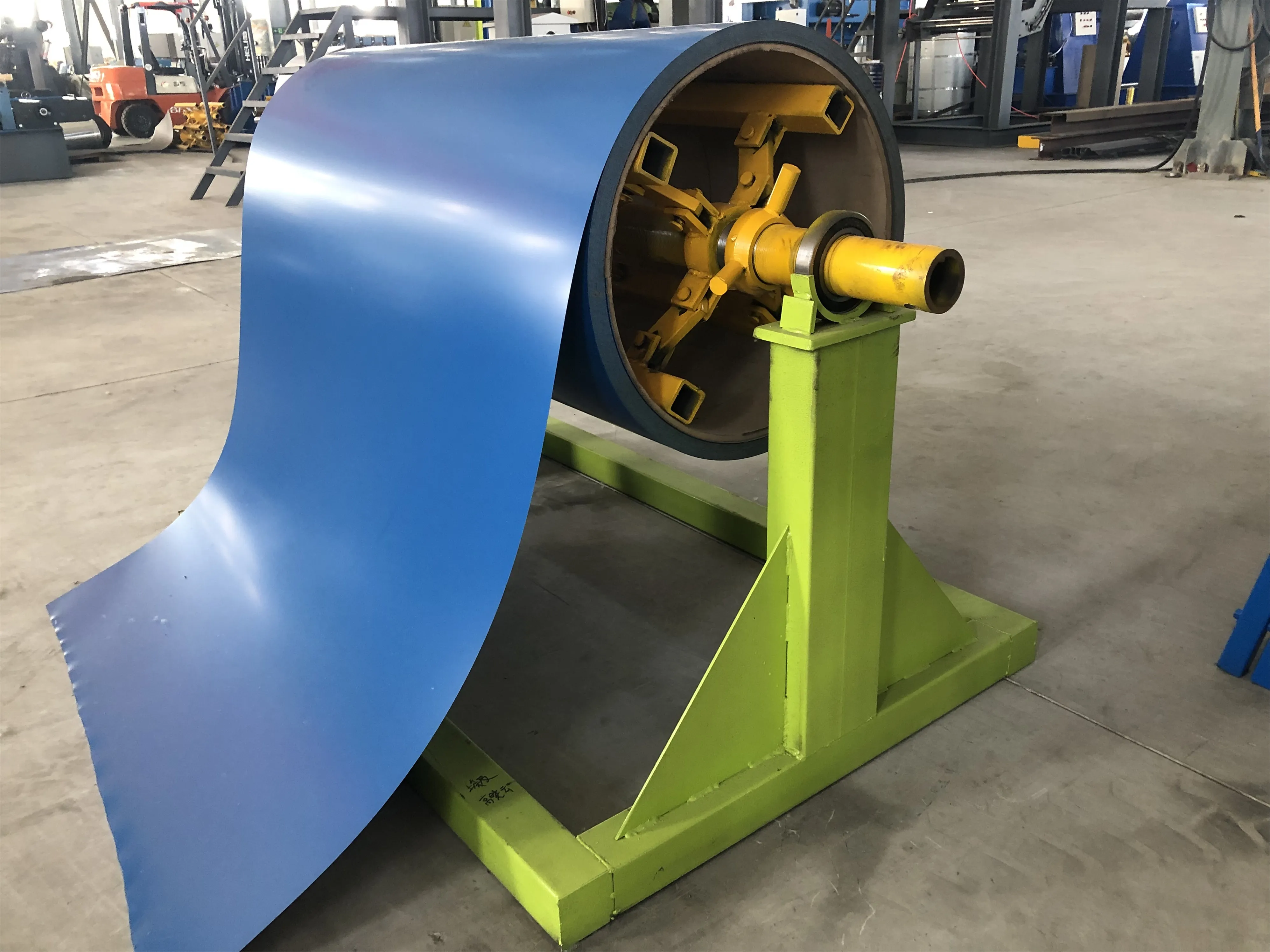

Manual decoiler

1.Working type:Unpowered

2.With hand-wheel for easy operation

3.With manual braking system

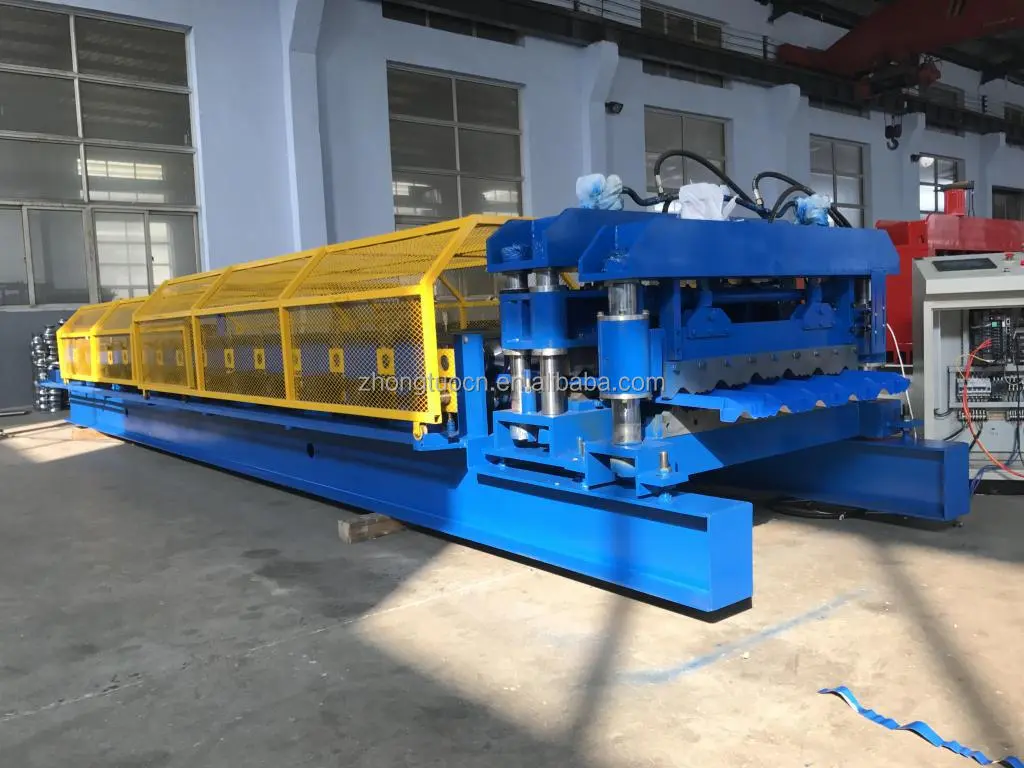

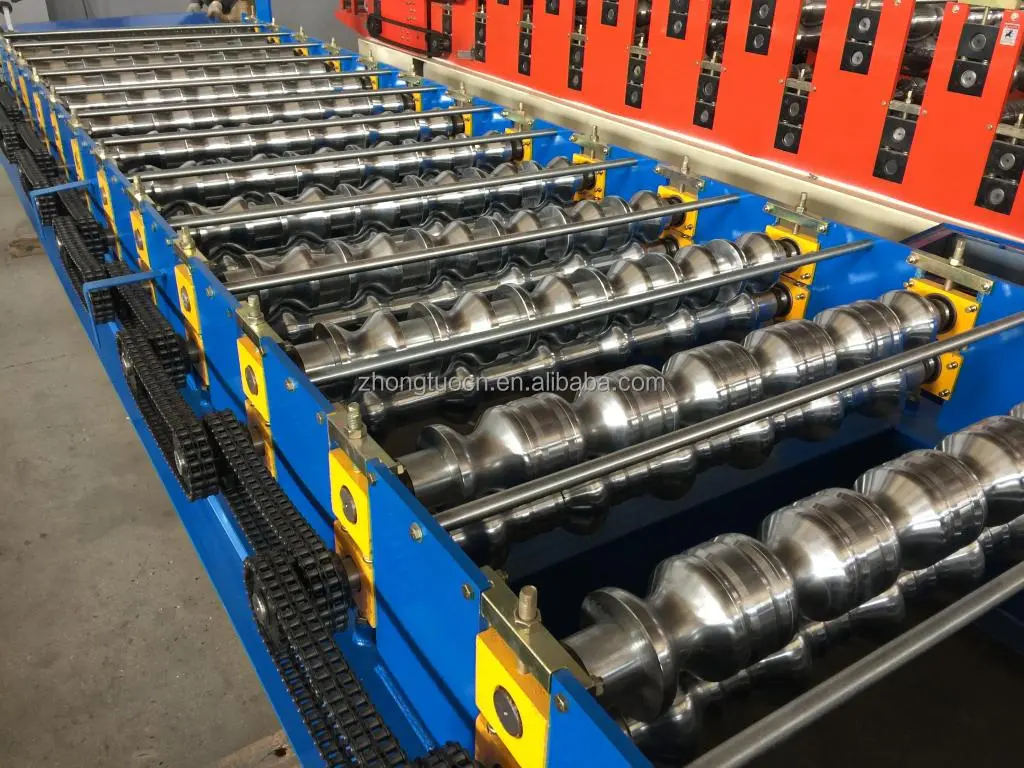

Main roll former

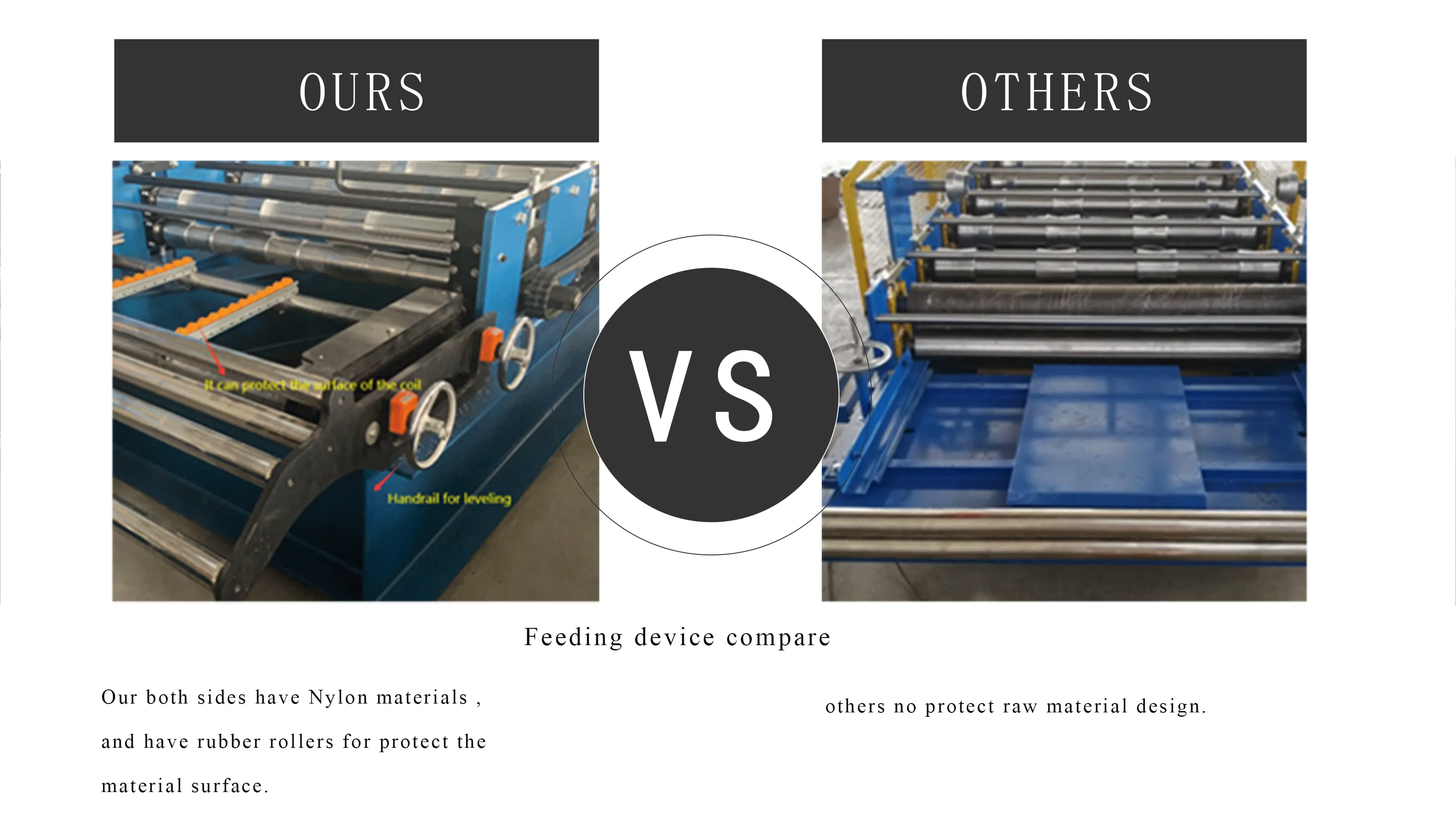

Stainless rollers as the feeder,will protect the material from scratching the surface

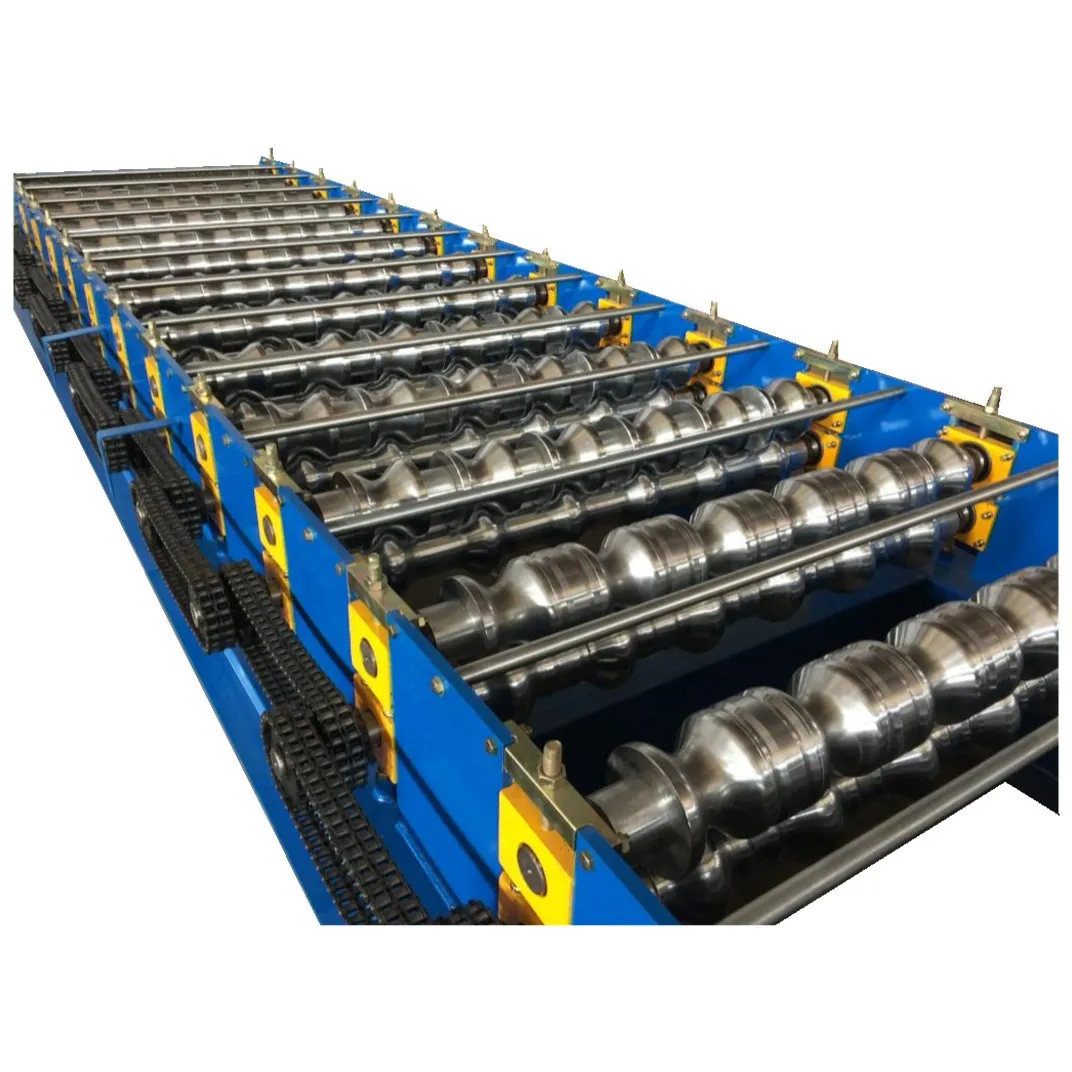

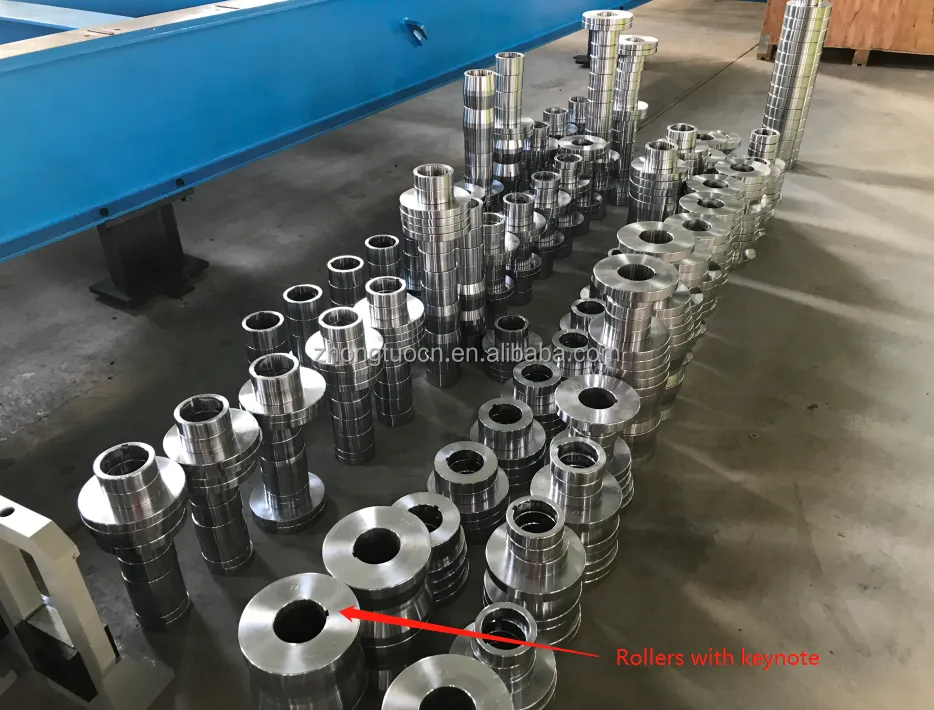

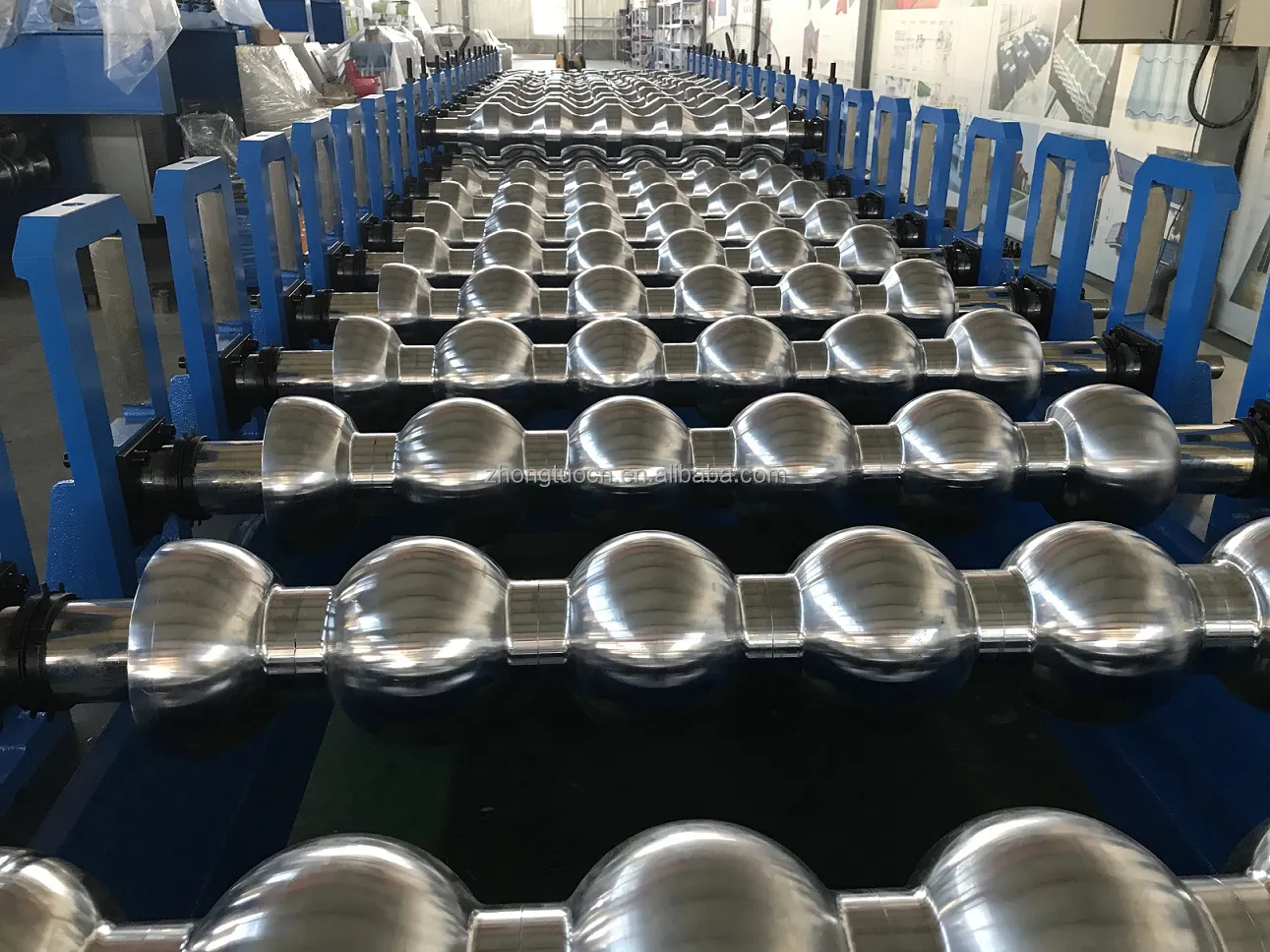

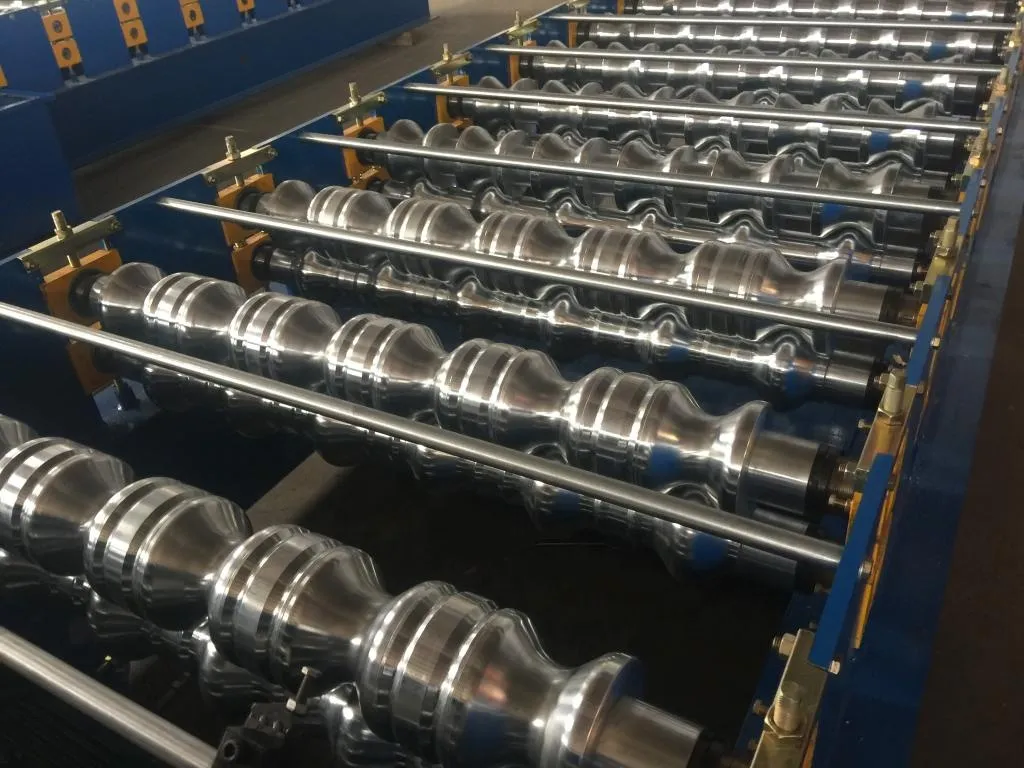

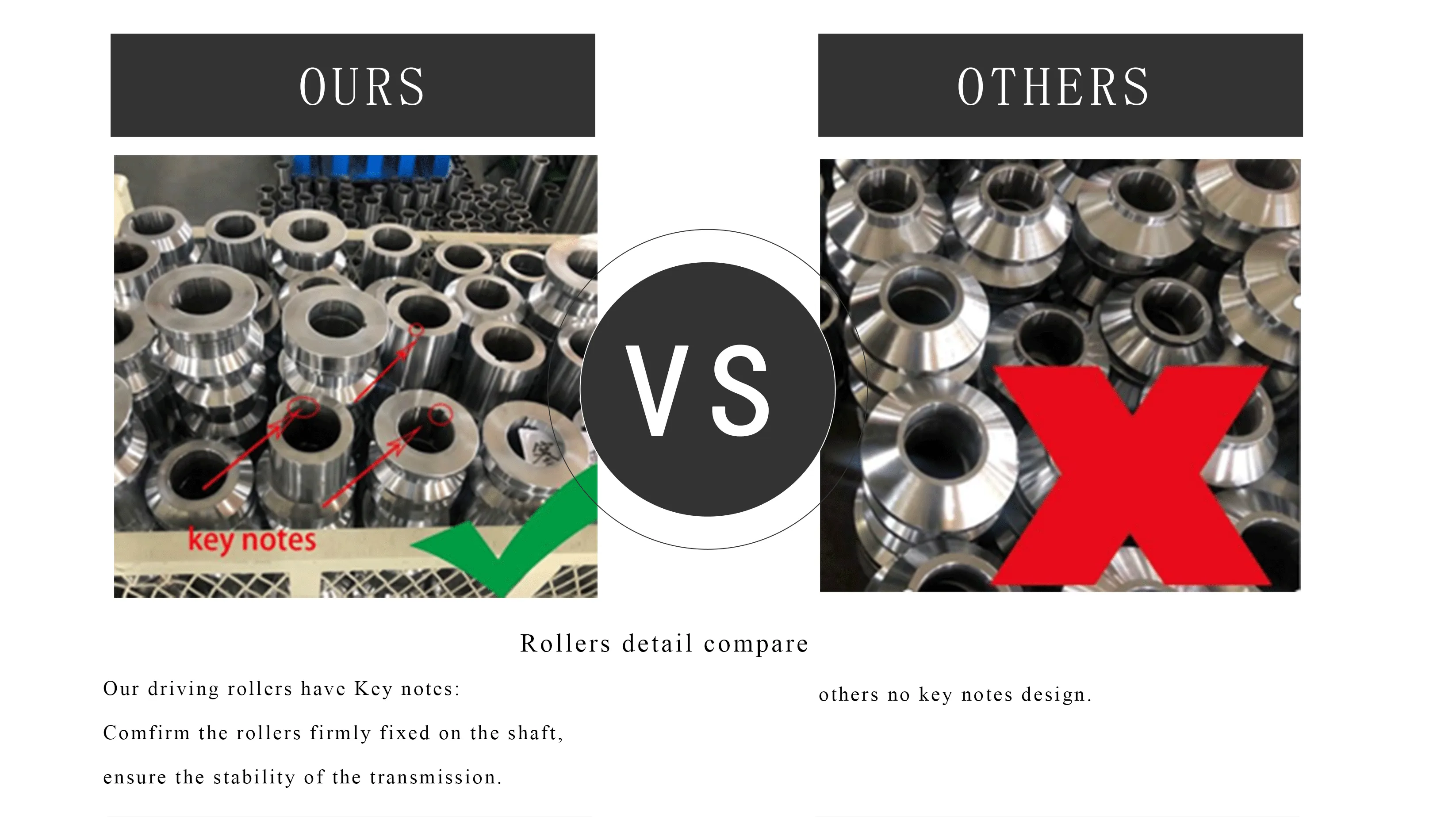

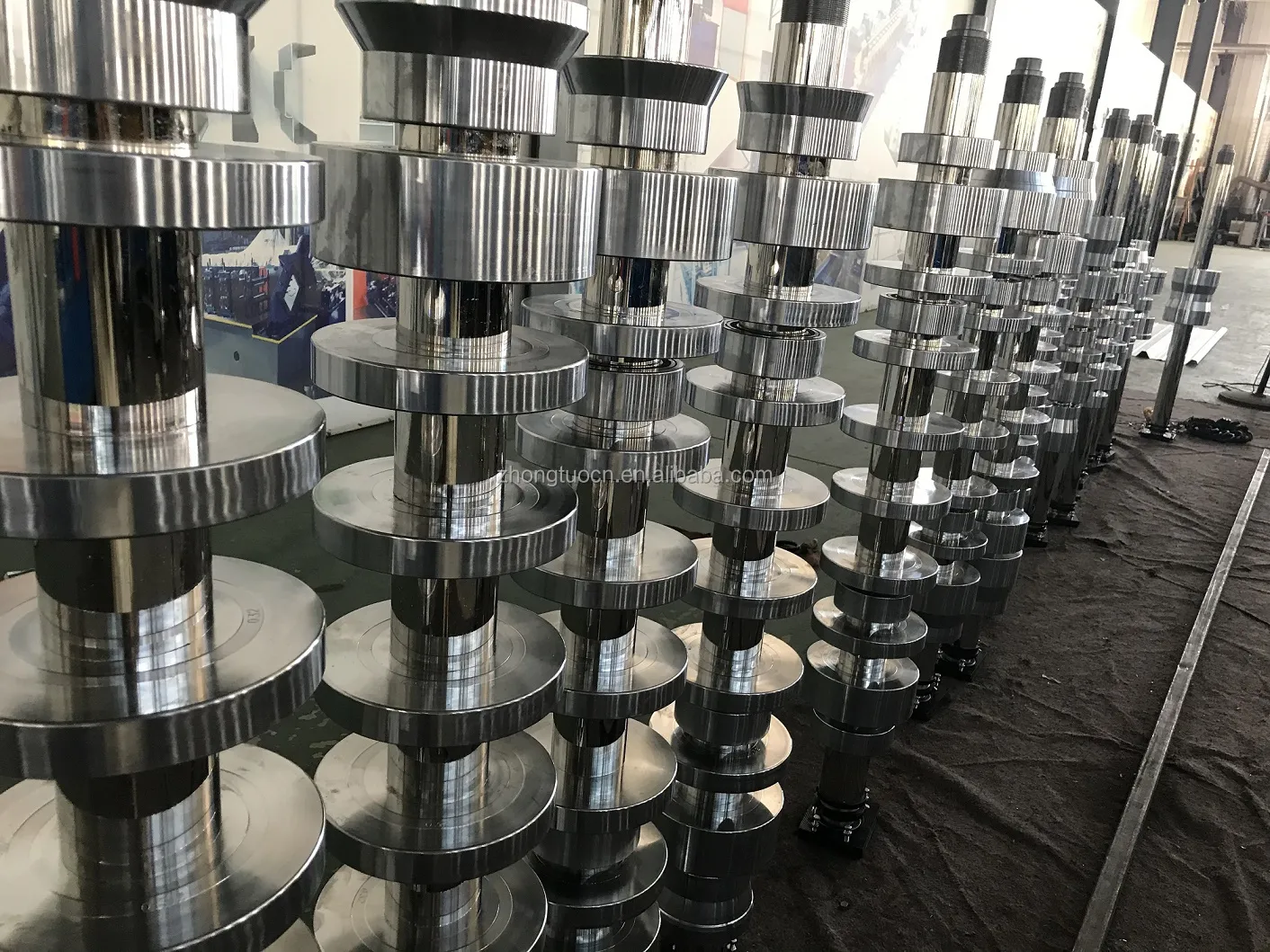

Rollers

1.Surface with chromed treatment
2.Material:45# steel

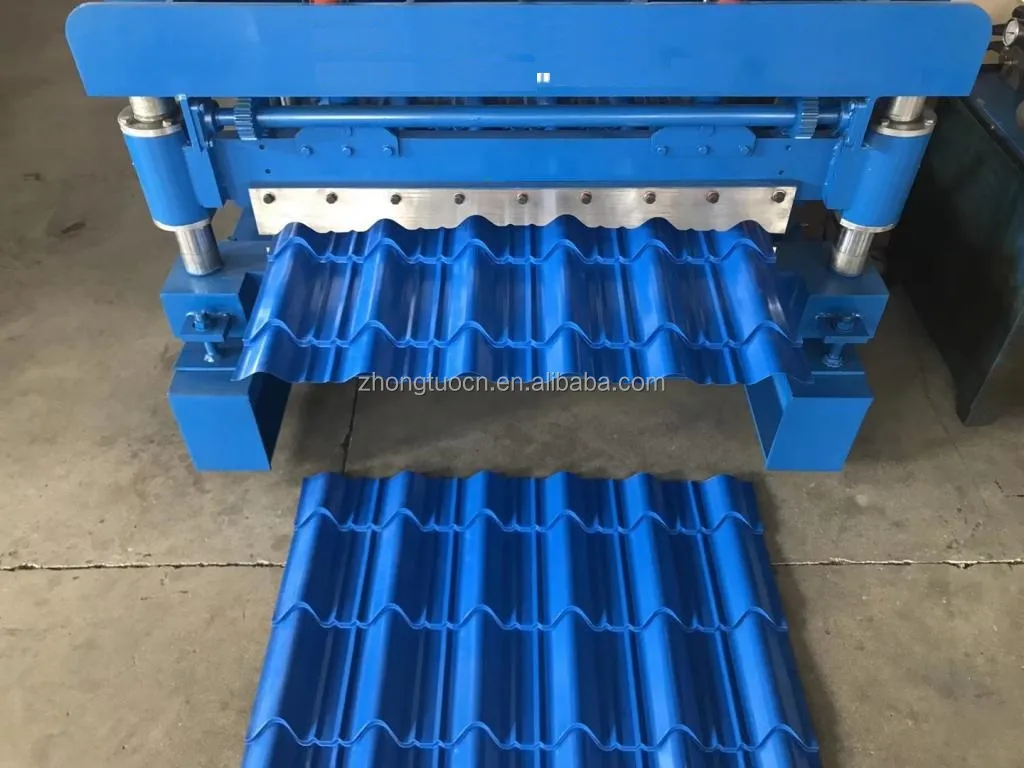

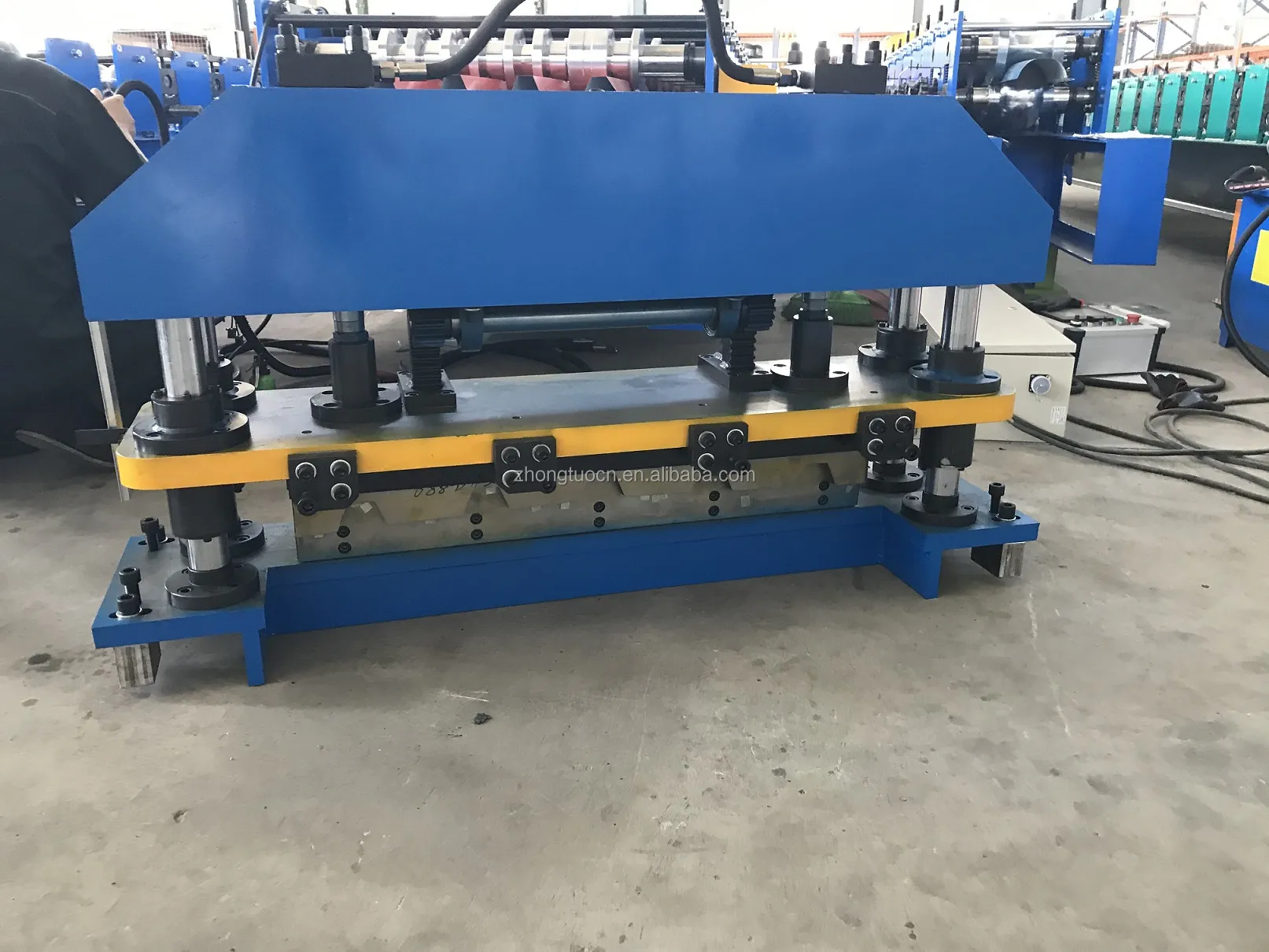

Cutter

1.Four-guide post cutting frame
2.Strong cutting blade

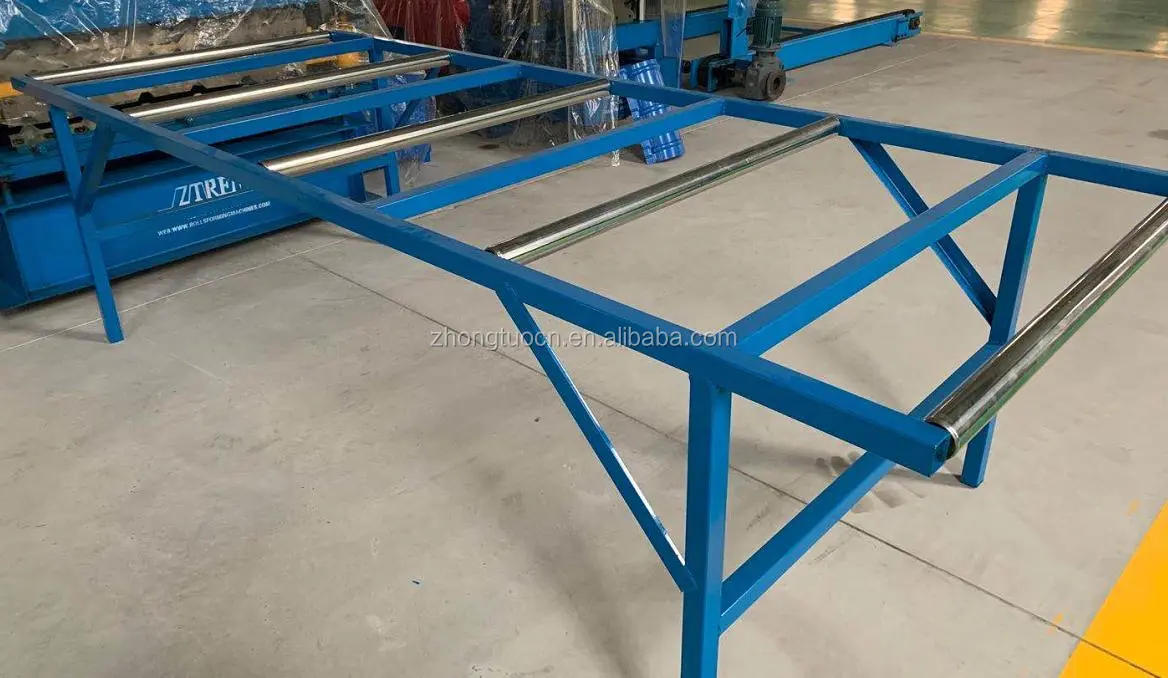

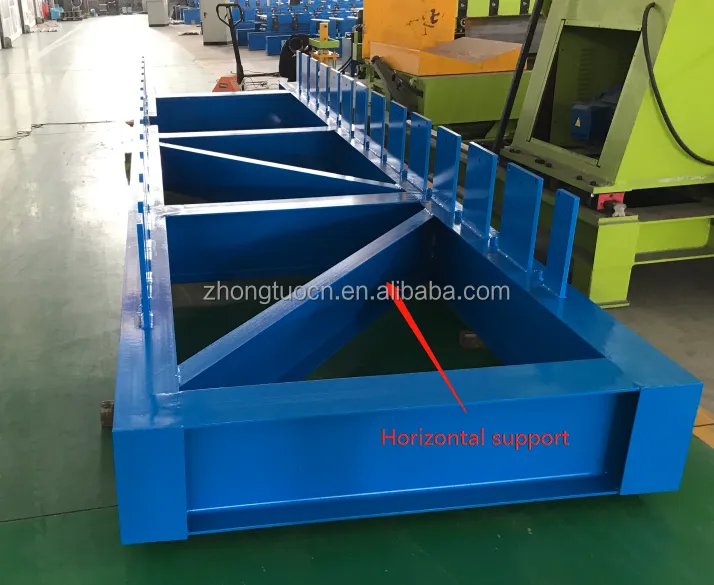

Product table

1.Manual or hydraulic as optional
2.Length:3-12m as request

Cooperated brand

Production process

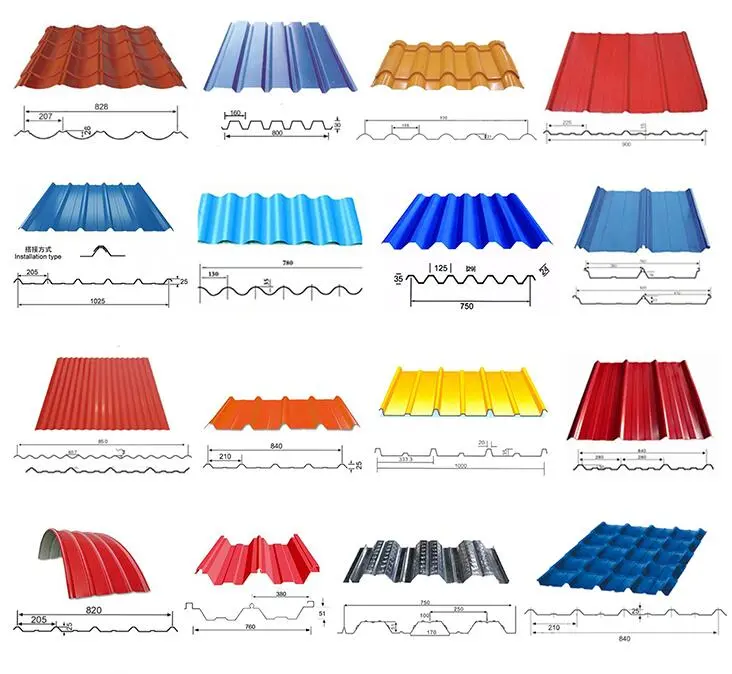

Machines are customized as your drawing, hot sale drawing profiles for your reference.

Recommend Products

Hydraulic decoiler

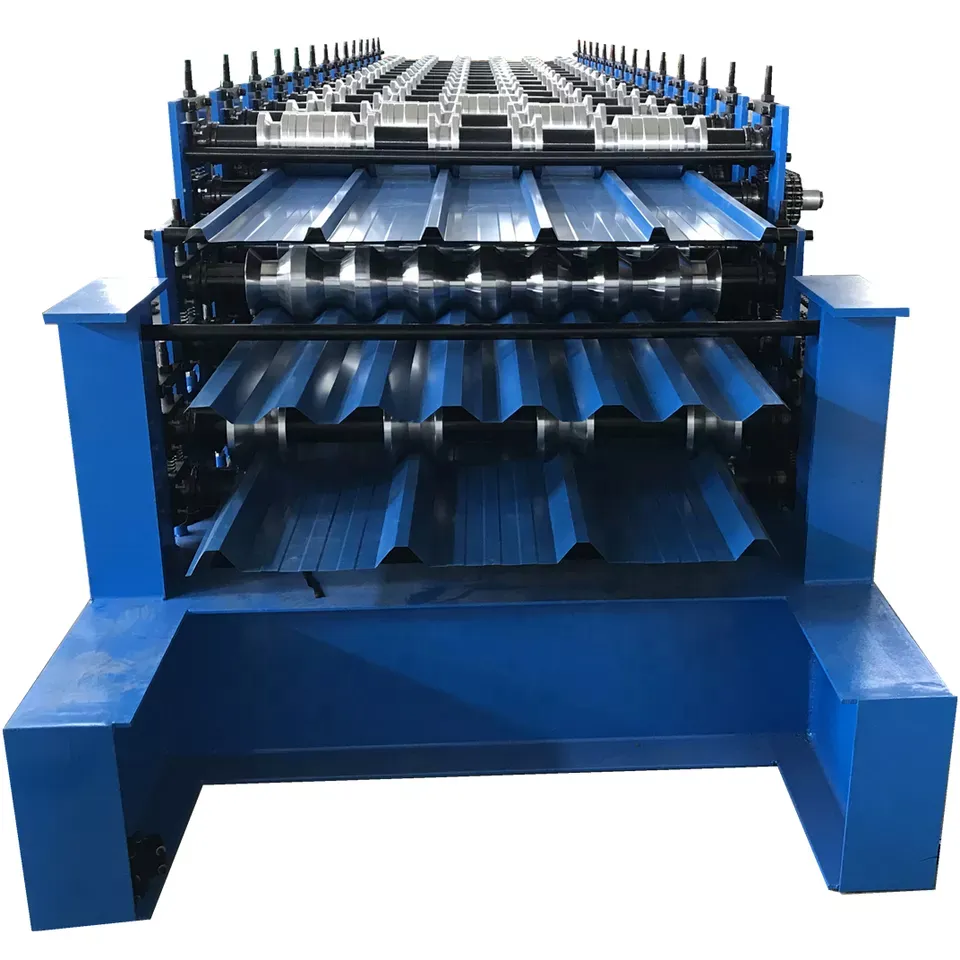

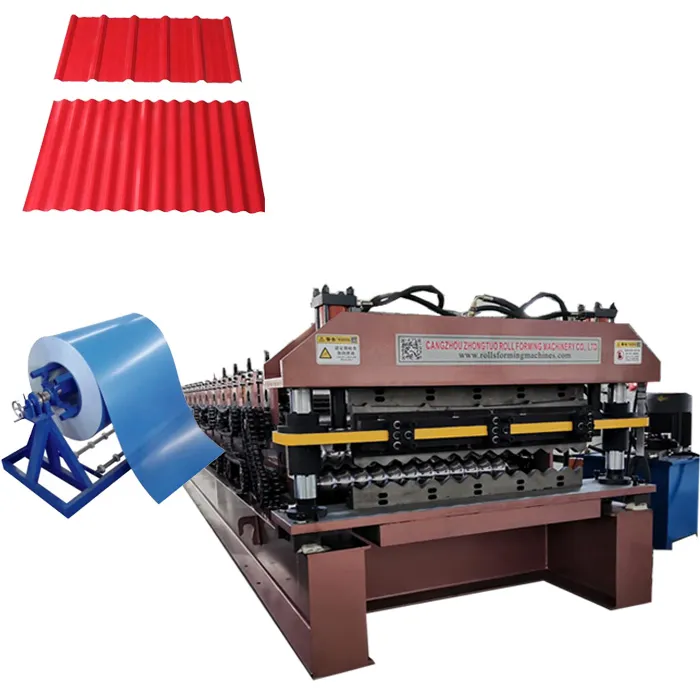

Double layer roofing machine

thrible layer roofing machine

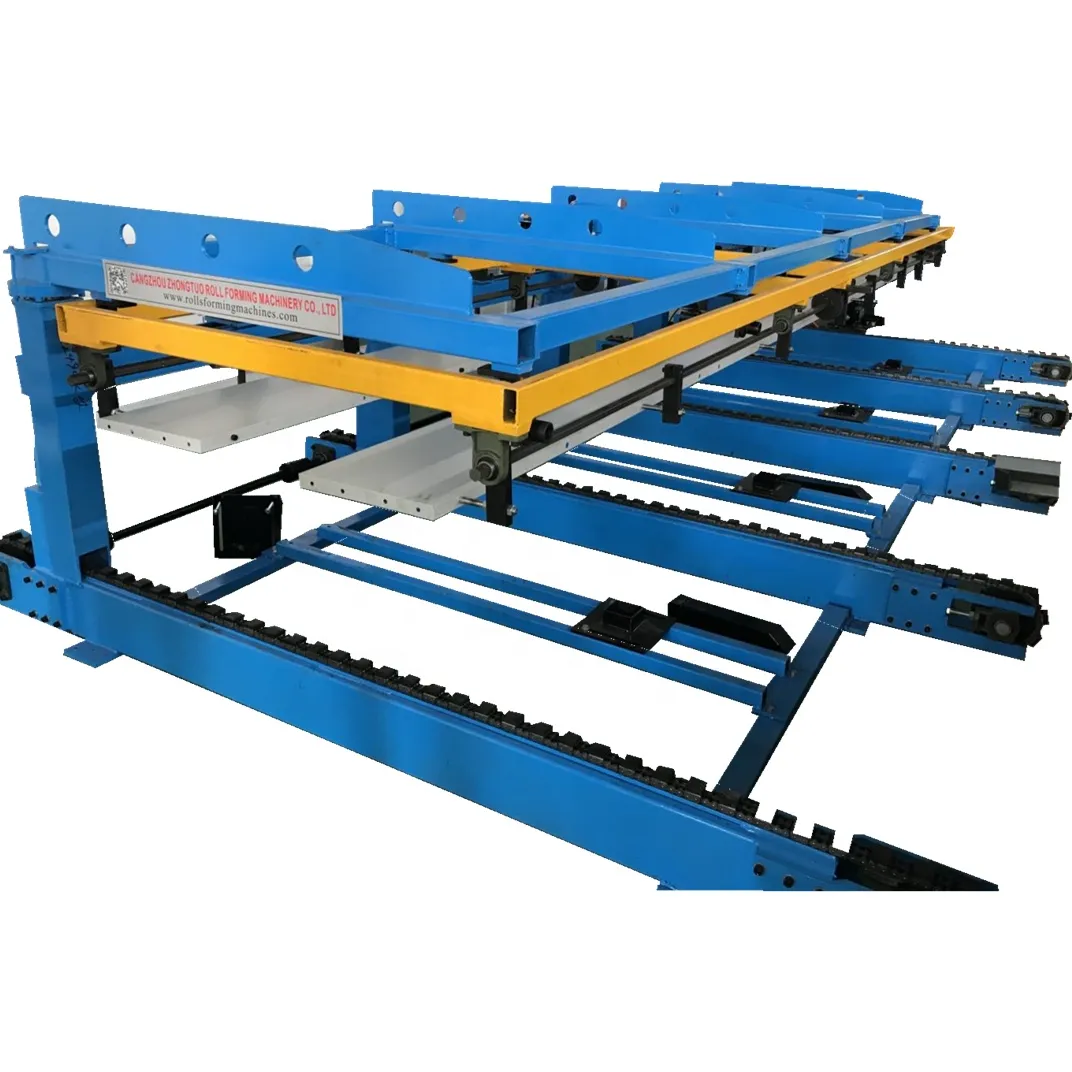

Automatic stacker

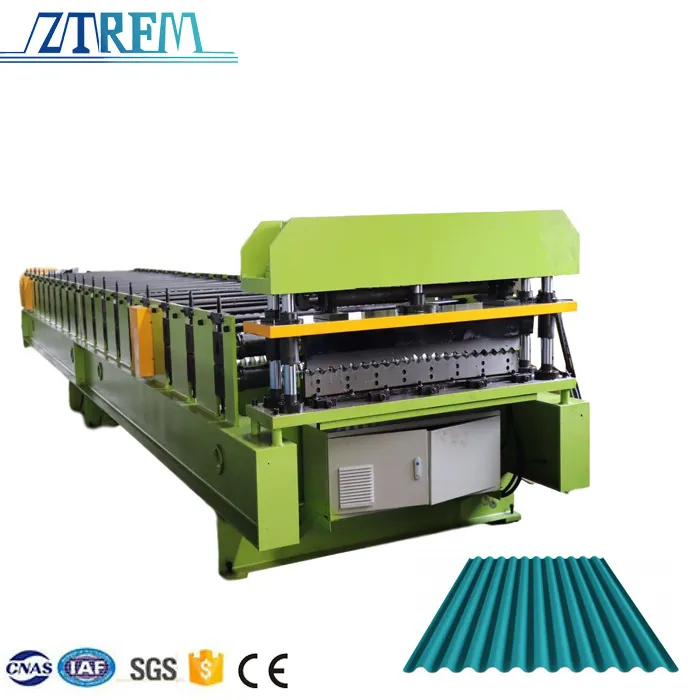

Corrugated roof sheet roll forming mahcine

Trapezoid roof sheet roll forming machine

Customer Photos

Customer good feedback of our machines:
