EPS/EPU Sandwich Panel Production Line > Raw Materials > Aluminum Coil

Color Coated Aluminum Coils 5052 H32 for Construction 1000mm X C Custom Colors Aluminum Rolls 0.2mm-8mm

General Metal Building Materials Co., Ltd.

Color Coated Aluminum Coils 5052 H32 for Construction 1000mm X C Custom Colors Aluminum Rolls 0.2mm-8mm

Name: Color Coated Aluminum Coils 5052 H32 for Construction 1000mm X C Custom Colors Aluminum Rolls 0.2mm-8mm
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:5 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥5Set

Order CodeZT110627210

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Thickness:

0.2mm-8mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Grade
5000 Series
Surface Treatment
Coated
Tolerance
±1%

✦Product Description

Aluminum Coil
Aluminium Alloy	Thickness	Width	Temper
Aluminium Alloy		(mm)	Temper	(mm)
A1050,A1060,A1070,A1100	0.2-8.0	20-2300	O,H12,H14,H16,H18,H22,H24,H26
A3003,A3004,A3105	0.2-8.0	20-2300	O,H12,H14,H16,H18,H22,H24,H26
A5052,A5005,A5083,A5754	0.2-8.0	20-2300	O,H12,H14,H34,H32,H36,H111,H112
A6061,A6082,A6063	0.2-8.0	20-2300	T4,T6,T651
A8011	0.2-8.0	20-2300	O,H12,H14,H16,H18,H22,H24,H26
Material process	CC AND DC
Customerize size	Size can be produced as per clients requirement
Surface	Mill finish ,Color coated(PVDF& PE),Stucco Embossed ,Bright Polish,Anodizing
Surface		Mirror,Brush,Perforated,Tread plate ,Corrugated etc
Material Quality	Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents
Material Quality		scratches etc ,A+++ quality, production process passed sgs and bv inspection
Application	Construction ,Building,Decoration ,Curtain Wall ,Roofing,Mould,Lighting,
Application		curtain wall, ship building,Aircraft,Oil Tank ,Truck Body etc
Packing	Standard export worthy wooden pallets
		and standard packing is about 2 tons/pallet
		Pallet weight also can be as per client's requiremen

Classification of aluminum coils

1000 series aluminum coils

Representing the 1000 series aluminum plate is also called pure aluminum plate. Among all series, the 1000 series
belongs to the series with the most aluminum content. The purity can reach more than 99.00%. According to the international designation principle, the aluminum content must reach more than 99.5% to be qualified products.

2000 series aluminum coils
Representing 2A16 (LY16) 2A06 (LY6) 2000 series aluminum plates are characterized by high hardness, among which the copper element content is the highest, about 3-5%. 2000 series aluminum sheets belong to aviation aluminum materials, which are not often used in conventional industries.

3000 series aluminum coils

Representative 3003 3003 3A21 mainly. It can also be called anti-rust aluminum plate. The production process of my country's 3000 series aluminum plate is relatively excellent. 3000 series aluminum plate is mainly composed of manganese element. The content is between 1.0-1.5. It is a more commonly used alloy series.

4000 series aluminum coils

The aluminum plate represented by 4A01 4000 series belongs to the series with higher silicon content. Usually the
silicon content is between 4.5-6.0%.

5000 series aluminum coils

Represents the 5052.5005.5083.5A05 series. 5000 series aluminum plate belongs to the more commonly used alloy aluminum plate series, the main element is magnesium, and the magnesium content is between 3-5%. Also known as aluminum-magnesium alloy. The main features are low density, high tensile strength and high elongation. It is also widely used in conventional industries. The processing technology is continuous casting and rolling, which belongs to the series of hot-rolled aluminum plates, so it can be deep-processed by oxidation.

6000 series aluminum coils

On behalf of 6061, it mainly contains two elements, magnesium and silicon, so it concentrates the advantages of 4000
series and 5000 series. 6061 is a cold-treated aluminum forging product, which is suitable for applications with high corrosion resistance and oxidation resistance. Good usability, excellent interface characteristics, easy coating, and good workability. Can be used on low voltage weapons and aircraft joints. General characteristics of 6061: excellent interface characteristics, easy coating, high strength, good usability, and strong corrosion resistance.

7000 series aluminum coils

On behalf of 7075 mainly contains zinc element. It also belongs to the aviation series. It is an aluminum-magnesium-zinc-copper alloy, a heat-treatable alloy, and a super-hard aluminum alloy with good wear resistance. The 7075 aluminum plate is stress-relieved and will not deform or warp after processing. It requires strength High-stress structural parts and mold manufacturing with high and strong corrosion resistance.

8000 series aluminum coils

The more commonly used is 8011. It is also used in heat sinks, most of which are aluminum foils.

Product Details

STURDY AND DURABLE

The aluminum coil is made of high-quality raw materials, and the production process is checked layer by layer, with multiple quality inspection checkpoints. Ultimately ensuring the production of high-quality aluminum coils

CAN BE DIVIED INTO VOLUMES

Multiple slitters work simultaneously and can be divided into various sizes of aluminum coils according to customer needs

SHORT PRODUCTION CYCLE AND HIGH EFFICIENCY

Multiple aluminum coil production lines work simultaneously to reduce intermediate losses, improve production efficiency, shorten production cycles, and meet customer production needs

FAST DELIVERY,STABLE PACKAGING WITHOUT WEAR AND TEAR

Shorten the production cycle to accelerate shipment, using standard export packaging or customized packaging, and reinforcing steel wire ropes in the container

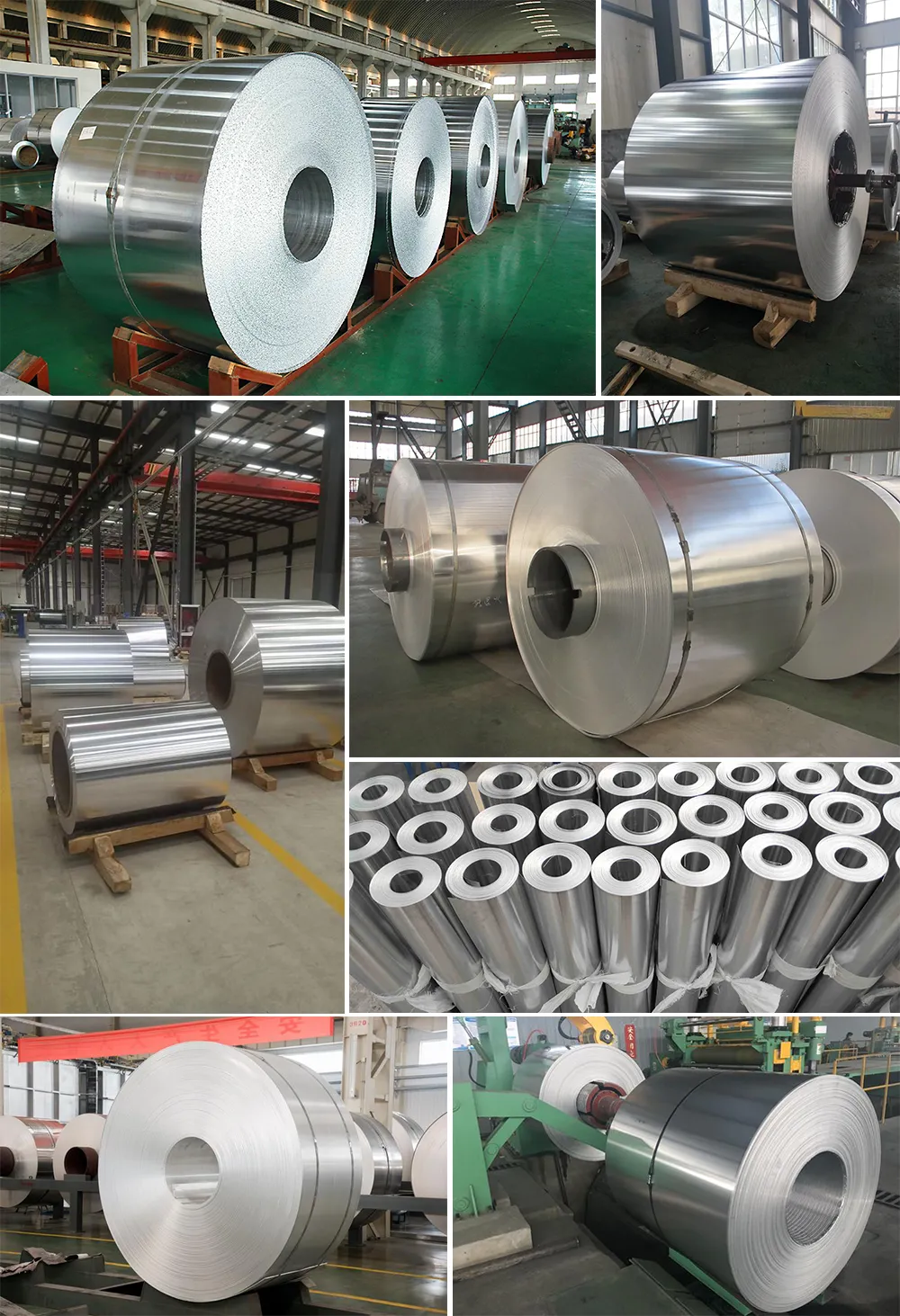

Manufacturer Strength

Shandong Liaohe New Material Co., Ltd

Shandong Liaohe New Material Co., Ltd. is the professional manufacturer of Aluminum alloys, such as Aluminum sheets, Aluminum coils,Aluminum strips, Aluminum circles , Aluminum foils, and Aluminum profiles, Copper alloys since 2012.

Also as a factory, Shandong Liaohe has always been committed to offering clients at home and abroad the products of high quality involved in metal materials, metal products and the top-ranking service in accordance with the management concept of “quality, professionalism and sincerity”. The company is a manufacturer foreign trade cooperation. Building up wide international marketing network abroad, the products are mainly exported to Southeast Asia, Africa, Europe, North America and countries in the Middle East. By virtue of wide commodity information network, the company has partners around the world and has long-term and stable business with many overseas clients.

✦Certificate

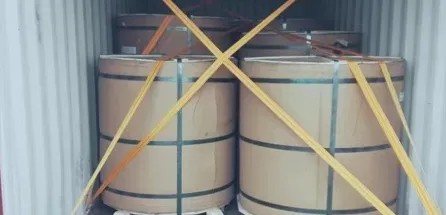

✦Packing & Delivery

✦FAQ

Q:Can you send samples?

A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness,coating and the number of tons you need to purchase.

Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q:How do you pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
