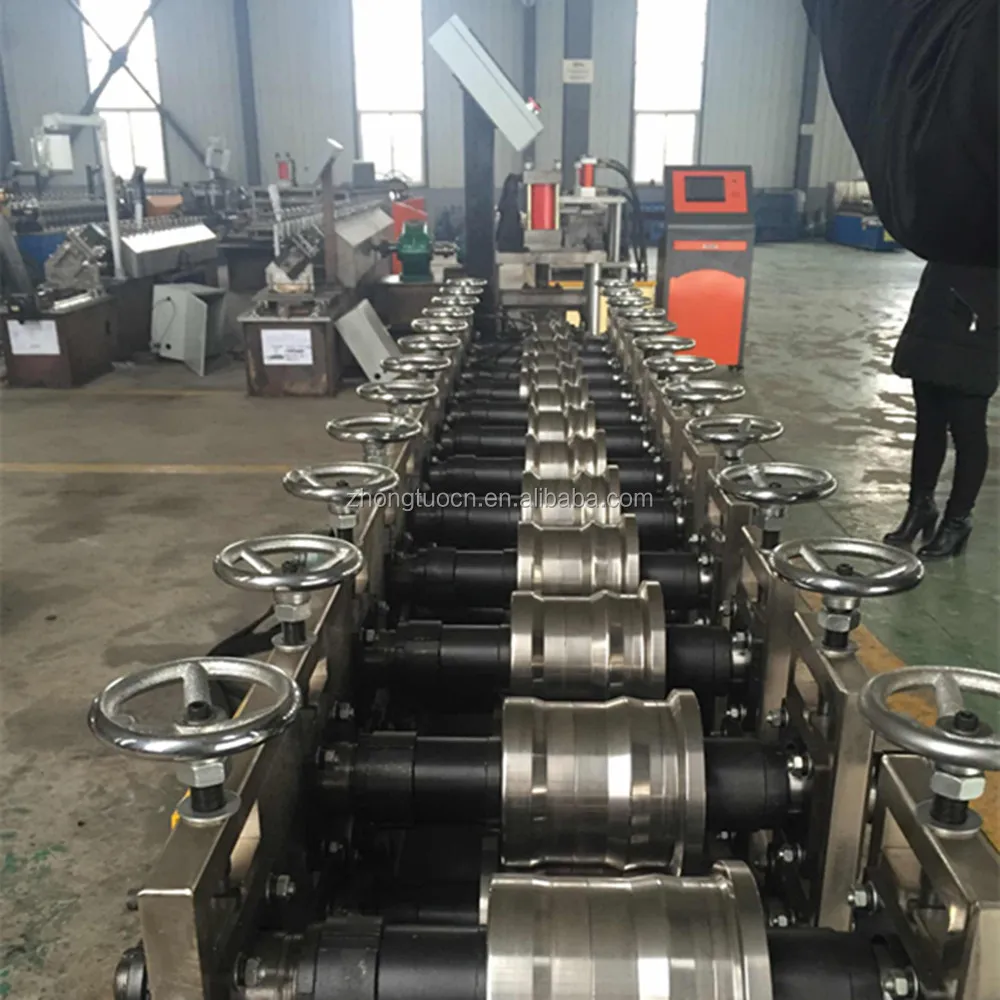

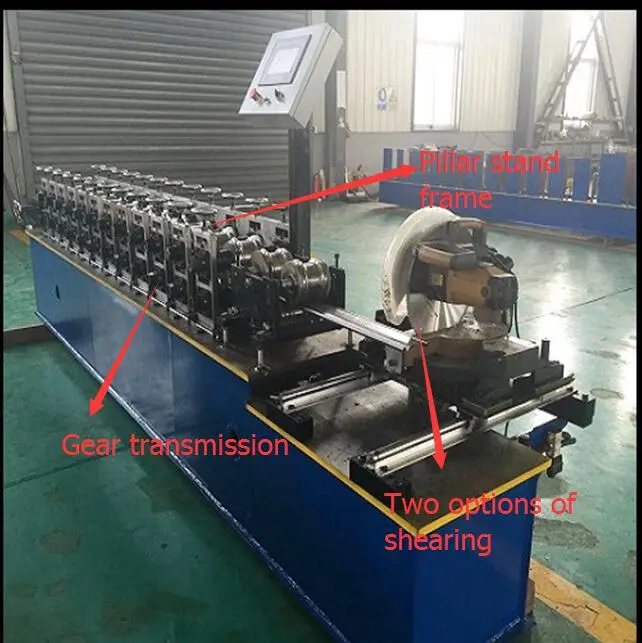

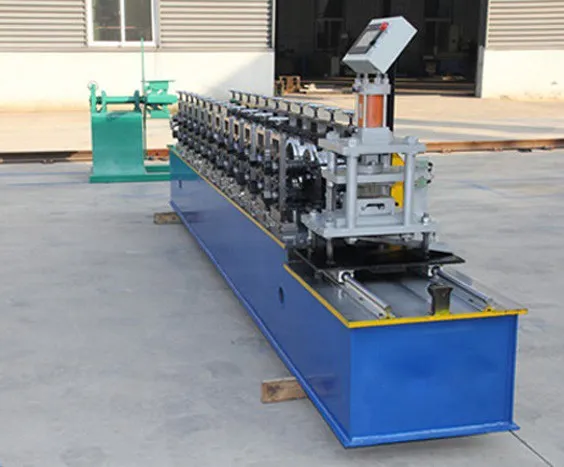

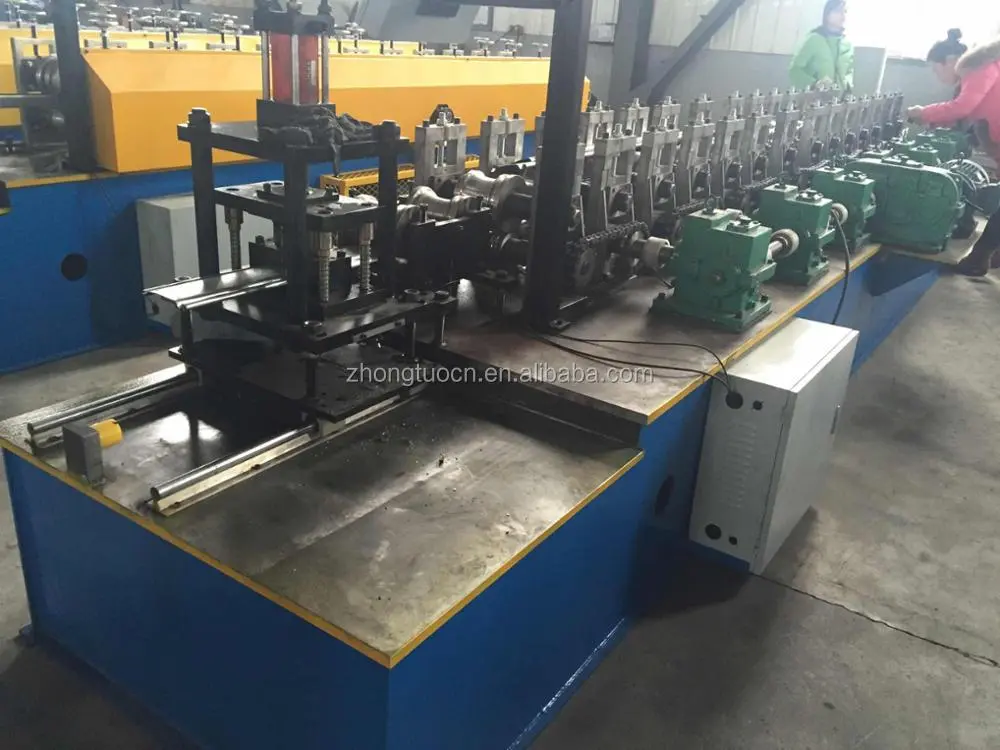

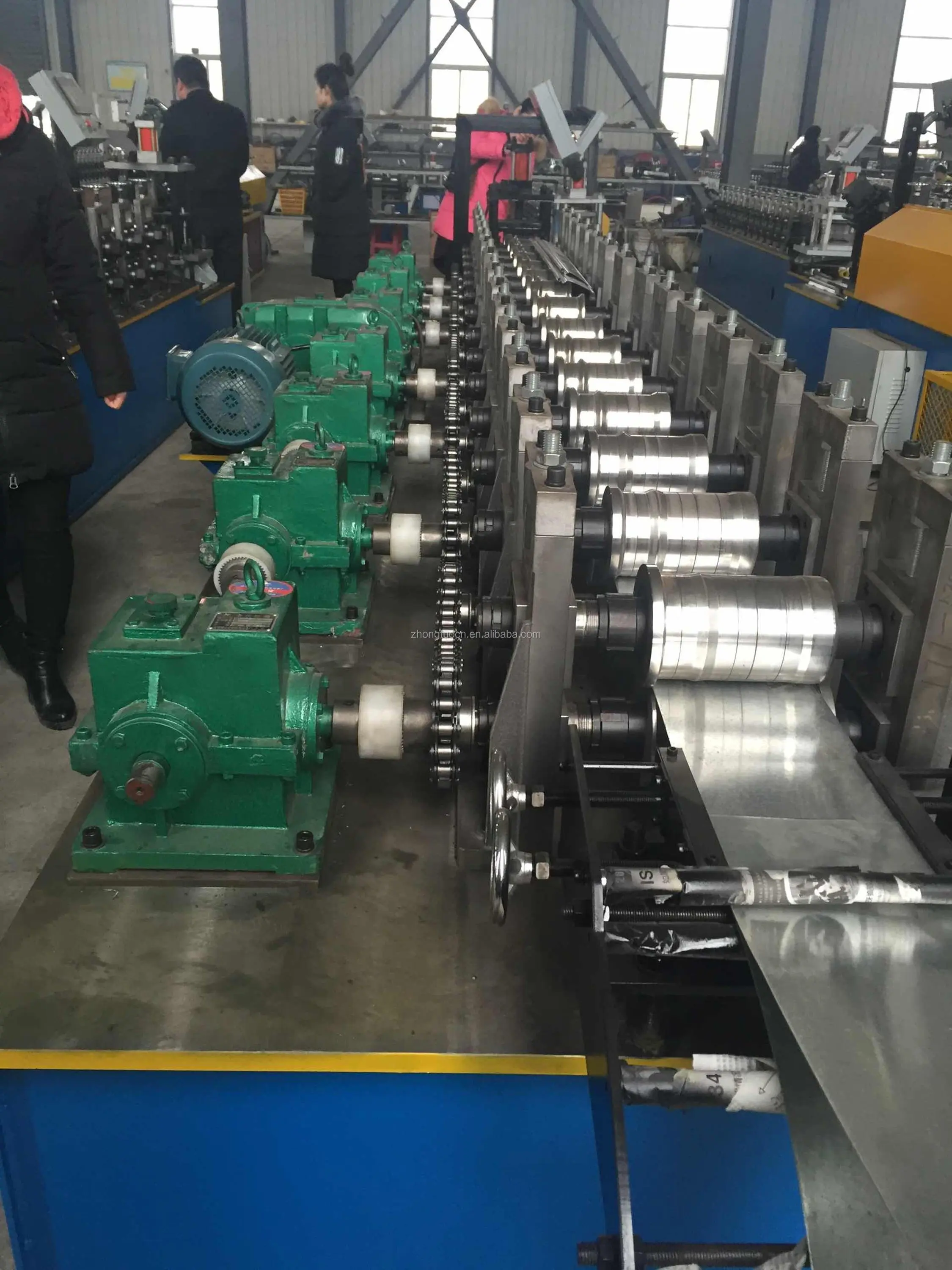

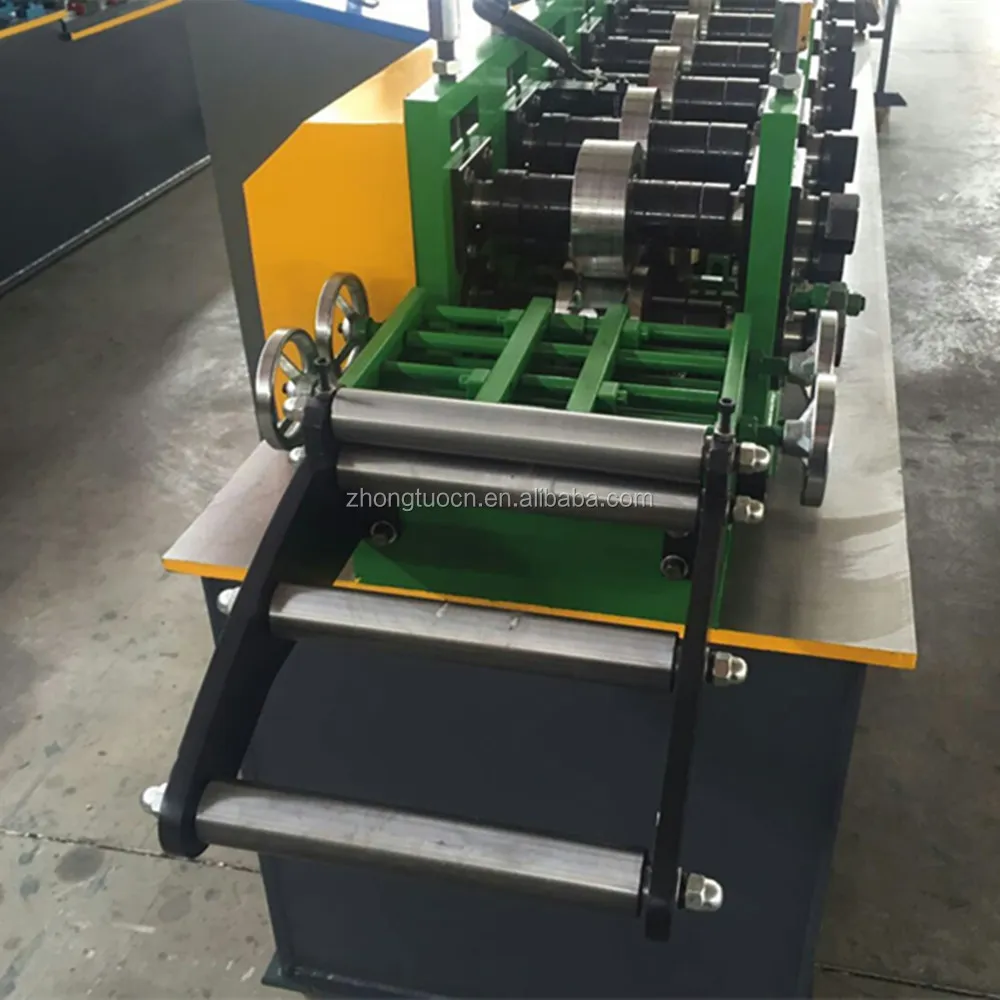

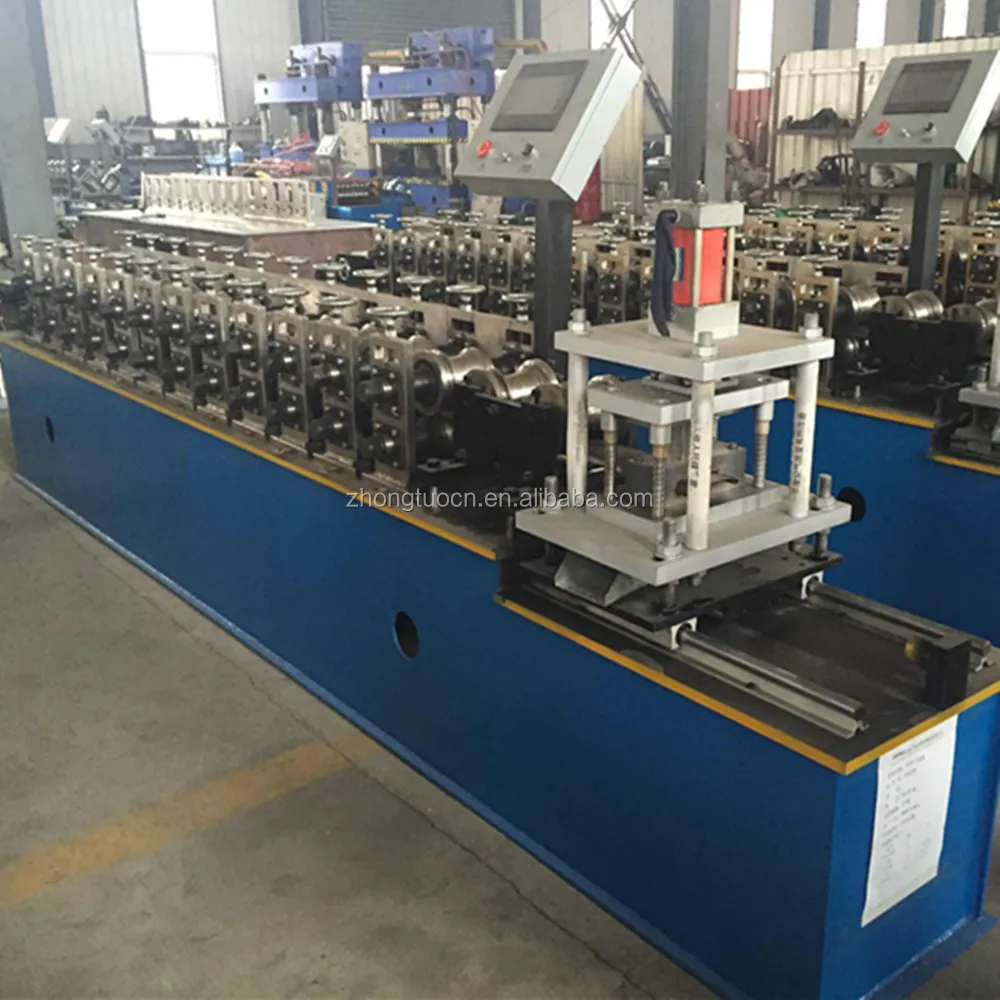

Roll shutter door roll forming machine Colombia

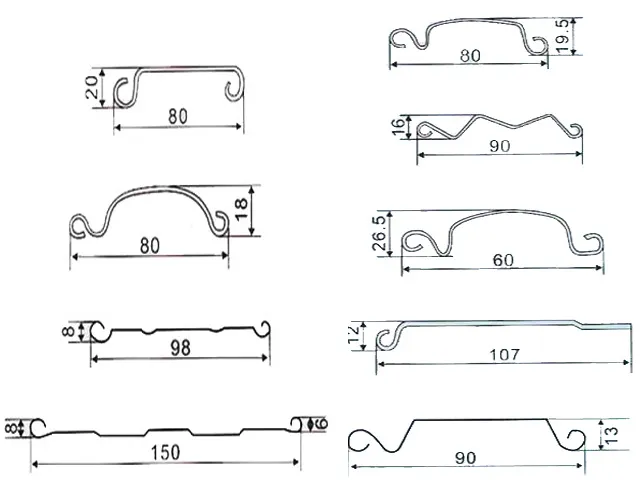

Profile drawing of rolling shutter slat door:

1. Technique parameters of the processing line
(1) Suitable material: aluzinc/galvanized steel/colored coil
(2) Thickness of the plate : 0.3-0.8mm
(3) Input width of the plate: 160 mm
(5) Productivity :8-12m/min

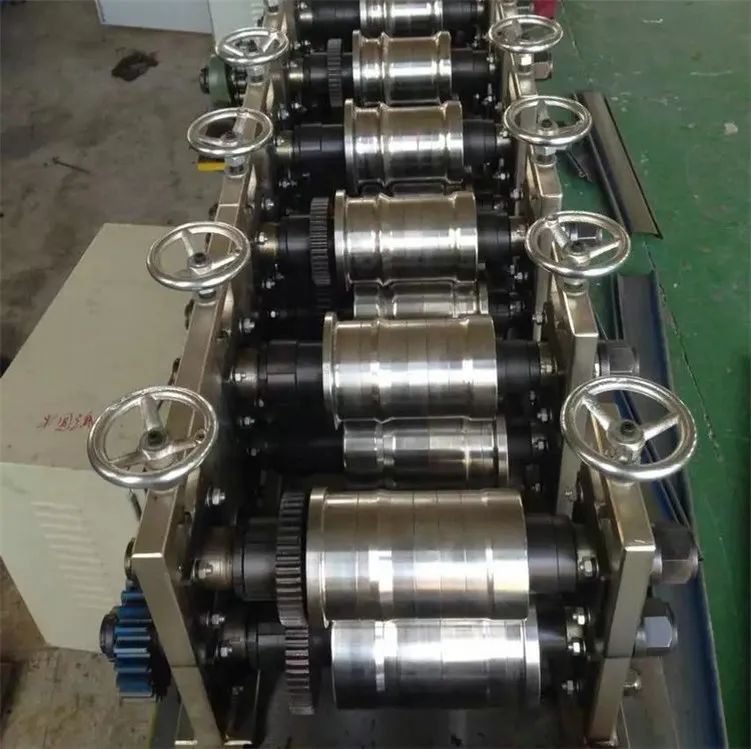

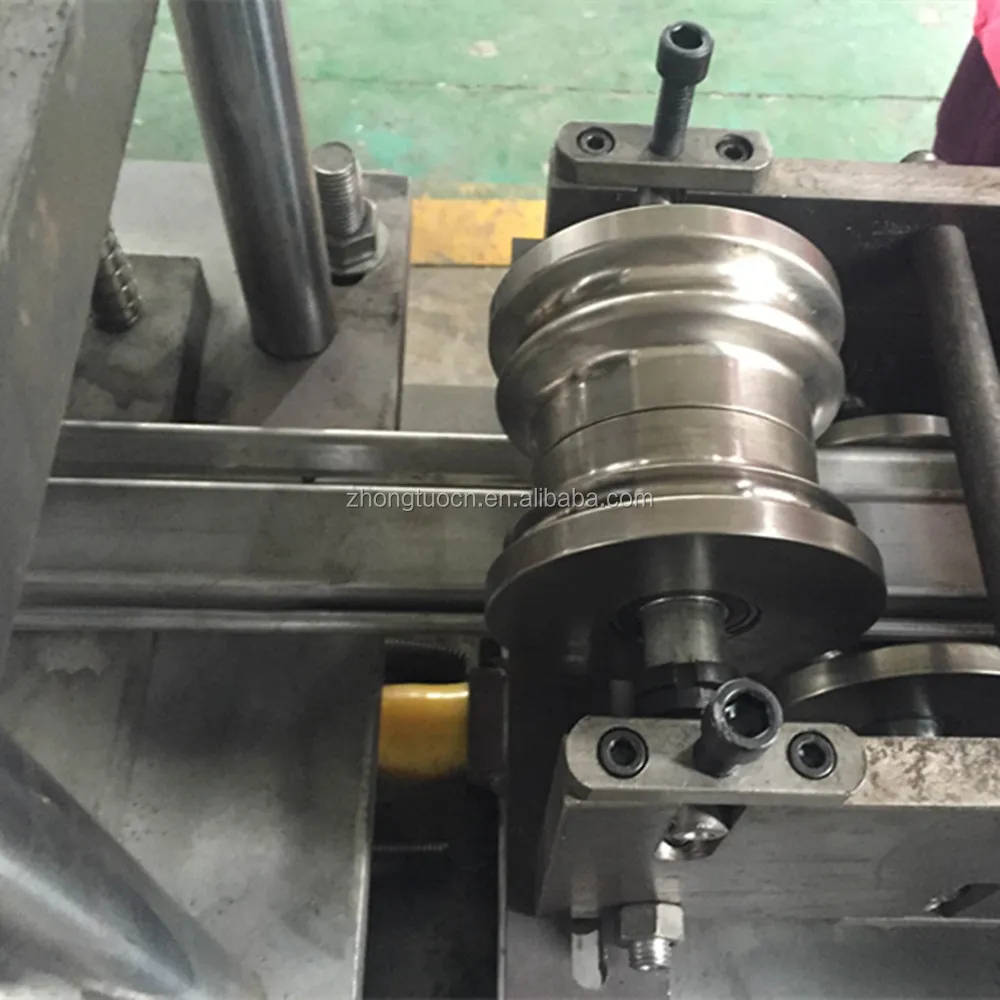

(6) Roller steps :10 rows
(8) Roller material: 45# steel
(9) Diameter of active shaft: 50mm
(10)Main forming machine body : 300mm H steel
(11) PLC control systerm, easy to operate, high precision and work stably.
|
Item |
parameter |
|
|
1 |
Machine size |
6000*1500*1200mm |
|
2 |
Machine weight |
2000kg |
|
3 |
Machine power |
4kw |
|
4 |
Hydraulic engine |
3KW |
|
5 |
Roll speed |
8-15M/Min |
|
6 |
Roll stations |
12 |
|
7 |
Roller material |
GCr15 |
|
8 |
Effective width |
80mm |
|
9 |
Feeding width |
92mm |
|
10 |
Voltage |
380V 60Hz 3PH/Customized |
|
11 |
Material thickness |
0.8-1.2mm/Customized |
|
12 |
Control System |
Schneider/Delta/Customized |

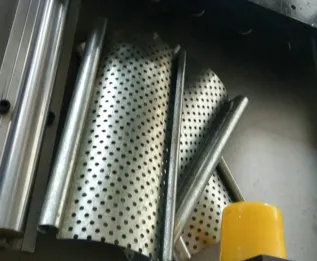

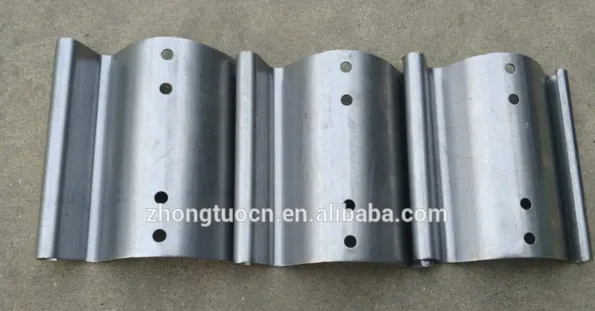

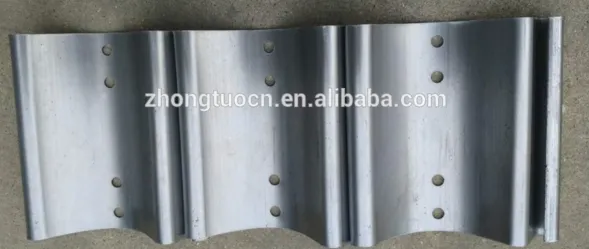

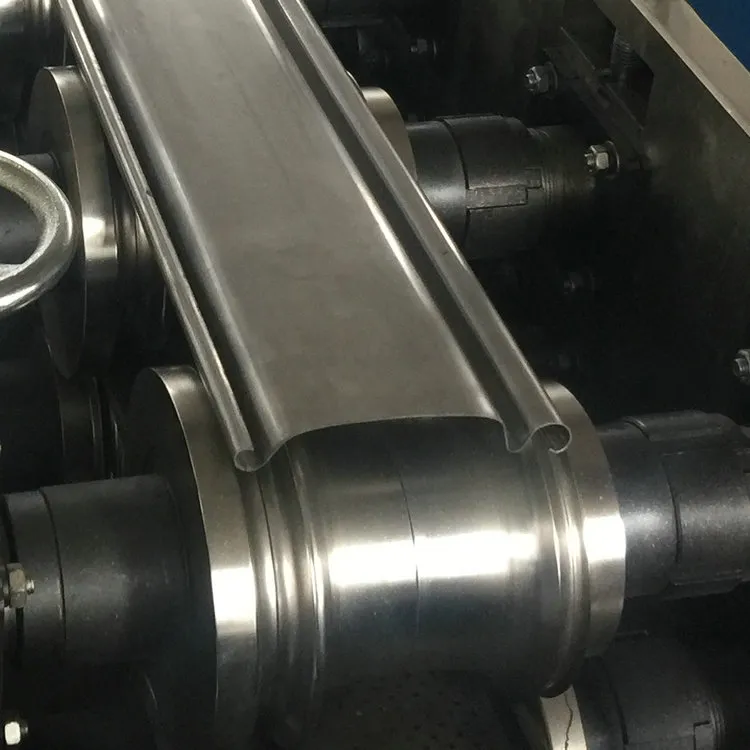

Finished product:




The advantage of our shutter door roll forming machine :
1.Good quality: We have a professional designer and experienced engineer team.And
the raw material and accessories we use are good.
2.Good service: we provide the technical support for whole life of our machines.
3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4.Easy operation:All machine cotrolling by PLC computer controlling systerm.
5.Elegant apperance:Protect the machine from rust and the painted colour can be customized
6.Reasonable price:We offer the best price in our industry.
1. What information you need before quoting me?
We need profile drawing of the panel you want to produce, material information and your special requirements.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new pars replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

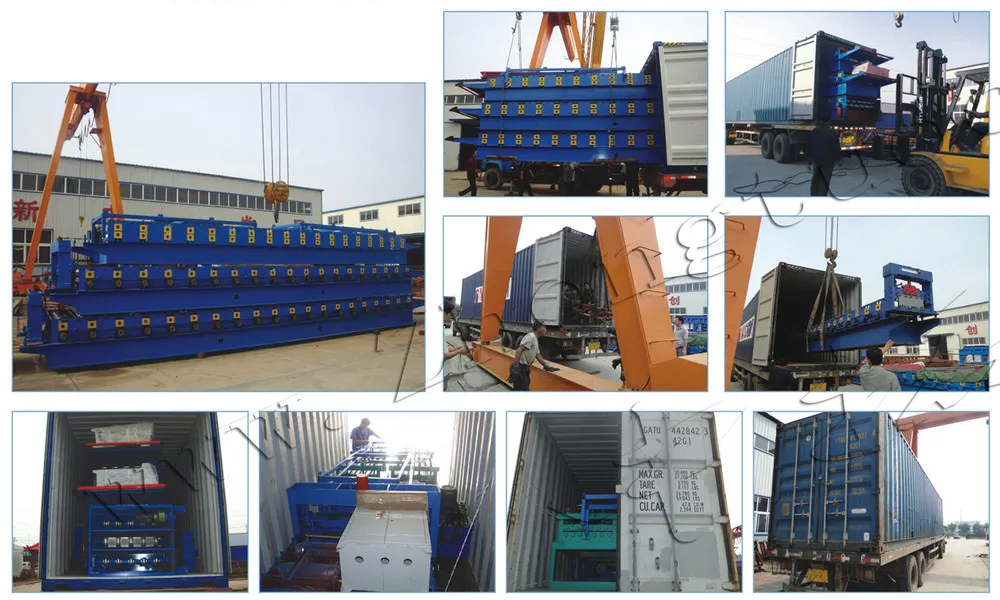

5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
