Product Overview

The Automatic Cold Roll Forming Machine for Corrugated Metal Roofing Sheet is engineered for industrial roofing contractors, agricultural shed fabricators, pre-engineered building factories, and curved metal roof suppliers. Sinusoidal wave corrugated iron sheets represent the most time-tested and widely utilized metal cladding profile worldwide due to their exceptional water shedding, structural integrity, and material economy.

Accommodating prepainted galvanized steel (PPGI), galvalume (PPGL), and galvanized coils across thicknesses from 0.4mm to 0.8mm (22-28 gauge) and feeding widths of 915mm, 1000mm, 1100mm, or 1250mm. The formed corrugated panels deliver superior rigidity against wind uplift and provide complete weatherproofing for industrial warehouses, agricultural barns, and residential roofing.

1: Arc Roof Tile Roll Forming Machine Overview & Sinusoidal Wave CAD Profile

Key Technical Features

• Hard Chrome Plated Forming Rollers: Precision CNC turned from 45# forged structural steel, vacuum quenched, and electroplated with 0.05mm hard chrome to eliminate coil scuffing and preserve paint finish.
• Individual Side Gearbox Drive: Independent gear reducer box for each forming station connected via heavy roller chains guarantees steady torque transmission and prevents roller slippage.
• Solid Ø70mm 45# Steel Shafts: High-frequency heat-treated solid shafts supported by heavy-duty spherical roller bearings resist bending forces under high-tonnage rolling cycles.
• Cr12 Full-Contour Hydraulic Shear: Guided hydraulic cutting station with Cr12 vacuum heat-treated blades ensures smooth, burr-free cuts without wave distortion.
• Massive 8000kg Structural Bed Frame: Stress-relieved heavy structural steel foundation guarantees rigid roller station alignment across high-tonnage rolling cycles.

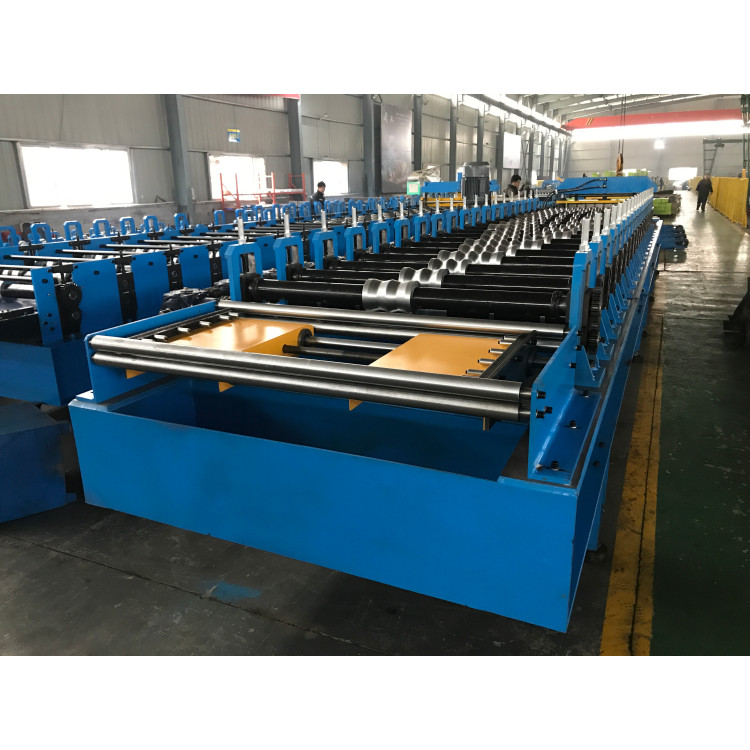

2: Workshop Infeed View of Continuous Roll Forming Stands

Technical Specifications

3: Front View of Hydraulic Wavy Cut-Off Unit & Clamping Beam

Progressive Sinusoidal Bending Progression

Forming circular sinusoidal waves requires symmetrical progressive deformation from the center of the sheet outward. The line features 12 to 16 graduated roll forming stations designed to prevent lateral sheet skew, surface scratching, and edge elongation.

• Center-to-Edge Roll Forming: Gradual arc formation prevents residual stress and eliminates edge wavy warping.
• Individual Side Gearbox Modules: Direct gear connection eliminates chain slack and maintains absolute synchronized rolling speeds across stations.
• Independent Bearing Blocks: Heavy-duty spherical bearings with individual lubrication nipples ensure smooth 24/7 continuous operation.

4: Side Gearbox Modules & Double-Row Chain Transmission Detail

Corrugated Wave Geometry & Engineering Blueprint

The corrugated profile complies with international standard building specifications (including ASTM A792, BS 3083, AS 1397):

• Effective Cover Width: 910.6 mm / 820 mm / 32" (813 mm) coverage width
• Wave Pitch: 76.2 mm (3.0") circular corrugations
• Wave Height / Depth: 18 mm arc amplitude for optimal water discharge
• Natural Overlap Nesting: Smooth sinusoidal crests allow precise nesting with standard 1.5 to 2 corrugation side overlaps for leak-free roofing.

5: Machine Long Perspective View from Infeed Table in Workshop

Broad Agricultural & Industrial Applications

Corrugated iron sheets are favored across global construction markets for their versatility:

• Industrial Warehouses & Steel Mills: High structural strength and economical large-span roof coverage.
• Agricultural Sheds & Grain Silos: Traditional curved roofing, silo cladding, and agricultural barn walls.
• Residential & Commercial Carports: Curved or pitched carports, veranda awnings, and retrofitted metal roofs.

Supply Scope & Ocean Shipping

Turnkey supply scope includes 5-ton manual decoiler (hydraulic decoiler with coil car optional), heavy-duty roll forming main machine on rigid steel frame with safety guards, Cr12 hydraulic profile cut-off station, standalone air-cooled hydraulic pump station, Siemens PLC touchscreen console, and finished sheet runout tables.

All precision chrome rollers and shafts are coated with anti-rust protective oil. The 8-ton heavy machine bed is securely lashed inside a 40ft HQ container with heavy steel wire ropes and timber chocks. The electrical control console and hydraulic power unit are sealed in waterproof barrier wrapping and crated in export plywood cases.

Quality Standards & Certifications

Manufactured in compliance with ISO9001 quality management benchmarks, Bureau Veritas (BV), and STV standards. The production line holds official CE compliance certification under Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU.

6: CE Certification & ISO9001 Quality Management Verification
