Cold Formed Stainless Steel Profile Q235 Welded HDG Double C Channel 41*41

Name: Cold Formed Stainless Steel Profile Q235 Welded HDG Double C Channel 41*41
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:500 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥500Set

Order CodeZT23530236

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Dimensions:

41*41

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Grade
Q235
Shape
C Channel
Standard
AiSi, ASTM, BS, DIN, GB, JIS
Tolerance
±3%

Product Description

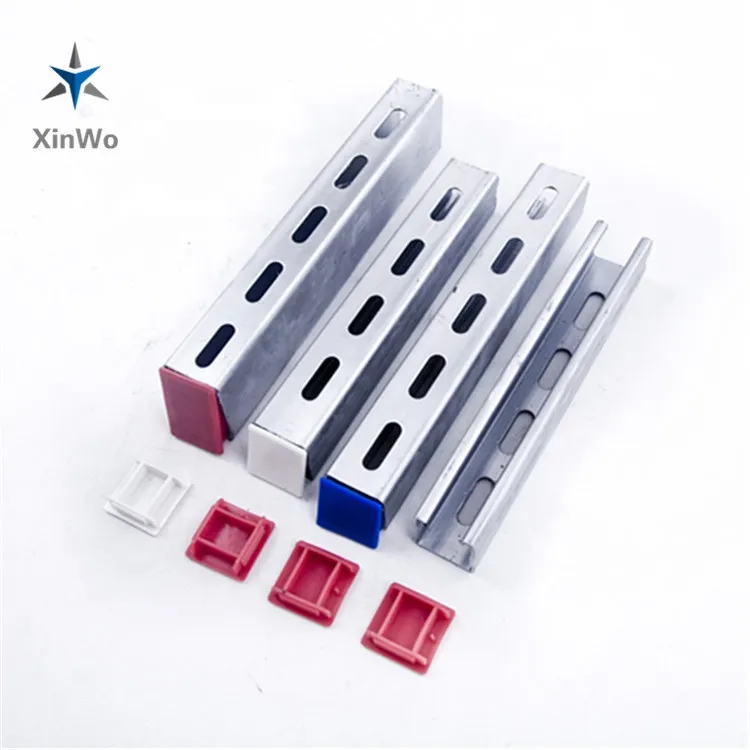

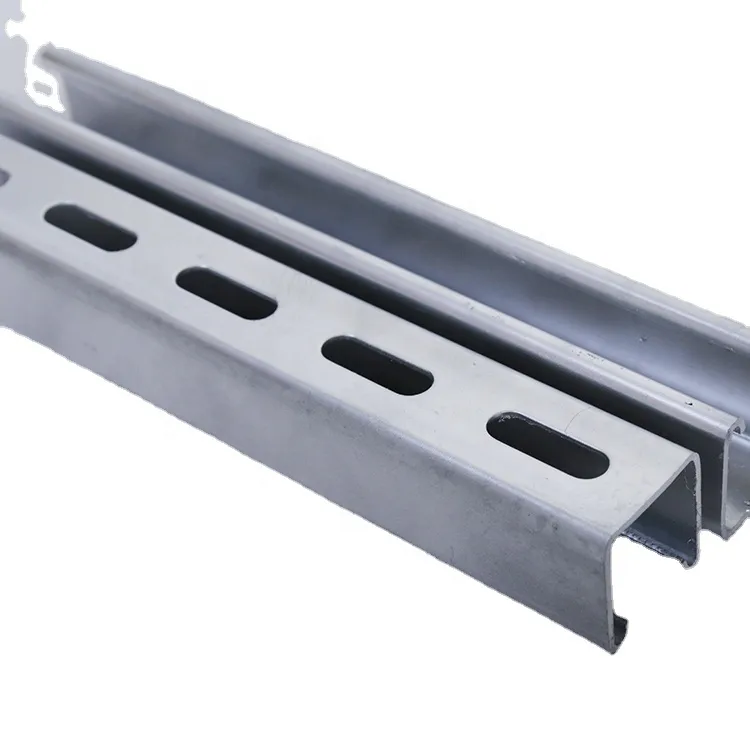

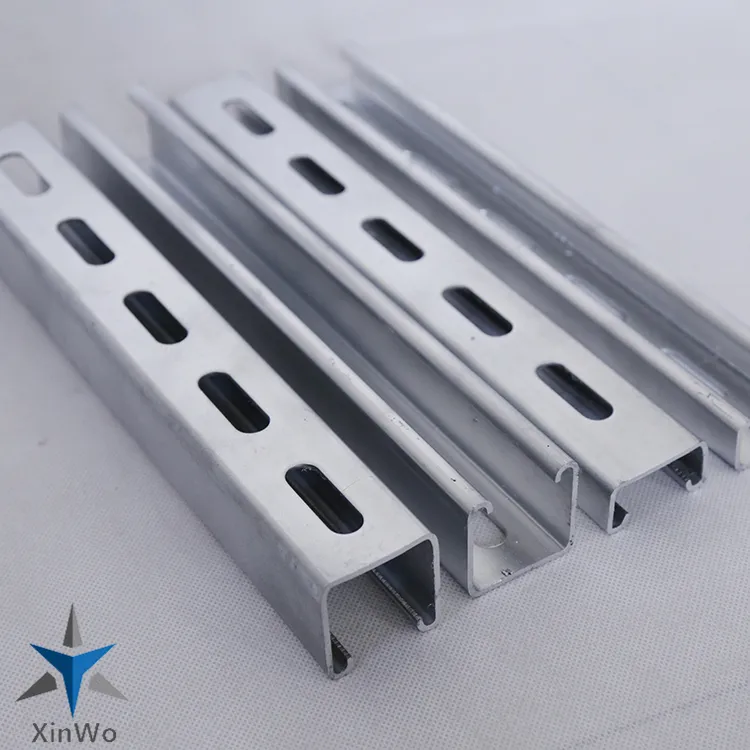

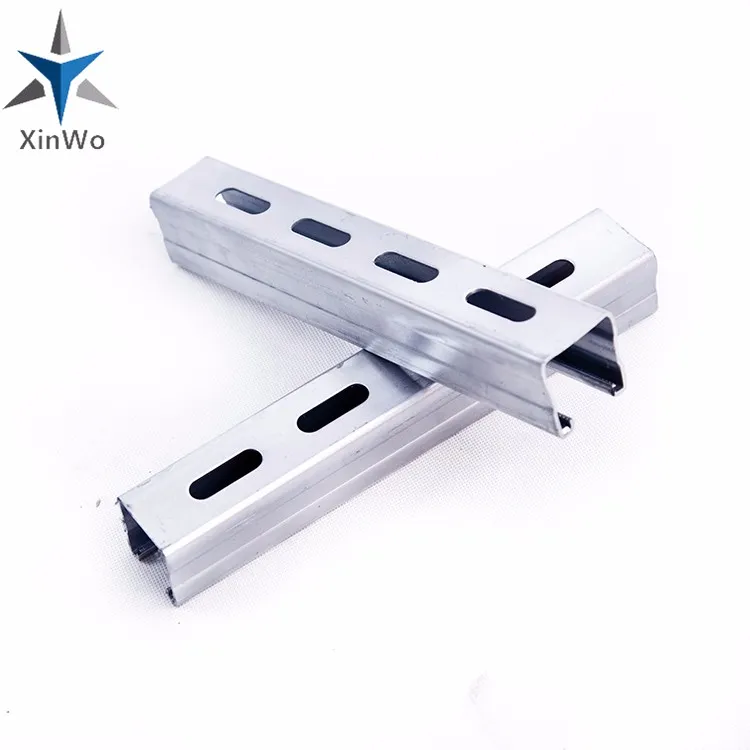

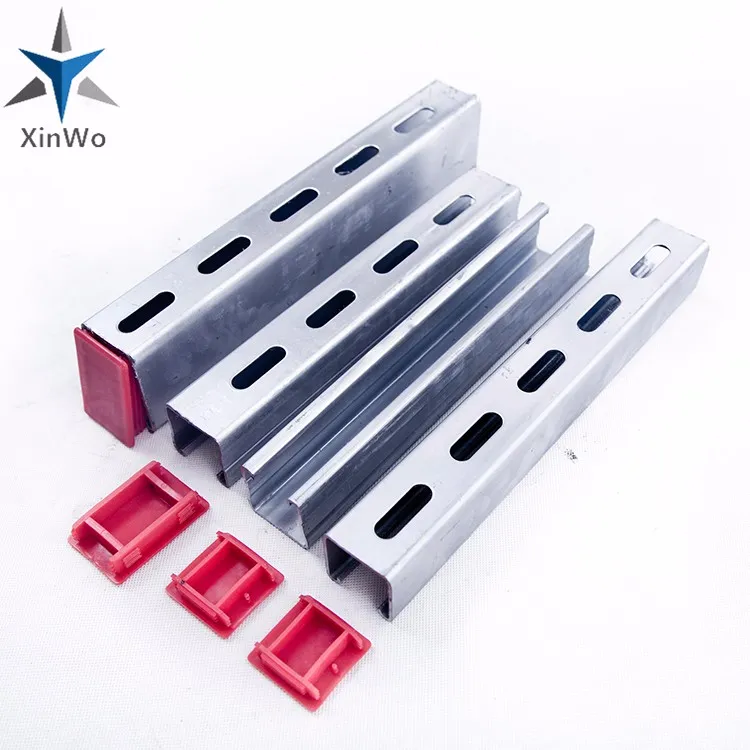

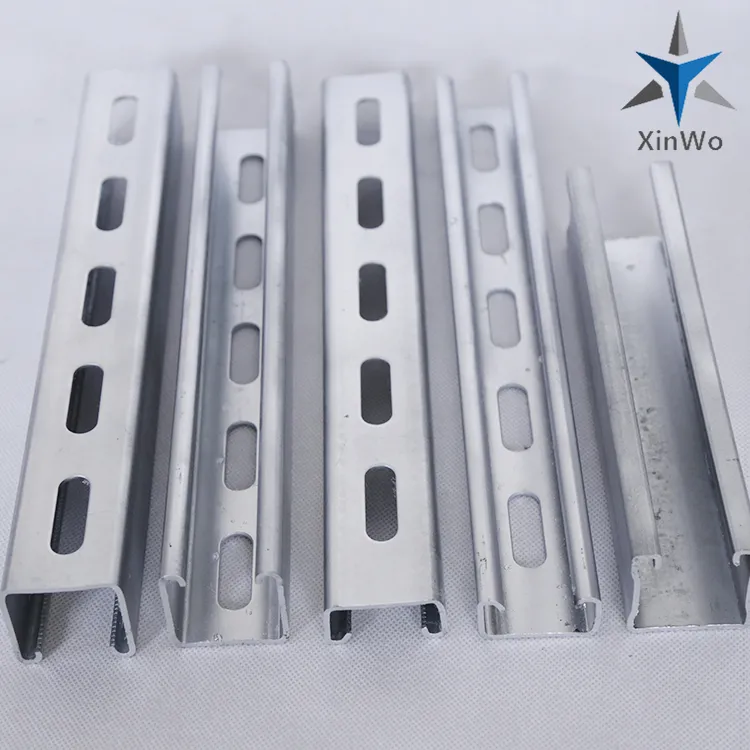

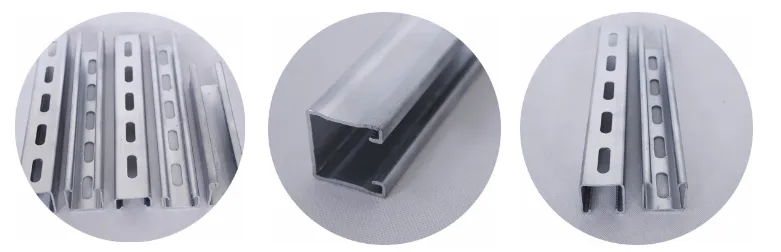

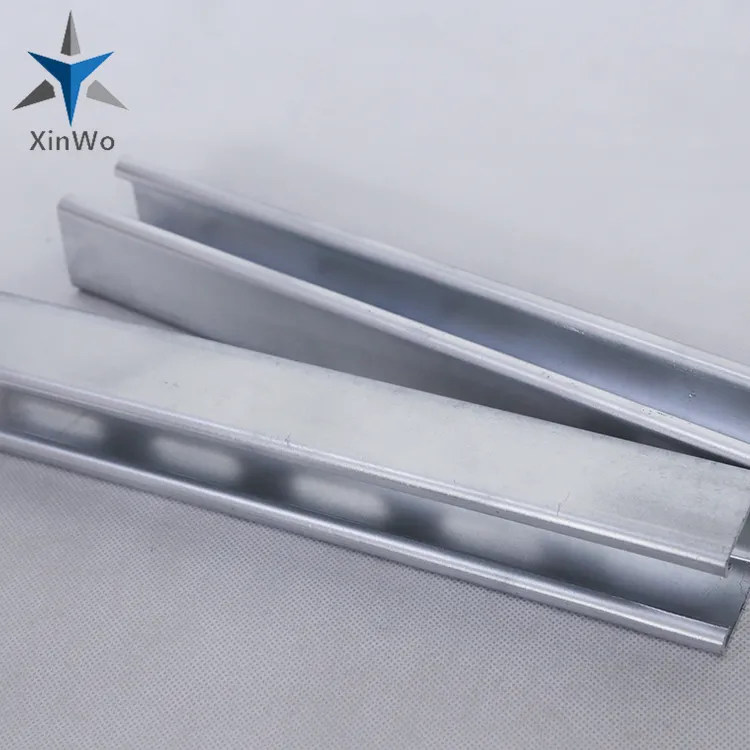

Cold Formed Stainless Steel Profile Q235 Welded HDG Double C Channel

1) Slotted Type / Plain Type
2) Pre galvanized ,hot dip galvanized or powder coating
3) Lengths as per customers' requirements, but standard length as 3.05 meter/10ft

Product name	Manufacturer Hot Dipped Galvanized C-Type Steel C Channel For Pipe Support
Material	Q235,Carbon steel or SS304 or SS316
Surface Treatment	HDG(hot dipped galvanized ),Pre-galvanized,powder coating (Black,Green,White,Grey,Blue)etc.
Lengths	Either 10FT or 20FT or cut into the length according to Customer's Requirements
Thickness	0.8mm--2.5mm
Holes	11*35mm or according to Customer's Requirements
Style	Plain or Slotted or back to back
Packaging	In Bundles and fasten with steel strips or by wooden pallets

_No.	Size		Thickness		Type	Surface Treatment
_No.	mm	Inch	Thickness	Gauge	Type	Surface Treatment
A	21x10	13/16x13/32"	0.8,1.0,1.2,1.5,1.7,2.0,2.3,2.5	19,16,14,12	Slotted, Solid	HDG,PG,PC
B	21x21	13/16x13/16"	0.8,1.0,1.2,1.5,1.7,2.0,2.3,2.5	19,16,14,12	Slotted, Solid	HDG,PG,PC
C	41x21	1-5/8x13/16"	0.8,1.0,1.2,1.5,1.7,2.0,2.3,2.5	19,16,14,12	Slotted, Solid	HDG,PG,PC
D	41x22	1-5/8x7/8"	0.8,1.0,1.2,1.5,1.7,2.0,2.3,2.5	19,16,14,12	Slotted, Solid	HDG,PG,PC
E	41x25	1-5/8x1"	0.8,1.0,1.2,1.5,1.7,2.0,2.3,2.5	19,16,14,12	Slotted, Solid	HDG,PG,PC
F	41x41	1-5/8x1-5/8"	0.8,1.0,1.2,1.5,1.7,2.0,2.3,2.5	19,16,14,12	Slotted, Solid	HDG,PG,PC
G	41x62	1-5/8x27/16"	0.8,1.0,1.2,1.5,1.7,2.0,2.3,2.5	19,16,14,12	Slotted, Solid	HDG,PG,PC
H	41x82	1-5/8x3-1/4"	0.8,1.0,1.2,1.5,1.7,2.0,2.3,2.5	19,16,14,12	Slotted, Solid	HDG,PG,PC

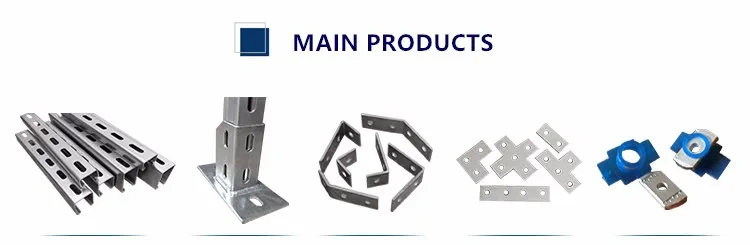

Products Show

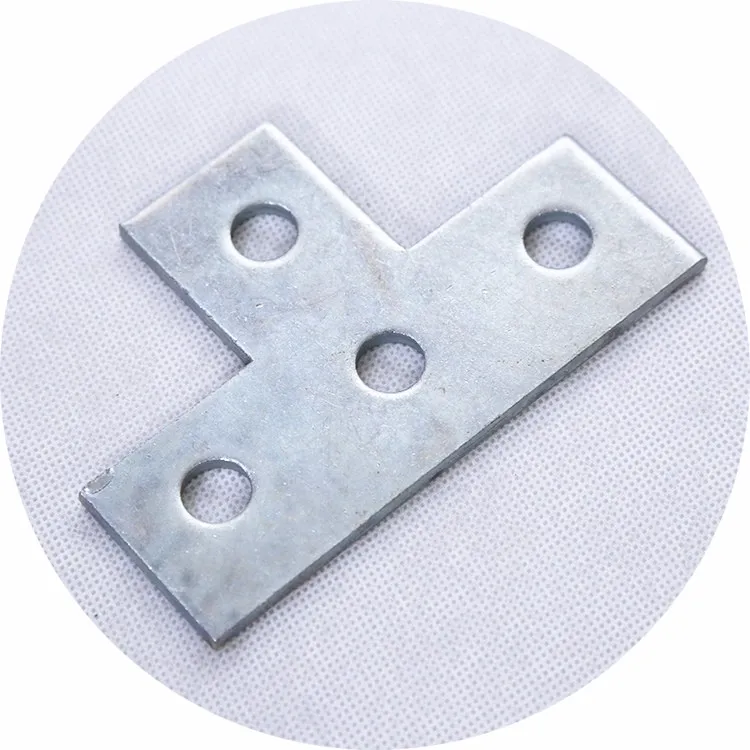

Strut channel Post base Angled connectors Connecting plates Miscellaneousparts

More Products

Galvanized Steel Channel Plain Strut Channel Slotted Strut channel

Our Company

Hebei Xinwo Metal Co.,Ltd was established in 2007.

Xinwo is mainly specialized in different steel products,including hot galvanized steel c channel,sprayed c channel,back-to-back strut channel,halfen channel,slotted c channel,solar panel mounting bracket and channel fittings.

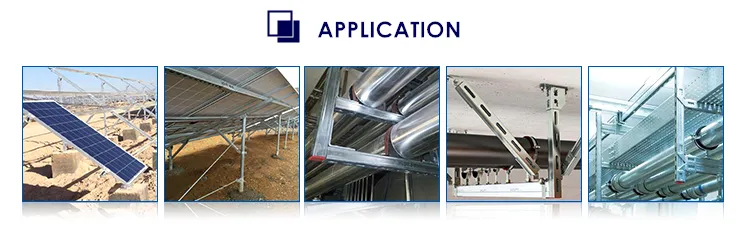

Our products can be widely used in construction,energy,electricity etc.

We have professional export team that has many years experience.We know what customers really need,so we focus on accurate offer,best quality and fast delivery.

Welcome to all friend,we can make a better steel world in the future.

Packing & Delivery

Packing Details : plastic film inside and steel frame or by wooden pallets outside or customer's request

Delivery Details : about 10-15 days for average order quantity

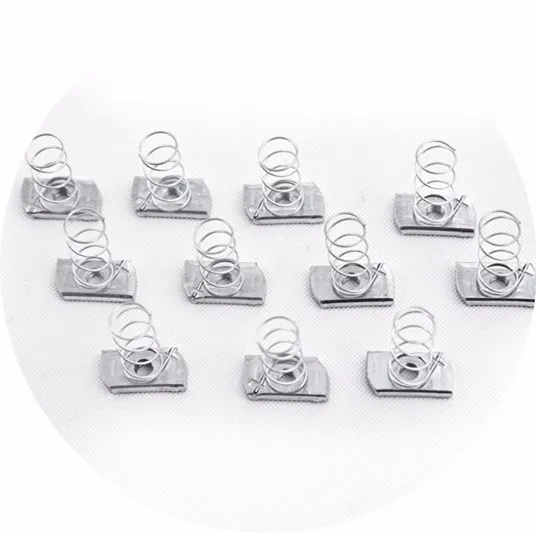

Strut Fittings

Contact Me

FAQ

1.Q:What services can you offer?
A: We are manufacturer with ISO9001, SGS certificated to provide customers reliable products with the most competitive price.

2.Q: If my trail order could not reach your MOQ, how can I order?
A: If your trail order is a small order, we can also provide the cargos but maybe we need extra customs fee for balance if by sea.

3.Q:What is the payment term?
A: FOB, CIF, CFR (Tianjin PORT).

4.Q:What is the delivery time?
A: We are manufacturer that have in stock of the normal sizes. We promise to deliver the goods in 7-20 days after receiving your payment.

5.Q:Do you provide free samples?
A: Yes ,you can get free samples.

6.Q:What is your products advantages:
a. Reduce installation costs and time;
b. Easy for changing, adding and moving;
c. Bright surface means good material and quality;
d. Our electrical and network cabling equipment have the same quality as the international famous brand.

More questions please email us, our service is solving your problem.CONTACT ME
