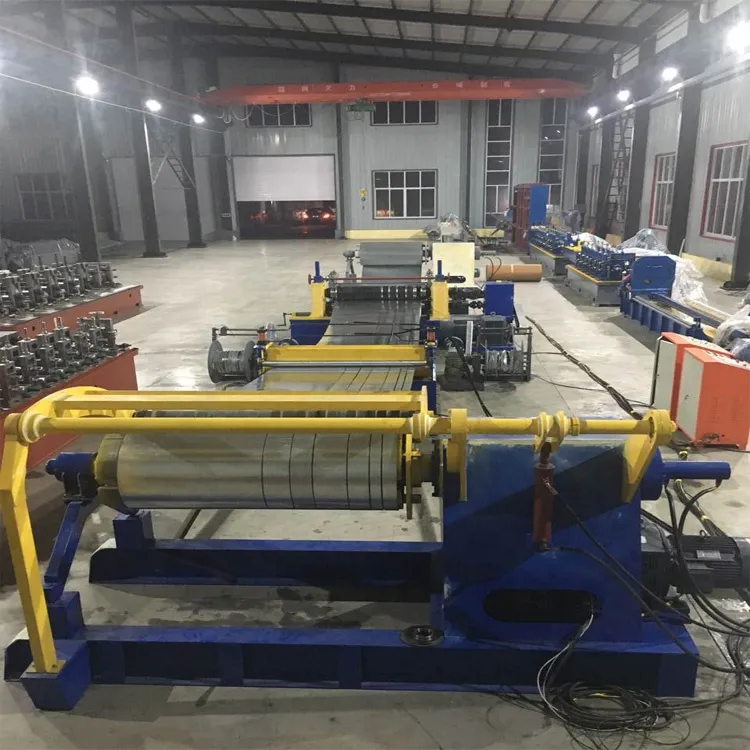

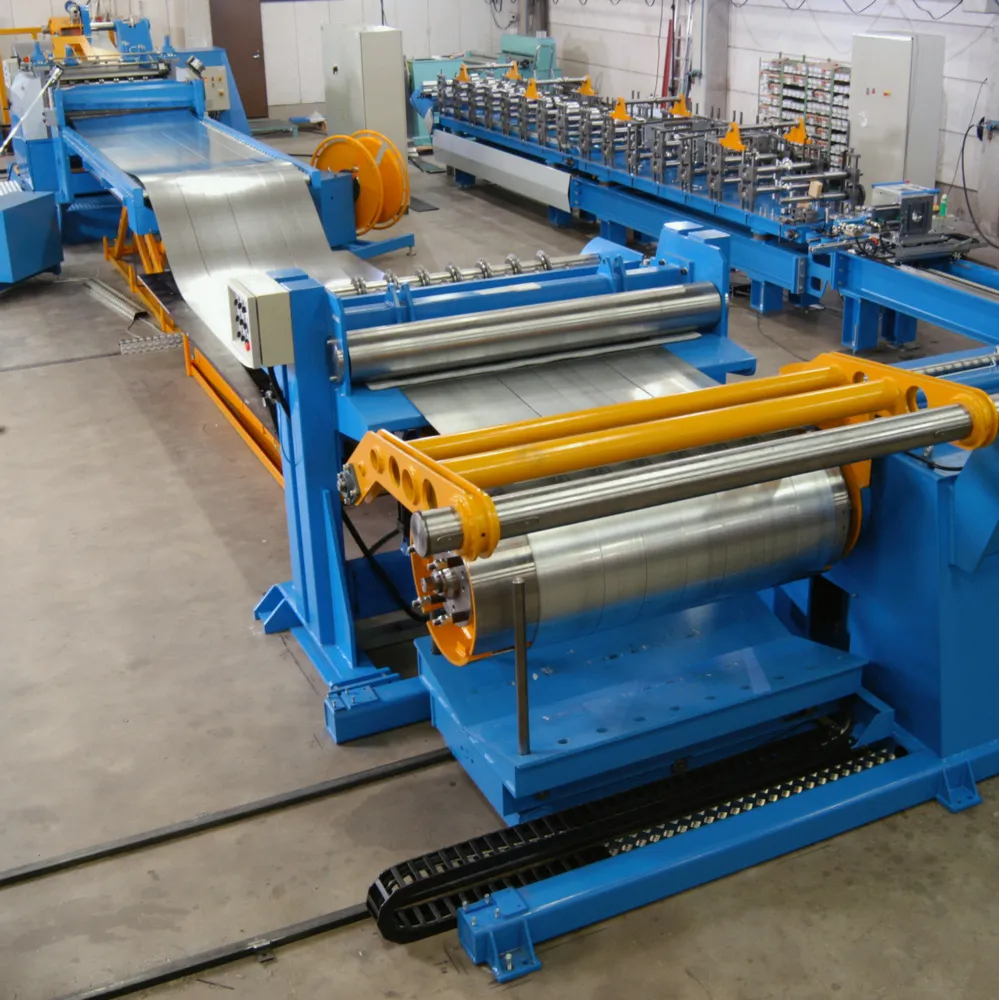

Coil Slitting Machine Full Automatic High Speed Metal Steel Ppgi/gi/low Carbon Steel 0.3 - 1 Mm Max.1250mm CE Iso,ce Provided 15 ZT-1250

full automatic high speed metal steel coil slitting machine

Automatic slitting machine is a high speed line, to match the large quantity production needs.

This machine is main make the big width coil slit to small strips.



The technical details:

1	Material of processible coiled plate: carbon steel , GI
2	Thickness of coiled plate: 0.3-3mm;
3	Width of coiled plate: 1250mm;
4	Slitting speed: 0-120m/min(0.3-1mm) 0-100m/min(1-2) 0-80m/min(2-3mm)
5	Loading capacity of de-coiler machine (feeding machine): 10T
6	Coil I.D:  Φ508mm;  Coil O.D:  Φ1600mm
7	Knife pivot diameter of slitting :120mm
8	Slitting blade:Φ180Xφ320X15
9	Material of slitting blade:6CrW2Si
10	Precision of slitting: ≤±0.05
11	Recoiler I.D: 508mm
12	The hardness of slitting blade:HRC58°-60°
13	Area of the whole machine:28m(L)x8m(W)
14	Operator needed:1 technician and 2 general workers
15	Weight of the whole machine:40T
16	VoltageL 380V-50HZ-3P. or as required

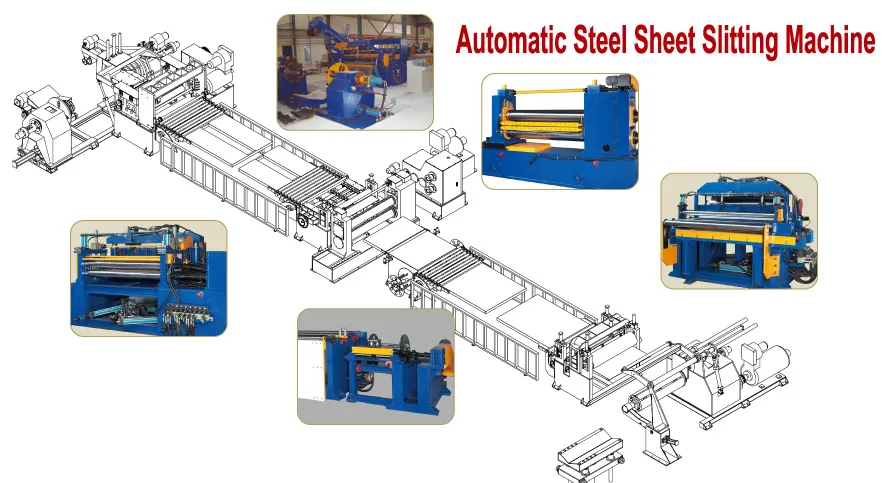

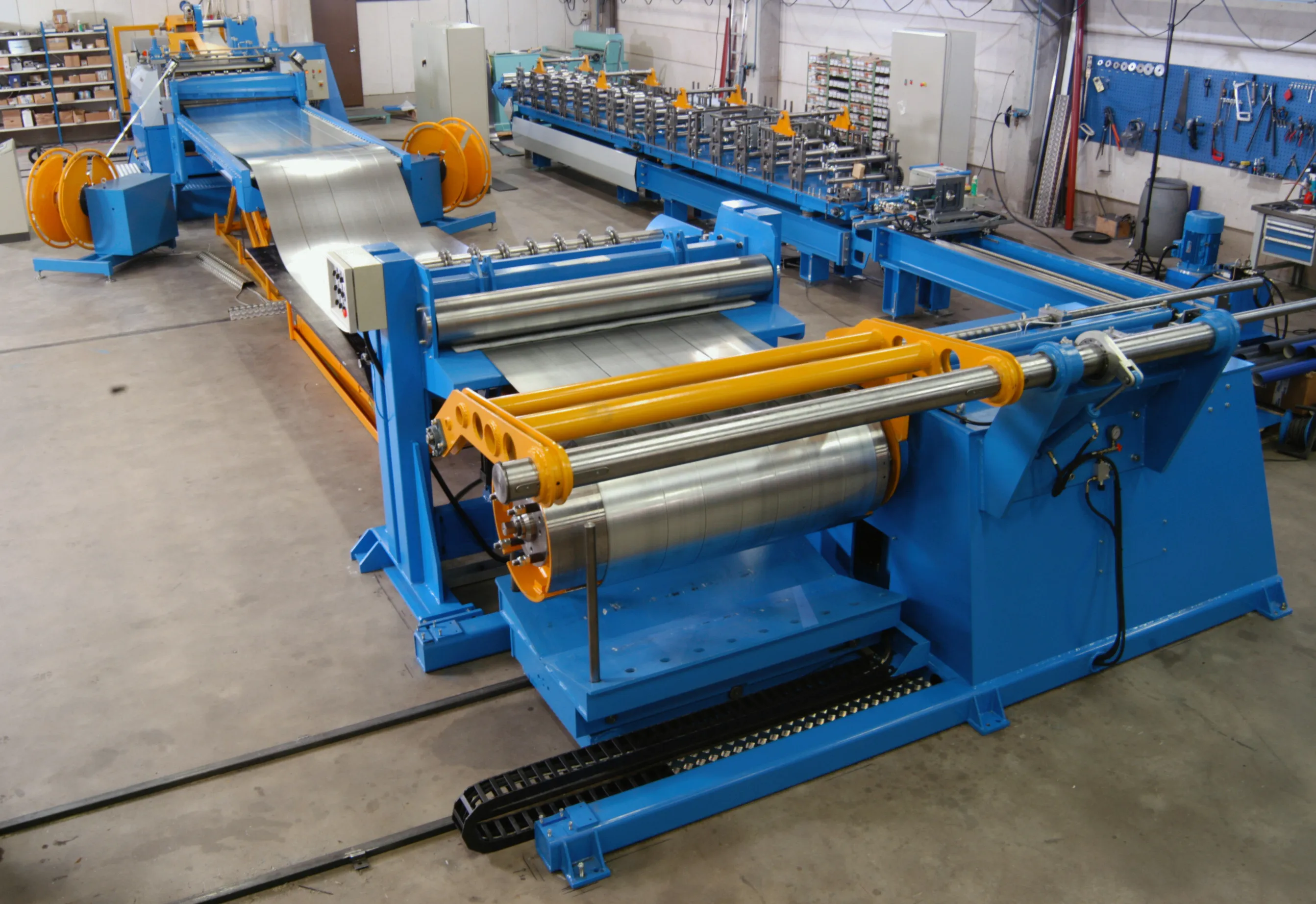

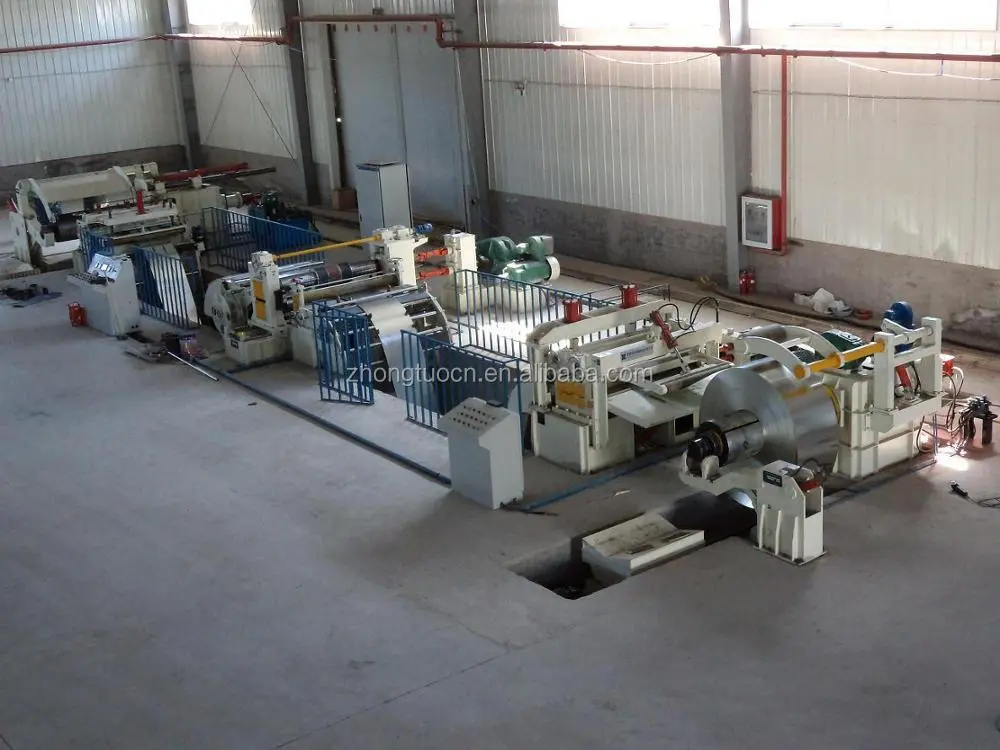

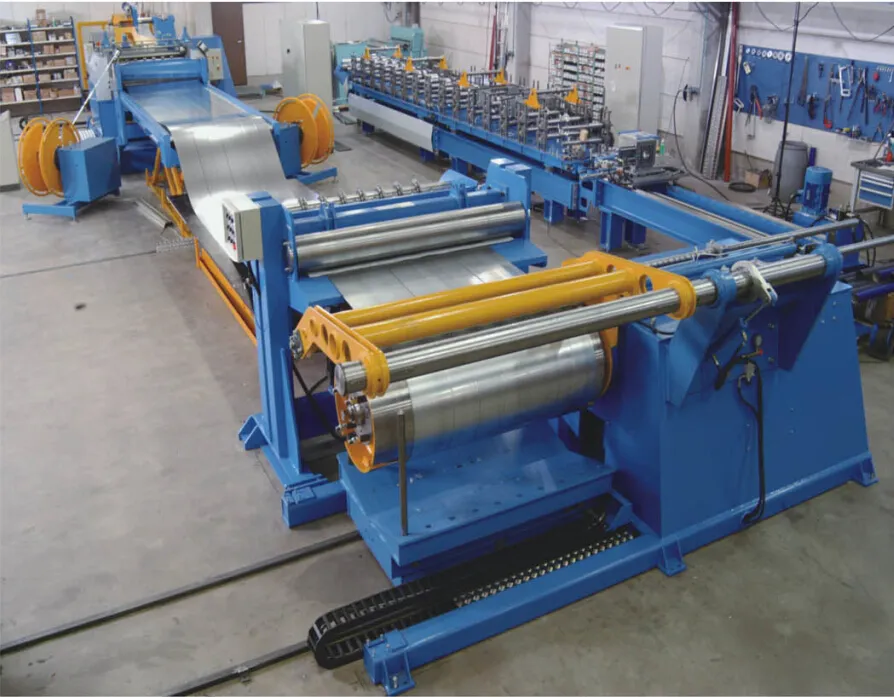

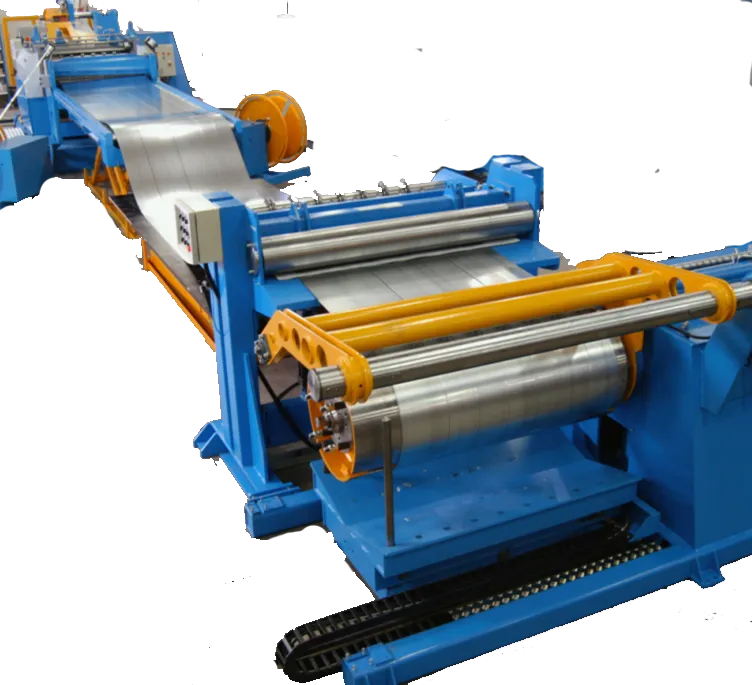

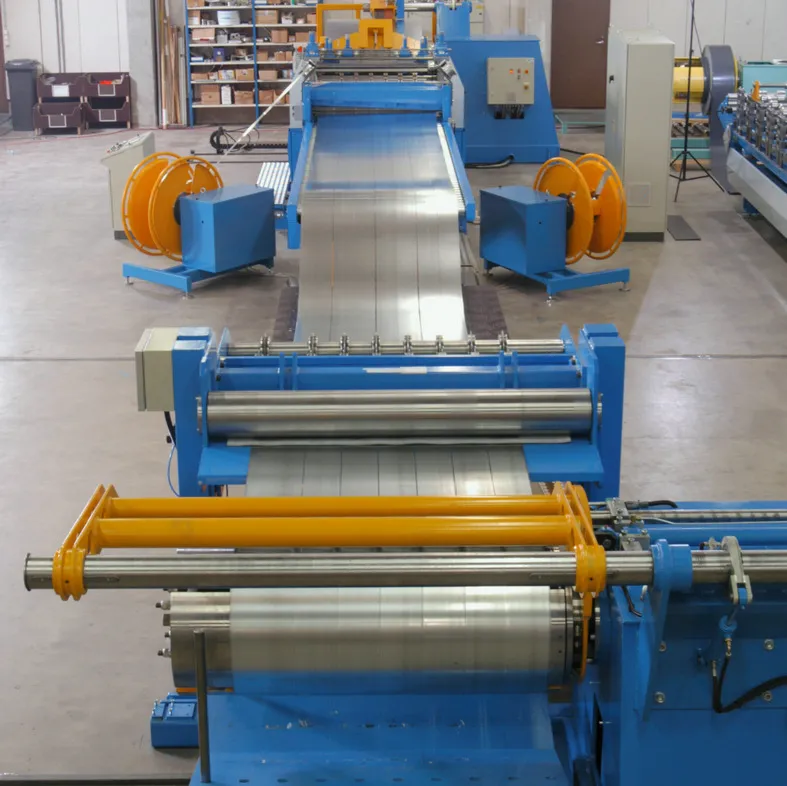

The whole production line include the 15 Tons hydraulic decoiler with loading car one set, slitting machine one set,

scrap winder two sets, tension stand one set, and automatic recoiler one set. Before the installation,

we will provide the fundation drawing, and the customer prepare the foundation as the drawing.

My engineer will install the machine overseas and training the workers how to start the machine,

change the slitting blade, and other adjustment.



To make the coil material feed into the slitting machine and tension machine smoothly,

need make two storage pits on the ground.



Here please check some main machine units as below:

The hydraulic decoiler with coil car

support the steel coil and de-coiling ,its max capacity is 15 T

It can expand and shrink with hydraulic oil cylinder and fit with the inner hole of the steel coils

and is equipped with supporting stand.

It is equipped with adjustable brake system to prevent the steel coil from free running

It is made by welding the steel plate and profiled bar.

the coil car makes the inner holes of steel coils aim at the de-coiler center.

The hydraulic expand and shrink de-coiler is driven by the pushing of center shaft to tight the inner hole of steel coil.



Slitting machine:

ower part: This is composed of power-stand, 650decelerator, 45KW direct current motor,

gear distributing case, coupler, spindle, connecting-cover, etc.

Host machine: This is composed of bottom-stand, fixed bracket, big slide, knife pivot(φ180mm, 2pcs),

movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device,

accompany of  blade, separating cover, rubber band and 10 blades with the machine

It change the blades through moving out the bracket hydraulically and is very convenient and fast

The scrap winder:

It consists of base, the shaft and plate of scrap material, friction wheel,

supporting wheel chain, chain, 350 decelerator and 7.5Kw electric machine.

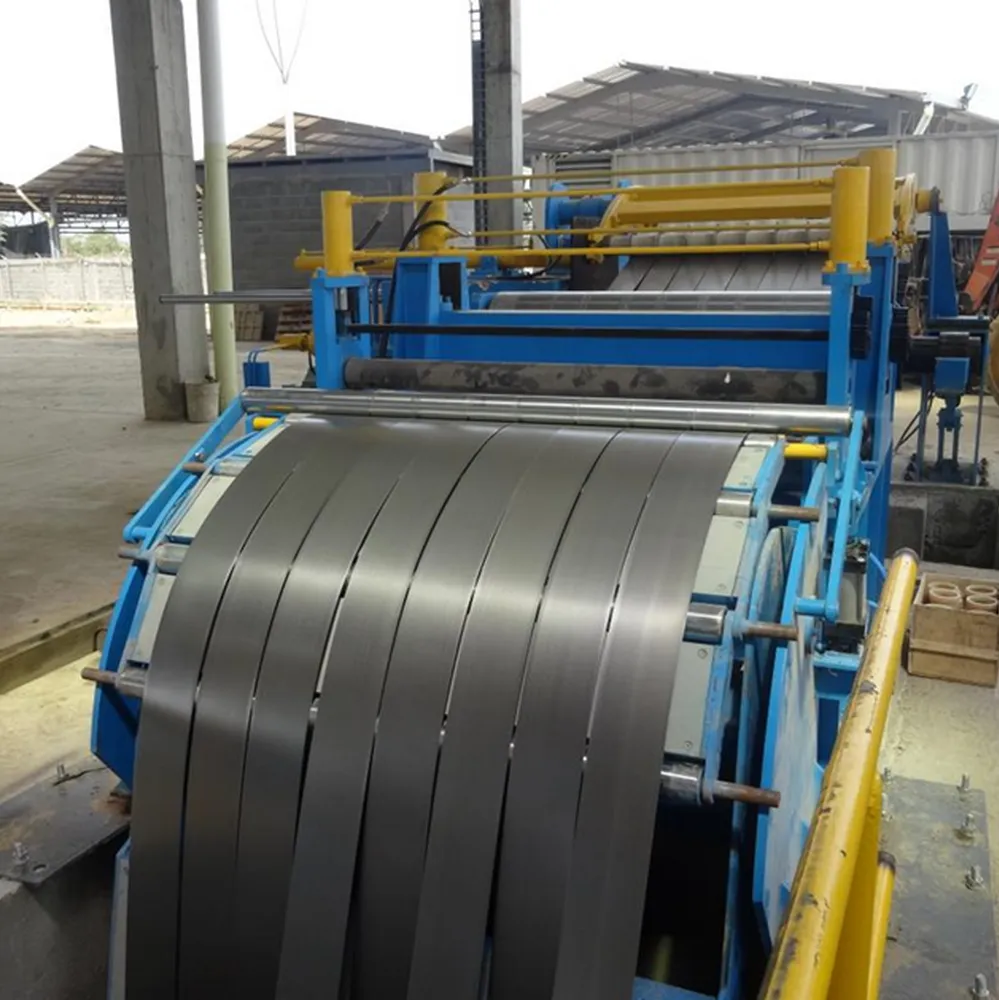

The tension stand:

This is composed of frame, preliminary dividing shaft, bracket, pressing shaft, hydraulic damping device,

lifting and pressing device for pressing shaft, set of dividing slice and cover, etc.

 Block device: hydraulic drives it up and down according to the material thickness.

Three hydraulic cylinders to make the pressure adjustable so that it can make the different thickness material’s tension power.

It also can ensure the recoiling quality.

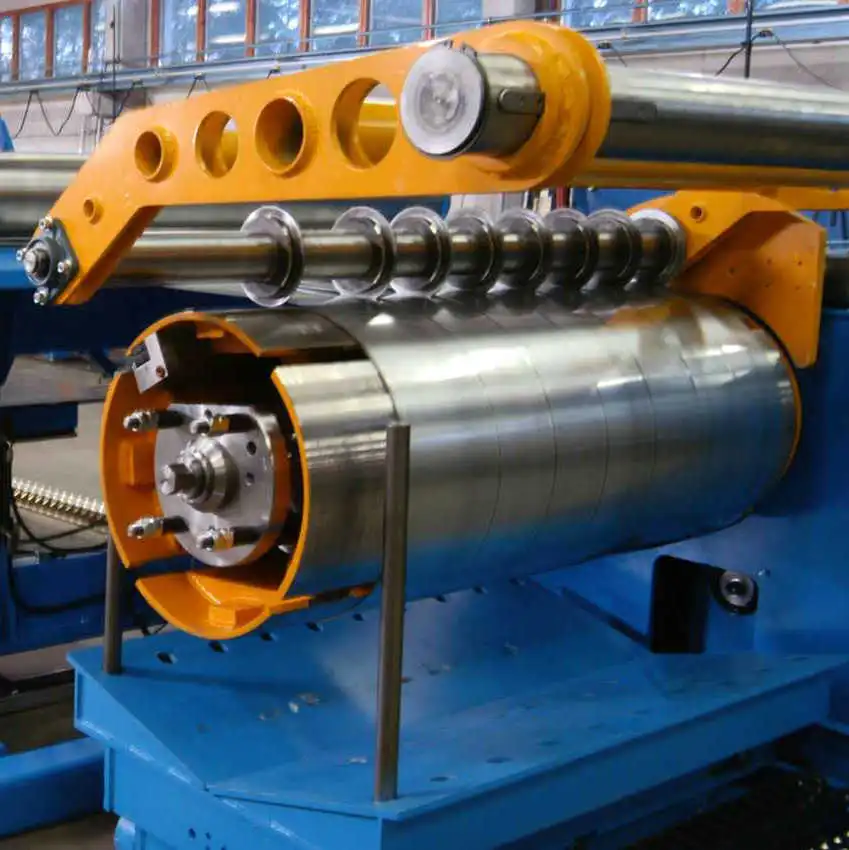

The automatic recoiler:

This is composed of frame, bearing-stand, recoiling shaft, expand recoiling device and plate,

movable supporting stand, accompany of decelerator, direct-current speed adjustable motor: 85KW

and direct-current electronic cabinet, etc.

Designed with the seamless expand and shrink structure and hydraulic clip-mouth

so that when the heads feed into the clip-mouth, it will close automatically and start winding.





1. Installation: The seller will send technician to buyer's factory, and the buyer should pay for the flight,

the visa and the food and accommodation. Pay for 100 USD per person one day.

2. Service promise: The supplier designs and makes the equipment with quality guarantee period of one year.

The supplier will provide free maintenance while quality guarantee period, except for the human mechanical fault;

and collect only the part costs and the travel expense of the serviceman.

 Remark:

1. In the guarantee equipment main technical parameters and installed level, the user and consultation,

and manufacturing process has the right to modify some parameters

2. Seller needs to supply following items

(1) Mechanical foundation installation drawing and production line arrangement as well as the operation manual.

(2) All the below spare parts are provided with the machine, any extra spares, that would be ready by customer self.
