Coil Cut to Length Line Slitting Machinery Steel Sheet Metal Engineers Available to Service Machinery Overseas 0-60m/min 2 Years 0.5-2mm

Cangzhou Zhongtuo International Trade Co., Ltd

Coil Cut to Length Line Slitting Machinery Steel Sheet Metal Engineers Available to Service Machinery Overseas 0-60m/min 2 Years 0.5-2mm

Name: Coil Cut to Length Line Slitting Machinery Steel Sheet Metal Engineers Available to Service Machinery Overseas 0-60m/min 2 Years 0.5-2mm
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT90133302

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

model number:

0.5-2mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Cutting Width (Mm)
100 - 11000 mm
Material Thickness(Mm)
1 - 3 mm
Cutting Speed(M/Min)
30 - 50 m/min
Coil Weight (T)
10
Voltage
380v/50hz/3ph

Coil Cut to Length Line Slitting Machinery Steel Sheet Metal Engineers Available to Service Machinery Overseas 0-60m/min 2 Years

slitting machinery is a lengthways cutting production line, for cutting metal sheet stirp. sheet coil slitting machine can uncoil metal sheet strip coil, then slit(cut) the metal sheet strip longitudinal, then rewind the slitted metal sheet strips, for getting narrow metal sheet strip coils.

1. Specifications:

a. applied to : HR,CR

b. Tensile strength:b≤500Mpa,S≤300Mpa

c. thickness:0.5-2.0mm

d. width:500-1500(Max)

e. coil ID: 508mm

f. coil OD:1600mm(Max)

g. weight :15T(Max)

h. diameter of leveling rollers: 65mm

i. distance of leveling rollers:70mm,

j. material of leveling roller:GCr15,hardness:HRC55-60

k. total weight of machines:around 30T

2. Finished products parameters:

a. diagonal tolerance:≤±1mm/2000mm

b. length tolerance:≤±0.5mm/2000mm

3. Other parameters :

a. power :380V/50Hz/3Ph

b. line speed:0-60m/min

c. capacity :around 100Kw

d. area of the whole production line(about) 25m(L)X7m(W)

e. people of operation: 1 technician and 2 general workers

f. color of the machines: grass green

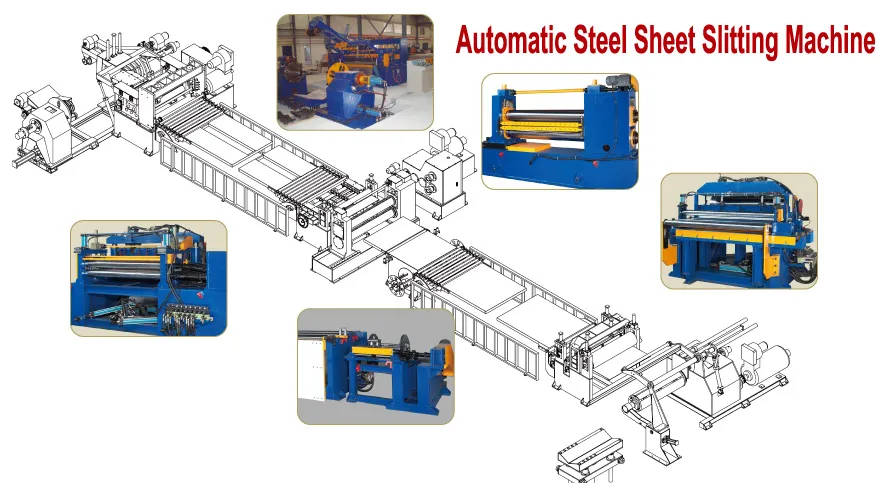

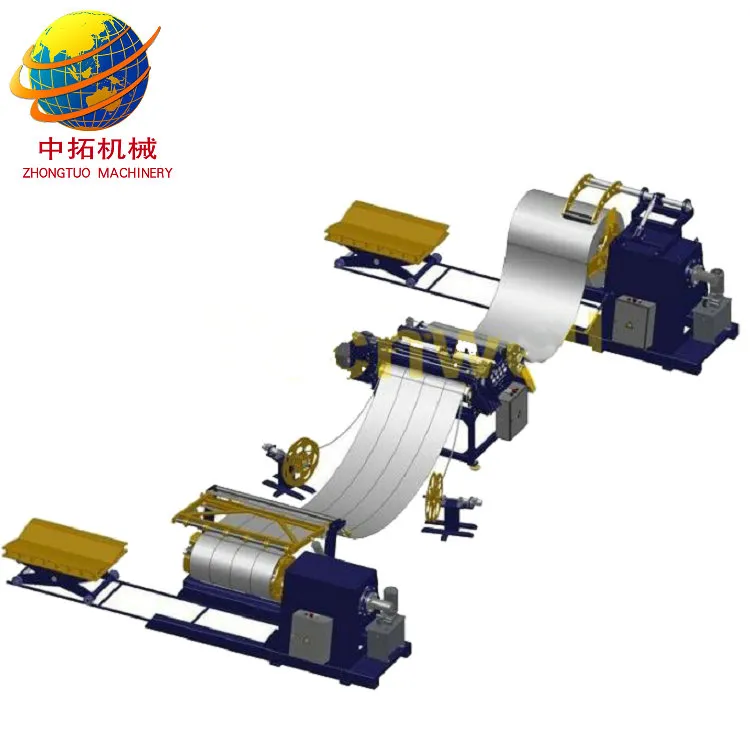

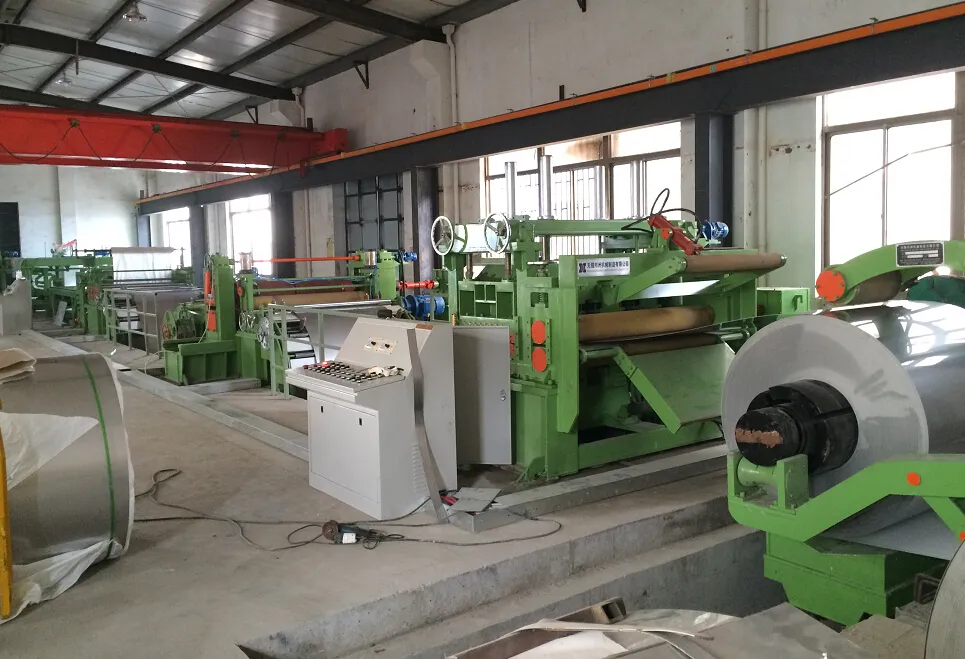

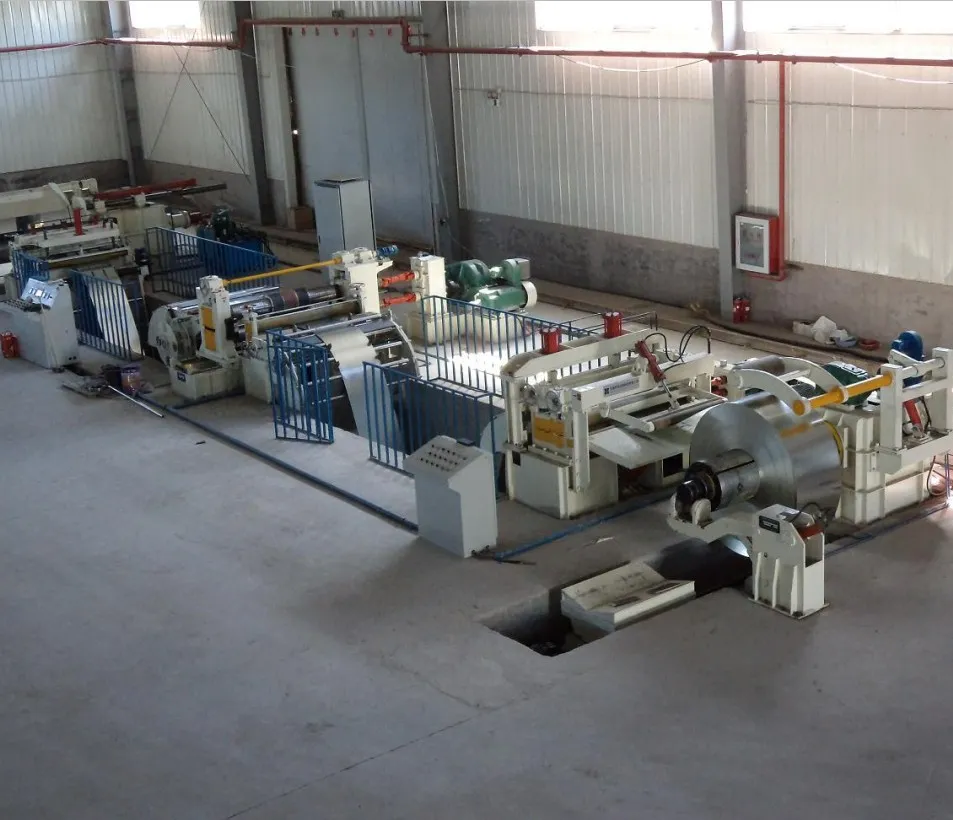

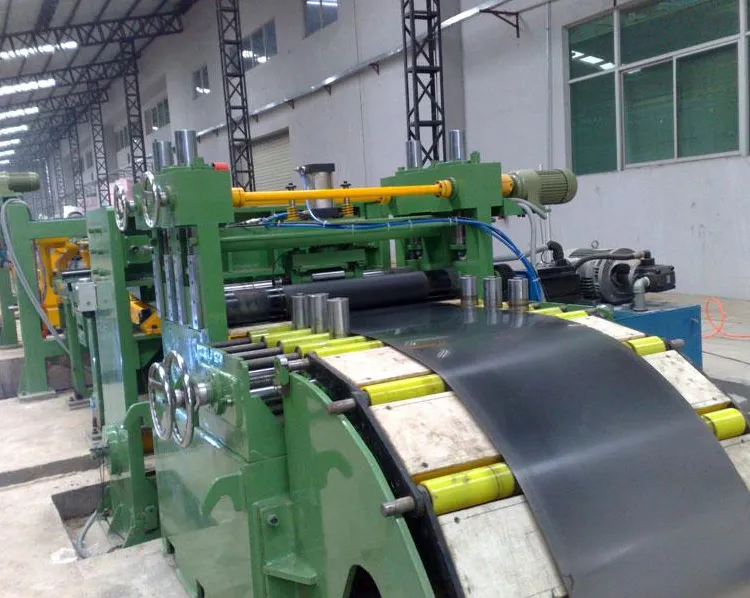

Composed devices of slitting machinery:

1.Hydrauliccoil car

2.Hydraulic decoiler

3.Slitting machine

4.Scrap winder

5.Tension stand

6.Hydraulic recoil

7.Unloaded car

8.Hydraulic control system

9.ELectric control system

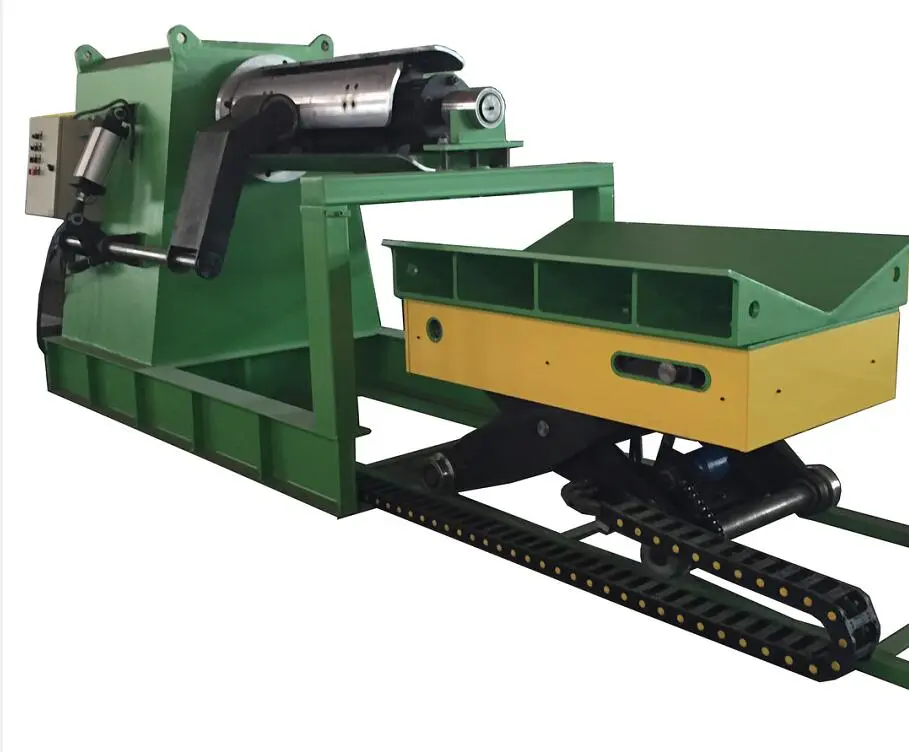

Hydraulic de-coiler with car

It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever.

inner diameter: 508mm .

The Max width:1500mm

The capacity is 15Tons (max)

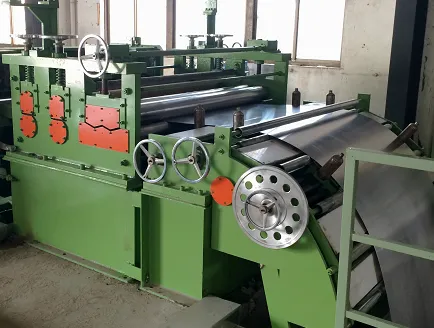

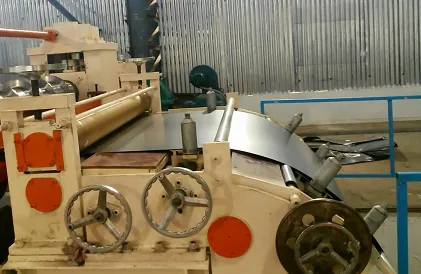

pre-leveling machine

It can straighten the rough plate and guide strip right after entering the process

Mechanical structure: it is composed of two rows leveling roller, two rows middle supporting roller, 2 groups of supporting rollers, driving device, 2 pinch rollers and frame. Each roller both of ends drive with roller pin bearing,

the working rollers can be adjusted the gap electrically which is controlled by 2 hand wheels to ensure the leveling quality.

Driving model: driven by 55kw frequency control motor

Roll process:hardened HRC55-60 -finishing grinding- hard chromium plating

Automatic lubrication system

Servo precision straightening machine

It is controlled by servo electromotor and used to regulate for high speed feed and precise length control.

The operation is done at the control table with programmable control.

Drive model: 15 KW servo motor

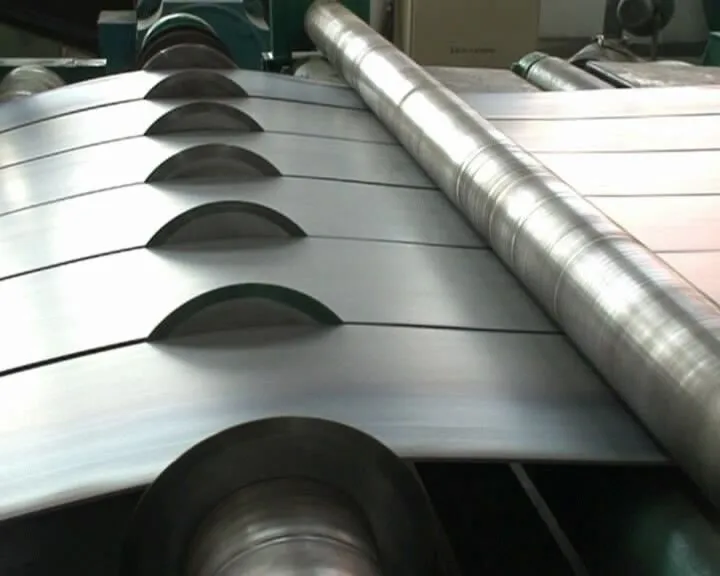

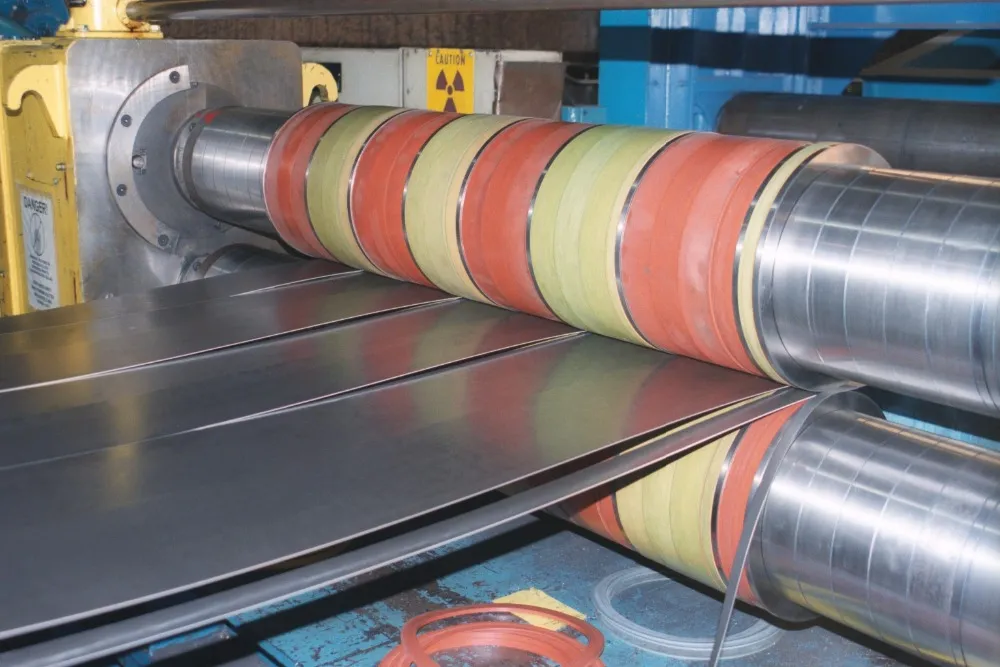

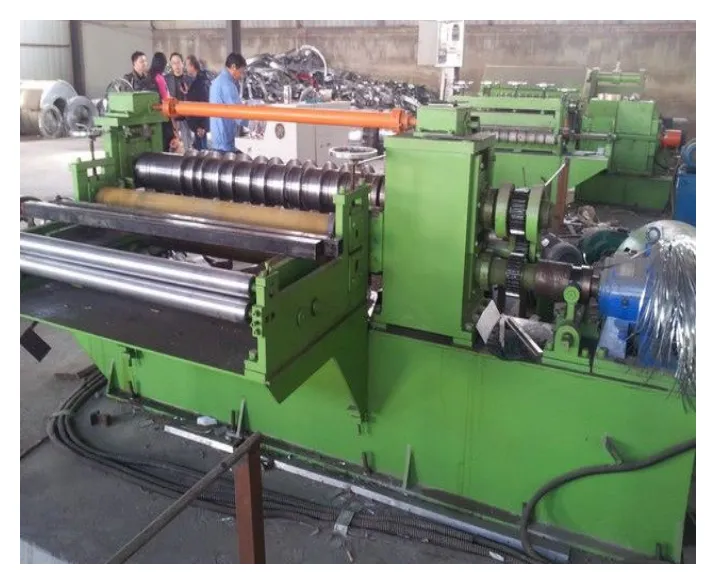

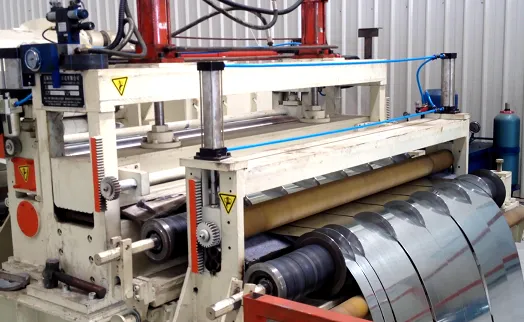

High speed Cutter

1). The width range :200--1300mm

2). The precious of the width:±1mm

3). The speed of slitting:50m/min

4). The width can be change.

5). Material of the slitting: Cr12MoV.

Hardness of slitting blade:HRC5860.

6).slitting:2~3mm 6 lines.

7).quantity of blades:10 sets .

8).Width of side scrap:3-15mm

9).The precious of side scrap:±0.5mm

10).Quantity of side scrap:2 strips

11).Power of the slitting:37KW,1000r/min,with ZQ750 Reducer.

Pneumatic stacker device

The plates are piled pneumatically and PLC controls the lifting.

Three 0.75kw motors drag to adjust the width and the length.

It is equipped with the wind device which cooperates with the high pressure fan to prevent the sheets from friction.

stress of air source: 0.4-0.6Mpa.

The capacity:1m³ /min.

Electrical system

1). Screen:3.2inch button screen

2). PLC:Delta
