China Suppliers Door Jamb Roller Former Equipment customized+ZT-300

door jamb roller former equipment can produce many types of steel door frame.

What is the working flow of door jamb roller former equipment?

door jamb roller former equipment is consisted of decoiler, main forming machine,cutting device,runouttable.The working flow is as follows:

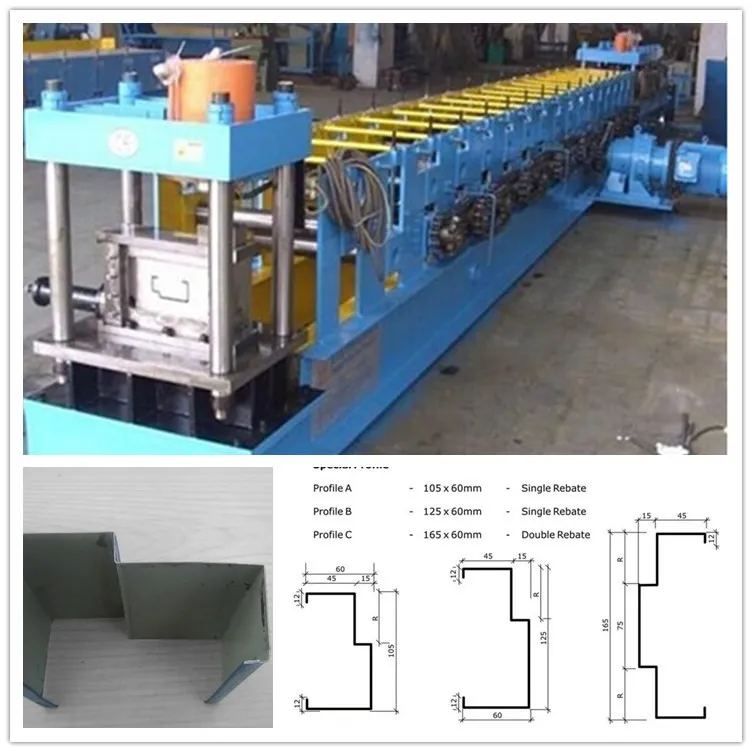

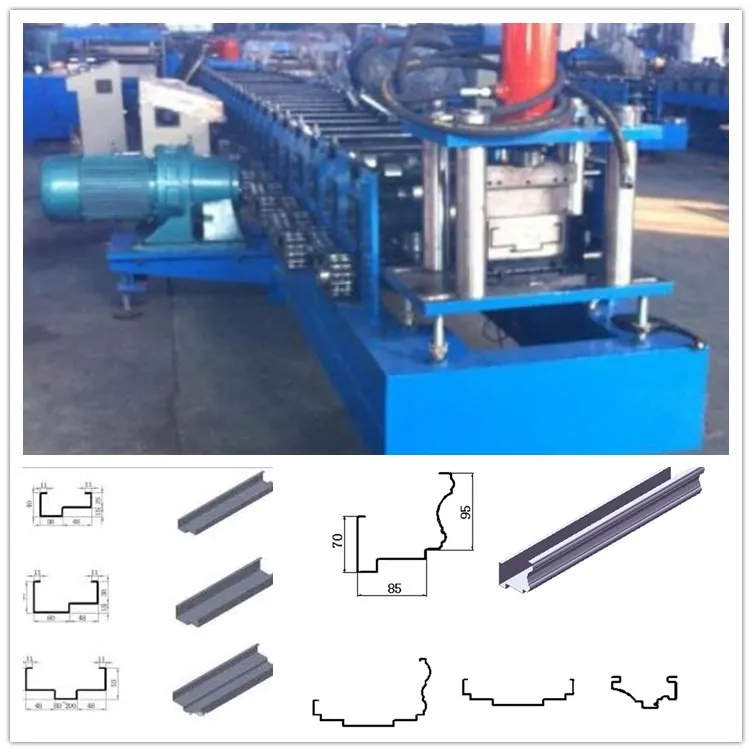

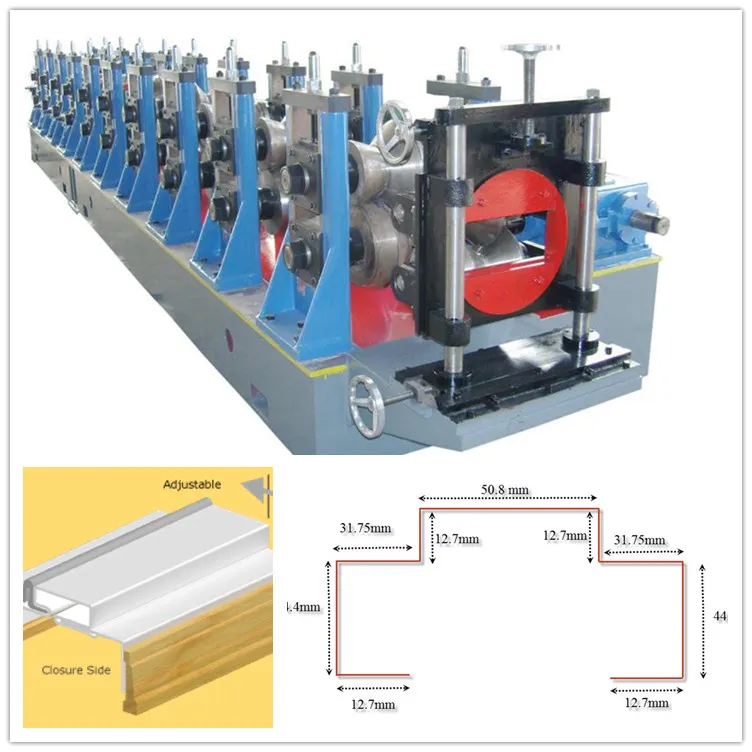

some drawings of door jamb roller former equipment

If you want to buy a door jamb roller former equipment, first you should give us a profile drawing of the steel door frame like the following.

And if you don't have a drawing, we can recommend you the most popular steel door frame drawing in your country.

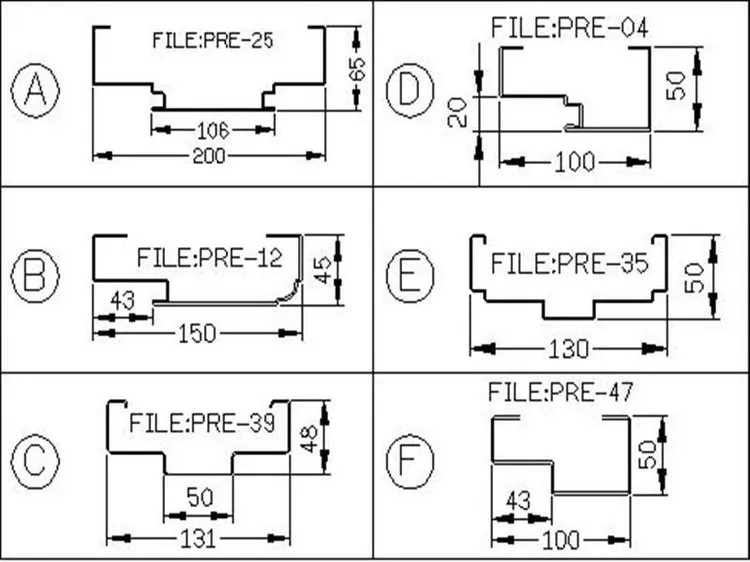

The following is some drawings for your reference, we can also design the door jamb roller former equipment  according to your drawing.





the basic  Information of door jamb roller former equipment



name	door jamb roller former equipment
Processing material	colored steel, galvanized sheet, or aluminium plate
Material thickness	0.8-1.5 mm
Material hardness	550 mpa---350 mpa
Material width	200mm(according to the profile)
Formed width	101.6mm (according to the profile)
Forming speed	12m/min
Working speed	8m/min
Voltage	380V 50HZ 3Phase
Roller fixer	Guide column
Frame	400 H steel
Drive mode	chain
Material of rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel with tempering
Diameter of shafts	φ70mm
Number of rollers	20 rollers
Main power	5.5kw
Hydraulic power	3kw

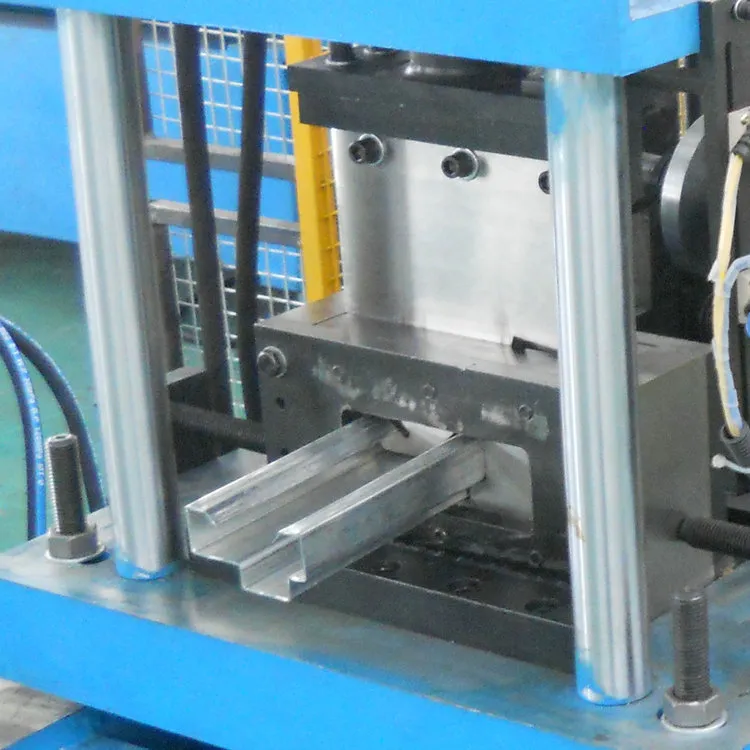

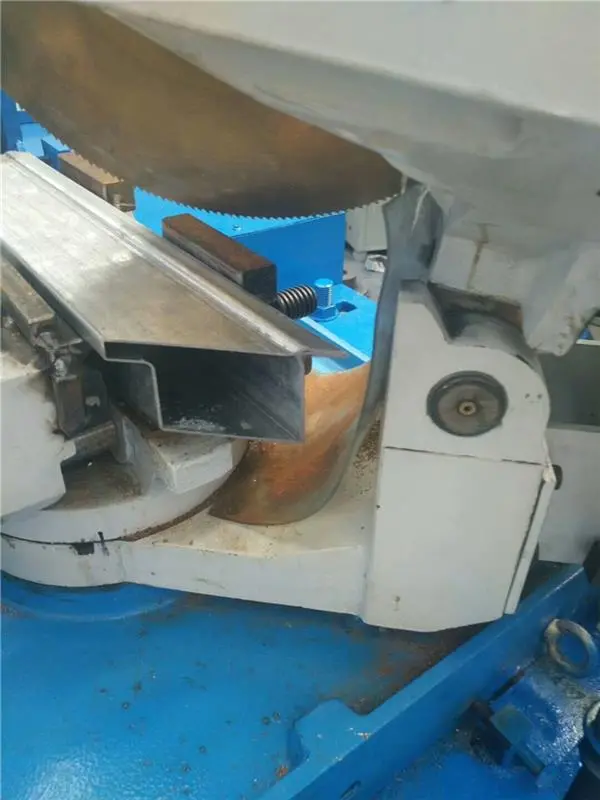

some details of door jamb roller former equipment

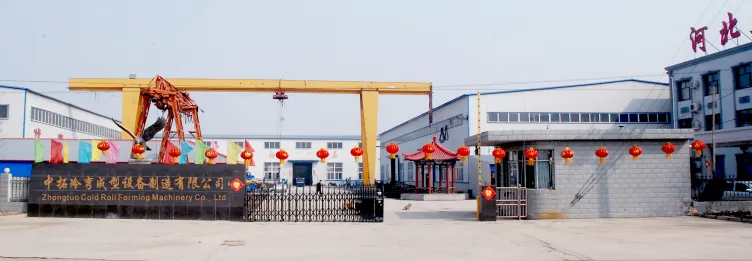

 Cangzhou ZHONGTUO Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.

We specialized in manufacturing Color steel roll forming machinery, C U M Z purlin roll forming machine,Glazed tile roll forming machine, steel floor deck roll forming machine, shutter door roll forming machine, metal stud and track roll forming machine,highway guardrail roll forming machine, downspout machine,roller shutter guide rail  machine,door jamb roller former equipment,no beam roof tile machine,  welding pipe machine.

FAQ:

1.How to get a quotation of door jamb roller former equipment?
Give me the profile drawing and thickness for the steel door frame,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.



2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.



4. What is your after-sale service?
door jamb roller former equipment's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.



6. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
