Technical Specifications

Type
Cable Tray Roll Forming Machine

Cable tray roll forming machine

Product Description

Introduction of cable tray making machine:

Cable ladder roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 10 different lengths for cable tray. Our roll forming machine could produce wide range of sizes, and automatically change by motors from one size to the other not only at width but also at height. The only step is put your required data into our touch screen and wait for few seconds. And other wise innovation is that one machine could make cable trays and covers of corresponding size. Change time is only 30 minutes, easy to operate, low-cost and save area. We have experience of exporting our cable tray roll formers to Argentina, Russia, Australia etc.

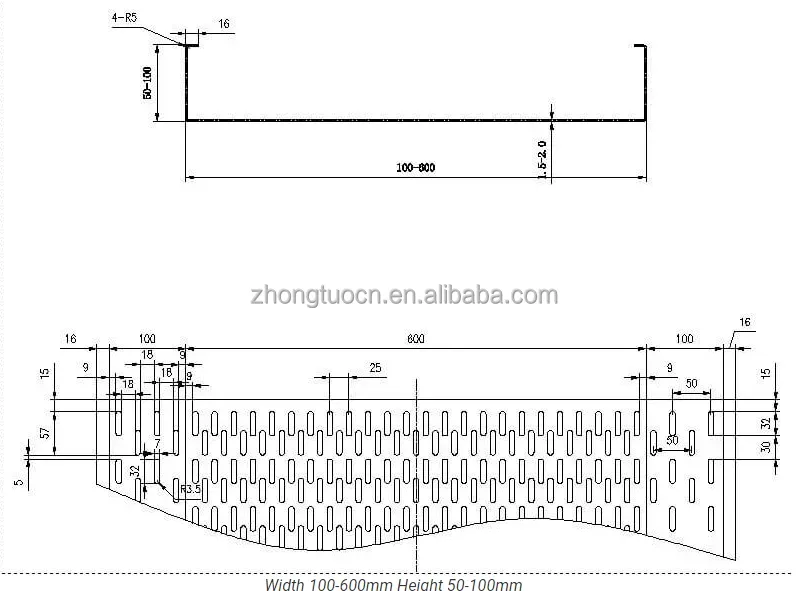

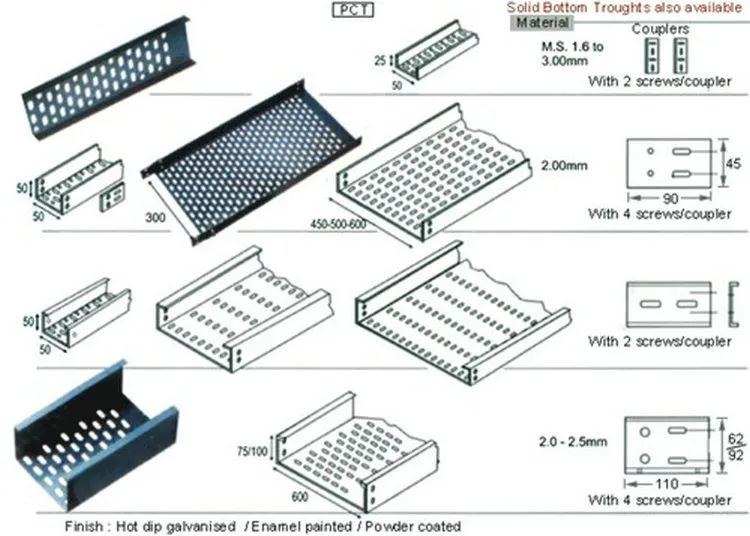

Profile drawing of cable tray machine:

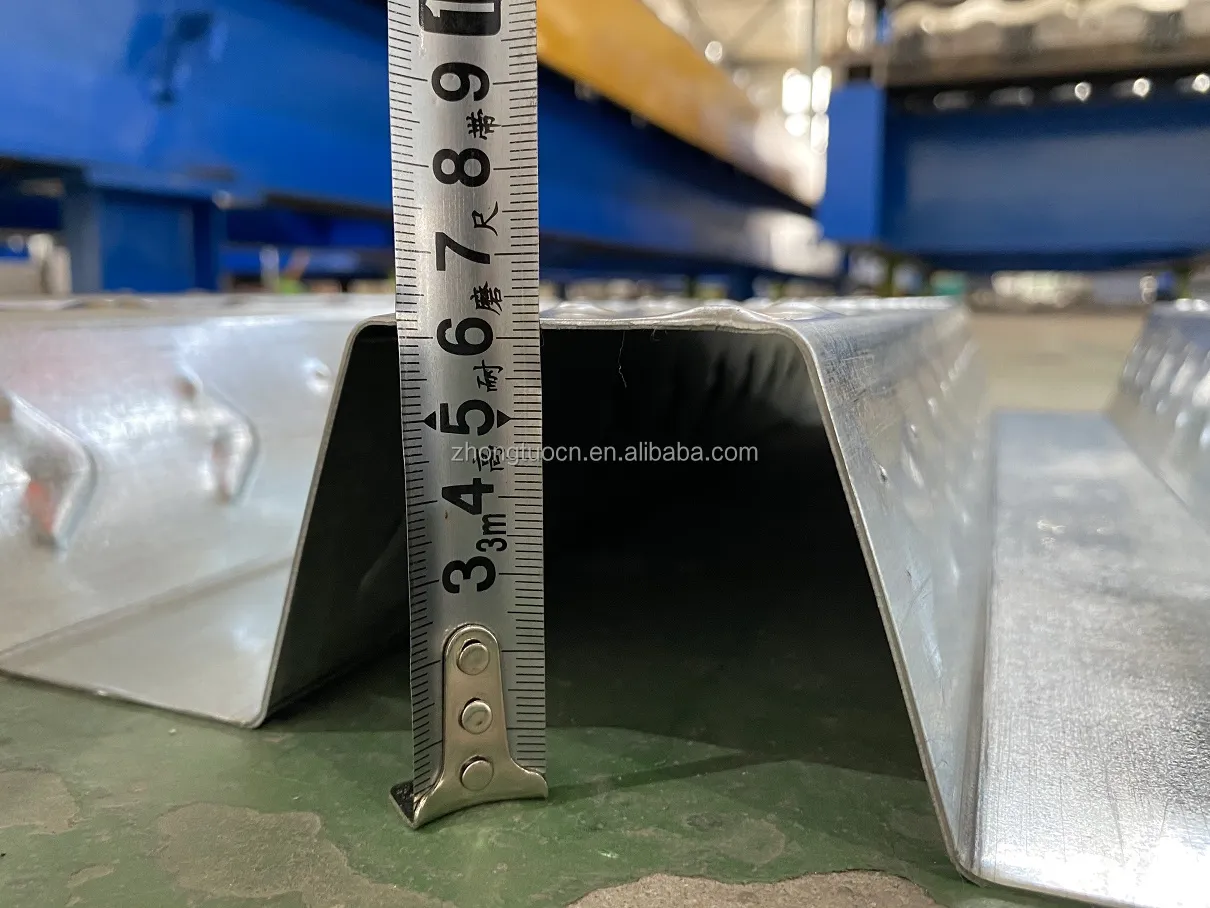

Installation of the Hi-bond 55 structural steel floor deck

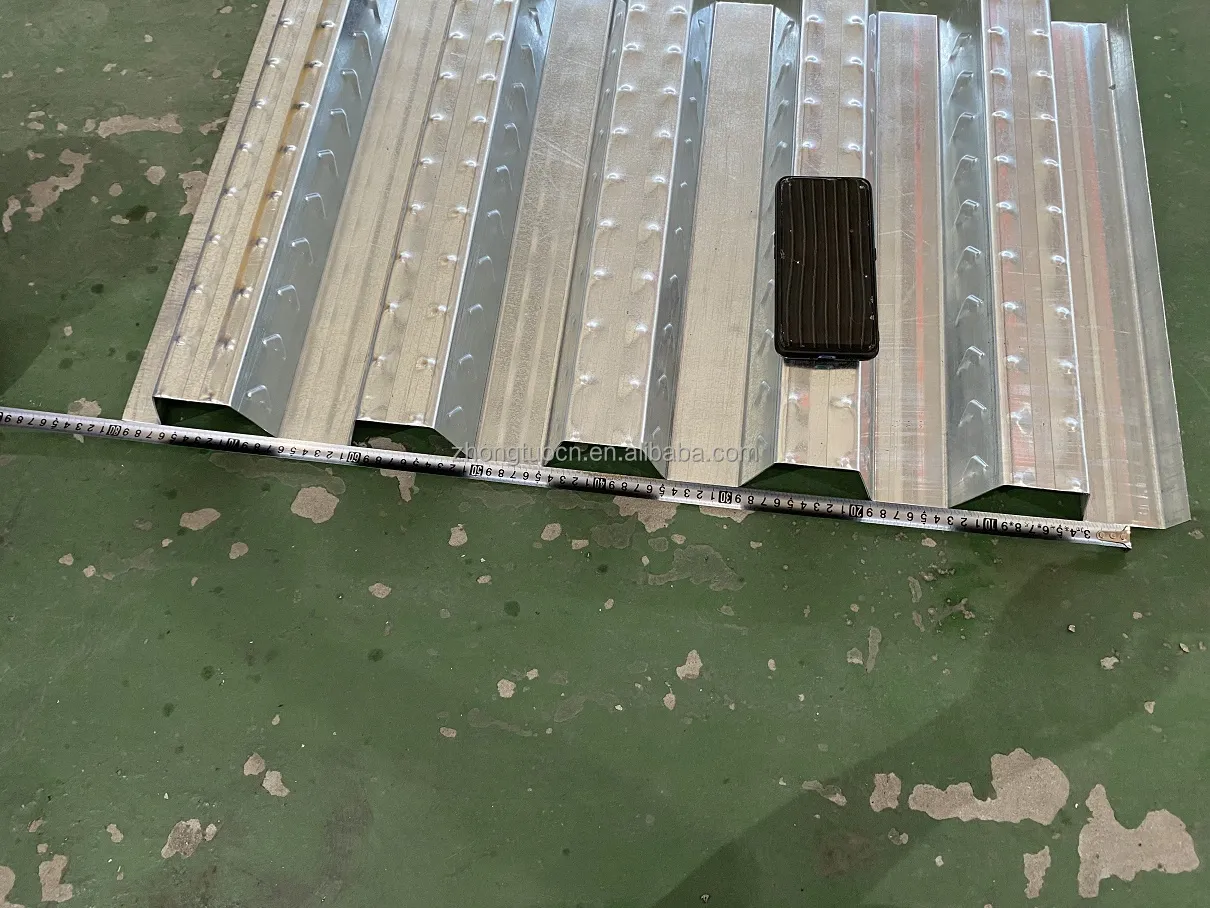

Hi-bond 55 steel structural decking rolling forming machine pictures:

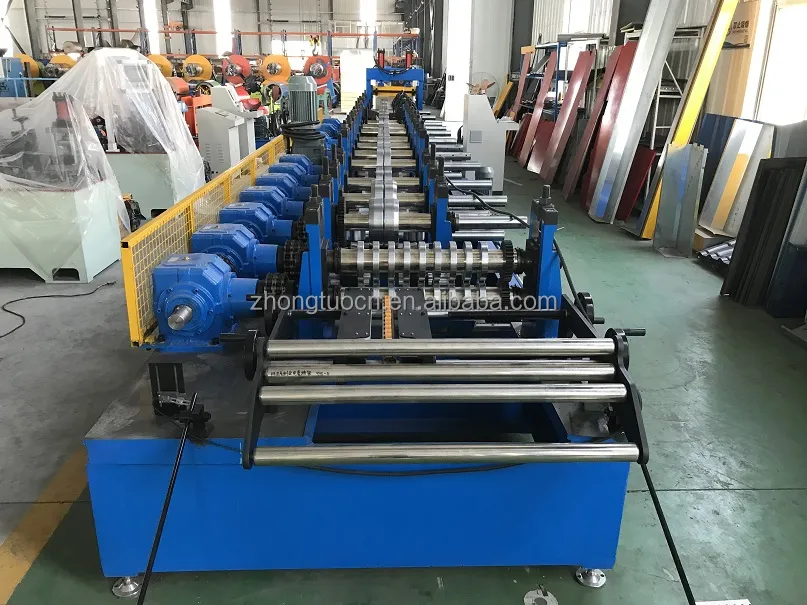

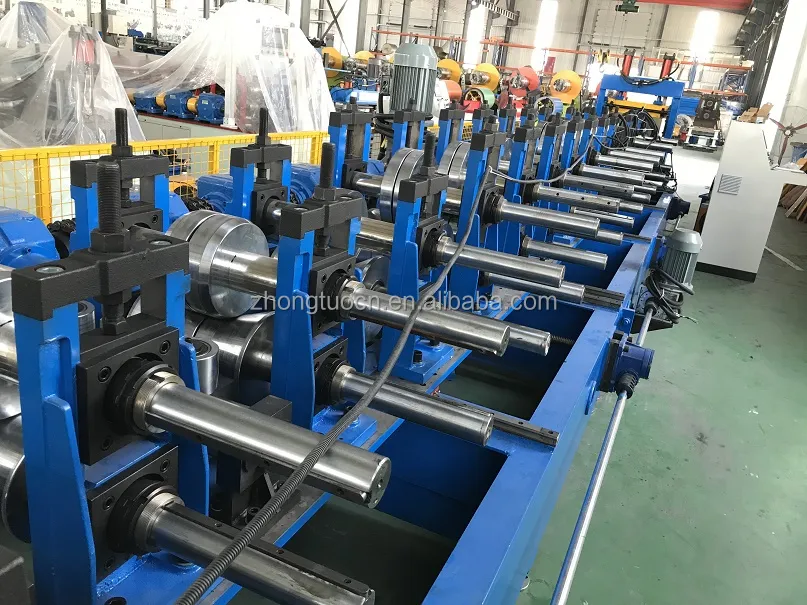

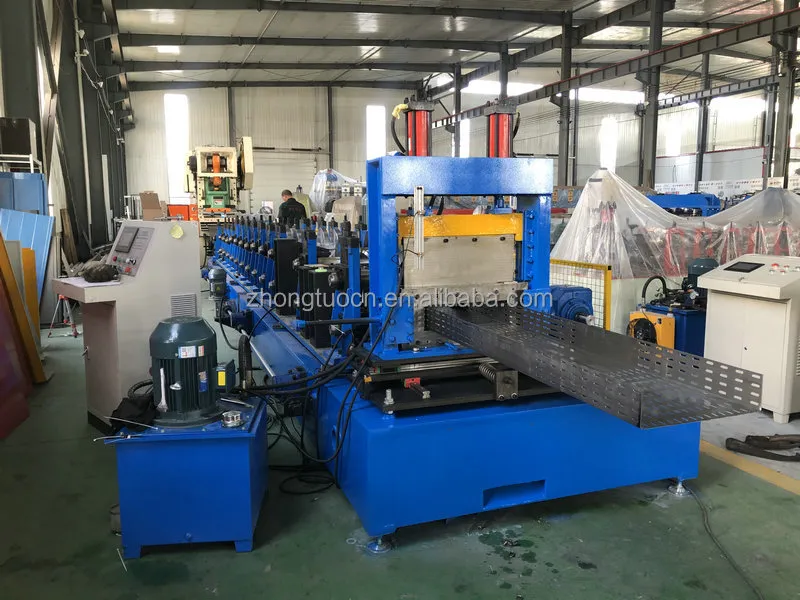

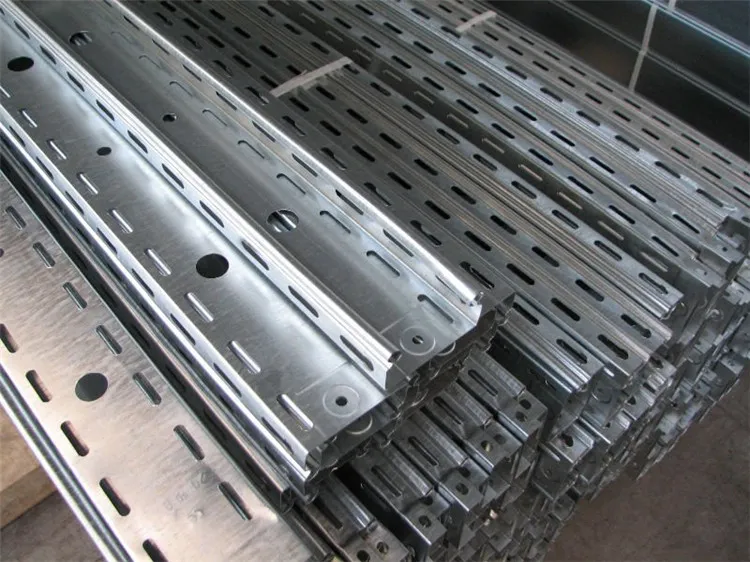

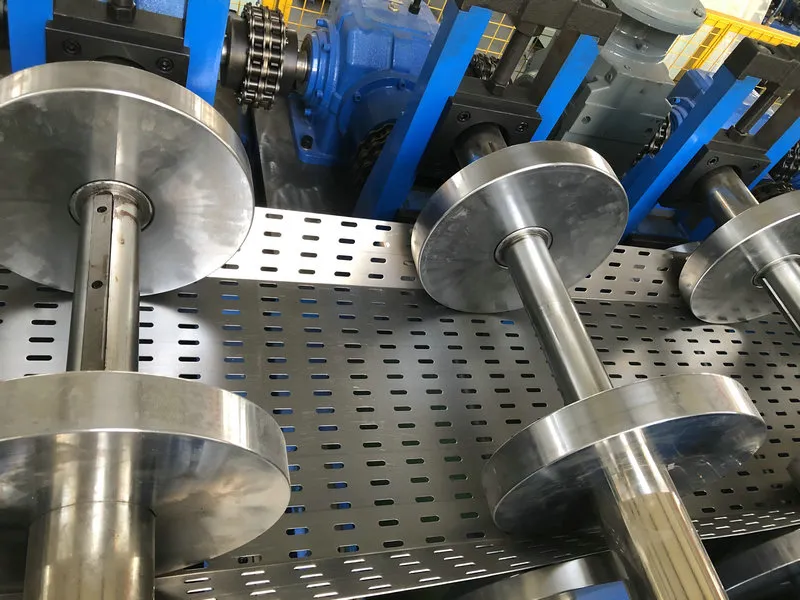

High quality metal cable tray roll forming machine
1.Formed Material	GI		Thickness:0.7-2.0 mm Width: as request

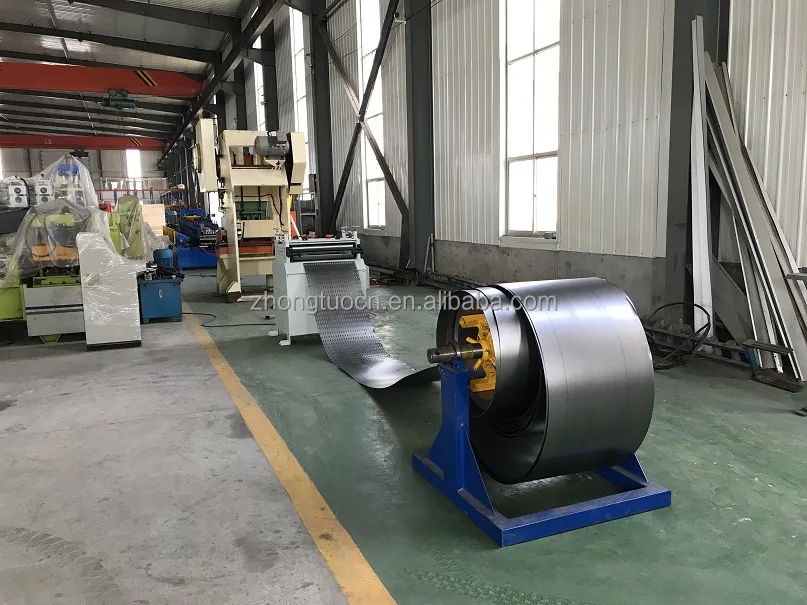

2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		33 rows(As your requirement)

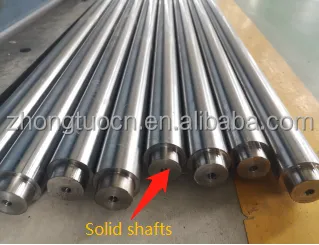

		Diameter of shaft		90mm solid shaft

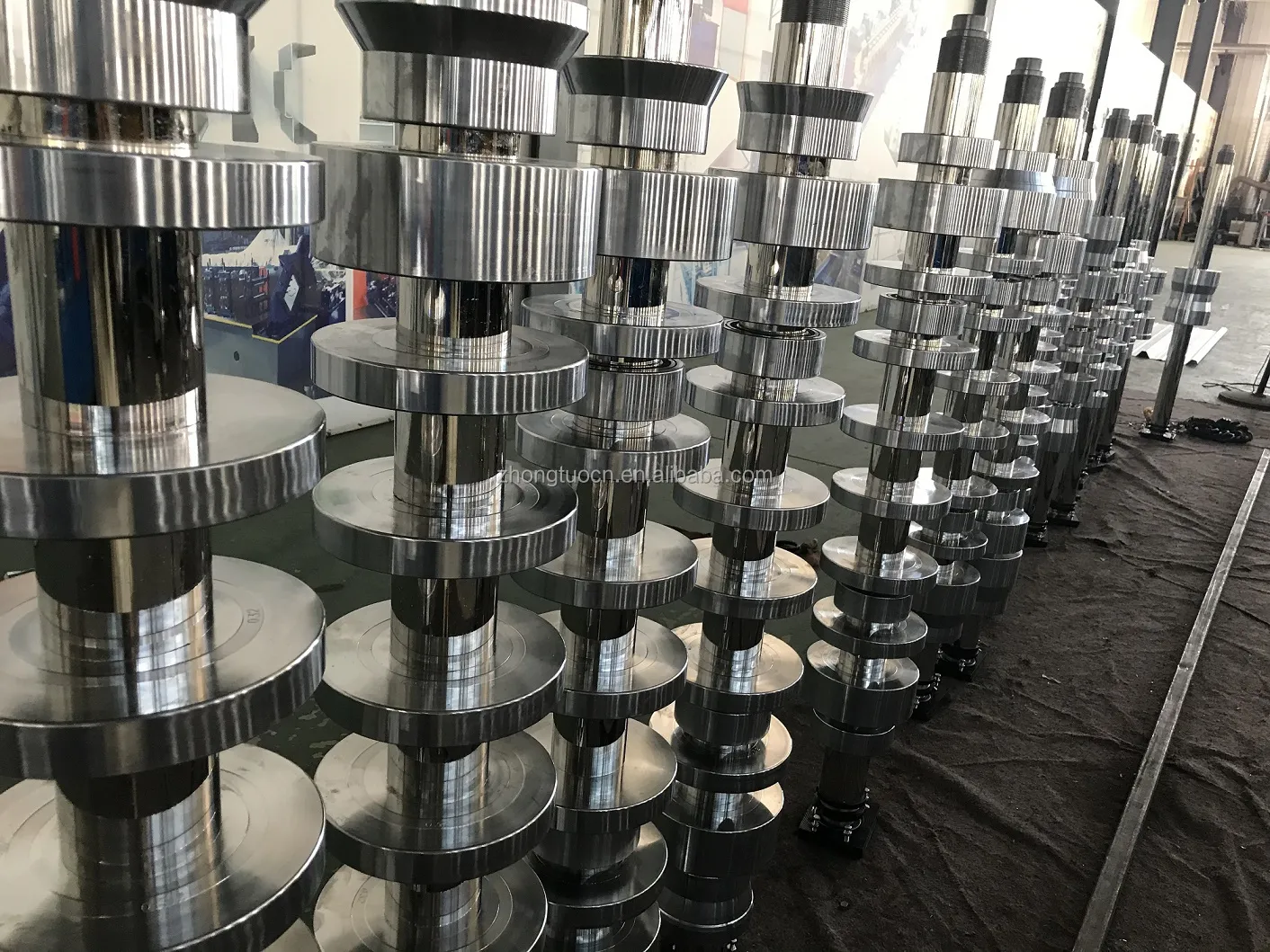

		Material of rollers		45# steel, hard chrome plated on the surface

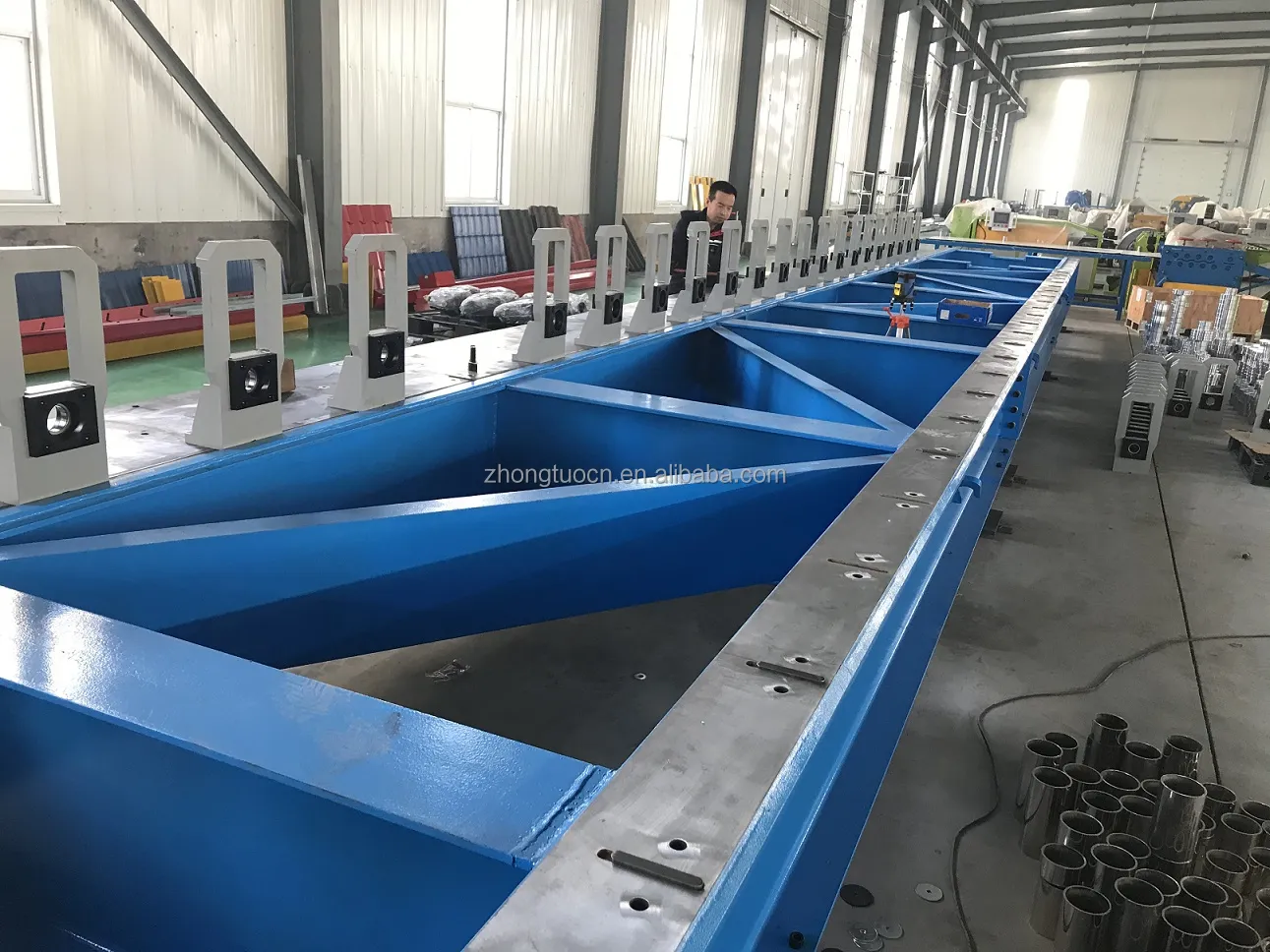

		Machine body frame		500 H steel
		Drive		Gearbox transmission
		Dimension(LWH)		1500018001600(customize)
		Weight		15T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		11KW*2 sets,Siemens brand
		Hydraulic system power		7.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement

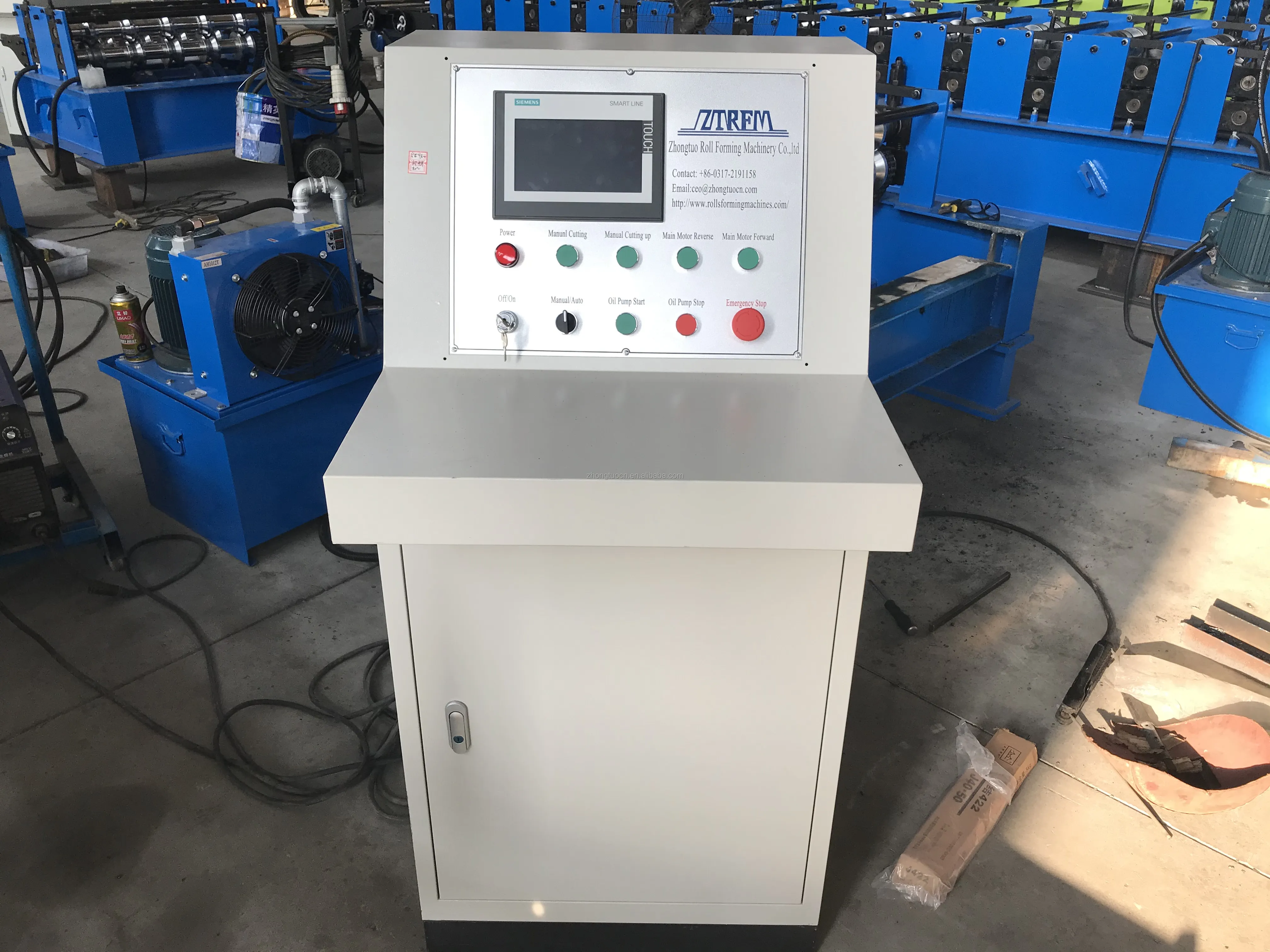

7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	15-20m/min		The speed depends on the shape of the tile and the thickness of the material.

Cooperated brand:

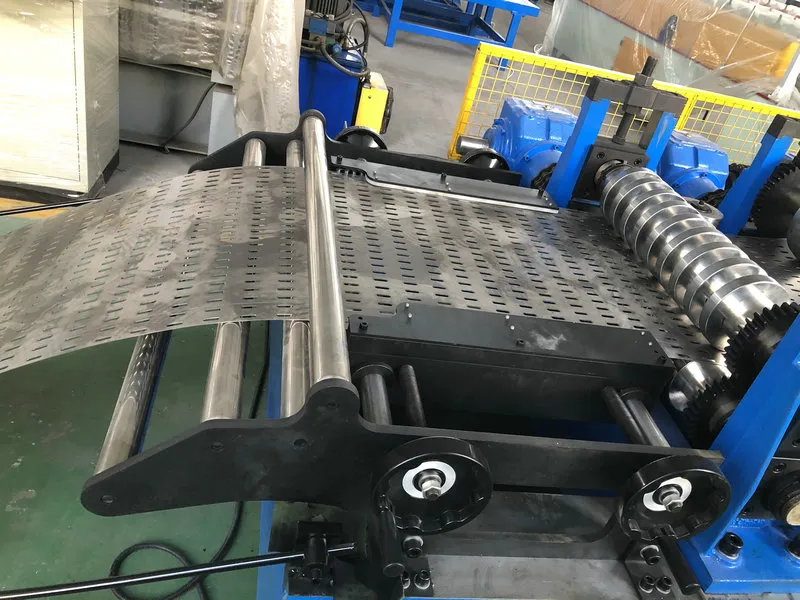

Production process

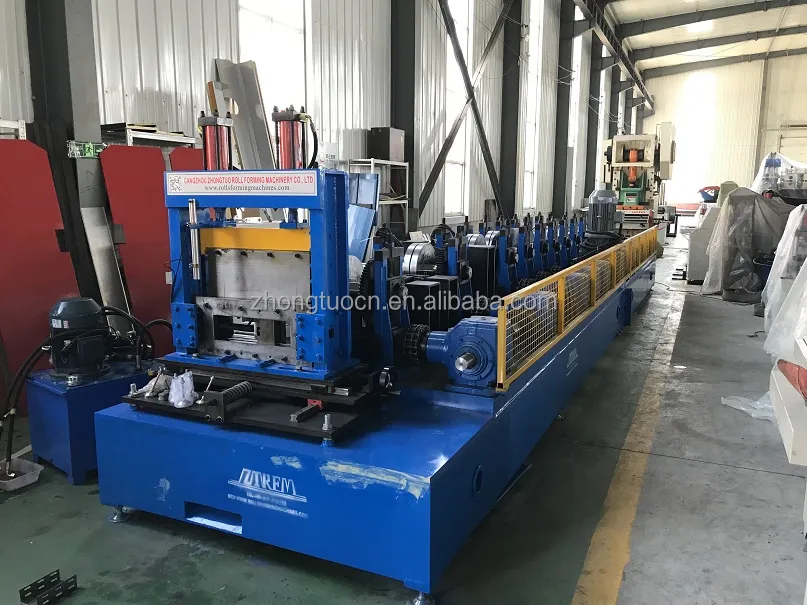

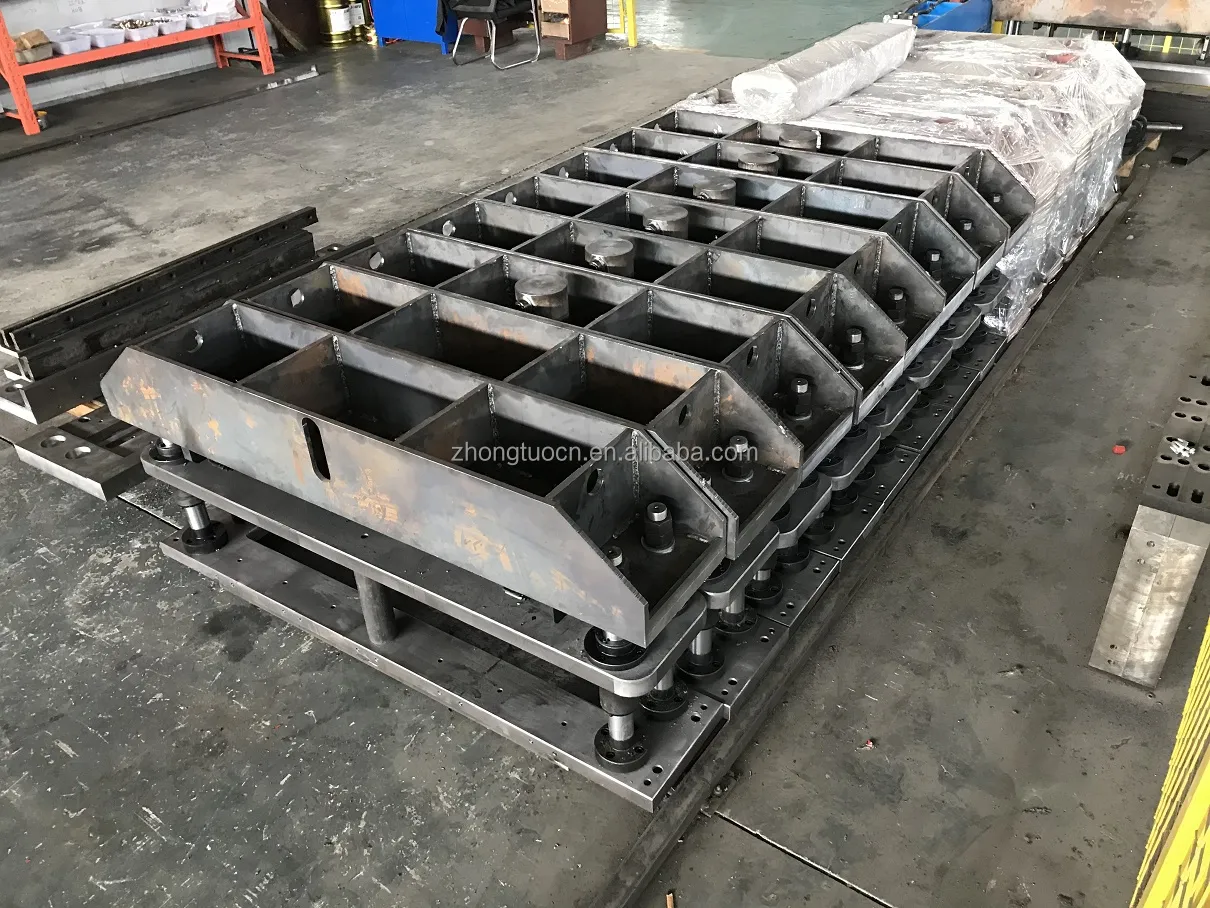

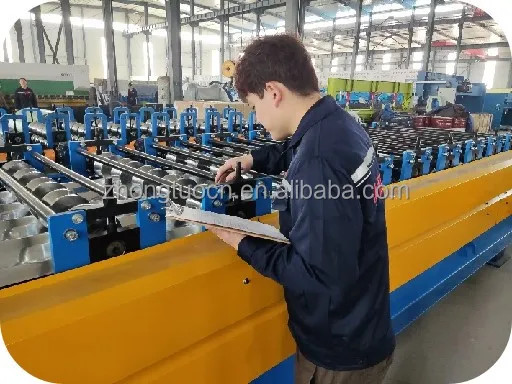

Finished machine and product inspection before delivery:

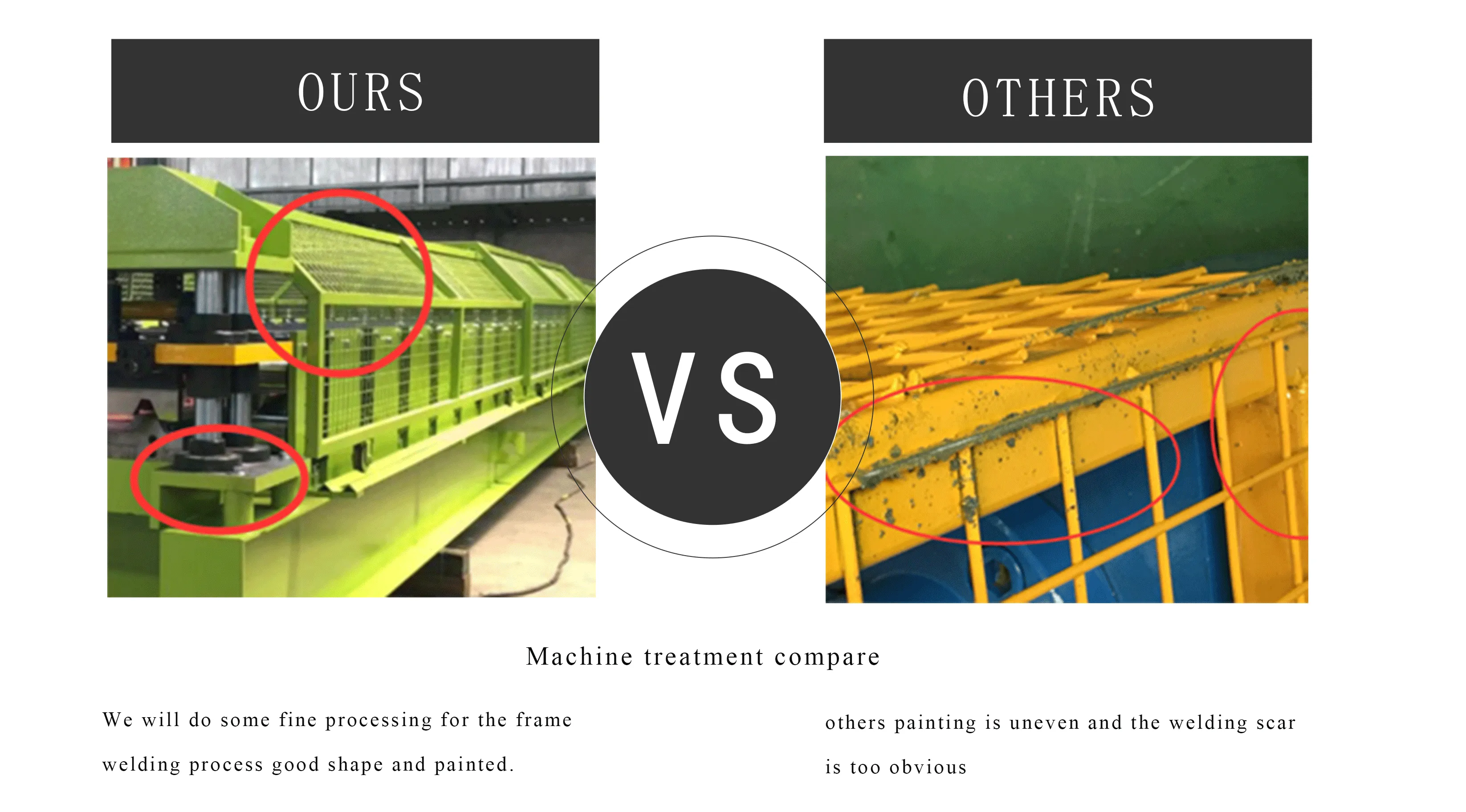

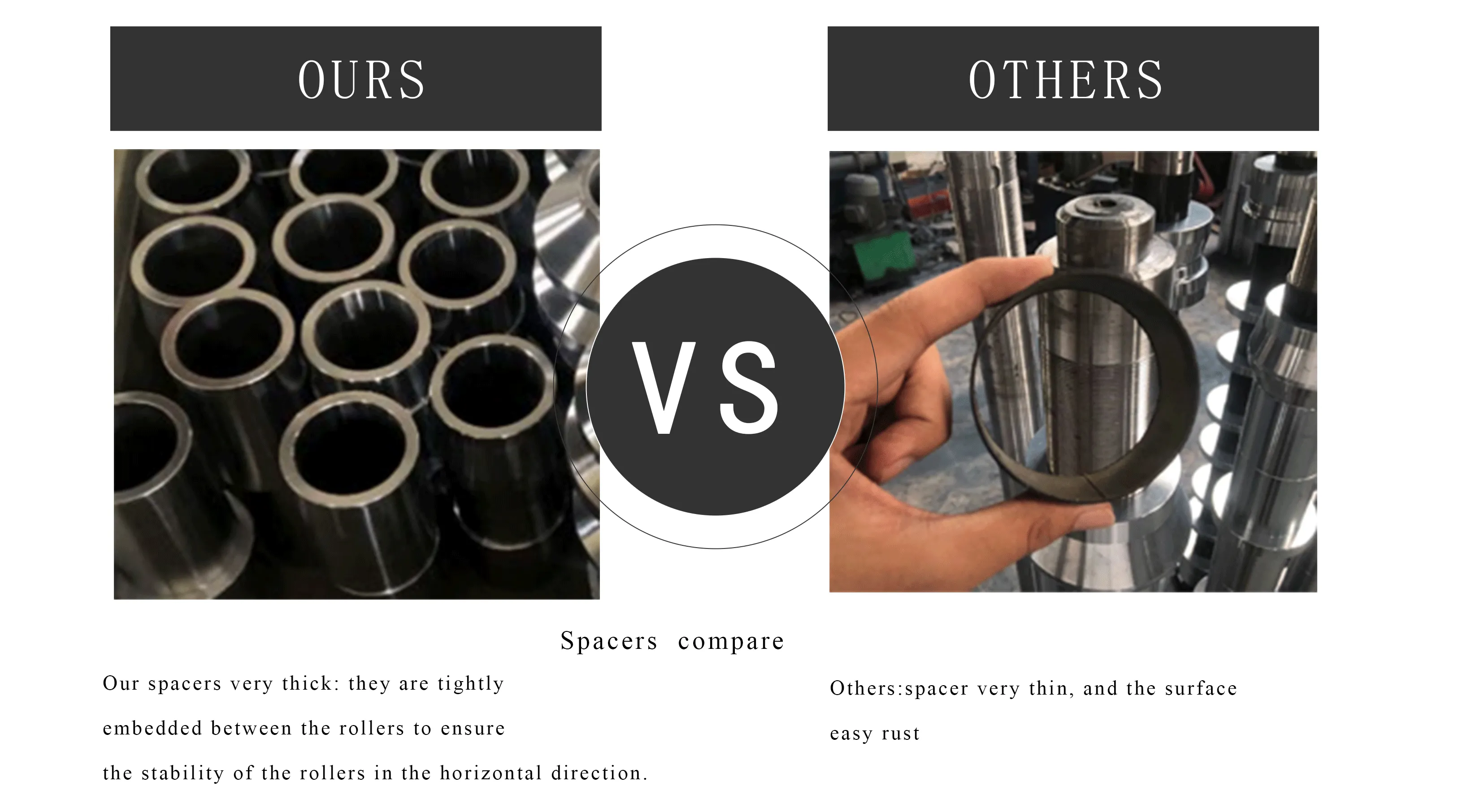

Why Choose Us

Company Profile

Customer Photos

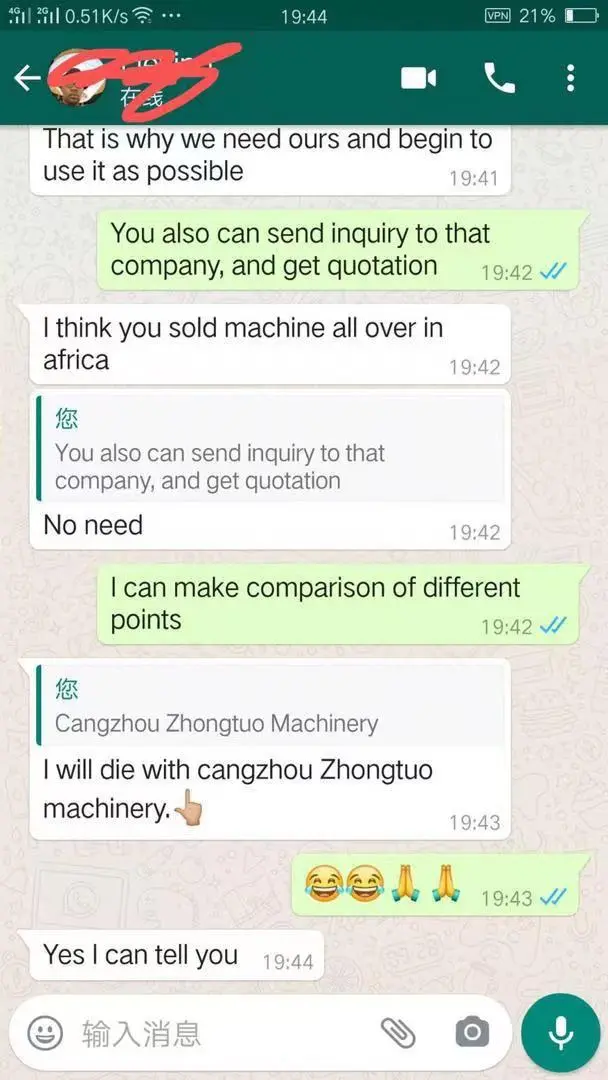

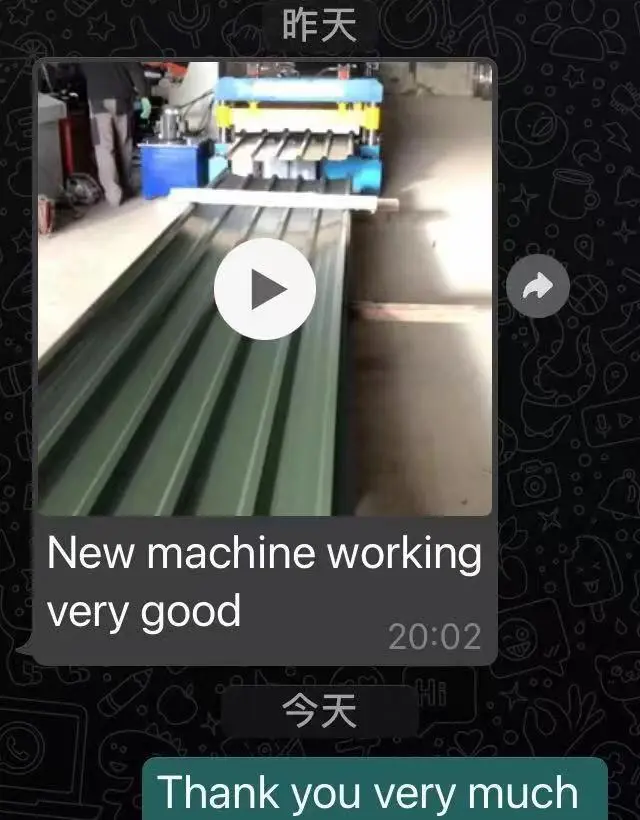

customer good feedback of our machines:

Product packaging
