Cable Tray Roll Forming Machine- Heavy Duty Type ZTAC-600

Cangzhou Zhongtuo International Trade Co., Ltd

Supplier Qualification

Cable Tray Roll Forming Machine- Heavy Duty Type ZTAC-600

Name: Cable Tray Roll Forming Machine- Heavy Duty Type ZTAC-600
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT116026350

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTAC-600

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications
- Work Pressure
  350
- Voltage
  Customize
- Power(W)
  22kw
Product Overview

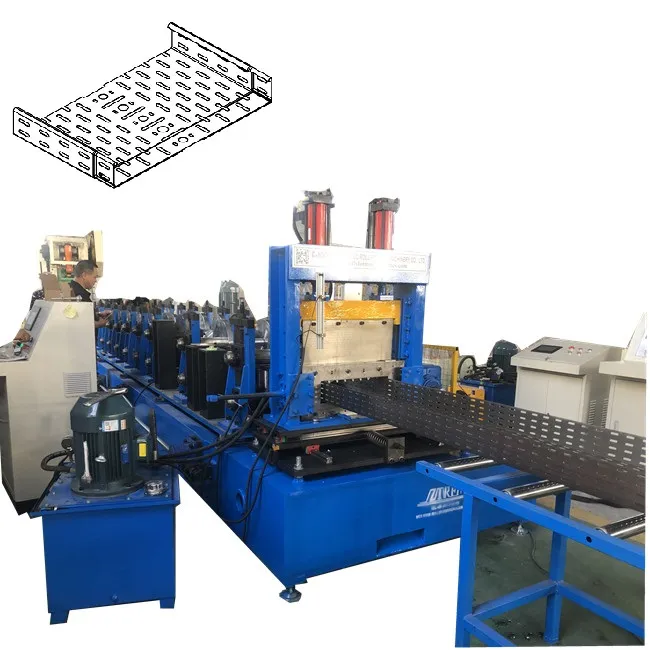

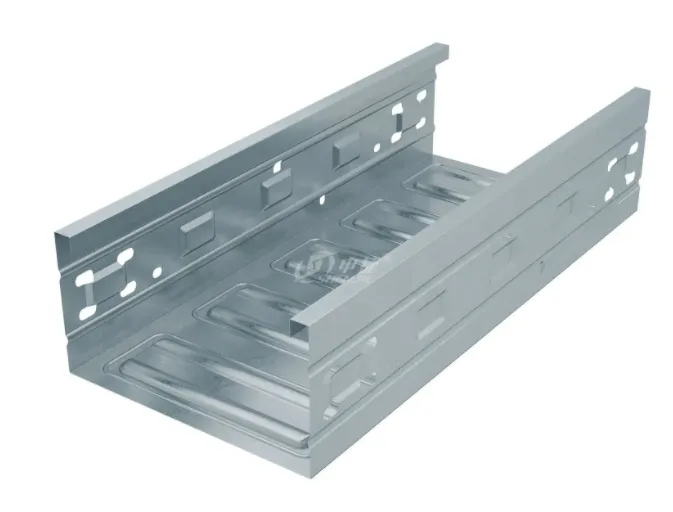

Cable Tray Roll Forming Machine- Heavy Duty Type

Cable Tray Roll Forming Machine- Heavy Duty Type is designed to make the cable trays in batch fully automatically which are manufactured with the same load bearing capabilities of thicker trays, but are made by molding sheet metal into a more robust design. Cable tray can be used internally and externally in the buildings due to its high corrosion resistance which can offer lighter and more economic solutions when compared to heavy duty type cable trays. Cable tray are designed to carry the wiring installations internally or externally in factories and buildings, especially in humid, moist or corrosive environments. They can also be manufactured as pre-galvanized upon request. Here I will share some drawing profiles and then show you how we design the cable tray machines.

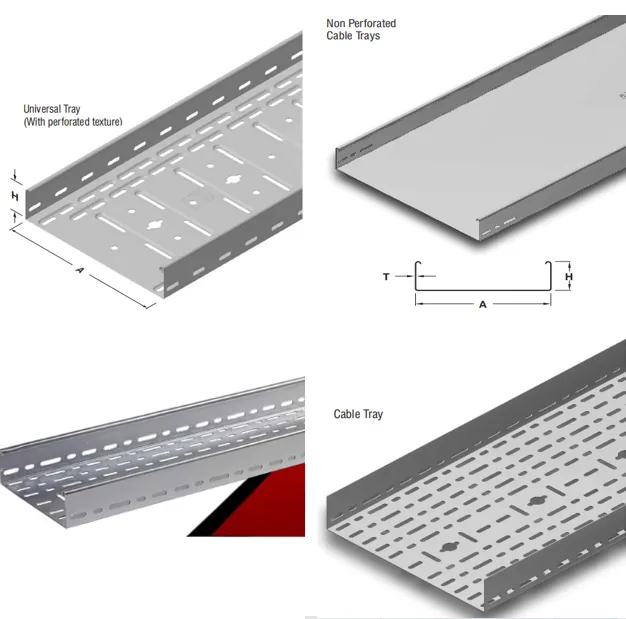

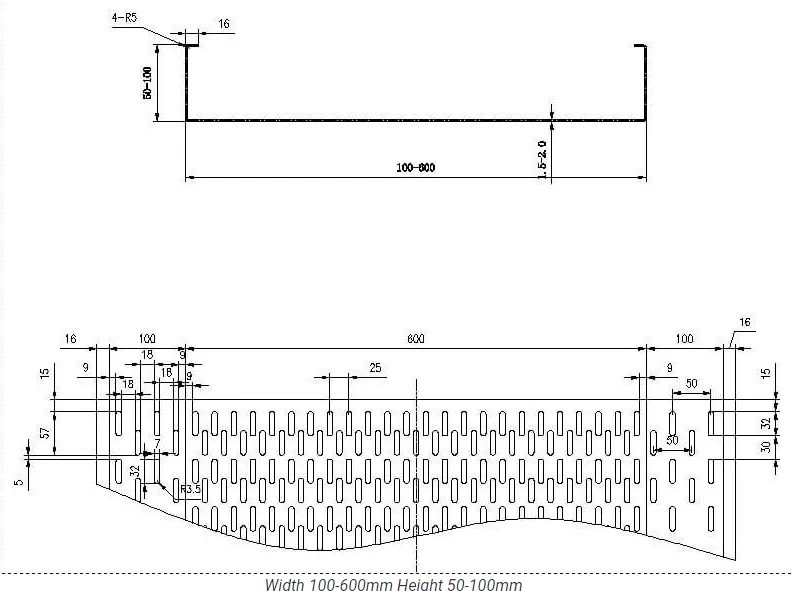

Drawing profile of cable tray for reference

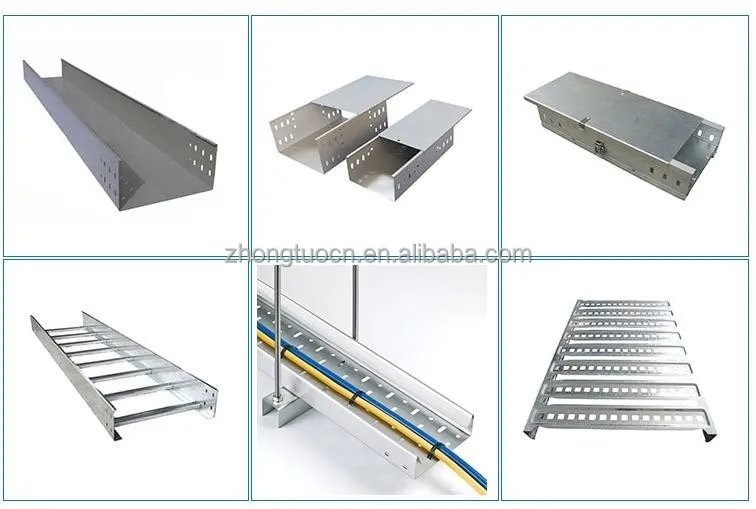

Hot Dip Galvanized Type Cable Tray It has many types, here I listed some of them, we can design the machines according to customer drawing profiles.

FEATURES AT A GLANCE

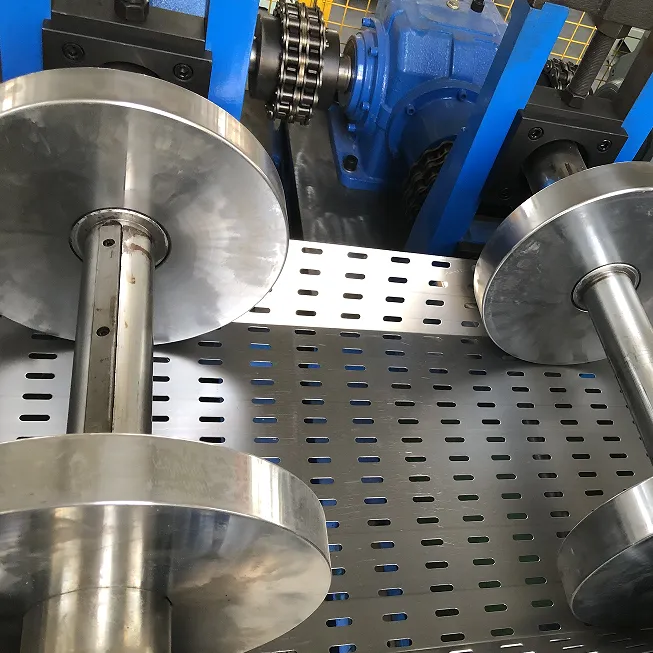

Gearbox move the cable tray lines Roller material CR12 mould Solid shaft diameter 90mm Punch capicity315ton Machine weight about 50 ton Application of cable tray
High speed of working

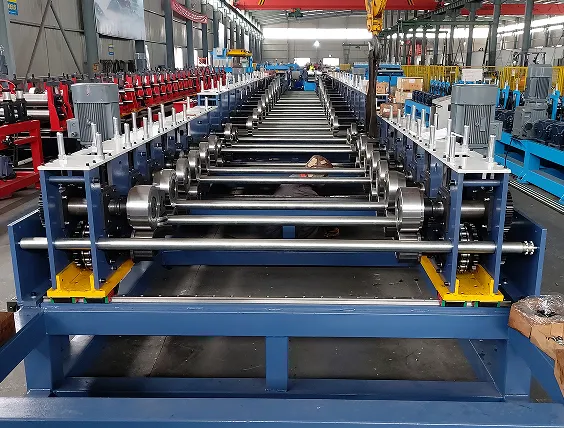

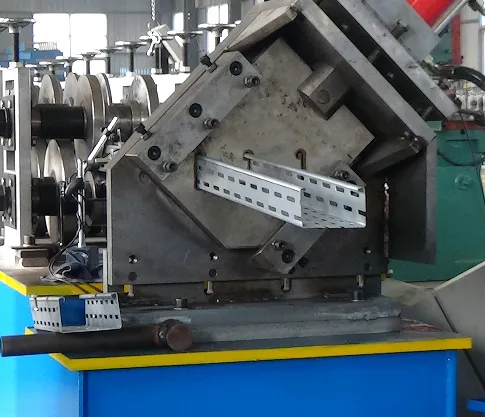

Main cable machine

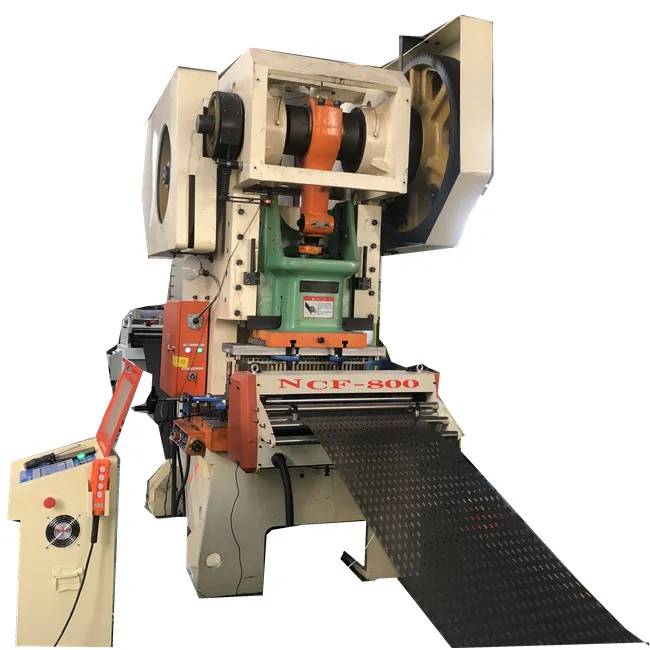

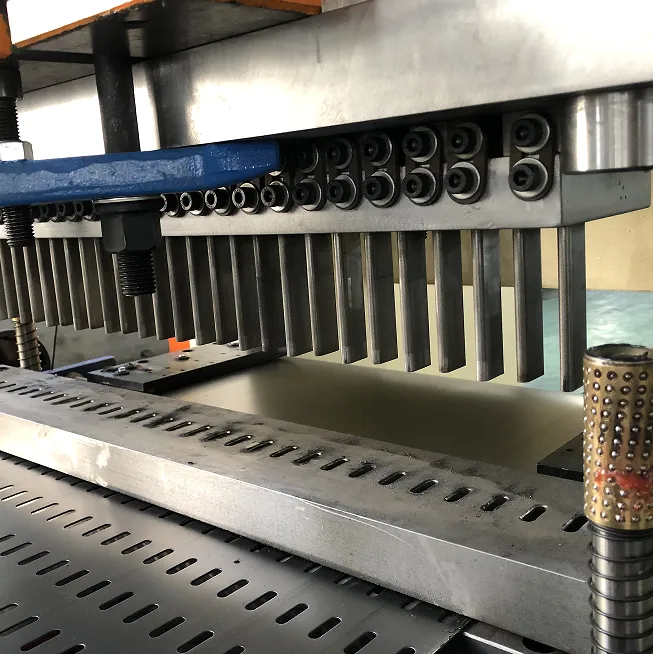

Punching machine

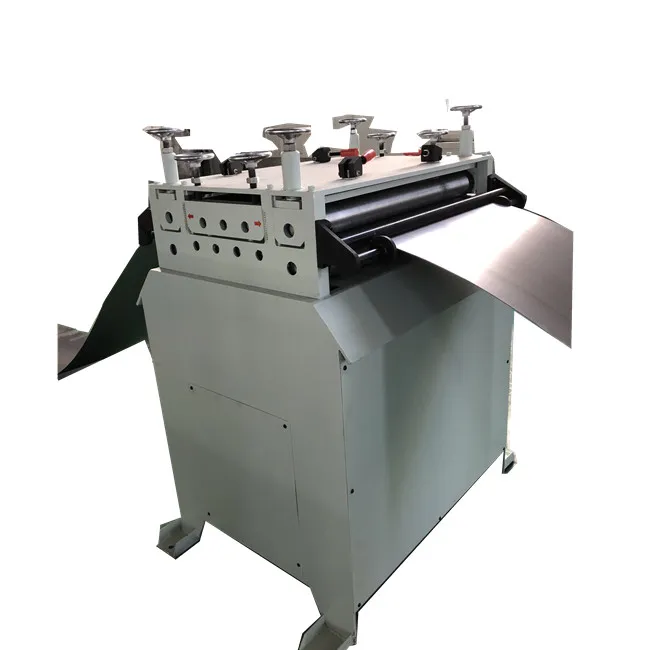

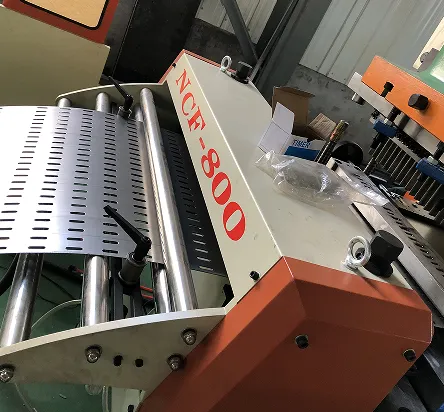

Leveling Machine

PRODUCT SPECIFICATIONS

After discussing with our engineer,we decide to use two machines to produce all the sizes that you need,one small machine produce 50-100mm by changing spacer manually and another machine produces 100-600mm. The reason of this design is because the width between 50mm and 600mm is too big distance.If you use one machine to produce from 50-600mm,the roller will be very small,it is not strong enough to produce 600mm big size,the life time of the machine will not long.

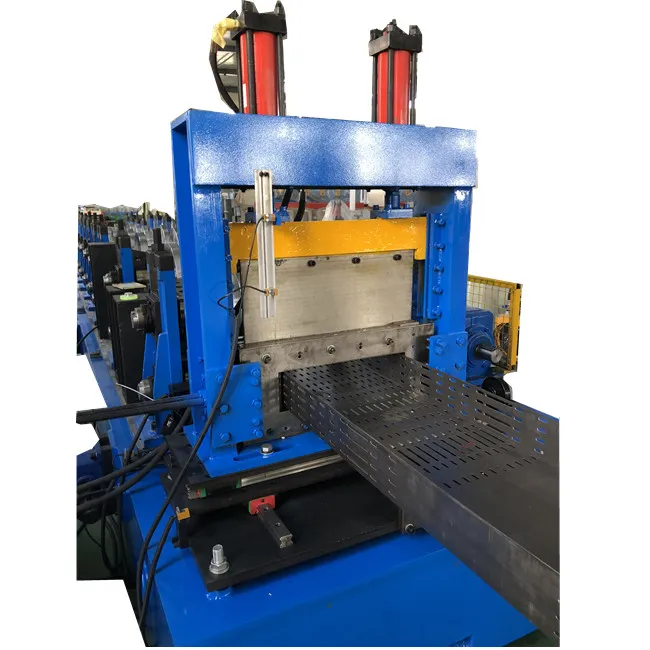

Cable tray size:80-600mm Raw material thickness :0.6-2.0mm Manual decoiler:3T Leveler and feeder:9 rollers,up 4 down 5 Punching machine with servo feeder:315 tons Roller station :20 stations Shaft diameter: 90mm Shaft material :45# steel Roller material :Gcr15 With quenched treatment Motor power :7.5 kw Cutting type : Hydraulic cutting after forming Cutting blade material: Cr12 with quenched treatment Hydraulic station power:5.5 kw Control system :PLC,Delta brand from Taiwan

PRODUCT CONFIGURATION

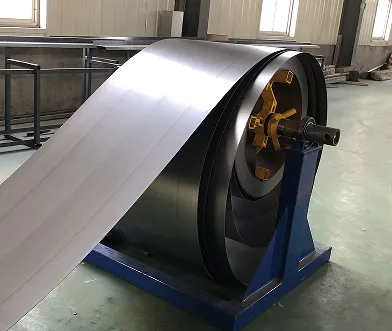

Decoiler manual one

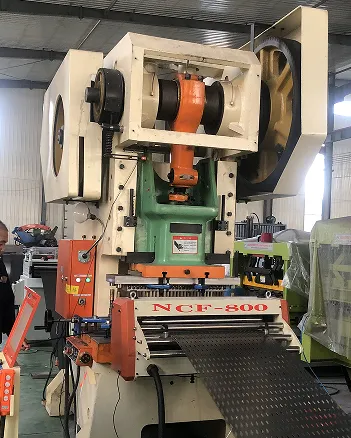

Punching machine

Servo coil feeder

Where to use of the cables:

The cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. Besides such whole piece cable tray, we also have ladder type cable tray, or T shape cable tray.

Project in Thailand

Project in India

Project in Russia
