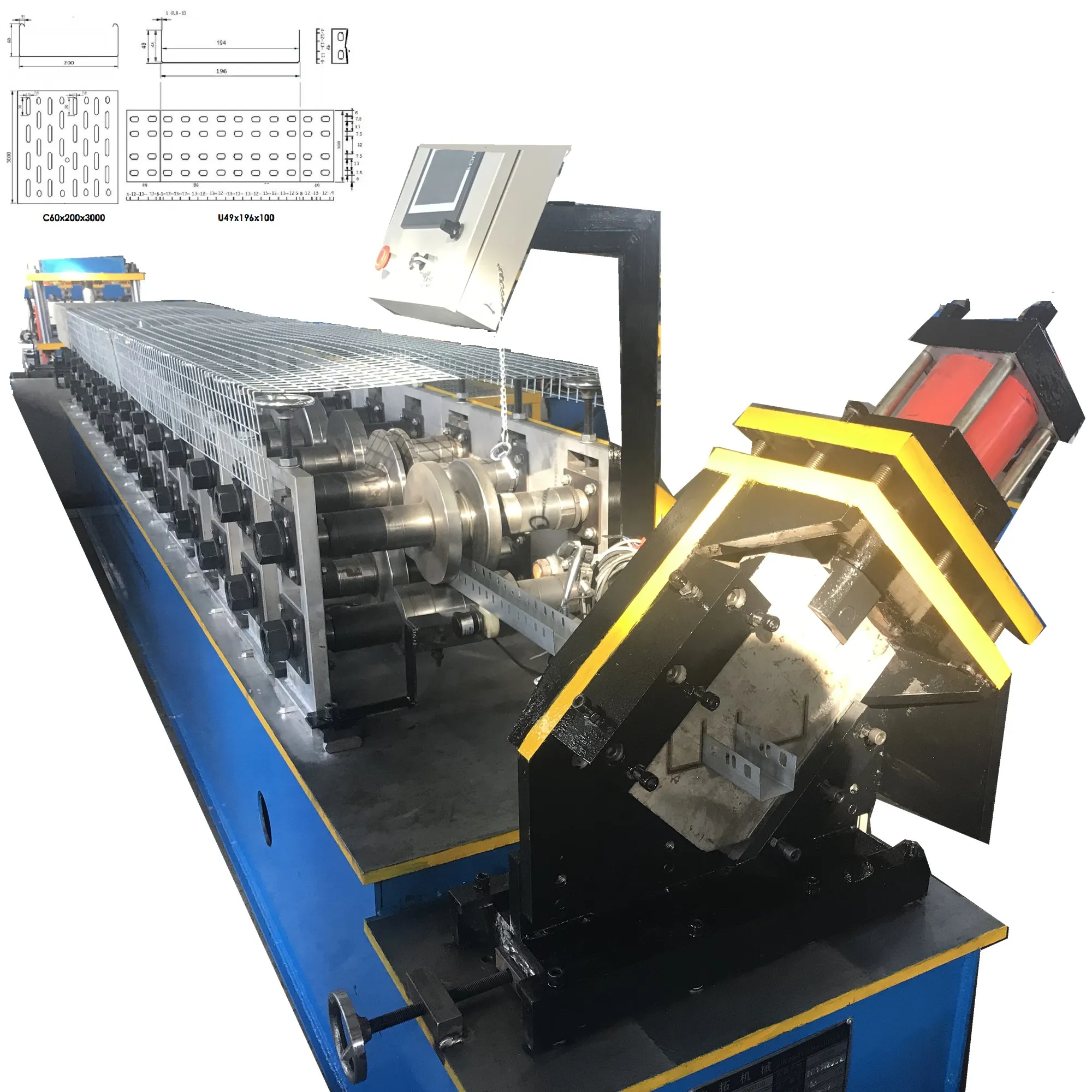

    Cable Tray Making Roll Forming Machine customized+15k

    $***/ Set
    Min. Order:1 Set

    Coupons: More >

    You can log in to view more discounted prices.Login Now

    Price:
    $***
    Quantity:
    1Set

    Order CodeZT116092118
    Shipping:
    Delivery to:
    • Select country
    • 中国
    • Afghanistan
    • Aland Islands
    • Albania
    • Algeria
    • American Samoa
    • Andorra
    • Angola
    • Anguilla
    • Antarctica
    • Antigua and Barbuda
    • Argentina
    • Armenia
    • Aruba
    • Australia
    • Austria
    • Azerbaijan
    • Bahamas
    • Bahrain
    • Bangladesh
    • Barbados
    • Belarus
    • Belgium
    • Belize
    • Benin
    • Bermuda
    • Bhutan
    • Bolivia
    • Bonaire, Saint Eustatius and Saba
    • Bosnia and Herzegovina
    • Botswana
    • Bouvet Island
    • Brazil
    • British Indian Ocean Territory
    • British Virgin Islands
    • Brunei
    • Bulgaria
    • Burkina Faso
    • Burundi
    • Cabo Verde
    • Cambodia
    • Cameroon
    • Canada
    • Cayman Islands
    • Central African Republic
    • Chad
    • Chile
    • Christmas Island
    • Cocos Islands
    • Colombia
    • Comoros
    • Cook Islands
    • Costa Rica
    • Croatia
    • Cuba
    • Curacao
    • Cyprus
    • Czechia
    • Democratic Republic of the Congo
    • Denmark
    • Djibouti
    • Dominica
    • Dominican Republic
    • Ecuador
    • Egypt
    • El Salvador
    • Equatorial Guinea
    • Eritrea
    • Estonia
    • Eswatini
    • Ethiopia
    • Falkland Islands
    • Faroe Islands
    • Fiji
    • Finland
    • France
    • French Guiana
    • French Polynesia
    • French Southern Territories
    • Gabon
    • Gambia
    • Georgia
    • Germany
    • Ghana
    • Gibraltar
    • Greece
    • Greenland
    • Grenada
    • Guadeloupe
    • Guam
    • Guatemala
    • Guernsey
    • Guinea
    • Guinea-Bissau
    • Guyana
    • Haiti
    • Heard Island and McDonald Islands
    • Honduras
    • Hungary
    • Iceland
    • India
    • Indonesia
    • Iran
    • Iraq
    • Ireland
    • Isle of Man
    • Israel
    • Italy
    • Ivory Coast
    • Jamaica
    • Japan
    • Jersey
    • Jordan
    • Kazakhstan
    • Kenya
    • Kiribati
    • Kosovo
    • Kuwait
    • Kyrgyzstan
    • Laos
    • Latvia
    • Lebanon
    • Lesotho
    • Liberia
    • Libya
    • Liechtenstein
    • Lithuania
    • Luxembourg
    • Madagascar
    • Malawi
    • Malaysia
    • Maldives
    • Mali
    • Malta
    • Marshall Islands
    • Martinique
    • Mauritania
    • Mauritius
    • Mayotte
    • Mexico
    • Micronesia
    • Moldova
    • Monaco
    • Mongolia
    • Montenegro
    • Montserrat
    • Morocco
    • Mozambique
    • Myanmar
    • Namibia
    • Nauru
    • Nepal
    • Netherlands Antilles
    • New Caledonia
    • New Zealand
    • Nicaragua
    • Niger
    • Nigeria
    • Niue
    • Norfolk Island
    • North Korea
    • North Macedonia
    • Northern Mariana Islands
    • Norway
    • Oman
    • Pakistan
    • Palau
    • Palestinian Territory
    • Panama
    • Papua New Guinea
    • Paraguay
    • Peru
    • Philippines
    • Pitcairn
    • Poland
    • Portugal
    • Puerto Rico
    • Qatar
    • Republic of the Congo
    • Reunion
    • Romania
    • Russia
    • Rwanda
    • Saint Barthelemy
    • Saint Helena
    • Saint Kitts and Nevis
    • Saint Lucia
    • Saint Martin
    • Saint Pierre and Miquelon
    • Saint Vincent and the Grenadines
    • Samoa
    • San Marino
    • Sao Tome and Principe
    • Saudi Arabia
    • Senegal
    • Serbia
    • Serbia and Montenegro
    • Seychelles
    • Sierra Leone
    • Singapore
    • Sint Maarten
    • Slovakia
    • Slovenia
    • Solomon Islands
    • Somalia
    • South Africa
    • South Georgia and the South Sandwich Islands
    • South Korea
    • South Sudan
    • Spain
    • Sri Lanka
    • Sudan
    • Suriname
    • Svalbard and Jan Mayen
    • Sweden
    • Switzerland
    • Syria
    • Tajikistan
    • Tanzania
    • Thailand
    • The Netherlands
    • Timor Leste
    • Togo
    • Tokelau
    • Tonga
    • Trinidad and Tobago
    • Tunisia
    • Turkey
    • Turkmenistan
    • Turks and Caicos Islands
    • Tuvalu
    • U.S. Virgin Islands
    • Uganda
    • Ukraine
    • United Arab Emirates
    • United Kingdom
    • United States
    • United States Minor Outlying Islands
    • Uruguay
    • Uzbekistan
    • Vanuatu
    • Vatican
    • Venezuela
    • Vietnam
    • Wallis and Futuna
    • Western Sahara
    • Yemen
    • Zambia
    • Zimbabwe
    • Select province
    • Select city

    Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

    Specification:

    Model Number:
    customized
    Power(W):
    15k
    Payment:
    Transaction Protection:
    • Secure payments
    • Money-back protection
    • 24/7 support
    • Data privacy
    ZT116092118
    Quantity:
    -
    +
    Add to RFQ CartSend Inquiry
    • Product Details
    • Reviews(0)
    • Technical Specifications

      • Type
        roll forming machine
      • Tile Type
        Steel
      • Use
        Wall
      • Voltage
        380V/50HZ3Phase (as customer's request)
      • Rolling Thinckness
        0.4-0.8 mm
      • Feeding Width
        1200mm

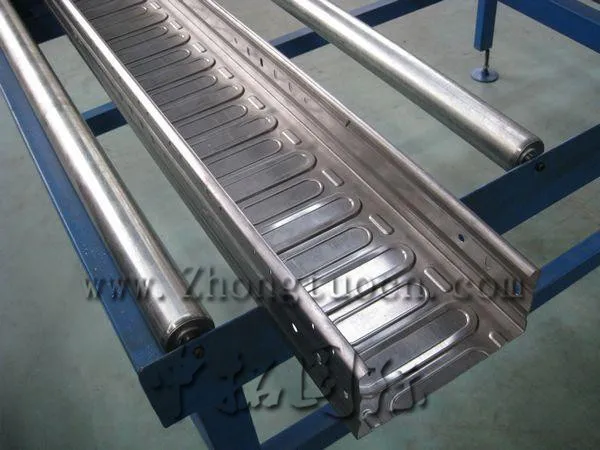

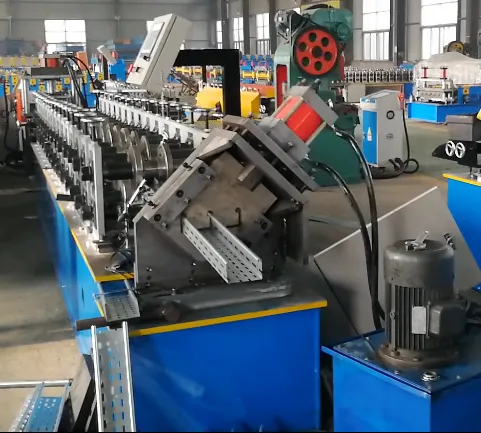

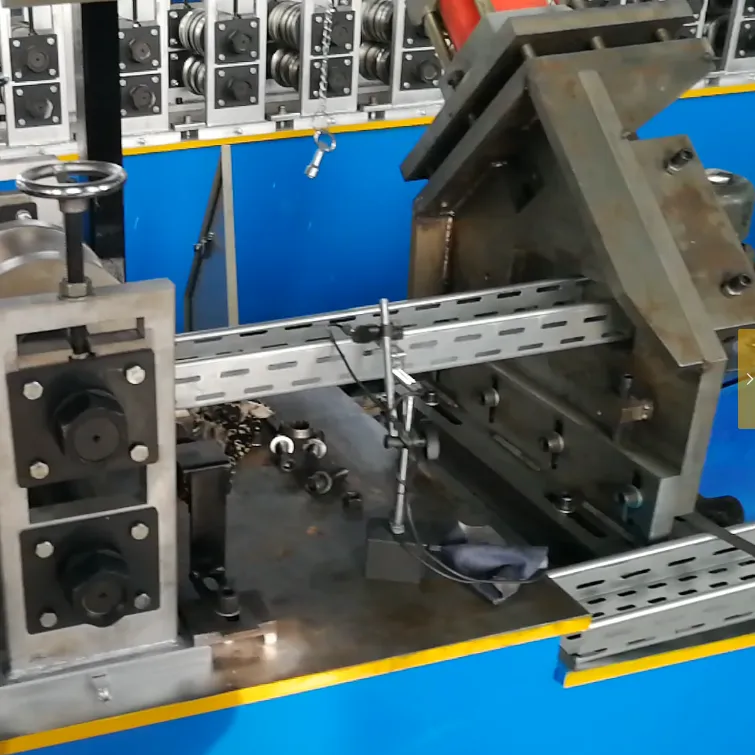

      cable tray roll forming machine
      Product Description





      Processing material: GI or aluminum or steel sheet

      Material thickness: 0.4---0.8mm

      Material hardness: 550 MPA---350 MPA

      Forming speed: 20m/min

      Working speed :10m/min

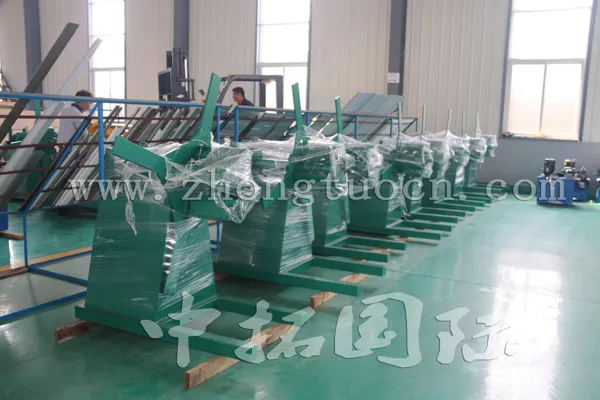

      Un-coiler System



      Usage: It is used to support the steel coil and uncoil it in a turntable way.

      Passive uncoil pulled by roll forming system

      Loading capacity: 1.5T

      Uncoiling width: 300mm

      Inner diameter: 450-550mm

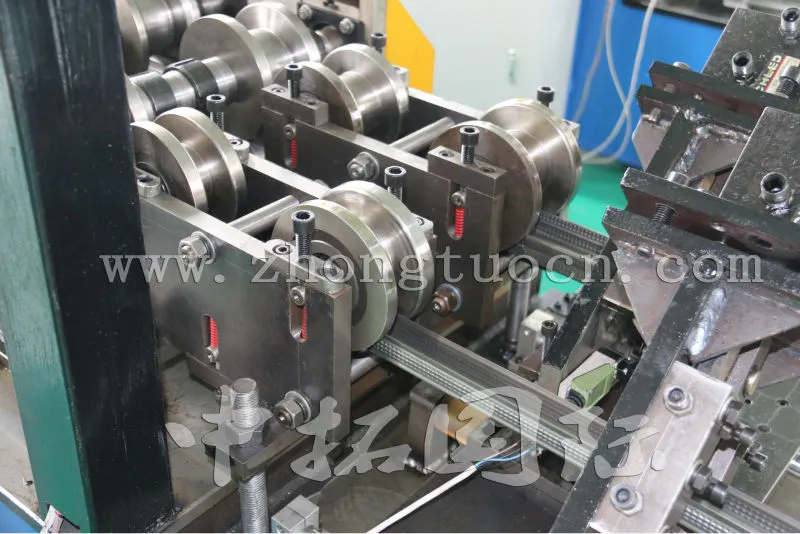

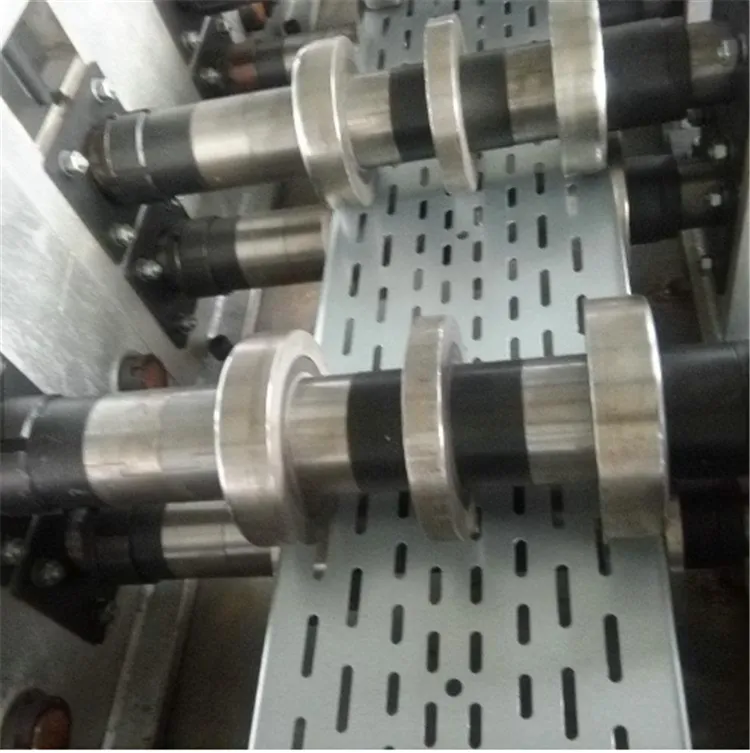

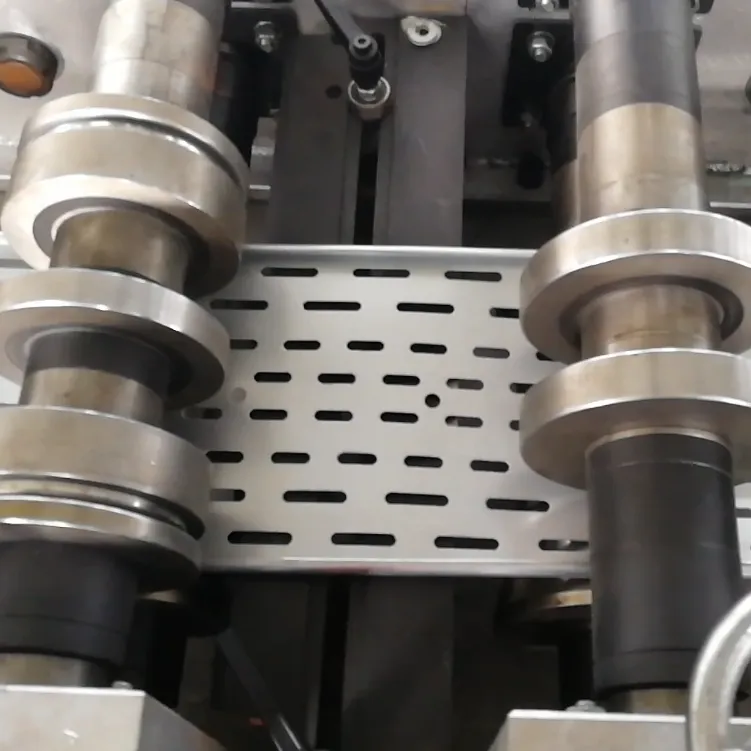

      Main Roll Forming System



      Feature : Ensure stability , precision and lifetime.



      Length of the main part: about 3300*800*1400

      Weight of main part: 3 tons

      Voltage : 380V/50HZ3Phase (as customer’s request)

      Roller fixer : Guide column

      Frame : middle plate welded

      Memorial arch frame type

      Frame thickness:25mm

      Drive mode: gear or chain

      Material of rollers: GCr12MoV

      Material of shafts: 45# steel with tempering

      Diameter of shafts: φ40mm

      Number of rollers : 10 rollers

      Main power: 3kw

      Cycloidal planetary gear speed reducer)

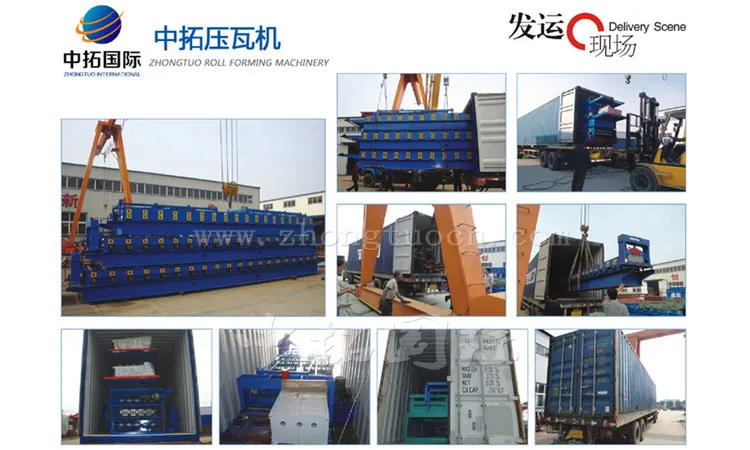

      Packaging & Shipping

      the machine naked in the container or packing as your required.

      Payment Terms:

      Price: USD/LINE FOB TIANJIN XINGANG CHINA

      Delivery: within 45 working days after receipt of deposit.

      Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

      Our Service:

      1. Installation and training of machine manufacturer:
      a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
      b. Without visiting, we will send you user manual and video to teach you to install and operate.
      c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
      2. After Service of roll forming machine for sale:
      a. One year guarantee for whole roll forming machine for sale.
      b. 24 hours technical support by email or calling:
      c. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.

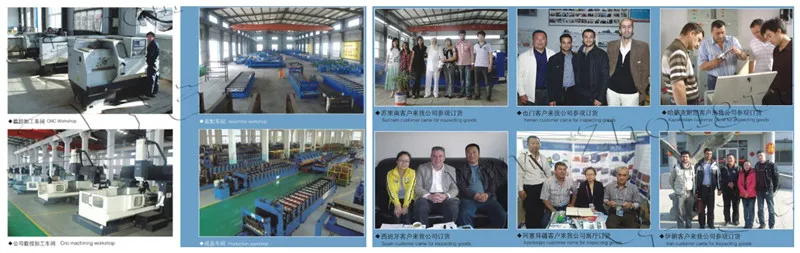

      Company Information:

      Cangzhou Zhongtuo International Trade Co., Ltd is a professional manufacturer and exporterwhich has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design,development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.



      FAQ:

      1. Does one machine can only produce one style panel profile?

      Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

      2. Do you have after sales support?

      Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

      3. How to visit your company?

      a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

      b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

      4. What can you do if the machine broken?

      Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new pars replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

      5. Can you be responsible for transport?

      Yes, please tell me the destination port or address.we have rich experience in transport.

      6. You are trade company or factory?

      We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

      7. Why your price is higher than others?

      As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

      8. How long the machine could be made?

      Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
