Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine ZTRFM+11KW

Name: Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine ZTRFM+11KW
Brand: ZTRFM
SKU: ZT85826836
Availability: InStock

$16,500.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$16,500.00

Quantity:

≥1Set

Order CodeZT85826836

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM

Power(W):

11KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel/Galvanized steel/Aluminium-SS
Use
ROOF
Voltage
380V,50HZ,3PH
Rolling Thickness
0.8 to 1.6 mm
Feeding Width
Other

Product Description

Cable Ladder horizontally mounted C profile rolling forming machine

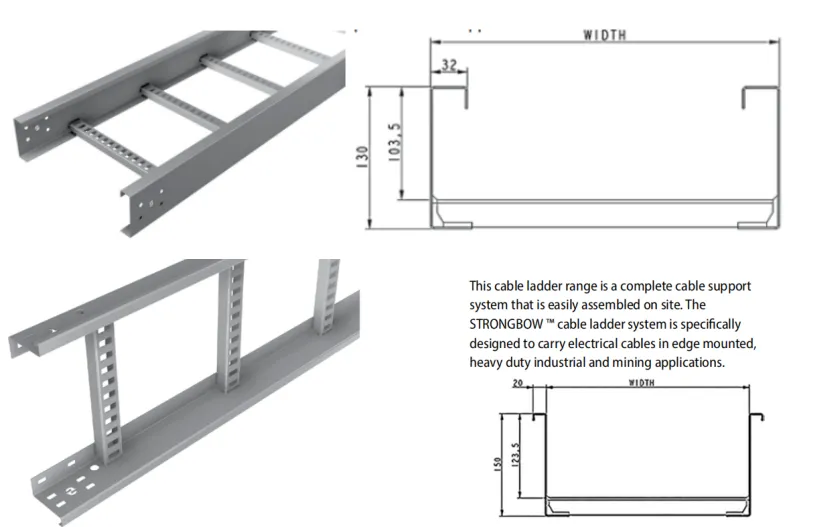

This cable ladder range is a complete cable support system that is easily assembled on site. The cable ladder system is designed to carry electrical cables in horizontally mounted heavy duty industrial, mining and petrochemical applications.Here is the profile of C with lots of punching. This cable ladder is good for making any length or width according to the installation requirements:

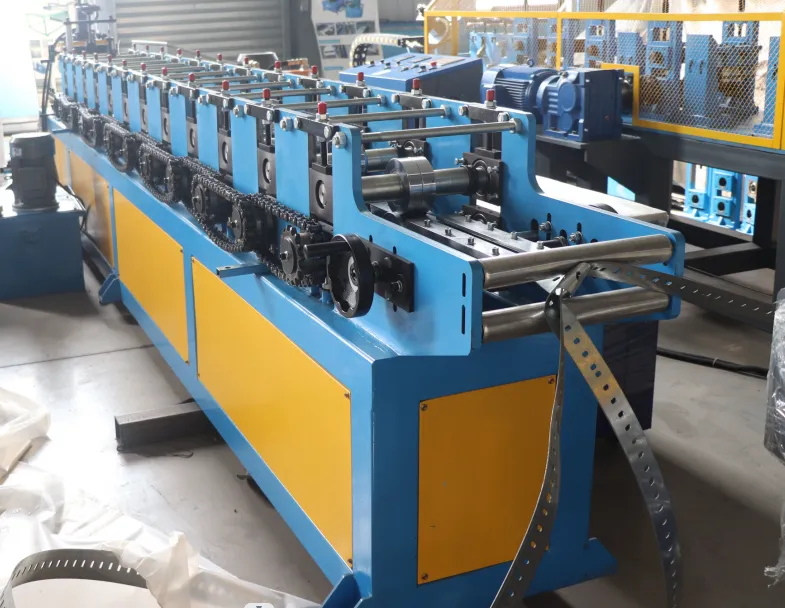

Cable Ladder horizontally mounted C profile rolling forming machine with punching:.

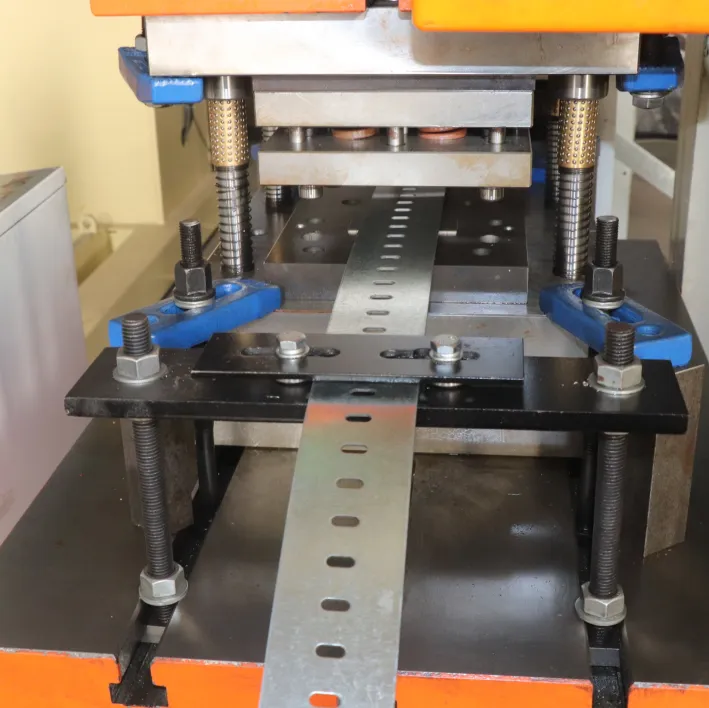

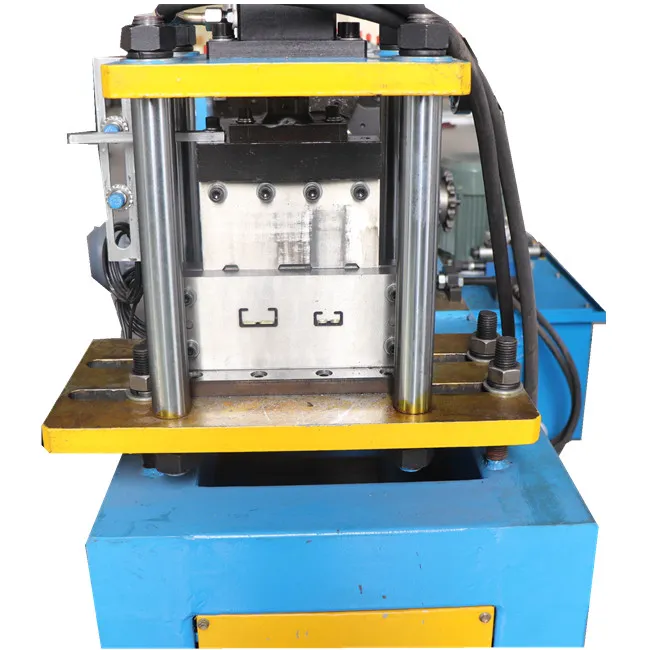

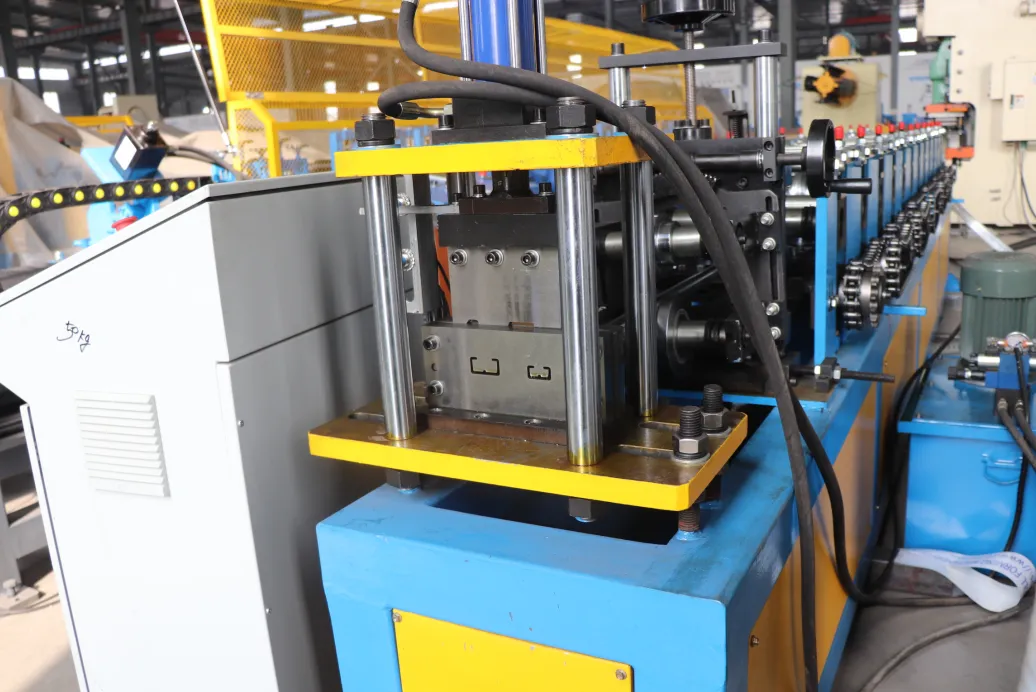

As the customer has two sizes to be made, we design the shearing system with two cutting blades. And for the different sizes by adjusting spacers. As to the punching system, you can choose to use the YangLI or world famous brand punching machine or by hydraulic punching machine.

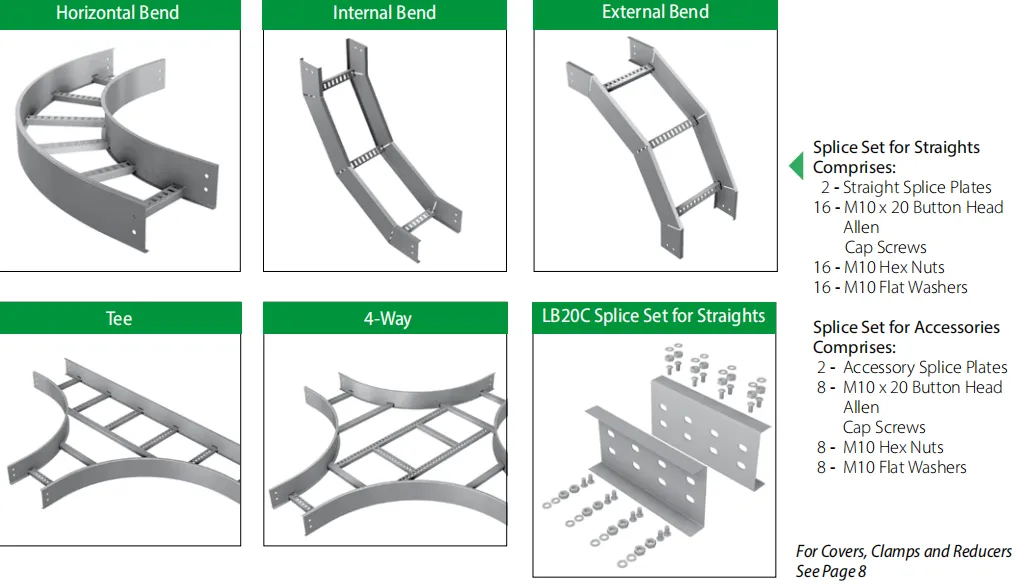

Cable Ladder horizontally mounted C profile other usage for your reference:

Cable ladder machine
1.Formed Material	PPGI,GI,AI,GL		Thickness:0.8 to 1.6mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）

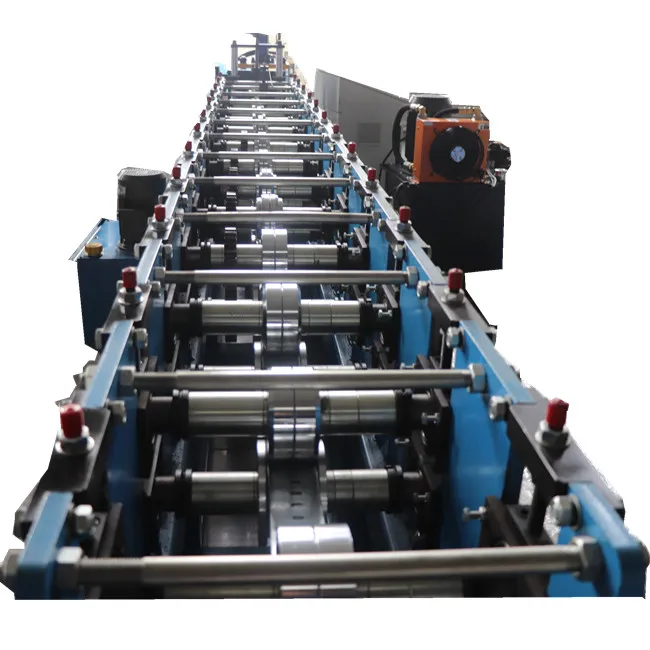

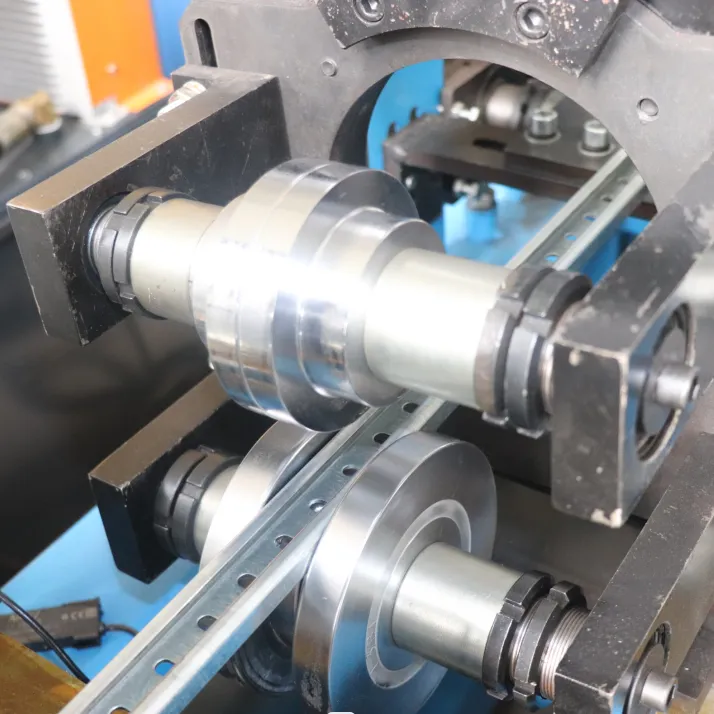

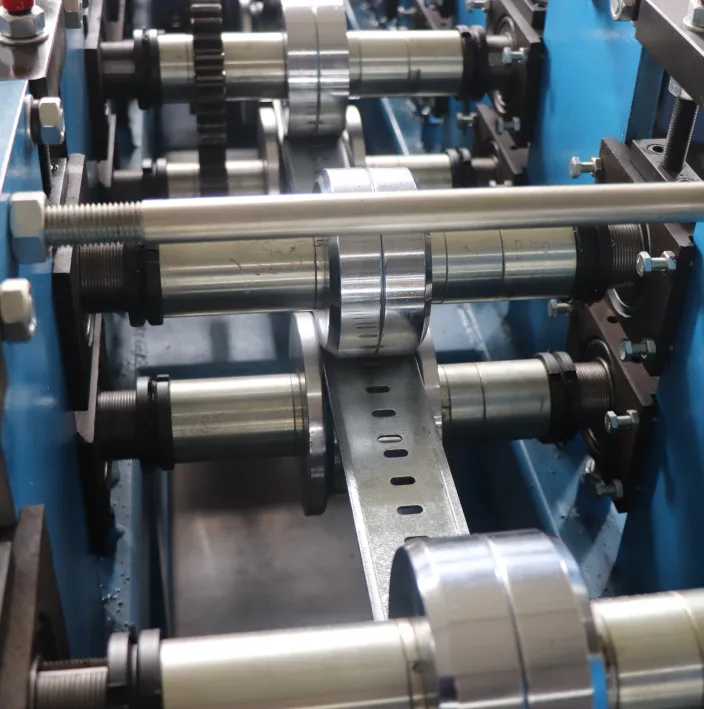

3.Main body	Roller station		16 rows with a series of vertical rollers
		Diameter of shaft		70mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		350 H steel
		Drive		Chain transmission
		Dimension(LWH)		145009001100(customize)
		Weight		7T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5 KW

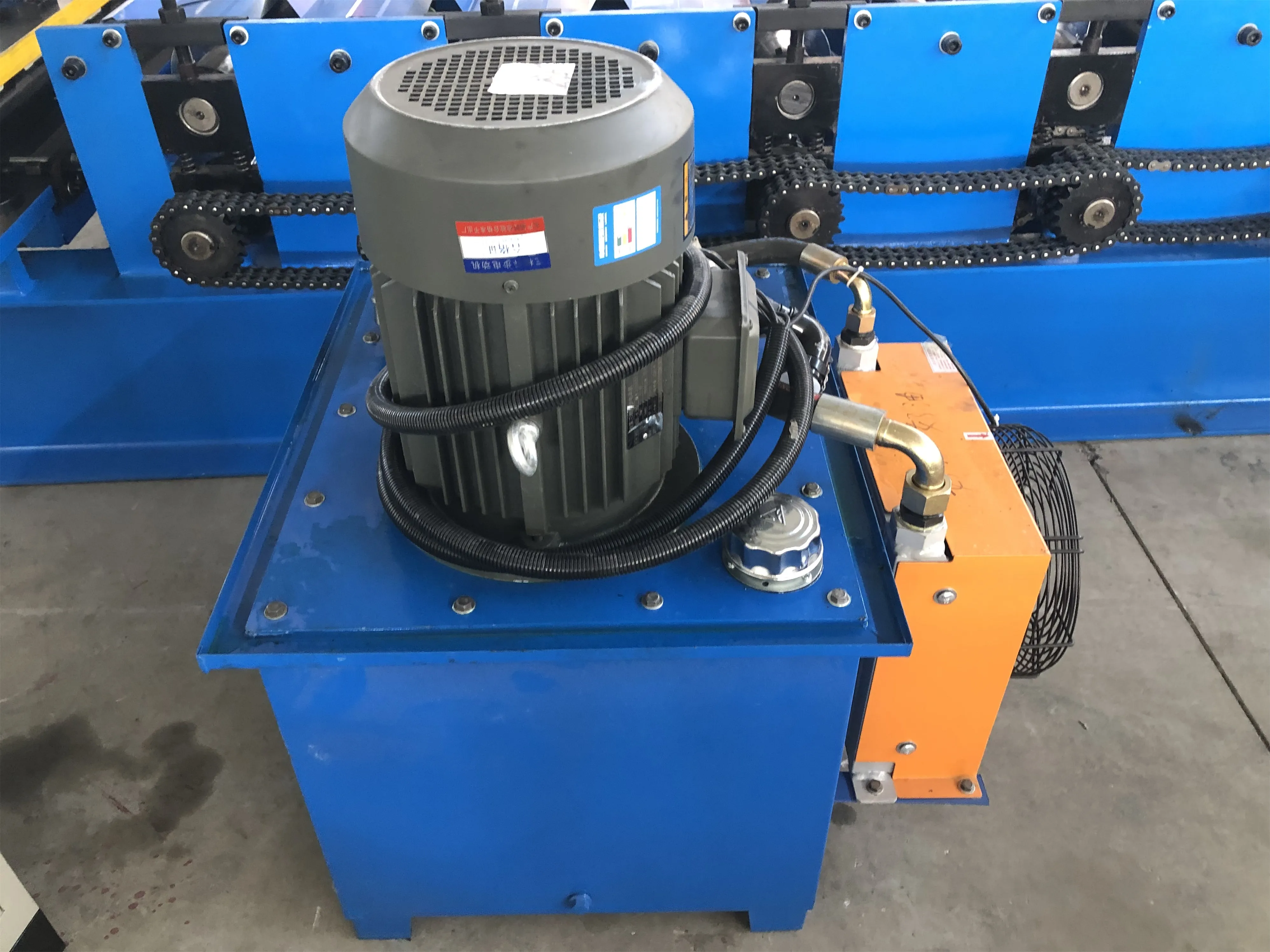

		Hydraulic system power		5.5 KW
6.Voltage	380V 50Hz 3Phase		As your requirement

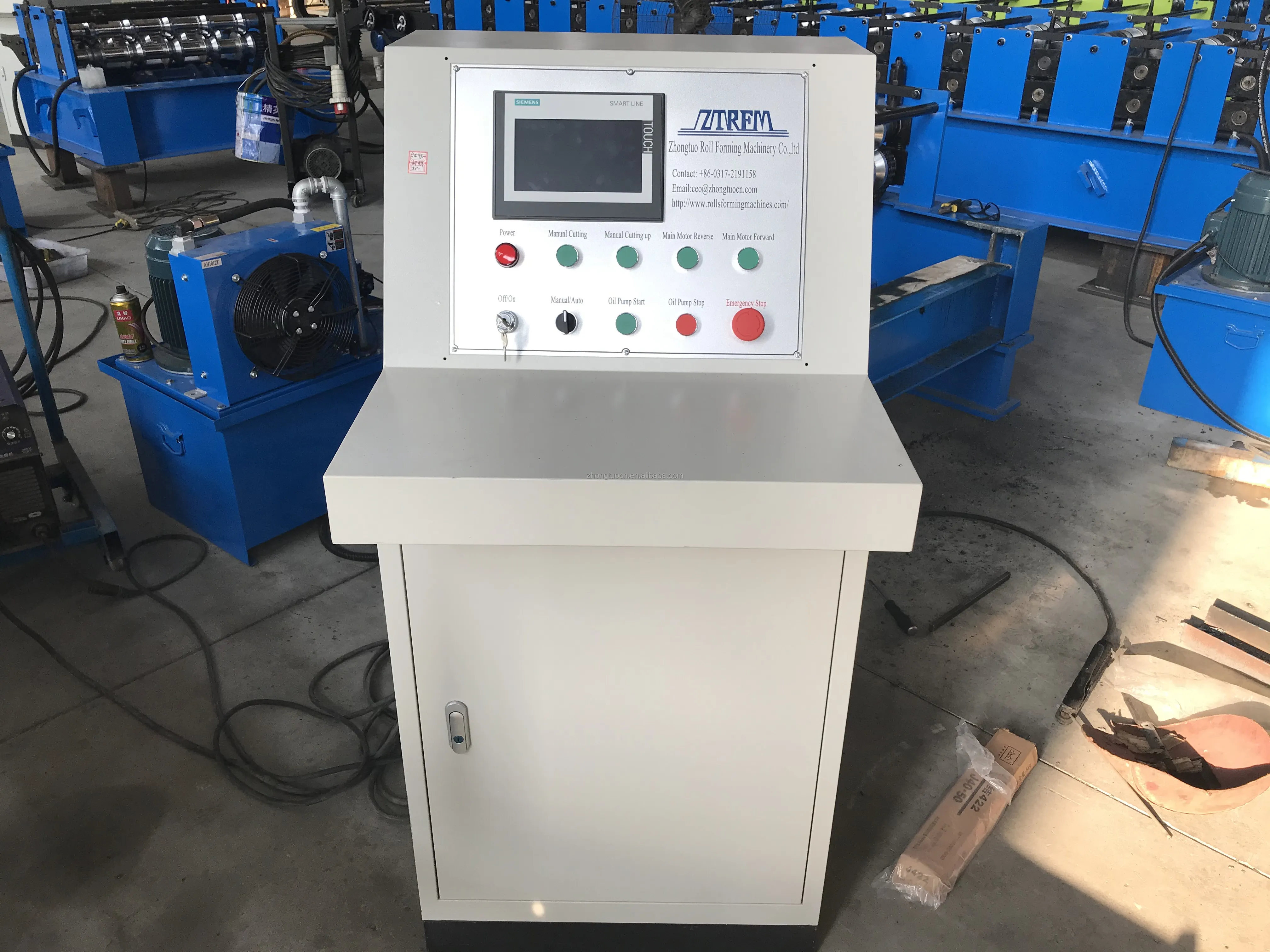

7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	15-20m/min		The speed is adjustable
