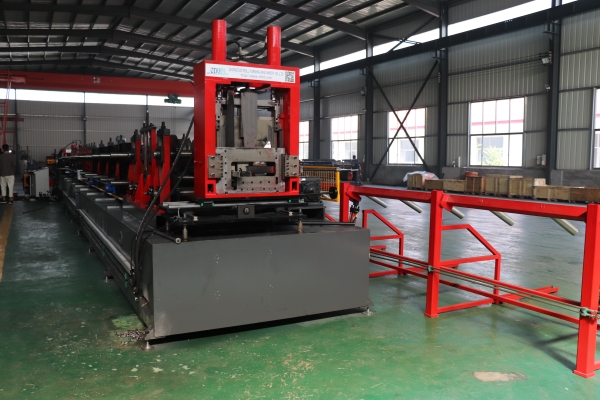

Machine Structure Overview

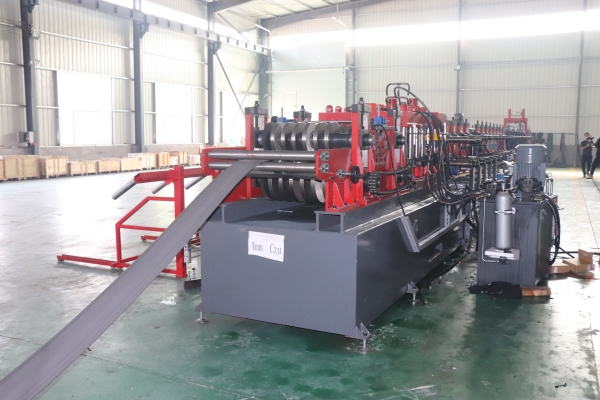

This cz purlin roll forming machine fully automated features a structural design centered on stability and accuracy.

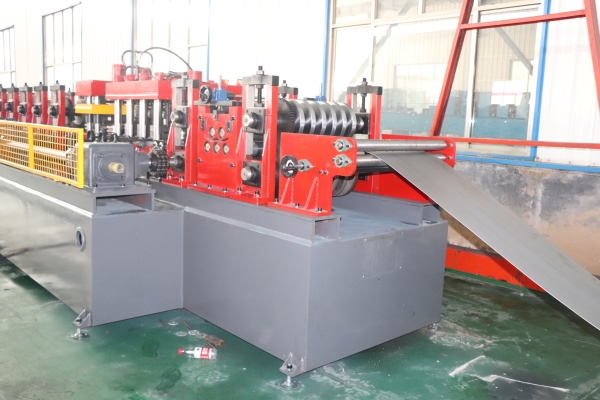

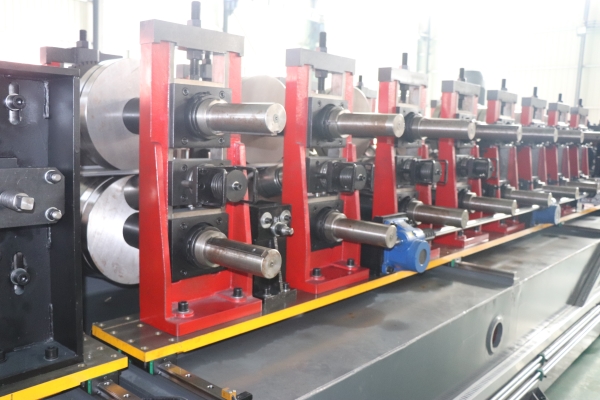

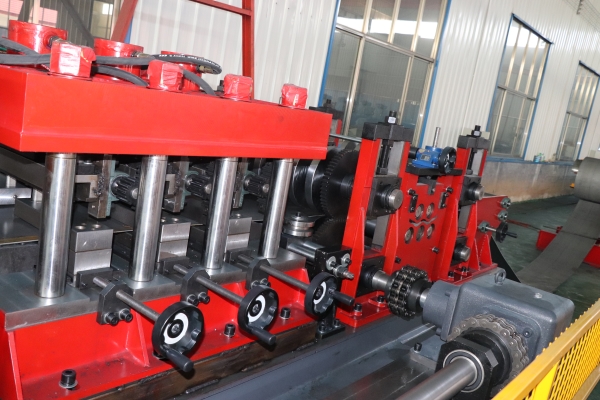

The main base uses H beam welded steel. This structure resists deformation effectively. The machine stays stable even at high operating speeds. The roller stands use cast iron material, which helps reduce vibration during operation. The transmission system uses chains to synchronize all roller stands. The steel strip deforms evenly at each pass. These structural choices keep the machine consistent during long production runs.
Applications and Industry Scenarios

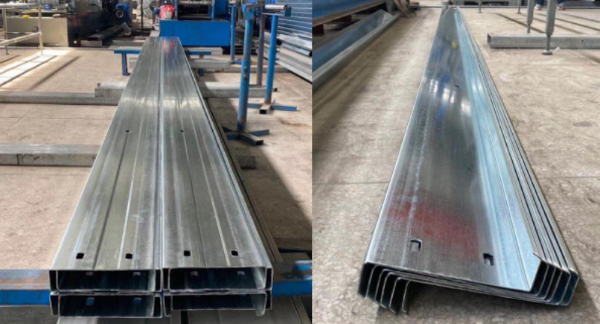

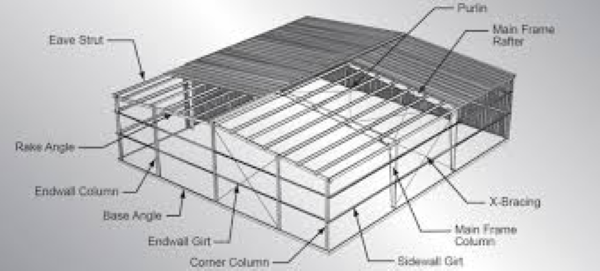

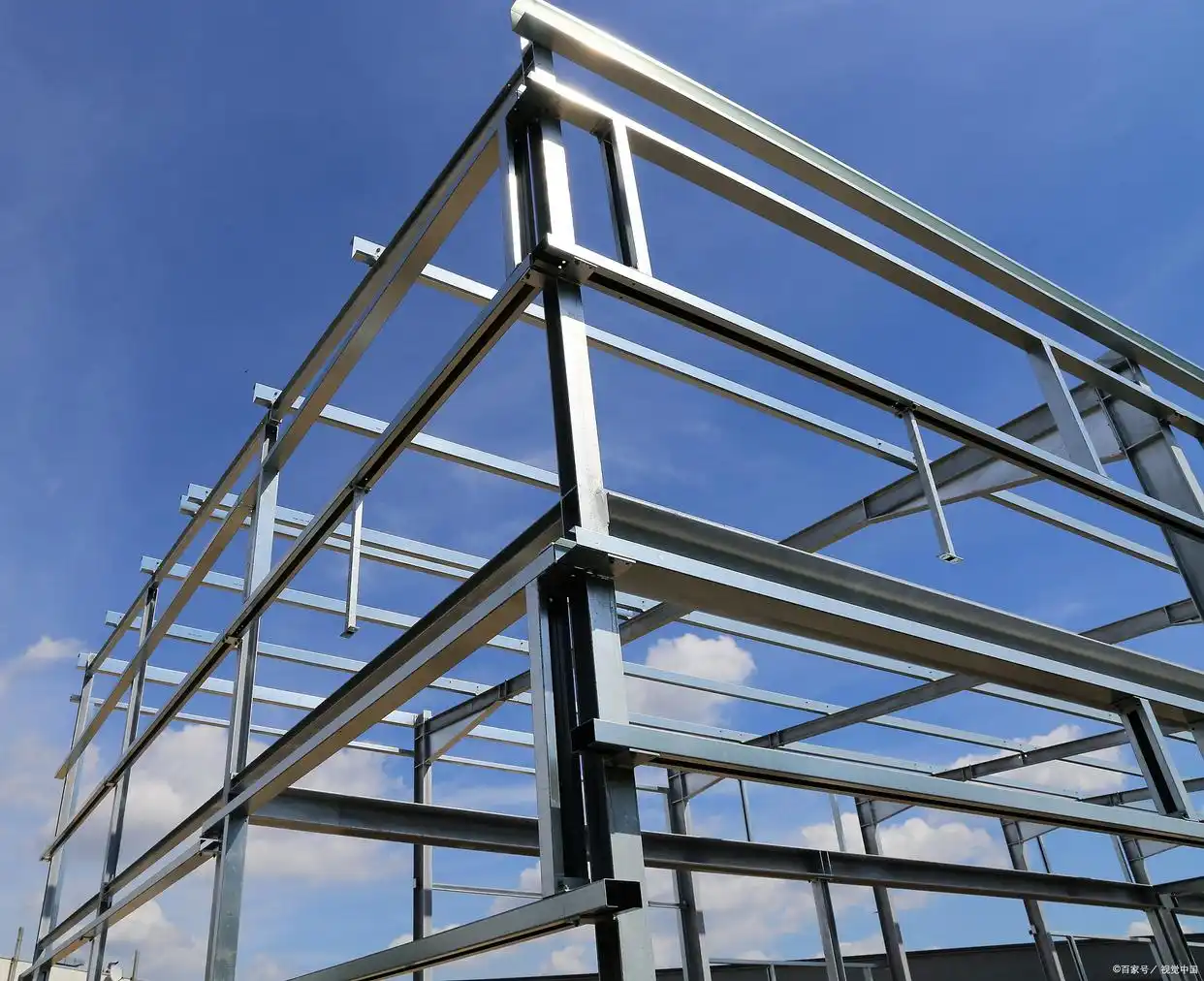

C and Z purlins serve as structural support in steel buildings across many project types.
-
Wall girts and roof systems for industrial factory buildings
-
Roof and support structures for logistics warehouses
-
Wall studs for light steel frame villas
-
Roof and wall secondary structures for commercial buildings
Different applications have different hole accuracy requirements. Pre punching delivers stable accuracy for both wall purlins and roof purlins.
Advantages of This Machine
This equipment offers advantages in both overall design and punching method.
Stable structure, no shaking at high speed
The main base uses H beam welding and cast iron stands. The complete line weighs about 15 tons. This heavy construction directly supports forming accuracy. The machine stays stable at high speeds, and this helps maintain good straightness in finished products.

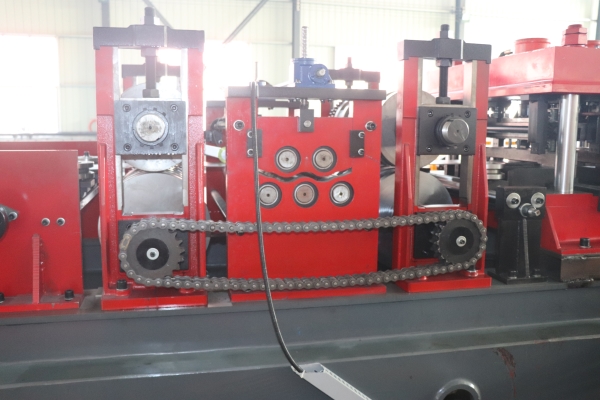

Chain transmission with synchronized roller stands
The transmission uses chains to keep all roller stands synchronized. The steel strip deforms evenly at each pass without localized overstretching or compression.
Controlled hole accuracy
Punching happens before forming while the strip is flat. The PLC controls hole positions precisely. The strip bends during forming, but the holes are already in place, so the forming process does not affect them.
Simpler equipment design
The punching station sits independently before the main forming unit. No additional punching device is needed after forming. The complete line has a simpler configuration with a simpler setup.
Smooth punching action
Hydraulic power drives the punching action. The punch moves under hydraulic pressure with steady, smooth action, reducing stress on both the equipment and the dies.

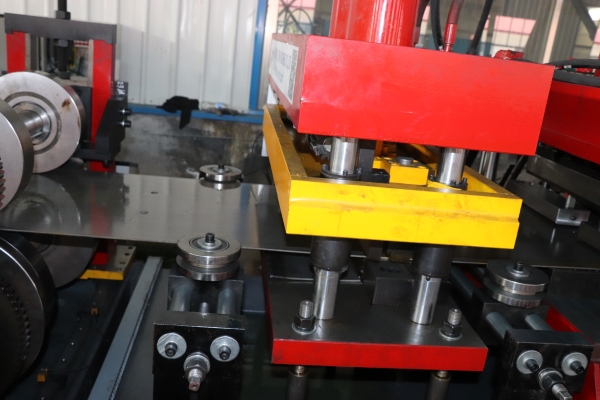

What Is Hydraulic Stop Punching

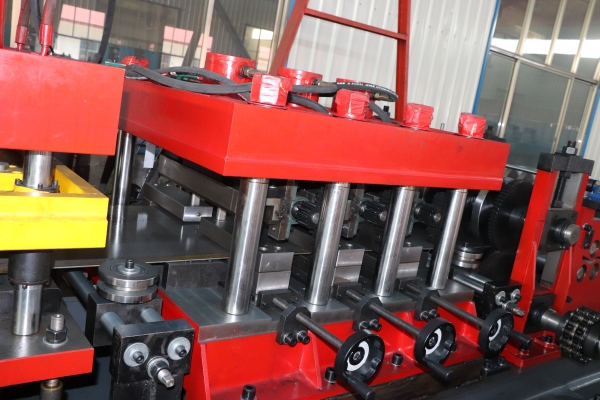

Hydraulic stop punching uses a hydraulic system to drive the punching action. The punch completes the hole under hydraulic pressure. "Stop" means the punching action happens while the strip pauses briefly. The strip stops at the punching station, the punch completes the hole, and then the strip resumes running.
Core components of hydraulic stop punching
-
Hydraulic station: provides the hydraulic power for punching
-
Hydraulic cylinder: converts hydraulic energy into mechanical motion to drive the punch
-
Punching dies: contact the strip directly to complete the hole
-
PLC control system: controls the timing of strip stops and punching actions
How it compares to mechanical punching
Mechanical punching relies on a flywheel and clutch to deliver impact force. The action is sudden and generates more shock. Hydraulic stop punching uses fluid pressure to move the punch. The action is smoother and puts less stress on the tooling. This difference becomes more noticeable in continuous production, where tooling wear and maintenance intervals are practical concerns.
What Makes Punching a Critical Step in C/Z Production
With a basic understanding of hydraulic stop punching, now consider why the punching step is so important.
When C/Z purlin holes are inaccurate, bolts cannot align properly. On site, workers must enlarge holes with oxyfuel torches. This takes time and effort and also damages the galvanized coating or anti corrosion layer on the purlin surface.
Hole accuracy directly affects installation efficiency and project schedules. If a batch of purlins has excessive hole deviation, the installation crew must address each hole individually. Project delays become unavoidable. Punching quality depends on equipment precision and the chosen punching method. This is exactly what buyers need to examine when purchasing equipment.
Why This Machine Uses Hydraulic Stop Punching Before Forming
Since post punching can also do the job, why does this cz purlin roll forming machine choose pre punching? There are two main reasons.
Simpler equipment structure
The punching station is independent and positioned before forming. No additional punching device or positioning system is needed after the forming machine. The whole line has a simpler setup.
No complex post forming positioning
Post punching requires positioning on a shaped surface. This demands extra positioning devices and a more complex control system. Pre punching positions on a flat surface and does not need these add ons. Maintenance demands stay manageable.

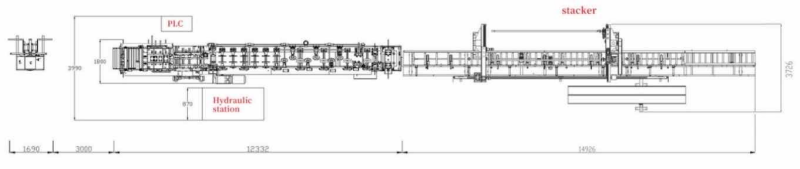

Production Flow Overview
The complete production line runs in the following sequence:
-
Decoiling
-
Leveling
-
Punching
-
Forming
-
Cutting
-
Stacking

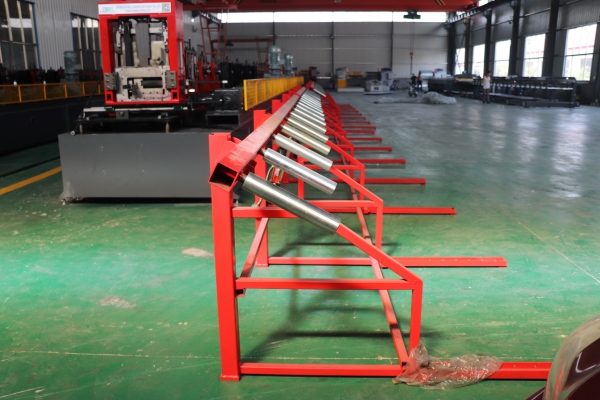

The decoiler unrolls the steel coil. Leveling removes stress. The strip moves to the punching station for holes and then enters the main forming machine. Rollers gradually bend the strip into a C or Z section. After forming, the hydraulic system cuts the profile to length. The receiving table stacks finished products automatically. Speed sensors and the PLC coordinate all stations. The strip stays under stable tension throughout the whole process.
Technical Parameters
The following parameters come from the equipment quotation:
When evaluating a cz purlin roll forming machine fully automated, the punching method directly affects production efficiency and product quality. Pre punching positions holes before the strip bends, which helps maintain accuracy across different purlin types.
For buyers considering a c/z purlin roll forming machine, understanding the relationship between punching timing and equipment layout helps in making a more informed choice.
