CZ Purlin Roll Forming Machine 1.5-3mm CZ Purlin Machine Steel Frame 1.5-3mm CZ Purlin Roll Forming Machine

Product Overview

The CZ purlin roll forming machine processes 1.5-3 mm steel sheet, 80-350 mm (3-14 in) wide, at 30 m/min for high output steel frame and purlin production. With automatic size change between C and Z purlins, 20 roller stations plus straightening rollers, hydraulic pre-punching in-line and fully automatic imported-brand PLC control, one line replaces several fixed-size machines.

• 1.5-3 mm steel sheet, 80-350 mm (3-14 in) width, 30 m/min forming speed
• Automatic size change: one machine for C & Z purlins, no manual roller changes
• 20 roller stations + straightening rollers for flat, precise purlins
• Hydraulic pre-punching in-line - holes ready before forming, no secondary drilling
• Fully automatic imported-brand PLC, high accuracy and repeatable output
• CE, BV, STV, ISO certified

Key Features

• High Output for Steel Frame Lines - Processes 1.5-3 mm steel, 80-350 mm (3-14 in) wide, at 30 m/min - high output for steel frame and purlin production.
• Automatic Size Change - One Machine for C & Z Purlins - High-accuracy automatic changeover switches between C and Z purlin profiles with no manual roller changes. Adjustable size range covers most common specs, so one line replaces several fixed-size machines.
• 20 Roller Stations + Straightening Rollers - 20 forming stations plus straightening rollers deliver straight, accurate profiles, while Cr12 rollers and 45# high-grade steel shafts ensure consistent quality and long tooling life.
• Hydraulic Pre-Punching In-Line - Bolt holes are pre-punched hydraulically in the continuous line, so purlins come off ready for on-site bolted assembly - no secondary drilling, faster installation.
• Fully Automatic Imported-Brand PLC - Imported-brand PLC drives the line automatically with high accuracy and repeatable parameters - ideal for long runs and multi-spec production with less supervision.

Technical Specifications

Machine Structure

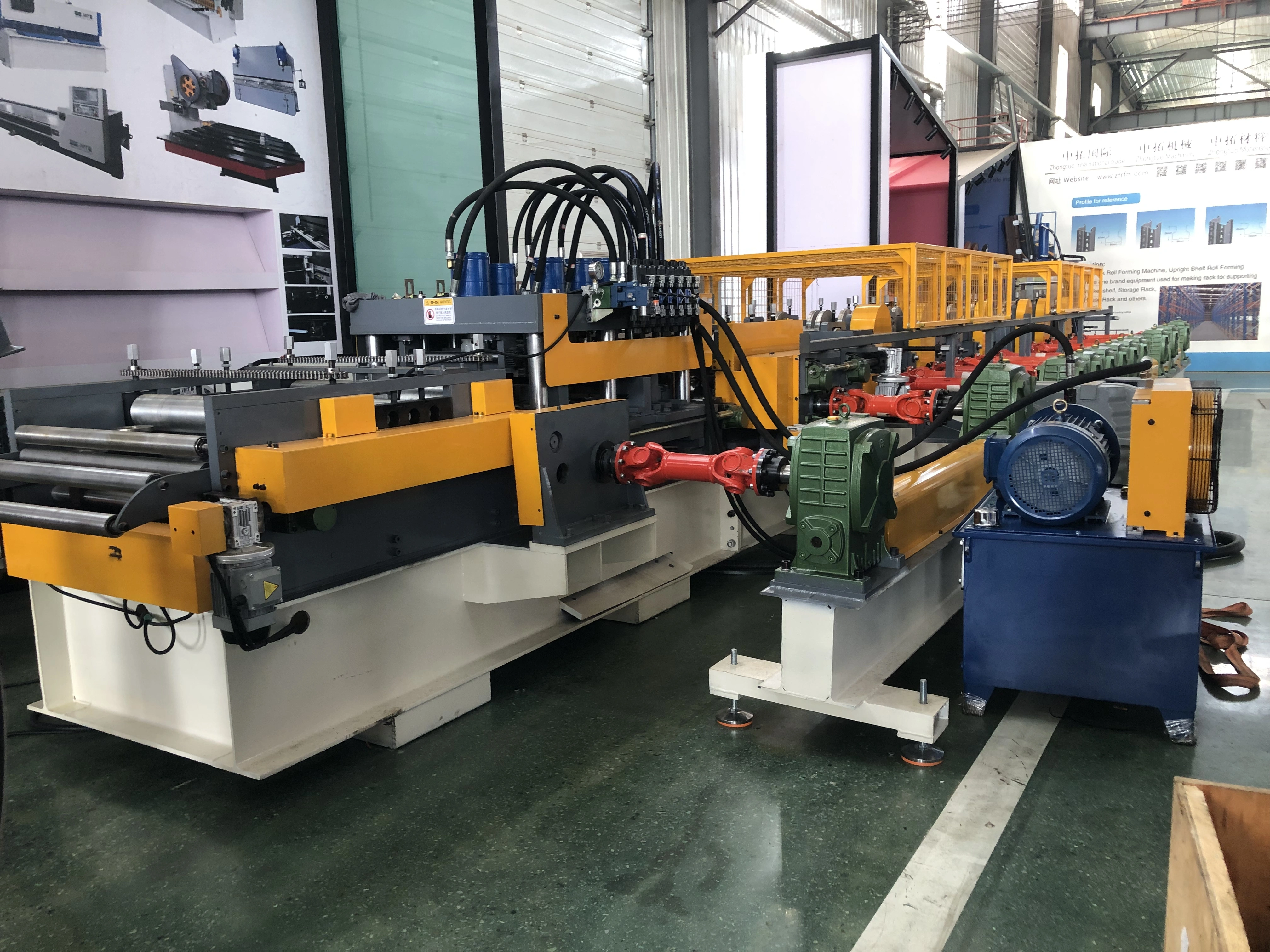

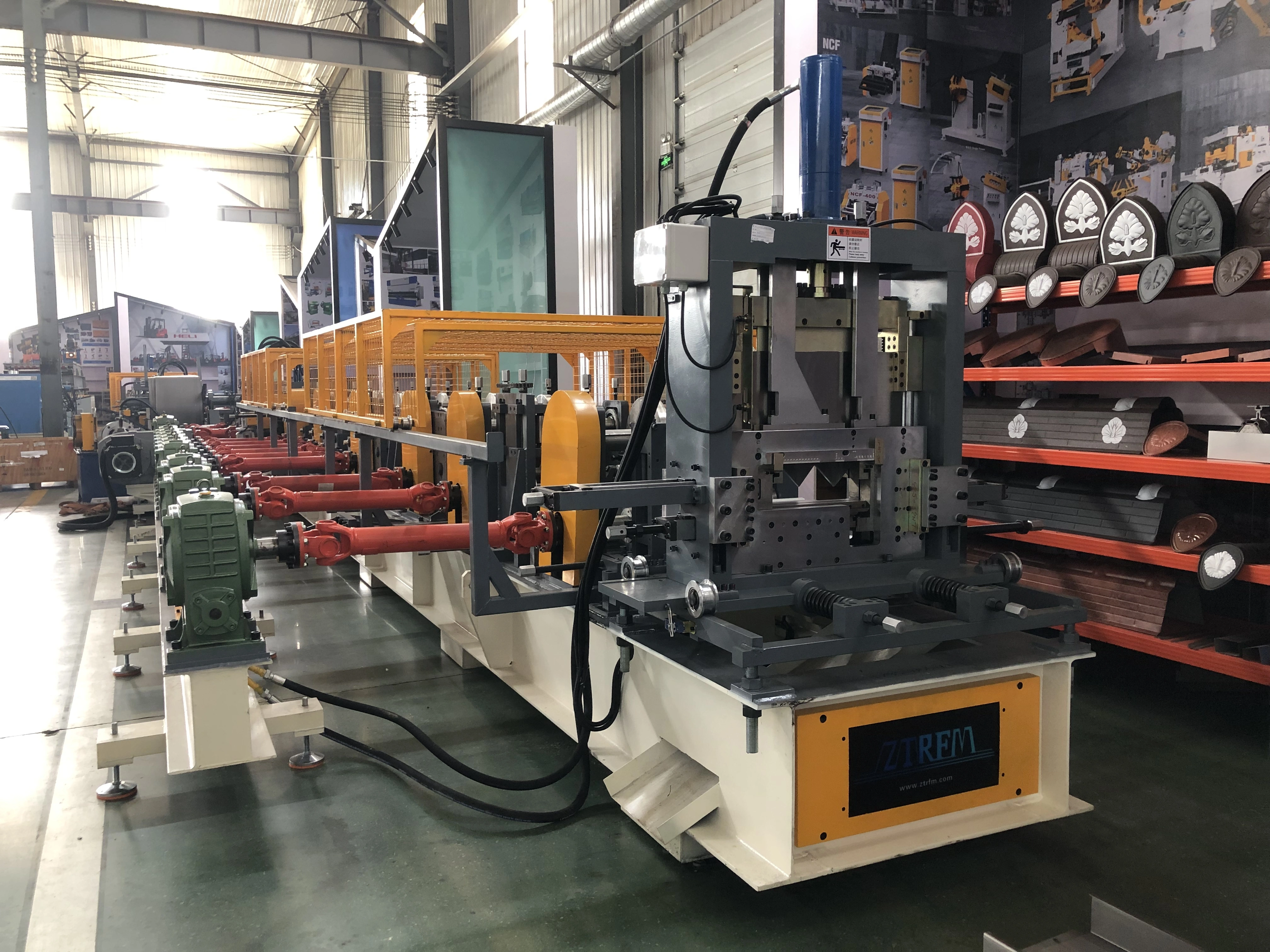

The machine consists of a feed roller section, a long forming line with green gearboxes and red drive shafts, a hydraulic system with blue cylinders and manifold, yellow safety cages, and a heavy-duty off-white steel base with adjustable leveling feet.

Finished Product

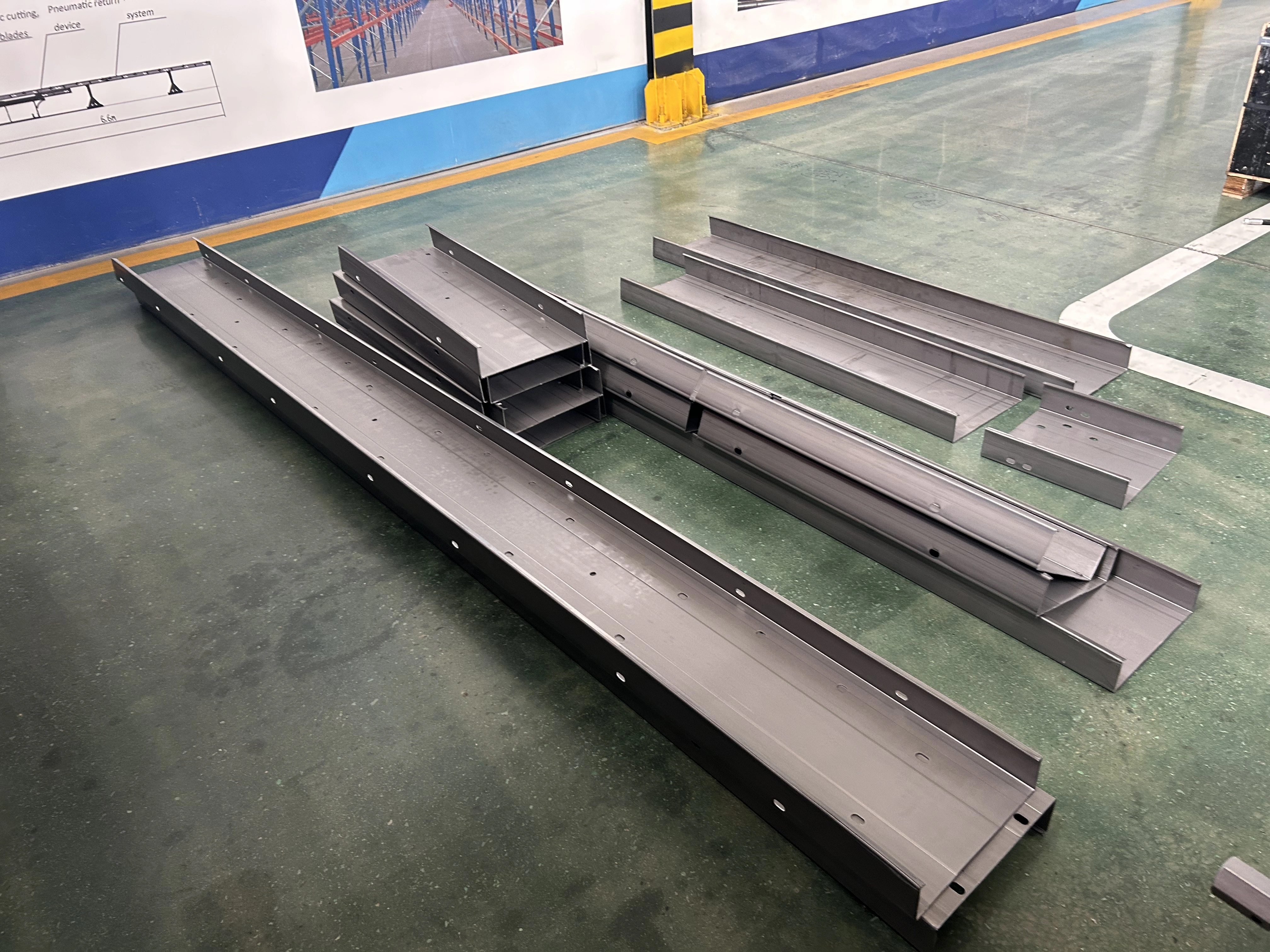

Finished dark gray C-shaped and U-shaped purlins with regularly spaced bolt holes along the flanges and elongated slots on the flat surface are stacked on the workshop floor, ready for bolted assembly on site.

Certifications

The machine is CE certified for international procurement (CE trust No. 4Q230524.CZIDW02 / 4Q230524.CZIDW03), supported by COTECNA, Ente Certificatore Macchine and UDEM certificates; the company holds CE, BV, STV and ISO certifications.

Company Profile

Zhongtuo Roll Forming Machinery Co., Ltd (ZTREM) is a cold forming equipment manufacturer with a modern factory, corporate showroom featuring development history (2010-2024) and honors, and a high-capacity workshop delivering roll forming lines worldwide.

Packing & Shipping

• Package size: 1000 x 150 x 120 cm; machine weight: 12000 kg
• Delivery time: 60 days for 1 set, 90 days for 2 sets
• Machinery test report and video outgoing inspection provided
