CE ISO Certified Australia Metal Fence Panel Roll Forming Machine Metal fence panel

Name: CE ISO Certified Australia Metal Fence Panel Roll Forming Machine Metal fence panel
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT122493250

Rolling Thickness24-26 gauge (0.4-0.8 mm)

Feeding Width1200 mm

Forming Speed20 m/min

Machine Weight8500 kg

Voltage380 V / 440 V / 220 V

WarrantyMore Than 5 Years

Control SystemPLC (Siemens / Delta imported-brand options)

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Fence Panel Type:

Metal fence panel

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Rolling Thickness
24-26 gauge (0.4-0.8 mm)
Feeding Width
1200 mm
Forming Speed
20 m/min
Machine Weight
8500 kg
Voltage
380 V / 440 V / 220 V
Warranty
More Than 5 Years
Control System
PLC (Siemens / Delta imported-brand options)
Application
Metal fence panel
Material
Galvanized steel
Material Thickness
24-26 gauge (0.4-0.8 mm)
Feeding Width
1200 mm
Forming Speed
20 m/min
Moq
1
Price
21000
Certification
CE BV STV ISO

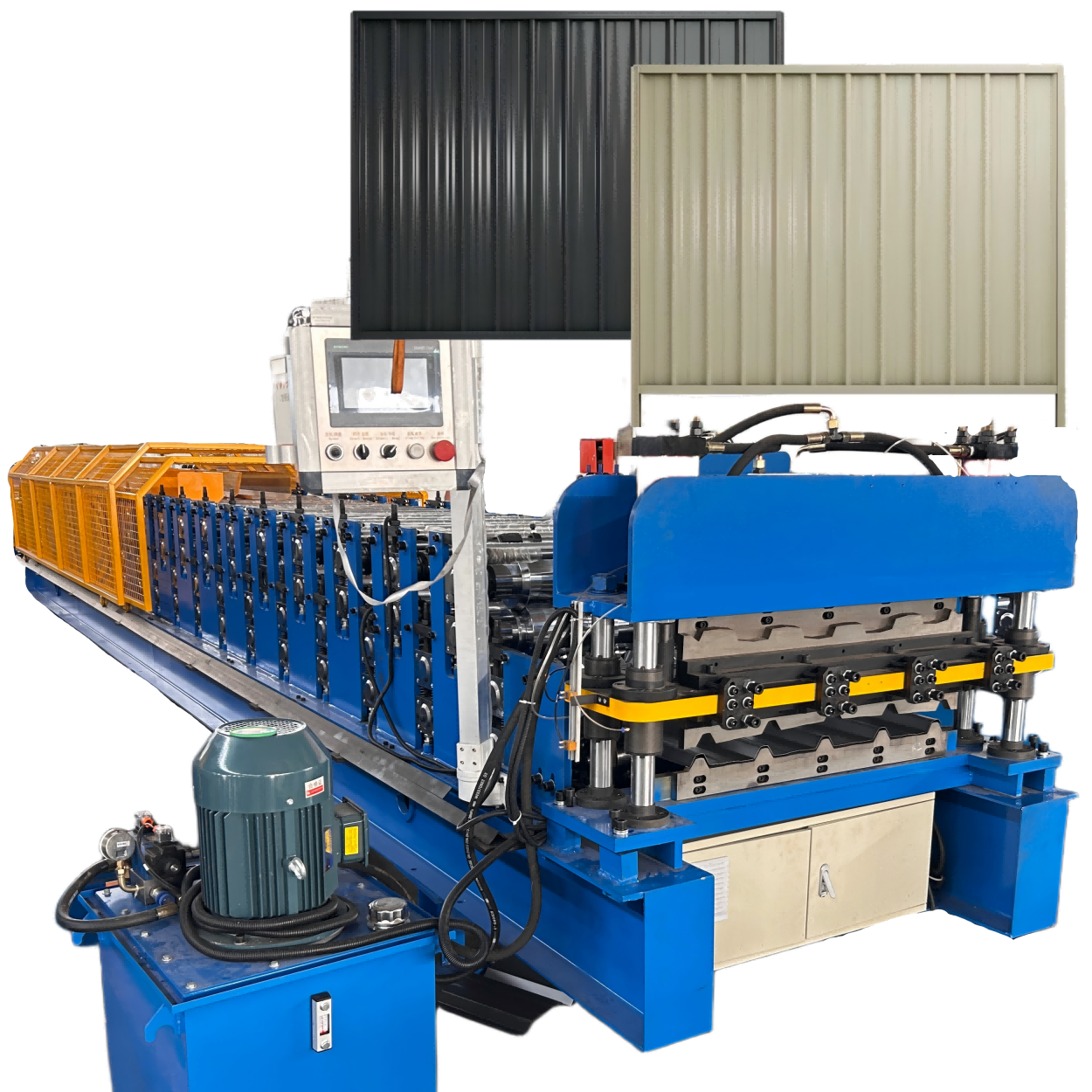

Australia Metal Fence Panel Roll Forming Machine

The ZTRFM CE ISO Certified Australia Metal Fence Roll Forming Machine is designed for continuous metal fence panel forming from galvanized steel. The line combines multi-station forming rollers, hydraulic automatic cutting, PLC control and a protected forming area for construction and metal fence panel production.

Continuous fence panel forming: The machine is configured for metal fence panel production with a forming speed listed at 20 m/min.
Galvanized steel processing: The source record identifies galvanized steel as the tile/material type and metal fence panel as the use.
Hydraulic automatic cutting: The post-cutting system is listed as a hydraulic 4-pillar automatic cutter with Cr12Mov cutting blade material.
PLC-based control: The control system is listed as PLC, with Siemens or Delta imported-brand options in the source attributes.
Protected forming area: The source attributes list a metal protect cover around the forming machine.

Technical Specifications

Item	Specification
Product Type	Metal Fence Panel Roll Forming Machine
Application	Metal fence panel
Material	Galvanized steel
Rolling Thickness	24–26 gauge (0.4–0.8 mm)
Feeding Width	1200 mm
Forming Speed	20 m/min
Machine Weight	8500 kg
Voltage Options	380 V / 440 V / 220 V
Control System	PLC; Siemens / Delta imported-brand options listed
Roller Material	45# steel, chrome plated
Shaft Material	High-grade No.45 forged steel
Cutting Blade Material	Cr12Mov
Main Frame	400H steel
Post-Cutting System	Hydraulic 4-pillar automatic cutter
Warranty	More Than 5 Years
Certification	CE BV STV ISO

Machine Structure

The visible production line includes a protected roller-forming section, chrome-plated forming rolls, hydraulic cutting tooling, a PLC control cabinet and a finished galvanized metal fence panel. The selected detail visuals focus on the forming rollers, hydraulic cutter and control interface.

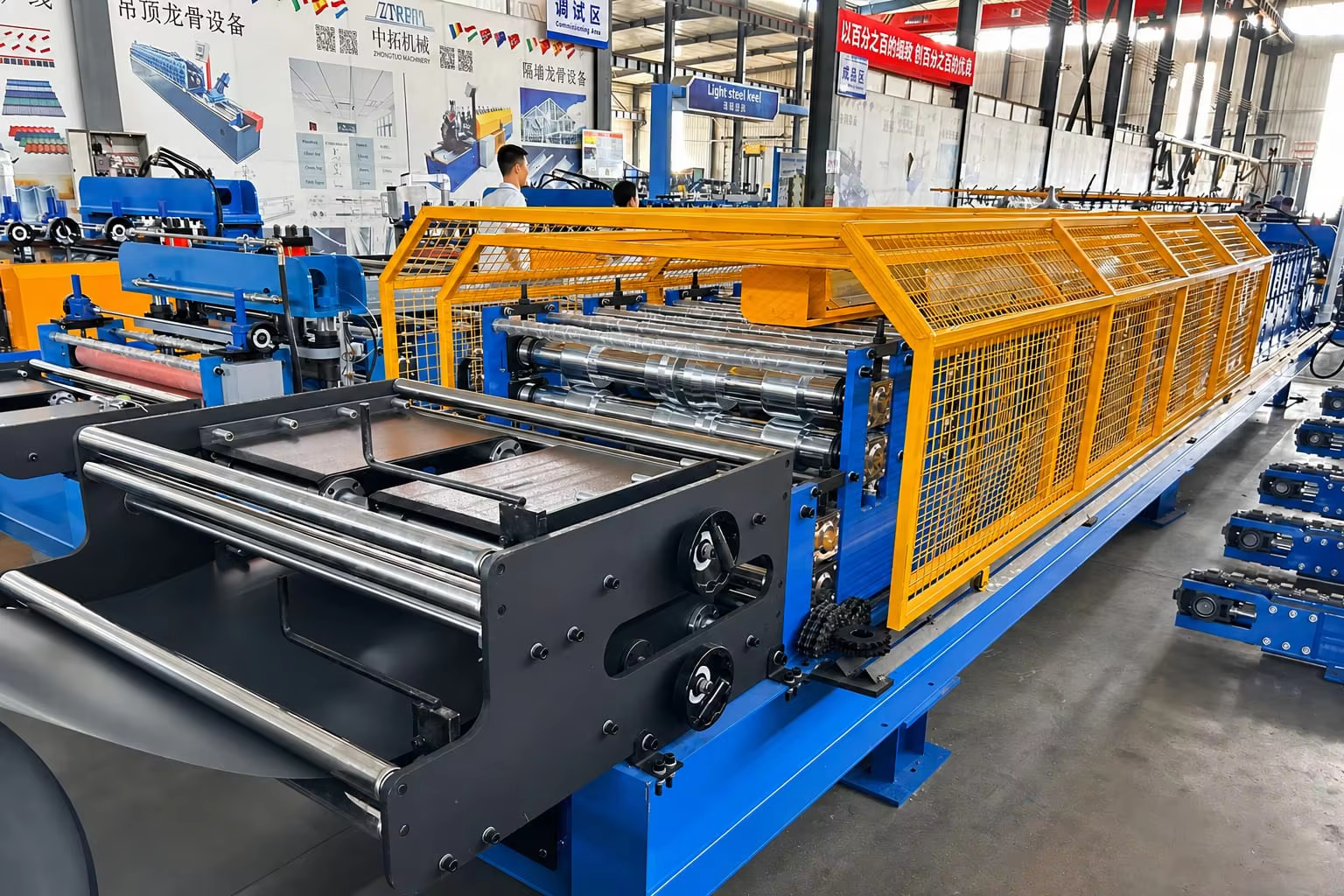

Metal fence panel forming rollers and safety guard

Hydraulic fence panel cutter

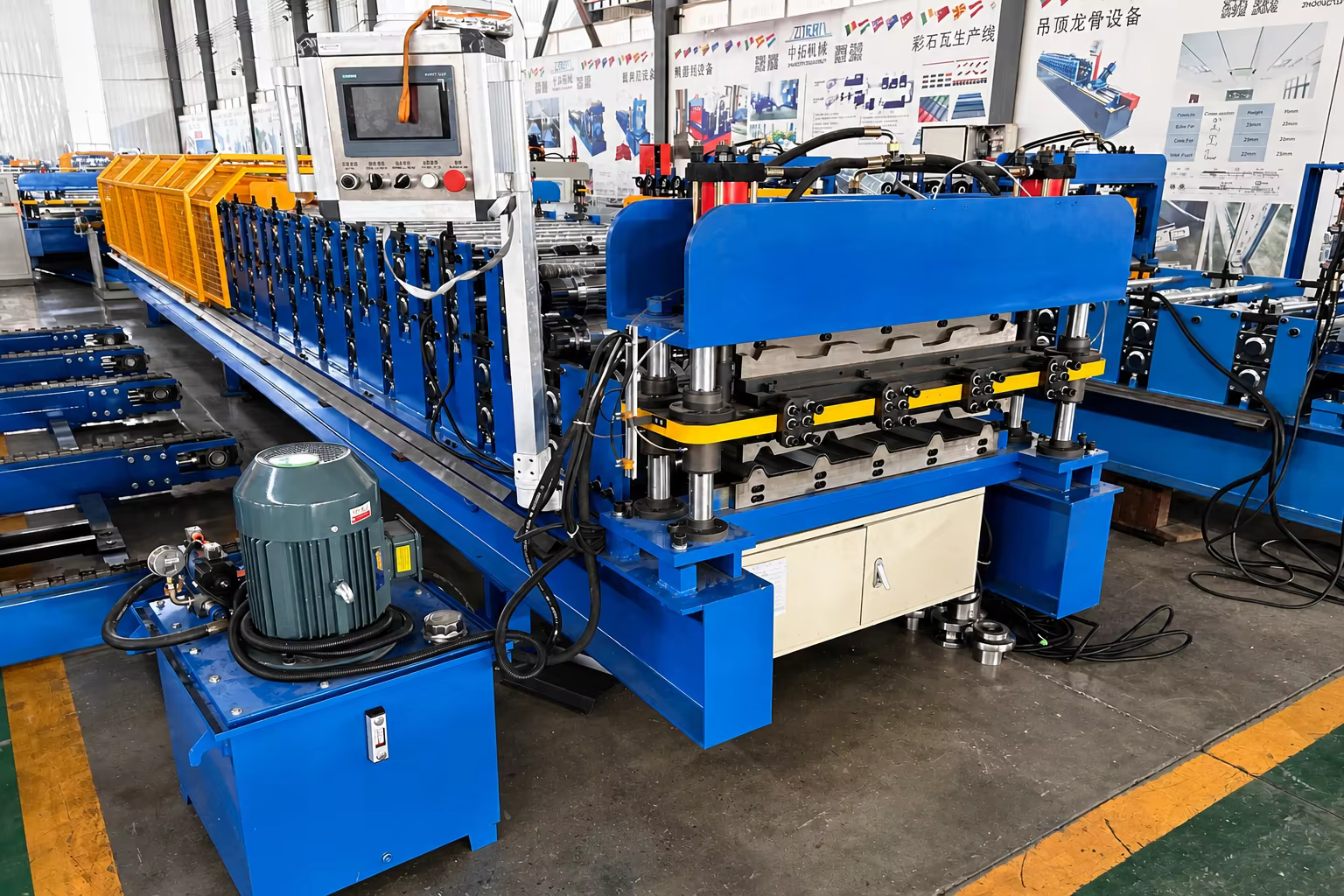

PLC control cabinet and fence panel line

Finished Product & Applications

The line is intended for galvanized metal fence panel production for construction use. Finished panels shown in the source imagery have a vertical ribbed profile and are suitable for fence-panel fabrication workflows.

Finished galvanized metal fence panel

FAQ

What material is listed for the machine?
The source attributes identify galvanized steel for metal fence panel use.

What thickness range is listed?
The listed rolling thickness is 24–26 gauge (0.4–0.8 mm).

What control system is listed?
The machine uses PLC control, with Siemens / Delta imported-brand options listed in the source attributes.
