C10 Multi-Ribs Metal Roof Roll Forming Machine Adjustable

C10 Multi-Ribs Metal Roof Roll Forming Machine

The C10 Multi-Ribs Metal Roof Cladding Wall Panel Roll Forming Machine is a professional solution designed for the continuous production of high-quality metal roofing and wall cladding panels.

Developed for the Russia market, this machine combines a heavy-duty forming structure, precision rollers, automatic cutting and PLC-controlled production to provide stable performance for long-term industrial use.

With a forming speed of 15–20 m/min, the machine is suitable for roofing manufacturers, steel structure companies, building material suppliers and metal panel production factories.



The finished C10 multi-rib panels can be used in a variety of construction applications, including:

• Residential roofing
• Industrial buildings
• Steel structure workshops
• Warehouses
• Factory buildings
• Agricultural buildings
• Commercial buildings
• Wall cladding
• Roof cladding
• Temporary and permanent construction projects

The finished panels combine lightweight construction, practical installation and good structural performance, making them suitable for many metal building projects.





1. Designed for  Metal Roofing Production

The machine is designed to process PPGI and PPGL coils with a material thickness of 0.4–0.6 mm (24/26 Gauge).

The multi-rib C10 profile provides a strong and practical panel structure, making the finished products suitable for a wide range of roofing and wall cladding applications.

2. Hydraulic Decoiler & Free Manual Decoiler

The production line can be configured with a hydraulic decoiler for convenient and efficient coil loading.

For customers looking for a more economical solution, a manual decoiler can be provided free of charge according to the final machine configuration.

The decoiler configuration can be selected according to coil weight, coil width and production requirements.

 3. Stable 15–20 m/min Production Speed

The forming speed is adjustable from approximately 15 to 20 meters per minute, allowing operators to select the appropriate production speed according to material, profile and production requirements.

4. Heavy-Duty  Structure

The main machine frame uses a 350mm H-beam structure with an 18mm welded steel middle support plate.

Combined with an approximately 7.5-ton machine weight, the heavy-duty structure provides a stable foundation for continuous roll forming operation.

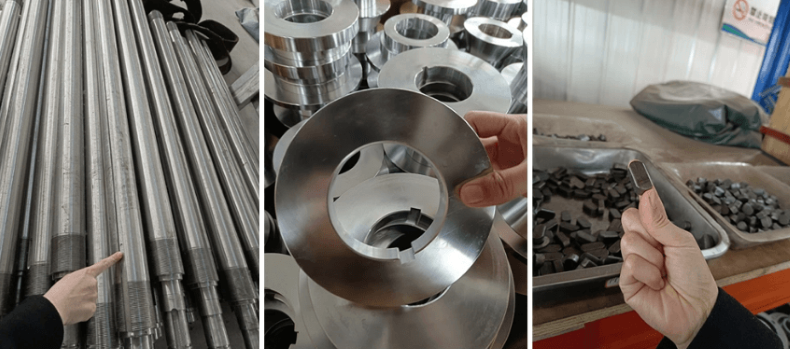

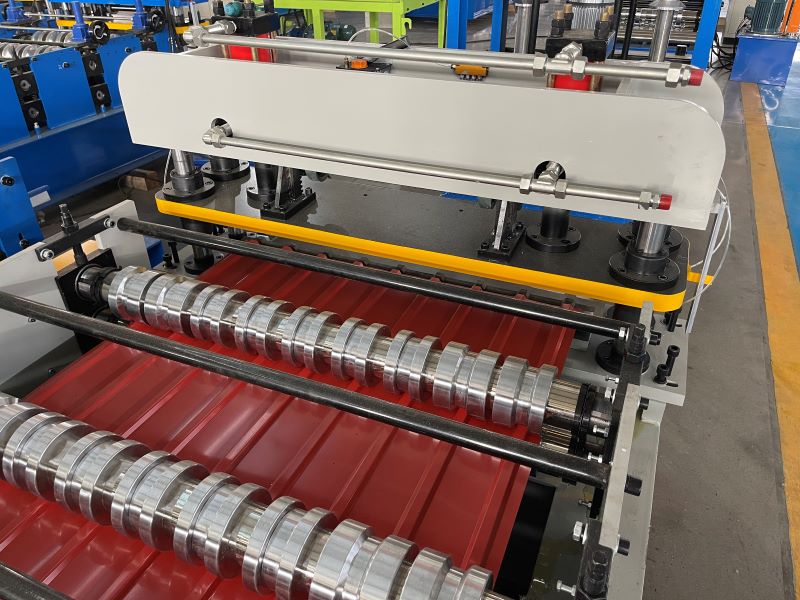

The C10 machine is equipped with approximately 18 forming stations.Forming rollers are manufactured from high-grade 45# forged steel with a hard chrome-plated surface.

Chrome thickness: approximately 0.05 mm

The treated roller surface provides good wear resistance and helps maintain consistent forming performance during long-term production.

5. Powerful Transmission System

The machine uses a gear and double-chain transmission system to transfer power through the forming stations.

This configuration is designed for stable power transmission and reliable operation during continuous production.

The robust transmission system works together with the heavy-duty frame and solid shafts to provide stable forming performance.

6. Automatic Cutting Without Scratches

The machine is equipped with an automatic cutting system using Cr12MoV cutting material.

The cutting system is designed to provide accurate cutting while minimizing scratches and deformation of the finished panels.

7. Intelligent PLC Control System

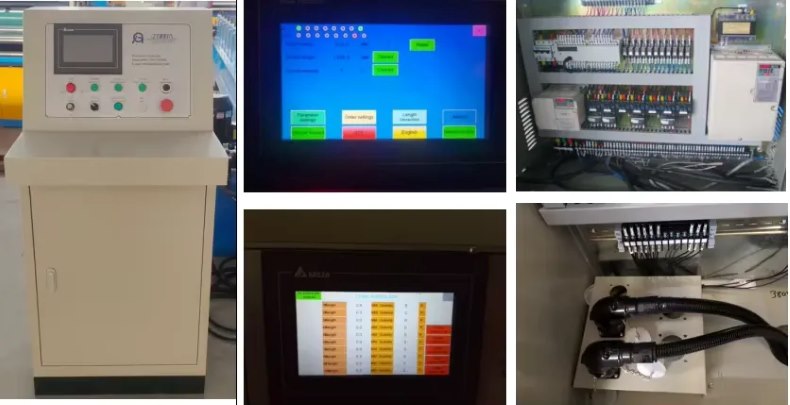

The entire production line is controlled through a PLC automatic control system.

Operators can set the required production parameters directly through the control interface.

 PLC Functions

* Set panel length
* Set production quantity
* Set batch quantity
* Automatic length measurement
* Automatic cutting
* Production counting
* Machine start/stop control
* Multiple-language support

The standard operating language is English, while other languages can be customized according to customer requirements.

Customized Panel Production

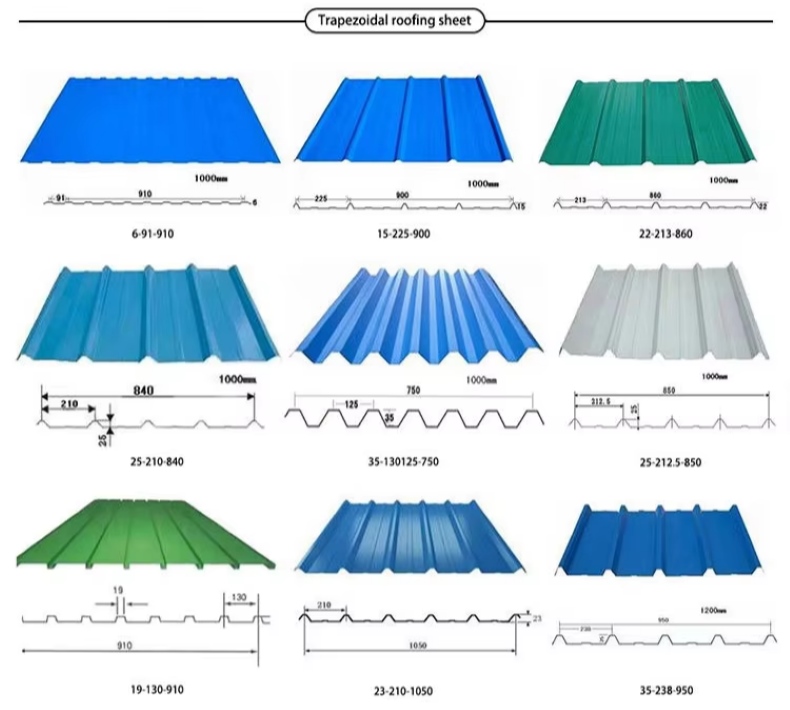

According to different project requirements, the machine can manufacture various trapezoidal roof panel designs, including:

Panel width, height, hole pattern, and profile shape can be customized based on customer drawings.
