C Z Purlin Roll Forming Machine One-Machine Solution Standard

Product Overview

The C/Z purlin roll forming machine one-machine solution (fully automatic one-click changeover CZ steel machine) is a cold bending forming line that produces both C-shaped and Z-shaped steel purlins on a single machine. Using the same forming unit with automatic or manual stepless adjustment, it changes specifications without replacing the forming rollers.

• One machine dual-use: C and Z profiles freely interchangeable
• Infinite changeover with quick switching, no roller replacement needed
• Infinite cutting without changing cutting tools
• Fully automatic PLC control for punching, cutting and forming
• 20 forming stations, forming speed up to 30 m/min
• High precision rollers (Cr12, HRC58-60) with dual straightening units

Key Features

• One Machine Dual-Use, CZ Freely Interchangeable - Dual-mode design switches between C and Z purlin production without extra equipment. The CZ interchange module rotates 180 degrees to change between C-type and Z-type, reducing equipment investment and factory space.
• Infinite Changeover, Quick Switching in One Minute - Stepless adjustment changes specifications in millimeters: C-shaped width 80-300 mm, Z-shaped width 120-300 mm. Fully automatic changeover takes only 1 minute; semi-automatic takes about 3-8 minutes, ideal for small batches and multiple varieties.
• Infinite Cutting, No Tool Replacement - The post-forming cutting system cuts any model from 80-300 mm without changing cutting tools, eliminating downtime and labor cost from tool changes.
• Fully Automatic Control - Computer-controlled production automatically completes punching, cutting and forming from input parameters (purlin length, longitudinal hole spacing, quantity). The feeding port auto-aligns and the fixed-length shearing is precise.
• High Precision Molding - High-grade manganese steel rollers; main rollers of GCr15 bearing steel or 40Cr with forging, tempering, quenching (HRC58-60), CNC machining, polishing and hard chrome plating. Coaxial design reduces height imbalance; two straightening units (ten-roller CZ two-axis and four-roller two-axis) ensure forming accuracy.
• Intelligent Upgrade, Remotely Controllable - Self-developed one-click changeover system for fully automatic operation without manual intervention; supports networking for remote monitoring and debugging.

Technical Specifications

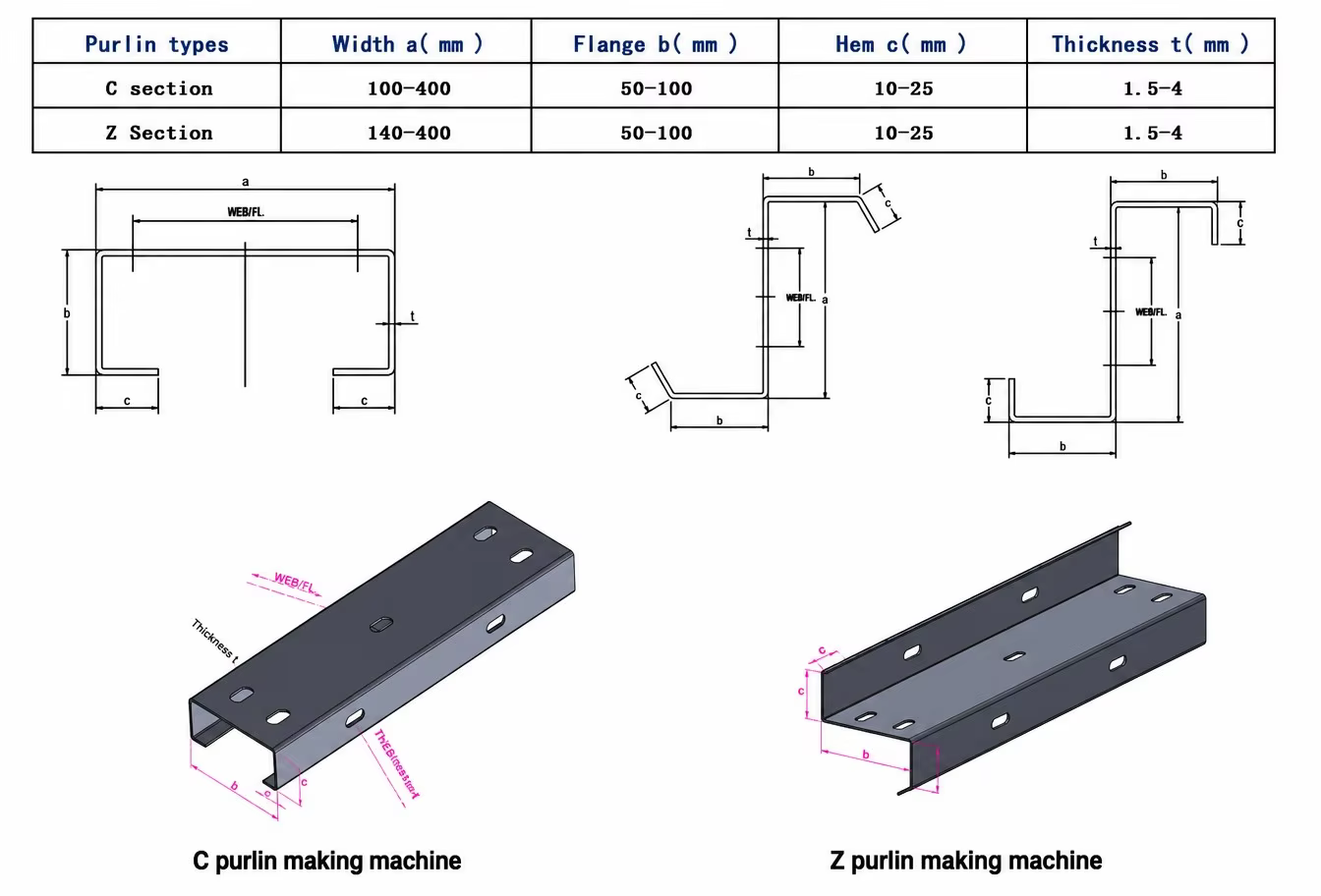

Profile Specifications

Machine Structure

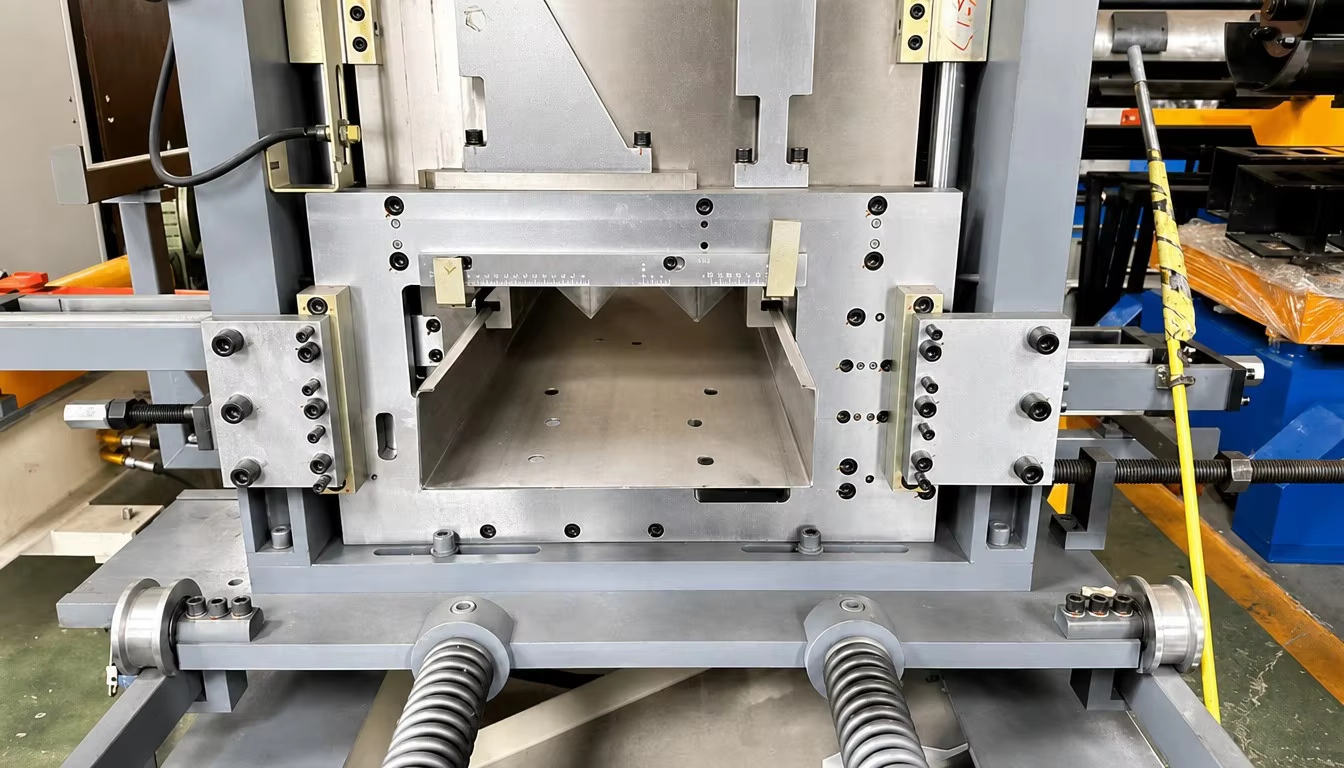

The line is built on a U-beam welded steel frame with 20 forming stations, an automatic feeding alignment system, and two straightening units (ten-roller CZ two-axis and four-roller two-axis) to guarantee C/Z forming accuracy.

Applications

C-shaped and Z-shaped purlins are lightweight, high-strength cold formed sections widely used in industrial and civil buildings (factories, warehouses, exhibition halls, sports venues, offices, villas), agriculture and municipal facilities (greenhouses, highway guardrails, cable trays, pipeline supports), and transportation and logistics (vehicle frames, containers, storage racks).
