Color Coated Steel System > Production Equipment > Light Steel Frame Roll Forming Machine

C & Z Purlin C Purlin U Purlin M Purlin Z Purlin Rolling Forming Machine with PLC Control Motor Bearing Remote Monitoring 25m/min+CZUM Purlin Roll Forming Machine

Cangzhou Zhongtuo International Trade Co., Ltd

C & Z Purlin C Purlin U Purlin M Purlin Z Purlin Rolling Forming Machine with PLC Control Motor Bearing Remote Monitoring 25m/min+CZUM Purlin Roll Forming Machine

Name: C & Z Purlin C Purlin U Purlin M Purlin Z Purlin Rolling Forming Machine with PLC Control Motor Bearing Remote Monitoring 25m/min+CZUM Purlin Roll Forming Machine
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT75678426

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

25m/min

Model Number:

CZUM Purlin Roll Forming Machine

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
Customized
Voltage
380V or Customized
Power(W)
15kw

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

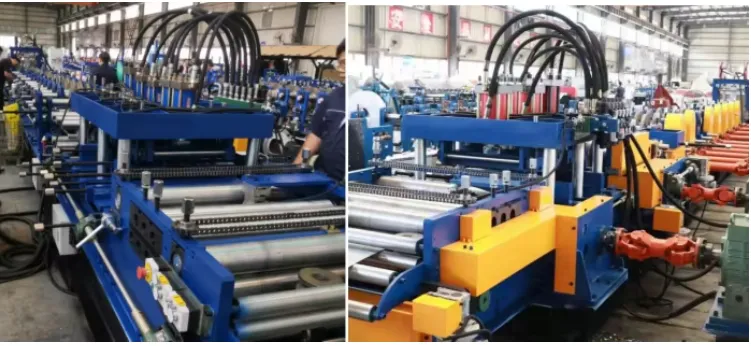

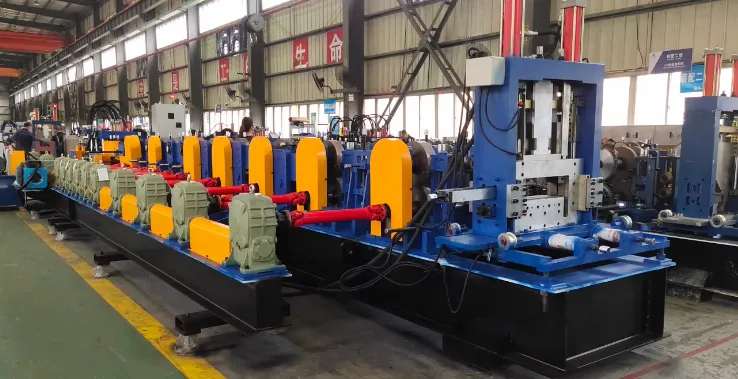

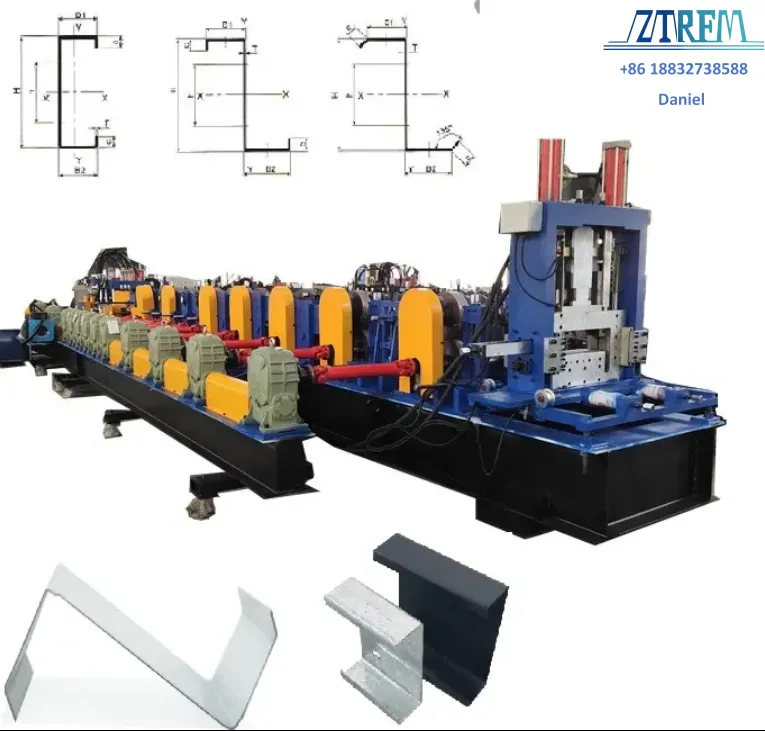

CZUM purlin roll forming machine

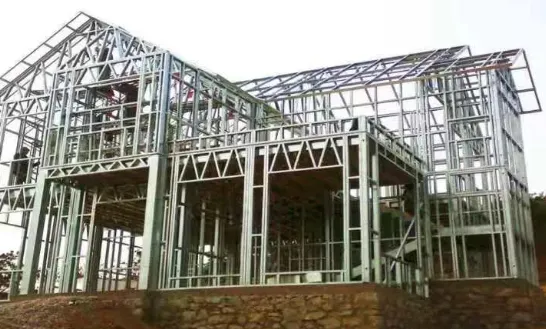

CZ steel can be used for building main structure, and after deep processing, it can well meet the design requirements of building structure, making the building structure more stable and reliable. C-shaped steel is mainly used on some wall beams and sandal wood strips in buildings, which can obtain a relatively sturdy building structure. Z-shaped steel is a common cold-formed steel that is commonly used in large steel structures, especially in buildings like factories, and has seismic resistance. Shelves, vegetable greenhouses, and furniture: CZ steel is also used in the production of shelves, vegetable greenhouses, and furniture.

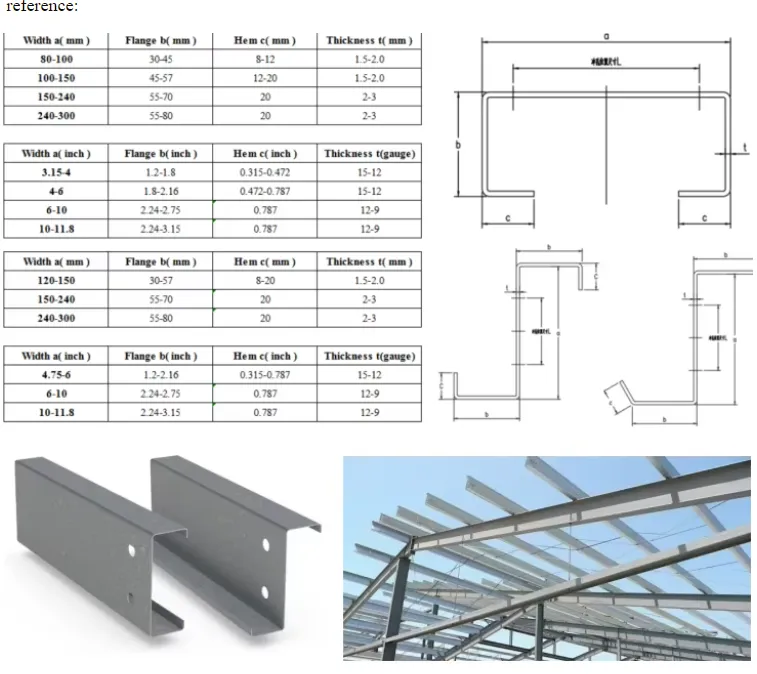

According to the usage and application of purlins, designed the following types C purlin, U purlin, M purlin Z purlin, C & Z purlin rolling forming machine;

Muti Sizes In One Full Automatic Adjustable Steel Frame Purlin Machines C Z Purline Roll Forming Machine
1.Formed Material	PPGI,GI,AI		Thickness:1.5-3mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		16 rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		Gcr 15 with quenched teeatment
		Machine body frame		Metal steel welded
		Drive		Chain transmission
		Dimension(LWH)		95008001200(customize)
		Weight		About 8T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		15KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	60-70m/min(customized)		The speed depends on the shape of the tile and the thickness of the material.

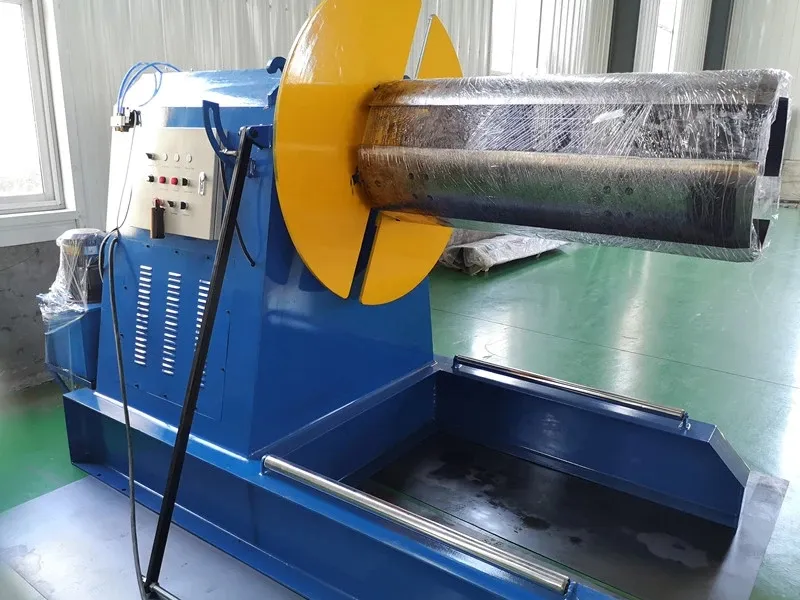

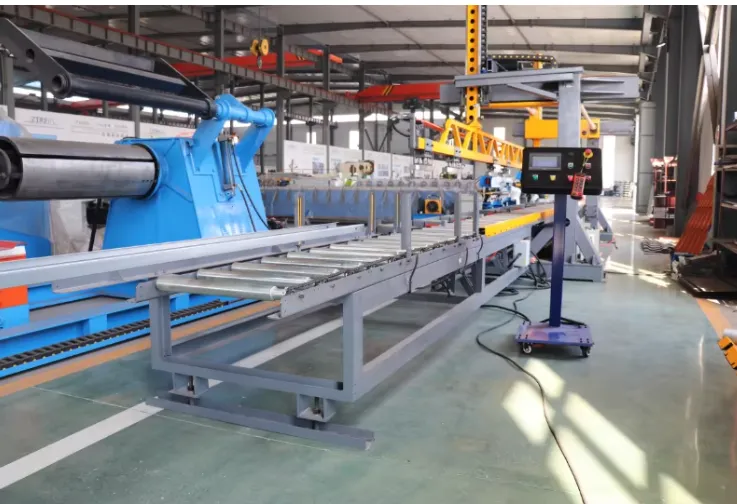

Hydraulic Decoiler

1.Automatic working

2.Hydraulic expansion
3.With press arm to keep the coil from loosing
4.With braking system and speed sensor to match the speed with other machines

5.Saving labor

Transportation

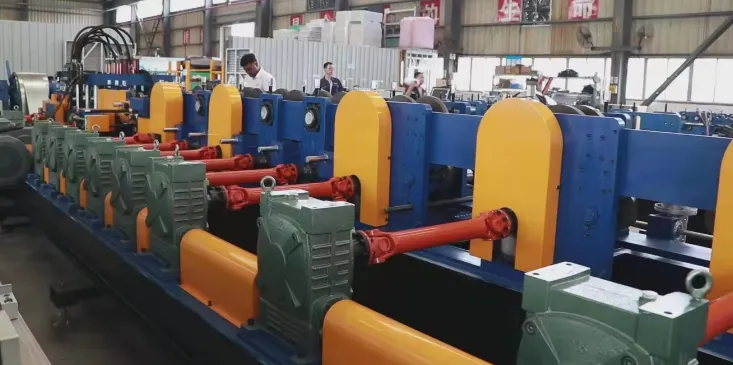

Gearbox transmission
Ensure the high speed of the machine

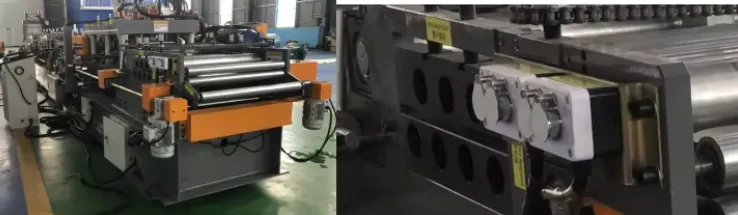

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

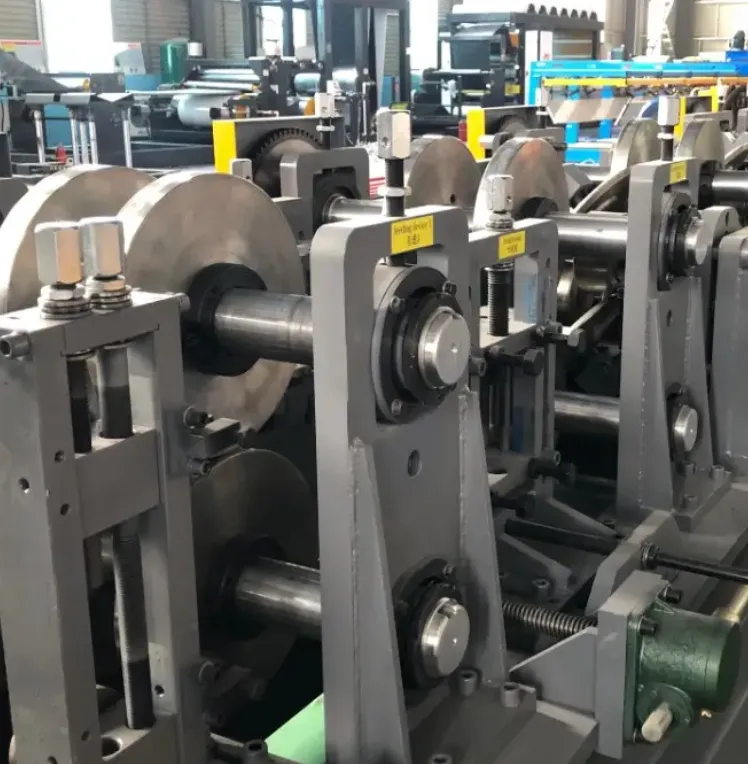

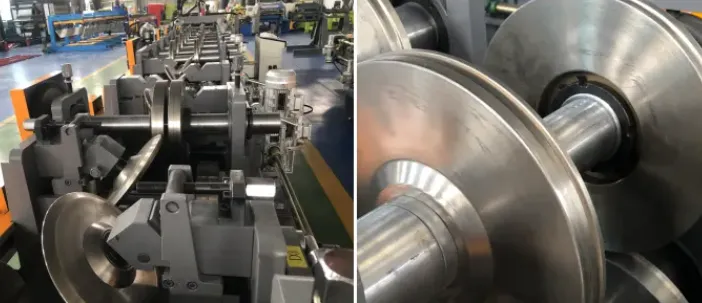

Rollers and shaft

1.Surface with chromed treatment
2.Material:45# steel

Cutting system

1.Fully automated knuckle pressing

2. Fully automated cut of products

3.No need change cutter-produce different sizes C Z purlin in one machine

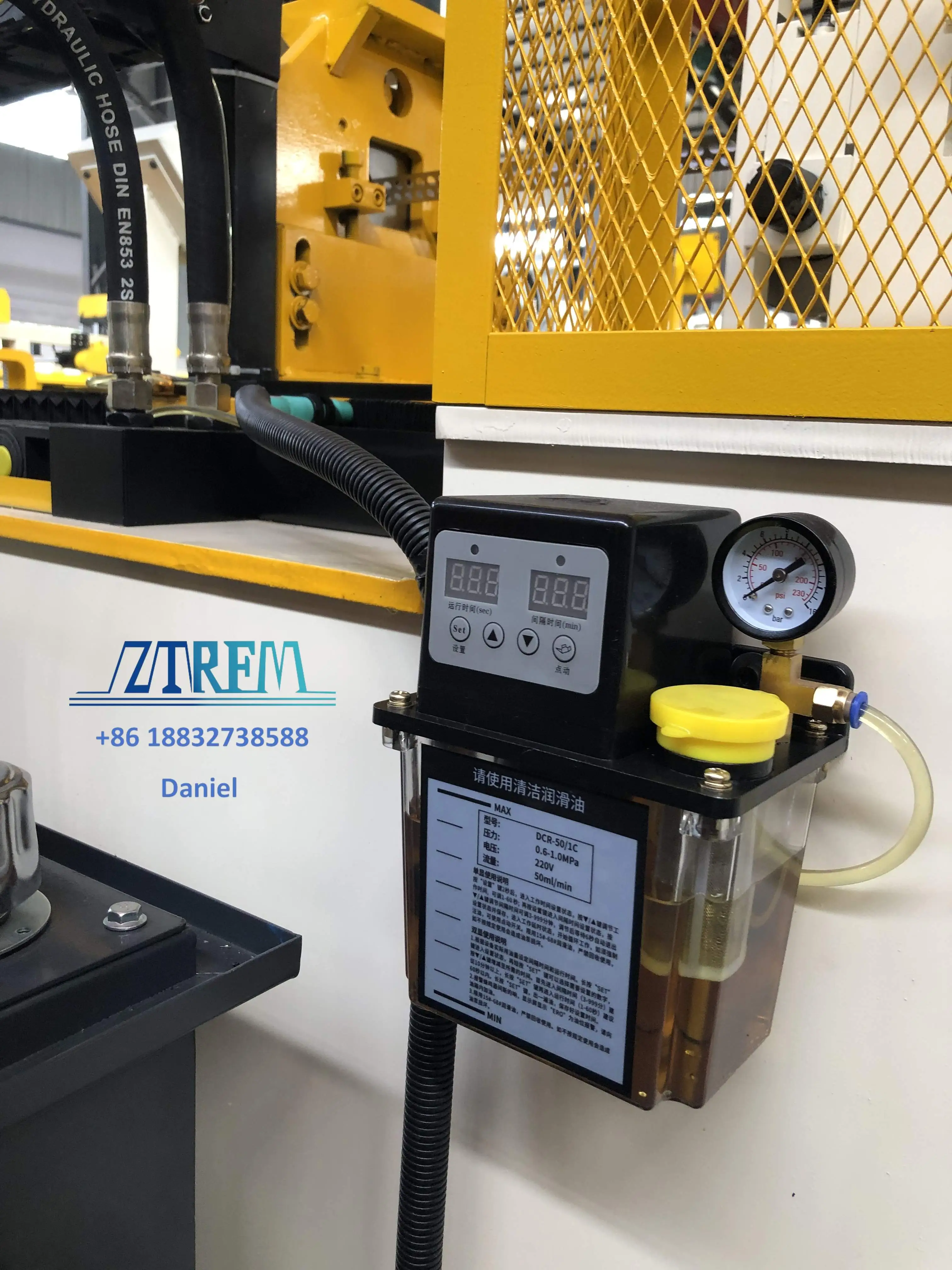

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

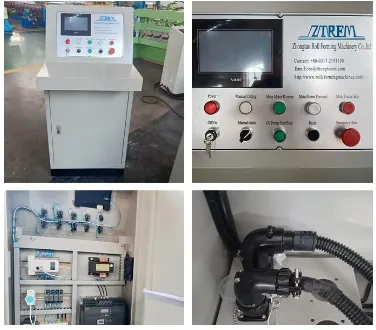

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control

2.Adopt touch screen for easy operation.

3.Adopt aviation plugs for easy installation

4.Languages can be customized

Automatic Stacker

1. Saving manpower 2. Can improve productivity 3. Equipped with rubber wheels and nylon pads to better protect the finished product.

4.Length: 6 meters The frame body is welded with channel steel and angle steel, and the roller is installed on the surface.

5.Related suggestion: If the local labor cost is high, you can also choose automatic palatalizing ( Price:28000 USD )

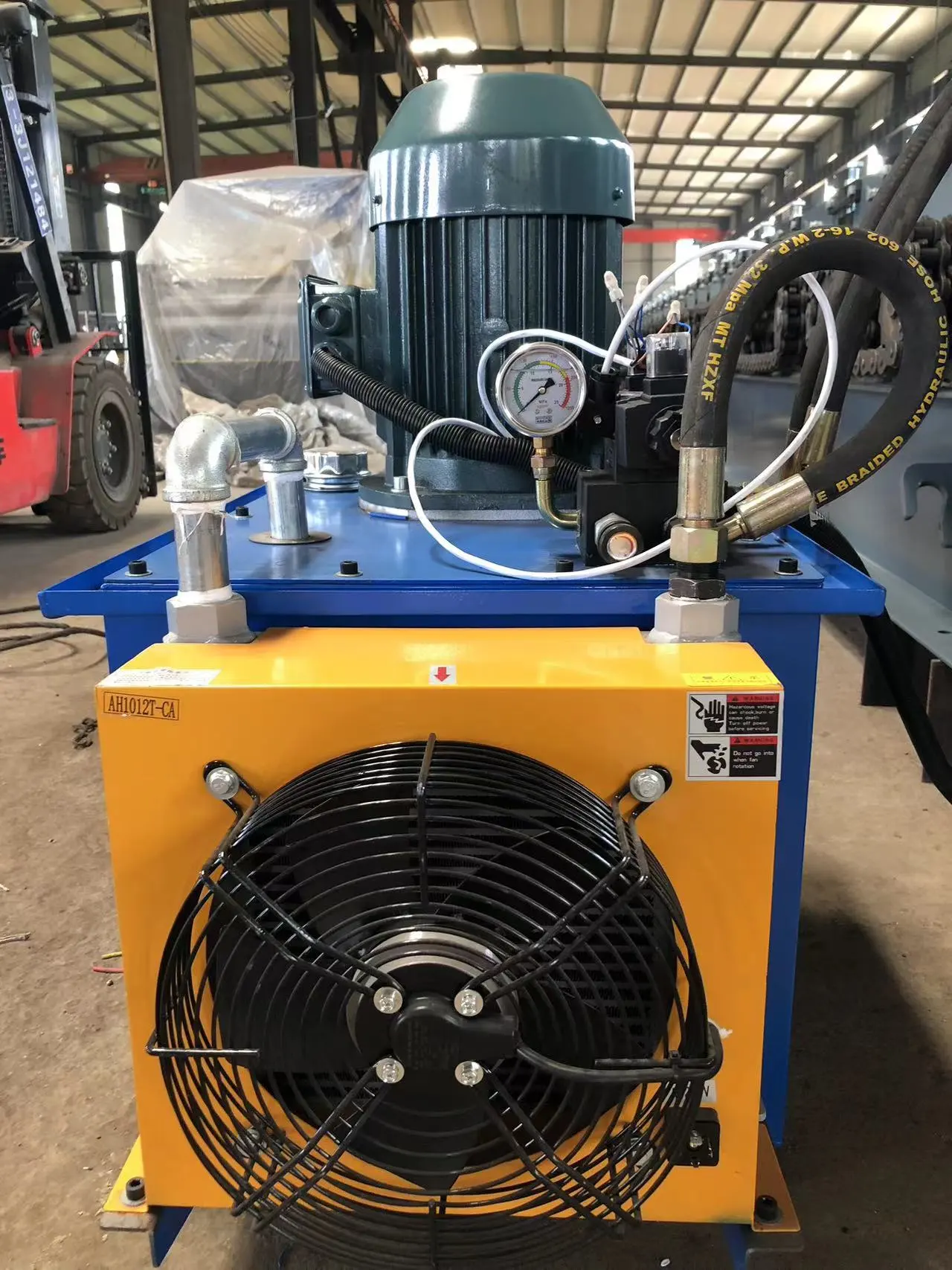

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

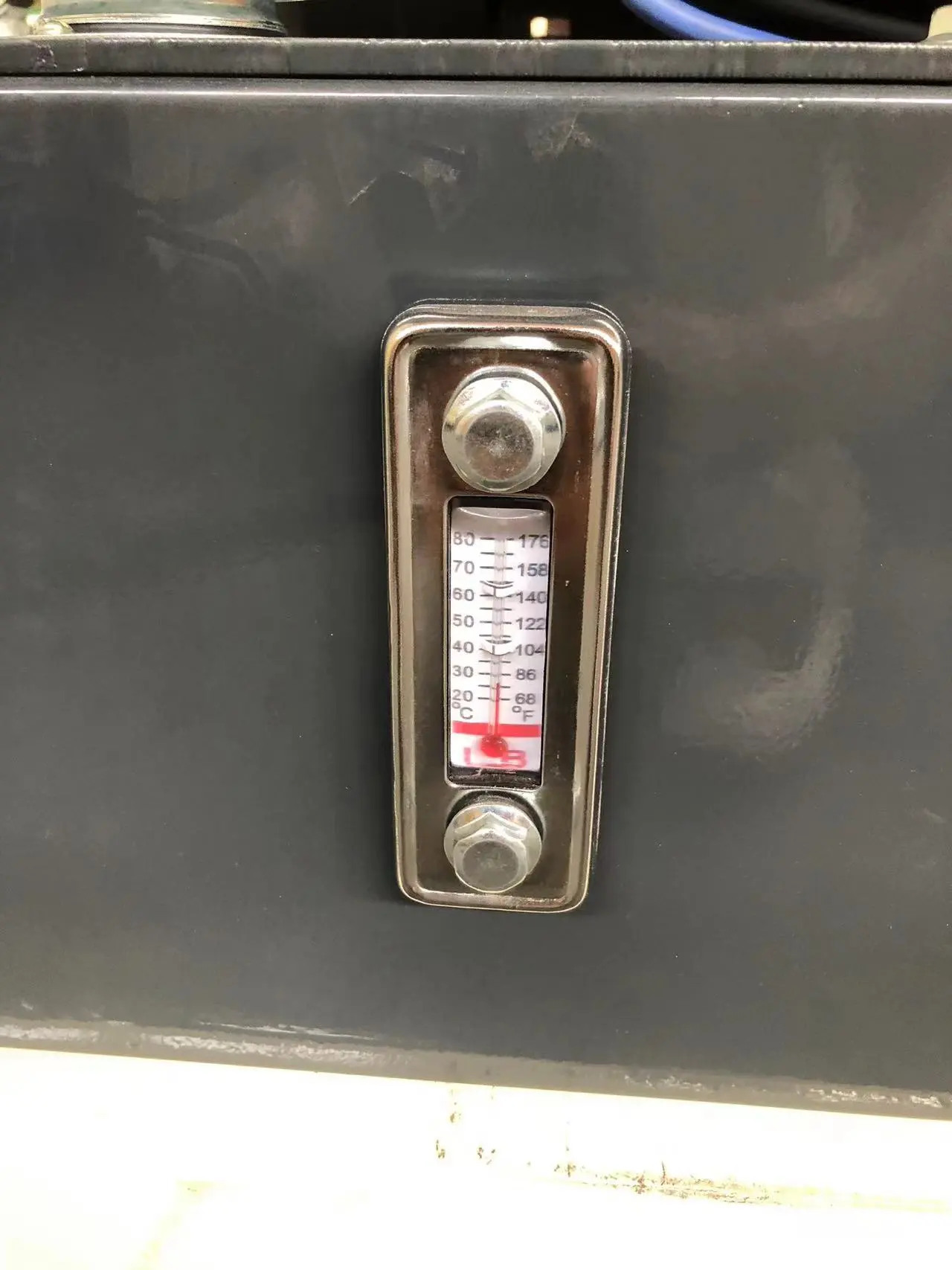

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

Product display

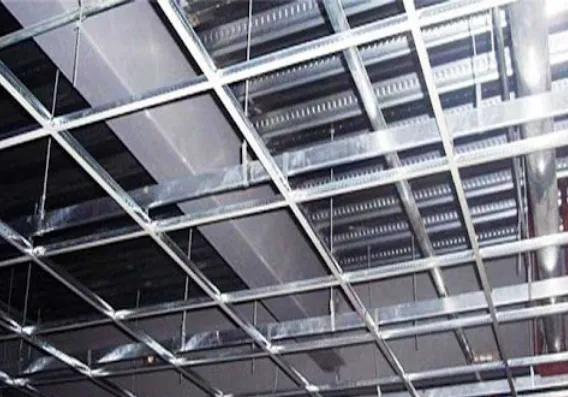

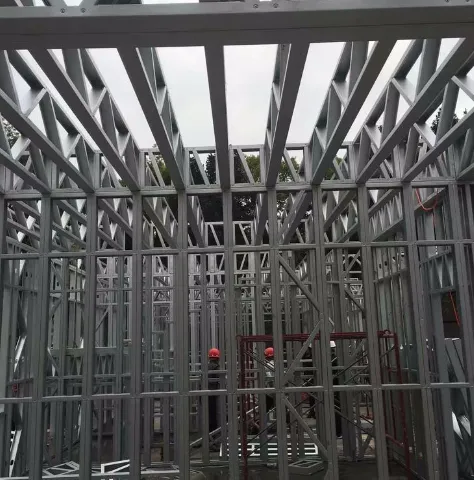

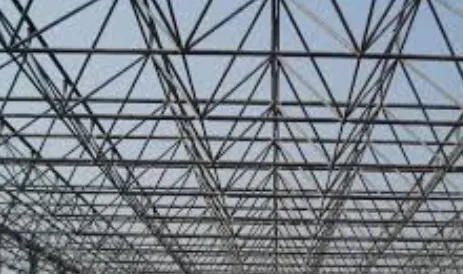

Application
