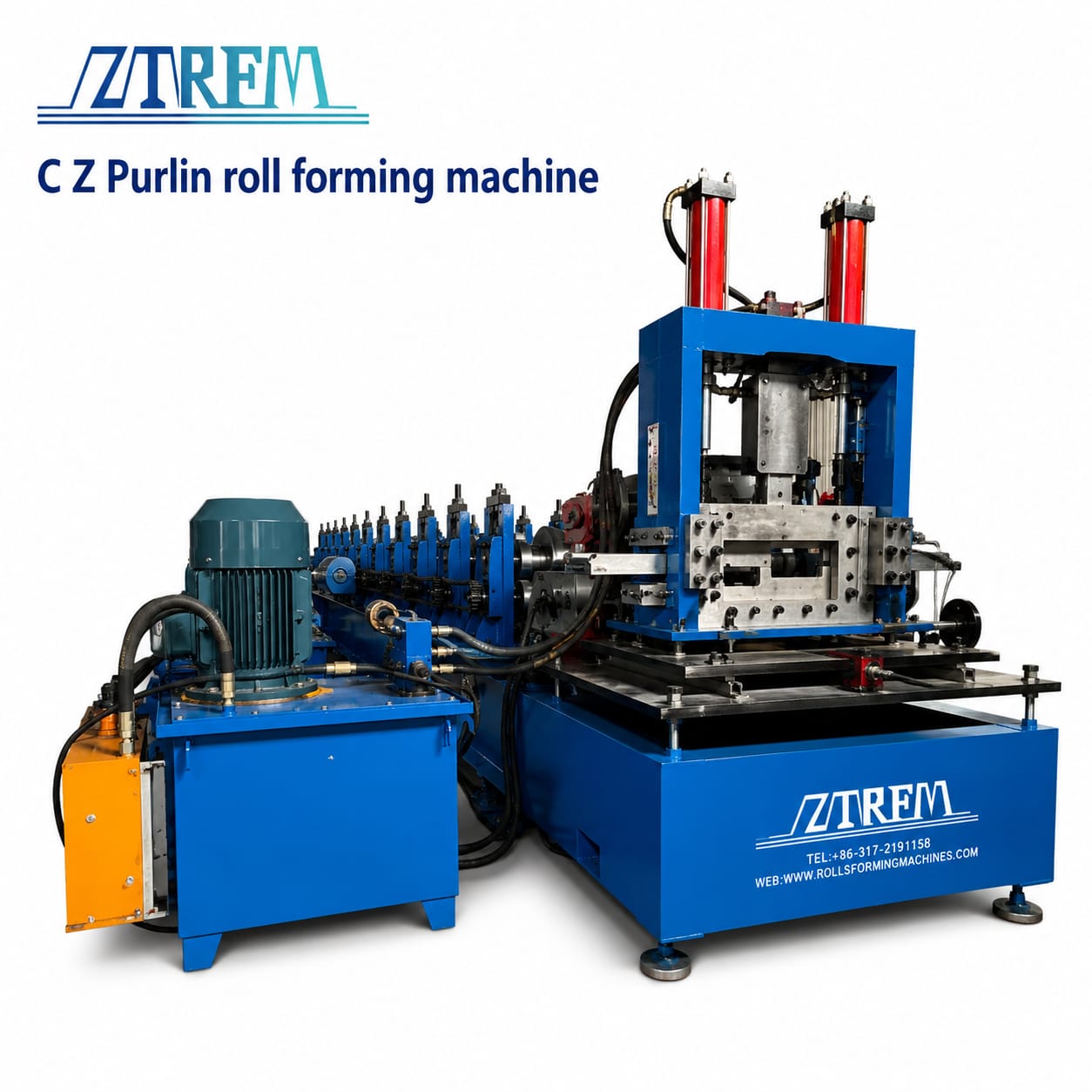

C Z Interchangeable Purlin Roll Forming Machine with Siemens PLC Control High-Efficiency Standard

General Industry Tech Hebei Developing Co.,Ltd

C Z Interchangeable Purlin Roll Forming Machine with Siemens PLC Control High-Efficiency Standard

Name: C Z Interchangeable Purlin Roll Forming Machine with Siemens PLC Control High-Efficiency Standard
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120716461

Thickness1.5-3.0mm

Forming Speed15-20m/min

Motor Power15KW + 7.5KW

Control SystemSiemens PLC & HMI

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

High-Efficiency Standard

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Thickness
1.5-3.0mm
Forming Speed
15-20m/min
Motor Power
15KW + 7.5KW
Control System
Siemens PLC & HMI
Model
ZTRFM-CZ500
Voltage
380V 50HZ 3Phase (Customizable)
Suitable Material
Galvanized Steel, Cold Rolled Steel

Product Overview

The ZTRFM-CZ500 is a state-of-the-art C/Z Interchangeable Purlin Roll Forming Machine, engineered for construction projects requiring high-precision steel profiles. With a dual-profile hybrid design, it allows operators to switch between C and Z purlins seamlessly, maximizing production flexibility.

One Machine, Two Profiles: Intelligent size/profile switching saves space and investment.
High Speed & Precision: Forming speed up to 20m/min with ±1mm cutting accuracy.
Siemens Intelligent Control: Integrated Siemens PLC system for stable and smart operation.
Extensive Service Life: Designed for 20+ years of heavy-duty industrial usage.

Technical Specifications

Parameter	Details
Raw Material	Galvanized / Cold Rolled Steel
Material Thickness	1.5 - 3.0 mm
Forming Stations	20 Roller Groups
Roller Material	Cr12 Steel with Heat Treatment
Main Motor Power	15 KW High-Efficiency Motor
Control System	Siemens PLC / HMI / VFD

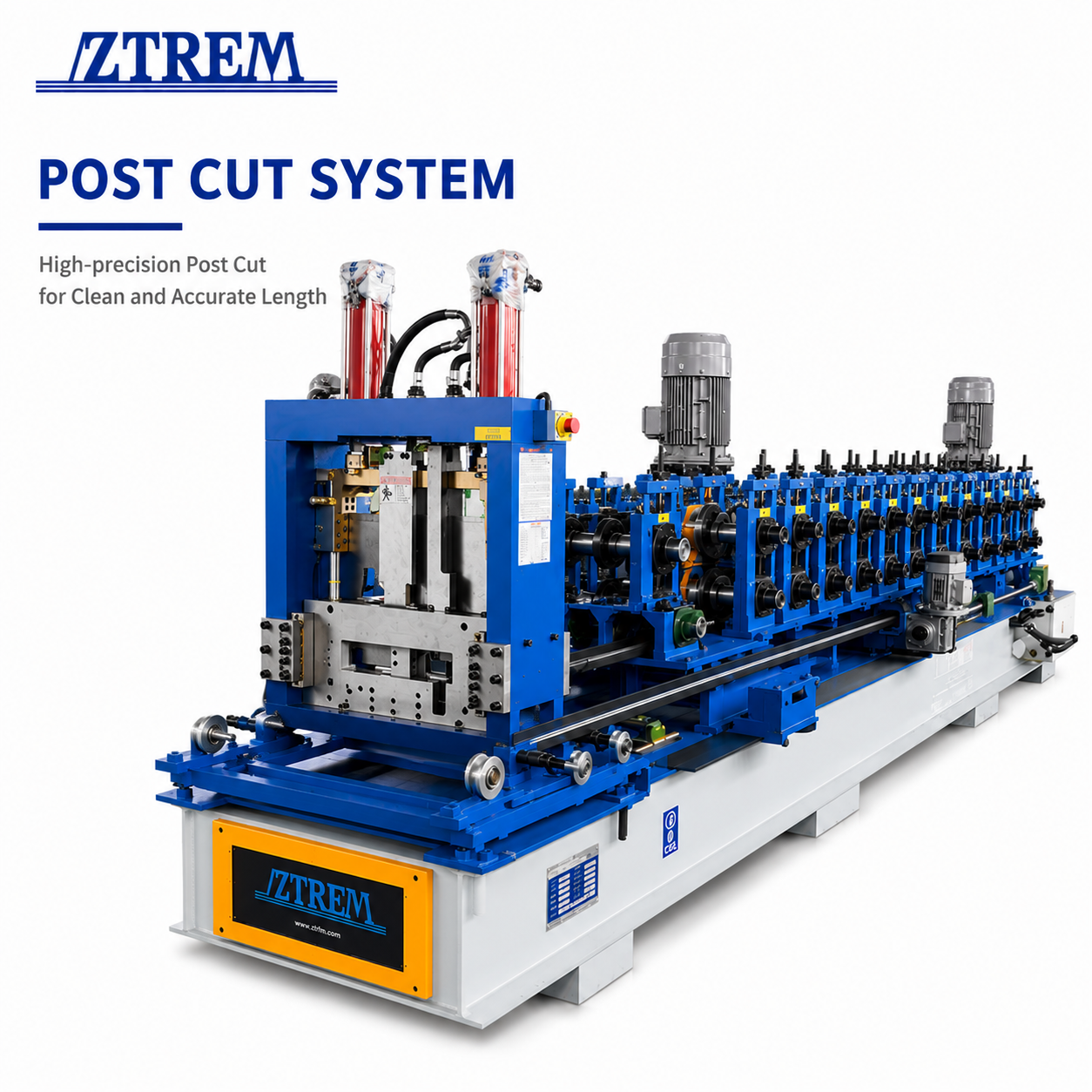

Cutting System	Hydraulic Post-Cutting
Production Speed	15 - 20 m/min (Excluding Cutting)

Advanced Advantages

Why ZTRFM leads the industry in purlin forming technology:

Strategic Partnership: Our machines are powered by official Siemens components, ensuring global parts availability and unmatched reliability.
Military-Grade Rollers: Cr12 rollers are vacuum heat-treated to HRC 58-62, providing superior hardness and wear resistance compared to standard GCr15.
Smart Size Switching: Automatic C-to-Z profile transformation controlled via touch screen, reducing downtime to less than 10 minutes.

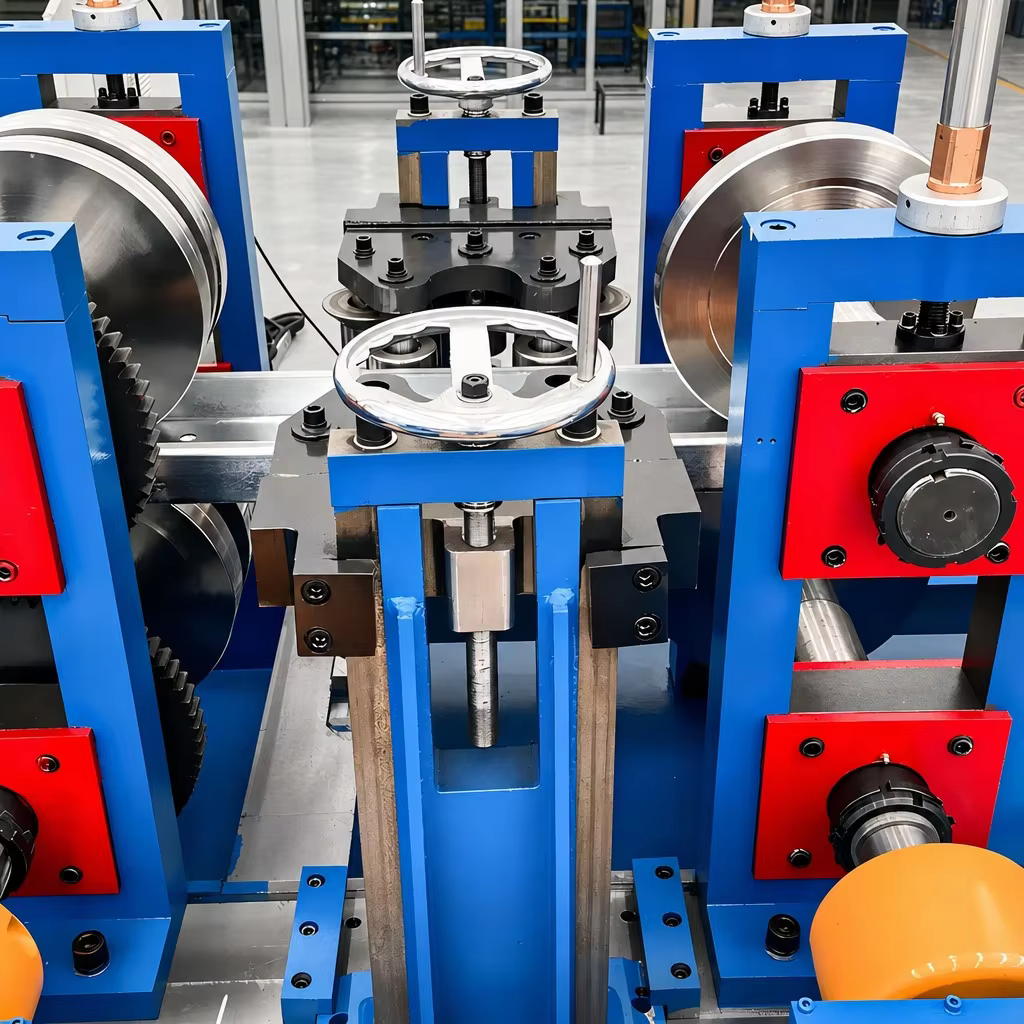

Cr12 Roller Details

Why Choose ZTRFM?

Verified High-Tech Enterprise: Recognized as a National High-Tech Enterprise in China, representing the top tier of manufacturing innovation.
Academic & R&D Excellence: Authorized internship base for Yanshan University, integrating the latest cold-bending research into every machine.
Global Footprint: Over 150 countries exported, with established localized service networks in South Asia, North America, and Western Europe.

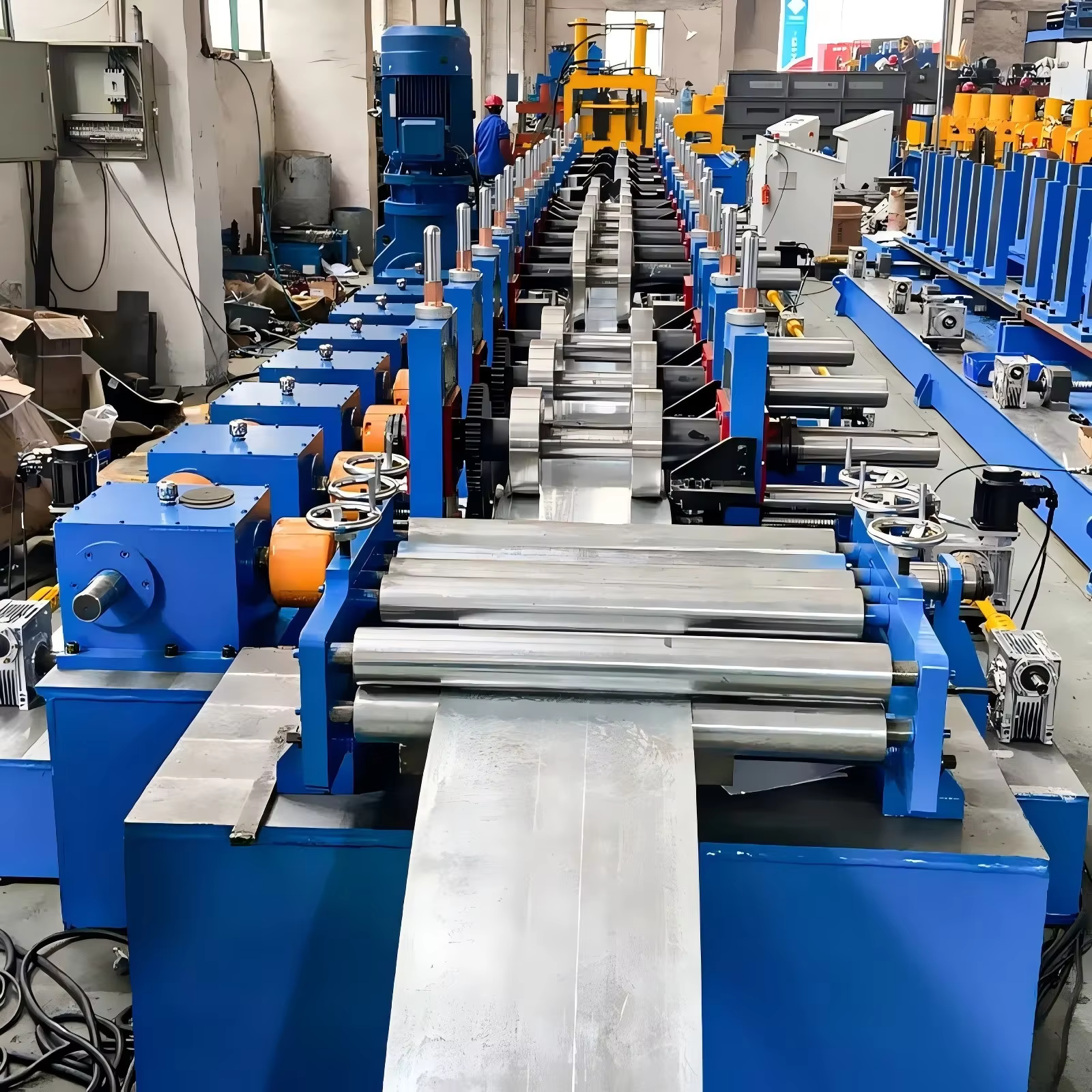

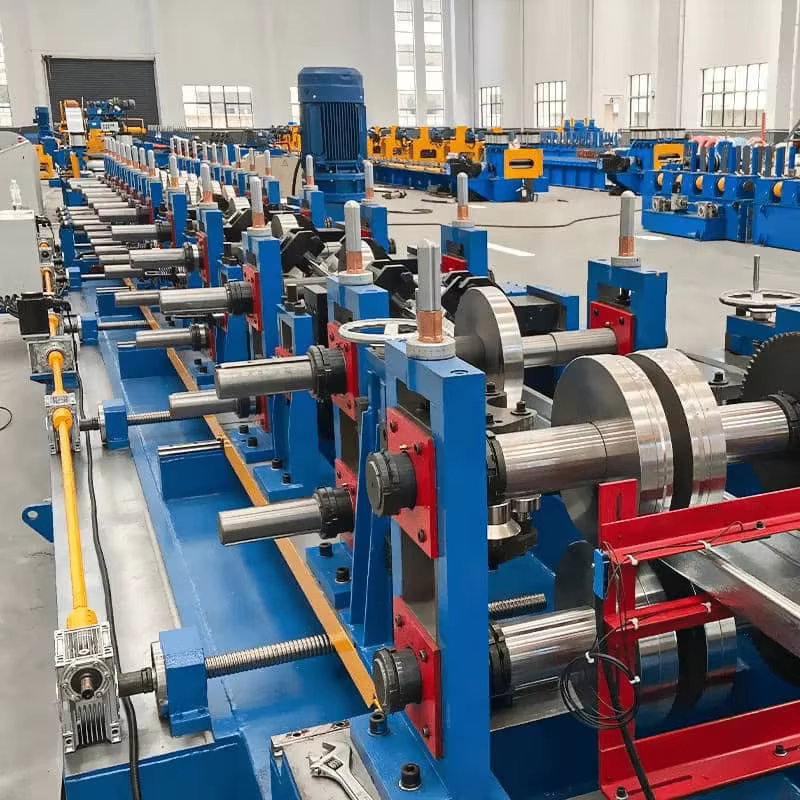

ZTRFM Factory Workshop

Service Ecosystem

We provide a dual-track service system ensuring your production never stops:

24-Month Quality Warranty: Double the industry standard for complete peace of mind.
Global Engineer Dispatch: On-site installation, debugging, and staff training services available worldwide.
Digital Life-Cycle Support: Remote technical assistance and free replacement parts for damaged components during the warranty period.

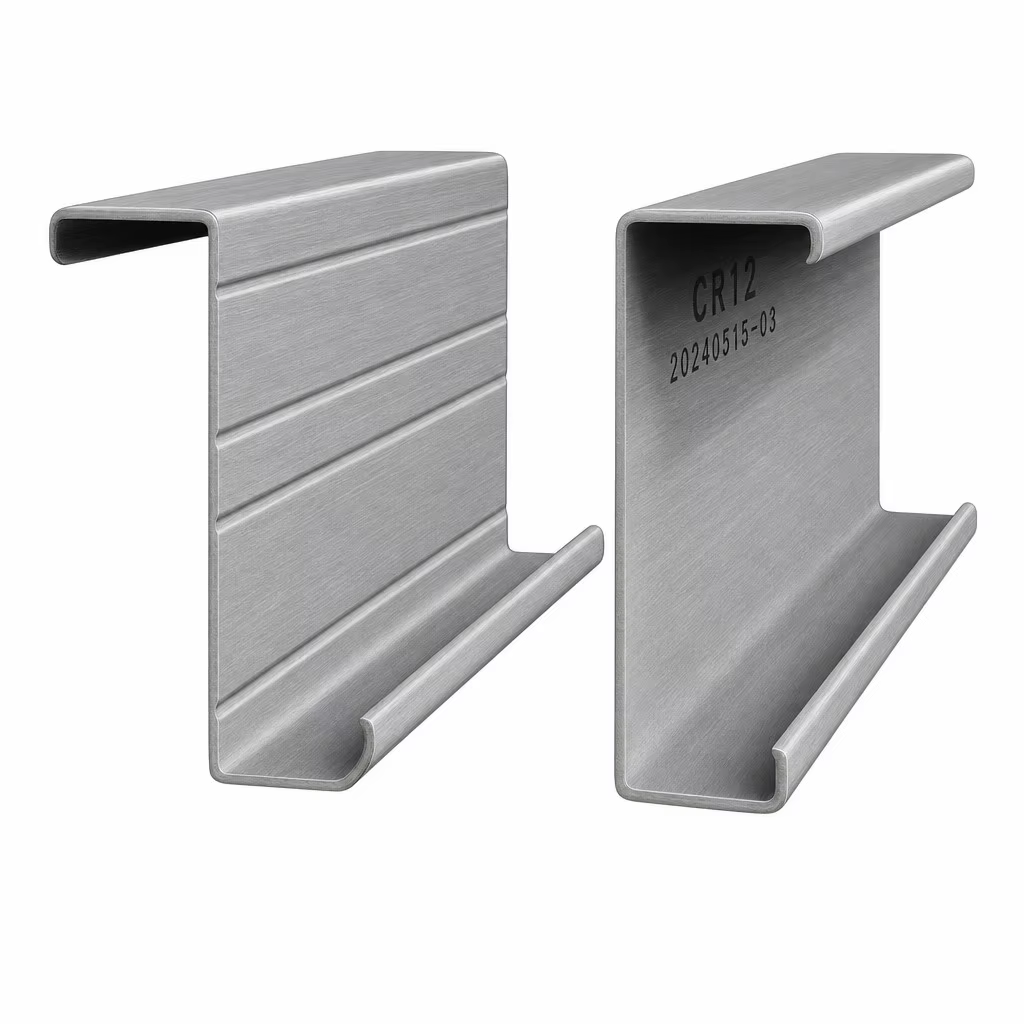

Finished CZ Purlin Profiles
