C Shaped Purlin Roll Forming Machine C Shaped Purlin Machine

Name: C Shaped Purlin Roll Forming Machine C Shaped Purlin Machine
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT121010202

Machine NameC shaped purlin machine

Key Selling PointsEasy to operate; fully automatic

Weight10000 kg

WarrantyMore than 5 years

CertificationCE, BV, STV, ISO

Core ComponentsPLC, engine, bearing, gearbox, motor, gear, pump, roller, shaft, counter, hydraulic station

After-Sales ServiceMachinery test report and video outgoing inspection provided

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Type:

C Shaped Purlin Machine

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Machine Name
C shaped purlin machine
Key Selling Points
Easy to operate; fully automatic
Weight
10000 kg
Warranty
More than 5 years
Certification
CE, BV, STV, ISO
Core Components
PLC, engine, bearing, gearbox, motor, gear, pump, roller, shaft, counter, hydraulic station
After-Sales Service
Machinery test report and video outgoing inspection provided
Forming Speed
25 m/min
Roller Stations
18 rows (support customized)
Roller Material
Cr12
Shaft Material
40Cr
Punching
Hydraulic pre-punching
Control System
PLC (Siemens / Delta imported brand)
Main Frame
300-450
Power
11 kW
Voltage
220 V / 380 V / 440 V

C purlin roll forming machine with finished C purlin profile sample

Product Overview

The C shaped purlin machine forms steel coils into C purlin profiles at 25 m/min with hydraulic pre-punching, 18 rows of Cr12 rollers (support customized), 40Cr shafts and PLC control (Siemens / Delta imported brand). Fully automatic and easy to operate, it is designed for steel frame and purlin production in building construction.

High efficiency, stable performance and customizable machine design
Roller stations: 18 rows (support customized); speed 25 m/min
Hydraulic pre-punching; Cr12 rollers, 40Cr shafts
PLC control (Siemens / Delta imported brand); main frame 300-450
CE, BV, STV, ISO certified

Product Highlights

High Precision - Precision roll tooling forms accurate C purlin profiles with punched holes.
High Efficiency - 25 m/min forming speed with hydraulic pre-punching for continuous output.
Stable Operation - 18 rows of Cr12 rollers on 40Cr shafts with a 300-450 main frame ensure consistent running.
Customizable Solutions - Roller stations and machine configurations support customization for your C purlin sizes.

Technical Specifications

Item	Specification
Machine name	C shaped purlin machine
Forming speed	25 m/min
Roller stations	18 rows (support customized)
Roller material	Cr12
Shaft material	40Cr
Punching	Hydraulic pre-punching
Control system	PLC (Siemens / Delta imported brand)
Main frame	300-450
Core components	PLC, engine, bearing, gearbox, motor, gear, pump, roller, shaft, counter, hydraulic station
Power	11 kW
Voltage	220 V / 380 V / 440 V
Weight	10000 kg
Warranty	More than 5 years
Certification	CE, BV, STV, ISO
Place of origin	China

Machine Scenes

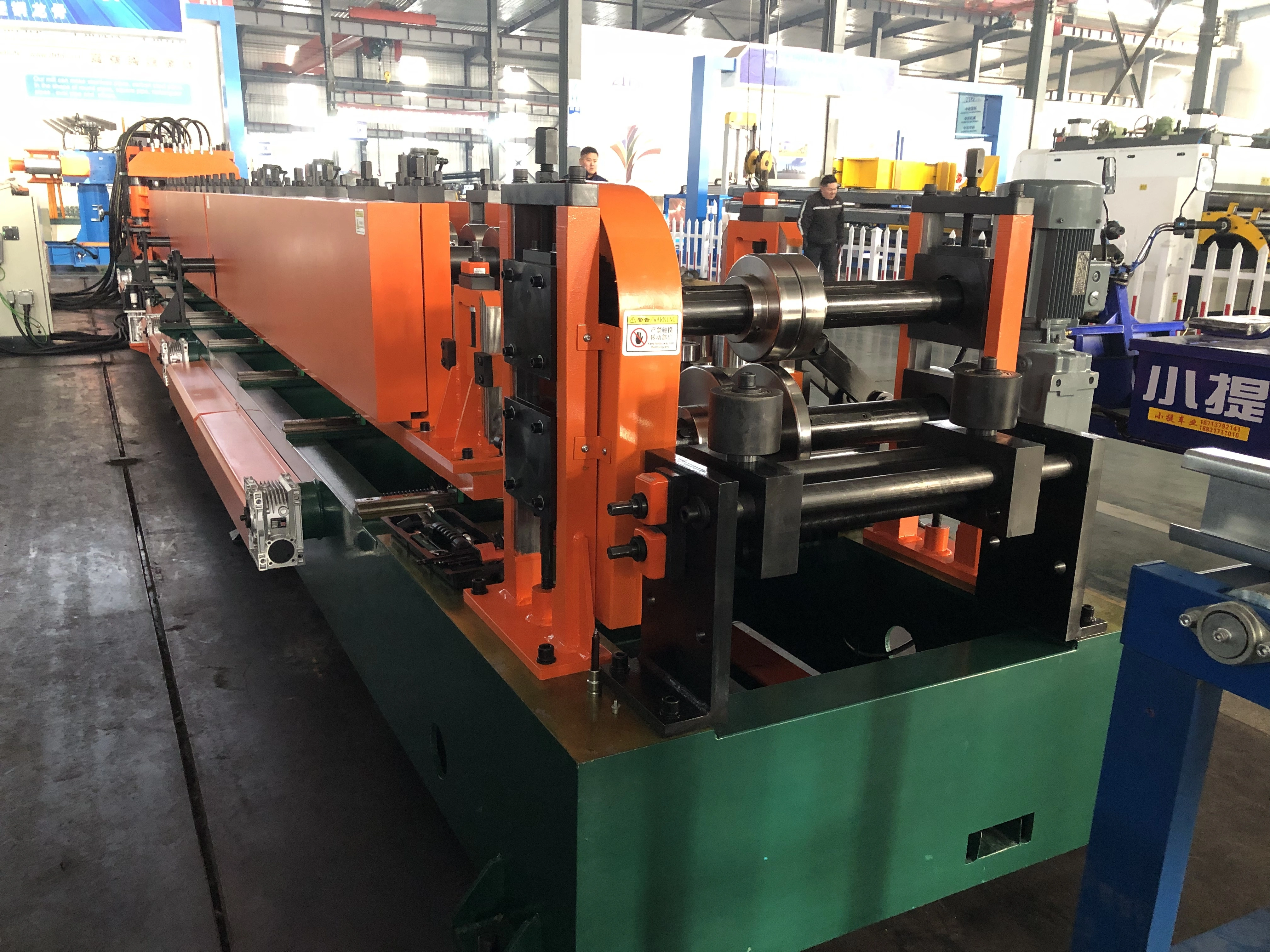

C purlin machine in workshop with green base and orange frame

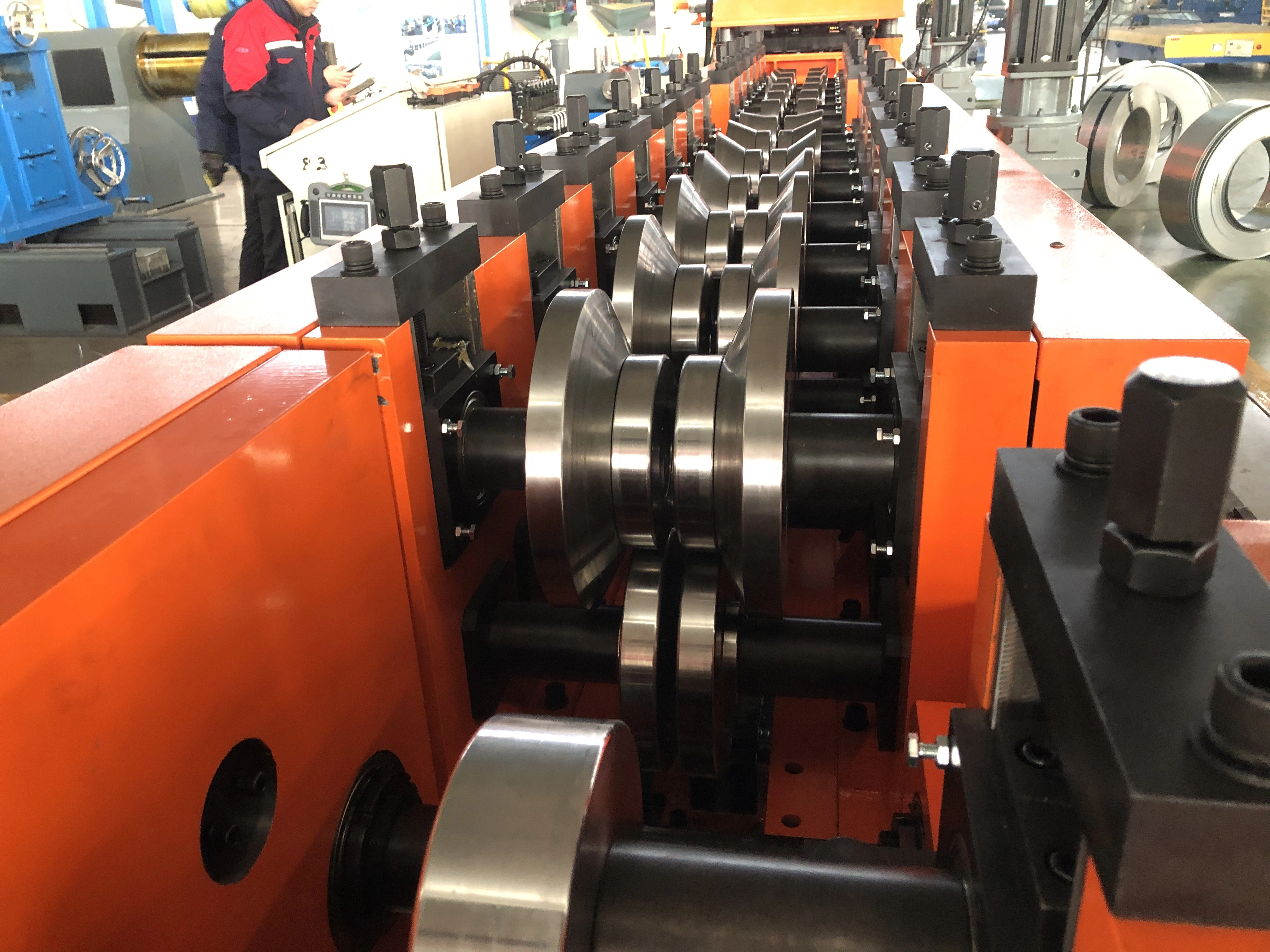

Forming stations of C purlin line with operator at control panel

Finished Product

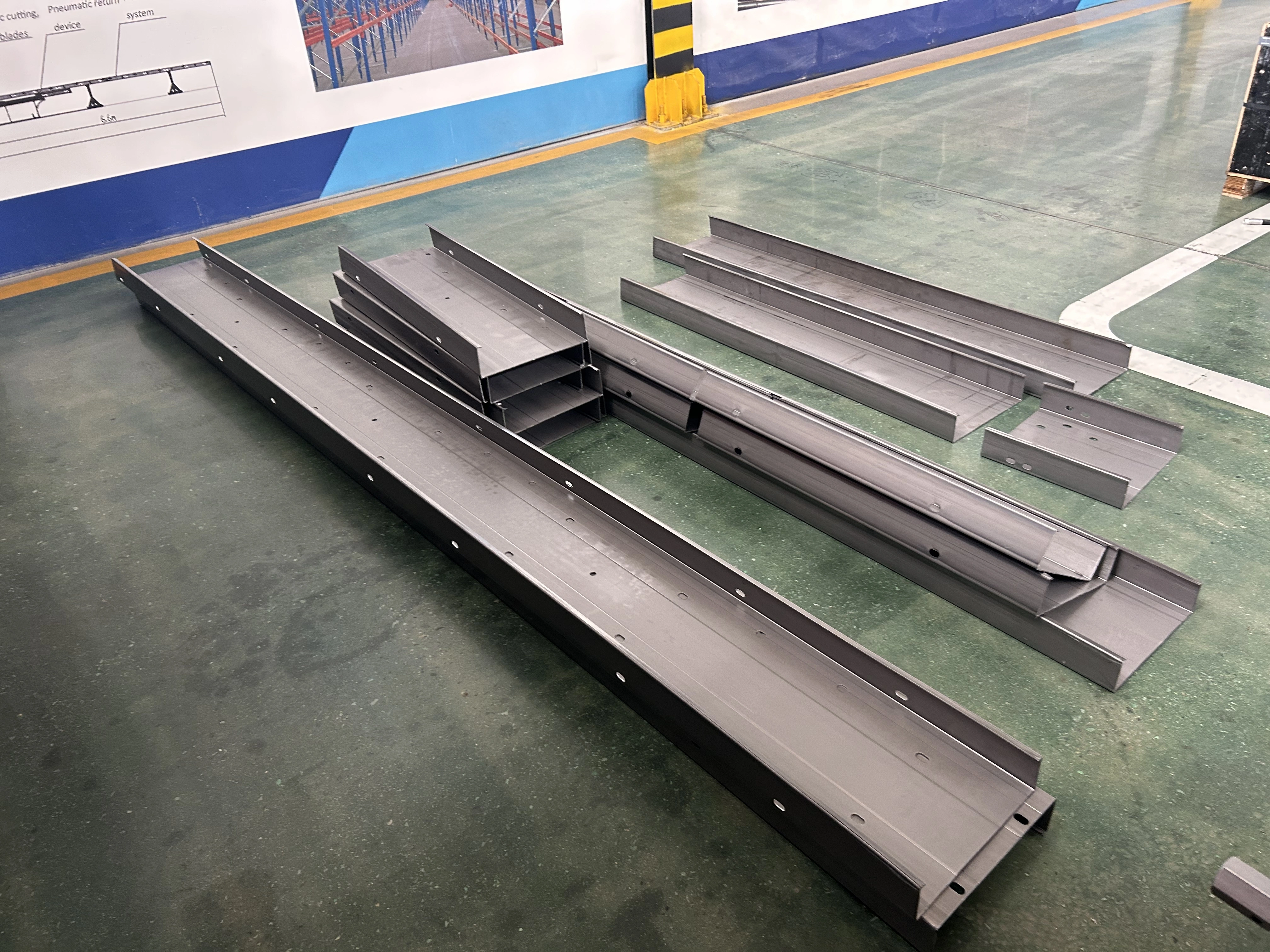

Finished C purlin profiles with pre-punched holes

Finished C purlin profiles with precisely pre-punched holes along the web and flanges, ready for steel frame structures.

Certifications

CE certified equipment certificates wall

CE certified equipment for international procurement - CE trust No. 4Q230524.CZIDW02 / 4Q230524.CZIDW03
BV, STV and ISO certified

Company Profile

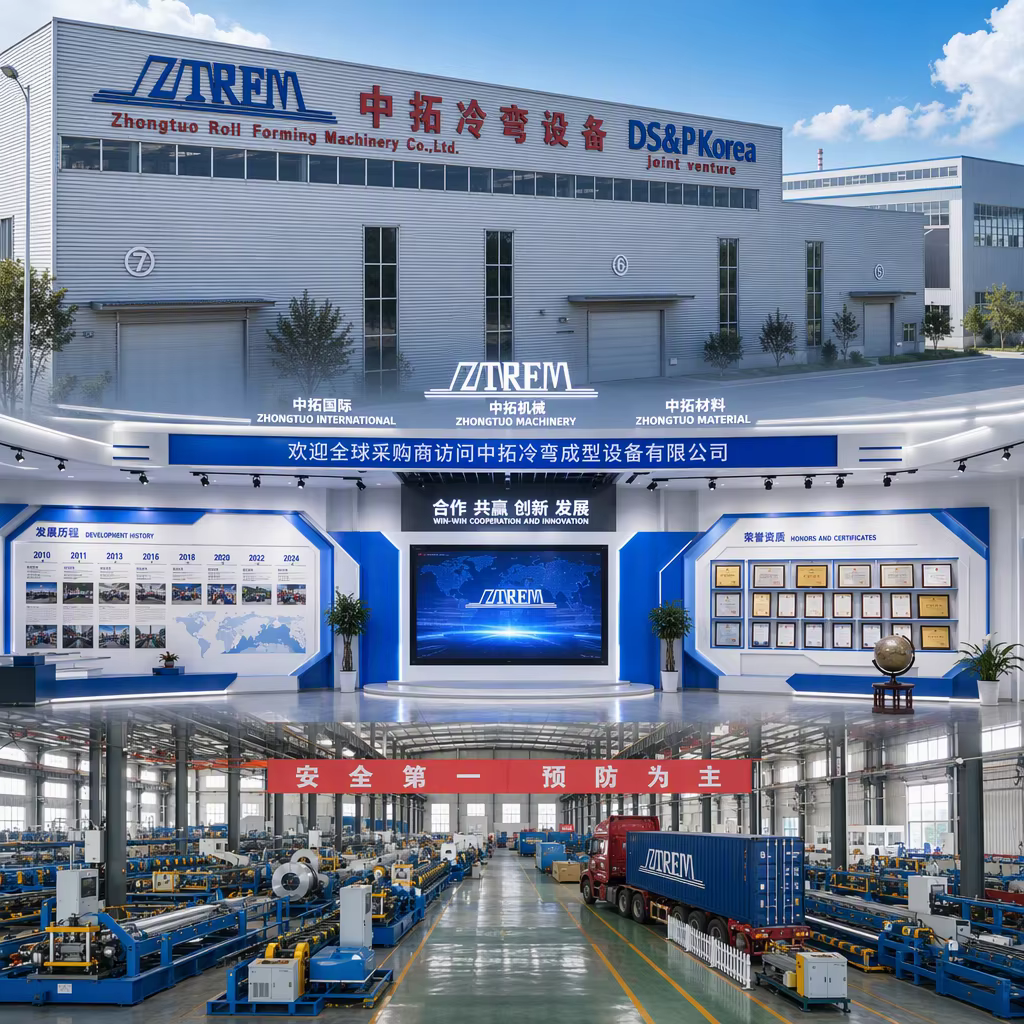

Zhongtuo factory, showroom and workshop overview

Cangzhou Zhongtuo Roll Fomring Machinery Co.,ltd.. is a professional manufacturer of large and medium-sized machinery and equipment. We are new high-tech enterprise, is the master research base of YANSHAN university, get more than 20 patents certificates until 2024 year. Professional sales team,experienced technical engineers and skilled production mechanics are the greatest factor in our success. Mr Cary Xu, the founder of the factory, is a professional sales engineer, who has been engaged in the design and manufacture of cold forming machines since 2006. Our machines exported to over 170 countires, achieving good fame. 60% order from repeat clients, it due to our machine good quality and after sales service Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Packing & Shipping

Lead time: 50 days for 1 set, 70 days for 2 sets
Machinery test report and video outgoing inspection provided
