C Purlin Roll Forming Machine: Precision C-Channel Production for Global Steel Building Projects

Description:Buy a high-precision C purlin roll forming machine for warehouses, workshops, solar mounts and metal building purlins. Automatic PLC control, customizable sizes, global shipping.

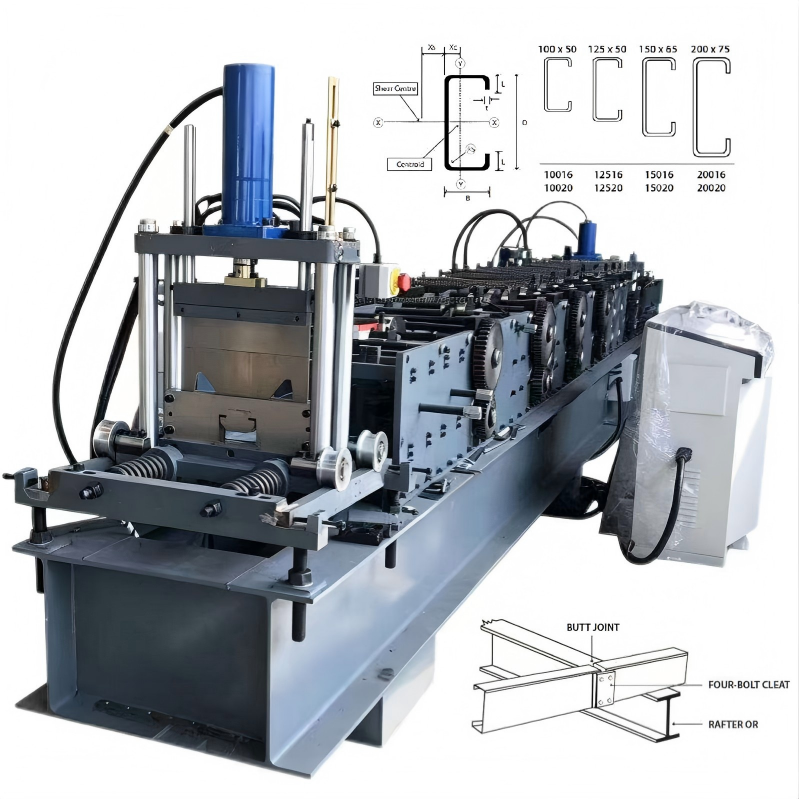

The C purlin roll forming machine​ is a cold roll forming production line that turns galvanized steel, cold-rolled steel, color-coated coil and sometimes aluminum strip into accurate C-shaped purlins and C-channel profiles. It is built for steel structure manufacturers, roofing system suppliers, prefab building factories and metal building contractors who need consistent section geometry, fast changeover and lower labor cost. Also known in export markets as a C channel forming machine, C section steel profile machine​ or C shaped purlin making machine, this equipment is the core line for roof purlins, wall girts, frame supports and solar racking components.



Why Buyers Choose an Automatic C Purlin Forming Line

A modern C purlin machine is not just a roller stand with a cutter. It is an integrated coil-to-profile system. The biggest value is repeatability: every meter of purlin leaves the line with the same web height, flange width, lip return and hole pattern. That reduces on-site fitting problems and rework in steel erection.



Key buyer benefits include:

Stable profile accuracy​ – precision machined rollers and rigid welded frame keep section tolerances under control at production speed.

Lower labor cost​ – PLC and HMI control automate feeding, length setting, punching sync and cutting.

Fast specification change​ – manual or servo-adjustable systems switch web/flange/lip sizes without full tool change.

Less material waste​ – accurate flying or stop cutting reduces offcut loss and improves coil yield.

Export-ready build​ – container-loadable structure, voltage customizable, CE/ISO documentation available on request.



How the C Purlin Roll Forming Machine Works

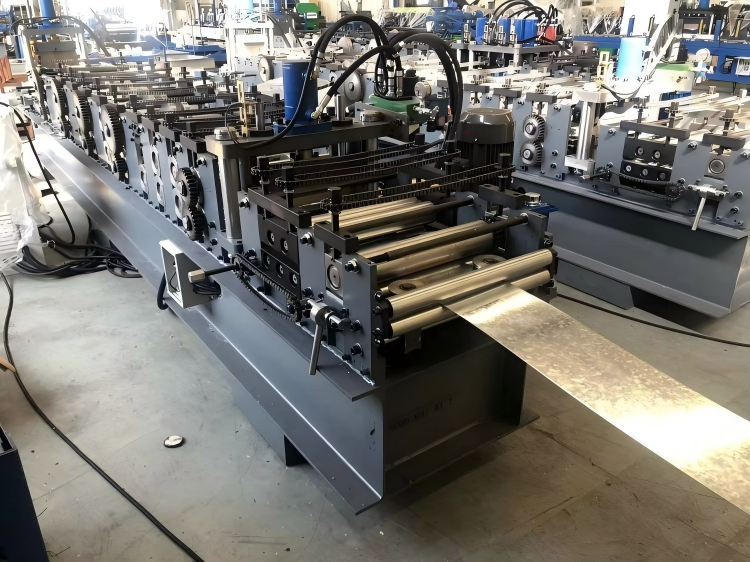

The process starts with a steel coil on the decoiler. The strip passes through the entry guide and leveling unit to remove camber and twist. Then it enters the roll forming stations, where each progressively shaped roller bend the flat strip into the final C section with web, flanges and returned lip.

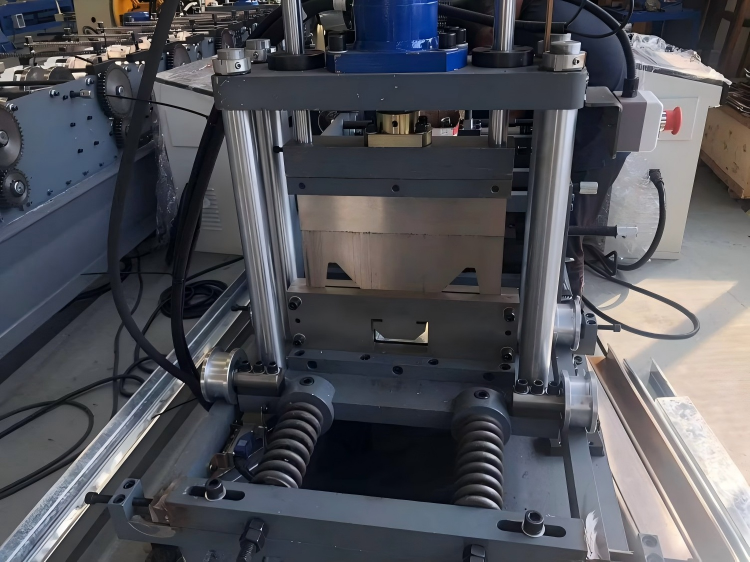

If the order requires bolt holes, web holes, notch cuts or connection slots, the optional hydraulic or servo punching unit processes them in line before or after forming. The cutting unit then shears the profile to set length. Finished C purlins move to the run-out table or automatic stacker.

Typical flow: decoiler → guiding → leveling → servo/feed → roll forming → punching → cutting → discharge and stacking.

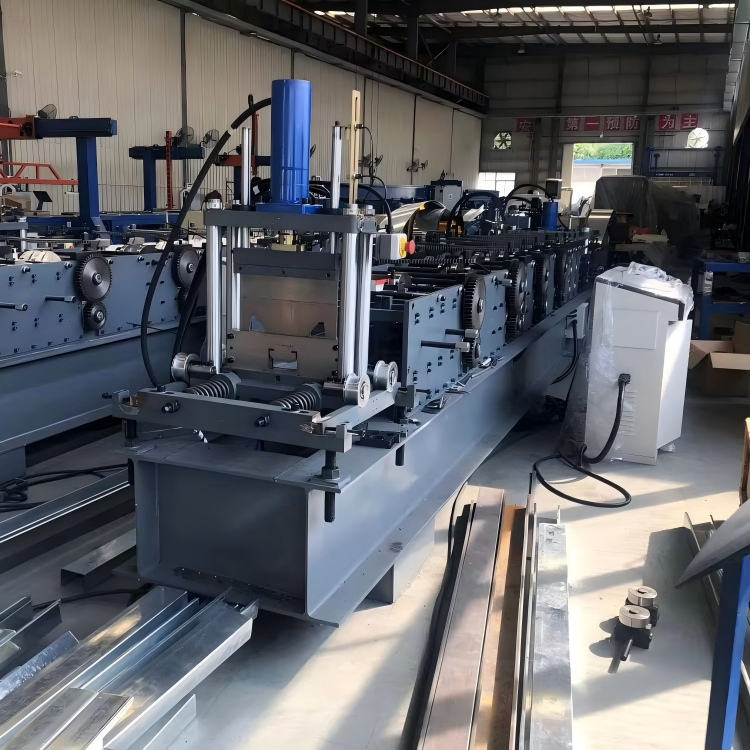

Machine Configuration and Build Quality

The line is built around heavy-duty components for continuous industrial use. The decoiler can be manual, hydraulic or auto-loading depending on coil weight and automation level. The leveling unit uses multiple rollers to flatten the strip before forming. The main forming frame is integral welded steel, vibration-aged or stress-relieved for long-term dimensional stability.

Rollers are usually made from GCr15/SUJ2 or 45# steel, heat-treated and chrome-plated for wear resistance and a clean surface finish. Shafts are hardened and supported in cast or plate-type stands. The cutting blade is commonly Cr12MoV or equivalent, quenched to high hardness for burr-free, repeatable cuts.

Control is handled by a PLC with touchscreen HMI. Operators set profile recipe, length, quantity, punch position and cutting tolerance. Advanced models store multiple recipes, support remote monitoring and connect with automatic stackers or full purlin production line layout.



Technical Scope Buyers Usually Need

Most export C purlin machines are configurable rather than fixed. Standard scope looks like this:

Material:​ galvanized steel, cold-rolled steel, hot-rolled steel, PPGI/PPGL, occasionally aluminum

Thickness:​ commonly 1.2–3.0 mm; heavy-duty versions up to 4.0 mm

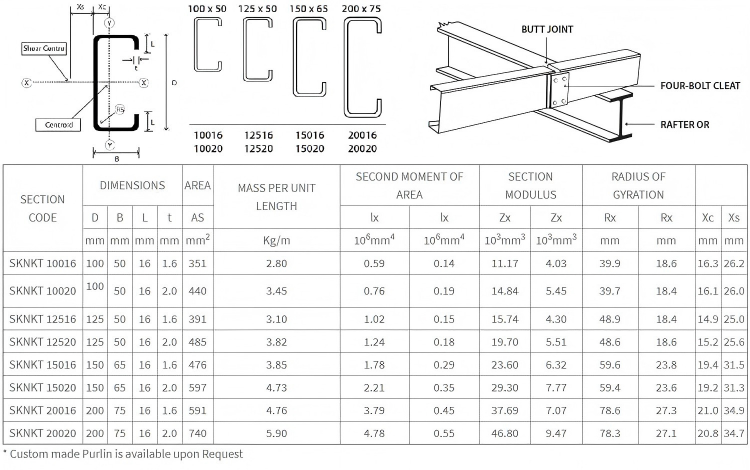

Web height:​ around 80–300 mm, adjustable by model

Flange width:​ around 30–100 mm

Lip size:​ around 10–20 mm

Yield strength:​ matched to roller power and station count

Roller stations:​ usually 12–18 stations

Forming speed:​ standard 8–15 m/min; high-speed lines 20–40 m/min

Main motor:​ 7.5–18.5 kW depending on profile

Cutting:​ hydraulic stop cut or flying shear

Control:​ PLC + HMI, encoder length control

Power:​ 380V/50Hz/3PH standard, customizable to 415V/50Hz or 440V/60Hz

Line length:​ approximately 6–9 m plus decoiler and run-out table

Exact range should be confirmed against the buyer’s profile drawing, hole drawing and daily output target.

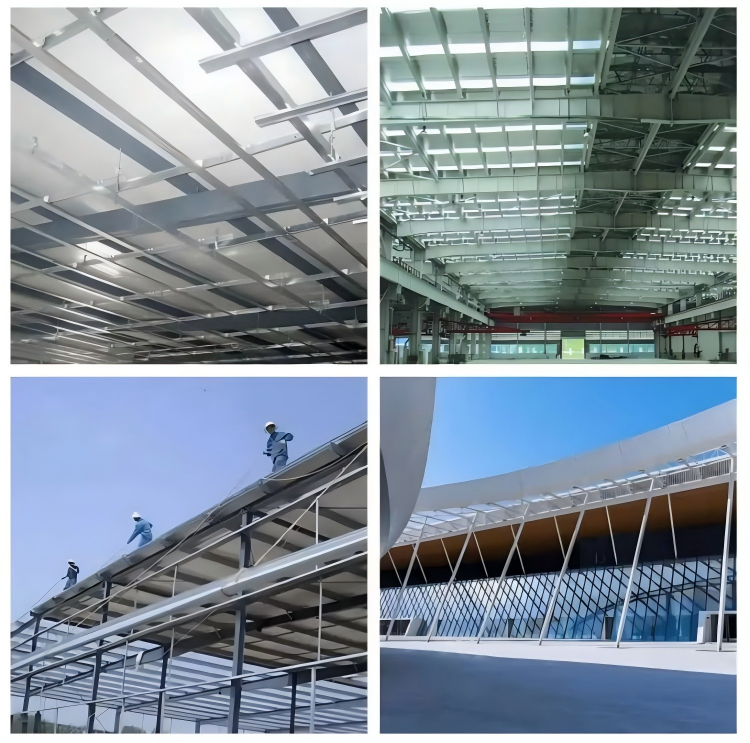

Applications of C Purlins Produced by the Machine

C purlins are structural components, not decorative profiles. The machine supports many building and engineering markets:

Industrial buildings​ – factories, workshops, logistics warehouses and plant roofs

Commercial steel structures​ – showrooms, cold storage, exhibition halls, gyms

Agricultural buildings​ – farm sheds, greenhouses, livestock barns

Metal roofing and wall systems​ – roof purlins, wall girts, cladding support

Solar mounting structures​ – ground mounts, carport frames, PV support rails

Light steel construction​ – prefab houses, partition frames, ceiling keel in some lighter models

Racking and general framing​ – shelf beams, equipment frames, bracket channels

Because galvanized and coated coils are commonly used, the finished C purlins offer good corrosion resistance for outdoor and humid environments when coating grade is selected correctly.



Customization Options for Export Orders

Different countries have different profile standards and site habits. The machine can be customized in several ways:

Size adjustment:​ manual spacer change, crank adjustment or servo automatic changeover

Punching dies:​ bolt holes, slots, notch cuts, end cuts, web holes

Cutting mode:​ stop cutting for accuracy, flying shear for high speed

Coil handling:​ 3-ton, 5-ton or 10-ton decoiler, hydraulic expansion, coil car

Discharge:​ manual table, pneumatic turnover, automatic stacker, counting system

Brand and compliance:​ PLC brand selection, language HMI, CE marking, wiring standard, nameplate and manual in English/Spanish/French/Arabic
