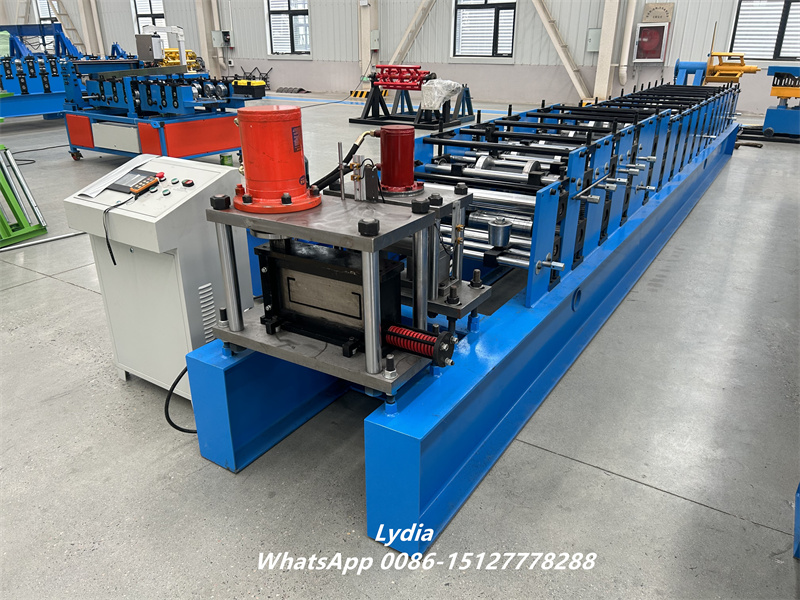

The C Purlin Roll Forming Machine is an automated production line designed to manufacture structural C-shaped steel purlins from continuous steel coils.It uses the cold roll forming process to gradually shape flat steel strips into accurately formed C profiles.The complete line can integrate decoiling, feeding, leveling, punching, roll forming, hydraulic cutting, and finished-product discharge.This makes the machine suitable for manufacturers that require continuous production and stable product quality.The C Purlin Machine can process galvanized steel, cold rolled steel, and hot rolled steel according to the required profile and material specifications.The machine configuration can also be customized according to the customer's profile drawing, material thickness, punching pattern, production speed, and finished purlin length.

What Is a C Purlin Roll Forming Machine?

A C Purlin Roll Forming Machine is a continuous metal forming system used to produce C-shaped structural profiles.

Instead of cutting and welding individual steel components, the machine forms the steel strip progressively through a series of forming rollers.

The steel coil enters the production line and is gradually transformed into the required C-shaped section.

After forming, the profile is automatically cut into predetermined lengths.

When a punching system is included, holes can be produced automatically before or during the forming process according to the customer's requirements.

This significantly reduces manual drilling, measuring, and cutting operations.

How Does the C Purlin Machine Work?

The production process begins with the steel coil being loaded onto the decoiler.

The decoiler continuously releases the material and supplies it to the feeding system.

The feeding section guides the steel strip into the machine while maintaining stable material movement.

The strip then passes through the leveling unit.

Leveling removes excessive deformation from the coil and helps prepare the material for accurate punching and forming.

After leveling, the steel enters the punching section.

The punching system can create mounting holes according to the required hole diameter, spacing, and position.

For projects requiring higher positioning accuracy, a servo punching system can be selected.

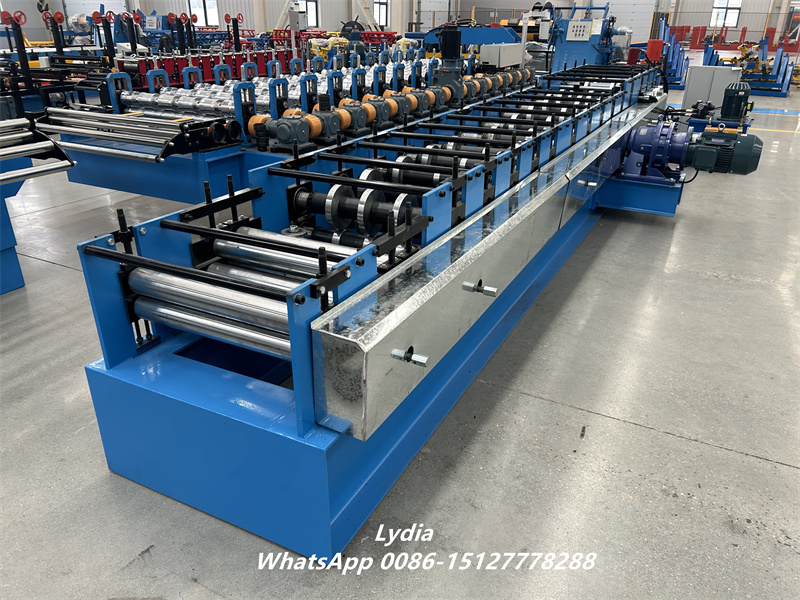

The prepared steel strip then enters the roll forming section.

Multiple roller stations gradually bend the material until it reaches the final C-shaped profile.

This progressive forming method reduces excessive stress and helps maintain a consistent cross-sectional shape.

After forming, the hydraulic cutting system cuts the continuous C purlin into individual sections.

The cutting length can be programmed through the PLC control system.

An automatic stacking system can also be installed to collect and organize finished C purlins.

Applications of C Steel Purlins

C steel purlins are commonly used as secondary structural members in steel buildings.

They are generally installed between the primary steel frame and roofing or wall cladding.

Their main function is to support roofing sheets, wall panels, and other building components while helping distribute structural loads.

Because C purlins combine relatively low weight with good structural strength, they are widely used in modern steel construction.

Typical applications include industrial warehouses, workshops, factories, logistics centers, agricultural buildings, commercial buildings, and prefabricated structures.

They can also be used in steel garages, aircraft hangars, storage buildings, and various roofing support systems.

For manufacturers serving different construction markets, a flexible C channel roll forming machine makes it possible to produce multiple C purlin specifications.

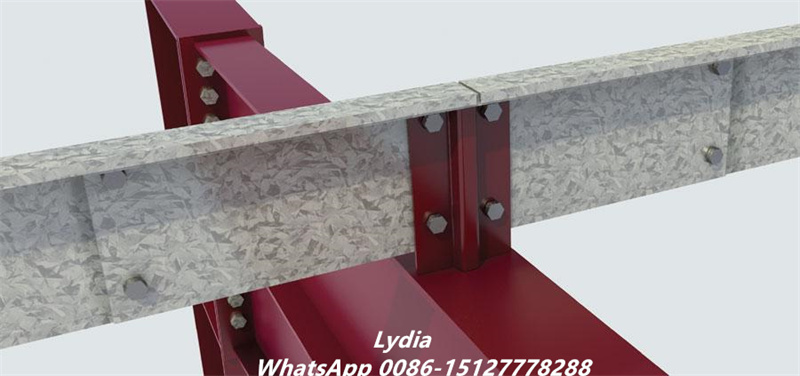

C Purlin Production for Steel Buildings

In steel construction, purlins play an important role in transferring loads from roofing systems to the main structural frame.

The C-shaped profile provides a useful combination of strength, weight, and installation convenience.

Compared with heavier hot-rolled structural sections, cold-formed C purlins can reduce the weight of certain secondary structural systems.

This can make transportation and on-site installation easier.

The actual structural suitability of a C purlin depends on its dimensions, steel grade, thickness, section geometry, and engineering design.

Therefore, manufacturers normally produce C purlins according to specific construction drawings and project requirements.

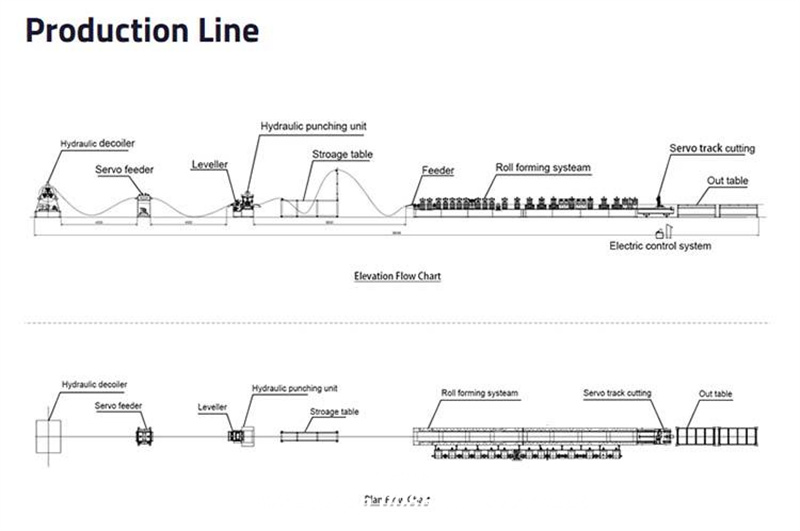

Main Components of the C Purlin Production Line

A complete C purlin production line can contain several functional units.

Each component works together to maintain continuous and accurate production.

Hydraulic Decoiler

The decoiler supports the steel coil during production.

Hydraulic expansion can be used to hold the coil securely while the material is continuously released into the forming line.

Different decoiler capacities can be selected according to coil weight and material specifications.

Feeding and Leveling System

The feeding system controls the movement of the steel strip.

The leveling unit removes deformation from the incoming coil.

Stable feeding and proper leveling are important for maintaining punching accuracy and profile consistency.

Punching Unit

The punching unit creates holes required for installation and structural connections.

Hole dimensions and spacing can be customized according to the C purlin drawing.

Hydraulic punching is suitable for many standard applications, while servo punching can provide more precise positioning and flexible control.

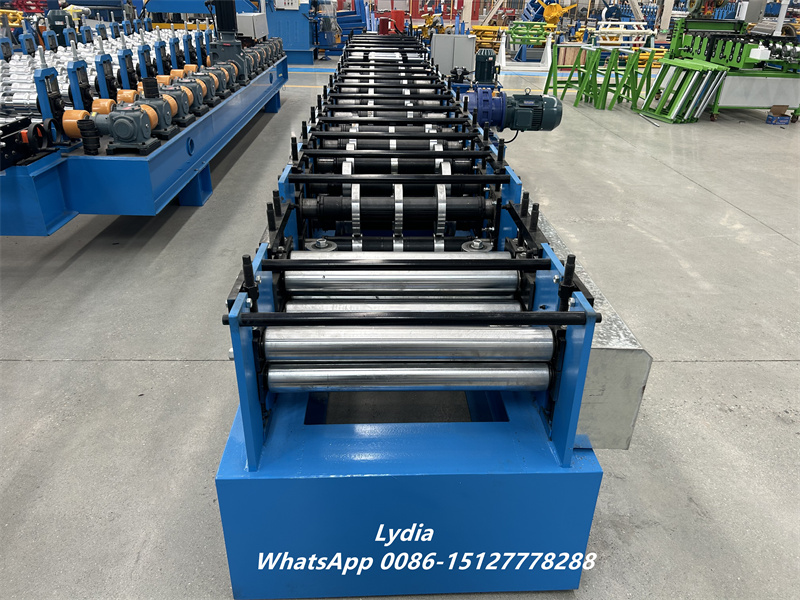

Roll Forming System

The roll forming section is the main part of the machine.

The steel strip passes through a series of precision forming stations.

Each station performs a small amount of bending until the material reaches its final C-shaped configuration.

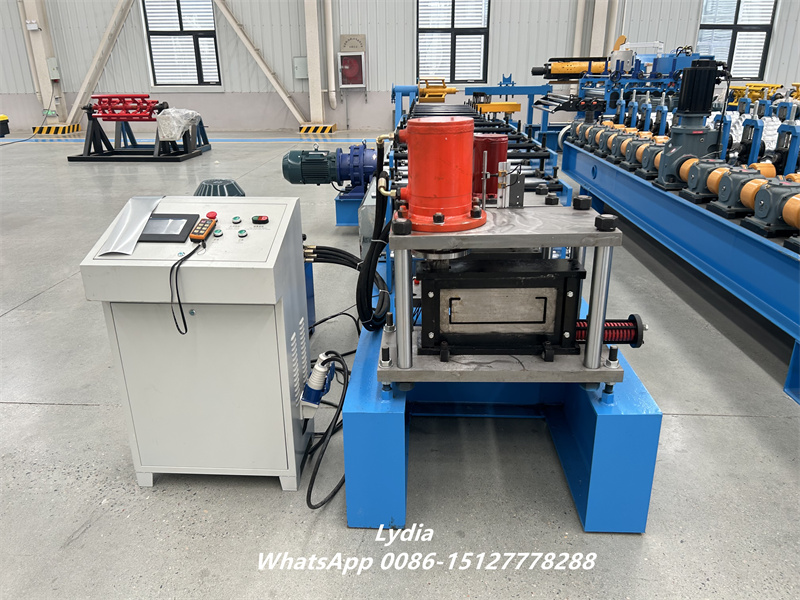

Hydraulic Cutting System

The cutting unit separates the continuously formed profile into individual purlins.

The PLC system controls the cutting length according to the programmed production parameters.

The cutting method can be selected according to material thickness and production requirements.

Automatic Stacking System

For higher-volume production, an automatic stacker can be added after the cutting section.

The system collects the finished C purlins and arranges them into organized bundles.

This reduces manual handling and makes finished-product transportation more convenient.

Technical Specifications of C Purlin Roll Forming Machine

The following is a typical configuration of the C steel purlin roll forming machine.

Item	Specification
Machine Name	C Purlin Roll Forming Machine
Finished Product	C Steel Purlin / C Channel
Raw Material	Galvanized Steel / Cold Rolled Steel / Hot Rolled Steel
Material Thickness	1.0–3.0 mm
Steel Grade	G300–G550
Coil Width	150–450 mm
Forming Speed	16–25 m/min
Roller Stations	14–20 Stations
Main Motor Power	11–18 kW
Punching System	Hydraulic / Servo Punching
Cutting System	Hydraulic Cutting
Control System	Siemens PLC + HMI
Machine Weight	6–9 Tons
Voltage	Customized

The above parameters are provided as a general reference.

The actual machine specifications may be different depending on the C purlin profile, material thickness, steel grade, coil width, punching requirements, and required production capacity.

Materials for C Purlin Manufacturing

The C purlin forming machine can be designed to process different types of steel materials.

Galvanized steel is one of the most common options because the zinc coating provides additional protection against corrosion.

Cold rolled steel can also be used when good surface quality and dimensional consistency are required.

For heavier structural applications, hot rolled steel strips may be selected depending on the required material thickness and forming capacity.

The machine should always be designed according to the actual yield strength and thickness of the customer's material.

This is particularly important when producing thicker or higher-strength C purlins.

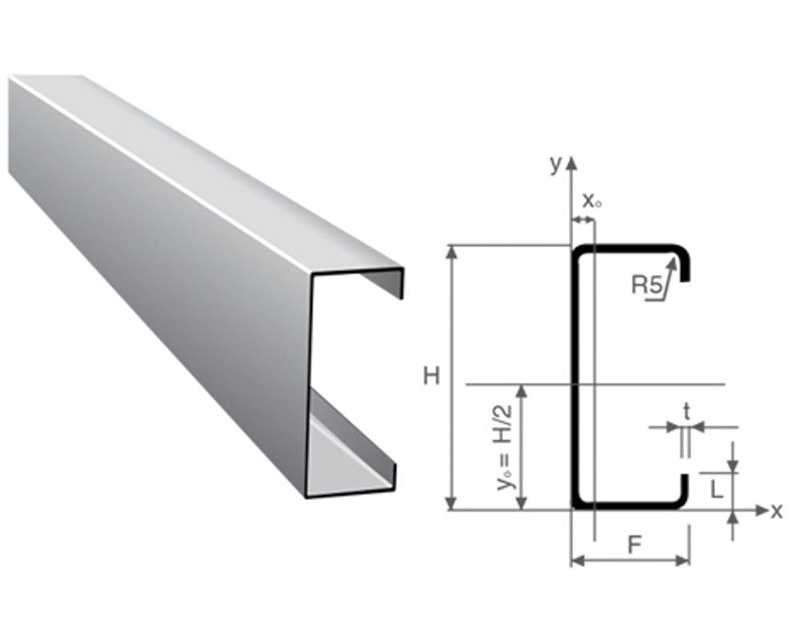

Adjustable C Purlin Sizes and Hole Patterns

One of the major advantages of a customized C Purlin Roll Forming Machine is its ability to manufacture profiles according to specific drawings.

The web width can be designed according to the required C section.

The flange dimensions can also be adjusted according to the structural application.

Lip dimensions, material thickness, hole diameter, hole spacing, and cutting length can all be considered during machine design.

For customers producing multiple specifications, the machine can also be designed with suitable adjustment or interchangeable tooling solutions.

The exact production method depends on the range of profiles that the customer needs to manufacture.

Automatic Control System

The control system allows operators to manage the entire C channel roll forming machine from a centralized HMI interface.

Production parameters such as cutting length, quantity, speed, and punching position can be entered through the touch screen.

Once the required parameters are confirmed, the machine can automatically execute the programmed production cycle.

The PLC also coordinates the feeding, punching, forming, and cutting processes.

This reduces the need for repeated manual adjustments during normal production.

International electrical components such as Siemens, Schneider, Mitsubishi, Omron, and other brands can be selected according to customer requirements.

Advantages of Using a C Purlin Roll Forming Machine

The continuous forming process provides several advantages over conventional steel fabrication.

First, the machine can continuously process steel coils.

This helps improve production efficiency for manufacturers with large orders.

Second, the forming rollers provide repeatable profile dimensions.

Every production cycle can follow the same forming parameters.

Third, automatic punching eliminates much of the manual drilling work.

The hole positions are controlled according to the programmed parameters.

Fourth, automatic cutting allows different product lengths to be produced with relatively little manual intervention.

Finally, an automatic stacking system can further reduce labor requirements after the forming and cutting processes.

C Purlin Machine for High-Volume Production

For manufacturers producing C purlins on a regular basis, production efficiency is an important consideration.

A properly configured automatic C purlin machine can operate continuously for extended production periods.

The operator mainly monitors the machine, loads raw material, adjusts production parameters, and handles finished products.

With automatic punching, cutting, and stacking systems, the number of manual operations can be further reduced.

This makes the production line suitable for steel structure manufacturers, metal fabrication companies, and prefabricated building suppliers.

Customized C Purlin Roll Forming Machine

C purlin requirements vary considerably between different markets and construction projects.

For this reason, Zhongtuo designs the machine according to the customer's actual profile rather than relying on one universal configuration.

Before production, our engineers can review the customer's profile drawing.

They can then determine the suitable roller configuration, punching method, cutting system, motor power, and machine structure.

Production speed can also be selected according to the customer's expected output.

If the customer requires a complete automated solution, decoiling, punching, forming, cutting, stacking, and other auxiliary systems can be integrated into one production line.

Quality Testing Before Delivery

Before shipment, the C purlin roll forming machine can be assembled and tested at the factory.

The production line can be tested with the customer's specified material whenever required.

Engineers can check the forming quality, punching position, cutting length, machine operation, and PLC control functions.

Finished C purlin samples can also be inspected to verify profile dimensions and surface quality.

Factory testing helps ensure that the equipment is ready for installation and commissioning after it reaches the customer's facility.

Why Choose Zhongtuo C Purlin Roll Forming Machine?

Zhongtuo focuses on the design and manufacturing of cold roll forming machines for construction and structural steel applications.

Our product range includes C purlin machines, Z purlin machines, CZ purlin machines, roofing machines, wall panel machines, light steel framing machines, solar mounting profile machines, and other customized roll forming equipment.

For C purlin production, we can provide a complete solution rather than only supplying the main forming machine.

Our engineering team can assist with profile analysis, machine configuration, production line design, testing, installation guidance, and operator training.

The equipment can be configured according to the customer's local electrical standards and production requirements.

Get a Customized C Purlin Roll Forming Machine

If you are looking for a reliable C Purlin Roll Forming Machine for structural steel production, Zhongtuo can develop a machine according to your specific profile and production requirements.

Send us your C purlin drawing, material thickness, steel grade, required hole pattern, and target production speed.

Our engineers can evaluate the profile and recommend a suitable C channel roll forming machine configuration.

Whether you need a basic roll forming machine or a fully automated C purlin production line with punching, cutting, and stacking, Zhongtuo can provide a customized solution for your project.
