C Channel & Unistrut Production Line Manufacturer Solar Strut Channel Roll Forming Machine Solar Strut

We are a professional manufacturer specializing in C-channels, Unistrut, solar panel stands, and seismic stabilizer stand roll-forming machines. Our machines can produce various sizes of C channels, with flange adjustments available in both manual and automatic modes to meet customer requirements.Cutting options include saw cutting and hydraulic cutting, depending on your specifications. Additionally, our machines feature a punching system, with some customers opting for hydraulic punching, others for punching presses, and some choosing to punch holes after forming the C-channel using a separate machine, thereby enhancing production efficiency.

Operating our machines is straightforward and user-friendly. We primarily work with pre-galvanized steel, hot-rolled and cold-rolled steel, as well as stainless steel, with material thicknesses ranging from 1.5 mm to 2.5 mm. The most commonly requested strut channel profile sizes include 41×21, 41×41, 41×62, and 41×82.

For more detailed information about our machines, please feel free to contact us.

Purpose of the Solar Strut Channel Roll Forming Machine:

– Designed primarily for producing strut channels used in solar photovoltaic mounting systems.

– These channels are essential for installing, supporting, and connecting lightweight structural loads in construction projects.

Solar Strut Channel Roll Forming Machine Applications

The Solar Strut Channel Roll Forming Machine is widely used for manufacturing C-channel, Unistrut channels, solar mounting rails, and seismic support frames for modern construction and photovoltaic industries. The produced strut channels are mainly applied in solar panel mounting systems, providing strong and reliable support structures for rooftop solar installations, ground-mounted photovoltaic projects, and large-scale solar farms.

These channels are also commonly used in HVAC support systems, electrical cable tray supports, pipeline installation, mechanical equipment frames, and earthquake-resistant bracing systems. Thanks to their high strength, flexible connection methods, and easy installation, strut channels have become an important component in industrial and commercial construction.

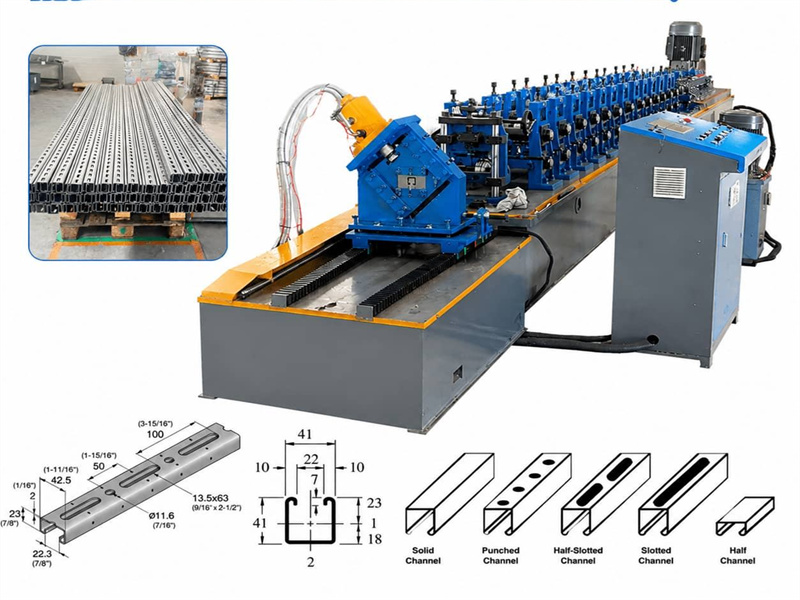

The machine can produce various profiles, including solid strut channels, slotted channels, half-slotted channels, long-slotted channels, and perforated channels. With adjustable flange sizes and customized punching solutions, it can meet different installation requirements in global markets.

Typical Applications:

Strut Channel Roll Forming Machine Working Flow:

Automatic feeder(3T) → leveling → punching  → roll forming machine → re-forming →  saw cutting → output

The Technical Specifications Of the strut channel Roll Forming Machine :

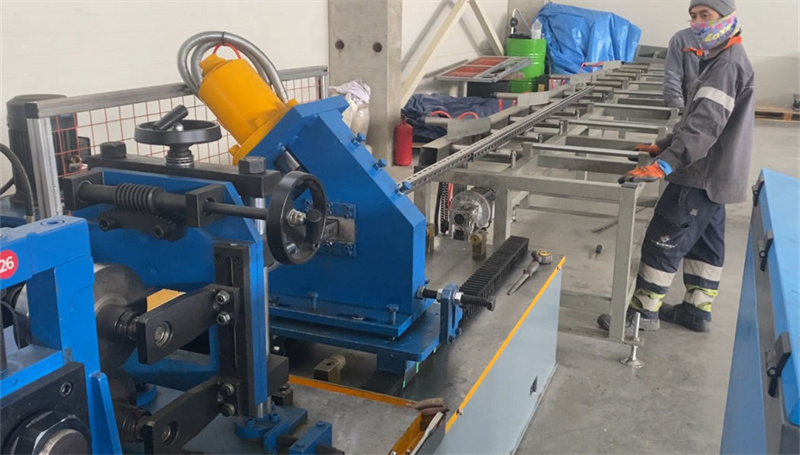

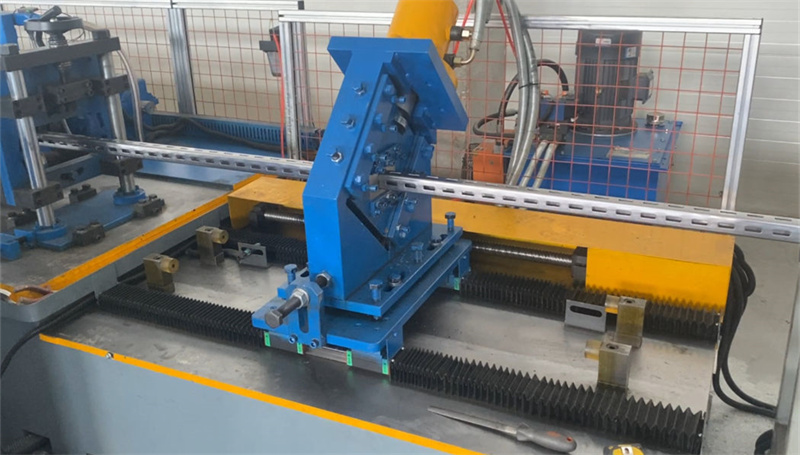

More detailed pictures of the machine：
