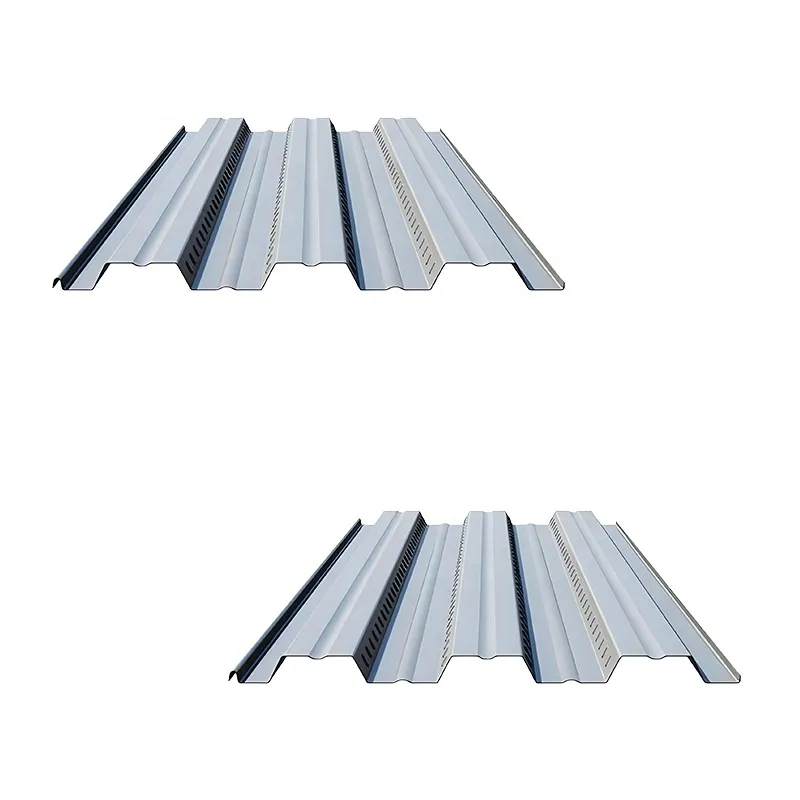

Building Materials Hot Selling Recyclable Environmental Corrugated Galvanized Steel Floor Joint Plate Modern Warehouse 0.8mm

Chengdu Titanium-Zinc Technology Co., Ltd

Building Materials Hot Selling Recyclable Environmental Corrugated Galvanized Steel Floor Joint Plate Modern Warehouse 0.8mm

Name: Building Materials Hot Selling Recyclable Environmental Corrugated Galvanized Steel Floor Joint Plate Modern Warehouse 0.8mm
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT32014556

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Thickness:

0.8mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

After-Sale Service
Online Technical Support, Free Spare Parts
Project Solution Capability
graphic design, 3D model design

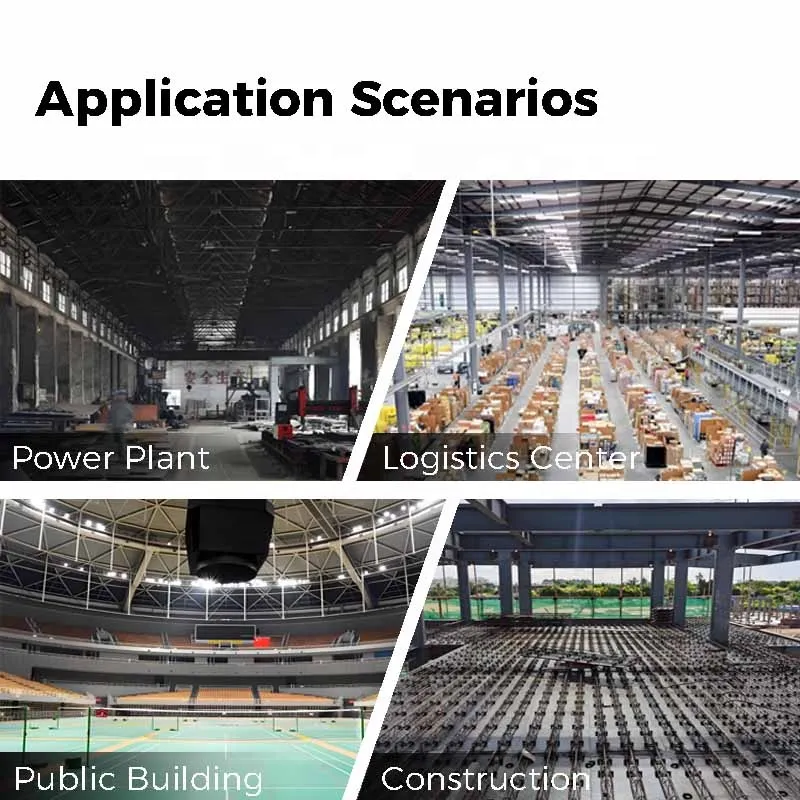

Application
Floor
Design Style
Modern
Material
Galvanized Steel

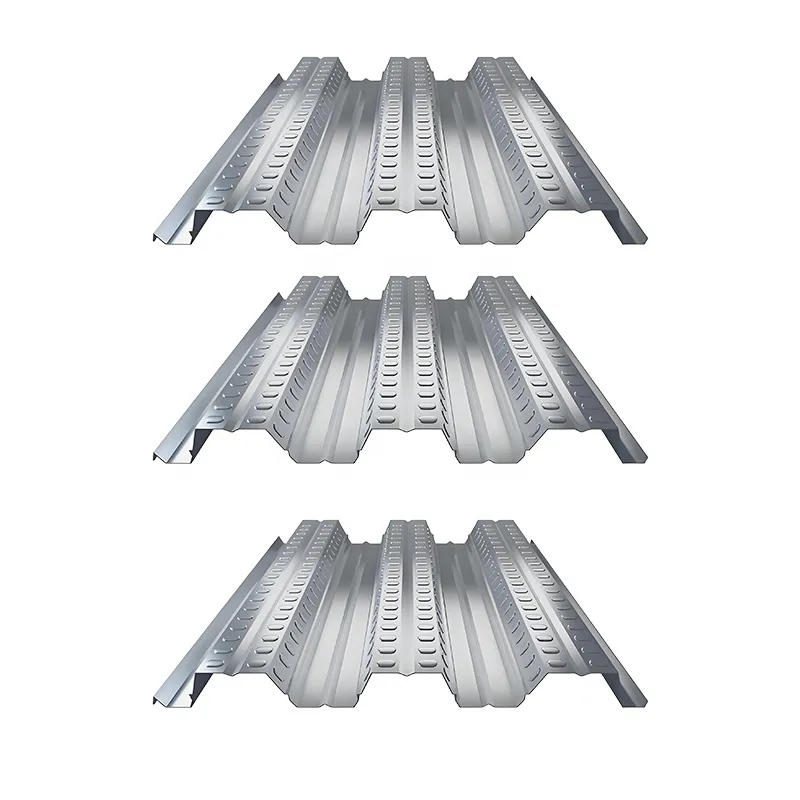

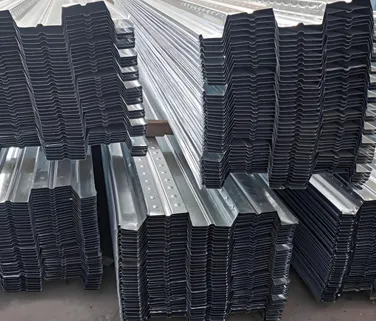

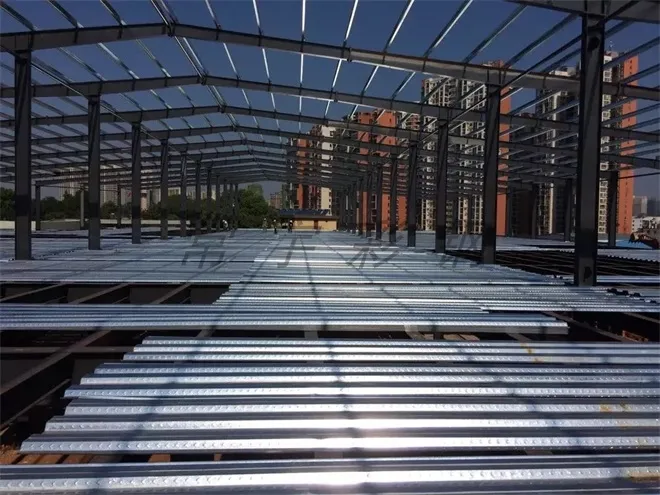

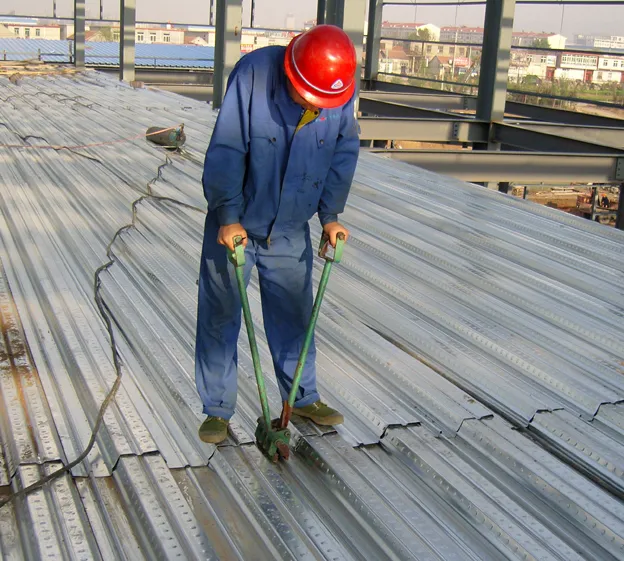

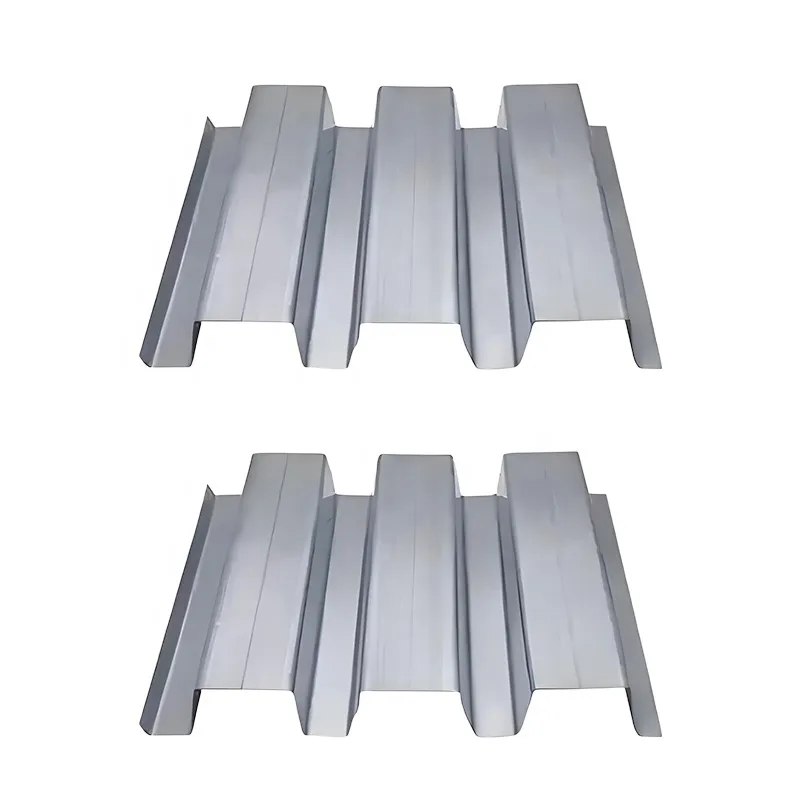

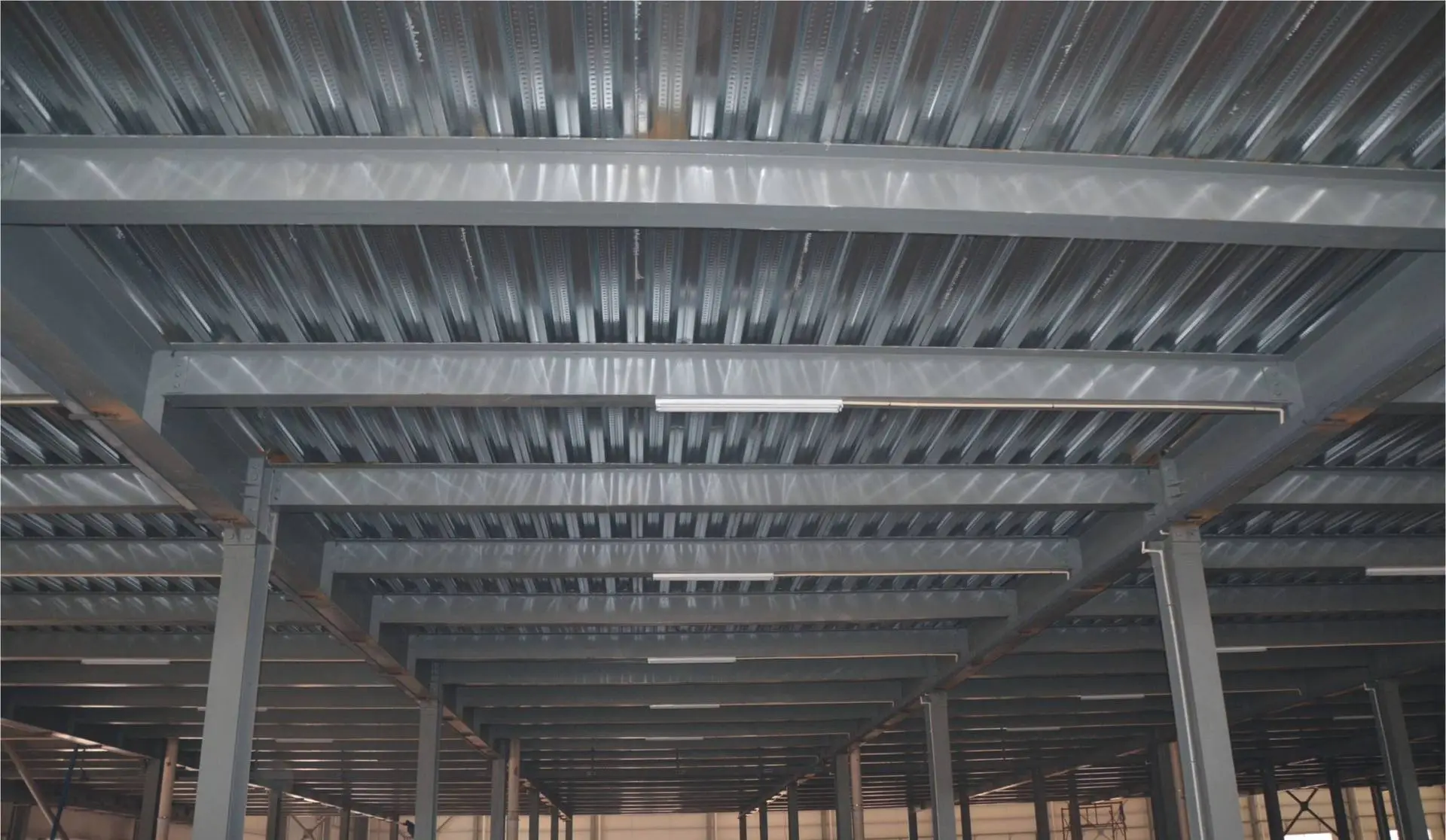

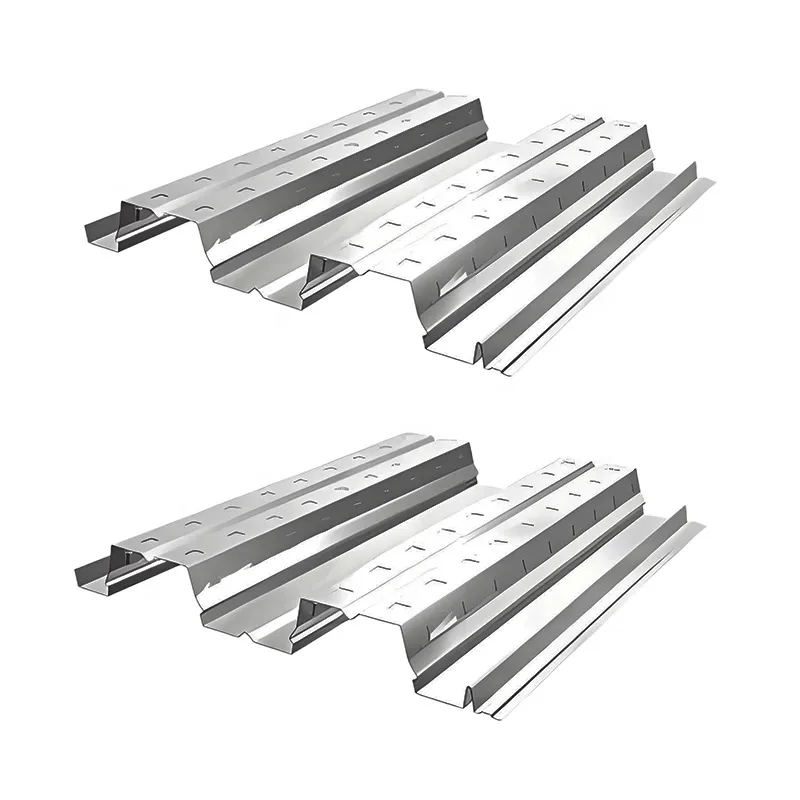

Combination floor deck system

According to the needs of the steel-concrete composite structure, the floor bearing plate uses the shear connection to connect the steel plate and the concrete, to bear the force together, to give full play to the inherent advantages of the two materials, with the advantages of light weight, high strength, large rigidity, convenient and quick construction, easy to update, and convenient for industrial production.

✅Save a large number of temporary formwork and all or part of formwork support.

✅ It is more important to reduce the amount of concrete and the permanent load of the structure for high-rise buildings and earthquake areas.

✅In terms of transportation, stacking and installation, it saves a lot of labor and reduces the workload.

✅ It is used as tensile reinforcement to reduce the fabrication and installation of reinforcement.

✅Provide various working platforms to realize three-dimensional operation, speed up the progress and shorten the construction period.

✅It is convenient for laying communication, electric heating and other pipelines, and can lay insulation, sound insulation, hea insulation, isolation and other materials to improve floor performance.

✅ Give full play to the good tensile strength and ductility of steel and the good compressive strength and greater steel of concrete; improve the overall and local buckling performance of steel due to the combination with concrete.

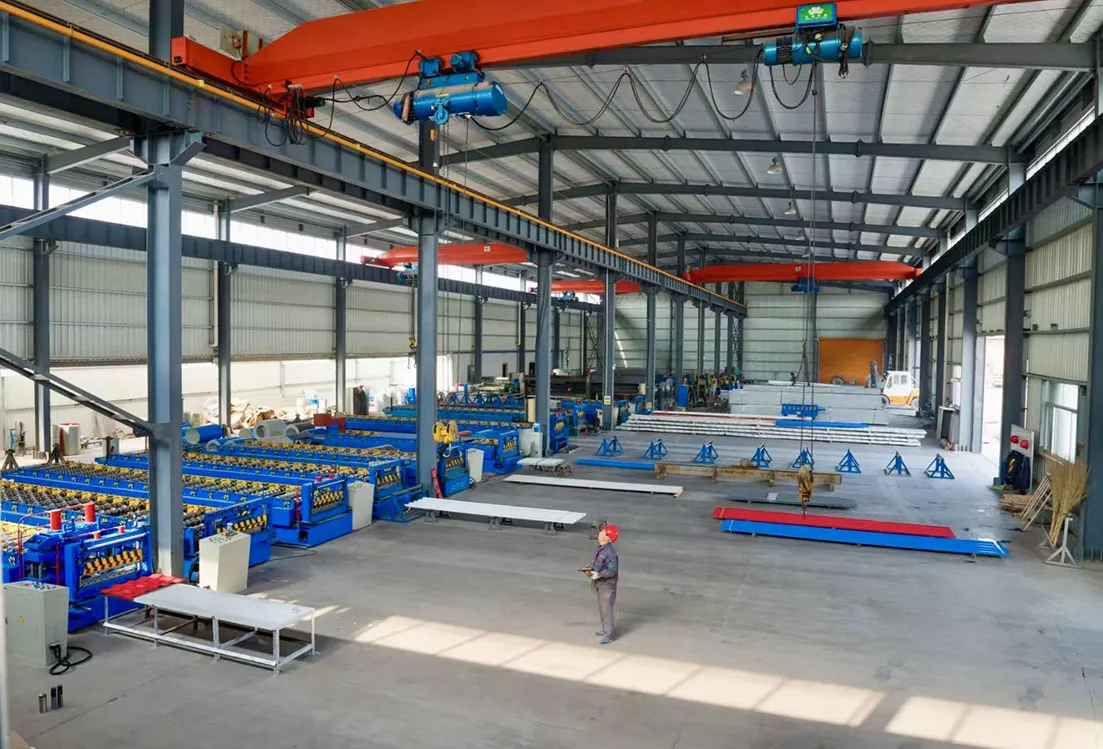

Our Capabilities

· Excellent workshop management.

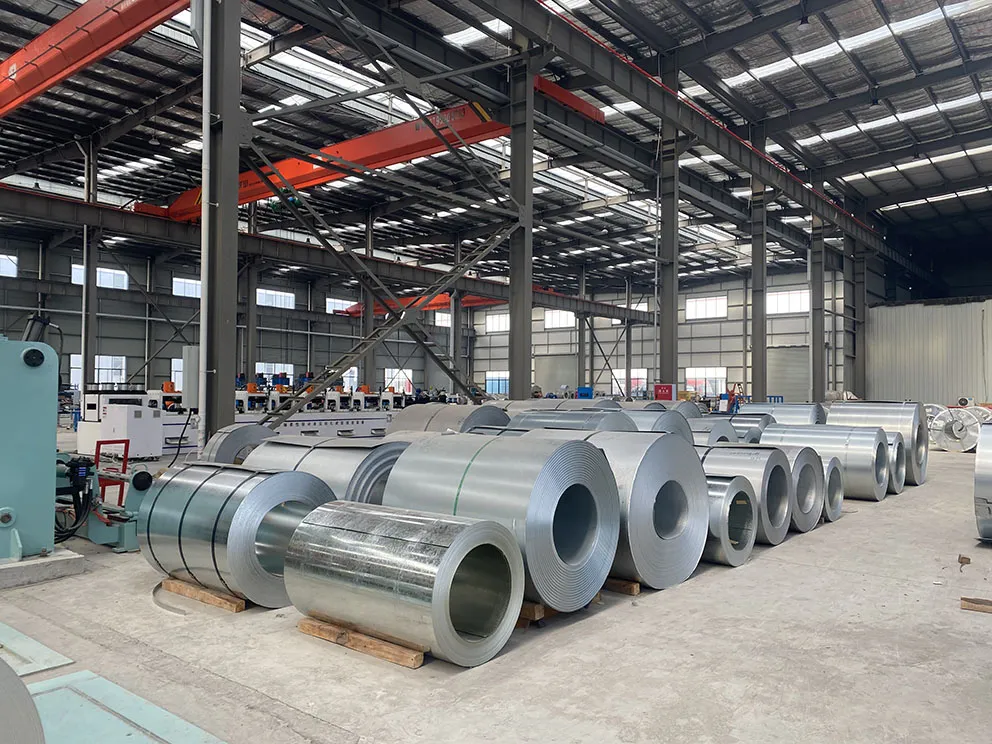

· First Class production facility.

· Advanced production technology.

· High quality packing service.

· Professional workers.

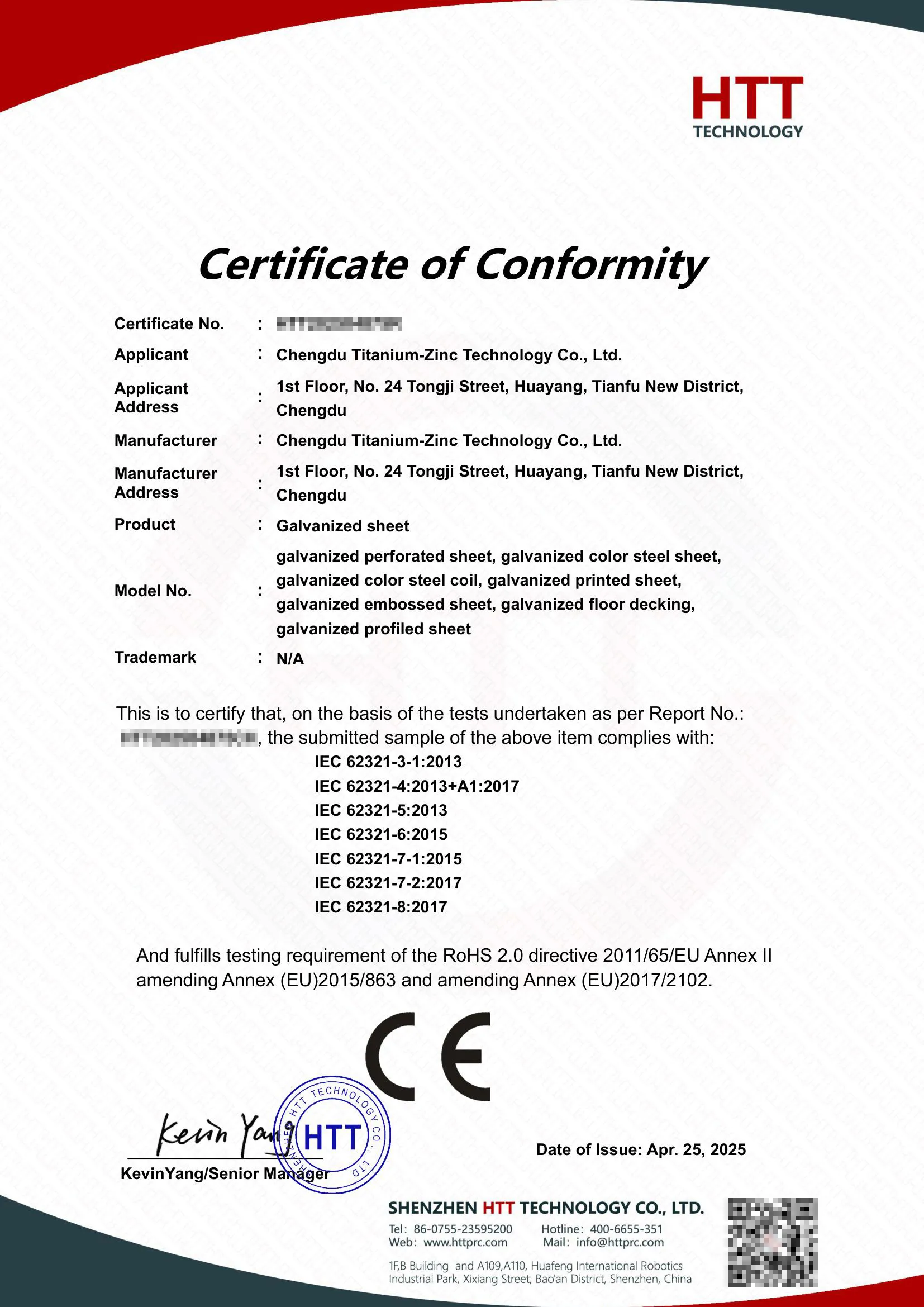

· ISO 9001 certificate.

· Fast delivery.

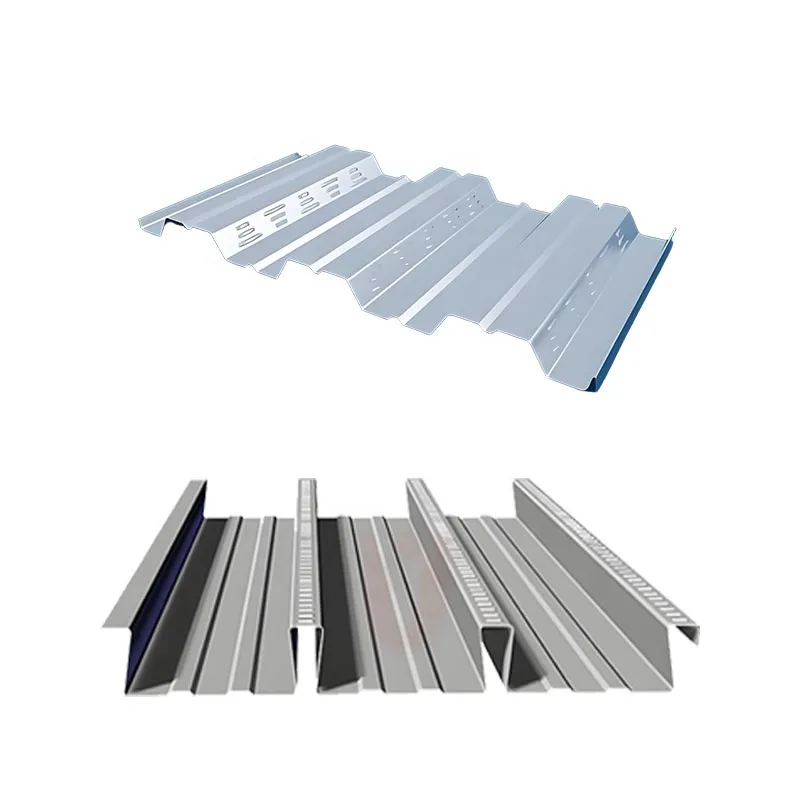

Common specifications

Model number	YX76-344-688
Coverage Width (mm)	688 mm
Unfolding Width (mm)	1000 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	119.5, 148.2, 180.1
Cross - sectional Resistance Moment (cm³/M)	28.54, 35.68, 42.83
Application	Floor Bearing Plate

Model number	YX76-305-915
Coverage Width (mm)	915 mm
Unfolding Width (mm)	1250 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	91.362, 114.21, 137.06
Cross - sectional Resistance Moment (cm³/M)	24.848, 30.977, 30.074
Application	Floor Bearing Plate

Model number	YX51-240-720
Coverage Width (mm)	720 mm
Unfolding Width (mm)	1000 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	51.64, 64.55, 77.50
Cross - sectional Resistance Moment (cm³/M)	16.56, 20.70, 24.82
Application	Floor Bearing Plate

Model number	YX51-250-750
Coverage Width (mm)	750 mm
Unfolding Width (mm)	1000 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	47.67, 59.56, 71.44
Cross - sectional Resistance Moment (cm³/M)	23.19, 28.59, 34.51
Application	Floor Bearing Plate

Model number	YX75-200-600(U-200)
Coverage Width (mm)	600mm
Unfolding Width (mm)	1000 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	127.50, 158.20, 190.10
Cross - sectional Resistance Moment (cm³/M)	33.34, 41.69, 50.04
Application	Floor Bearing Plate

Model number	YX38-152-914
Coverage Width (mm)	914mm
Unfolding Width (mm)	1250 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	51.90, 70.6, 189.2
Cross - sectional Resistance Moment (cm³/M)	16.86, 22.22, 48.57
Application	Floor Bearing Plate

Model number	YX75-230-690
Coverage Width (mm)	690 mm
Unfolding Width (mm)	1100 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	126.20, 157.70, 189.20
Cross - sectional Resistance Moment (cm³/M)	32.38, 40.47, 48.57
Application	Floor Bearing Plate

Model number	YX65-170-510
Coverage Width (mm)	510mm
Unfolding Width (mm)	1000 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	98.60, 123.25, 147.90
Cross - sectional Resistance Moment (cm³/M)	22.41, 28.01, 33.61
Application	Floor Bearing Plate

Model number	YX65-185-555
Coverage Width (mm)	555mm
Unfolding Width (mm)	1045 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	101.35, 126.54, 152.91
Cross - sectional Resistance Moment (cm³/M)	17.74, 23.64, 29.35
Application	Floor Bearing Plate

Model number	YX65-236.67-710
Coverage Width (mm)	710mm
Unfolding Width (mm)	1200 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	89.34, 111.13, 132.70
Cross - sectional Resistance Moment (cm³/M)	18.98, 23.62, 28.24
Application	Floor Bearing Plate

Model number	YX65-254-762
Coverage Width (mm)	762 mm
Unfolding Width (mm)	1250 mm
Plate Thickness (mm)	0.8, 1.0, 1.2
Cross - sectional Moment of Inertia (cm⁴/M)	60.60, 72.15, 83.11
Cross - sectional Resistance Moment (cm³/M)	41.79, 49.89, 57.32
Application	Floor Bearing Plate

Chengdu Titanium-Zinc Technology Co., Ltd.

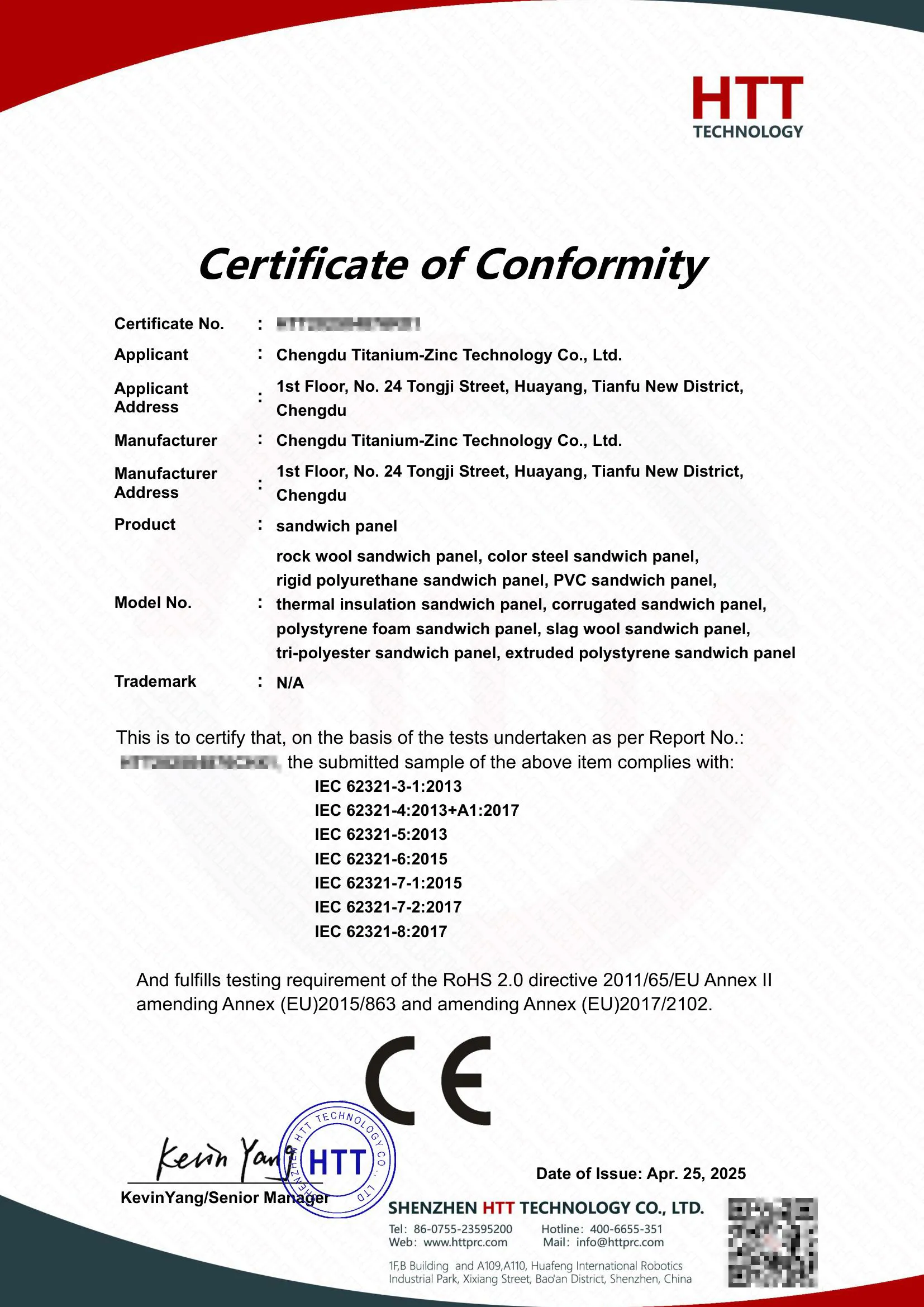

Chengdu Titanium-Zinc Technology Co., Ltd.is a world-leading provider of build.ing metal enclosure system solutions, focusing on the research and developmentand innovation of green energy-saving building materials. The core products in-clude high performance metal roof and wall systems (color-coated steel profiledpanels/sandwich panels, aluminum-magnesium-manganese panels), acoustic optimization systems (perforated sound-absorbing panels) and thermal solutions(reflective aluminum insulation blankets, aluminum cone core compositepanels), and have passed international authoritative certifications, such as the European Union CE and the United States ASTM.We provide full life cycle technical services for industrial and civil buildings.public facilities and municipal engineering. We have successfully delivered morethan 500 benchmark projects in 28 countries around the world, and our marketnetwork covers southeast Asia, the Middle East, Europe, the United States and Africa. Through continyous technology iteration and localized services, the company is committed to creating more sustainable building solutions for international customers and promoting the innovation of global low-carbon construction systems.

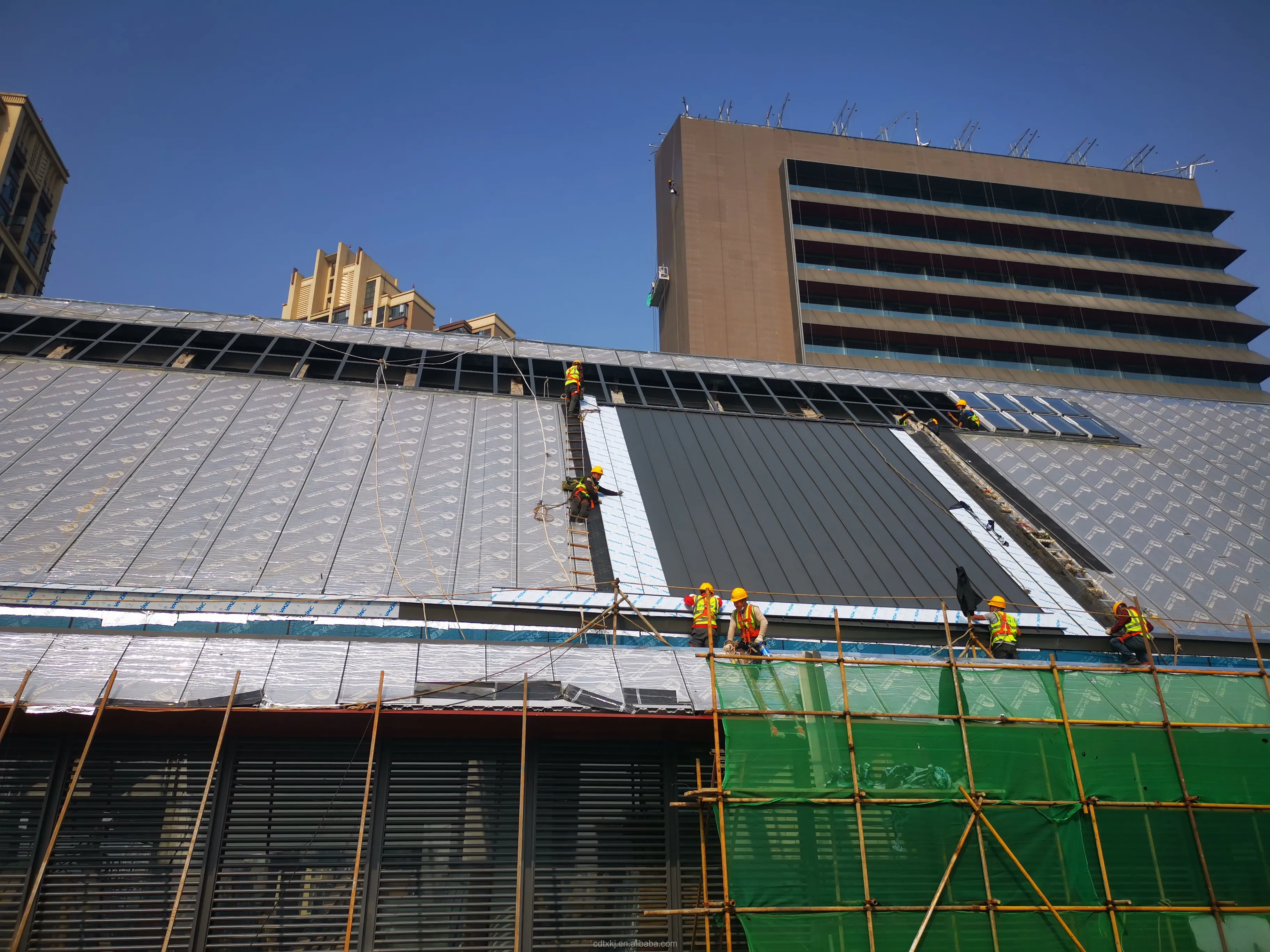

Construction Project Cases

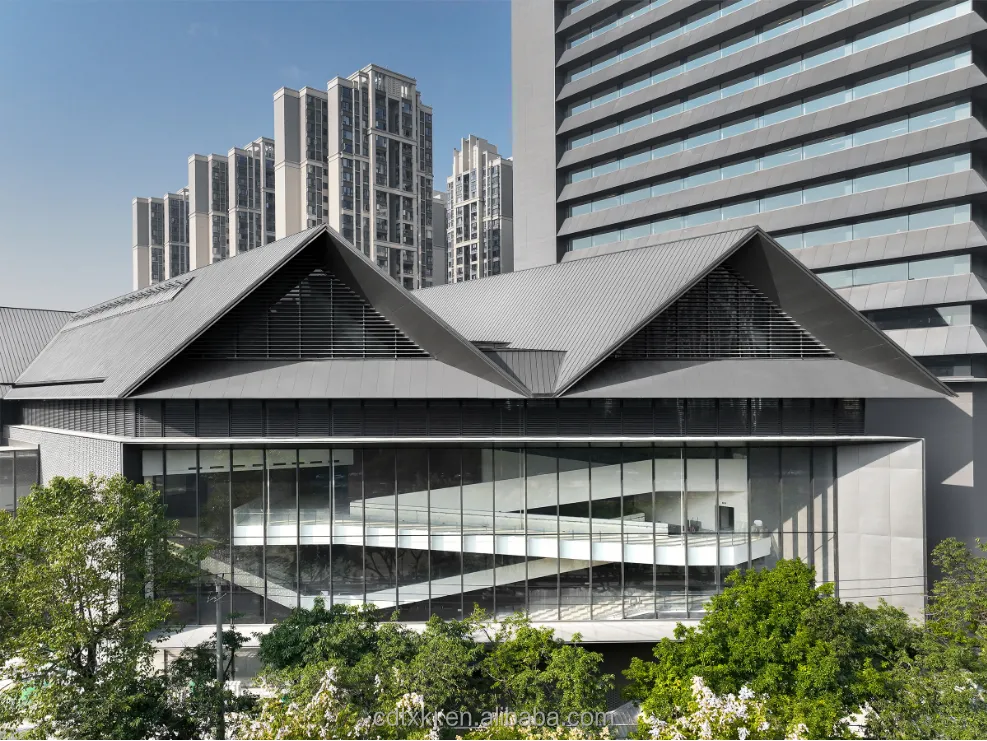

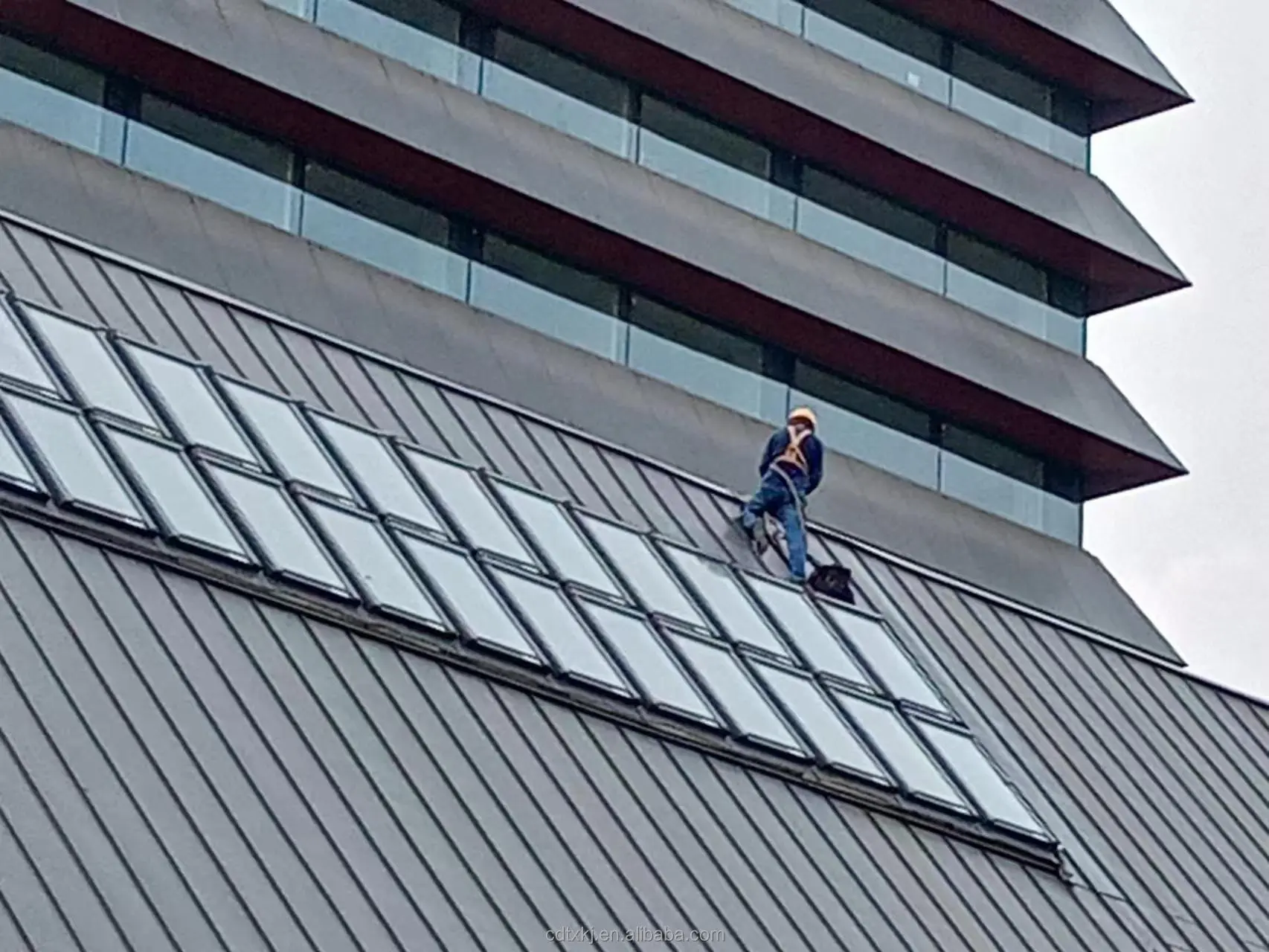

Project Name: The Museum Complex Project of Sichuan University
Project location: Chengdu, Sichuan
Project area: 5500 ㎡
Used part: Roof
Color number: 201J5 Black
Metal roof laying: The metal roof covers an area of approximately 5,500 square meters. The laying process involves 11 construction
procedures, and the overall error must be controlled within the millimeter level.

Q: Do you accept customization? A: Since we are a factory,we accept customer'scustomization. lf you need to use your brandplease provide the Al/PSD source file of thebrand logo. Q: Can you arrange a visit to your factory? A: Yes,of course. Our factory is located in Chengdu. When you come here, you can not only feel the strength of our factory on site, but also experience the delicious hotpot of Chengdu and visit the giant pandas! Q: Can I get samples before order? A: Yes, of course. Usually our samples are free. Q: What payment term can you accept?What price term can you accept? A:We can accept T/T, Credit/debit card, PayPal, etc. We can accept EXW, FOB, DDP, CIF, FCA, etc. Q: What are your packaging conditions? A: Normally, we pack the goods in bulk and place them in soft EPS for protection to save container space. If you have specific requirements, we can also provide iron pallet packaging. Q: How about your production lead time? A: Regular order: 2-3 weeks, Customized order: 4-6 weeks, Large orders: 3-5 weeks, and it depends on the quantity of products you order.
