Building Material Rolling Shutter Door Roll Forming Machine ZT-300+7.5KW

1. Introduction of Roller Shutter Door Roll Forming Machine
The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.

2. Technical Parameters of Roller Shutter Door Roll Forming Machine

No.	Item	Specification
1	Can Formed Material	GI,AI
2	Equipment operation	Automatic
3	Voltage	380V 60Hz 3Phase or as your requirement
4	Thickness of sheet (mm)	0.8-1.2mm
5	Material width(mm)	As your requirement
6	Cover Width of the sheet after formed	as your drawing
7	The size of the roll forming machine	5000mmx800mmx1400mm
8	Speed	8-15m/min
9	Diameter of shaft	40mm
10	Weight of the Machine	3000-3500KGS
11	Material of rollers	C45 steel quenched and chromed
12	Motor brand	Siemens or Guomao
13	PLC	Siemens or Delta or Mitsubushi
14	Total power (kw)	8kw
15	Power of hydraulic system	4kw
16	Power of main molding core	4kw

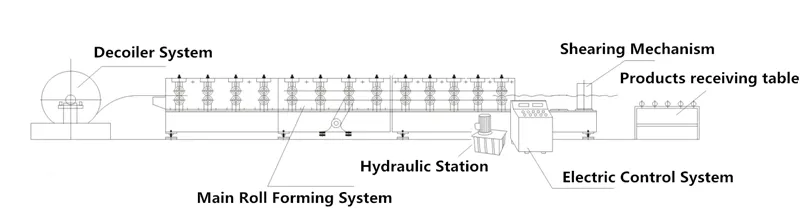

3. Components of of Roller Shutter Door Roll Forming Machine

No	Name	Qty
1	Decoiler	1
2	Automatic control system	1
3	Hydraulic system	1
4	Automatic cutting	1
5	Products receiving tables	1



4. Process of of Roller Shutter Door Roll Forming Machine

Decoiler-active feeding-coil strip leveing –roll forming -measure length-cut to length-product packing

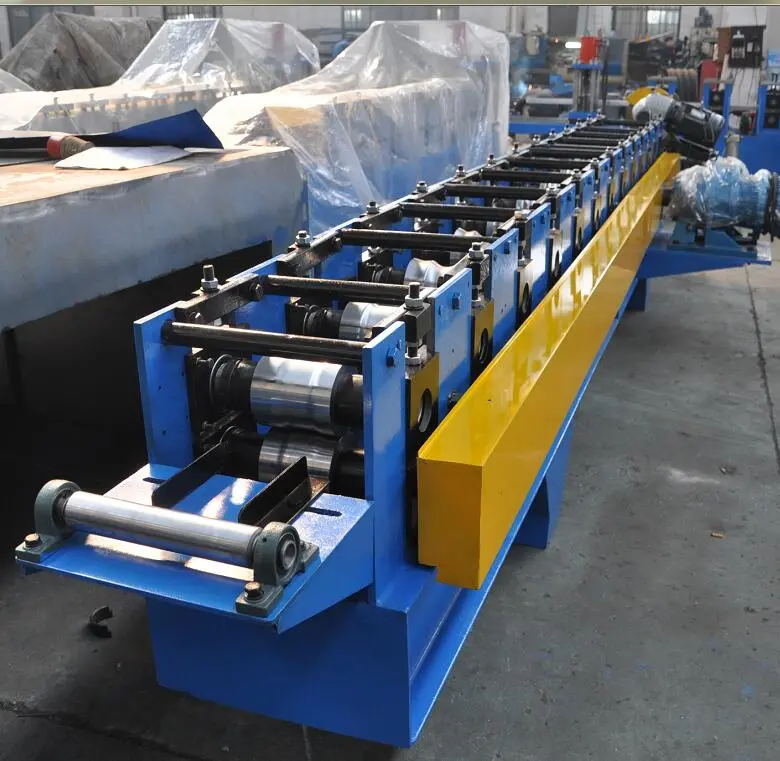

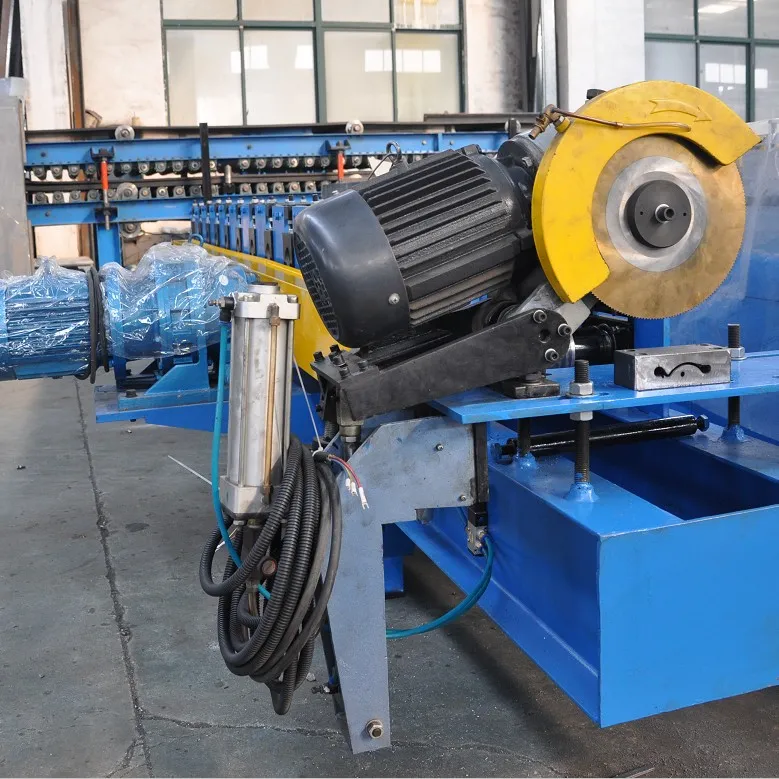

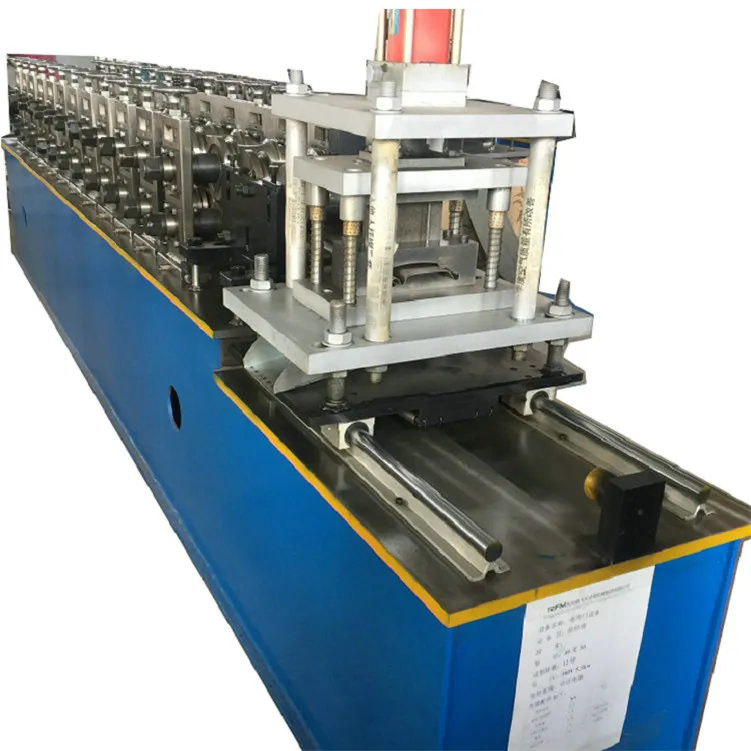

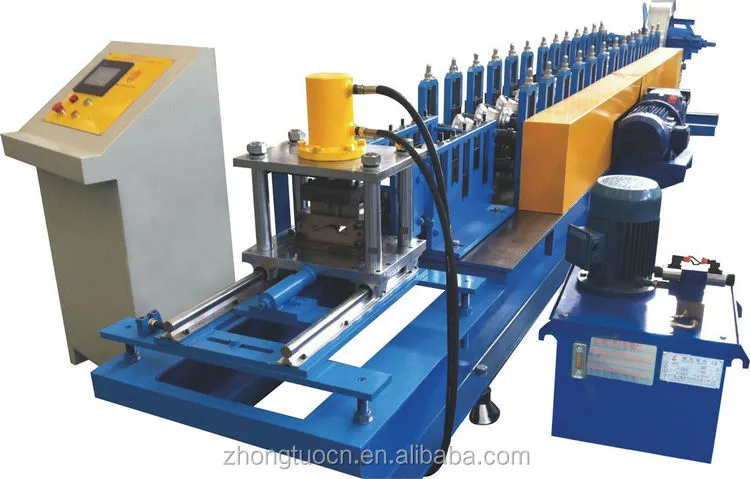

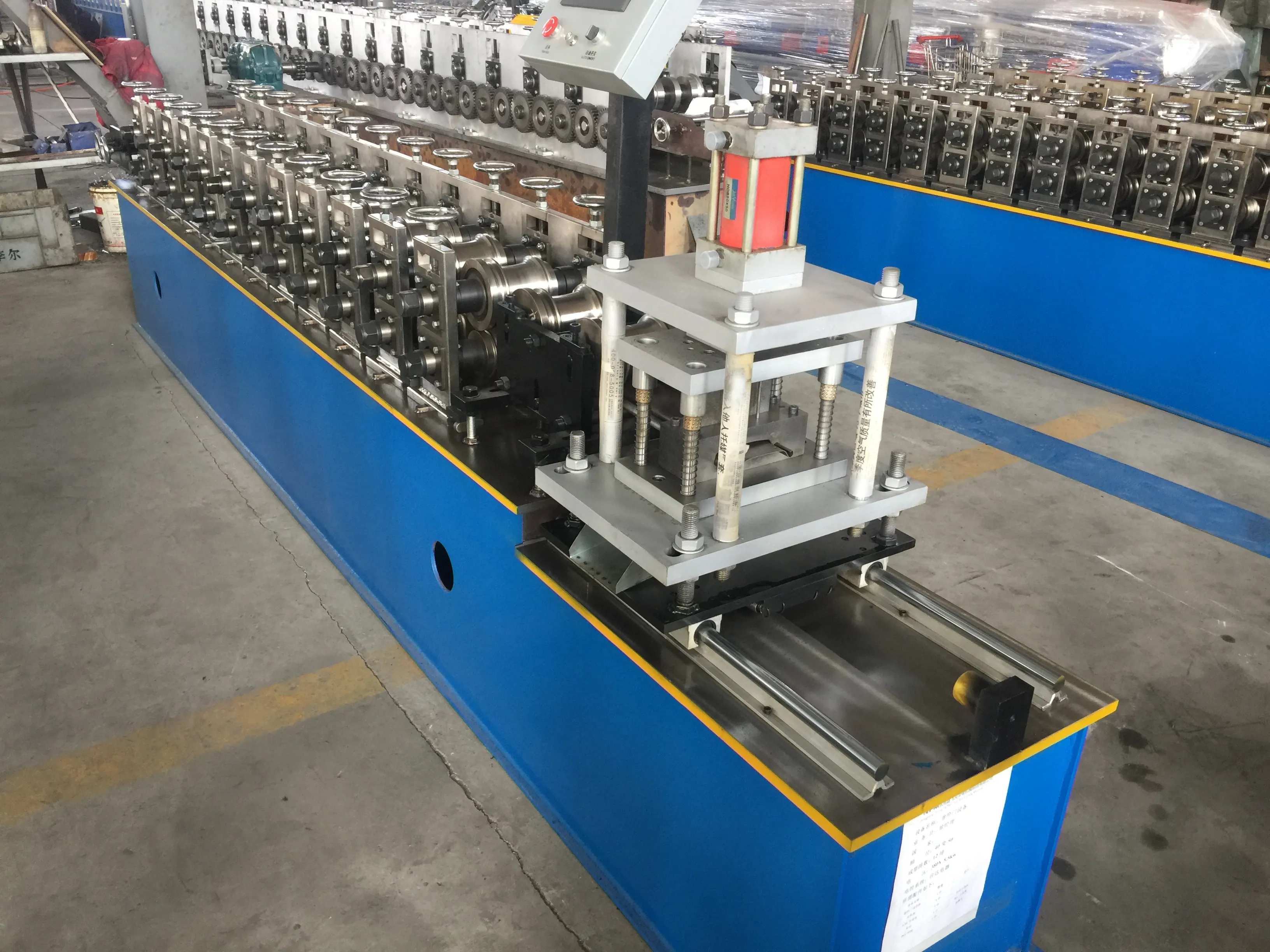

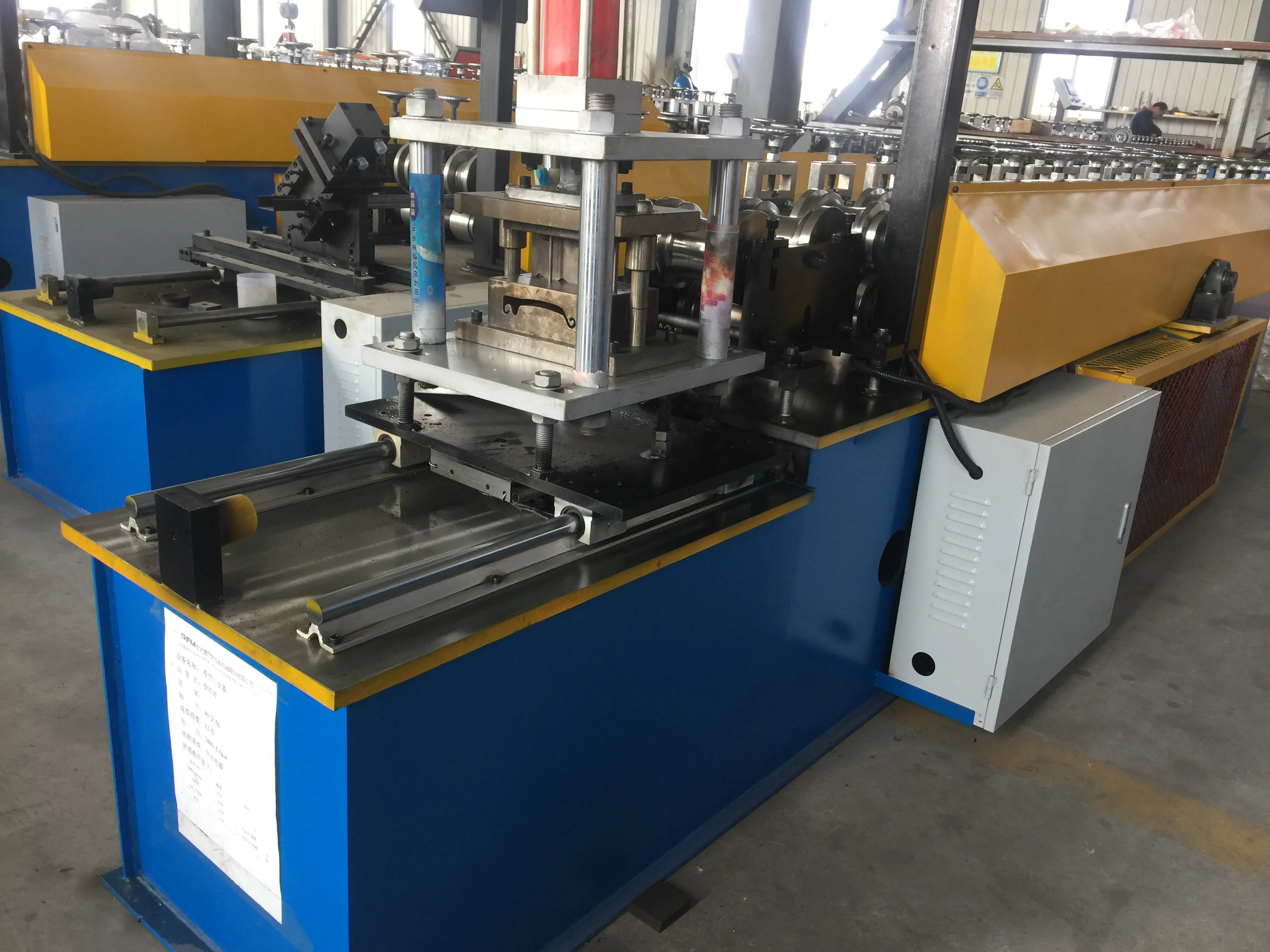

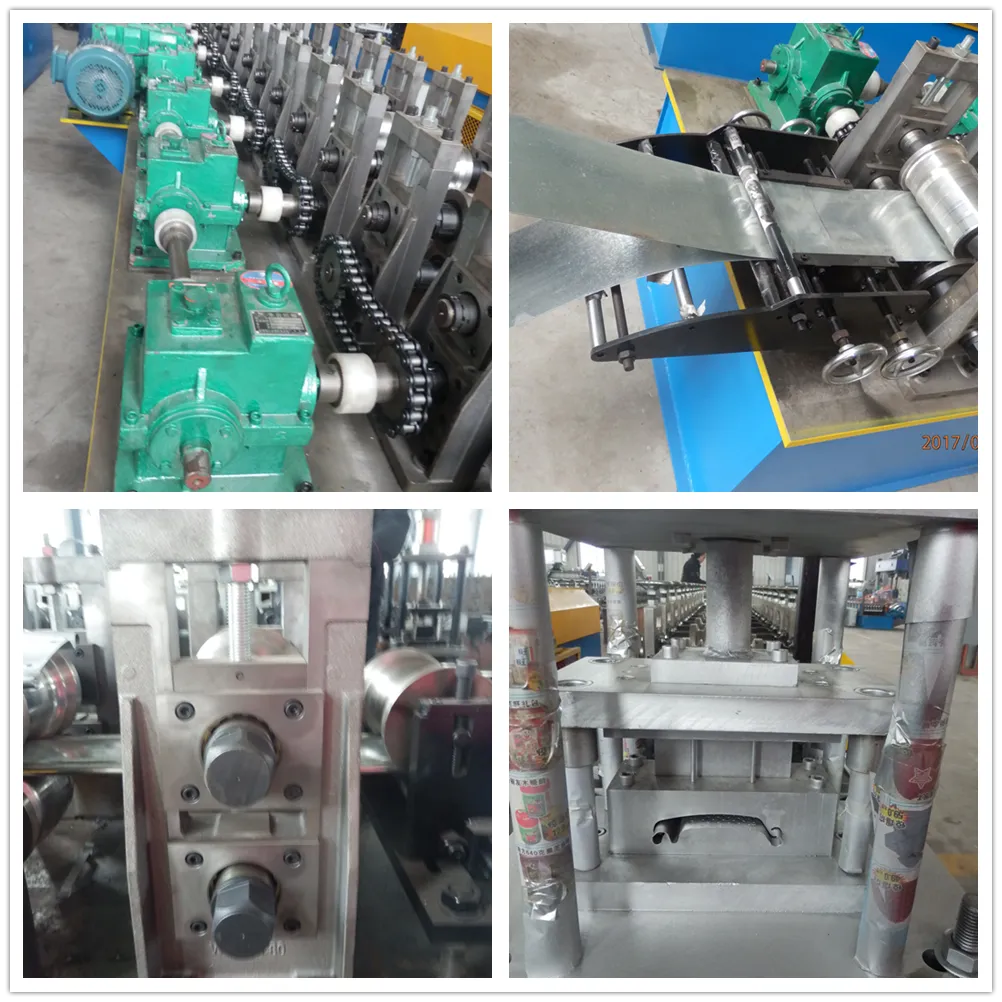

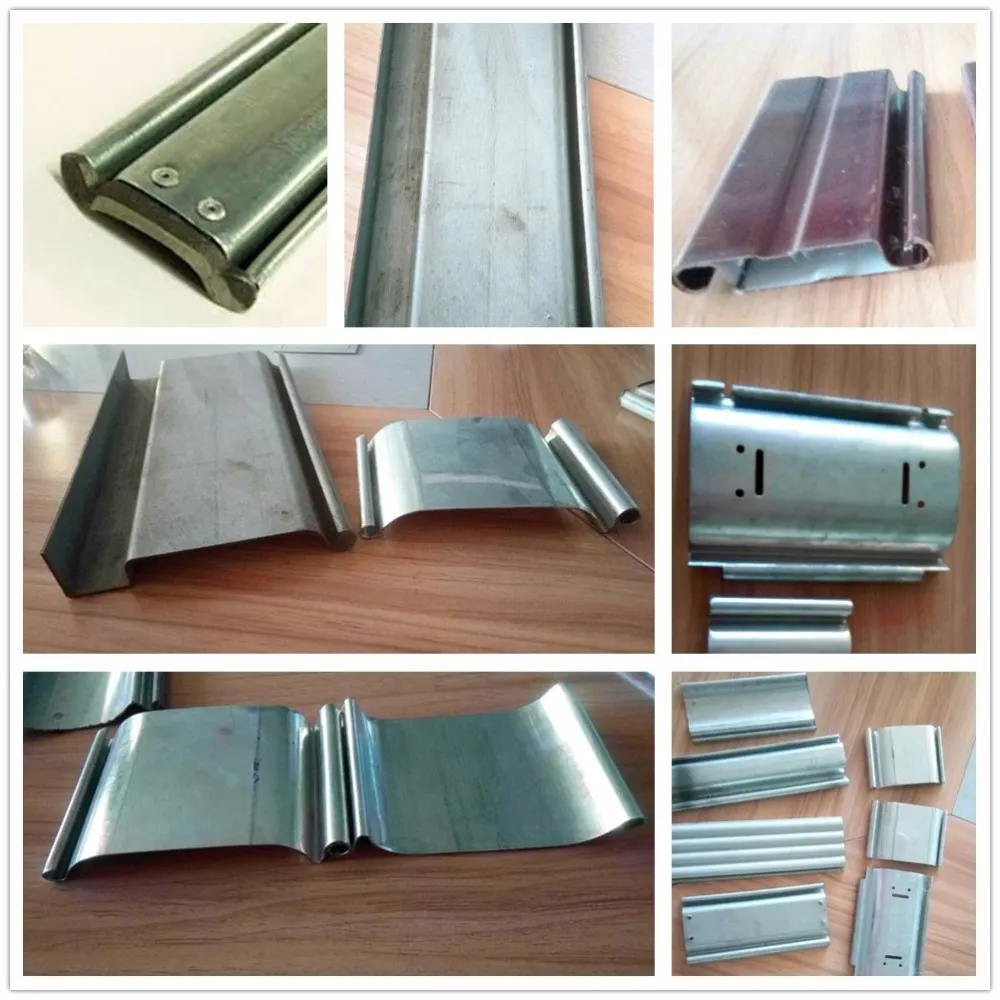

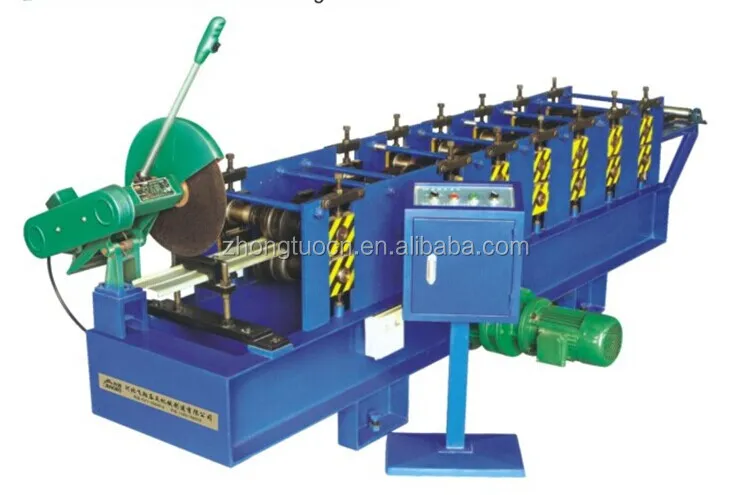

5. Pictures of of Roller Shutter Door Roll Forming Machine

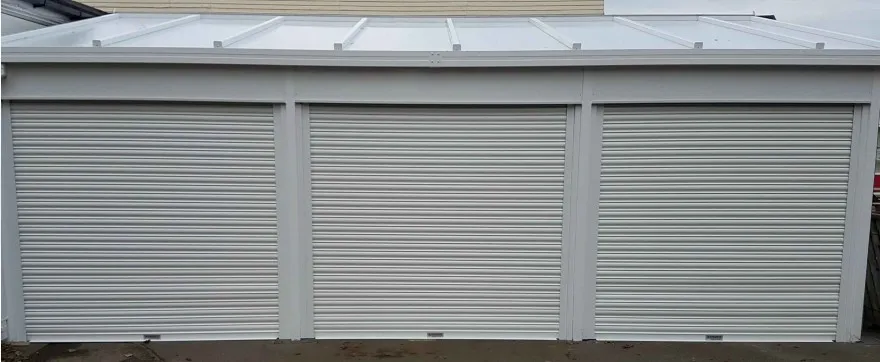

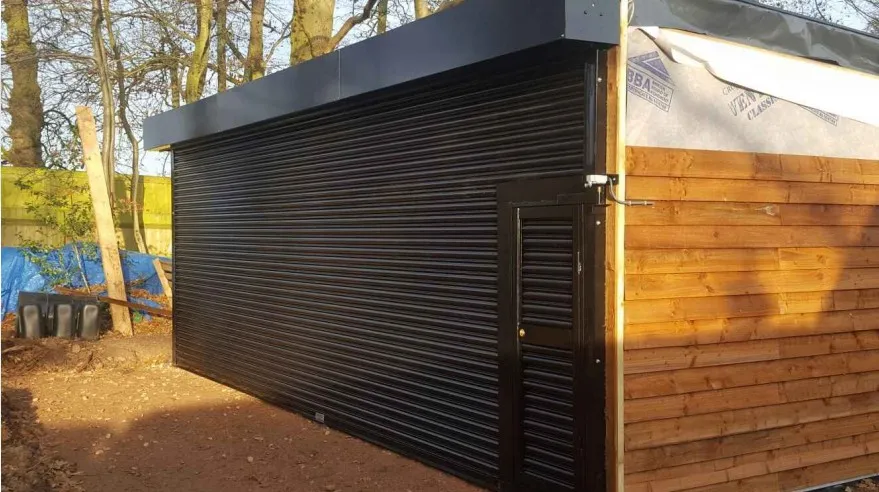

6. Application of Automatic Light Steel Keel Stud&Track Roll Forming Machine



The advantages of Floor Decking Tile Press Roll Forming Machine
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3.We can make and design will kinds of roll forming machine according to customer's request.
Sales Service:
1.we provide the technical support for whole life of our machines.
2.If buyers need the technician to go abroad , we will arrange the technician,but the buyers should take all the cost ,inculding visa, roundtrip ticket etc.
