Board and Batten Siding Panel Roll Forming Machine Standard

General Industry Tech Hebei Developing Co.,Ltd

Supplier Qualification

Board and Batten Siding Panel Roll Forming Machine Standard

Name: Board and Batten Siding Panel Roll Forming Machine Standard
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120496243

UseMetal wall panel

Machine Weight10000 kg

WarrantyMore than 5 years

CertificationCE, BV, STV, ISO

Machinery Test ReportProvided

Video Outgoing-InspectionProvided

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

Standard

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Use
Metal wall panel
Machine Weight
10000 kg
Warranty
More than 5 years
Certification
CE, BV, STV, ISO
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Effective Width
12''-20''
Material Thickness
25-26 gauge (0.4-0.6 mm)
Forming Speed
65.62 ft/min (20 m/min)
Roller Material
Cr12
Shaft Material
45# steel, outer diameter 70 mm
Cutting Blade
Cr12Mov
Main Frame
400 mm H-beam
Control System
PLC (Delta/Siemens imported brand)

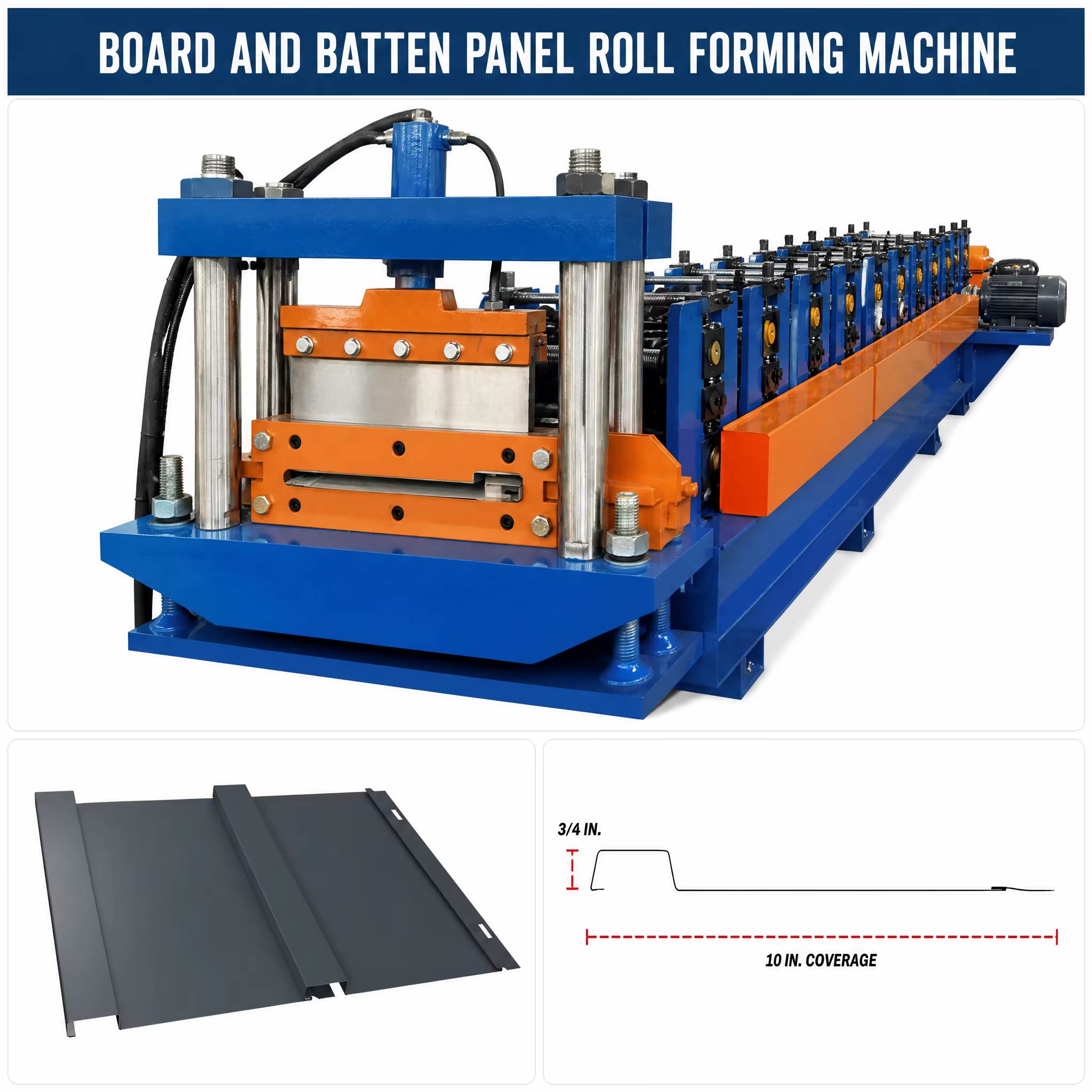

Board and batten panel roll forming machine with product sample

Board and batten machine in factory

Product Overview

The board and batten panel making machine is a wall panel roll forming machine producing board and batten siding panels for metal wall cladding. With effective width of 12''-20'', forming speed of 65.62 ft/min (20 m/min), Cr12 rollers and PLC (Delta/Siemens) control, it delivers easy operation, high precision and a perfect forming effect.

Easy to operate with PLC (Delta/Siemens) control system
High precision with Cr12 rollers and 45# steel shafts (70 mm diameter)
Perfect forming effect, clean cuts with Cr12Mov cutting blades
Effective width 12''-20'', material thickness 25-26 gauge (0.4-0.6 mm)
Heavy-duty 400 mm H-beam main frame, machine weight 10000 kg
CE, BV, STV, ISO certified

Key Features

Easy to Operate - PLC (Delta/Siemens) control system with simple operation for continuous production of board and batten panels.
High Precision - Cr12 rollers and 45# steel shafts (70 mm outer diameter) maintain accurate profile dimensions over long production runs.
Perfect Forming Effect - Cr12Mov cutting blades deliver clean, burr-free cuts; forming speed of 65.62 ft/min for high output.
Versatile Siding Profile - Effective width 12''-20'', material thickness 25-26 gauge (0.4-0.6 mm), feeding width customized as needed.
Heavy-Duty Construction - 400 mm H-beam main frame with hydraulic station, stable for metal wall panel production.

Technical Specifications

Item	Specification
Machine type	Board and batten siding panel roll forming machine
Use	Metal wall panel
Material thickness	25-26 gauge (0.4-0.6 mm)
Effective width	12''-20''
Feeding width	Customized as needs
Forming speed	65.62 ft/min (20 m/min)
Roller material	Cr12
Shaft material	45# steel, outer diameter 70 mm
Cutting blade material	Cr12Mov
Control system	PLC (Delta/Siemens imported brand)
Main frame	400 mm H-beam
Power (motor)	7.5 kW
Voltage	220 V / 380 V / 440 V
Machine weight	10000 kg
Warranty	More than 5 years
Certification	CE, BV, STV, ISO

Production

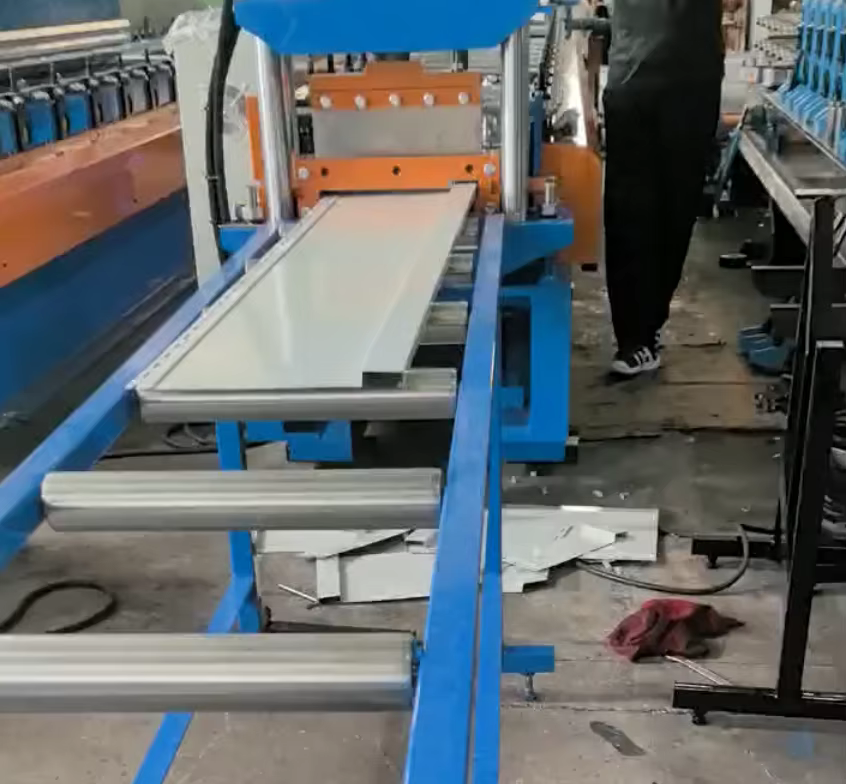

Panel emerging from cutting head onto outfeed conveyor

wall panel emerges from the cutting head onto the outfeed conveyor. The machine features a blue frame with orange safety guards, chrome guide pillars and a hydraulic cylinder assembly.

Finished Product

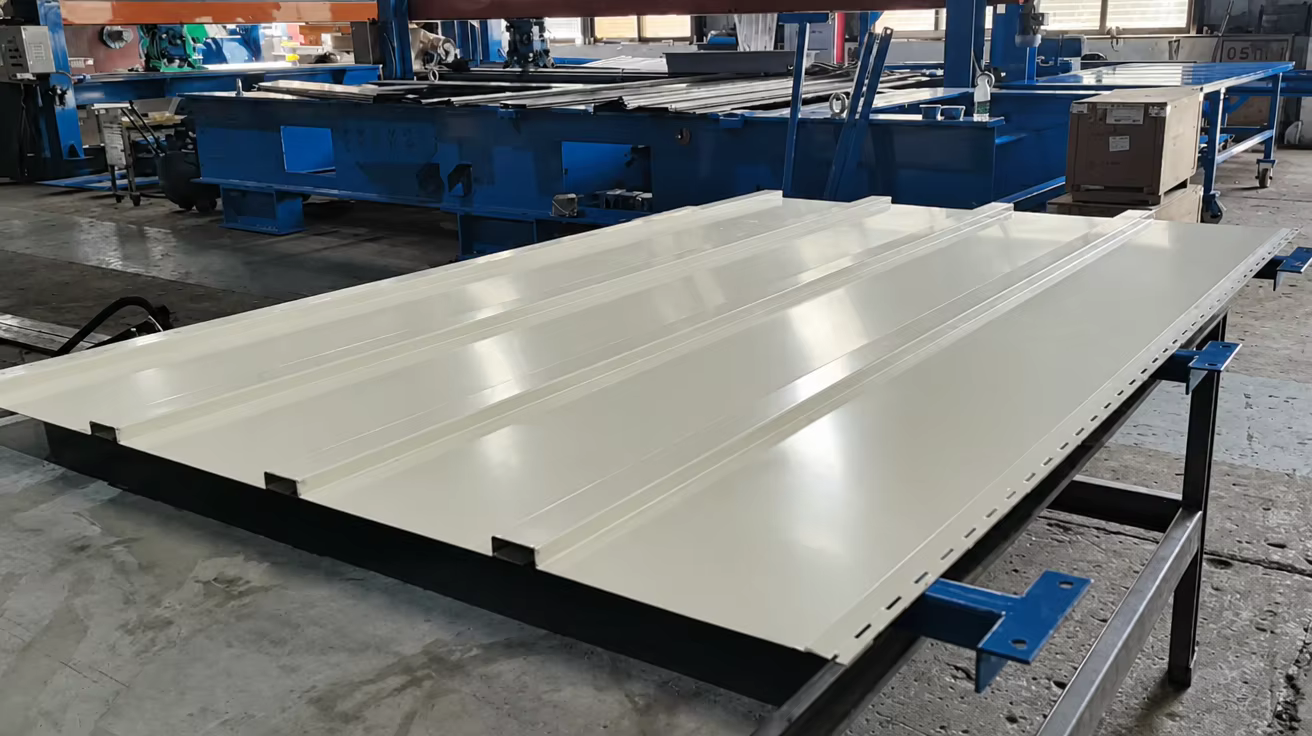

Finished board and batten metal wall panel

The finished board and batten wall panel features wide flat boards separated by raised battens (approx. 3/4 in. batten height) with 10 in. coverage per panel, punched fastening slots along the edge for quick installation on metal wall framing.

Certifications

CE certified equipment certificates

The machine is CE certified for international procurement (CE trust No. 4Q230524.CZIDW02 / 4Q230524.CZIDW03), and the company holds CE, BV, STV and ISO certifications.

Company Profile

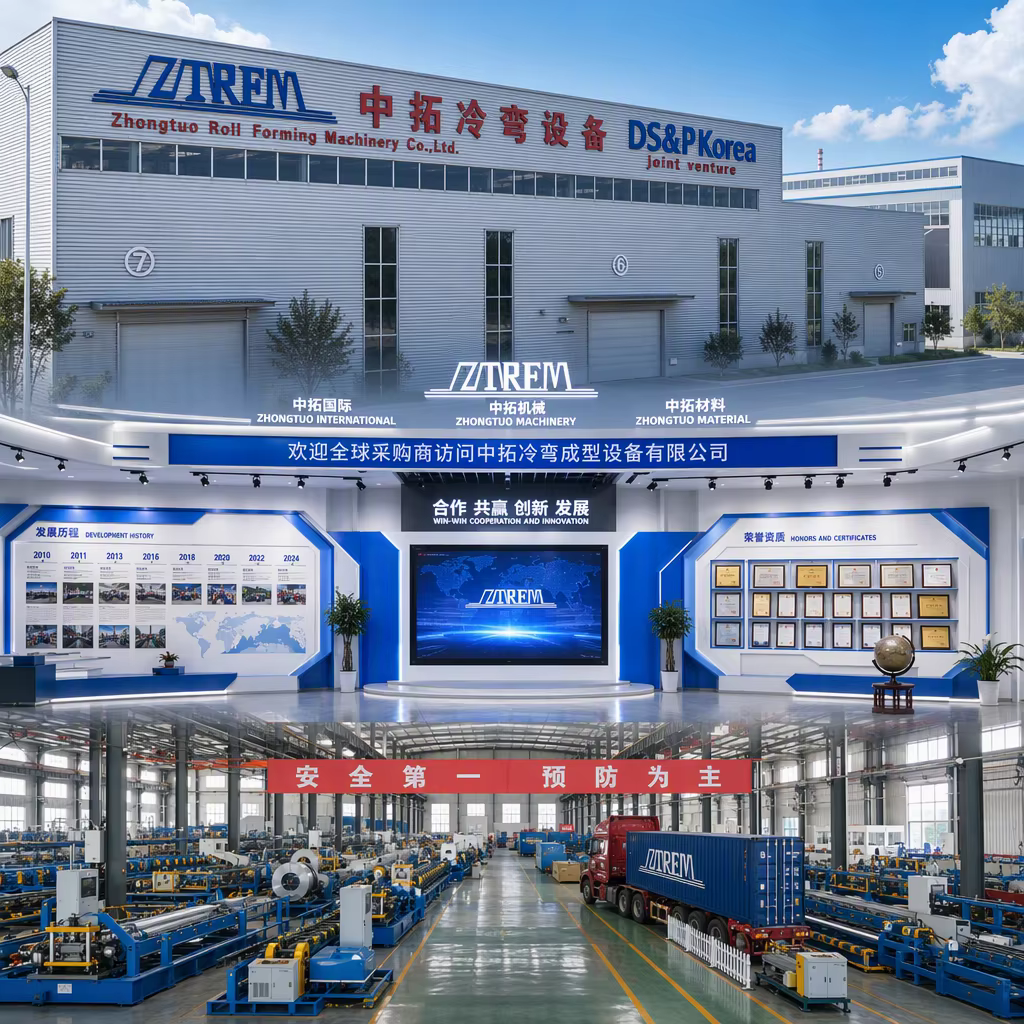

ZTREM factory, showroom and workshop

The supplier is a dedicated roll forming machinery manufacturer with a modern factory, exhibition lobby and high-capacity workshop, delivering complete cold bending equipment solutions.

Packing & Shipping

Package size: 600 x 120 x 110 cm; machine weight: 10000 kg
Delivery time: 50 days for 1 set, 70 days for 2 sets
Machinery test report and video outgoing inspection provided
