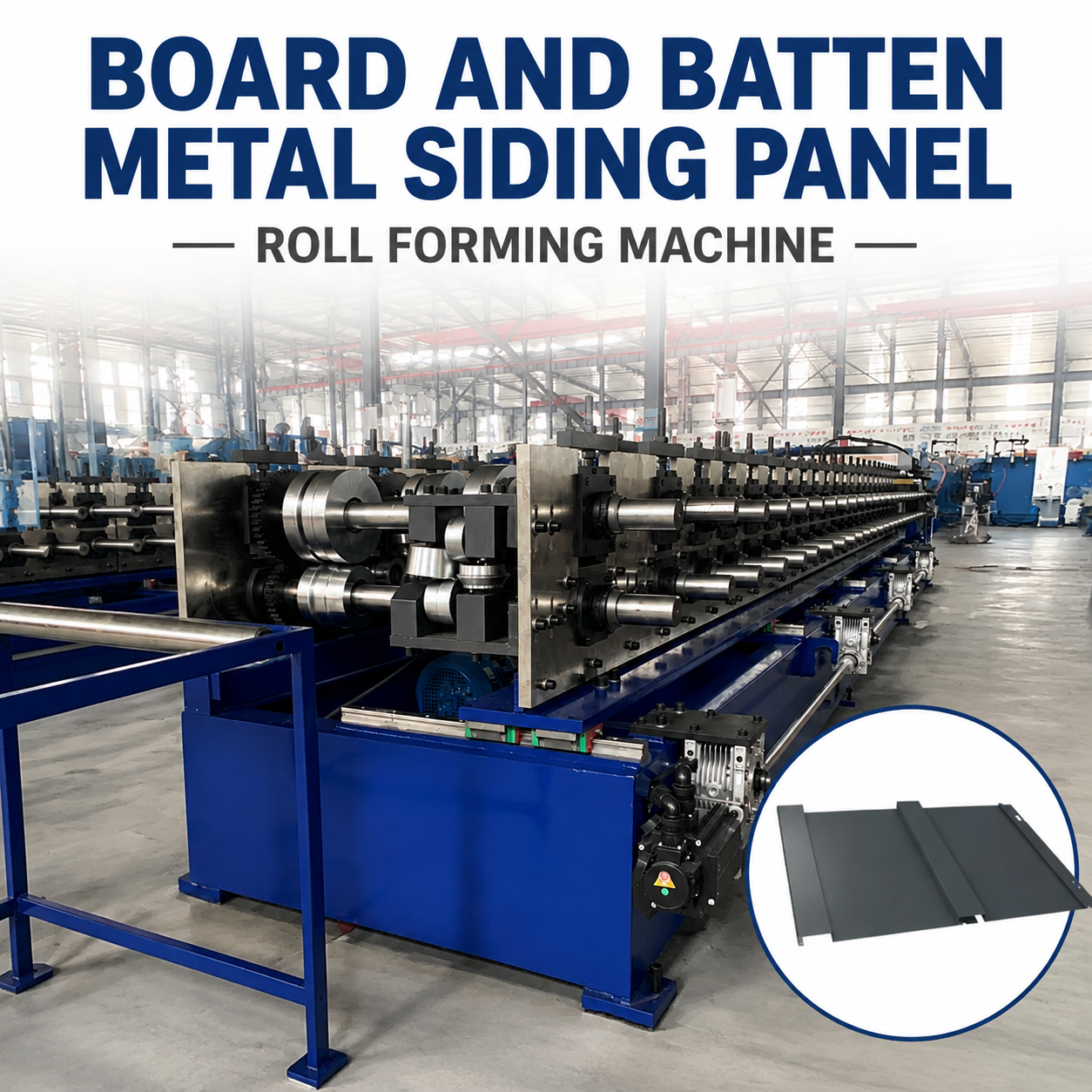

Board and Batten Metal Siding Panel Roll Forming Machine Exterior Wall Panel Making Machine Barndominiums Wall Panel 5.5kw

Board and Batten Metal Siding Panel Roll Forming Machine Exterior Wall Panel Making Machine Barndominiums Wall Panel

Product Highlights:

• Easy Operation, High Precision: PLC control system with imported Delta/Siemens components and servo motors. One-touch operation keeps the whole forming line simple to run, while precise roller adjustment ensures consistent board and batten panel dimensions for a clean, professional finish.
• High Production Efficiency: Forming speed up to 20 m/min with continuous coil-fed production. Hydraulic post cutting works automatically at the line end, so panels are cut to length without stopping the line, saving time and boosting daily output.
• Classic Board and Batten Profile: Produces the popular board and batten siding profile with crisp vertical lines and flat boards, giving exterior walls a modern farmhouse look. Effective panel width of 12''-20'' fits common siding layouts for fast installation.
• Heavy-Duty Machine Frame: The main frame is built from 400 mm H-beam steel for outstanding rigidity and stability. Cr12 alloy rollers and Cr12Mov cutters resist wear during long production runs, holding profile tolerance and reducing maintenance.
• Material Flexibility: Works with galvanized steel and aluminum coils at 26 Gauge thickness. The panels resist corrosion and weathering, making them suitable for exterior wall cladding in different climates with long service life.
• Wide Application Scenarios: Ideal for producing exterior wall panels for barndominiums, residential homes, barns, workshops, commercial and agricultural buildings. Feeding width and panel dimensions can be customized to match your project requirements.
• Factory Customization and Support: Custom design completed within 3 days, with drawing-based, sample-based and full customization available. CE, BV and ISO certified, warranty of more than 5 years, free replacement parts, online technical support, machinery test report and video outgoing inspection provided.

PARAMETERS：

Why choose ZTRFM Board and Batten Wall Panel Roll Forming Machine?

15+ Years Export Experience
With over 13 years of experience in roll forming machine manufacturing and exporting, ZTRFM provides reliable and professional solutions for global customers.
Trusted by USA & Canada Customers
We have successfully exported more than 10 sets of Board and Batten Wall Panel Roll Forming Machines to the USA and Canada. Our machine quality and overseas service have been widely recognized by customers.
Local Market Support
We also cooperate with USA local distributors to provide better support for North American customers.
High Quality & Reliable Service
We focus on machine accuracy, stable production, and long-term customer support to help you produce high-quality metal siding panels.

Board and Batten Wall Panel Roll Forming Machine

Formed Material	GI,PPGI
Thickness	0.3-0.8mm
Roller station	20 rows(As your requirement of profile)
Roller material	45# steel with quenched treatment
Shaft diameter	80mm solid shaft
Shaft material	45# steel with tempered
Transmission	By 1 inch chain (double chains)
Motor power	15KW
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Hydraulic power	7.5kw
Cutting blade material	Gcr12 quenched treatment
Control system	PLC

PRODUCT DISPLAY:

3Tons Manual Decoiler

Capacity:3 tons

Coil inner diameter:450-550mm

Feeding width: max 1250mm

Structure: welded by the steel plates and profiled bar.

Omega Furring Channel Roll Forming Machine Control system

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Delta 3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Stud hat machine Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

3.New design Added an automatic oiling device, help put oil in coils surface , protect materials

Omega Furring Channel Roll Forming Machine Roller fixer : Guide column Frame : middle plate welded, Memorial arch frame type Frame thickness:20mm Drive mode: gear and Chains Material of rollers: GCr12MoV Material of shafts: 45# steel with tempering Diameter of shafts: 80mm Number of rollers : 14 rollers Main power: 4.5kw

Omega Furring Channel Roll Forming Machine

Roller fixer : Guide column

Frame : middle plate welded

Memorial arch frame type

Frame thickness:20mm

Drive mode: gear and Chains

Material of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: 80mm

Number of rollers : 14 rollers Main power: 4.5kw

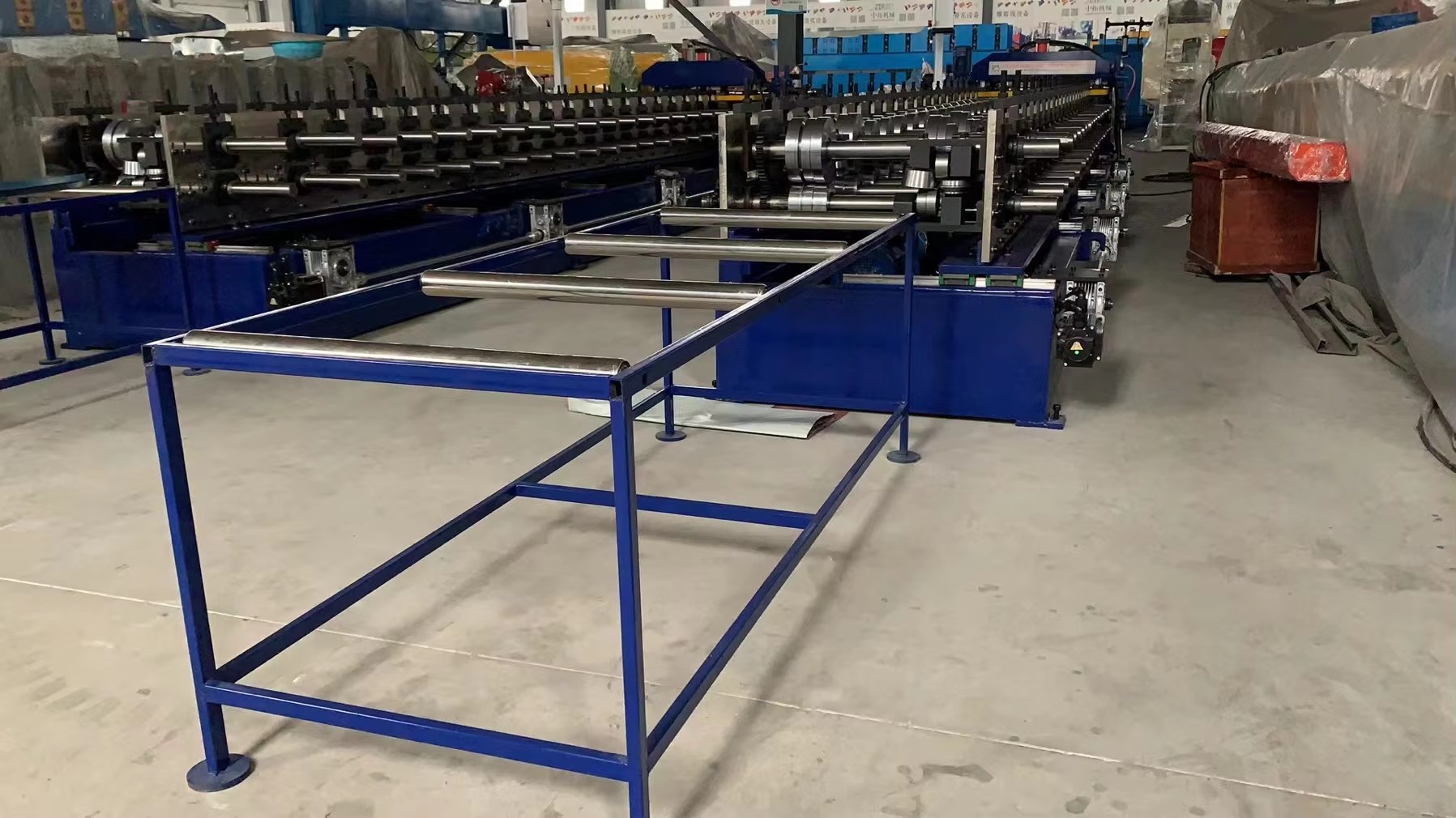

Manual Production Receive Table

COMPANY CERTIFICATE:

COMPANY PROFILE:

Cangzhou Zhongtuo Roll Forming Machinery Co.,ltd.. is a professional manufacturer of large and medium-sized machinery and equipment.

We are new high-tech enterprise, is the master research base of YANSHAN university, get more than 20 patents certificates until 2024 year.

Professional sales team,experienced technical engineers and skilled production mechanics are the greatest factor in our success.

Mr Cary Xu, the founder of the factory, is a professional sales engineer, who has been engaged in the design and manufacture of cold forming machines since 2006.

Our machines exported to over 170 countires, achieving good fame. 60% order from repeat clients, it due to our machine good quality and after sales service .

We have 1 display workshop use to put the ready machines. The workshop is big, tidy, and clean. Clients feel good after visiting our factory and workshop.

Our factory adopt digital simulation technology to test whether machine could be runned smoothly.
