Bemo Tapered Standing Seam Steel Roof Sheet Roll Forming Machine with Motor Gear Bearing PLC Control CE Certified 15 m/min+Bemo Tapered Standing SeamMachine+7.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

Bemo Tapered Standing Seam Steel Roof Sheet Roll Forming Machine with Motor Gear Bearing PLC Control CE Certified 15 m/min+Bemo Tapered Standing SeamMachine+7.5kw

Name: Bemo Tapered Standing Seam Steel Roof Sheet Roll Forming Machine with Motor Gear Bearing PLC Control CE Certified 15 m/min+Bemo Tapered Standing SeamMachine+7.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT62661452

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

15 m/min

Model Number:

Bemo Tapered Standing SeamMachine

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
roof panel making machine
Tile Type
Steel
Use
ROOF
Voltage
380 V
Rolling Thinckness
0.3-1mm
Feeding Width
610mm or As request

Company Profile

CANGZHOU ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

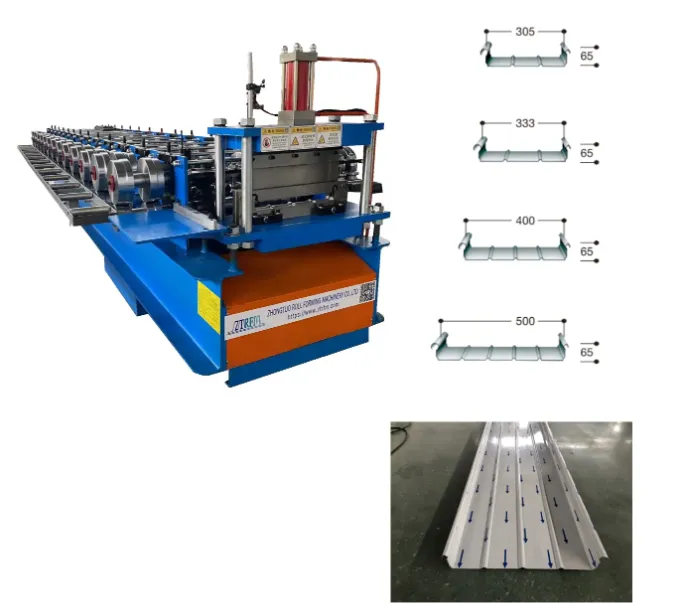

Bemo Tapered Standing Seam Machine

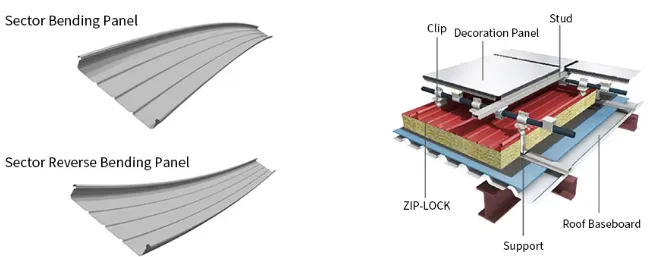

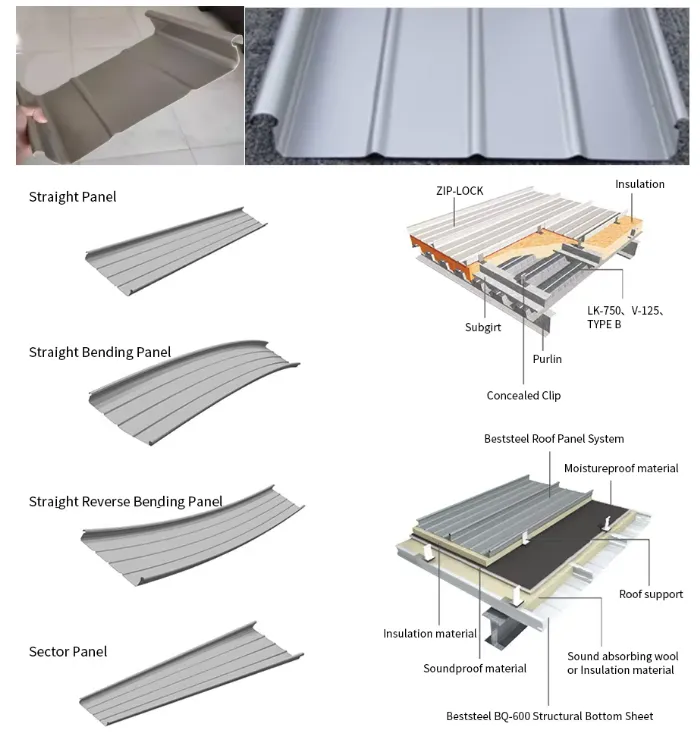

ZTRFM Bemo Tapered Standing seam 430 470 different width roof panel roof sheet roll forming machine is to produce the Bemo Standing Seam roof panel, it can produce both straight and tapered standing seam panel.

The features of ZTRFM Bemo Tapered Standing seam 430 470 different width roof panel roof sheet roll forming machine for Roofing:
1.machine provide customized,for produce different shapes roof sheet.
2.Our own Updated design-Easy installation and operation.
3.Full automatic-save labors.
4.One machine can produce 2 sizes, and can produce both straight and tapered sheet.
5.Portable PLC control system,language customized.

ZTRFM Bemo Tapered Standing seam machine
1.Formed Material	PPGI,PPGL,AI,Etc.		Material Thickness:0.3-1.0mm
2.Decoiler	Hydraulic decoiler(optional)		Manual decoiler(will give you as free）
3.Main body	Roller station		Due to your requirement profile
		Diameter of shaft		Due to your requirement profile
		Material of rollers		High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
		Machine body frame		Due to your requirement profile
		Drive		gear and Double Chain transmission/gearbox transmission optional
		Dimension(LWH)		Due to design
		Weight		Due to design
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW(normally)
		Hydraulic system power		5.5KW
6.Voltage	As your requirement		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		Support multiple languages
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	0-15m/min		Provide customized

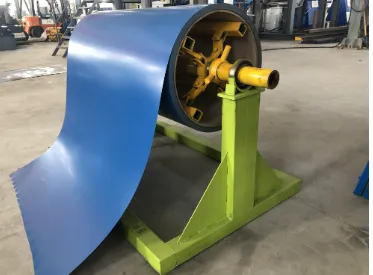

Manual Decoiler

1.Working type: Manual

2.Loading capacity: 10 tons

3.Coil inner diameter: 450-1000 mm

Transportation

1Gear transmission
2.Ensure the high speed and stable efficiency of the machine

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

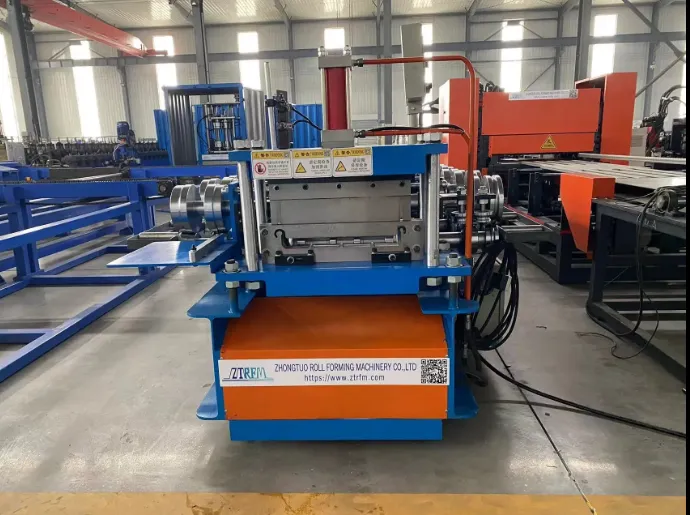

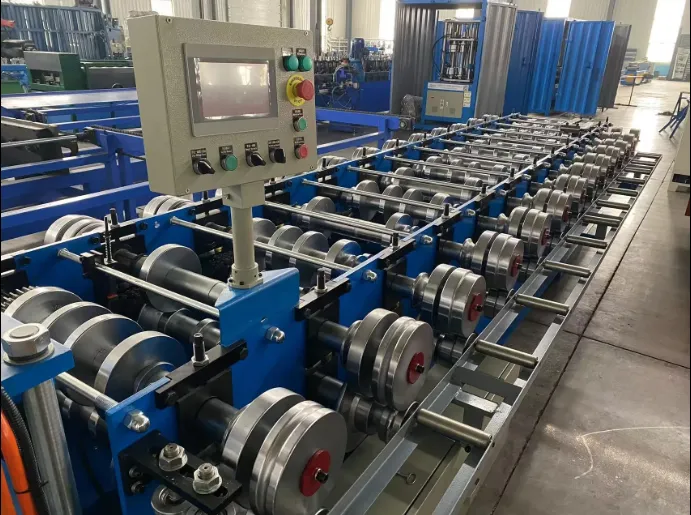

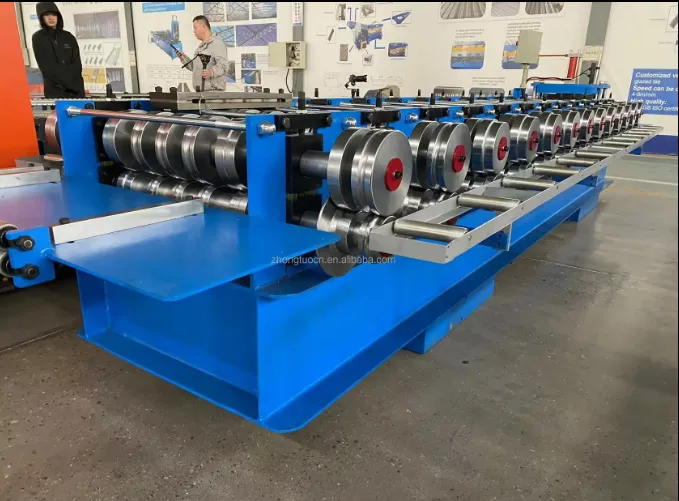

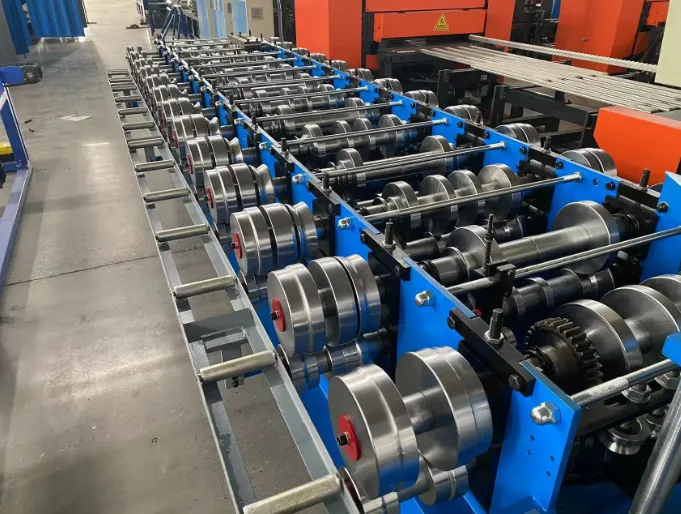

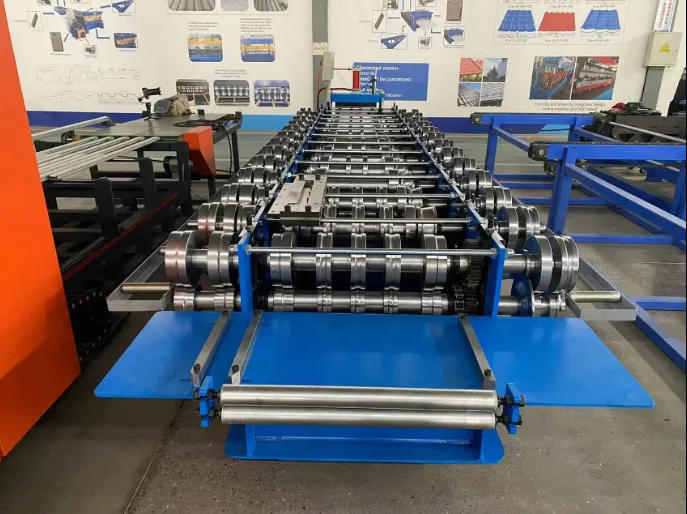

Main roll forming machine

1.Shaft material:45# steel with quenched treatment
2.Shaft diameter: 70mm
3.Roller station:18 stations
4.Roller material: 45# steel with chromed
5.Motor power: 5.5kw
6.Speed: 0-10m/min
7.Transmission:gear and chain
8.Voltage:customized

Hydraulic cutting system

1.Feature: it is used to make the step , the glazed tile's final formed.
2.Material of mold: Cr12 quenched

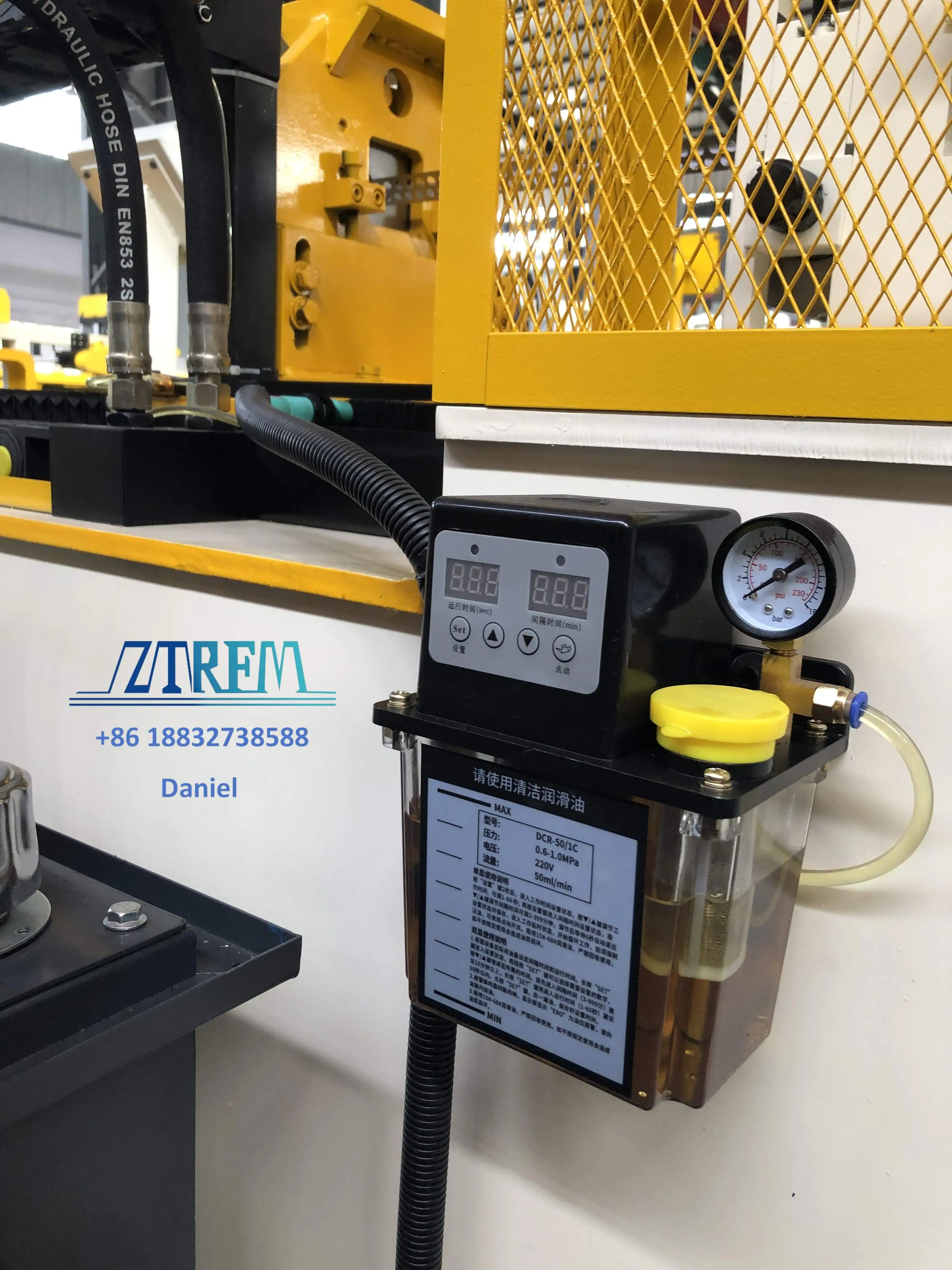

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

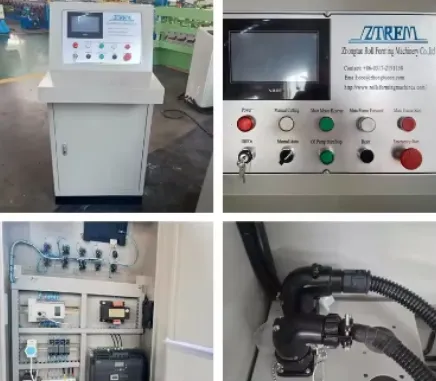

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control2.Adopt touch screen for easy operation.3.Adopt aviation plugs for easy installation

4.Languages can be customized

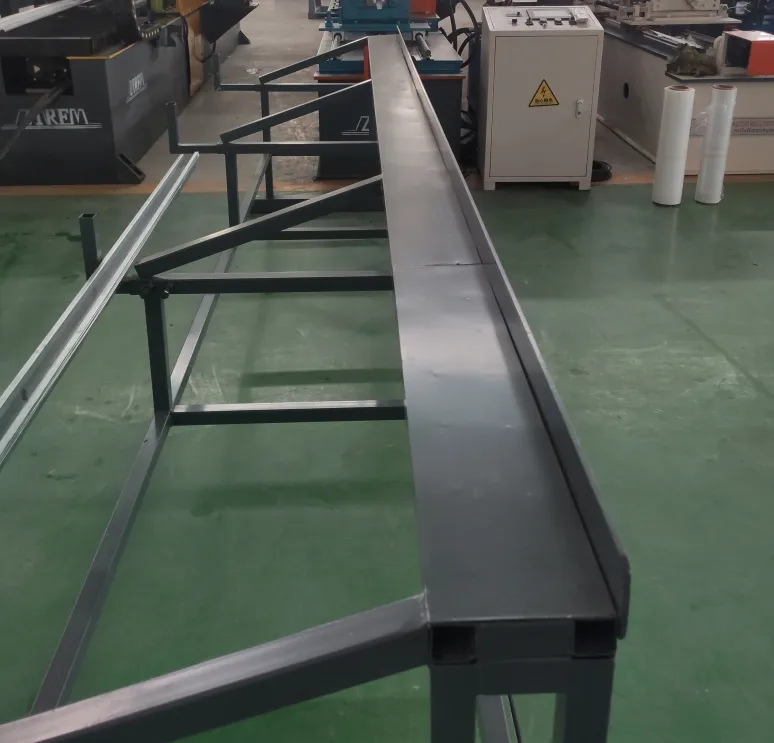

Production receive table

1.Convenient collection of finished products

2.Protecting worker safety

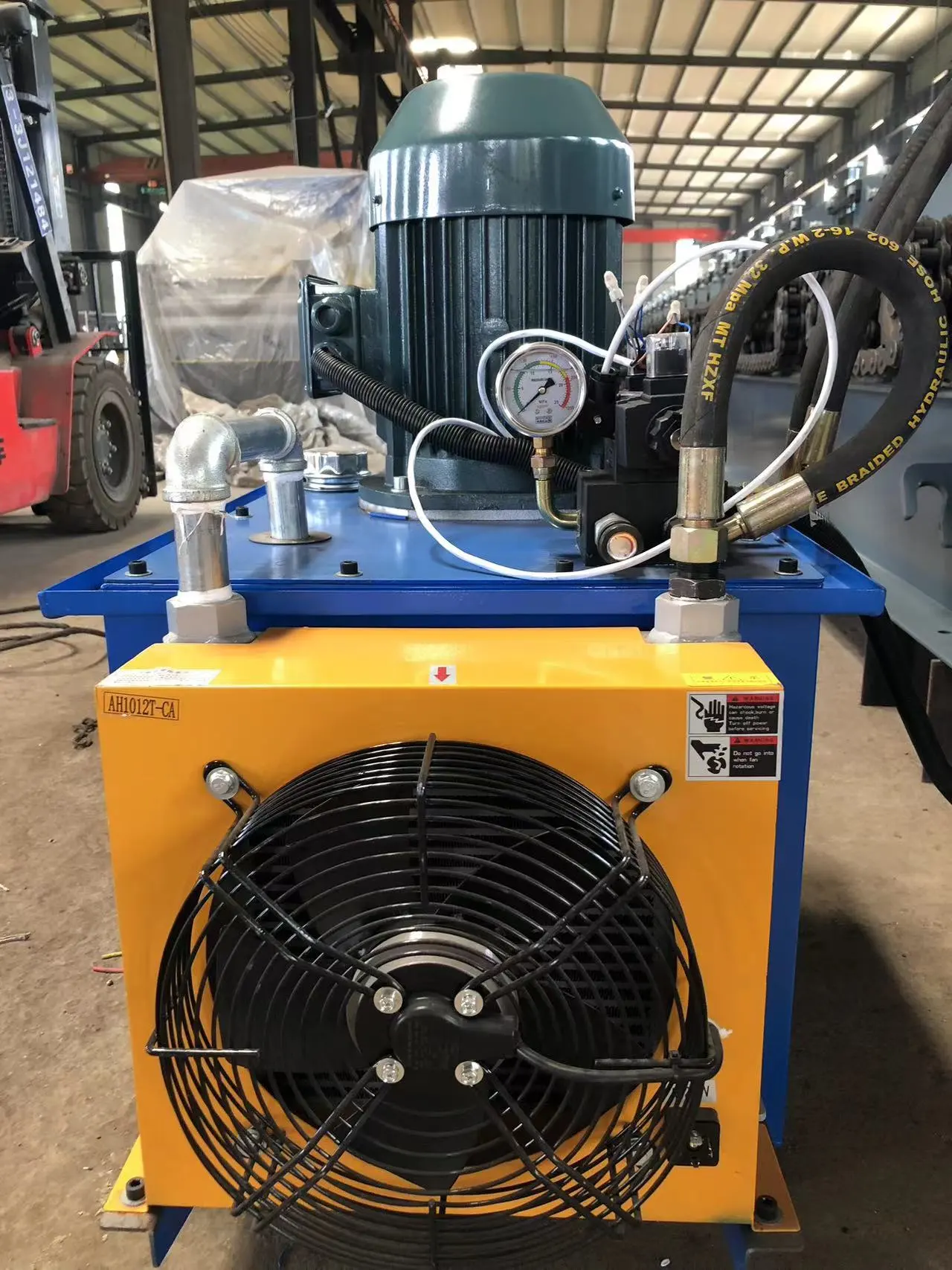

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

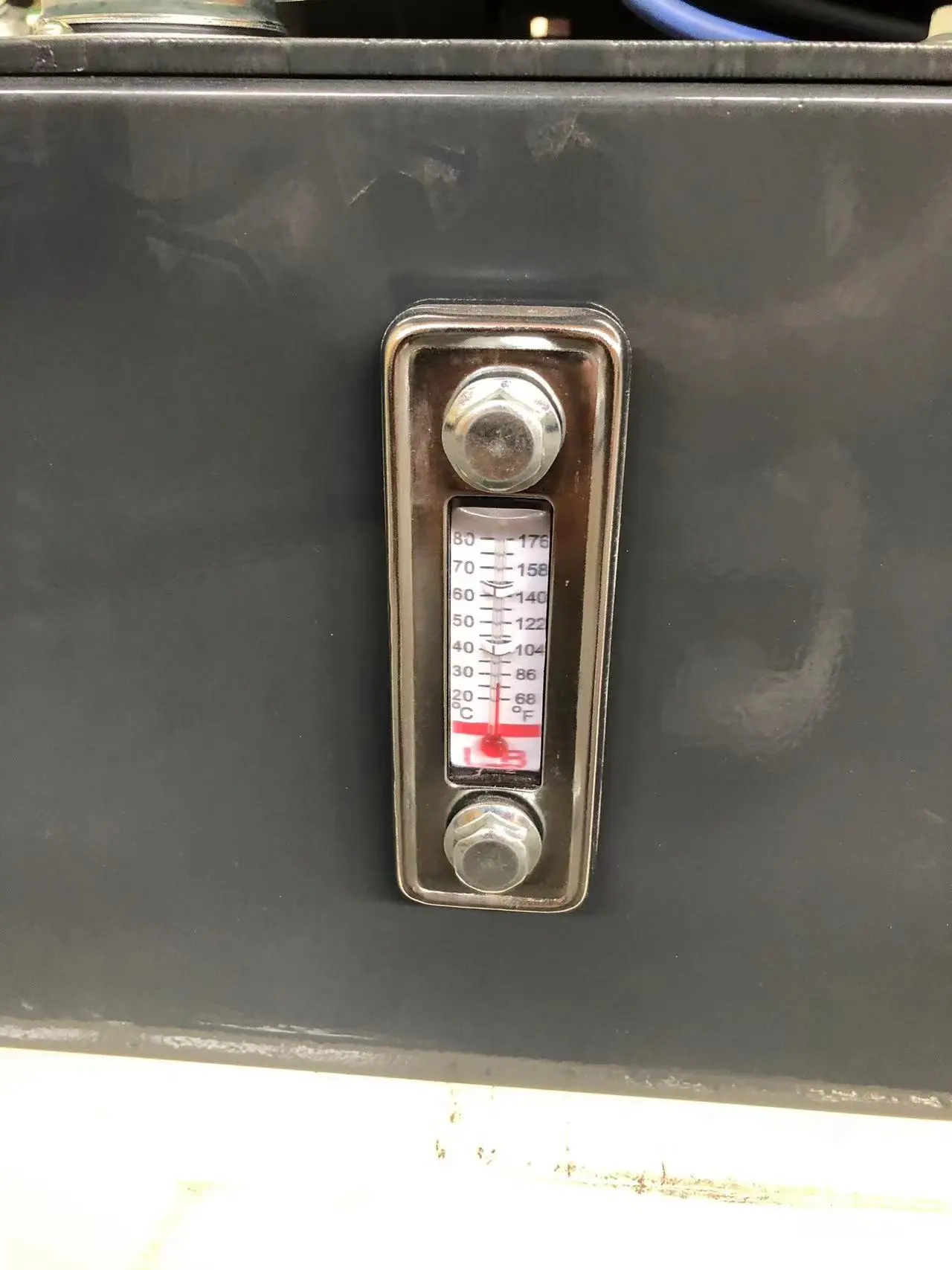

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster
