Bemo Roof Panel Roll Forming Machine Automatic Standing Seam Roofing Machine 8–15 m/min

The YXB65-430 Bemo Roof Panel Roll Forming Machine is an automatic production solution for manufacturing high-quality standing seam metal roof panels. The line combines continuous roll forming, hydraulic cutting, and panel seaming to help roofing manufacturers produce consistent panels with less manual work.

Designed for both straight and tapered roofing applications, this standing seam roofing machine can process steel and aluminum coils into durable roof panels. Its compact configuration also makes transportation easier, which is particularly useful for international projects and mobile roofing operations.

Versatile Production of Standing Seam Roof Panels

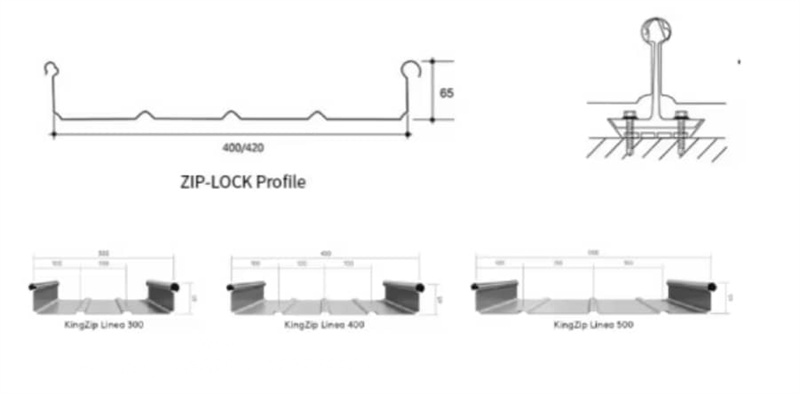

The machine is designed around the requirements of modern standing seam roofing systems. It can produce panels in different effective widths, including 400 mm and 425 mm, while maintaining a consistent 65 mm profile height.

Unlike a conventional roof sheet machine that mainly produces straight panels, this equipment can also support tapered roof panel forming. This feature allows contractors to manufacture panels for roofs with changing widths, special architectural layouts, and customized designs.

The production line can work with:

• Steel sheets: 0.5–0.8 mm

• Aluminum sheets: 0.7–1.0 mm

• Effective panel width: 400 / 425 mm

• Profile height: 65 mm

Consequently, users can select the appropriate material and panel configuration according to the specific roofing project.

Automatic Roll Forming and Precise Cutting

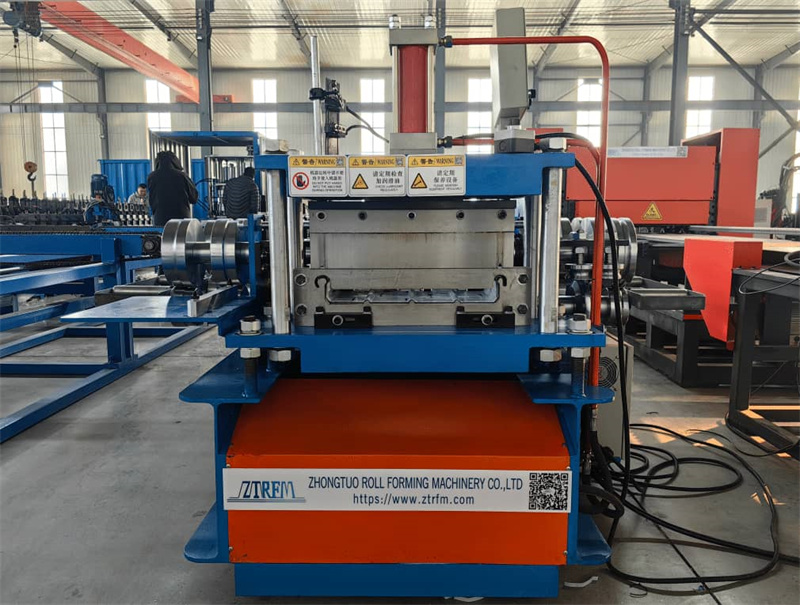

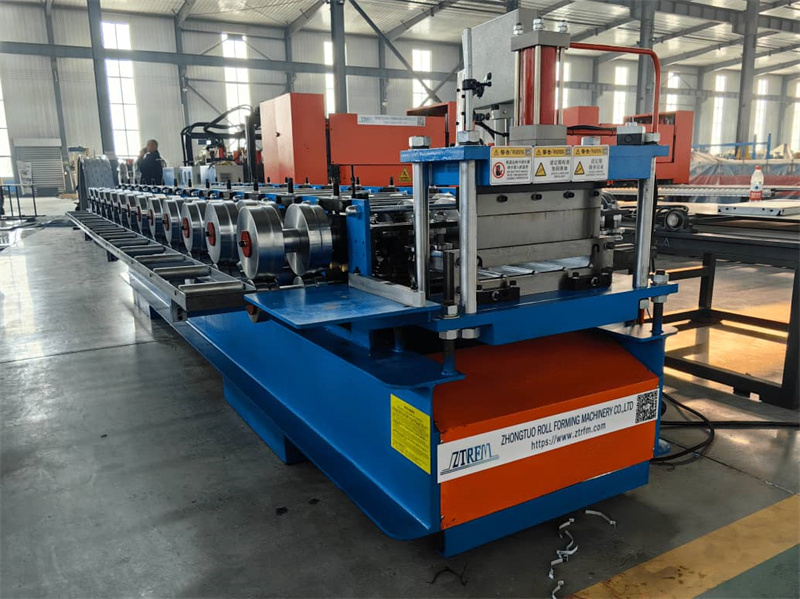

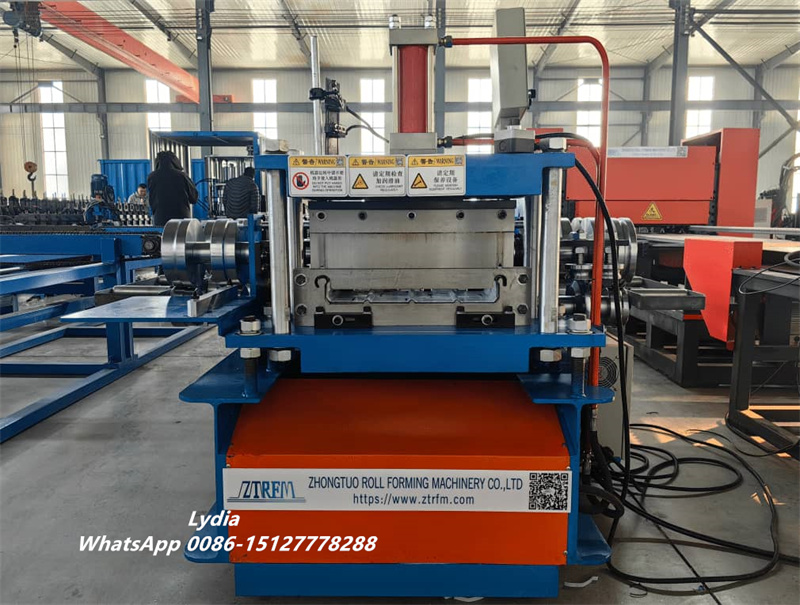

The metal roof roll forming machine uses multiple forming stations to gradually shape the metal strip. This controlled forming process minimizes sudden deformation and helps maintain a uniform standing seam profile throughout the panel.

A Schneider PLC control system and touchscreen manage the main production operations. Operators can enter the required panel length and quantity through the interface, after which the system automatically coordinates feeding, forming, and cutting.

Furthermore, the hydraulic post-cutting system uses Cr12MoV tool steel with heat treatment. This construction improves cutter durability and allows the machine to achieve reliable cutting performance during continuous production.

The forming rollers are manufactured from 45# steel and processed using CNC machining. Optional hard chrome plating can further improve roller wear resistance for customers who require extended service life.

Main Technical Specifications

The following specifications provide an overview of the standard YXB65-430 roofing panel machine configuration:

Item	Specification
Machine Model	ZT65-400-425
Panel Width	400 / 425 mm
Material Width	575 / 600 mm
Profile Height	65 mm
Steel Thickness	0.5–0.8 mm
Aluminum Thickness	0.7–1.0 mm
Forming Speed	8–15 m/min
Forming Stations	13
Main Motor	7.5 kW × 2
Hydraulic Motor	2.2 kW
Control System	Schneider PLC + Touch Screen
Voltage	380 V / 50 Hz / 3 Phase
Cutter Material	Cr12MoV
Roller Material	45# Steel
Container	20GP

The actual configuration can be customized according to the customer's material specifications, electrical requirements, panel dimensions, and production capacity.

Compact and Portable Roofing Production Line

For overseas customers, transportation and installation can directly affect the overall project cost. Therefore, the portable roof forming line adopts a compact layout that allows the equipment to be loaded into a 20-foot GP container.

This configuration makes international transportation more convenient and helps contractors establish production capability close to the construction site. Instead of transporting long finished panels from a distant factory, users can produce the required panels where they are needed.

The standard production package can include the main roll forming machine, 5-ton manual or hydraulic uncoiler, automatic seamer, hand seamer, PLC control cabinet, run-out table, and operation manual.

As a result, customers can receive a relatively complete roofing production solution without purchasing each major component separately.

Applications and Production Advantages

The YXB65-430 is suitable for a wide range of commercial, industrial, architectural, and residential metal roofing projects. Its standing seam profile provides a clean appearance while the concealed fastening concept helps create a continuous roof surface.

The machine is particularly useful for manufacturers and contractors producing:

• Standing seam metal roof panels

• Bemo-style roofing panels

• Tapered roof panels

• Architectural metal roofing

With automatic control, adjustable production settings, tapered panel capability, and a container-friendly structure, the machine offers a practical combination of production flexibility, operating efficiency, and transportation convenience.

For roofing manufacturers looking to expand their product range, the YXB65-430 Bemo Roof Panel Roll Forming Machine provides a reliable way to produce straight and tapered standing seam panels from steel or aluminum coils. Its automated forming and cutting process reduces repetitive manual operations while helping maintain stable panel quality throughout production.
