Color Coated Steel System > Production Equipment > Floor decking roll forming machine

B Deck Machine Floor Deck Roll Forming Machine 0.8-1.5mm 20 m/min+Floor decking roll forming machine+7.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

B Deck Machine Floor Deck Roll Forming Machine 0.8-1.5mm 20 m/min+Floor decking roll forming machine+7.5kw

Name: B Deck Machine Floor Deck Roll Forming Machine 0.8-1.5mm 20 m/min+Floor decking roll forming machine+7.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT67817405

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 m/min

Model Number:

Floor decking roll forming machine

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Moq
1 Set
Raw Material
Galvanized coils, yield strength up to 550 MPa
Material Thickness
16-22 gauge (0.8 - 1.5 mm)
Machine Frame
400 H-beam steel welded
Roller Material
Gcr15, quench-treated HRC 58-60
Forming Stations
30 roller stations
Shaft Diameter
95 mm, 45# steel precision-machined
Forming Speed
0 - 15 m/min
Voltage
As customized
Transmission
Gear + 2-inch double chain with chain tensors

This line forms B-deck composite floor decking panels from galvanized coil with yield strength up to 550 MPa and thickness 0.8-1.5 mm. It runs 30 forming stations at 0-15 m/min on a 400 H-beam welded frame.

ZTRFM b deck floor deck roll forming machine - machine overview

Product Overview

The B-deck machine produces the trapezoidal floor deck profiles used as permanent formwork and composite floor reinforcement in steel-frame buildings. With 30 roller stations and a 400 H-beam frame, it keeps profile geometry stable on high-strength coil, and the gear-plus-double-chain transmission with chain tensors delivers steady feed for long production runs.

✔ 16-22 gauge (0.8-1.5 mm) galvanized coil, up to 550 MPa yield
✔ 30 forming stations, 95 mm shafts
✔ Gcr15 rollers, quench-treated HRC 58-60
✔ 400 H-beam welded frame, gear + double chain drive

Key Features

High-strength coil capable

Handles galvanized coil with yield strength up to 550 MPa, matching the structural grades used for composite floor decks.

Heavy-duty tooling

Gcr15 rollers quench-treated to HRC 58-60 on 95 mm 45# steel shafts keep the pass line accurate over long runs.

Stable frame and drive

400 H-beam welded frame with gear and 2-inch double chain plus chain tensors reduces vibration during deck forming.

Voltage flexibility

Working voltage is customized to the destination market, simplifying installation for export projects.

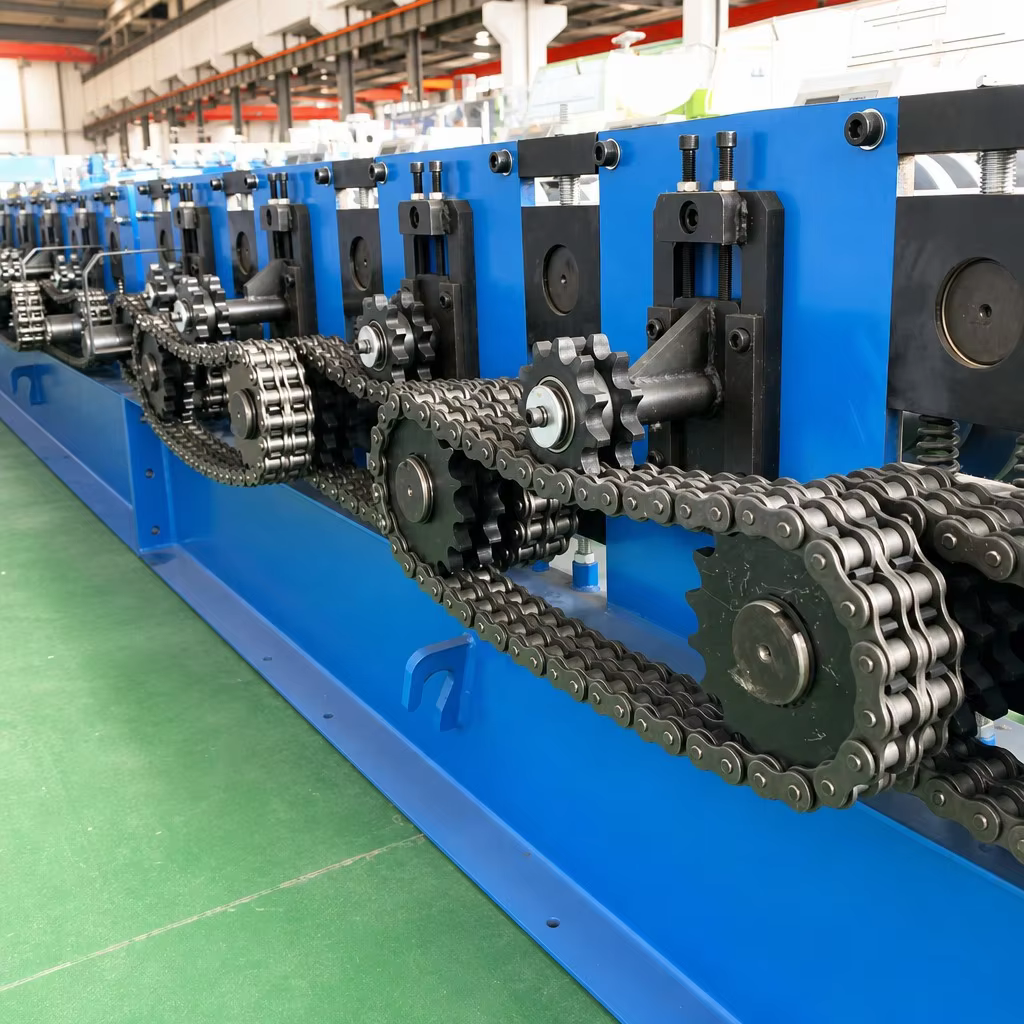

ZTRFM b deck floor deck roll forming machine - forming stations

Technical Specifications

Item	Specification
Raw Material	Galvanized coils, yield strength up to 550 MPa
Material Thickness	16-22 gauge (0.8 - 1.5 mm)
Machine Frame	400 H-beam steel welded
Roller Material	Gcr15, quench-treated HRC 58-60
Forming Stations	30 roller stations
Shaft Diameter	95 mm, 45# steel precision-machined
Forming Speed	0 - 15 m/min
Voltage	As customized
Transmission	Gear + 2-inch double chain with chain tensors

Customers can provide:
Deck Profile Drawing + Thickness + Width + Length

ZTRFM b deck floor deck roll forming machine - production line

Reference prices shown are for quotation only. Final price is subject to configuration - request a quote for exact pricing, MOQ and delivery time.

FAQ

Q: What steel grade can this B deck machine handle?

Galvanized coils with yield strength up to 550 MPa, in 16-22 gauge (0.8-1.5 mm), covering standard composite deck grades.

Q: What is the forming speed?

0-15 m/min, adjustable by the operator.

Q: Can voltage be set for my country?

Yes, working voltage is customized to the destination market.

After-Sales Service

Profile samples and roller adjustment support are provided for this deck line, with spare rollers available and answers within 24 hours.
