Automatic Trapezoidal Roof Sheet Roll Forming Machine 25m/min Standard

Overview

Trapezoidal roof sheet roll forming machine with finished blue PPGI roof panel sample

The Guinea Fully Automatic Trapezoidal Roof Sheet Making Machine is a roll forming line for producing trapezoidal corrugated metal roof and wall panels from PPGI, PPGL and galvanized steel coil. The coil feeds through a straightening and feeding unit, is shaped progressively through multiple roller stations into the trapezoidal profile and cut to length automatically. The line runs at up to 25 m/min and accepts feed widths of 914 mm, 1000 mm or 1220 mm, covering the most common coil widths used in West African and export markets.

The machine is painted orange, built on a heavy structural frame and driven by a 5.5 kW motor with a PLC imported-brand control system. It is used by roofing sheet producers, building material suppliers and construction contractors producing colour steel roof panels.

• Trapezoidal profile from PPGI / PPGL / galvanized steel coil
• Forming speed 25 m/min; feed width 914 / 1000 / 1220 mm
• Rolling thickness 0.3–0.6 mm
• 5.5 kW drive; PLC (imported brand) control
• 45# forged steel shafts; fully automatic hydraulic cutting
• CE / ISO 9001 certified; machinery test report and video outgoing-inspection provided

Key Features

• Trapezoidal roof panel profile. The roller toolset is configured for the trapezoidal corrugated section widely used in residential, commercial and industrial roofing in West Africa and other export markets. Panel color and profile dimensions are customizable.
• Three feed-width options. The machine accepts 914 mm, 1000 mm and 1220 mm coil widths, covering the standard sheet widths used in the Guinea and West African roofing market.
• 45# forged high-grade steel shafts. Forming shafts are made from No. 45 forged steel for dimensional stability and longevity on continuous production runs.
• PLC imported-brand control. The control system manages forming speed, cut length and piece count automatically; operators set parameters on the panel without manual intervention during production.
• Fully automatic operation. From coil entry to cut-to-length panel, the process runs automatically; the line includes a hydraulic cutting unit and a run-out table.
• Voltage customizable. Standard supply is 380 V; other voltages are available to match local grid standards.
• CE / ISO 9001 certified. The machine ships with CE and ISO 9001 certification documentation, a machinery test report and a video outgoing-inspection record.

Technical Specifications

Item	Specification
Product name	Guinea Fully Automatic Trapezoidal Roof Sheet Making Machine
Machine type	Roll forming machine
Usage	Roof tile panel production
Applicable material	PPGI, PPGL, galvanized steel
Rolling thickness	0.3–0.6 mm
Feeding width	914 mm / 1000 mm / 1220 mm
Forming speed	25 m/min
Motor power	5.5 kW
Voltage	380 V (customizable)
Control system	PLC (imported brand)
Shaft material	High-grade No. 45 forged steel
Core components	motor, bearing, pump, engine
Machine dimension (L × W × H)	8.5 × 1.2 × 1.6 m
Weight	7000 kg
Warranty	2 years (machine warranty); after-sales service support provided
Certification	CE, ISO 9001
Machinery test report	Provided
Video outgoing-inspection	Provided
Place of origin	Hebei, China

Machine Structure

The forming line is built on a long, rigid orange-painted structural base. The coil enters from the right through the feeding and straightening section, then passes through multiple rows of forming stations where the trapezoidal corrugations are progressively shaped. A chain drive runs along the side of the frame. At the exit end a hydraulic cutting unit cuts the panel to the programmed length and deposits it on the run-out table. The PLC control cabinet is mounted separately at the head of the line.

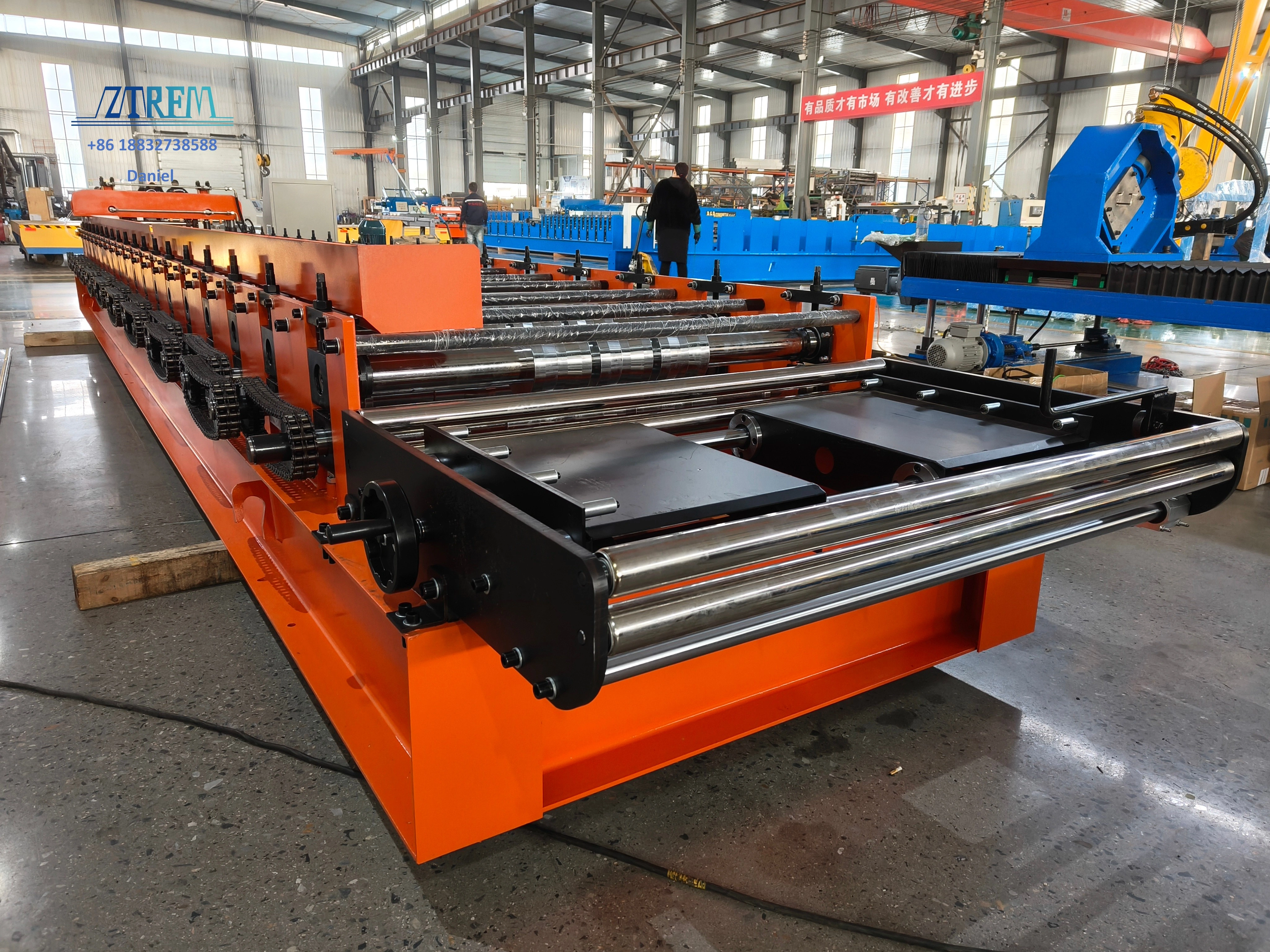

Full trapezoidal roof sheet roll forming line in workshop — forming stations, drive and cutting unit

Forming roller stations from the output side showing the run-out table and roller arrangement

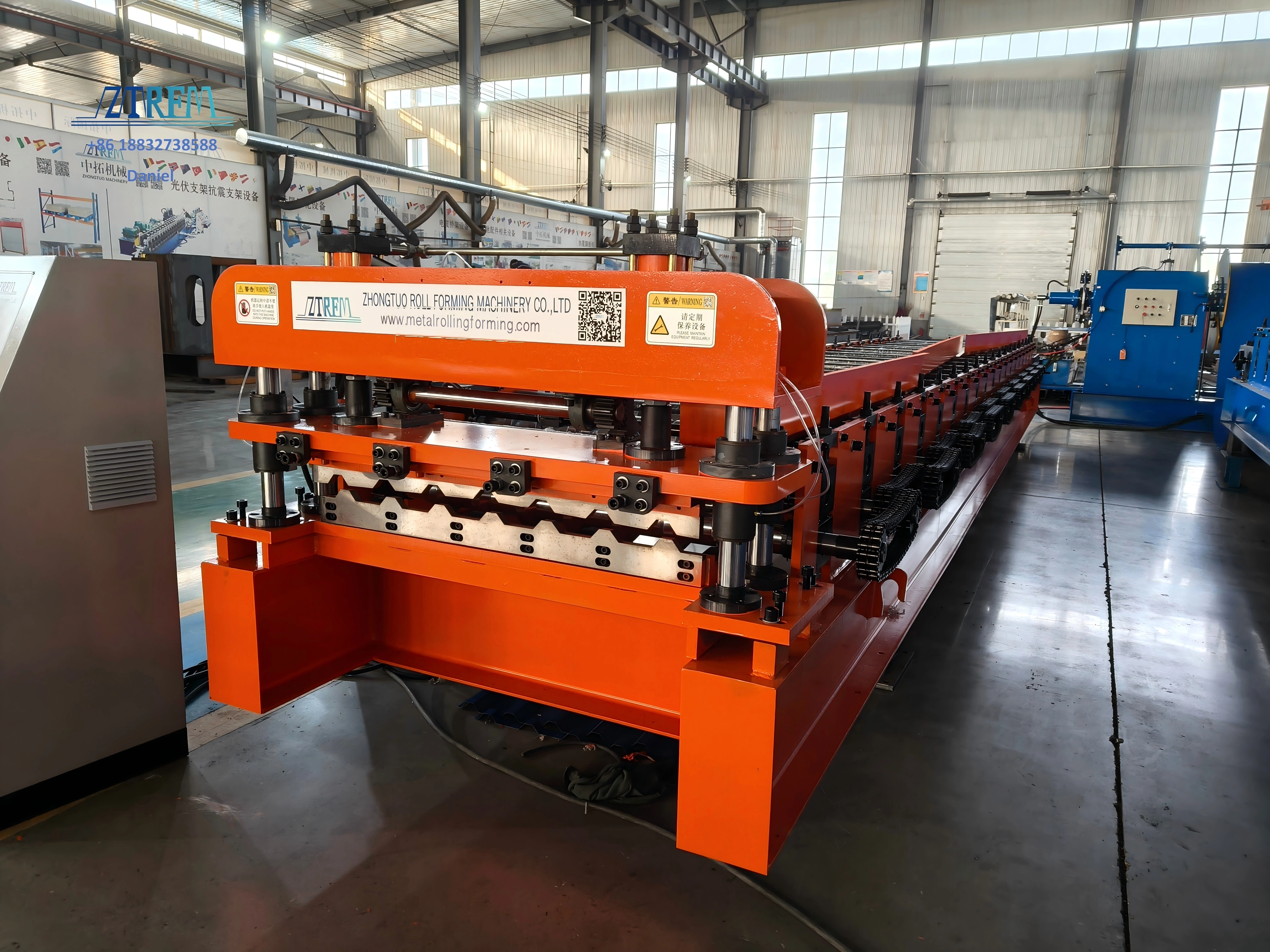

Machine head front view with PLC control cabinet

Applications & Sample Product

The machine is used by roofing panel producers in West Africa, South-East Asia and other export markets to produce trapezoidal colour steel roof sheets for residential housing, commercial buildings and industrial facilities. The finished panels are supplied in standard or custom lengths; the profile and feed width are selected to match the local market specification.

Full forming line showing infeed, roller stations and run-out end

Finished blue PPGI trapezoidal corrugated roof panel samples

Customization Options

Item	Option
Profile	Trapezoidal profile dimensions customizable per drawing or sample
Feed width	914 mm, 1000 mm or 1220 mm; other widths available
Voltage	380 V standard; other voltages customizable
Packaging	Wooden carton (standard)

Packing & Delivery

Item	Detail
Selling unit	1 set
Package type	Wooden carton
Package size (L × W × H)	850 × 120 × 160 cm
Gross weight	7000 kg
Lead time	40 days for 1 set; 50 days for 2 sets

FAQ

What profile does the machine produce?

Trapezoidal corrugated metal roof and wall panels from PPGI, PPGL or galvanized steel coil. Profile dimensions are customizable per drawing or sample.

What coil widths are accepted?

914 mm, 1000 mm and 1220 mm; other widths can be accommodated.

What thickness of steel can it process?

0.3 mm to 0.6 mm rolling thickness.

Can the voltage be changed?

Yes. The standard voltage is 380 V and can be customized at order confirmation to match the local power supply.

What is the delivery lead time?

40 days for one set; 50 days for two sets.

What documentation is provided?

CE and ISO 9001 certifications, machinery test report and video outgoing-inspection record are provided with the machine.
