Automatic Trapezoidal Roof Panel Roll Forming Machine 15m/min 15m/min

Automatic 15m/min Trapezoidal Roof Panel Roll Forming Line for Roof Construction

Zhongtuo Automatic Trapezoidal Roof Panel Roll Forming Machine is specially designed for producing high-quality trapezoidal metal roofing sheets from color coated steel coils. With a stable structure, precise forming rollers, and advanced PLC control system, this machine provides efficient and reliable production solutions for roofing manufacturers.

Designed according to customer's specific profile requirements, this production line ensures smooth surface quality, accurate dimensions, and excellent overlap performance, making it ideal for residential, commercial, and industrial roofing applications.



The trapezoidal roof panels produced by this machine are widely used in:

✅ Industrial Buildings
✅ Warehouses
✅ Commercial Buildings
✅ Steel Structure Workshops
✅ Agricultural Buildings
✅ Residential Roofing Systems



Technical Specification:

Product Name	Trapezoidal Roof Panel Roll Forming Machine
Raw Material	Color Coated Steel Coil
Material Thickness	0.3-0.6 mm
Production Speed	15 m/min
Forming Stations	19 Stations
Shaft Diameter	80 mm
Roller Material	45# Steel, Hard Chrome Plated
Cutting Type	Hydraulic Cutting
Transmission	Double Chain Drive
Decoiler Capacity	5 Ton Manual Decoiler
Voltage	380V / 50Hz / 3 Phase
Control System	Siemens PLC + Touch Screen
Hydraulic Power	5.5 kW

Customized Panel Production

According to different project requirements, the machine can manufacture various trapezoidal roof panel designs, including:

Panel width, height, hole pattern, and profile shape can be customized based on customer drawings.

1.Manual Decoiler

The machine is equipped with a 5-ton manual decoiler for stable coil feeding.

Features:
Strong loading capacity
Simple operation
Reliable coil support
Smooth material feeding
The decoiler helps ensure continuous production and improves working efficiency.

2.  High Precision Roll Forming System

The machine adopts a multi-stage roll forming structure with 19 forming stations, ensuring smooth and gradual forming of the metal sheet.

Production speed can reach up to 15 m/min
Suitable for mass production of trapezoidal roofing sheets.

The machine supports:

Automatic length measurement
Manual pulling cutter
Total length counting function
Easy operation

3. Machine Technical Advantages

a. Stable Heavy-Duty Machine Frame

The main frame is designed with a strong welded structure to guarantee stability during long-term operation.

Features:

High-strength steel construction
Excellent vibration resistance
Stable operation at high speed
Suitable for continuous production

The robust machine structure ensures reliable performance even under demanding working conditions.

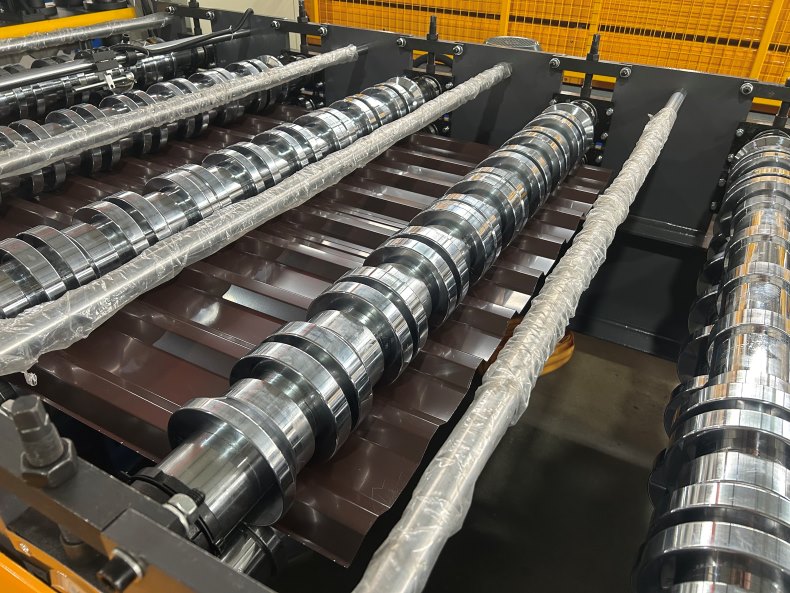

b. High Quality Rollers

The rollers are made of 45# steel with hard chrome plating, featuring:

High hardness
Excellent wear resistance
Long service life
Rust prevention
Smooth finished product surface

The forming process avoids scratches and deformation, ensuring perfect roofing panel quality.

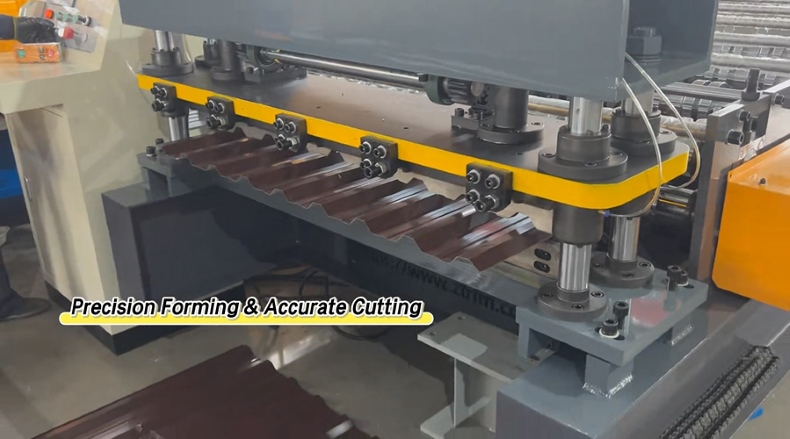

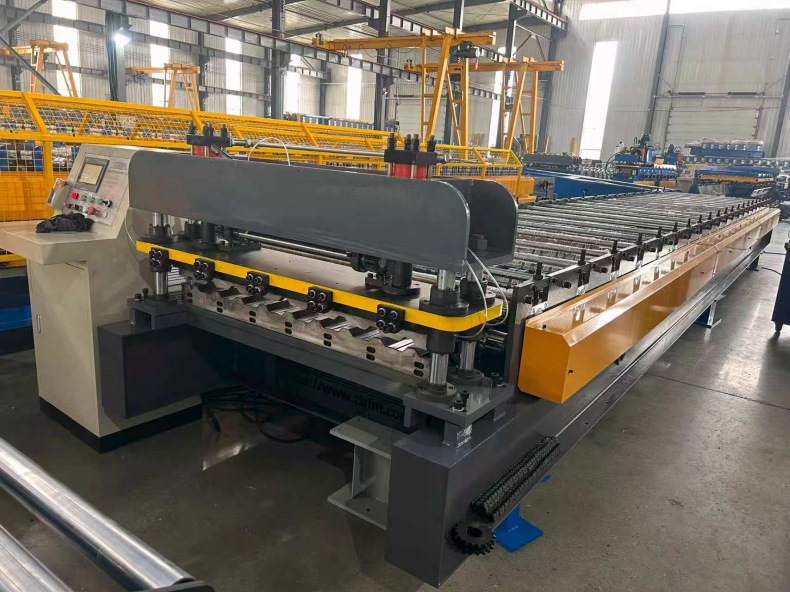

 4. Automatic Hydraulic Cutting System

The machine is equipped with a hydraulic cutting system for precise sheet cutting.

Advantages:
No deformation after cutting
Clean and smooth cutting edge
Fast response
Low maintenance requirement

The cutting length can be set according to customer requirements, improving production efficiency.

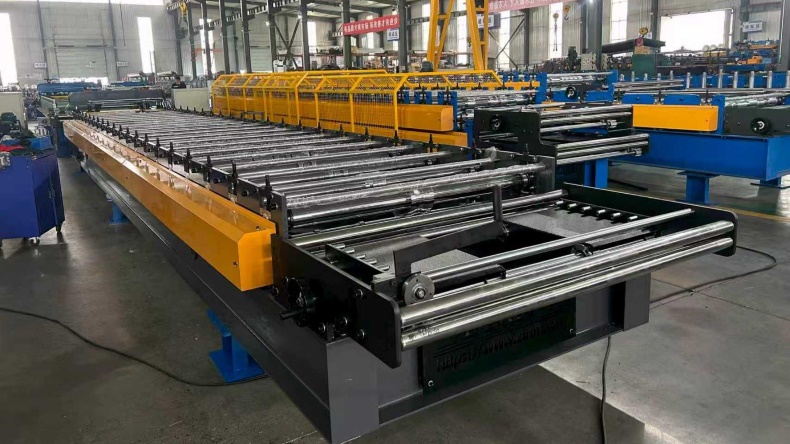

5. Feeding & Connection Platform

A 6m × 1.25m manual feeding platform is equipped to support smooth material guiding.

 6. Siemens PLC Control System

The electrical control system adopts internationally recognized components:

Siemens touch screen PLC
Schneider low-voltage electrical components
Frequency converter control
The control panel supports: English、Chinese、Azerbaijani language customization

Operators can easily set production parameters, control machine speed, and monitor production status.

7.Hydraulic Station

The hydraulic station provides stable power for the cutting system.

Features:

Large capacity hydraulic oil tank: 300L
Equipped with air cooling system
Equipped with accumulator for stable pressure output
High-performance hydraulic components
The cooling system effectively prevents oil overheating and ensures reliable long-term operation.

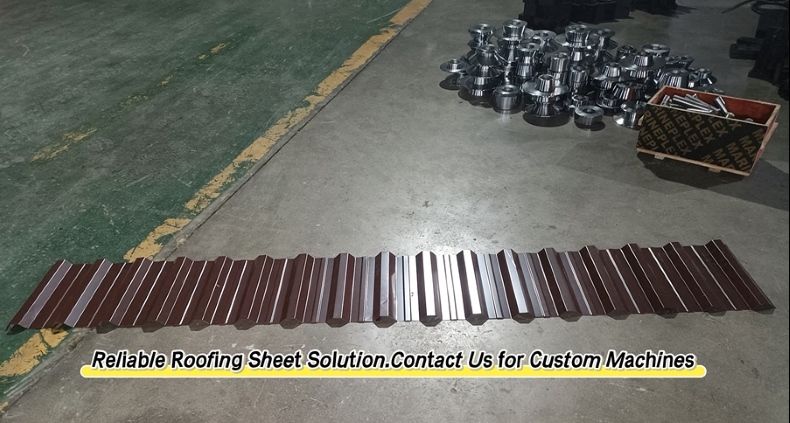

Finished Product Advantages

✔ Smooth surface appearance
✔ Accurate dimensions
✔ Excellent waterproof performance
✔ Easy installation
✔ Long service life
✔ Suitable for large-scale construction projects

Why Choose Zhongtuo Metal Trapezoidal Roof Tile Machine?

With more than 20 years of experience in roll forming technology, Zhongtuo provides customized metal forming solutions worldwide.
We offer:

✔ Customized profile design
✔ Professional production support
✔ Remote technical service
✔ Complete installation guidance
✔ Long-term after-sales support

Zhongtuo — Professional Roll Forming Solutions for Global Metal Construction Industry.
