    Automatic TH35 TS35/7.5 DIN Rail Roll Forming Machine Standard
    General Industry Tech Hebei Developing Co.,Ltd
    Supplier Qualification

    Automatic TH35 TS35/7.5 DIN Rail Roll Forming Machine Standard

    $15,000.00/ Set
    Min. Order:1 Set

    Coupons: More >

    You can log in to view more discounted prices.Login Now

    Order CodeZT119955875
    PlcDELTA or SIEMENS
    CertificationCE, BV, STV, ISO
    Machine Weight4500 kg
    WarrantyMore than 5 years
    Work PressureSupport customized
    After-Sales ServiceService machinery overseas
    Shipping:
    Delivery to:
    • Select country
    • 中国
    • Afghanistan
    • Aland Islands
    • Albania
    • Algeria
    • American Samoa
    • Andorra
    • Angola
    • Anguilla
    • Antarctica
    • Antigua and Barbuda
    • Argentina
    • Armenia
    • Aruba
    • Australia
    • Austria
    • Azerbaijan
    • Bahamas
    • Bahrain
    • Bangladesh
    • Barbados
    • Belarus
    • Belgium
    • Belize
    • Benin
    • Bermuda
    • Bhutan
    • Bolivia
    • Bonaire, Saint Eustatius and Saba
    • Bosnia and Herzegovina
    • Botswana
    • Bouvet Island
    • Brazil
    • British Indian Ocean Territory
    • British Virgin Islands
    • Brunei
    • Bulgaria
    • Burkina Faso
    • Burundi
    • Cabo Verde
    • Cambodia
    • Cameroon
    • Canada
    • Cayman Islands
    • Central African Republic
    • Chad
    • Chile
    • Christmas Island
    • Cocos Islands
    • Colombia
    • Comoros
    • Cook Islands
    • Costa Rica
    • Croatia
    • Cuba
    • Curacao
    • Cyprus
    • Czechia
    • Democratic Republic of the Congo
    • Denmark
    • Djibouti
    • Dominica
    • Dominican Republic
    • Ecuador
    • Egypt
    • El Salvador
    • Equatorial Guinea
    • Eritrea
    • Estonia
    • Eswatini
    • Ethiopia
    • Falkland Islands
    • Faroe Islands
    • Fiji
    • Finland
    • France
    • French Guiana
    • French Polynesia
    • French Southern Territories
    • Gabon
    • Gambia
    • Georgia
    • Germany
    • Ghana
    • Gibraltar
    • Greece
    • Greenland
    • Grenada
    • Guadeloupe
    • Guam
    • Guatemala
    • Guernsey
    • Guinea
    • Guinea-Bissau
    • Guyana
    • Haiti
    • Heard Island and McDonald Islands
    • Honduras
    • Hungary
    • Iceland
    • India
    • Indonesia
    • Iran
    • Iraq
    • Ireland
    • Isle of Man
    • Israel
    • Italy
    • Ivory Coast
    • Jamaica
    • Japan
    • Jersey
    • Jordan
    • Kazakhstan
    • Kenya
    • Kiribati
    • Kosovo
    • Kuwait
    • Kyrgyzstan
    • Laos
    • Latvia
    • Lebanon
    • Lesotho
    • Liberia
    • Libya
    • Liechtenstein
    • Lithuania
    • Luxembourg
    • Madagascar
    • Malawi
    • Malaysia
    • Maldives
    • Mali
    • Malta
    • Marshall Islands
    • Martinique
    • Mauritania
    • Mauritius
    • Mayotte
    • Mexico
    • Micronesia
    • Moldova
    • Monaco
    • Mongolia
    • Montenegro
    • Montserrat
    • Morocco
    • Mozambique
    • Myanmar
    • Namibia
    • Nauru
    • Nepal
    • Netherlands Antilles
    • New Caledonia
    • New Zealand
    • Nicaragua
    • Niger
    • Nigeria
    • Niue
    • Norfolk Island
    • North Korea
    • North Macedonia
    • Northern Mariana Islands
    • Norway
    • Oman
    • Pakistan
    • Palau
    • Palestinian Territory
    • Panama
    • Papua New Guinea
    • Paraguay
    • Peru
    • Philippines
    • Pitcairn
    • Poland
    • Portugal
    • Puerto Rico
    • Qatar
    • Republic of the Congo
    • Reunion
    • Romania
    • Russia
    • Rwanda
    • Saint Barthelemy
    • Saint Helena
    • Saint Kitts and Nevis
    • Saint Lucia
    • Saint Martin
    • Saint Pierre and Miquelon
    • Saint Vincent and the Grenadines
    • Samoa
    • San Marino
    • Sao Tome and Principe
    • Saudi Arabia
    • Senegal
    • Serbia
    • Serbia and Montenegro
    • Seychelles
    • Sierra Leone
    • Singapore
    • Sint Maarten
    • Slovakia
    • Slovenia
    • Solomon Islands
    • Somalia
    • South Africa
    • South Georgia and the South Sandwich Islands
    • South Korea
    • South Sudan
    • Spain
    • Sri Lanka
    • Sudan
    • Suriname
    • Svalbard and Jan Mayen
    • Sweden
    • Switzerland
    • Syria
    • Tajikistan
    • Tanzania
    • Thailand
    • The Netherlands
    • Timor Leste
    • Togo
    • Tokelau
    • Tonga
    • Trinidad and Tobago
    • Tunisia
    • Turkey
    • Turkmenistan
    • Turks and Caicos Islands
    • Tuvalu
    • U.S. Virgin Islands
    • Uganda
    • Ukraine
    • United Arab Emirates
    • United Kingdom
    • United States
    • United States Minor Outlying Islands
    • Uruguay
    • Uzbekistan
    • Vanuatu
    • Vatican
    • Venezuela
    • Vietnam
    • Wallis and Futuna
    • Western Sahara
    • Yemen
    • Zambia
    • Zimbabwe
    • Select province
    • Select city

    Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

    Specification:

    Model:
    Standard
    Payment:
    Transaction Protection:
    • Secure payments
    • Money-back protection
    • 24/7 support
    • Data privacy
    ZT119955875
    Quantity:
    -
    +
    Add to RFQ CartSend Inquiry
    • Product Details
    • Reviews(0)

    • Technical Specifications

      • Plc
        DELTA or SIEMENS
      • Certification
        CE, BV, STV, ISO
      • Machine Weight
        4500 kg
      • Warranty
        More than 5 years
      • Work Pressure
        Support customized
      • After-Sales Service
        Service machinery overseas
      • Roller Stations
        8 rollers
      • Forming Speed
        25 m/min
      • Power
        5.5 kW
      • Voltage
        220 V / 380 V / 440 V
      • Roller Material
        Cr12
      • Shaft Material
        45# steel, OD 50 mm
      • Punching Material
        Cr12MoV
      • Cutting Type
        Hydraulic cutting

      Automatic TH35 TS35 DIN rail roll forming machine

      Product Overview

      The automatic TH35/TS35/7.5 DIN rail roll forming machine produces standard DIN mounting rails (top-hat profile) from galvanized steel coils, with a punching station for the slotted holes and a hydraulic cutting system for accurate length control. It is widely used to produce slotted iron rails for electrical enclosure and panel board installation.

      • 8 roller stations for accurate and consistent rail shaping
      • Punching station with Cr12MoV dies for slotted holes
      • Hydraulic cutting for clean, precise rail lengths
      • PLC control (DELTA or SIEMENS), forming speed 25 m/min
      • Cr12 rollers and 45# steel shafts, easy to operate
      • CE, BV, STV and ISO certified

      Key Features

      • High Precision Forming - Ensures accurate and consistent rail shaping for standard TH35, TS35 and 7.5 DIN rail profiles.
      • Stable Operation - Reliable performance for long-term use with an 8-station forming line and heavy-duty construction.
      • Low Maintenance - Cr12 rollers and 45# steel shafts reduce downtime and operational costs.
      • Customizable Solutions - Work pressure, packaging and core components support personalized requirements.
      • Professional After-Sales Support - Service machinery overseas; assists with installation and troubleshooting.

      Technical Specifications

      Item Specification
      Profiles TH35, TS35, 7.5 DIN rail (top-hat profile)
      Roller stations 8 rollers
      Forming speed 25 m/min
      Roller material Cr12
      Shaft material 45# steel, outer diameter 50 mm
      Punching material Cr12MoV
      Cutting type Hydraulic cutting
      PLC DELTA or SIEMENS
      Power 5.5 kW
      Voltage 220 V / 380 V / 440 V
      Work pressure Support customized
      Machine weight 4500 kg
      Certification CE, BV, STV, ISO
      Warranty More than 5 years
      After-sales service Service machinery overseas; test report and video outgoing inspection provided

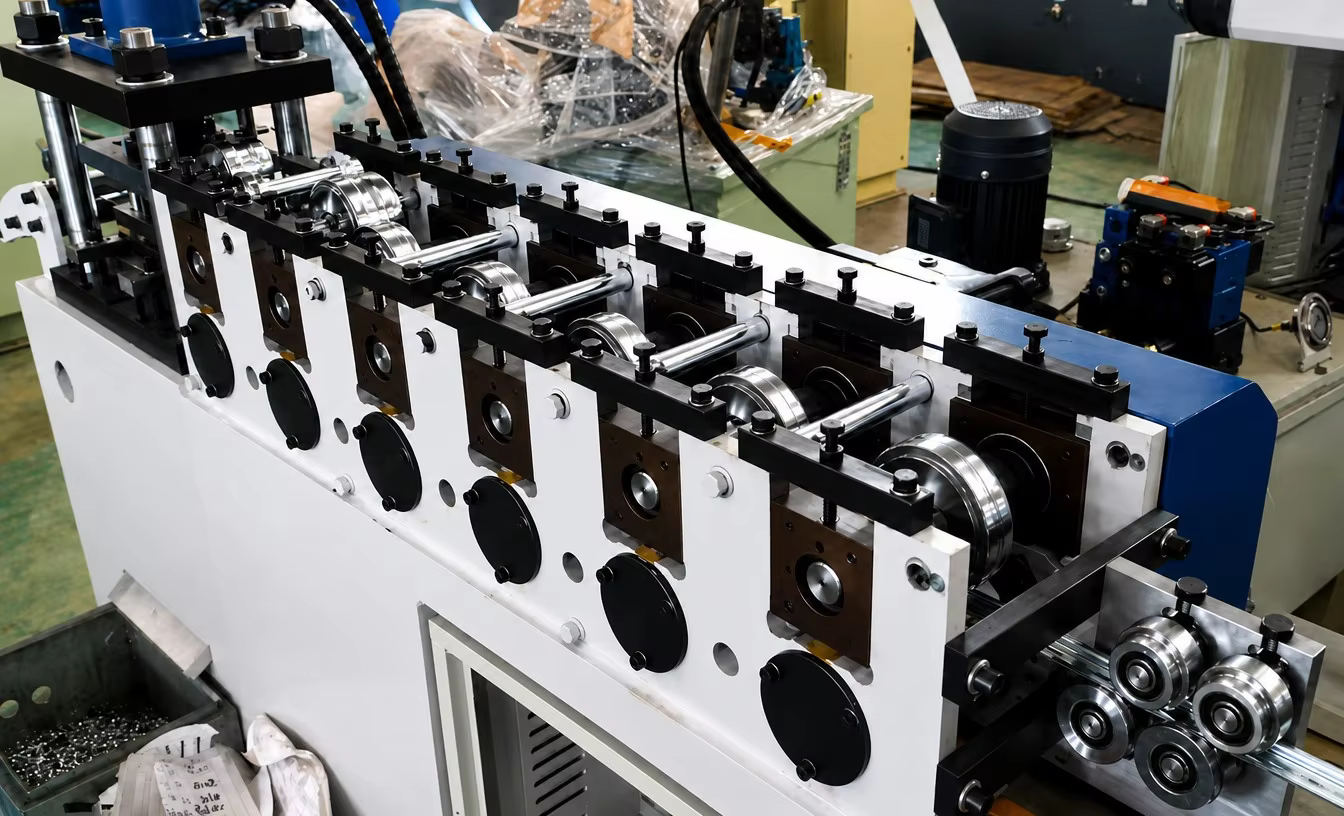

      Machine Structure

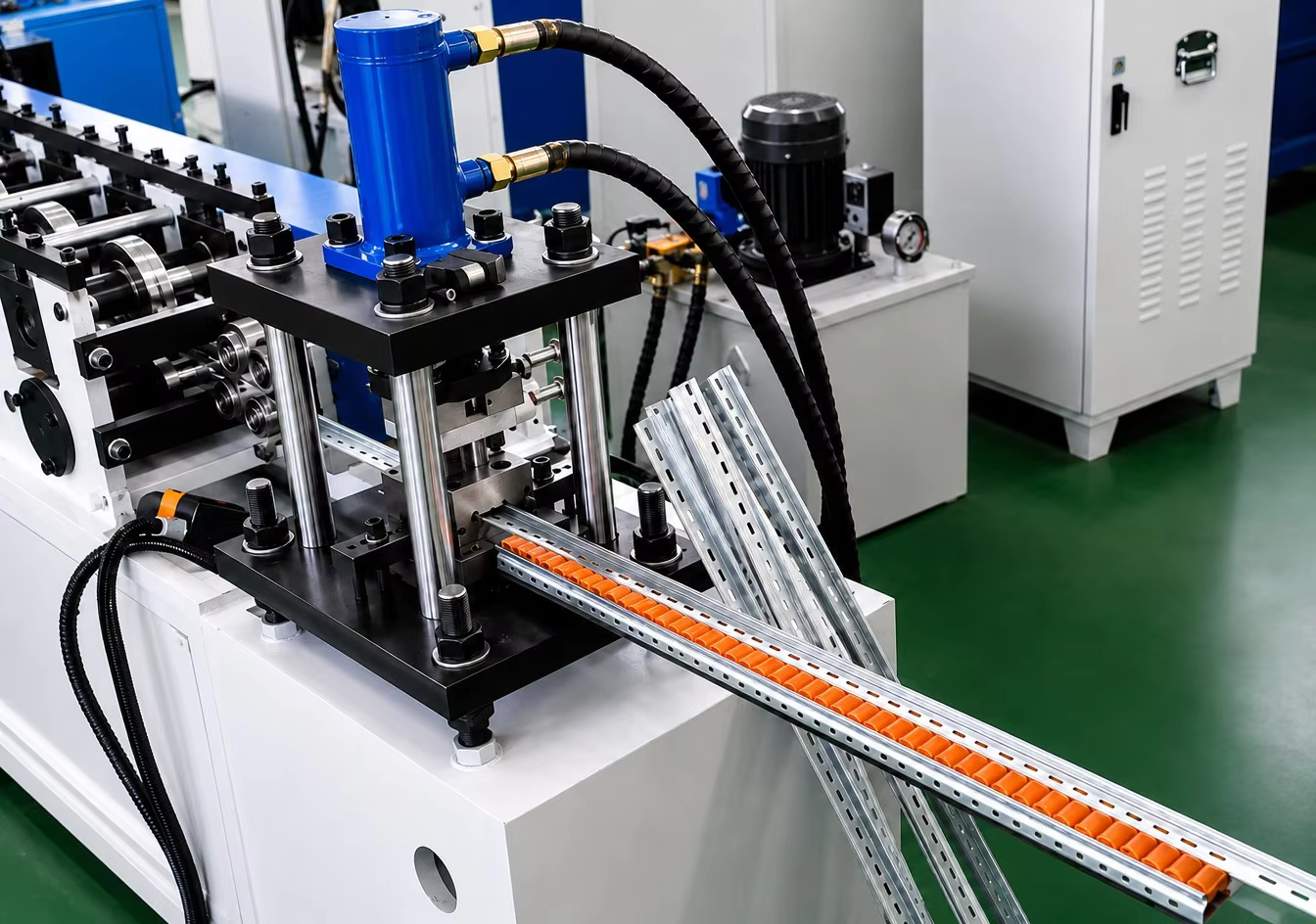

      DIN rail machine punching station with hydraulic cylinder

      The line combines an 8-station roll forming section with a hydraulic punching station and hydraulic cutting unit on a heavy-duty white frame, forming and punching the galvanized strip into slotted DIN rails in one pass.

      Applications

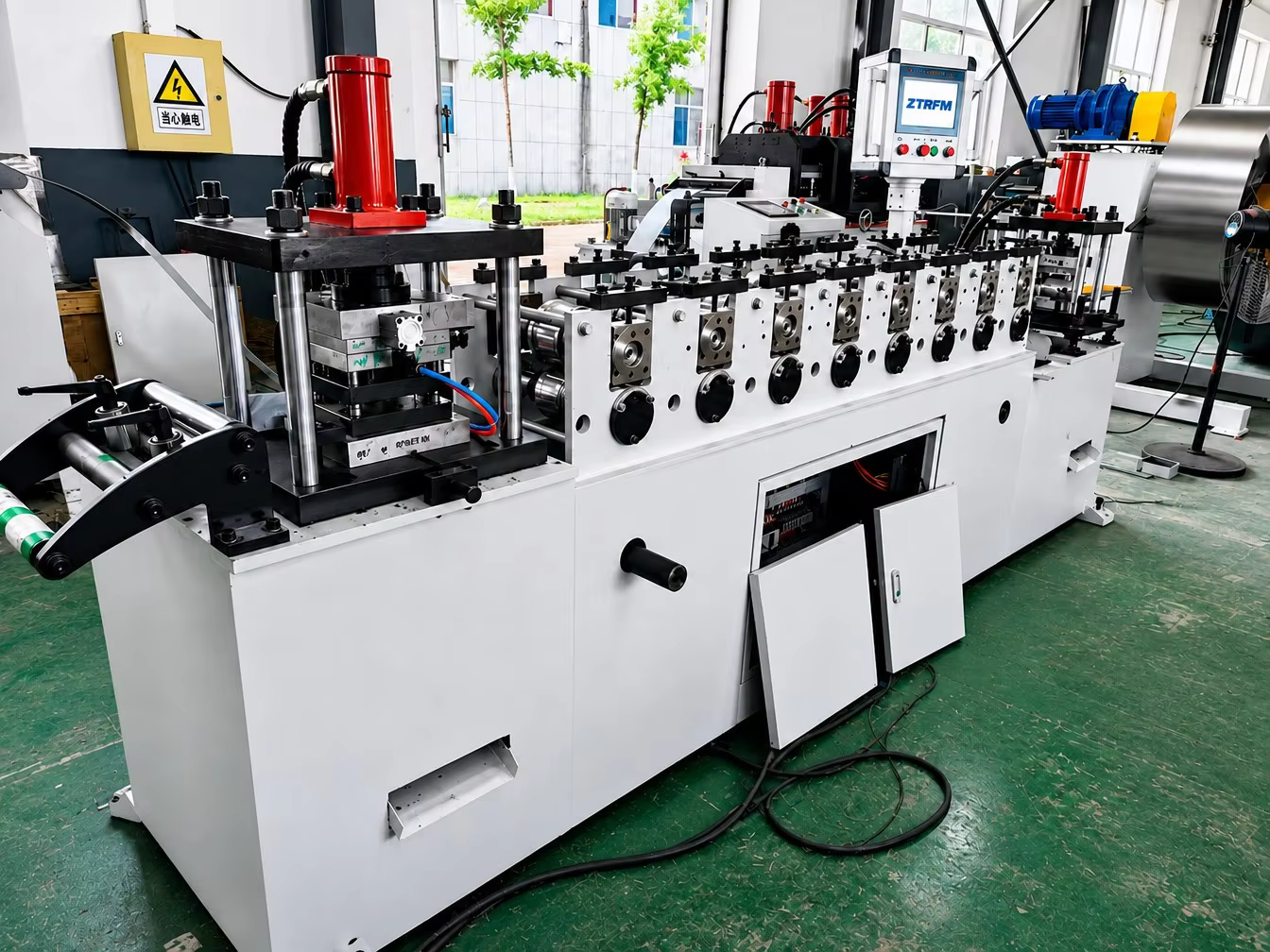

      DIN rail production line in factory

      The machine produces galvanized steel slotted DIN rails for electrical control cabinets, distribution boards and panel installation, where standard TH35 and TS35 top-hat rails are widely used for mounting circuit breakers, terminal blocks and other electrical components.

      Finished Product

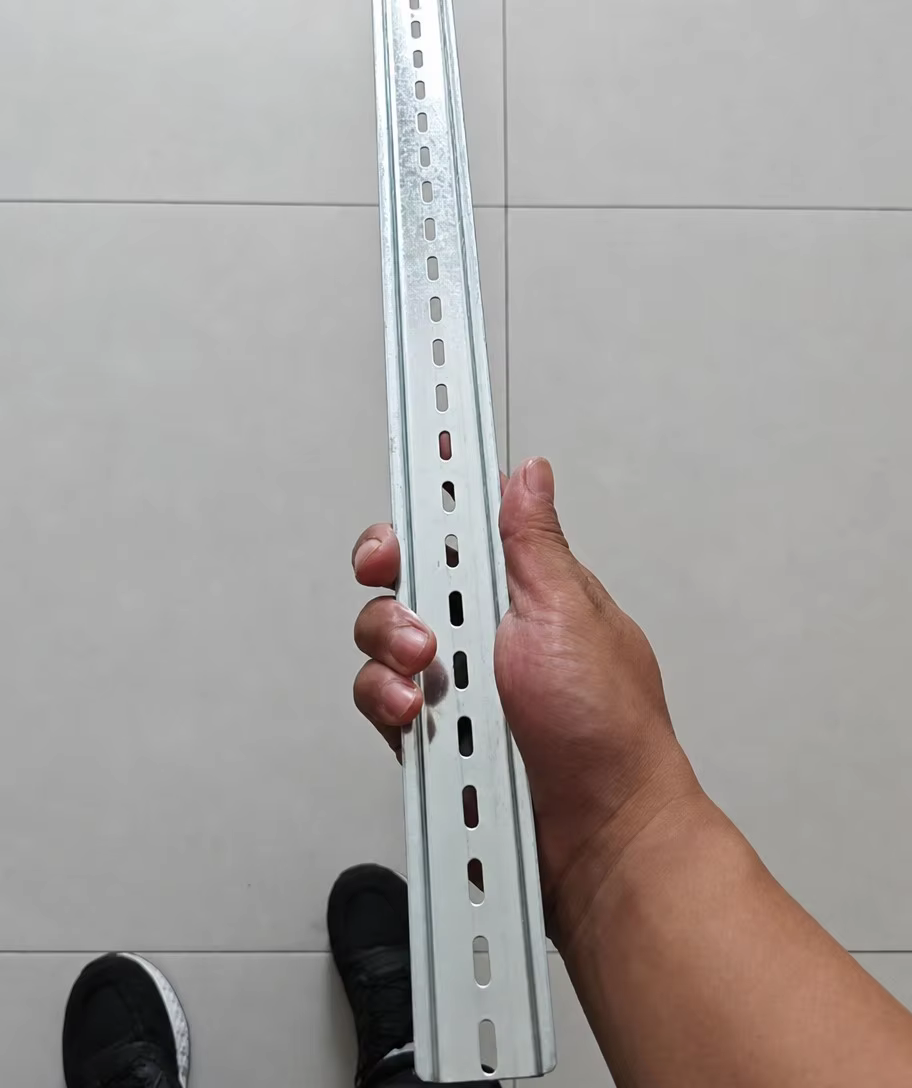

      Galvanized slotted DIN rail finished profile

      The finished rail has a standard top-hat (U-shaped) profile with evenly spaced rectangular slots punched along the length, ready for electrical enclosure assembly.

      Packing & Shipping

      • Package size: 400 x 50 x 100 cm; machine weight: 4500 kg
      • Standard packaging: wooden case (customizable)
      • Delivery time: 40 days for 1 set, 60 days for 2 sets
      • Machinery test report and video outgoing inspection provided
