Automatic T Grid Roll Forming Machine for Local Ceiling Grid Production

Many ceiling grid suppliers are rethinking one question. Is relying on imported finished profiles the best way to run their business? Imports remove the need for equipment investment and production management, but they also add waiting time. Every order sits behind overseas production, sea freight, customs clearance, and inland delivery. An Automatic T Grid Roll Forming Machine changes that by letting you produce ceiling grid components locally, so you control scheduling once raw material arrives.

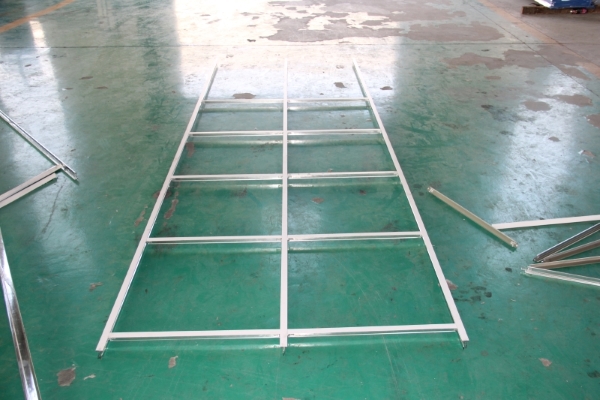

What a Ceiling T Grid System Includes

A ceiling T grid system has three components, and each one does a different job.

Main Tee is the load bearing frame. It runs parallel along the room length and hangs from the slab by suspension wires. A drywall keel making machine produces this profile along with the other two components.

Cross T runs perpendicular to the main tee. Its ends lock into slots on the main tee and divide the space into a standard grid.

Wall Angle mounts on the walls around the room. It supports the ceiling edge and covers the gap between wall and ceiling.

The three components have different cross sections and different production needs. Main tee has a larger section. Cross tee is smaller but used in the highest volume. Wall angle has an L shaped section and needs tighter straightness. That's why an Automatic T Grid Roll Forming Machine usually comes as three independent production lines instead of one single machine.

Applications of Ceiling T Grid Components

Ceiling T grid systems are used in many building types:

• Office and commercial buildings with hidden services and regular maintenance needs

• Hospitals and clinics with strict hygiene requirements

• Schools and public buildings that need acoustic performance

• Residential basements and media rooms

These projects need different quantities of each profile and often change order sizes. When supply depends on imports, those changes are slow to absorb. Local production gives you a way to respond faster once material is on hand.

Machine Advantages of the Automatic T Grid Roll Forming Machine

This equipment is built so all three ceiling grid profiles can be produced locally.

1. Three independent lines for flexible scheduling

The equipment includes a main tee line, a cross tee line, and a wall angle line. Each line runs on its own, so you can schedule by order and change one profile without stopping the others.

2. Continuous roll forming for consistent dimensions

Multiple roller stations bend the steel strip into shape step by step. Each station shares part of the deformation, which helps prevent twisting from too much forming in one pass.

3. Cr12 hardened rollers for repeated forming contact

Cr12 is a common cold work die steel. After hardening, the roller surface resists the friction that comes with each forming pass.

Front End Steps Before Local Production Runs

Local production starts with a steel coil. Before the strip reaches the first forming roller, two steps decide whether the line runs steadily: decoiling and entry alignment.

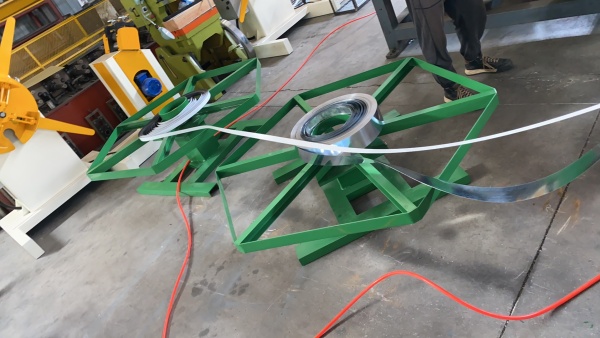

Manual Decoiler in Real Production

A manual decoiler relies on the main machine to pull the strip. It has no separate motor, which keeps the structure simple and reduces failure points.

For coils that stay within the machine's width and weight range, a manual decoiler is a practical choice. The operator loads and secures the coil, and the main machine handles the pull.

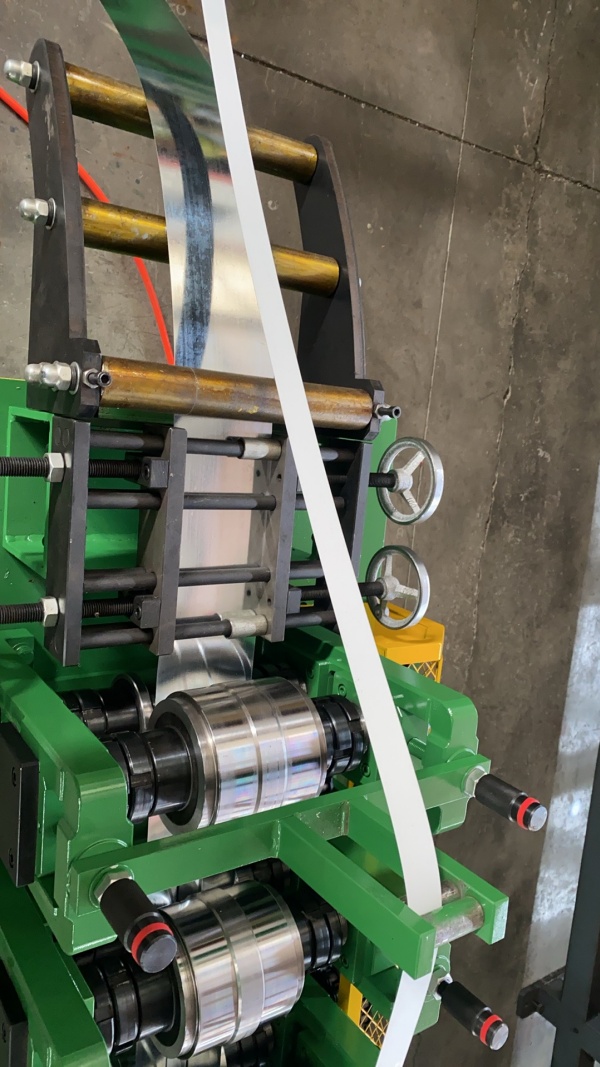

Entry Beach Before the First Forming Pass

After leaving the decoiler, the strip passes through an entry beach before entering the first forming roller. The entry beach keeps the strip straight and parallel at the point of entry.

If the strip enters at an angle or off center, the first forming pass starts from an uneven position. Correcting that later in the line becomes harder and may require extra adjustment. Keeping the strip aligned at the entry point reduces that risk.

This step is easy to overlook, but it shapes what happens downstream. Stable feeding at the front end supports steady forming through the rest of the line.

Roller Material and Long Term Forming Stability

Roller material affects how the forming geometry holds up over repeated production.

A drywall profile roll forming machine of this type uses Cr12 hardened rollers. During every forming pass, the roller takes pressure and friction from the moving strip. Over time, surface wear can change the roller profile, and a changed roller profile can affect the formed section.

Cr12 hardened rollers resist that wear better than unhardened steel. The point is not that they never wear, but that the forming geometry stays closer to spec for longer before wear becomes a problem.

This matters most in long production runs. When rollers wear slowly, the section stays consistent across the batch, and the line spends less time on roller changes.

Full Production Flow From Coil to Finished Profile

Once the coil enters the line, production follows this sequence:

• Decoiling: the manual decoiler releases strip, pulled by the main machine

• Entry guiding: the entry beach keeps the strip straight into the forming machine

• Continuous forming: multiple rollers cold form the strip into the target section

• Punching and cutting: holes and cut to length based on the actual configuration

• Output: finished profiles slide onto the receiving table

The main tee, cross tee, and wall angle lines each run independently, so you can schedule production based on current orders. A gypsum board profile forming machine follows the same forming principles for related ceiling and wall profiles.

Technical Parameters

Real Value of Local Production

Local production does not automatically mean shorter lead times. What it gives you is more control over production scheduling once raw material is available. You decide which profile to run first, which order to fill, and when to change sizes. That control matters most when orders fluctuate.

The value is not in a fixed delivery promise. It's in the ability to adjust when your customers adjust. An Automatic T Grid Roll Forming Machine brings that control to ceiling T grid production, where order patterns change often and lead time matters.
