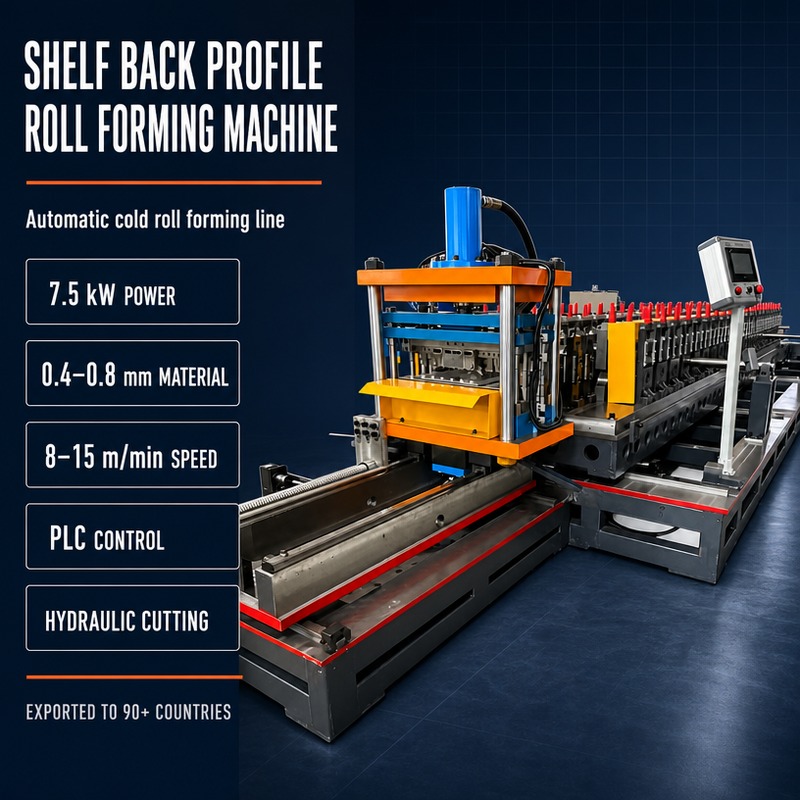

Automatic Supermarket Shelf Back Panel Roll Forming Machine for Metal Shelf Production

The Supermarket Shelf Back Panel Roll Forming Machine is an automatic cold roll forming solution for producing metal shelf backs, shelf panels, pallet components, and other customized steel profiles. The machine is designed for continuous processing of PPGI, galvanized steel, cold-rolled steel, and aluminum materials according to the approved product design.

With an integrated production process including decoiling, leveling, servo feeding, punching or cutting, roll forming, hydraulic cutting or flanging, and unloading, this shelf back roll forming machine helps manufacturers produce consistent metal components for supermarkets, warehouses, logistics centers, factories, pharmacies, stationery stores, and commercial display projects.

Professional Supermarket Shelf Back Panel Manufacturing Solution

Metal shelf back panels are widely used to improve the structure, appearance, and organization of retail and storage systems. A reliable supermarket shelf back panel machine can form the required panel profile continuously, helping manufacturers respond to different shelf designs and project requirements.

This metal shelf back panel forming machine is designed to process coil materials through a progressive roll forming line. The metal strip is gradually shaped by forming rollers after decoiling, leveling, and servo feeding. Additional punching, cutting, hydraulic cutting, flanging, and unloading operations can be arranged according to the confirmed product design.

The page states that the line can process shelf backs, pallets, and other metal components in one integrated production process. Because the roller station number, shaft diameter, machine dimensions, and final profile arrangement are customized according to requirements, buyers should provide a drawing or sample before technical confirmation.

The listed production functions include:

• Automatic decoiling and material feeding
• Material leveling before forming
• Servo feeding and positioning
• Punching or cutting according to the production design
• Progressive roll forming for metal shelf back profiles
• Hydraulic cutting and flanging
• Automatic unloading of finished profiles
• PLC-controlled production operation

Key Advantages of the Shelf Back Roll Forming Machine

The product page presents this machine as a customized, automatic, and efficient solution for producing shelf back panels and related metal components. Its advantages are based on the listed forming process, positioning method, material compatibility, and supplier support.

• Integrated automatic production: The listed process combines decoiling, leveling, servo feeding, punching or cutting, roll forming, hydraulic cutting or flanging, and unloading.
• Servo positioning and CNC adjustment: The page describes servo positioning and CNC adjustment for controlled profile production.
• Listed dimensional tolerance: The page states a tolerance of ±0.5 mm. The applicable measuring method and final tolerance should be confirmed for the selected profile.
• Wide material compatibility: The page lists PPGI, galvanized steel, aluminum, and cold-rolled steel as forming materials, with the material thickness listed as 0.4-0.8 mm.
• Wear-resistant forming components: The page describes rollers as hardened and chrome-plated, with a stated hardness range of HRC58-62. Final roller treatment should be included in the technical offer.
• Automatic PLC operation: The PLC system can be set for batch, length, and quantity parameters according to the page description.
• Customized profile design: Roller stations, shaft diameter, dimensions, forming speed, and other configuration details are adjusted according to the customer's requirements.
• Convenient operation and support: The page highlights simple operation, free replacement of parts, online technical support, and one-year warranty service.
• Design and installation assistance: The supplier page states that design customization can be completed within three days, and overseas installation and training support are available, subject to project confirmation.

Technical Parameters of the Supermarket Shelf Back Panel Machine

How the Shelf Back Panel Roll Forming Line Works

The shelf back roll forming machine follows an integrated process for turning metal coils into finished shelf back panels or related profiles. The exact process can be adjusted according to the required punching pattern, profile shape, cutting length, and final product drawing.

1. Decoiling: The coil is placed on the hydraulic automatic decoiler listed on the page. The supplier states that the decoiler can be provided free of charge, subject to final order confirmation.
2. Leveling: The incoming metal strip passes through a leveling section to prepare the material for controlled feeding and forming.

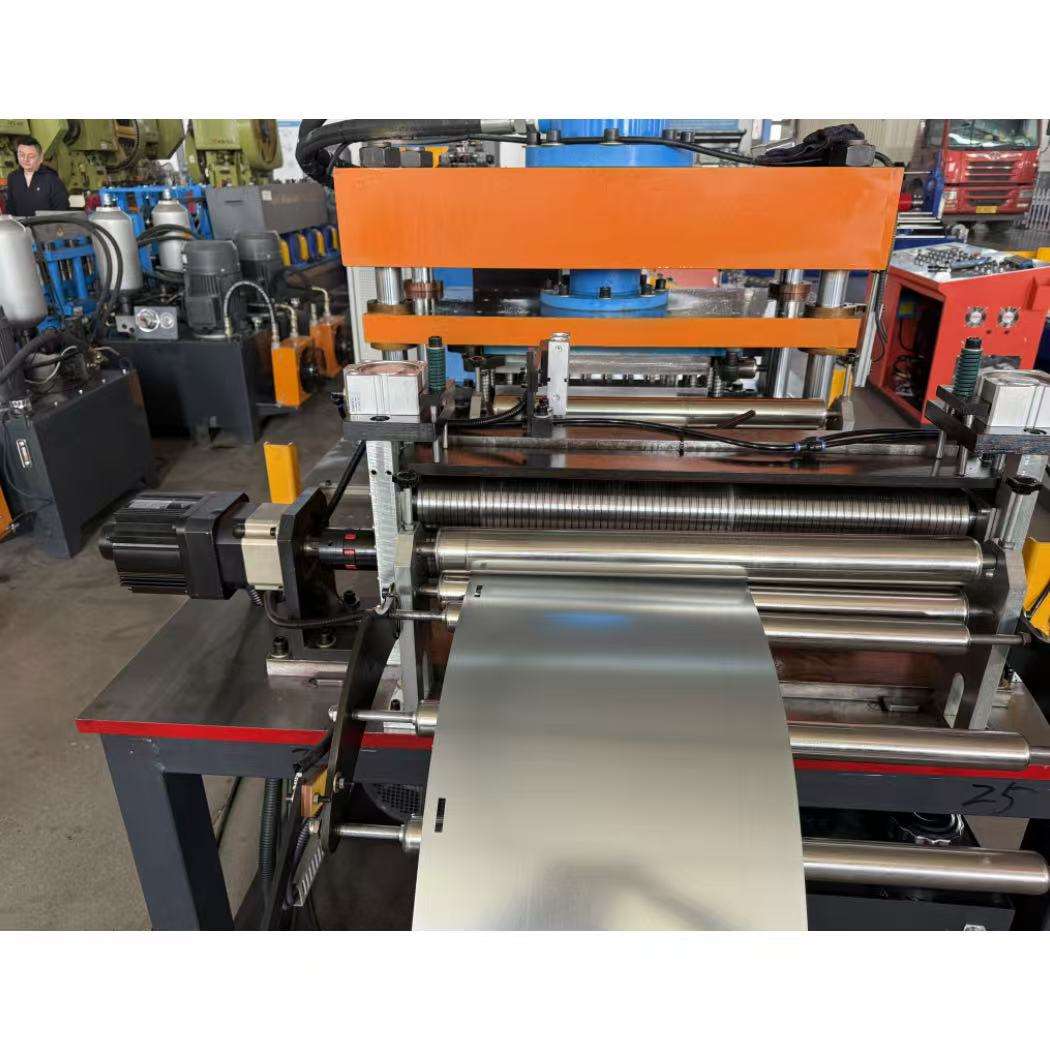

3. Servo feeding: The servo feeding system positions the material for the next production step. The page describes servo positioning and CNC adjustment.
4. Punching or cutting: Punching and cutting operations can be arranged according to the shelf back panel design and required holes or sections.

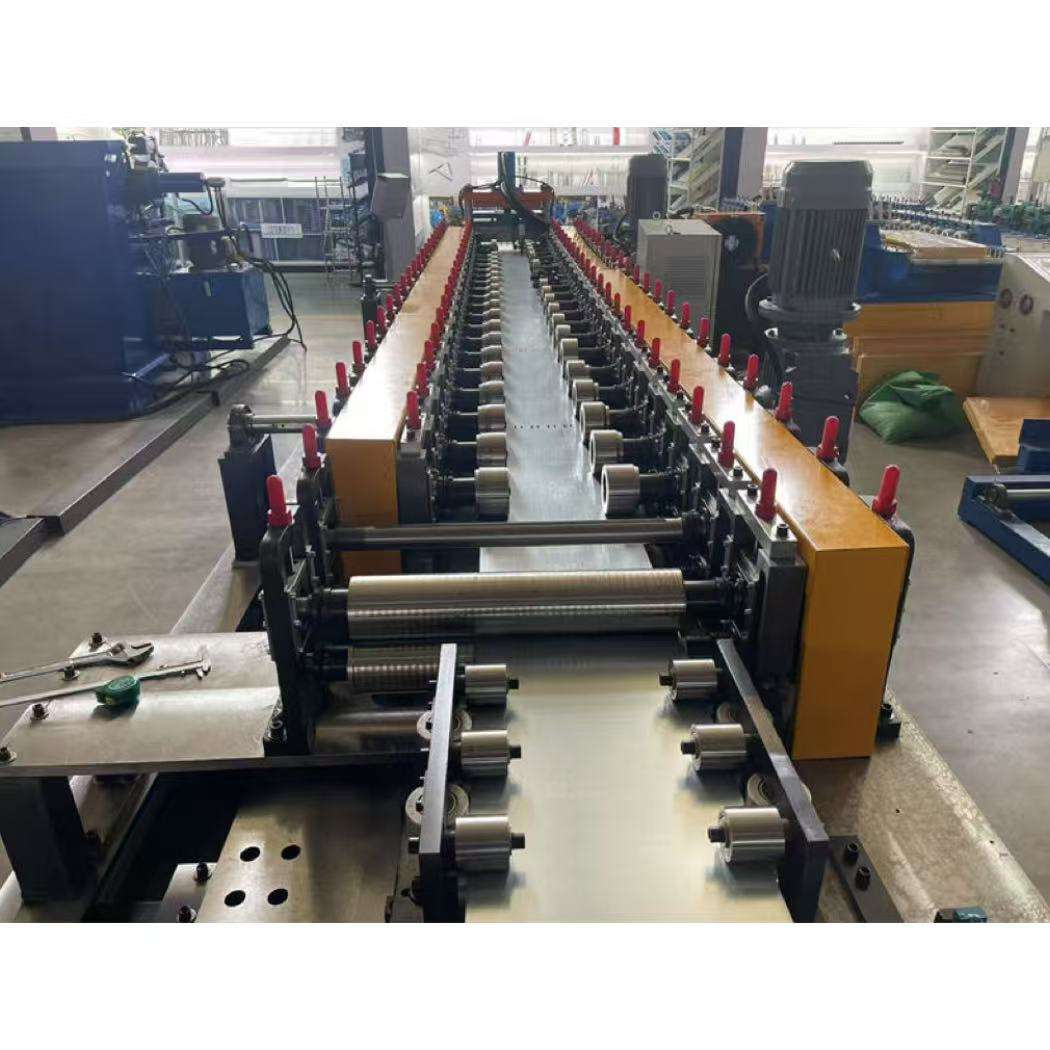

5.Progressive roll forming: The strip passes through customized roll forming stations that gradually shape the metal into the approved profile.

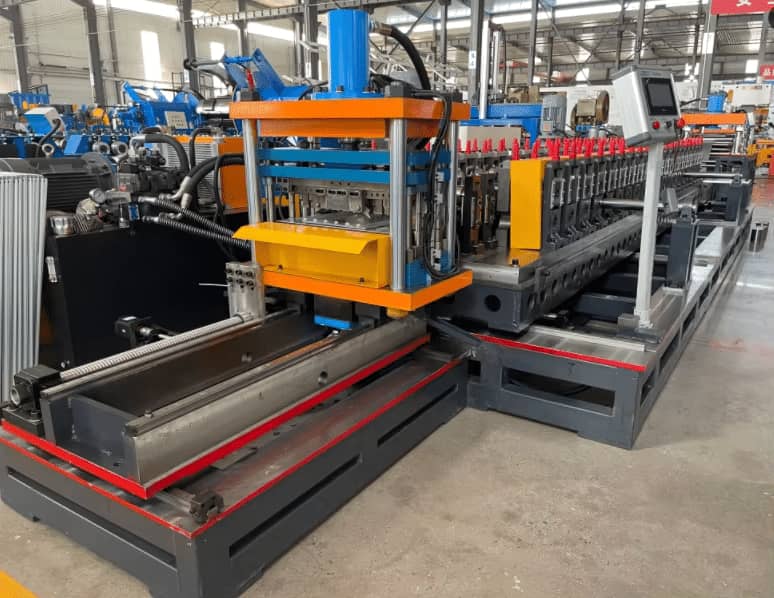

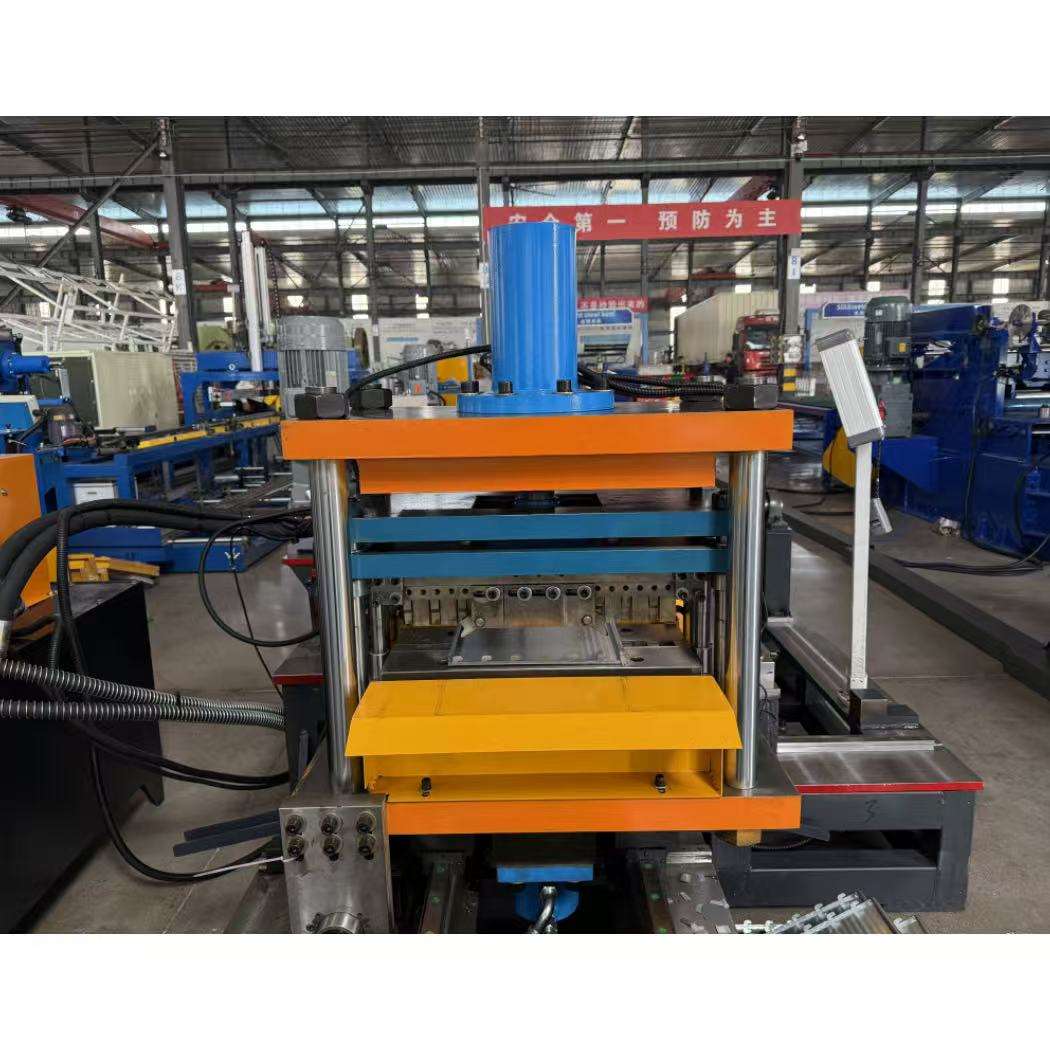

6.Hydraulic cutting or flanging: Hydraulic cutting and flanging are included in the listed process where required by the product design.

7.Unloading: The finished shelf back panels or metal components are unloaded for inspection, packing, and further assembly.

The PLC system is described as supporting batch, length, and quantity settings. The final software functions, punching tooling, station arrangement, and finished-profile dimensions must be confirmed according to the buyer's drawings.

Applications in Supermarkets, Warehouses, and Industrial Storage

A reliable metal shelf back panel forming machine can support different storage, retail display, and industrial organization projects. The product page lists the following application areas:

• Supermarket shelves: Back panels, shelf components, end racks, and retail display structures.
• Convenience stores: Metal shelf backs and display components for compact retail spaces.
• Warehouses and logistics centers: Light-duty storage shelves, picking trays, turnover boxes, and shelf side panels.
• Factories: Material racks, workshop storage structures, and tool cabinet partitions.
• Pharmacies and stationery stores: Display shelves and storage components for organized product presentation.
• Commercial storage projects: Customized metal panels and shelf components for retail and industrial facilities.

The finished components are described as strong, easy to clean, and resistant to corrosion when suitable materials and surface treatments are selected. Final product performance depends on material grade, thickness, profile design, coating, forming quality, and installation conditions.

Customized Shelf Back Profile Design and Manufacturing

Every shelf system may use a different back panel width, hole pattern, edge shape, thickness, and connection method. For this reason, the product page states that roller stations, shaft diameter, machine dimensions, forming speed, and other production details can be customized according to customer requirements.

Before production, customers should send a CAD drawing, product sample, or detailed profile information. The engineering team can then review the material, forming sequence, punching requirement, cutting method, and unloading arrangement.

Information to confirm before machine design includes:

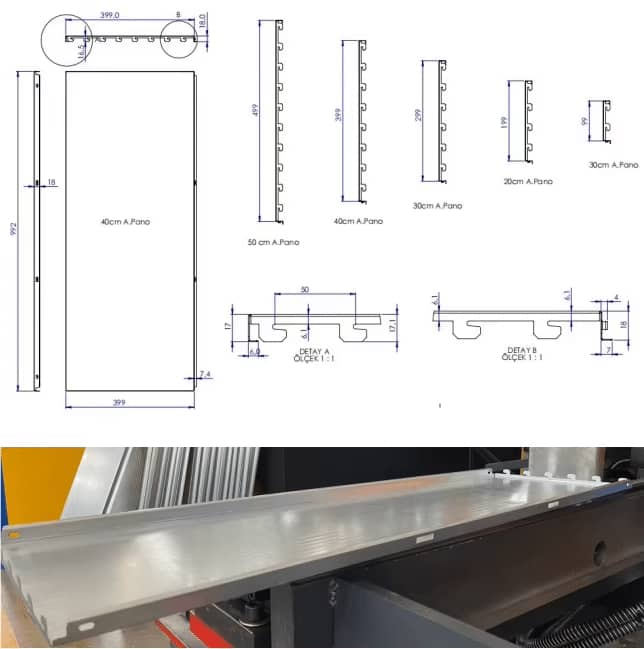

• Final shelf back panel drawing or physical sample
• Required profile width and height
• Material type and thickness range
• Hole shape, hole pitch, and punching arrangement
• Finished panel length and cutting tolerance
• Roller station number and shaft diameter
• Machine dimensions and workshop layout
• Voltage, frequency, phase, and electrical standards
• Forming speed and expected production output
• Packaging, installation, training, and spare parts requirements

Supplier Support, Warranty, and Quality Confirmation

Frequently Asked Questions About the Shelf Back Panel Machine

What products can this shelf back roll forming machine produce?

production of supermarket shelf backs, shelf panels, pallets, and other customized metal components. The exact finished products depend on the approved drawings and forming tools.

What materials can the supermarket shelf back panel machine process?

 PPGI, galvanized steel, cold-rolled steel, and aluminum. The listed material thickness is 0.4-0.8 mm, while the final compatible range should be confirmed for the selected profile.

What is the forming speed?

 8-15 m/min, and the quick attributes display 15 m/min. The final speed depends on the profile shape, material thickness, punching requirement, and production arrangement.

How many forming stations does the machine have?

 customized according to the customer's requirements. No fixed station number is confirmed on the page.

Does the machine include punching and cutting?

Process includes servo feeding, punching or cutting, hydraulic cutting, and flanging. The punching pattern, tooling, cutting length, and final configuration must be confirmed.

What is the machine power?

a 7.5 kW forming motor and 15 kW hydraulic system power, while the quick attributes display 15 kW. The total installed power and final motor configuration are to be confirmed.

Request a Customized Supermarket Shelf Back Panel Roll Forming Machine

If you are looking for a shelf back roll forming machine for supermarket shelving, warehouse storage, logistics equipment, or industrial display systems, send your product drawing and material information to the supplier.

The engineering team can review the shelf back profile, punching pattern, material thickness, forming sequence, cutting method, electrical requirements, and workshop layout. After technical confirmation, the supplier can provide a complete proposal covering machine configuration, tooling, service, packaging, delivery, and commercial terms.

Contact Zhongtuo to discuss your supermarket shelf back panel machine requirements and request a customized roll forming solution for your production line.
