Automatic Strut Channel Solar Panel Mounting Bracket Roll Forming Machine Line 25 m/min+ZTRFM Solar Panel Bracket Roll Forming Machine+940

Name: Automatic Strut Channel Solar Panel Mounting Bracket Roll Forming Machine Line 25 m/min+ZTRFM Solar Panel Bracket Roll Forming Machine+940
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT79972603

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

25 m/min

Model Number:

ZTRFM Solar Panel Bracket Roll Forming Machine

Max. Working Width:

940

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Voltage
  380 V
- Power(W)
  11kw

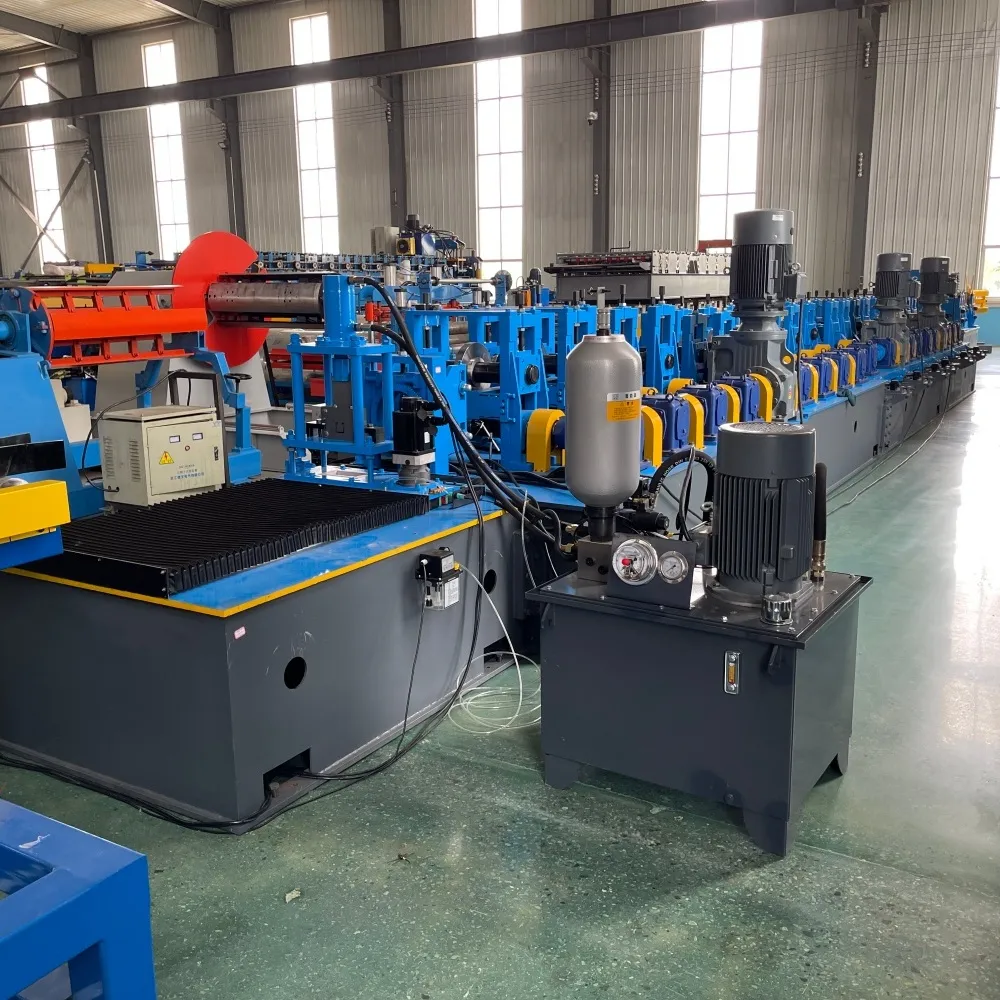

Solar Panel Bracket Roll Forming Machine Configuration

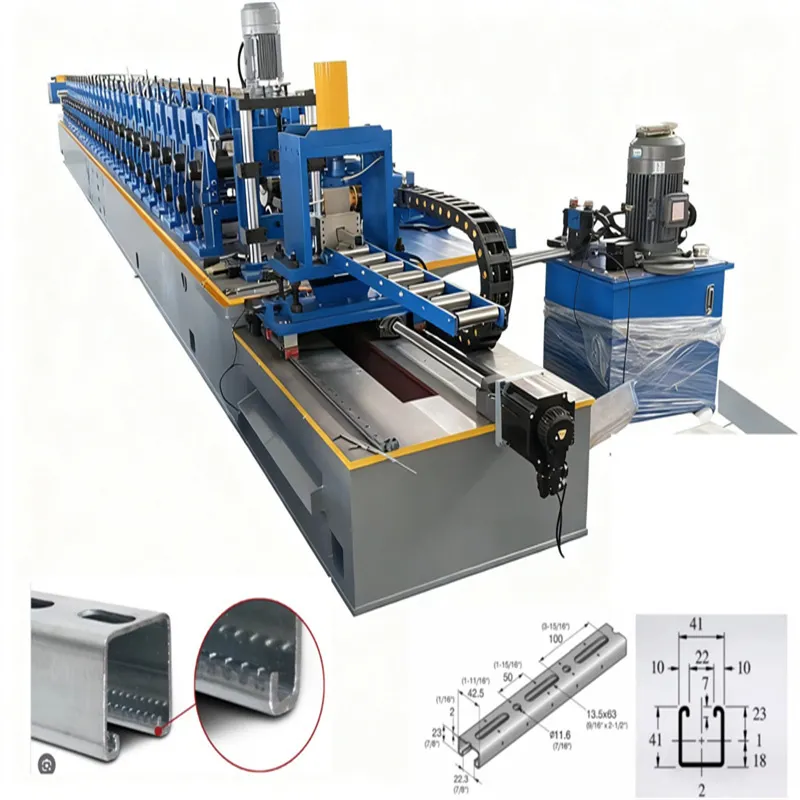

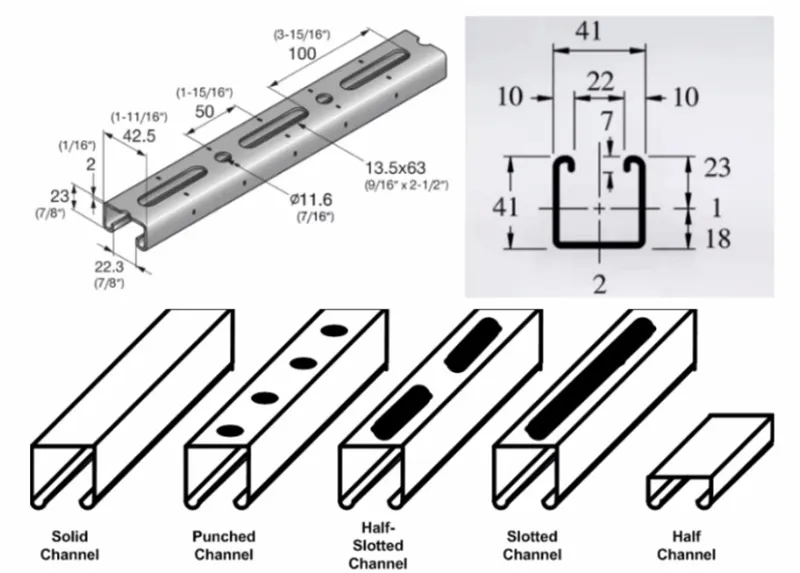

Profile drawing for reference:

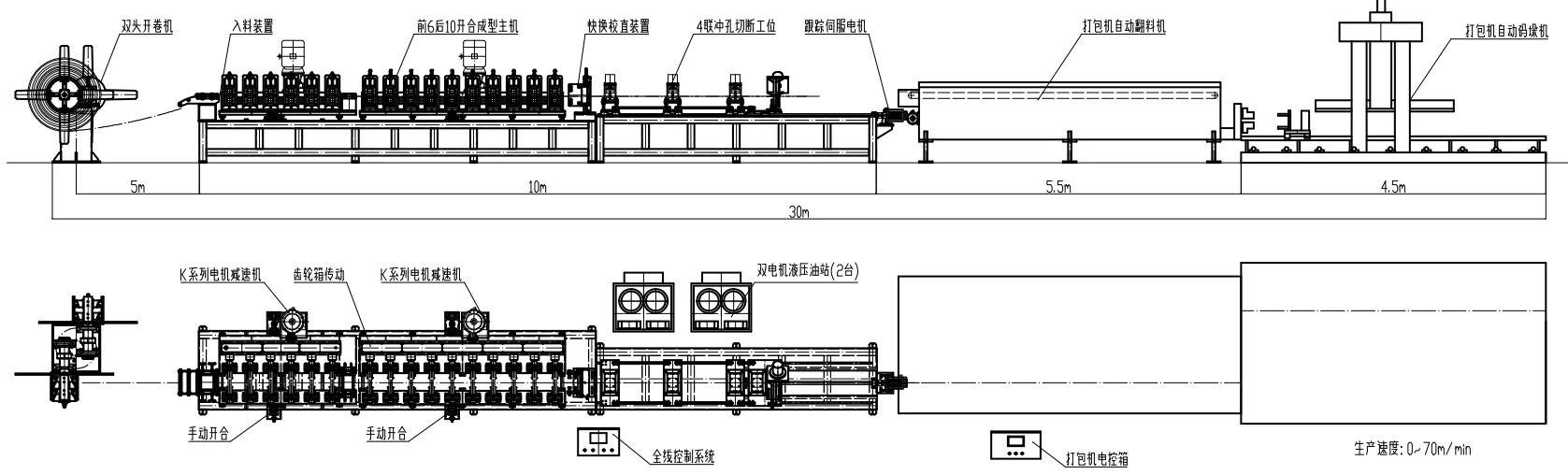

Processing Flow
Work flow for automatic stud & track machine

About Material
Raw material
Galvanized steel & H.R
Material thickness
20-25 gauge
Cutting length
Adjustable

Double Head Hydraulic Decoiler
Loading capacity：3T + 3T Power：Hydraulic power tensioning and loosening and Electric power for turning Coil inner diameter：450-550
mm (adjustable) Details of the decoiler： 1)Tension cylinder diameter : 125*80mm 2)Tension stroke: 470-525mm 3)Rotation mode:
electric rotation, motor 0.75kw 4)Host feeding: passive feeding, wireless remote control of the control system 5) Main hydraulic
pump station power : 3kw

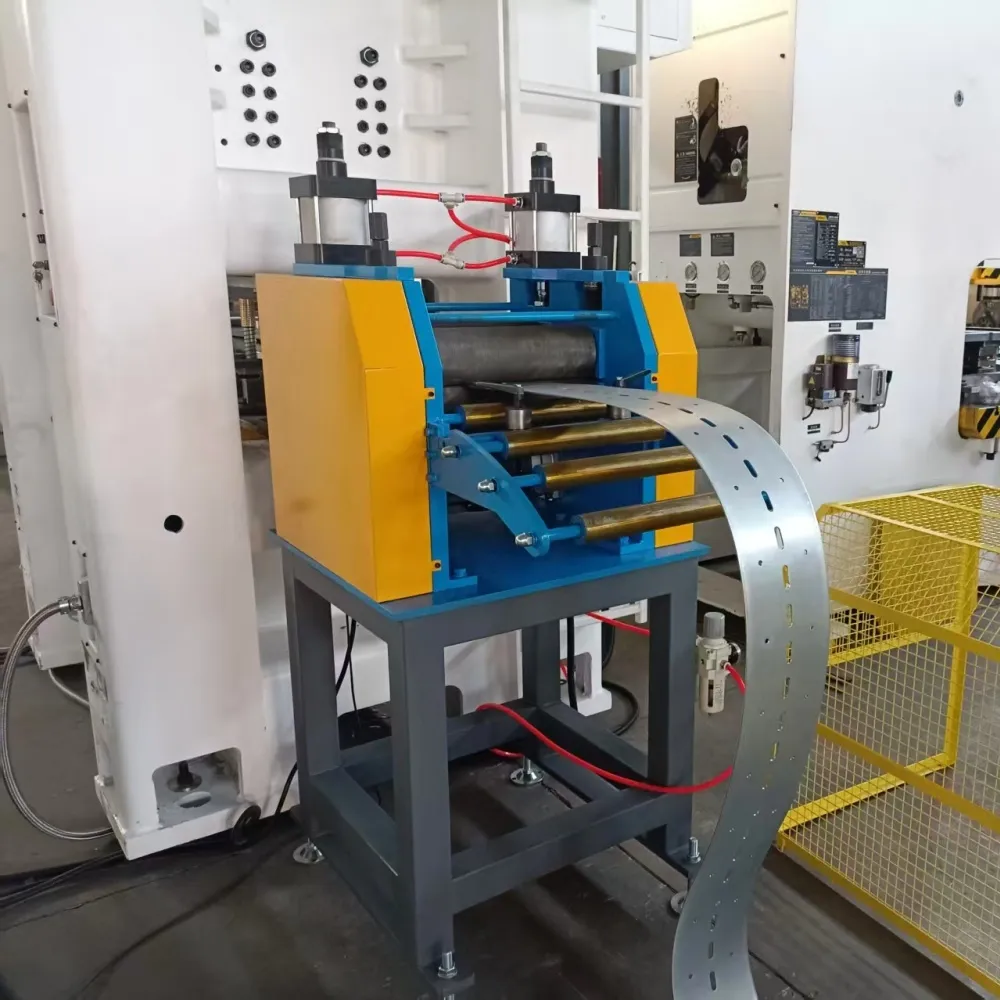

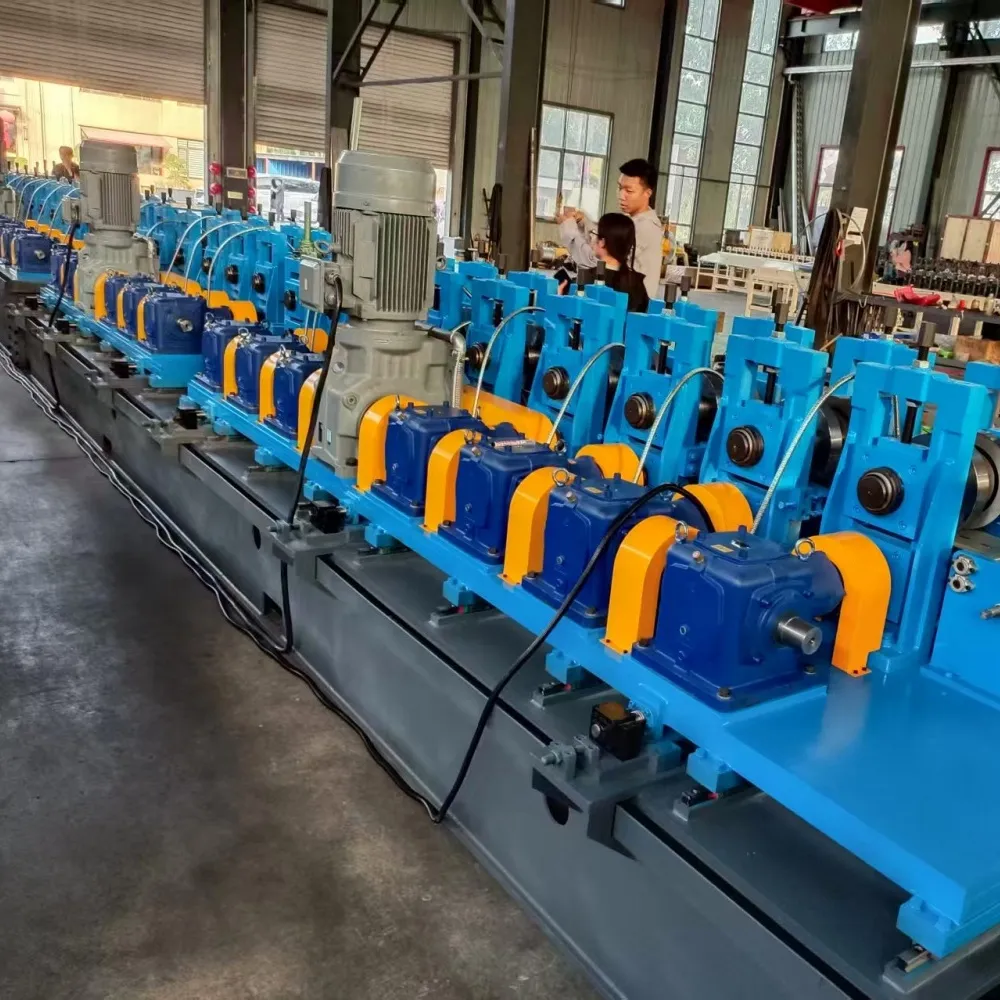

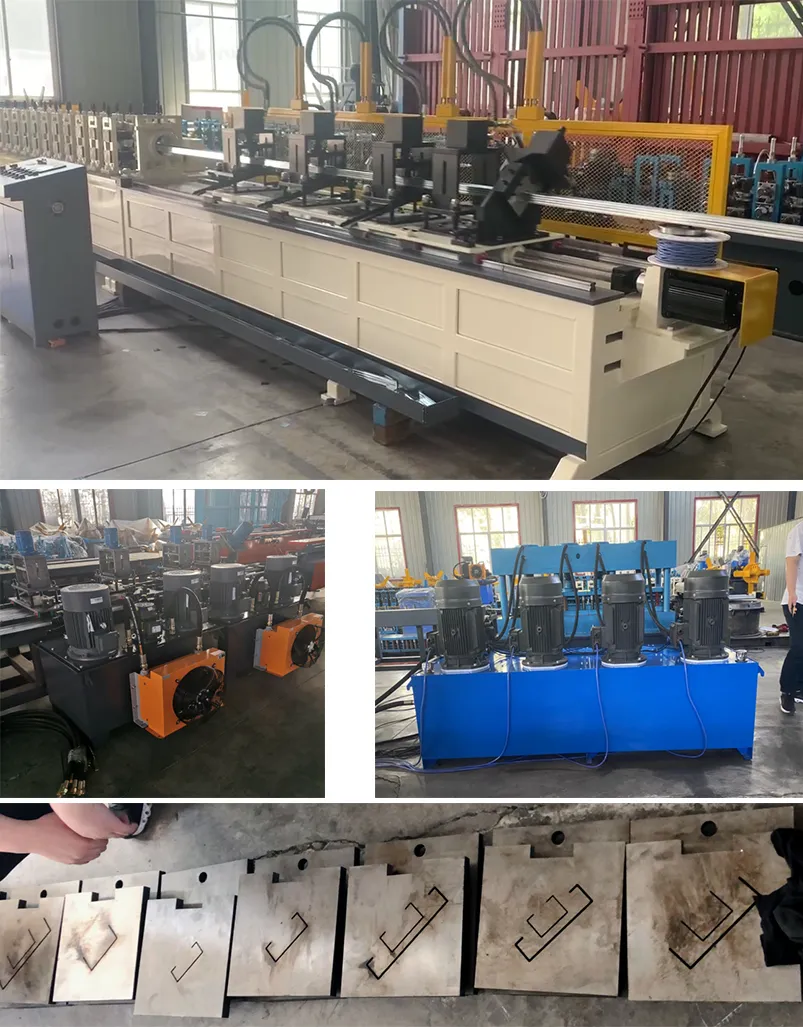

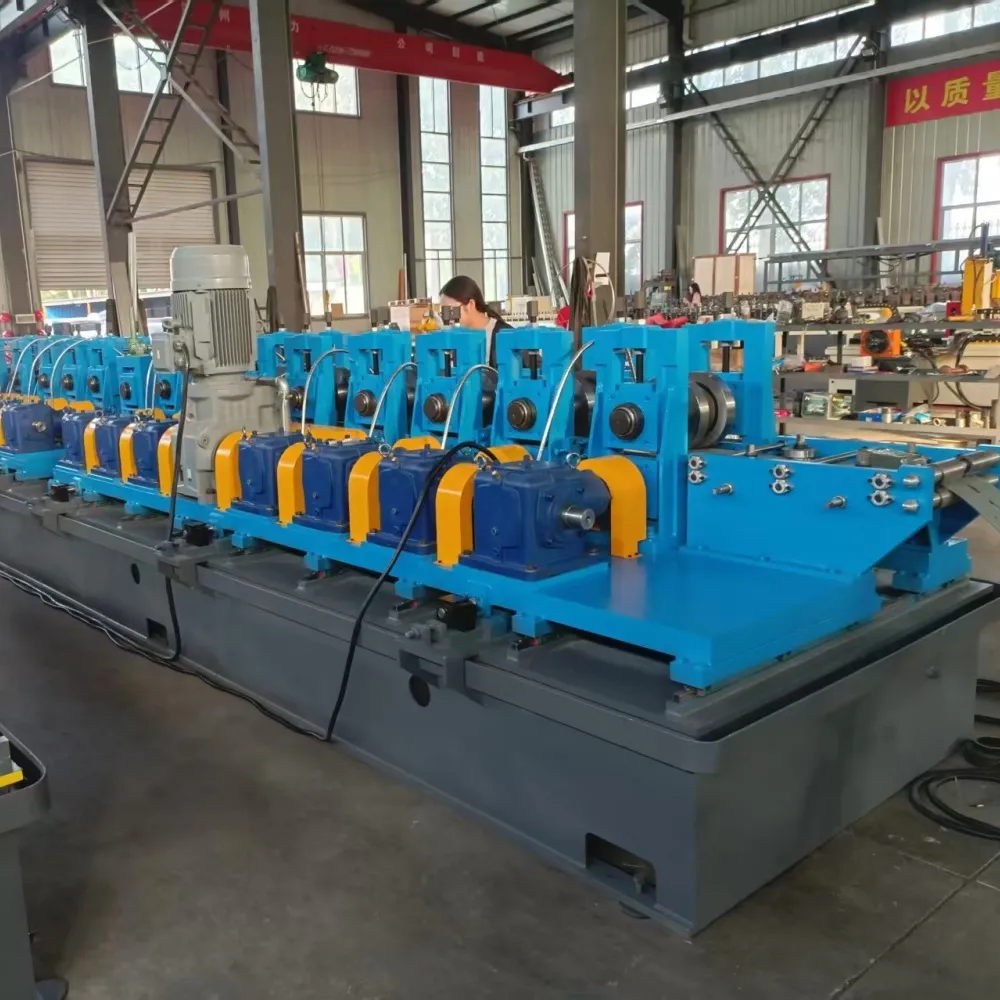

Leveling & Roll Forming System
Note: 4)There is hand wheel on the feeding part, easy for you adjust the feeding size when produce different sizes of products 5)There is also guiding device, easy for the material go into the machine smoothly and quickly. 6)Please check the yellow box, there is oil drip device on the feeding part, it can make oils on the products, in case the finished studs are rust. We use split rollers to realize one machine to produce different sizes of drywall studs, you can adjust the size automatically by PLC
Rolling shaft Shaft material: 45# steel Shaft diameter: 50.8 mm Tempering treatment Roller Roller material: Cr12 Quenched
treatment Rolling station number：17 stations Work speed：0-70 m/min(without knurling) 0-60m/min(with knurling) Machine frame：Base
use high quality H steel;Vertical iron arch casting frame structure. Bearing：Chinese famous brand Harbin ( high quality) Work
power：7.5 kw+11kw Transmission：By Gear box

PLC Control System

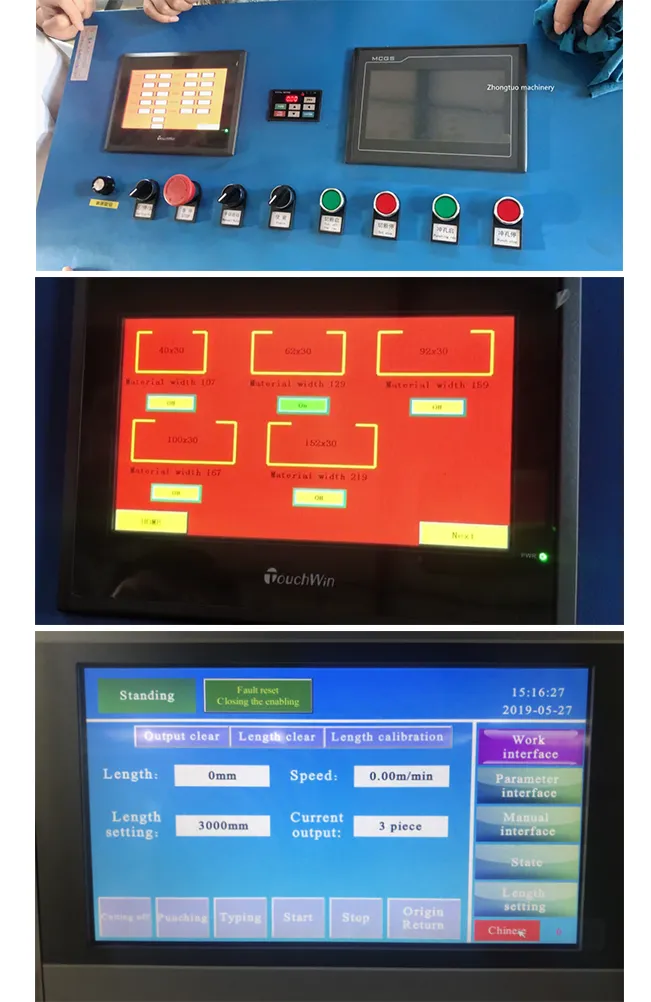

Note: There are two screens on the PLC control station, one screen is used to set the product size you want to produce, then the machine will adjust automatically according to what you set, another screen is used to set the speed, length and other specifications of the machine. Frequency brand：Delta (original) PLC & Screen brand：Xinjie, China Screen type：Touch screen & buttons Screen language：English/Chinese Encoder：Omron Low pressure electrical part brand：Schneider Function：1.Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved; 2.Length inaccuracy can be amended easily

Hydraulic System

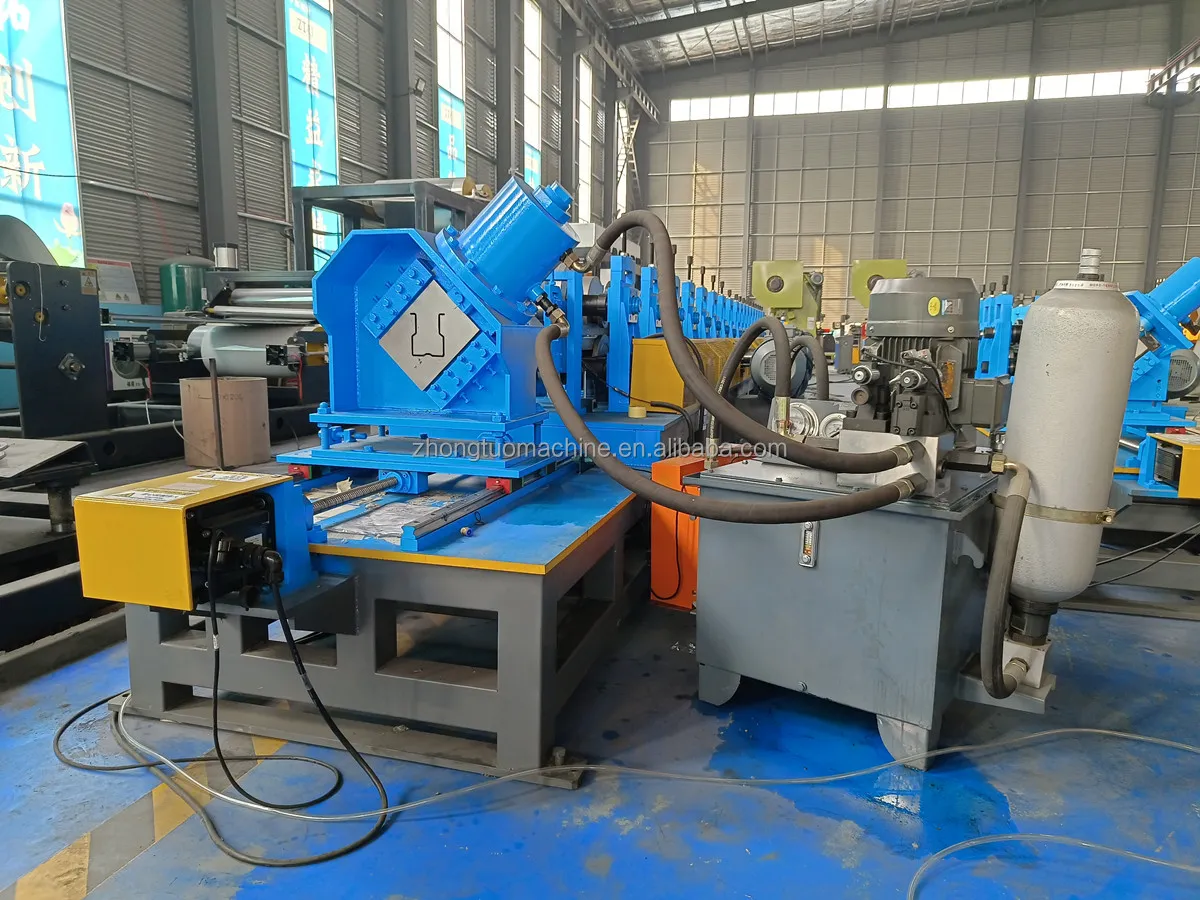

Feature：The cutter with different sizes according to the product dimension. Work type：Servo flying Hydraulic cutting system Servo flying Punching system Servo motor power：YASKAWA 5.5 kw Hydraulic power：5.5+5.5 kw; 5.5+5.5 kw Driving method：By pillar type Cylinder Cutter material：GB-Cr12 Cutting length tolerance：±1mm/3m Cutting feature：Flying cutting. When the machine cutting it will not stop

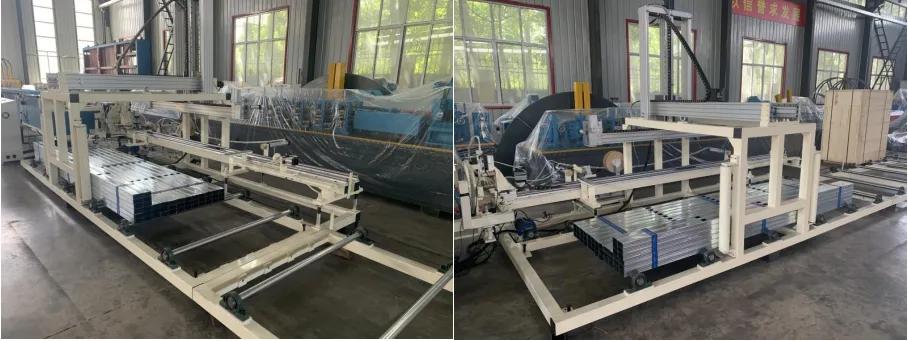

Automatic Stacker & Bundling Machine
Table quantity：1 set Profile length：Within 4m per piece Maximum speed：70m per minute Dimension：8.5m x 2.5m

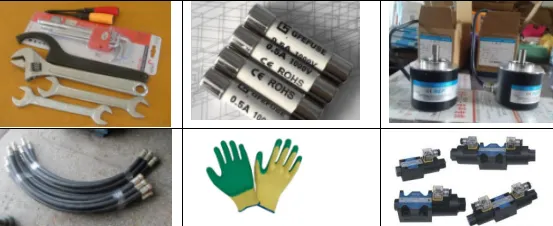

Spare Parts
Maintain tools：1 set Spare glove：3 pieces Spare fuse：3 pieces Spare encoder：2 pieces Instruction manual：1 book Spare oil pipe：4 pieces Solenoid valve：2 pieces Spare blade：1 full set

Afer-Sale Service
1.Payment: 30%T/T in advance and 70%balance after testing and before shipment. 2.Delivery: 70 working days after the deposit. 3.After-sales service A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available. B: Training and service: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD 100/person/day for salary. C.We have a team of skilled engineers and one team for after-sale service, when you meet any problem, contact us freely, we will help you solve that We will provide you the manual for installation, operation and maintenance in English. And all connection parts, we will mark labels for you before delivery, easy for installation.

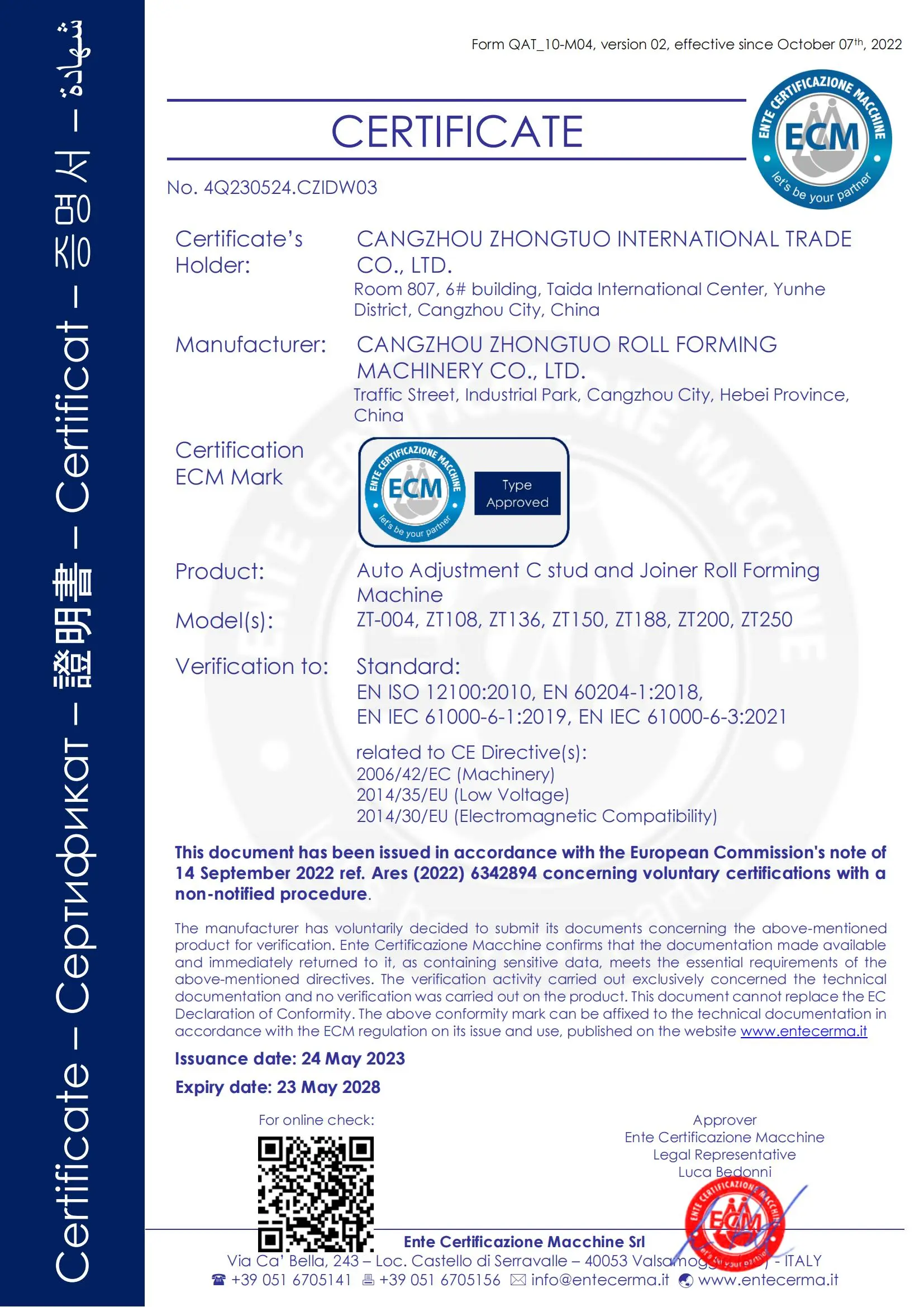

No. 4Q230524.CZIDW03
