Automatic Storage Rack Upright Post Roll Forming Machine Production Line 0-20m/min

Automatic Storage Rack Upright Post Roll Forming Machine Production Line

Against the backdrop of the continuous outbreak of the global logistics, warehousing, and e-commerce industries, the demand for standardized, high load, and durable warehousing shelves continues to rise. As the core vertical support component of all storage systems, the shelf columns directly determine the overall stability, load-bearing capacity, and service life of the shelves. The Upright Post Roll Forming Machine, as the core equipment for producing warehouse shelf columns, is helping global shelf manufacturers achieve dual breakthroughs in production capacity and quality with its high-precision molding, fully automated production, and excellent stability.

What is a Upright Post Roll Forming Machine?

Upright Post Roll Forming Machine is a fully automatic cold bending production line designed to gradually roll galvanized or cold-rolled steel coils into column components required for storage shelves through multiple precision arranged rollers. The equipment integrates processes such as pre punching, precision forming, and flying shear cutting, and can fully automatically complete the one-time forming of various shelf column profiles.

The standard production process is: hydraulic unwinding → leveling → servo feeding → punching → roll forming → hydraulic cutting → receiving. The entire production line is coordinated by a PLC control system, and operators can set production parameters through a touch screen to achieve intelligent production management.

Application Areas:

The column components produced by the shelf column forming machine are widely used in various storage scenarios:

• Storage shelving system:
Core column support for crossbeam shelving, drive in shelving, shuttle shelving, and gravity shelving

• Supermarket display shelves:
center and side pillars of supermarket shelves, convenience store shelves, and display shelves

• Industrial heavy-duty shelves:
heavy-duty load-bearing column systems for factory warehouses and logistics distribution centers

• Automated three-dimensional warehouse:
high-precision column components of AS/RS automated warehousing system

The shelf column forming machine is usually used in conjunction with beam forming machines, C-shaped steel forming machines, base production lines, etc., to form a complete storage shelf production system.


Product Attributes :

Pattern diagram:

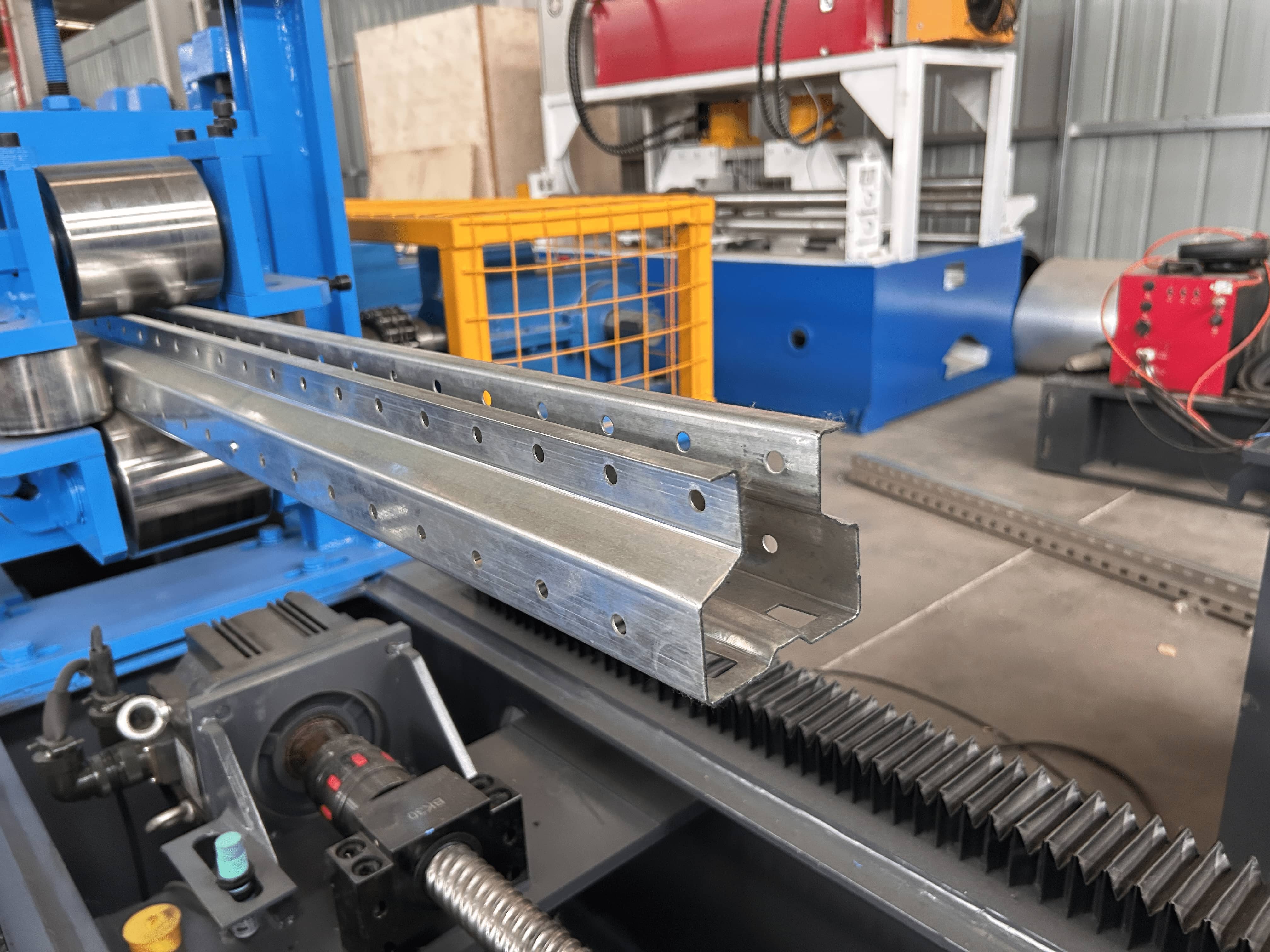

Machine image:

Frequently Asked Questions (FAQ):

Q1: What specifications of columns can the shelf column forming machine produce?

The equipment can produce shelf columns with a thickness of 1.5-3.0mm, and the cross-sectional specifications include common standard profiles such as 90 × 70mm, 100 × 70mm, 120 × 70mm, etc. We can also customize the production of special sections such as supermarket shelf columns and heavy-duty industrial shelf columns according to customer needs. We can design customized rolling mill molds for customers by providing plate drawings or samples.

Q2: How to ensure the forming accuracy of the equipment?

Accuracy assurance comes from three aspects: the rolling mill adopts Cr12MoV mold steel, which has undergone vacuum heat treatment and precision grinding to achieve a hardness of HRC58-62, ensuring accurate forming contours; The servo feeding system and encoder provide real-time feedback on position information, with punching accuracy up to ± 0.1mm; the flying shear or tracking cutting system achieves precise sizing, with smooth and burr free cuts.

Q3: Does the device support quick changeover?

There are two ways to change the device: manual gasket adjustment is suitable for production needs with limited specifications, and the change time is about 3 hours; For large-scale production of multiple specifications, it is recommended to use quick change card molds or configure multiple devices to achieve more efficient specification switching.

Q4: What voltage and power standards does the device support?

The equipment can be customized with voltage configuration according to the power grid standards of the customer's country, supporting different voltages such as 220V, 380V, 415V, 440V, etc. The frequency can be selected as 50Hz or 60Hz, and it is a three-phase power supply. The control system supports multiple language operation interfaces such as English and Chinese.

Contact Us：

From heavy-duty shelves in large logistics warehouses to display shelves in supermarkets and shopping malls, from traditional warehousing to automated three-dimensional warehouses, shelf columns are supporting the efficient operation of the global warehousing and logistics industry with their precise molding quality and stable load-bearing performance. A reliable and accurate Upright Post Roll Forming Machine is the core equipment for shelf manufacturers to seize market opportunities and enhance competitiveness. If you need equipment solutions and quotations tailored to your specific needs, please feel free to contact us at any time.
