Automatic Shelf Pillar Production Line with Hydraulic Feeding, Punching, Servo Tracking Cutting and Automatic Stacking
For warehouse rack manufacturers, production efficiency is not determined by roll forming alone. Punching, cutting and finished product handling can also affect the overall production workflow.
Repeated material transfer and finished-product handling can increase labor requirements.
Independent punching operations can interrupt the production flow and require additional material handling.
Continuous production requires cutting to work together with the moving formed profile.
Manual collection and stacking of finished rack uprights can add unnecessary labor.
The production line integrates hydraulic uncoiling and feeding, hydraulic punching, roll forming, servo tracking cutting and automatic stacking into one coordinated production workflow.
This solution is designed as a complete rack upright production line rather than a standalone forming machine.
The major production processes are connected into one workflow, helping manufacturers reduce unnecessary material transfer and manual handling.
The production line begins with hydraulic uncoiling and feeding to provide material to the downstream punching and forming sections.

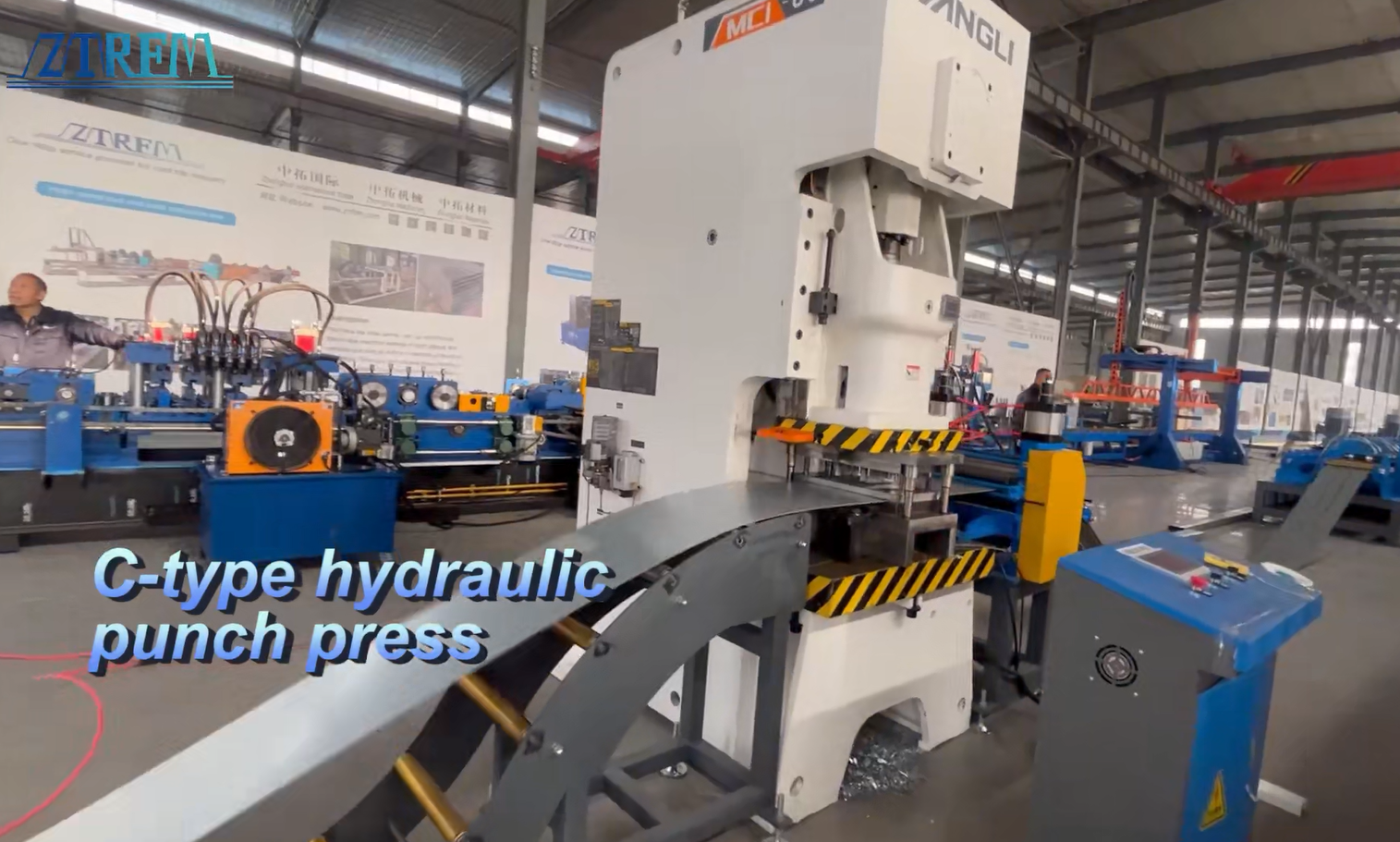

Punching is integrated into the production line through a C-type hydraulic punch press.
This configuration allows the punching process to be incorporated into the continuous manufacturing workflow according to the customer's approved profile and hole pattern.
Hole shape, spacing and punching pattern can be configured according to the required rack upright drawing.
The provided production configuration uses a 16-station roller system for progressive forming of the rack upright profile.

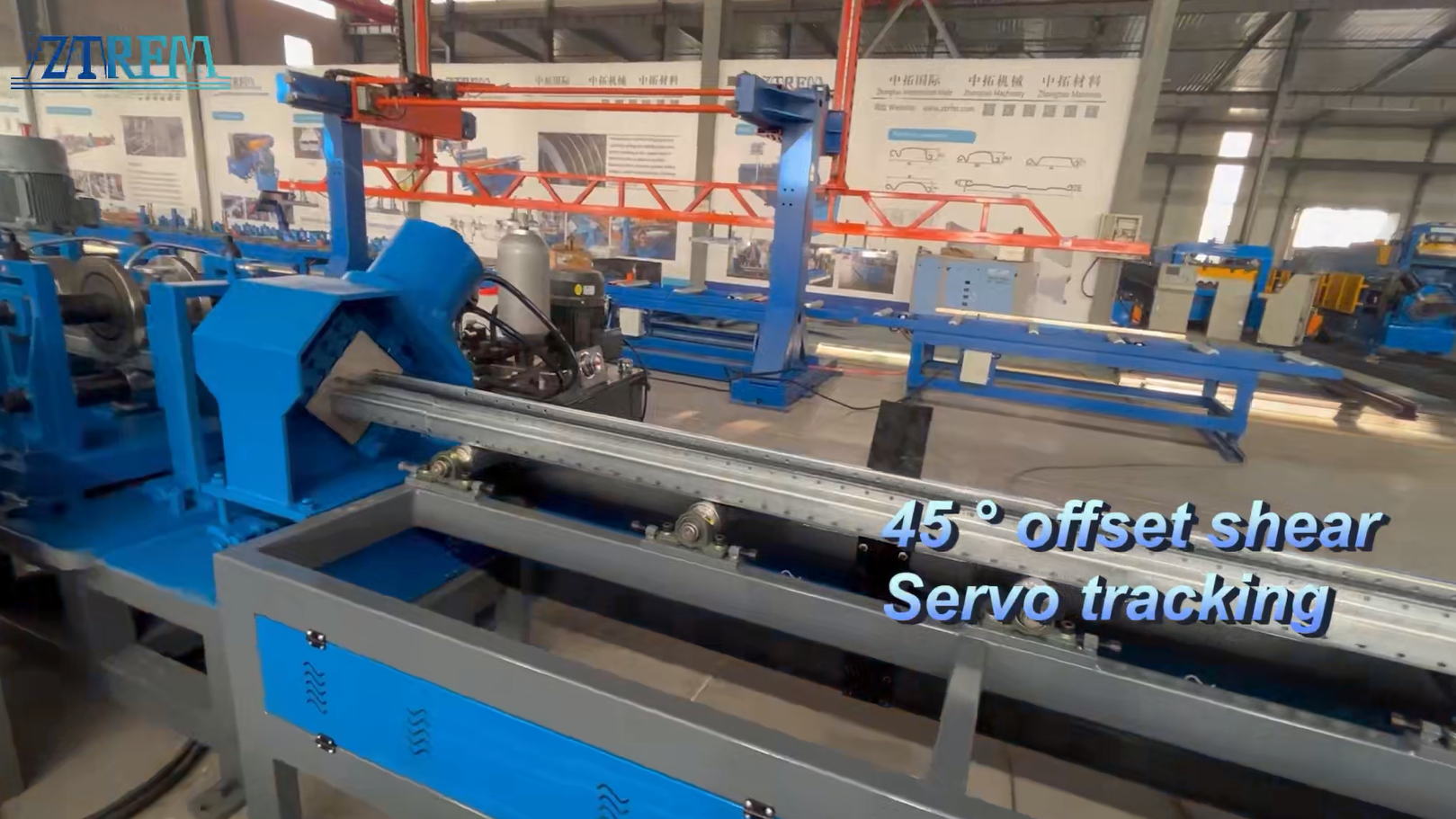

The cutting section is configured with a 45° offset shear and servo tracking system.
Servo tracking coordinates the cutting process with the moving formed profile for the specified production setup.
Finished rack uprights are automatically collected and stacked, completing the downstream handling process.
After forming and cutting, finished rack uprights still require collection and organization.
The automatic stacking machine reduces manual intervention and creates a more organized finished-product handling process.
Feeding, punching, forming, cutting and stacking are integrated into one production workflow.
C-type hydraulic punching is incorporated into the rack upright production line.
Progressive roll forming is used for the specified rack upright profile.
Servo tracking coordinates the cutting operation with the moving profile.
Finished products can be automatically collected and stacked.
The production line can be configured according to the customer's profile and punching requirements.
The finished shelf pillars are designed for warehouse storage and industrial racking systems.
| Item | Configuration |
|---|---|
| Application | Warehouse Rack Uprights / Shelf Pillars |
| Production Type | All-in-One Automatic Production Line |
| Material Feeding | Hydraulic Uncoiling & Feeding |
| Punching | C-Type Hydraulic Punch Press |
| Roll Forming | 16-Station Roller System |
| Cutting | 45° Offset Shear |
| Tracking | Servo Tracking |
| Finished Product Handling | Automatic Stacking Machine |
| Profile | Customized According to Customer Drawing |
Final mechanical dimensions, material specifications, production speed, motor power and other technical parameters shall be confirmed according to the customer's approved profile drawing and final technical proposal.
Different rack manufacturers may use different upright profiles, punching patterns and production requirements. The machine should be configured according to the actual product.
The provided configuration includes hydraulic uncoiling and feeding, C-type hydraulic punching, 16-station roll forming, 45° offset shear with servo tracking and automatic stacking.
Yes. A C-type hydraulic punch press is integrated into the production line.
The provided production configuration uses a 16-station roller system.
Yes. An automatic stacking machine is included in the provided configuration.
The punching configuration can be developed according to the customer's approved profile drawing and punching requirements.
Please provide your rack upright profile drawing, material requirements, punching pattern and production target.
