Automatic stone coated roof tile making machine
Automatic roll forming machine of stone coated roof tile : coated metal roof tile is a modern environmentally friendly roofing material with the basic of
0.4mm /0.35mm/0.32mm/0.3mmAl-zine coated steel.
Covering color vermiculite surface which carried under the high temperature technology.
It is high-performance, stable, energy-efficient and easy operation.

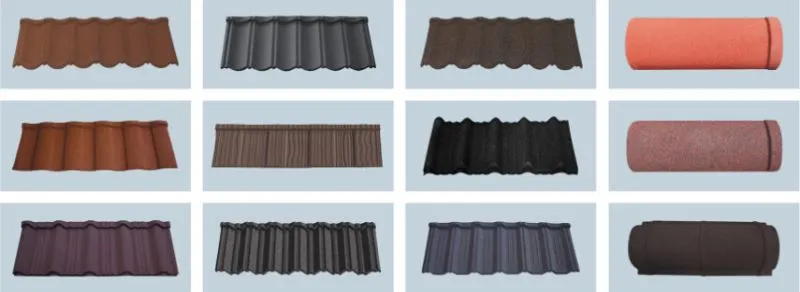

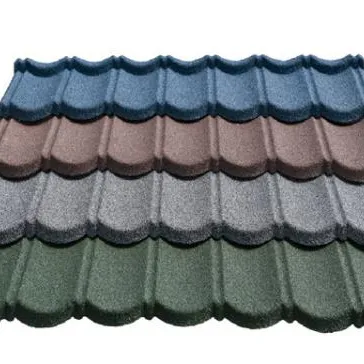

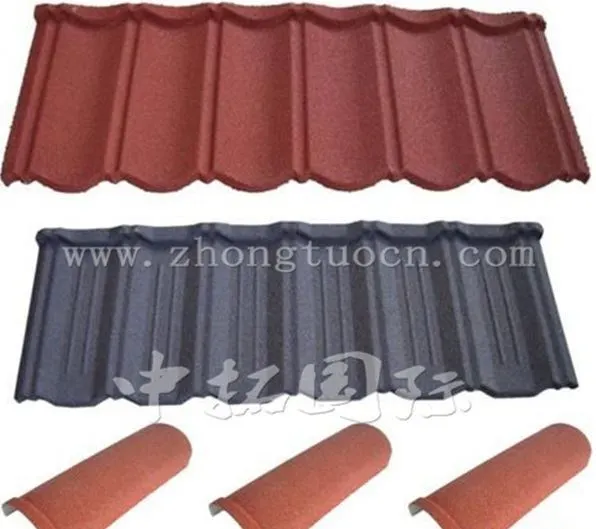

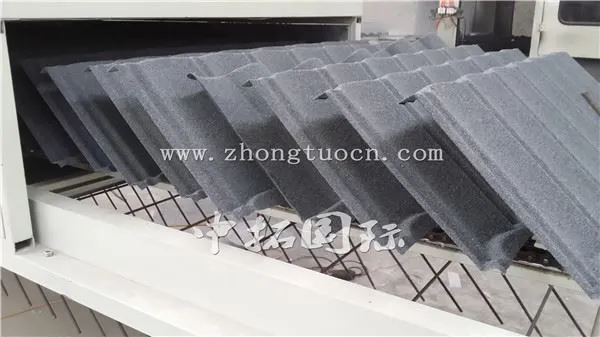

Sample roof panel:
|
NO. 1 Auto bottom glue spraying section |
|
|
Appearance size |
4000*1000*2000mm |
|
Driving section |
3KW Excitation motor or frequency speed regulation (AS per customers’ requirements ) |
|
Automatic pressure spray tank |
1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
|
Automatic glue machine motor |
Servo motor ; Power: 750w ; PLC |
|
Automatic spray gun |
4 set (spare parts) |
|
Dust collecting fan |
1 set ; Power: 200w |
|
Damp proof lamp |
1 pc ; Power: 100w |
|
Conveying device |
Chain reciprocating |
|
Air compressor |
1 set ; Power: 7.5kw |
|
Dust control of axial flow fan |
1 set ; Power: 200w |
|
Agitator |
1 set ; Power: 1.5kw |
|

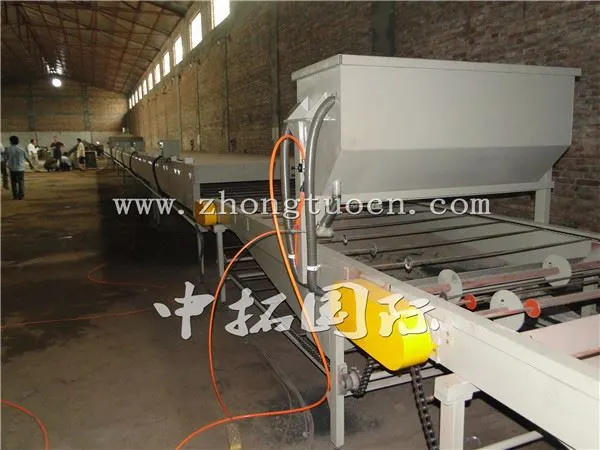

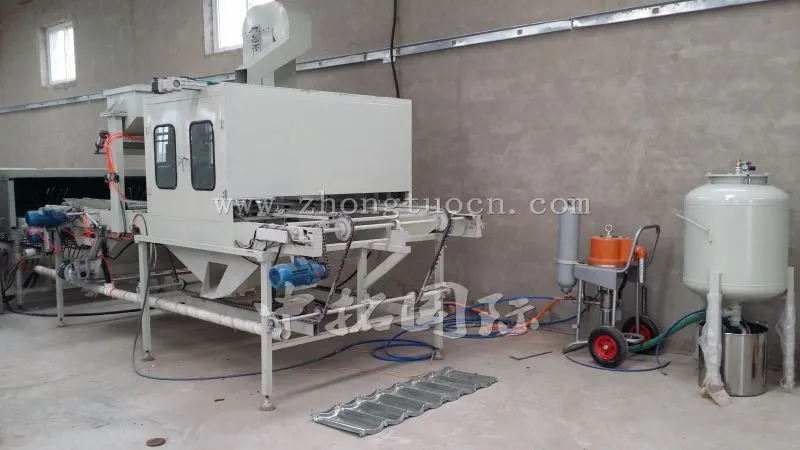

NO. 2 Auto stone coated section |
|
|
Appearance size |
3500*1000*1500mm |
|
Framework |
Steel welding |
|
Conveying device |
Chain reciprocating |
|
Automatic sand hopper |
1 set ; Capability: 200kg |
|
Bucket lift |
1 set |
|
Manual sandblast gun |
4 sets |
|

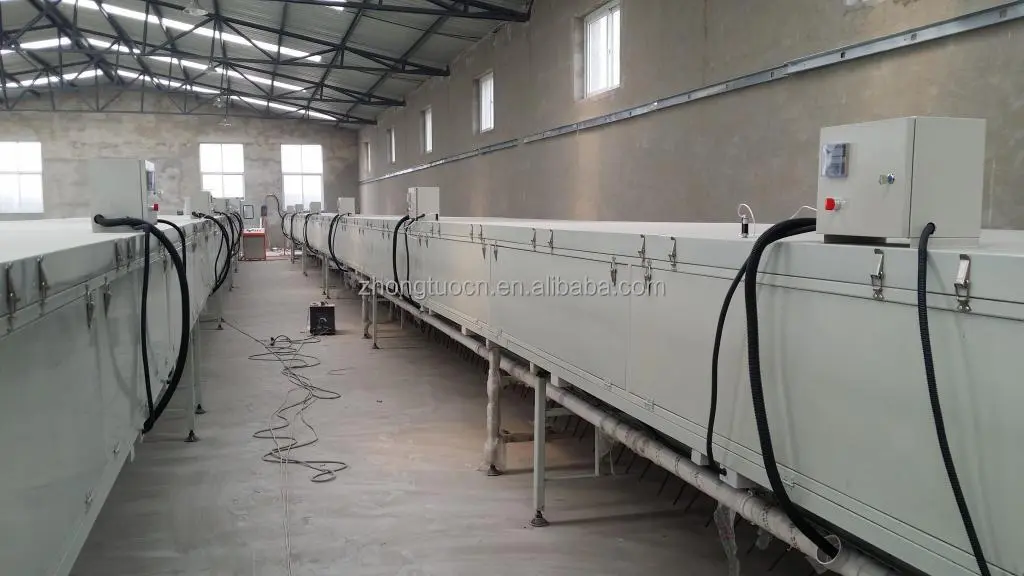

NO. 3 The first time drying section |
|
|
Appearance size |
25000*1000*1200mm |
|
Framework |
Steel welding |
|
Frame type thermal insulation wall |
1.2mm cold steel with Rock wool |
|
Automatic temperature controller |
4 sets ; Range: 0°~160° |
|
Infrared heating tube |
30pcs ; Power: 30kw |
|
Conveying device |
Chain reciprocating |
|
Air cooling device |
1 set ; Power: 200w |
|
NO. 4 Auto face glue spraying section |
|
|
Appearance size |
3000*1000*2000mm |
|
Framework |
Steel welding |
|
Damp proof lamp |
1 pc ; Power:100w |
|
Automatic pressure spray tank |
1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
|
Conveying device |
Chain reciprocating |
|
Automatic spray gun |
4 sets (spare parts) |
|
Manual patch glue gun |
4 sets |
|
Dust control of axial flow fan |
1 set ; Power: 200w |
|
Automatic glue machine motor |
Servo motor ; Power: 750w |
|
NO. 5 The second time drying section |
|
|
Appearance size |
30000*1000*1200mm |
|
Framework |
Steel welding |
|
Frame type thermal insulation wall |
1.2mm cold steel with Rock wool |
|
Automatic temperature controller |
4 sets ; Range: 0°~160° |
|
Infrared heating tube |
30pcs ; Power: 30kw |
|
Conveying device |
Chain reciprocating |
|
Air cooling device |
1 set ; Power: 200w |
About the workers need:
|
PLACE |
QTY. |
|
Panel loading |
one |
|
Bottom spraying |
one |
|
Stone coating |
one |
|
Fill stone |
one |
|
Face glue |
one |
|
Bottom glue mixing |
one |
|
Finish goods receiving |
one |

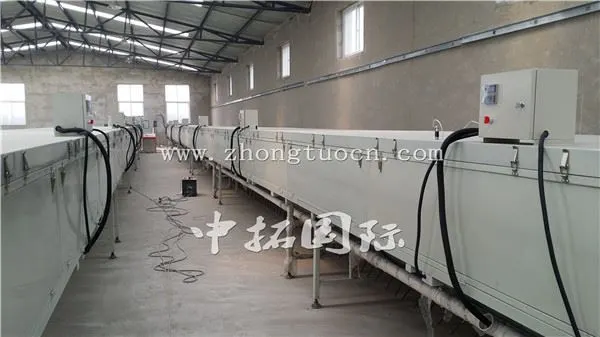

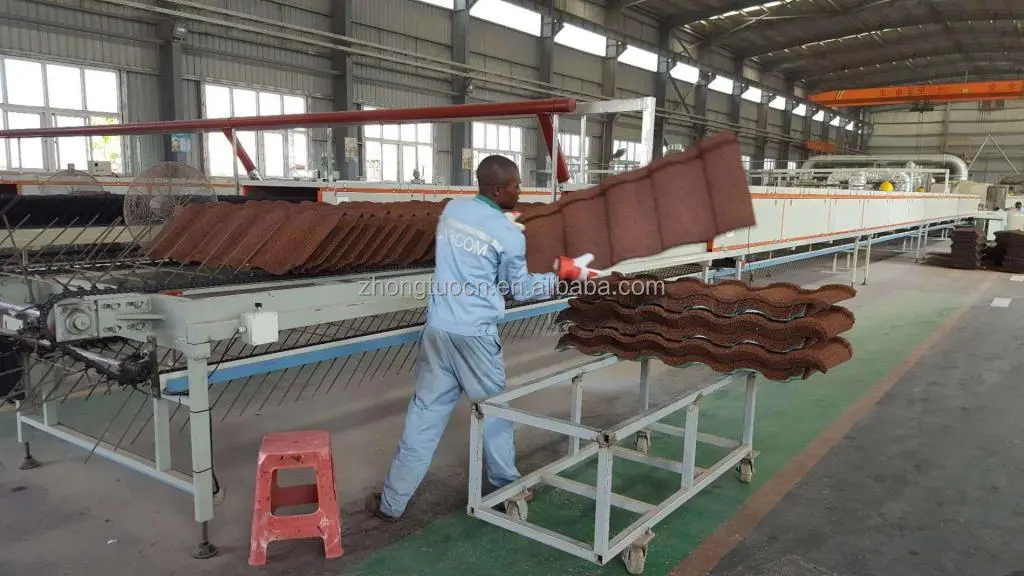

the picture of production house
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD100/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
Payment Terms: 30%T/T after signed the contract,balanced before delivery
