Product Overview

High-Performance Stone Coated Colored Steel Roof Sheet Roll Forming Machine

The Stone Coated Steel Roof Sheet Roll Forming Machine is a comprehensive, fully automated production line designed to manufacture premium stone coated metal roofing tiles. Combining the strength of galvalume steel with the aesthetic appeal of natural stone chips, this machine produces high-end roofing solutions that are lightweight, fireproof, and exceptionally durable against extreme weather.

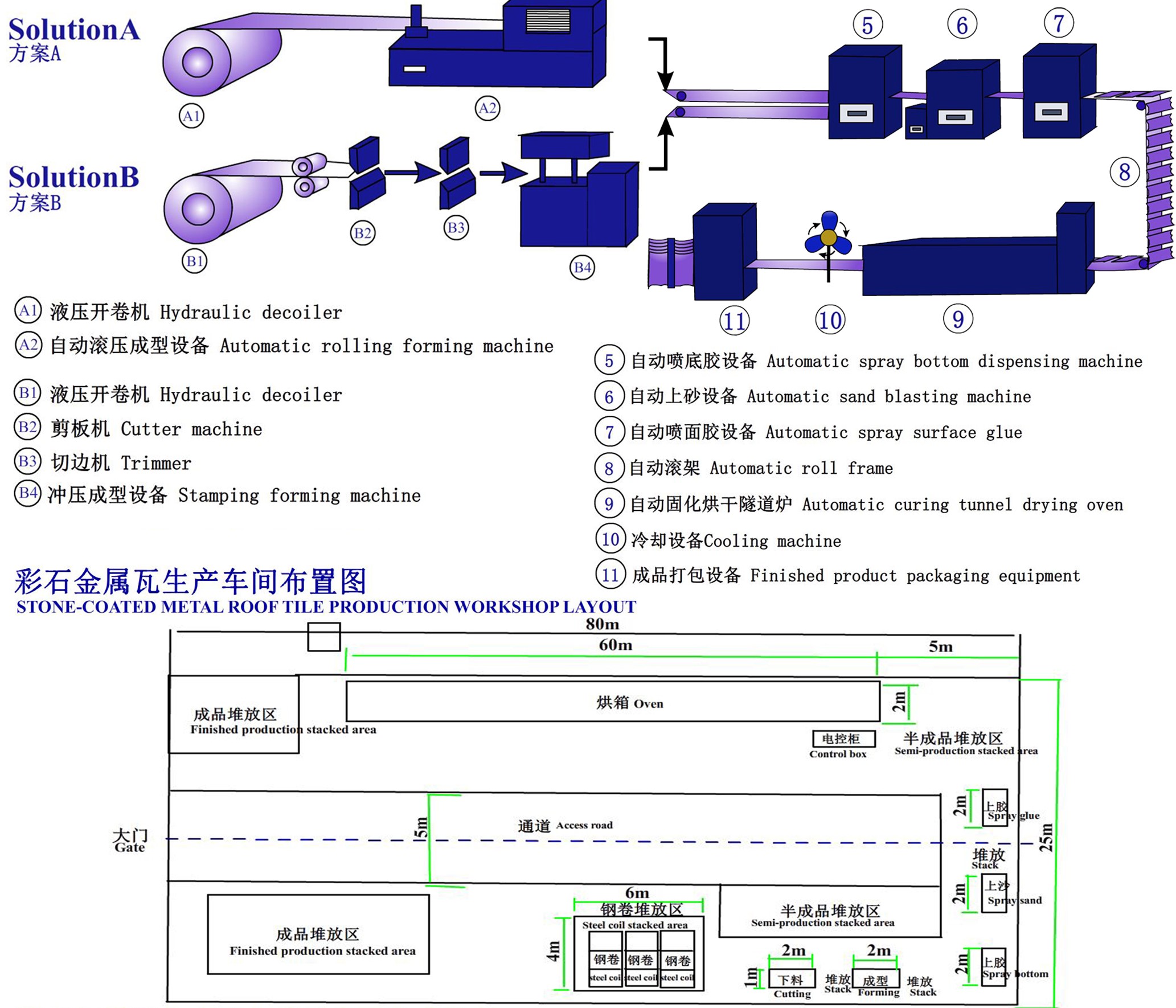

Core Components of the Production Line

Our Stone Coated Roofing Tile Machine integrates several high-precision stages to ensure a flawless finish:

1. Auto-Pressing System: Utilizes heavy-duty hydraulic molds to press galvalume steel sheets into classic profiles like Bond, Classic, Shingle, Roman, or Wood Shake.
2. Glue Spraying Section: Precision nozzles apply a specialized acrylic resin base coat evenly across the tile surface.
3. Stone Coating System: Automatically distributes colored volcanic stone chips, ensuring full coverage and a natural texture.

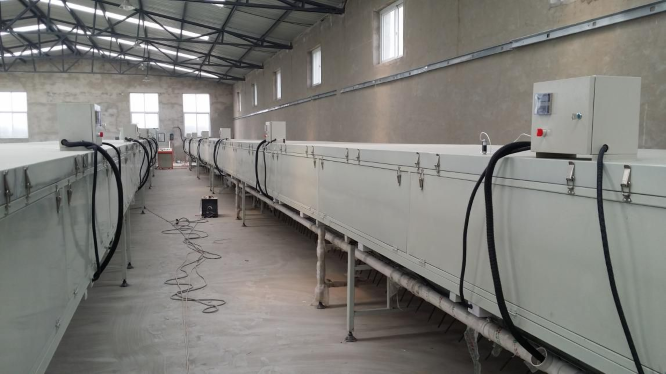

4. Baking & Curing Oven: A multi-stage temperature-controlled oven that cures the acrylic topcoat, permanently bonding the stone chips to the steel.

Key Technical Advantages

• PLC Integrated Control: The entire line, from pressing to sand coating and drying, is synchronized via a Siemens/Mitsubishi PLC system for minimal manual intervention.
• Precision Hydraulic Pressing: Delivers up to 200 tons of pressure, ensuring deep-profile tiles with consistent dimensions and no rebound.
• Energy-Efficient Curing: Our curing ovens are designed with advanced thermal insulation and airflow systems to reduce energy consumption by up to 20%.
• Versatile Profile Changeover: Quick-change mold designs allow manufacturers to switch between different tile patterns (e.g., Bond to Shingle) with minimal downtime.
• Corrosion-Resistant Engineering: All components are treated for the high-humidity environment of the glue spraying and curing sections.

Technical Specifications

Optimized Visual

Why Invest in Our Metal Roof Tile Production Line?

As a leading manufacturer of roll forming equipment, we provide end-to-end solutions for the roofing industry. Our Stone Coated Colored Steel Roof Machine allows you to produce high-margin products that are increasingly popular in residential and commercial construction due to their 50-year lifespan and "cool roof" energy savings. We offer full installation, operator training, and a global warranty to ensure your factory's success.

Service & FAQ

• Q: What is the lead time for this production line?
  A: Standard production takes 45-60 working days.
• Q: Can the machine handle different tile profiles?
  A: Yes, we provide custom molds for Classic, Bond, Shingle, and Roman tile profiles.
• Q: Do you provide installation and training?
  A: Full on-site installation support and operator training are available globally.
