0.05mm Precision Slitting Steel Machine Delivers Powerful Metal Processing

Steel mills produce wide coils, often over a thousand millimeters across. Downstream factories need strips of varying widths for different manufacturing processes.

A slitting steel machine uses circular blades to slit wide coils lengthwise into multiple narrow strips. This article covers the working process, applications, equipment advantages, and core parameters to help you understand how this equipment works in metal manufacturing.

Applications and Materials of Slitting Steel Machine in Manufacturing

What Materials Can a Steel Slitting Machine Process?

This slitting steel machine handles carbon steel and galvanized steel (GI). Thickness ranges from 0.3mm to 3.5mm, and width ranges from 500mm to 1600mm. Maximum coil outer diameter is 1600mm, with a maximum weight of 15 tons.

What Industries Use Slit Steel Strips?

The slit strips go into several downstream manufacturing sectors:

• Automotive manufacturing: raw material for body structural parts, exhaust pipes, seat frames, and other stampings

• Home appliance manufacturing: shells and internal structural parts for refrigerators, washing machines, and air conditioners

• Construction metal products: base material for C purlins, Z purlins, and other structural sections

• Tube and pipe manufacturing: continuous welding feedstock for round, square, and rectangular tubes

• Electrical equipment manufacturing: silicon steel strips for transformer cores and motor stators and rotors

These industries share the same core requirements: accurate width, smooth edges, and tightly wound coils. The strip quality from this equipment directly determines whether downstream processes run smoothly. Whether you call it a slitting steel machine or a liner slitting machine, the function remains the same: converting wide coils into usable strips.

How Slitting Steel Machine Works: 5 Powerful Steps

The working process follows five core steps, running continuously from coil entry to finished strip output.

Step 1 Uncoiling and Feeding

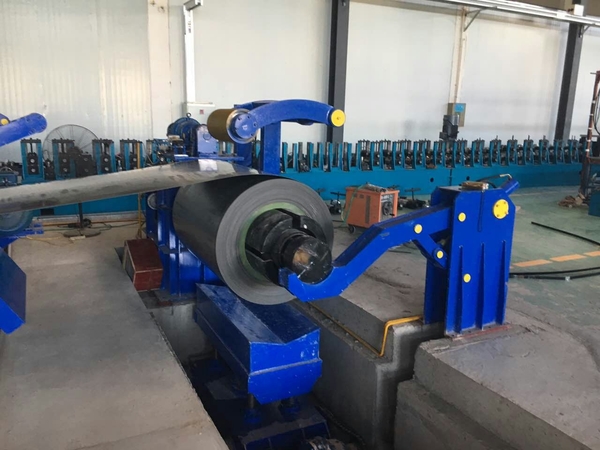

The entry coil car delivers the coil to the uncoiler. The uncoiler expands from inside the coil to secure it, then unwinds the strip steadily. The press and pinch device pushes the strip forward to the next unit. The uncoiler supports up to 15 tons.

Step 2 Trimming and Speed Buffering

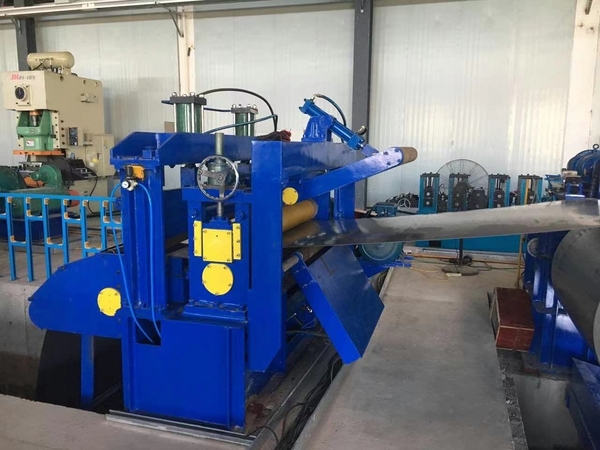

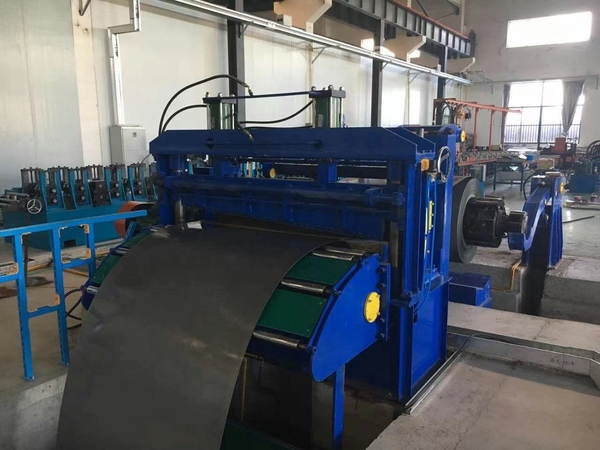

The hydraulic cutter trims the uneven coil head to ensure a clean entry into the main unit. Looper 1 acts as a buffer zone, balancing speed differences between the uncoiler and the slitter. When the uncoiler slows, the looper continues supplying material; when it speeds up, the extra material stores in the looper.

Step 3 Slitting and Edge Scrap Removal

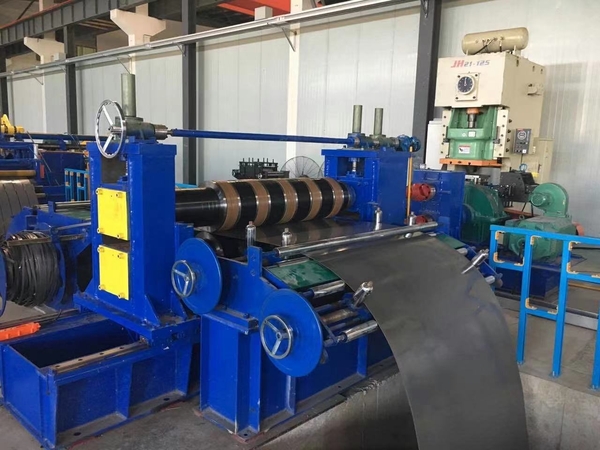

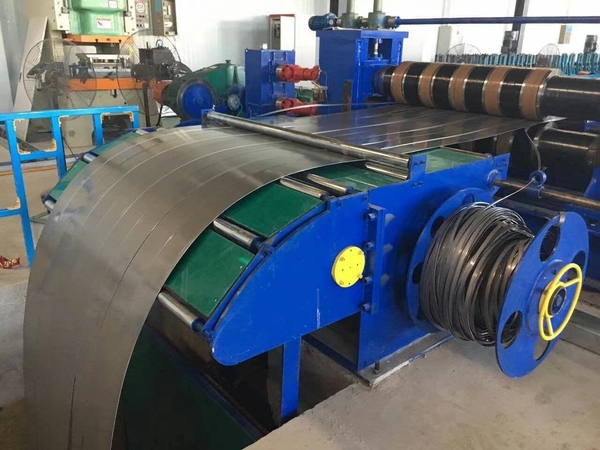

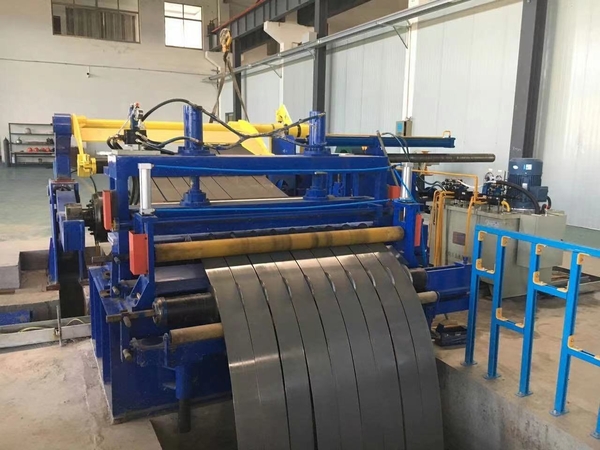

The side guide device keeps the strip centered to prevent wandering. The slitter uses circular blades to cut the strip lengthwise into multiple narrow strips. Blade gap adjusts based on thickness. The scrap winder removes edge trim simultaneously. A cutting slitting machine like this one ensures clean, precise cuts across the entire strip width.

Step 4 Tension Control and Buffering

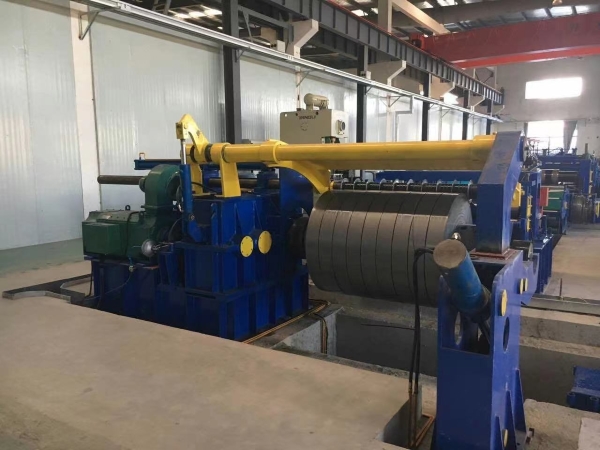

Looper 2 buffers speed fluctuations again. The tension stand maintains stable recoiling tension to prevent strips from loosening or deforming during recoiling. The recoiler winds finished strips into uniform coils. After winding, the exit coil car carries the finished coil away.

Advantages of Slitting Steel Machine

This slitting steel machine offers several practical advantages in its design and configuration:

• Continuous operation: loopers keep the line running during coil changes.

• Slitting accuracy: width accuracy within ±0.05mm ensures consistent width and clean edges.

• Control system: PLC centralized control simplifies operation.

• Simple maintenance: wear parts including seals, bearings, hydraulic fittings, and electrical components use standard sizes.

Wide material compatibility: thicknesses from 0.3mm to 3.5mm and widths from 500mm to 1600mm, processing both carbon steel and galvanized steel. This steel coil sheet slitting machine adapts to various production requirements.

Technical Parameters of a Steel Slitting Line

What Determines Slitting Quality?

Several key factors affect final strip quality:

• Blade gap adjustment: different gaps for different thicknesses. Proper gap settings help produce smooth edges.

• Tension control: the tension stand maintains consistent recoiling tension to prevent loosening or deformation.

• Centering accuracy: the side guide device keeps the strip centered during operation. It helps prevent width errors from wandering.

• Speed stability: loopers absorb speed fluctuations between uncoiling and slitting to help maintain consistent operation.

Other Equipment from the Same Manufacturer

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. was established in 2014. We specialize in the design and manufacturing of various cold roll forming equipment, providing ODM, OEM, and one stop services.

Other equipment in our product range includes:

• C/Z purlin roll forming machine

• Roof tile roll forming machine

• Storage rack upright roll forming machine

• Floor decking roll forming machine

• High frequency pipe welding machine

• Cut to length line

A slitting steel machine converts wide coils into precision strips for downstream use. Whether you are looking for a liner slitting machine or a complete slitting line, we can offer solutions based on your specific needs. If you have specific material specifications or capacity requirements, contact us for equipment recommendations.
