Steel Coil Cutting Machine 4mm Heavy Duty for Sheet Production

Order specs keep getting more varied, material batches differ from one to the next, and delivery dates keep getting tighter. Choosing the right steel coil cutting machine is really about choosing a processing setup that keeps up with changing orders. The workshop floor has plenty of steel coils stacked up, but turning them into sheets at fixed lengths that customers actually want still runs into bottlenecks.

Equipment isn't necessarily unusable. Problems show up after a material change: uneven sheets, drifting dimensions, speed that won't hold. These are common headaches on the shop floor. A steel coil cutting machine that matches the order mix makes the difference.

From Coil to Cut Sheet

Steel coils are the raw material for sheet processing plants, but what customers downstream want isn't a coil of steel. They want flat sheets at fixed lengths. The steel coil cutting machine uncoils the steel, levels it, and cuts it to length, producing sheets ready for stamping, bending, or welding.

Which Industries Need Cut Sheets

• Automotive parts need flat sheets at fixed lengths before stamping, with high requirements for flatness and length consistency

• Steel structure embed plates, connection plates, and stiffeners require moderate sheet thickness and wide width coverage

• Storage rack shelves and panels have stable batch orders with relatively fixed specs

• Transformer enclosure walls and base plates are cut and welded from flat sheets

Under the lightweight automotive trend, parts have more specific requirements for sheet accuracy and consistency. This makes the upstream step on a steel coil cutting machine more important.

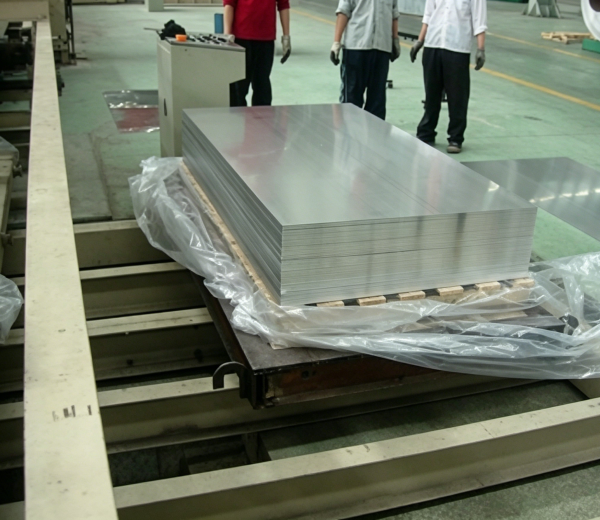

What Comes Out After Processing

After processing, the steel coil becomes flat sheets at fixed lengths. The sheet cut to length line machine handles thickness from 0.4 to 4mm and width from 500 to 1500mm, supplying sheets for downstream stamping, bending, and welding.

Machine Advantages

Key advantages of the steel coil cutting machine include:

• Spec coverage across industries: One machine serves sheet needs from 0.4 to 4mm thickness and 500 to 1500mm width

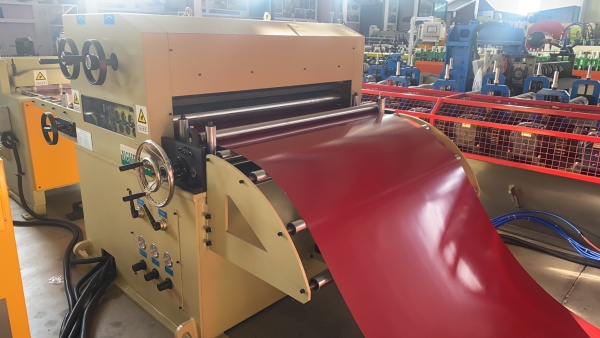

• Leveling roller setup: 17 leveling rollers in GCr15 with HRC58-60 hardness

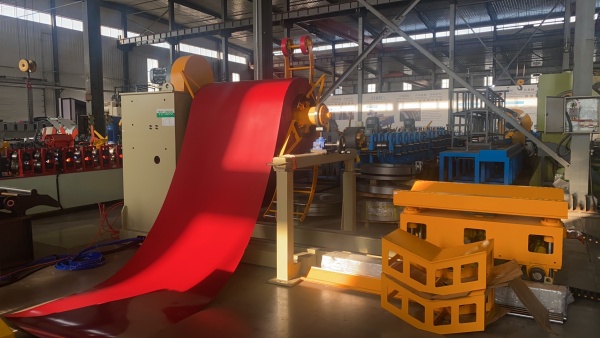

• 15 ton coil capacity: Handles coils up to 15 tons

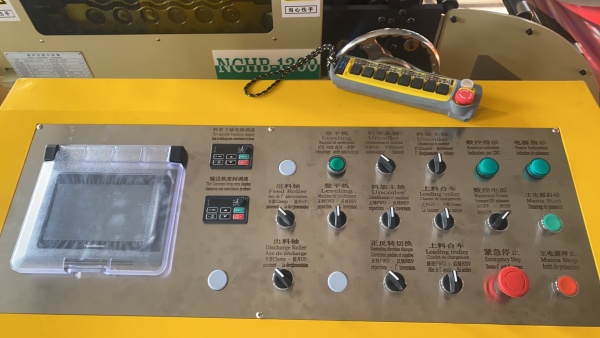

• PLC control: Centralized line control at the console

• Shearing tolerances: Diagonal tolerance under 2mm, length tolerance ±1.5mm, and leveling precision ±1.5mm

Speed and Line Rhythm

Speed is a key parameter on the steel coil cutting machine, but it needs to be understood in the context of the whole line.

What 25m/min Means on the Line

The cut to length line machine runs at a line speed of 25 m/min. This speed works with feeding, leveling, shearing, and length setting to create continuous output. Speed alone doesn't show how the equipment performs in actual production.

Cut Length and Shearing Pace

On a steel coil cutting machine, the quote provides cutting speeds at different cut lengths: about 4 to 5 sheets per minute at 4 meter lengths, and about 6 to 7 sheets per minute at 2 meter lengths. Shorter cut lengths mean more cuts per unit time. Speed depends on the job, not a fixed production rhythm.

Why Speed Alone Isn't Enough

The same line speed performs differently on thin sheets versus thick sheets. Narrow and wide sheets also place different demands on stability. Speed has to be understood together with thickness, width, material, and cut length. Whether a cut to length coil machine meets production needs depends on whether the whole setup matches the actual processing conditions.

Equipment Parameters

Key specifications of the steel coil cutting machine:

Matching the Machine to the Job

Judging whether equipment fits isn't about looking at one parameter. It's about looking at material, thickness, width, speed, and accuracy together.

If a plant's orders are mostly one spec or a few specs, with low changeover frequency, the steel coil cutting machine can run continuously and hold a steady pace. If order specs switch often and batch sizes are small, changeover and setup time need to be weighed against overall output. The value of the equipment comes from how well it matches the plant's actual production rhythm.

Customer Feedback

Final Thoughts

Steel coil processing plants face changing raw material specs, shifting order structures, and constant delivery pressure. Whether equipment can steadily turn steel coils into the fixed length sheets customers need depends on whether the whole line setup matches actual processing conditions. Comparing the specs of a steel coil cutting machine against your own orders gives you a better basis for judgment than looking at one speed number.
