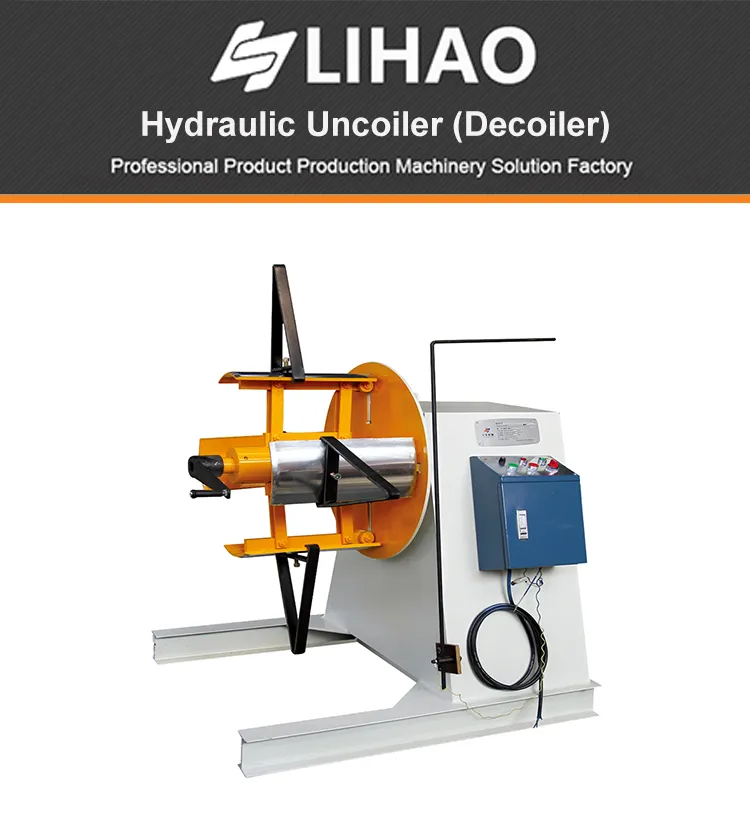

Automatic Steel Coil Hydraulic Decoiler for Coil Roll Forming Machine / Uncoiler Sheet Metal Press Machine MT-300 (Max.Width 300)

Shenzhen Lihao Machine Equipment Co., Ltd

Automatic Steel Coil Hydraulic Decoiler for Coil Roll Forming Machine / Uncoiler Sheet Metal Press Machine MT-300 (Max.Width 300)

Name: Automatic Steel Coil Hydraulic Decoiler for Coil Roll Forming Machine / Uncoiler Sheet Metal Press Machine MT-300 (Max.Width 300)
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT72530526

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

model number:

MT-300 (Max.Width 300)

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Voltage
380V or Optional
Power(W)
Optional

MAIN FEATURES

● The all-steel frame body structure is firm and has a strong bearing capacity

● Suitable for all kinds of coil material feeding

● Customized Maximum load weight is 30T

● Customized Maximum material is 1800mm.

● Compact structure, stable operation, less land occupation, space saving

● The roller is made of solid bearing steel, heat treatment HRC60, and then grinding after hard chromium plating, with strong durability.

● The tension of brake device can be adjusted to make the roll running more smoothly and increase the load capacity.

● The electric control adopts Mitsubishi electromagnetic contactor and electronic components, with less failure and long service life.

● Decoiler adopt cantilever beam design, all plates of the decoiler are cut by laser plasma with high precision.

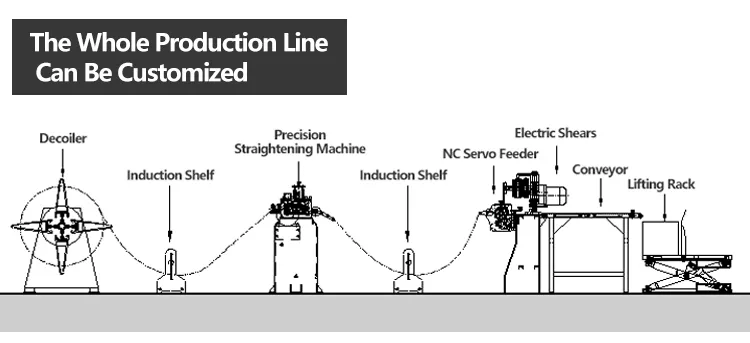

● Customization of uncoiler feeder metal straightening machine that supports full-category material solutions.

Model	MT-200	MT-300	MT-400	MT-500	MT-600	MT-800
Max.width	200	300	400	500	600	800
Material thickness	0.35-1.6
Material inner dia	450-530
Material Outer dia	1200
with Motor	can be customized
with Pressure Arm	can be customized
Material Weight	500	800	1000	1500	2000	2000

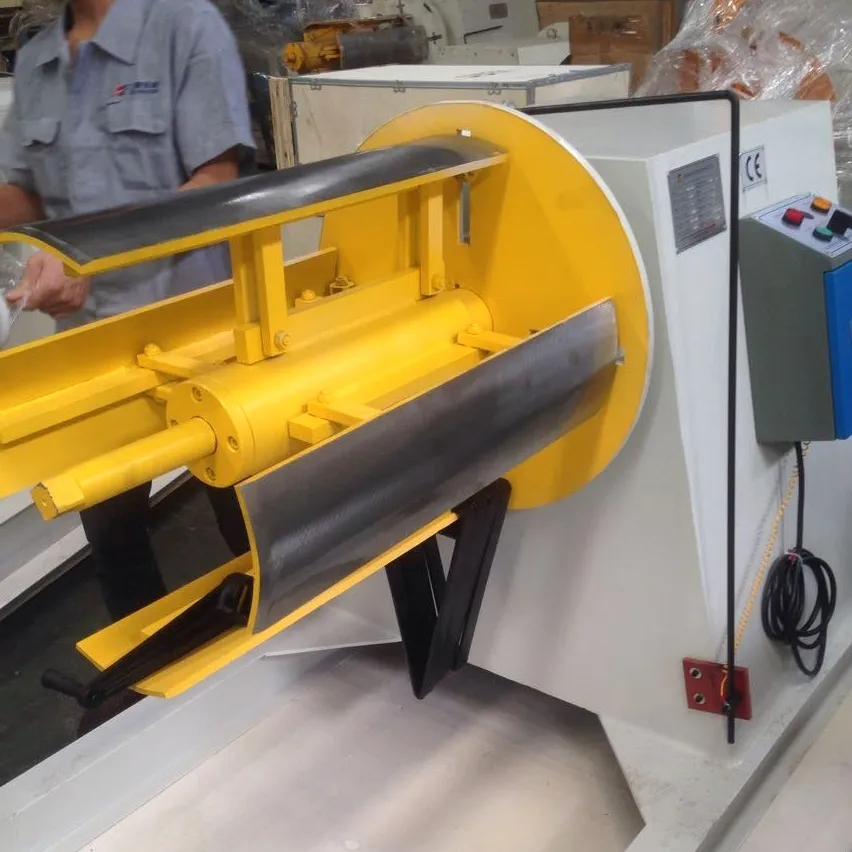

Main Shaft,Tile Part

● The roller are made of A3 material, after cutting ,flash processing.remiling tile bevel, bending, drilling and milling groove procedures. ● The nuts needed to fix each part are all non-slip nuts to prevent them from failing off during operation and from damaging the machine or injuring people. ● Spindle screw and screw sleeve are made of fine machining to ensure the smoothness of adjusting inner and outer diameter of the machine and avoid unnecessary machine stop for reparis.

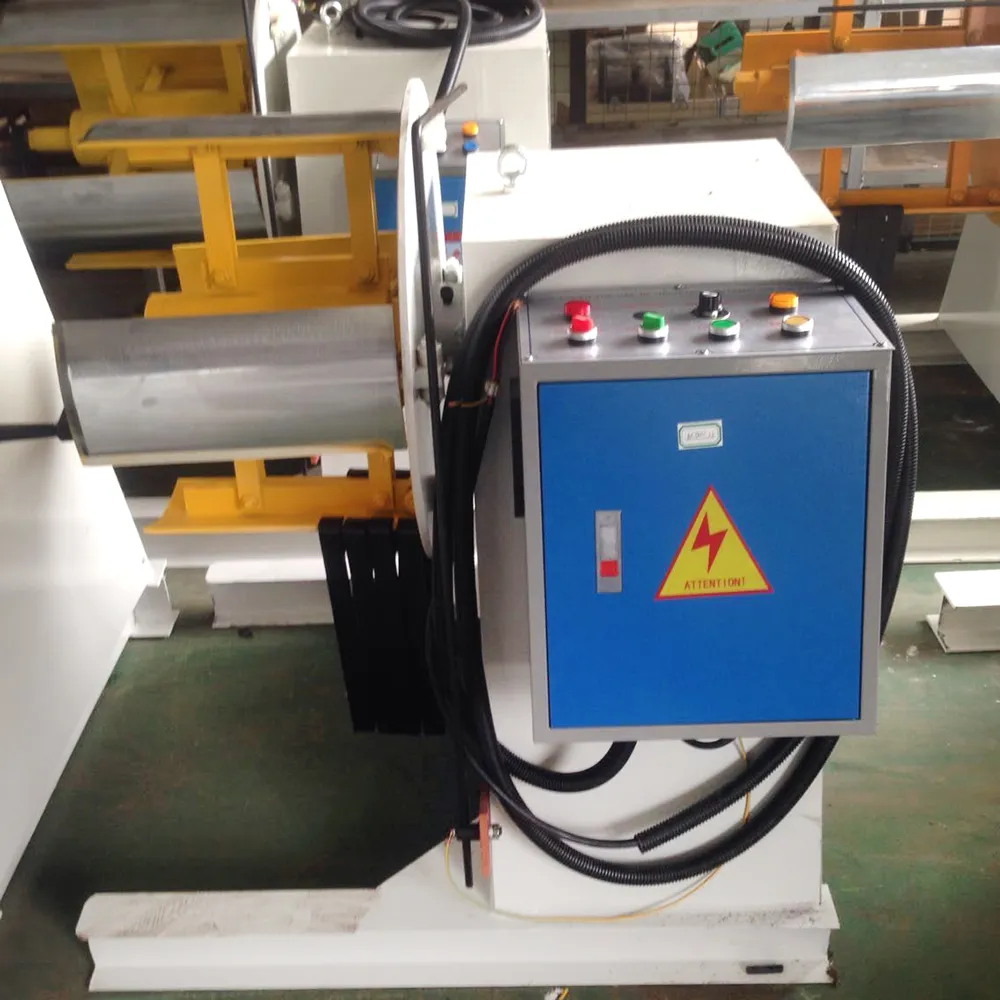

Electric control box

● Adopt silver alloy relay ,full copper coil ,flame retardant safety base, long lasting and durable. ● Adopt safety protection adjustment circuit time delay ,silver alloy contact ,various and dial, satisfied different delay ranges. ● The switch adopts sliding contact ,with self-cleaning function , normally open and normally closed contact adopts separate bonding structure, can work with different poles, equipped with anti-rotation positioning and stop loose mounting gasket. ● Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure. The contact is made up of keto-base composite points with strong conductivity and large current, with a life span of up to 1 million times.

Non-standard custom one

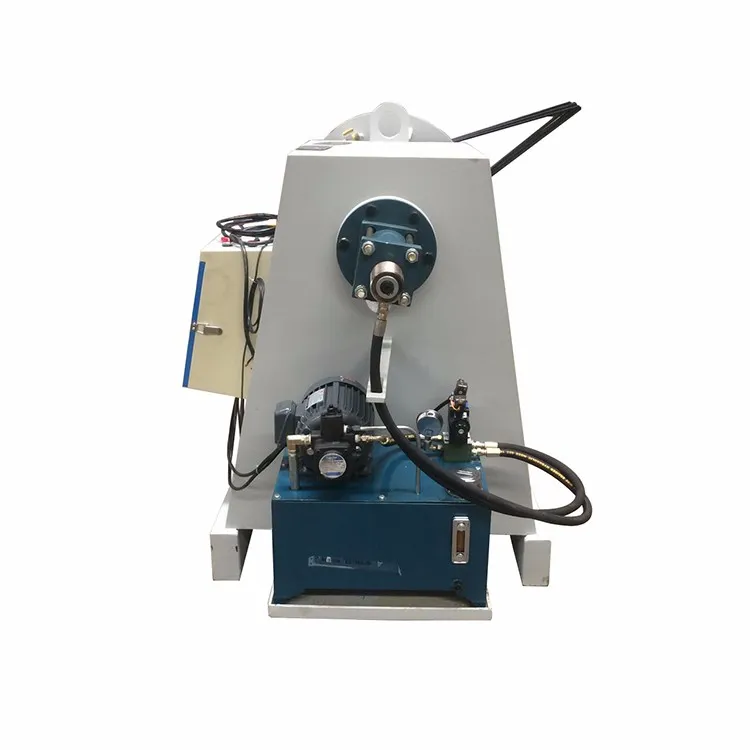

● The material width of the equipment can be made according to requirements,Maximum can reach 1800mm. ● Decoiler inner diameter and outer diameter can be made according t requirements, maximum can reach 1500mm. ● Pressing arm can be added to prevent material loose, and can also add frequency inverter to control speed. ● It can add hydraulic station, used for hydraulic expansion, easy to operate.
