Precision Cold Roll Forming Solutions for Solar Mounting Channels, Photovoltaic Support Profiles and Structural Components.
The Solar C/Z/U Strut Channel Roll Forming Machine is a specialized cold roll forming solution designed to manufacture metal profiles used in solar photovoltaic mounting structures and support systems. It transforms compatible metal coils into accurately formed channels for supporting, installing and fixing photovoltaic modules.
Designed for solar mounting component manufacturers, the production line can be configured to manufacture C-channel, Z-channel and U-channel profiles according to customer drawings and project requirements. Typical applications include ground-mounted solar power stations, commercial rooftop PV systems and distributed photovoltaic installations.
With precision forming rollers and an industrial control system, the machine supports consistent profile production and efficient manufacturing. Optional punching, automatic cutting, coil feeding and material handling systems can be integrated according to the required production process.
Zhongtuo provides customized roll forming solutions based on profile dimensions, material specifications, hole patterns, production speed and local electrical requirements.
Precision-engineered rollers help maintain consistent profile geometry and dimensional accuracy for solar mounting components.
Configurable tooling and forming systems can produce specified C, Z and U channel profiles. Automatic profile changeover depends on the selected machine configuration.
A user-friendly control interface helps operators set production parameters and manage routine manufacturing operations.
Optional automatic feeding, punching and cutting systems help streamline production and reduce manual handling.
A 380 V, three-phase electrical configuration is available, subject to confirmation of frequency and local power requirements.
One-year warranty coverage can be provided according to the agreed warranty terms, exclusions and after-sales service scope.

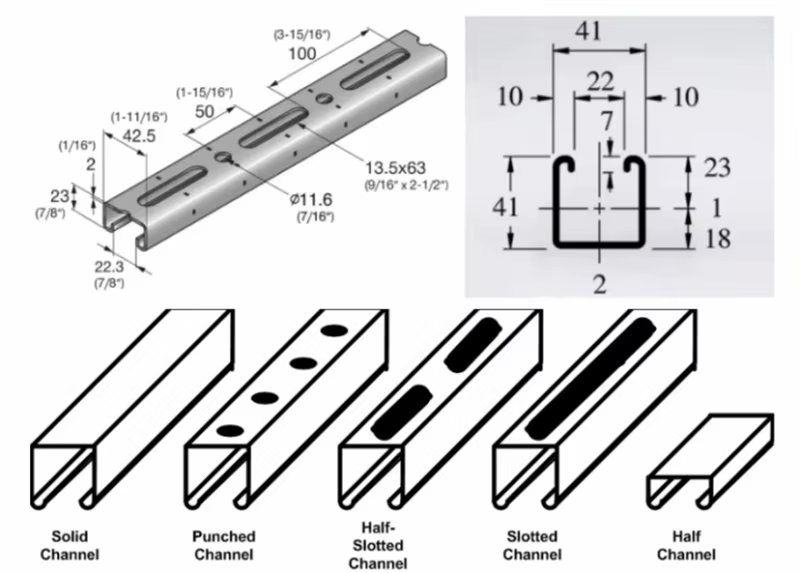

Different photovoltaic projects require different structural profiles. The machine can be configured according to the required cross-section, dimensions, material thickness and connection design.
Suitable for specified solar support rails, structural members and mounting system components.
Designed for compatible structural support profiles used in photovoltaic mounting and framing systems.
Used for specified mounting rails, support channels and compatible fastening systems.
Note: Final profile compatibility, changeover method and tooling requirements must be confirmed using approved profile drawings.
An integrated production line can combine the following processes according to the selected equipment configuration.
The final specifications depend on the selected machine model, profile design and agreed configuration.
| Machine Name | Solar C/Z/U Strut Channel Roll Forming Machine |
| Application | Solar PV mounting structure and support channel production |
| Profile Types | C, Z and U channels, subject to tooling configuration |
| Forming Method | Continuous cold roll forming |
| Forming Material | Compatible galvanized steel and pre-painted steel coils; confirm material options |
| Control System | PLC control system, according to configuration |
| Punching System | Optional or integrated, according to profile requirements |
| Cutting System | Automatic cutting, configuration to be confirmed |
| Voltage | 380 V, three-phase; frequency to be confirmed |
| Profile Changeover | Manual or automatic, depending on selected configuration |
| Warranty | 1 year, subject to agreed warranty terms |
Solar PV mounting structures act as essential support components in photovoltaic installations. The finished profiles are designed for compatible mounting systems selected according to project engineering requirements.
Produce structural channels for ground-mounted solar arrays. Properly engineered mounting profiles support photovoltaic modules and are selected according to wind loads, snow loads, soil conditions and applicable project standards.
Manufacture compatible mounting channels for residential, commercial and industrial rooftop PV installations. Profile design and connection methods depend on the roof structure and the specified mounting system.
Supply roll-formed profiles for solar projects with specialized structural requirements. Local production may help reduce transportation distance for bulky finished components. Material durability and structural performance must be verified for the intended environmental conditions.
The machine can be engineered for suitable metal coil materials according to the required profile design, forming forces and surface protection requirements.
Please provide your profile drawings, material grade, thickness, coil width, required output and punching specifications so that the machine can be designed for your production requirements.
A multi-profile solution can be designed for specified C, Z and U profiles. The achievable profile range and changeover method depend on the tooling and machine configuration.
Yes. Punching and cutting units can be integrated according to the required hole patterns, profile dimensions and production process.
The machine produces profiles for compatible PV mounting systems used in ground-mounted and rooftop installations. The finished structures must be engineered and verified for the intended project.
Yes. Profile dimensions, material thickness, punching positions, cut lengths, control settings and auxiliary equipment can be specified according to customer requirements.
Please provide profile drawings, material grade and thickness, coil width, required production speed, punching details and local electrical supply information.
