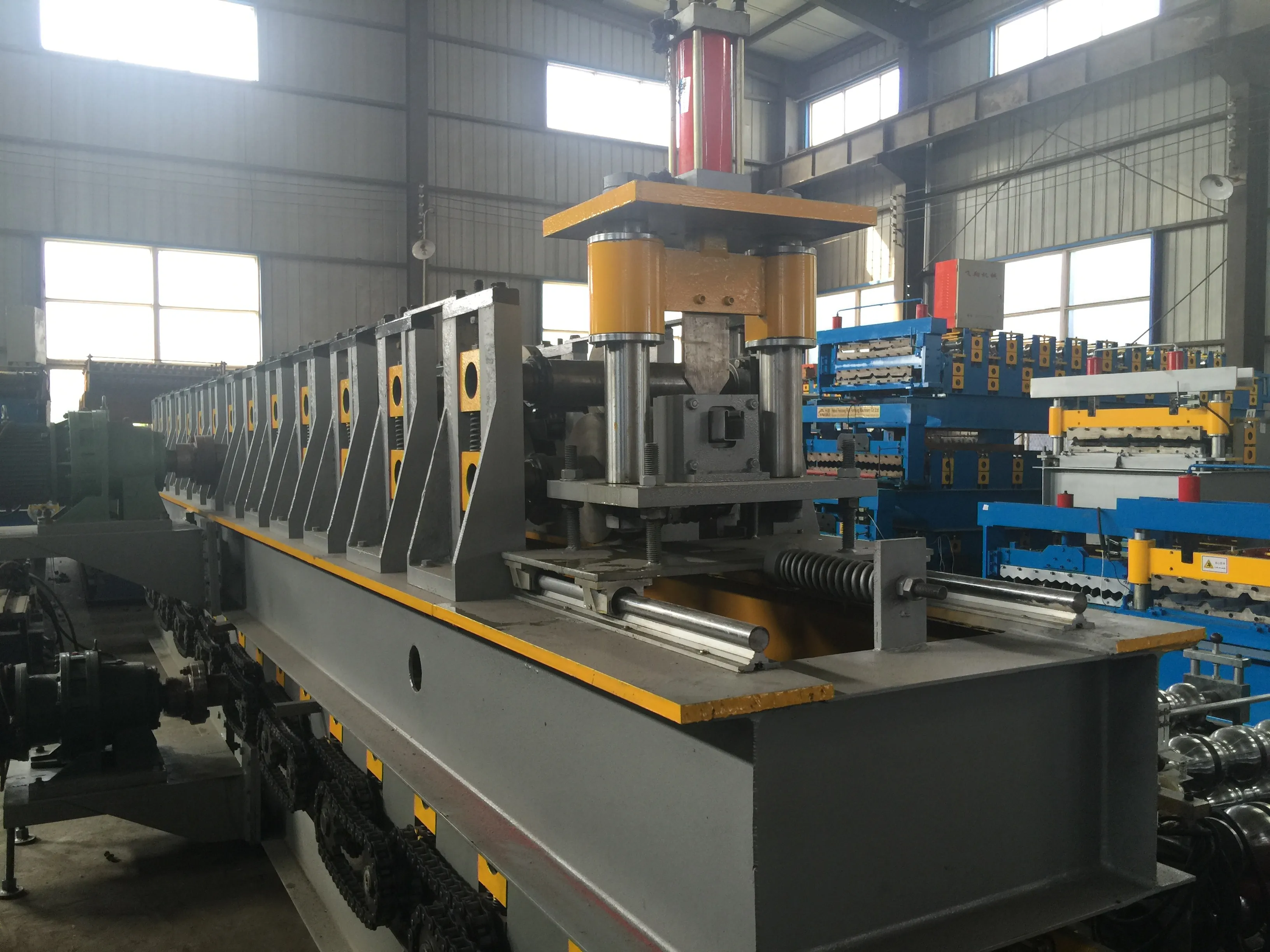

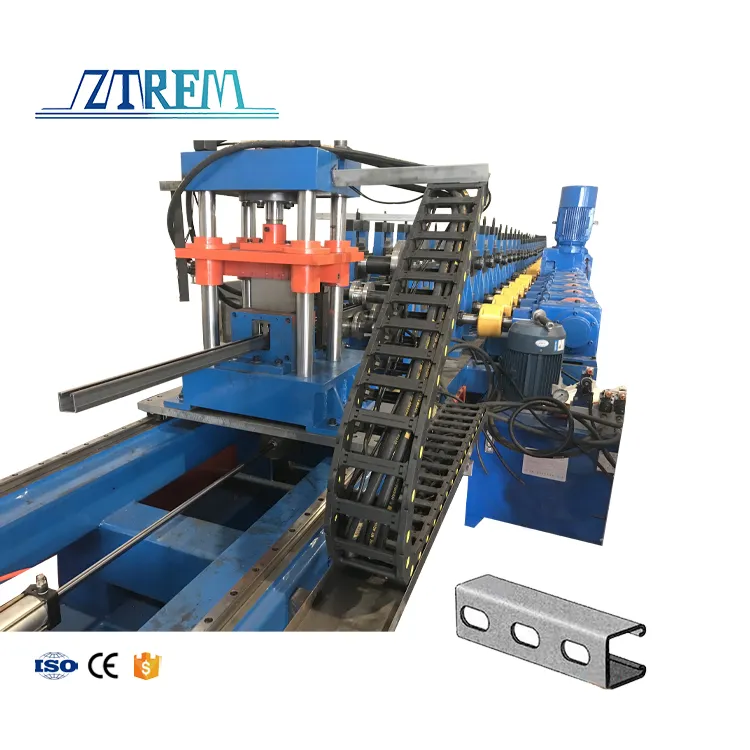

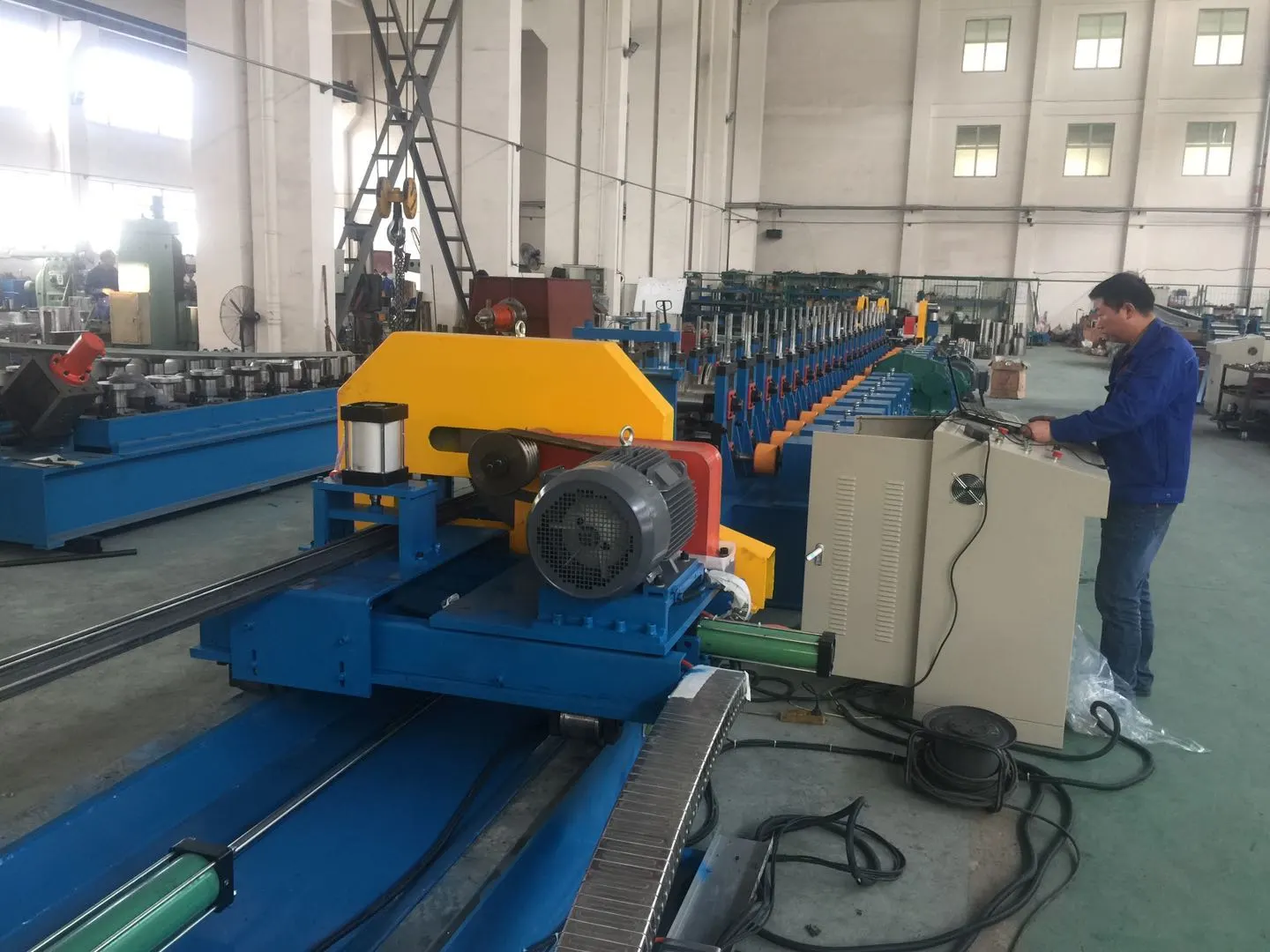

Automatic Solar Panel Framing Machine Solar Panel Mounting Structure Roll Forming Machine 10-15m/min+solar panel farme roll forming machine+15kw

Name: Automatic Solar Panel Framing Machine Solar Panel Mounting Structure Roll Forming Machine 10-15m/min+solar panel farme roll forming machine+15kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT79641440

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

10-15m/min

Model Number:

solar panel farme roll forming machine

Power(W):

15kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Type
  Tile Forming Machine
- Tile Type
  Colored Steel
- Use
  ROOF
- Rolling Thinckness
  1-3mm
- Feeding Width
  1220 mm
Solar panel farme roll forming machine
Design Idea：

Profile drawing for reference:
Raw material: Galvanized steel plate Material thickness : 1-3mm

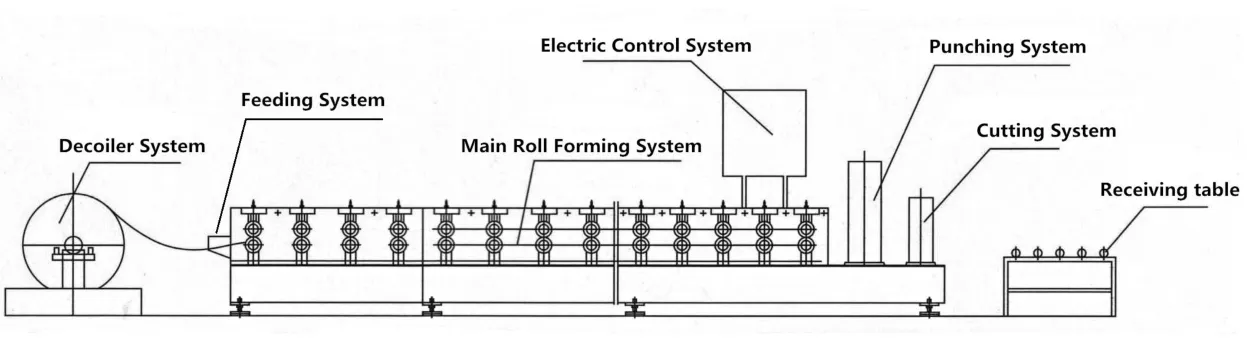

Processing Flow

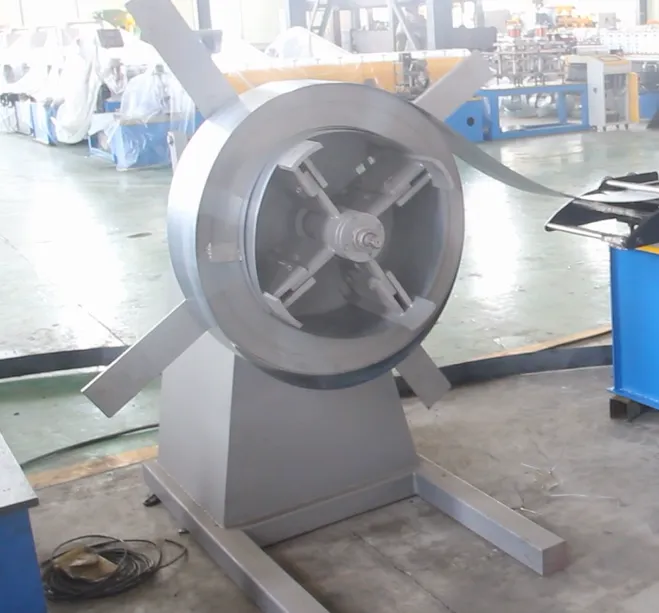

Decoiler System
Usage: It Is Used To Support The Steel Coil And Uncoil It In A Turntable Way. Passive Uncoil Pulled By Roll Forming System. Loading Capacity: 3 T Uncoiling Width: 300mm Inner Diameter: 450-550mm

Option B: If You Need The Fully Automatic Hydraulic 3 Ton, We Can Change For You. The Price Is 4800 Usd More.

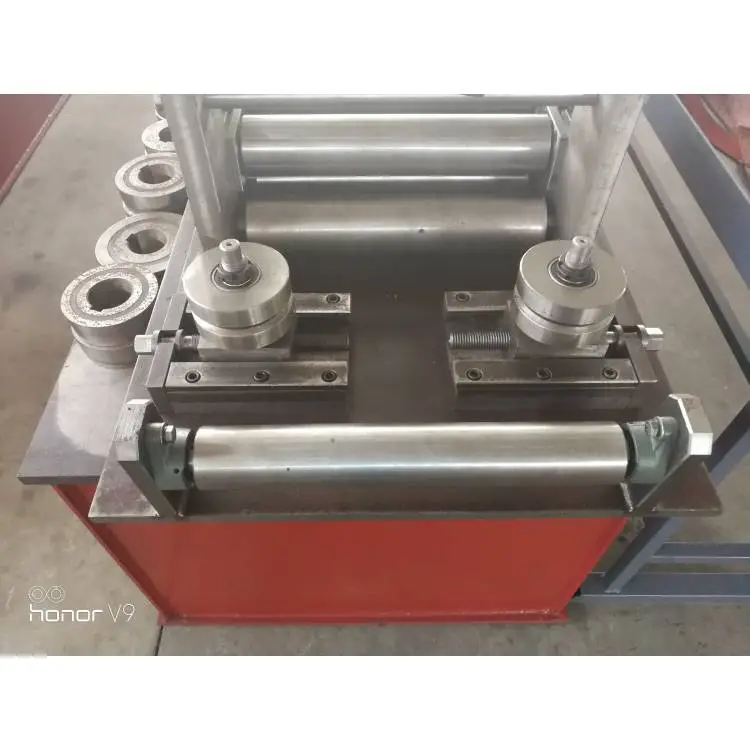

Feeding Part
Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

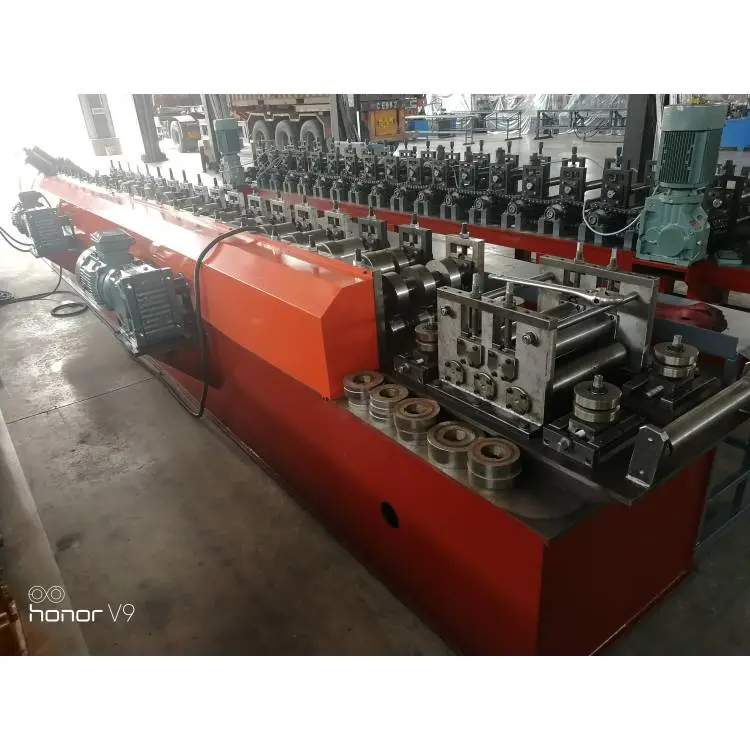

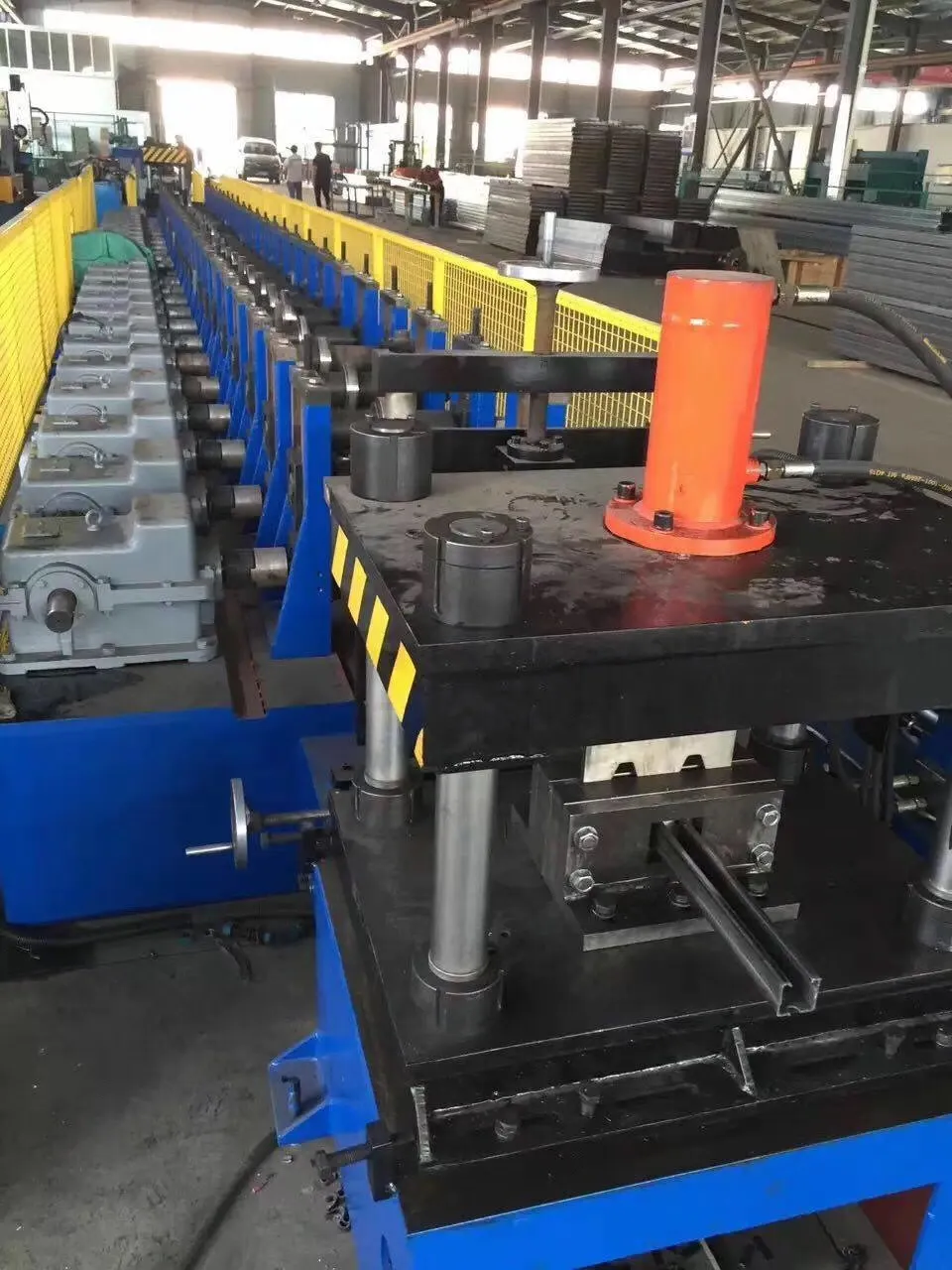

Main Roll Forming System
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission, roller surfaces polishing, hard plating, heat treatment and galvanizing treatment.
Material of rollers :GCr15 Quenching treatment HRC55-57°Finishing
Material of shafts : 45# steel with tempering Diameter of shafts : φ 50 mm Number of rollers :One set Main power : 7.5 kw Forming speed : 0-15m per minute Base Frame Structure : Plate splicing Overall processing Weight of main part : 6.5 tons Voltage : 380V 50Hz 3Phase (as customer request) Drive mode : Chain and Gear

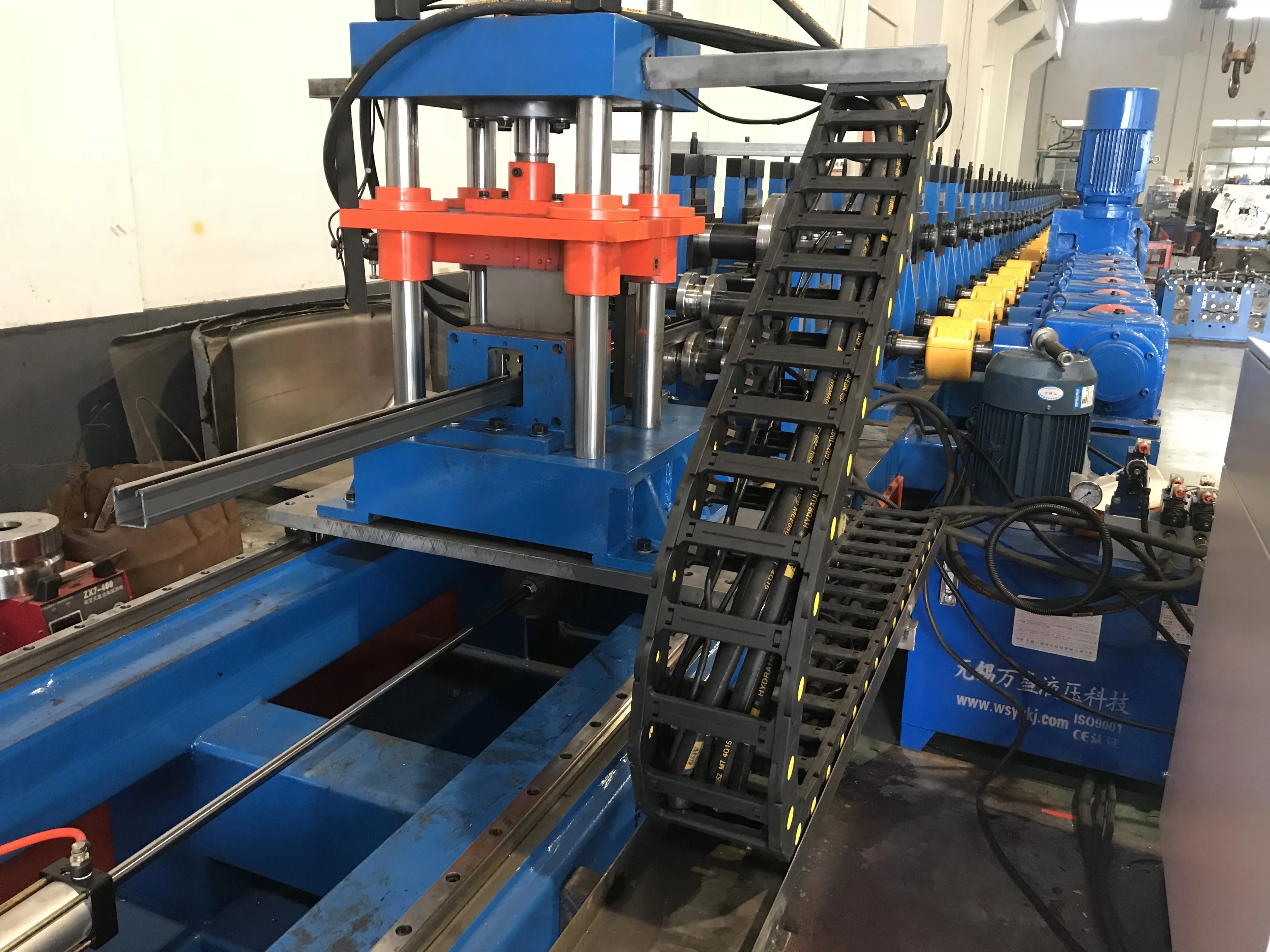

Shearing Mechanism
Function : Automatic cutting controlled by PLC It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Cutting Blade :GCr12 quenched Power supply : Hydraulic power Components : It contains one set of blade, one hydraulic tank and one cutter machine. Cutting Tolerance : 10M±1.5mm Frame Structure : A3 Carbon Steel Plates welded & Guide Pillar Cutting Knife : Inside sealing Cu Spacer, whole life no maintain,only

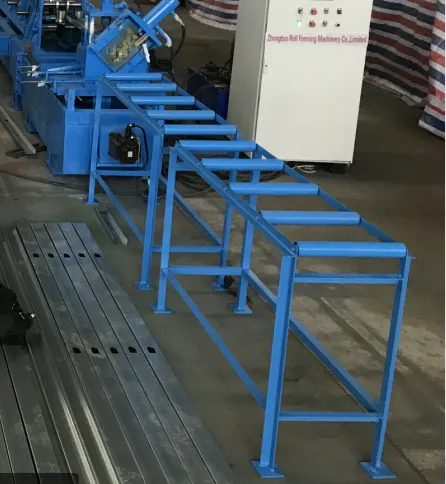

Products Receiving Tables
Usage: It adopts welded steel to transmit the products. Production Length : 3000MM Production Width : 500mm Control Method : Manual receiving Frame Structure : Square pipe & screws, roller moving

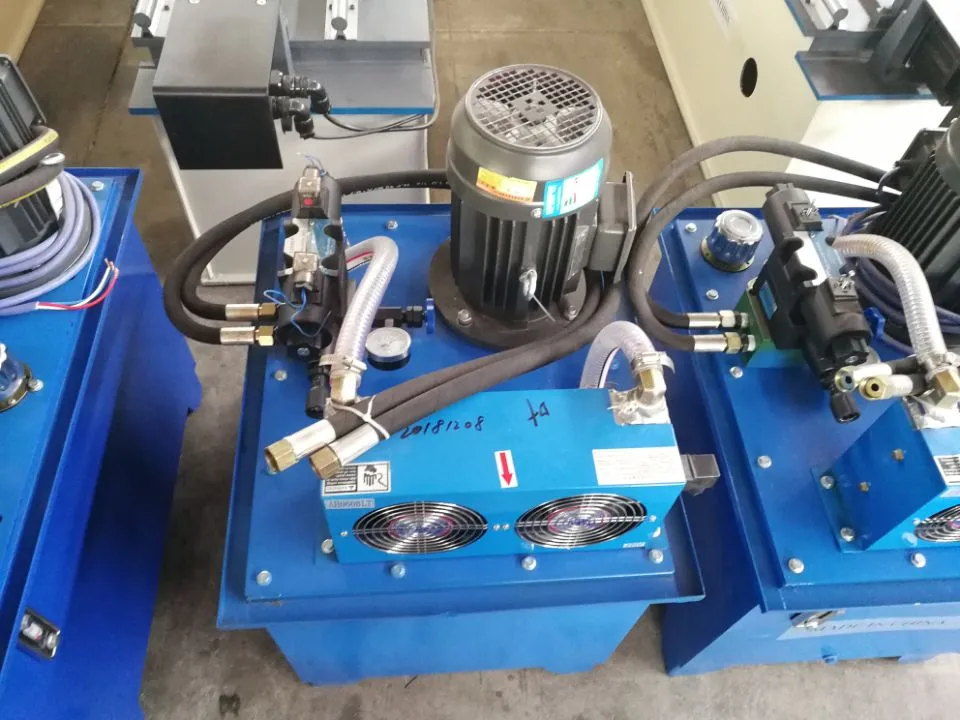

Hydraulic station
Usage: It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Hydraulic motor Power : 5.5 KW(Lichao, Shanghai) Solenoid Valve : ±24V(Huade,Beijing) Hydraulic oil : 46# hydraulic oil

Electric Control System
Adopted PLC , transducer, touch panel to ensure high speed with stability, precision and lifetime. PLC System : Delta PLC Programme,Taiwan Encoder Brand : Rongde,Changchun HIM Screen : Detlta,Taiwan (English-Chinese) Inverter Brand : Delta ,Taiwan Other Electronic : +/-24V low voltage CHNT Operating panel : Touching screen and button together Running mold : Automatic length measurement,Automatic quantity measurement
