Automatic Soffit Panel Roll Forming Machine for Color Coated Steel

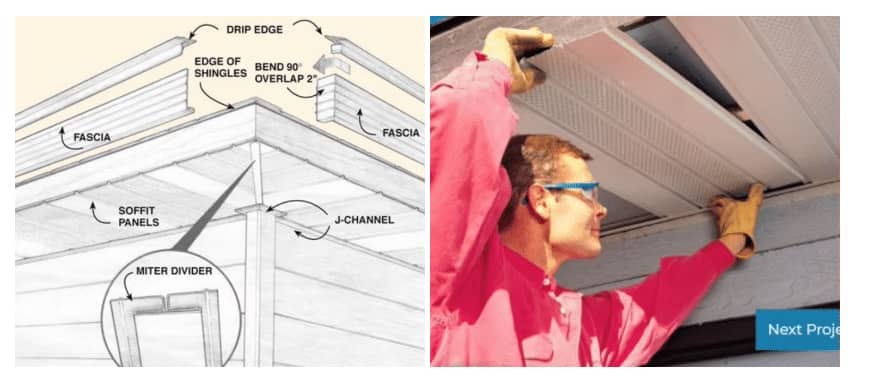

In the exterior facade and eaves decoration system of buildings, although the Soffit Panel is not as eye-catching as the main roof, it is a key link connecting the roof and walls, balancing functionality and aesthetics. It covers the bottom of the eaves and the edges of the building, undertaking the important mission of protecting the roof structure from wind and rain erosion, promoting ventilation to prevent moisture accumulation. The Fully automatic Soffit Panel Roll Forming Machine is a specialized equipment designed for efficient and precise production of this building's "invisible hero".


What is a fully automatic Soffit Panel roll forming machine?

The fully automatic Soffit Panel roll forming machine is a specialized production line that uses cold bending forming technology to continuously cold bend metal strips such as aluminum coils, galvanized steel strips, and color coated steel strips (PPGI) through multiple rollers. The equipment mainly consists of hydraulic unwinding machine, feed guiding device, precision roll forming host, hydraulic flying shear system, PLC intelligent control system, and finished product discharge platform.

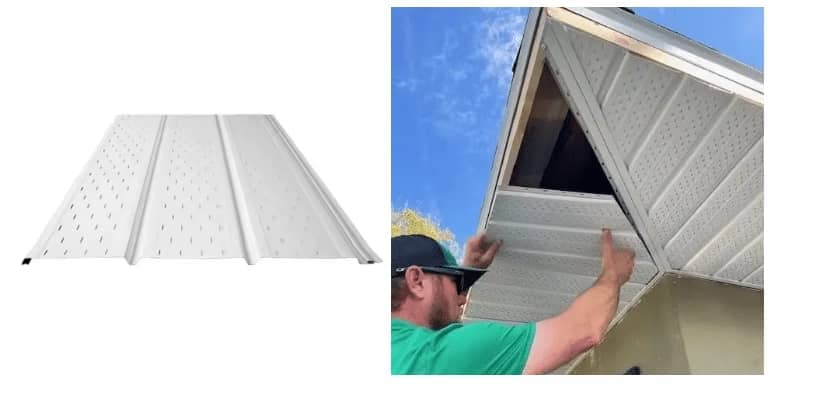

Soffit Panels are widely used in residential eaves, commercial building exterior walls, industrial warehouses, garages, and various building facade systems. It not only protects the roof structure from wind and rain erosion, but also achieves building ventilation and prevents moisture accumulation through reasonable design, effectively extending the service life of the roof system.

Integrated production line:

The fully automatic Soffit Panel roll forming machine is a highly integrated automated production line, with the main processes including:

1.Unwinding and Leveling: The metal coil is placed on a hydraulic unwinding machine and fed into the forming host through a guiding device

2.Roll forming: The strip is sequentially formed into the desired Soffit Panel section through multiple precision forming rollers

3.Punching (optional): Integrated rotary punching or hydraulic punching system, synchronously completes ventilation hole processing

4.Tracking cutting: precise fixed length cutting is completed by a hydraulic flying shear system in continuous motion

Widely applicable fields:

• Residential eaves system: decoration and ventilation of eaves and floor slabs in villas and townhouses

• Exterior wall decoration of commercial buildings: office buildings, shopping centers

• Industrial warehouses and factories: Protection of exterior walls and eaves of metal buildings

• Garage and parking facilities: protection and beautification of exterior walls and eaves

• Public buildings and facilities: eave systems for buildings such as schools, hospitals, exhibition halls, etc

• Old house renovation and refurbishment: upgrading and renovating the exterior facade of buildings

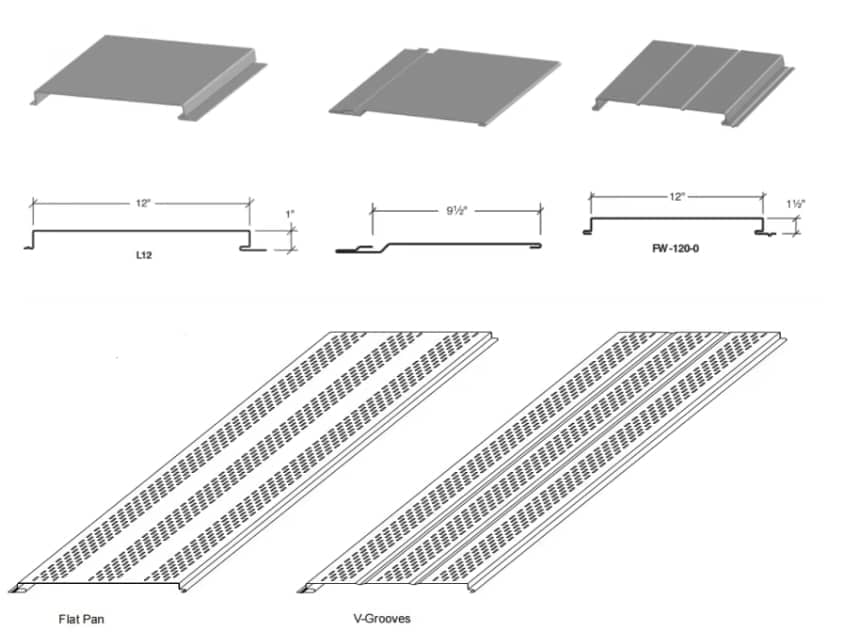

Pattern diagram：


Product Attributes :

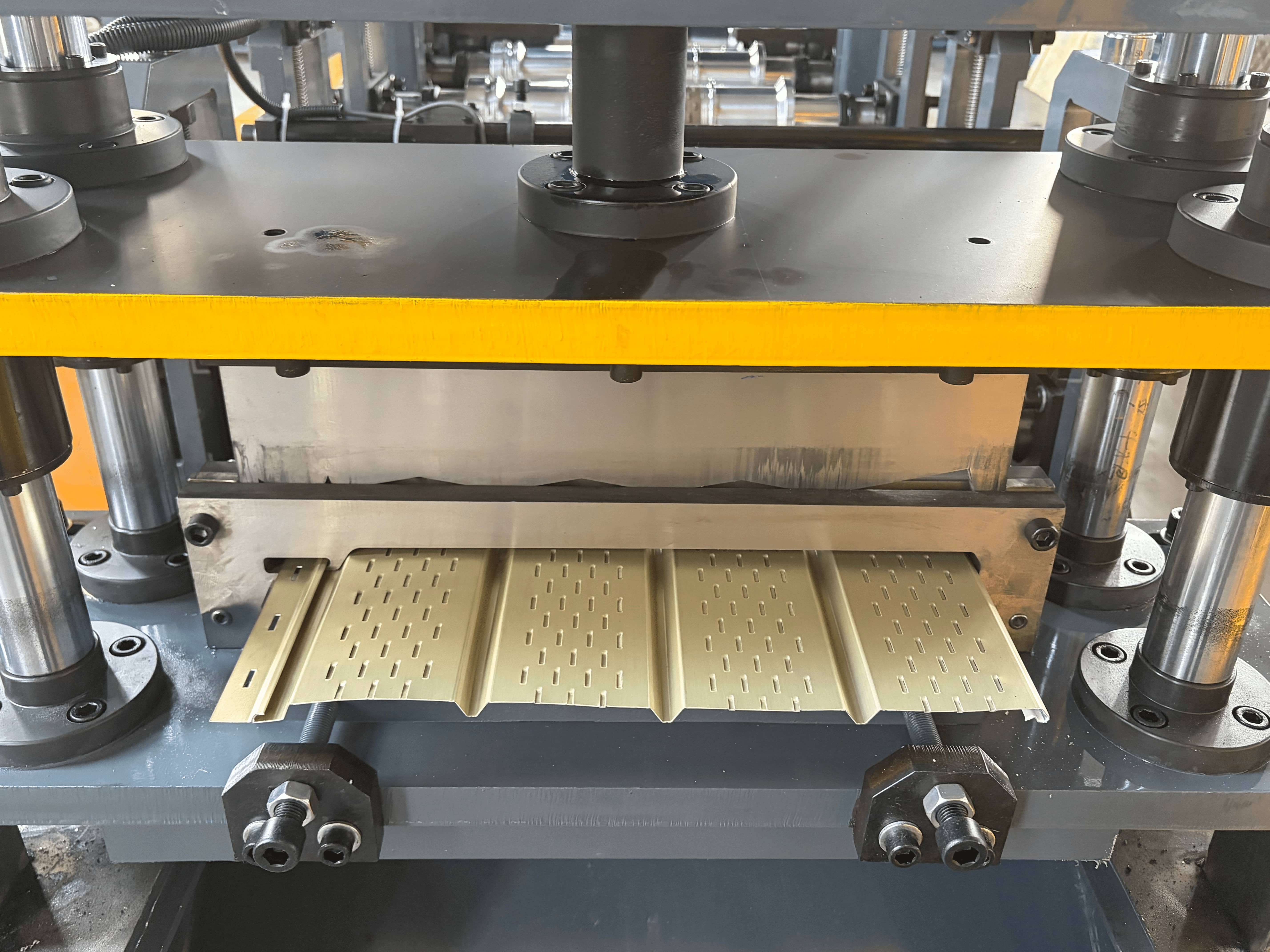

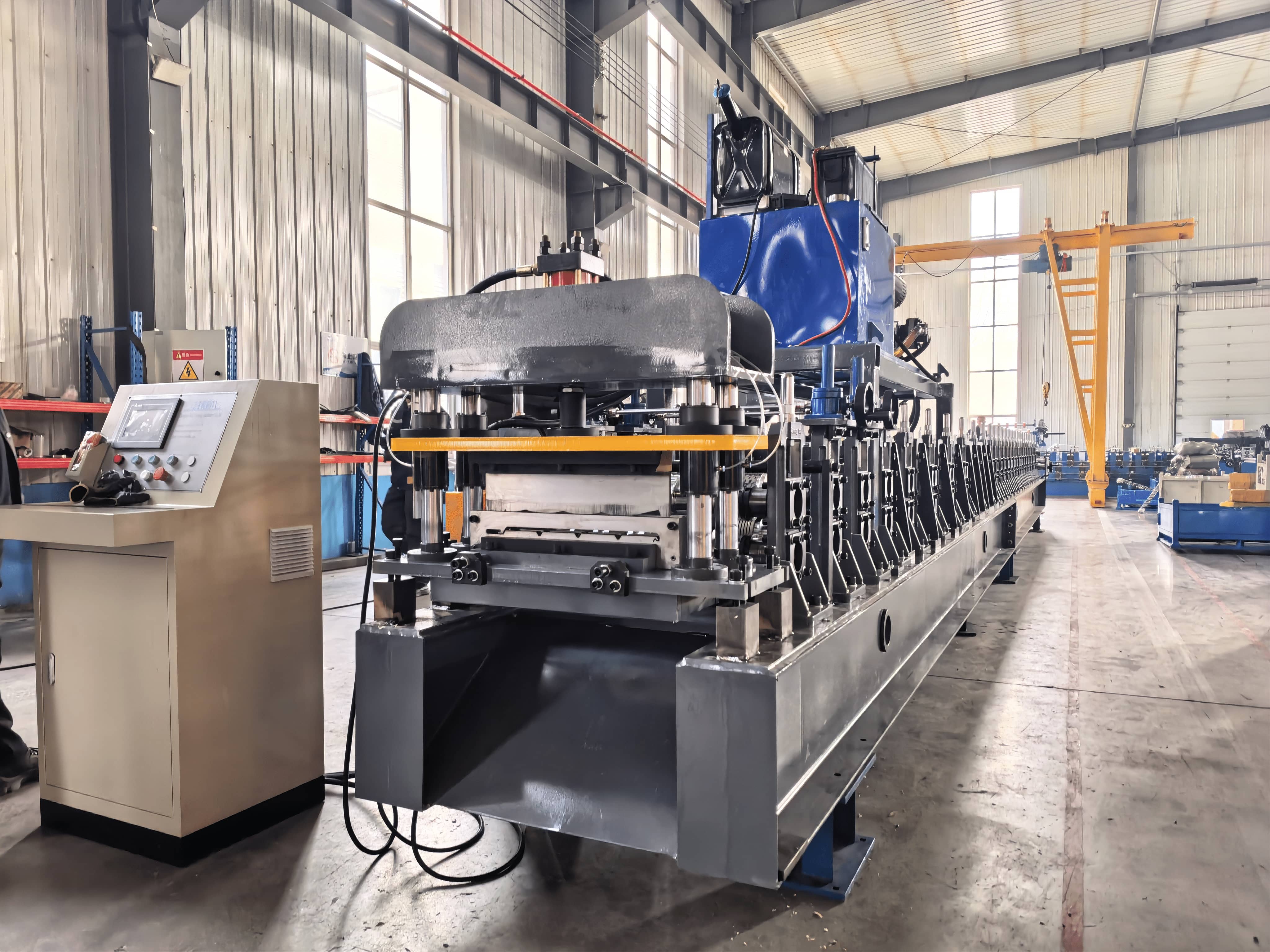

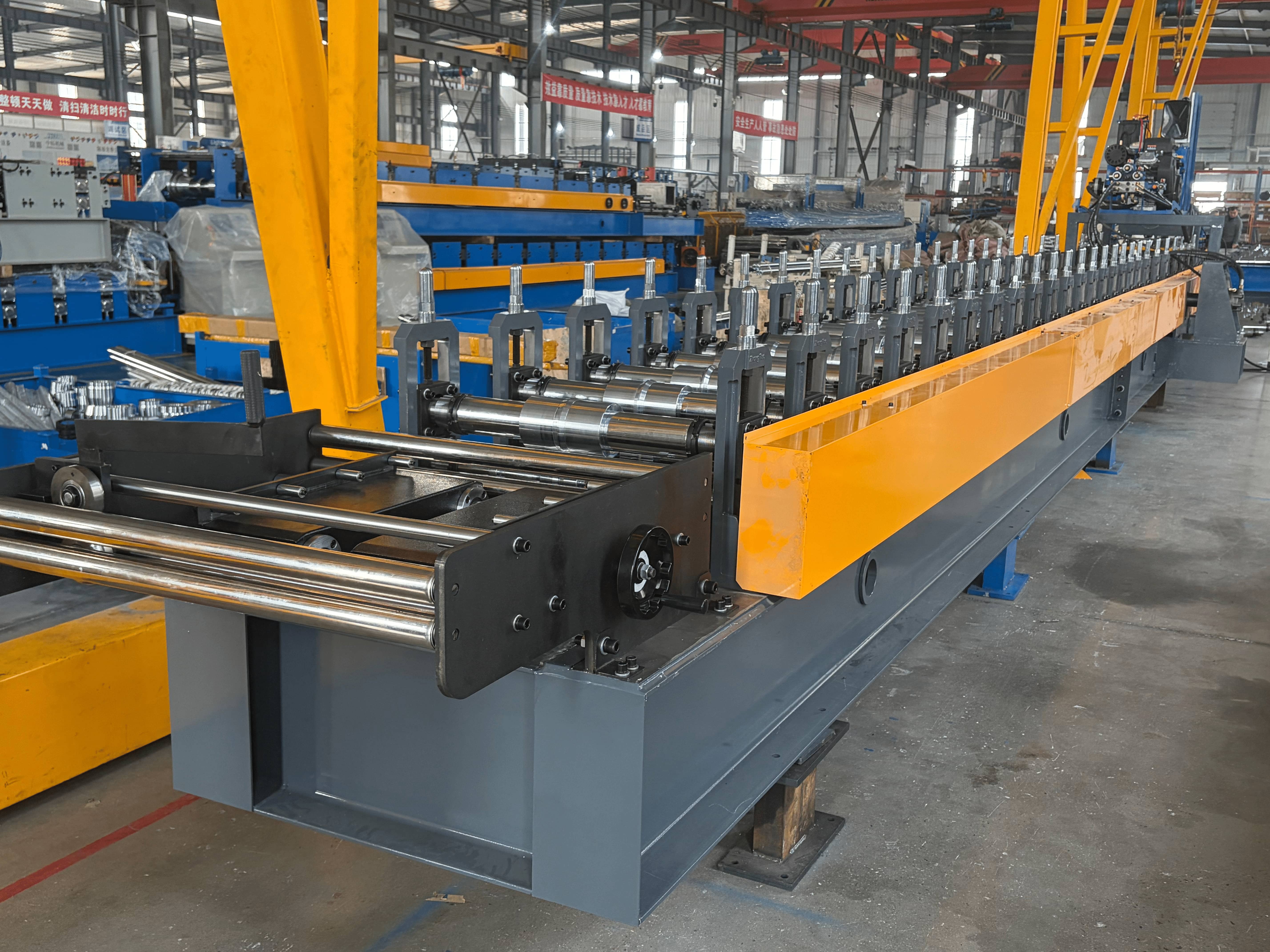

Machine photo:

Contact Us：

Today, as the construction industry rapidly develops towards assembly, standardization, and aesthetics, the fully automatic Soffit Panel roll forming machine is the ideal choice to help building decoration enterprises and metal roof manufacturers transform and upgrade, and seize market opportunities. It simplifies the production of arch web plates, making eaves decoration more efficient, precise, and aesthetically pleasing.
