High-Precision & Heavy-Duty Pallet Production Line for South Africa
The Metal Shelf Pallets Roll Forming Equipment is an advanced production line designed for high-efficiency manufacturing of metal shelf pallet components. The complete line integrates heavy-duty decoiling, sheet leveling, multi-station punching, precision roll forming and servo-controlled post-punching.
With a heavy-duty 8-ton uncoiler, 36 sets of forming rollers, gear transmission and servo-controlled punching technology, the machine provides stable production, accurate forming and reliable performance for large-scale pallet manufacturing.
Equipped with hydraulic tensioning and electric unwinding for smooth and stable coil feeding during continuous production.
The leveling system uses 13 correction rollers, including 7 upper rollers and 6 lower rollers, helping prepare flat and accurate material before forming.
Front punching includes 3 stations, 3 mold bases and 5 sets of molds. Post-punching uses 4 stations and servo control for accurate processing.

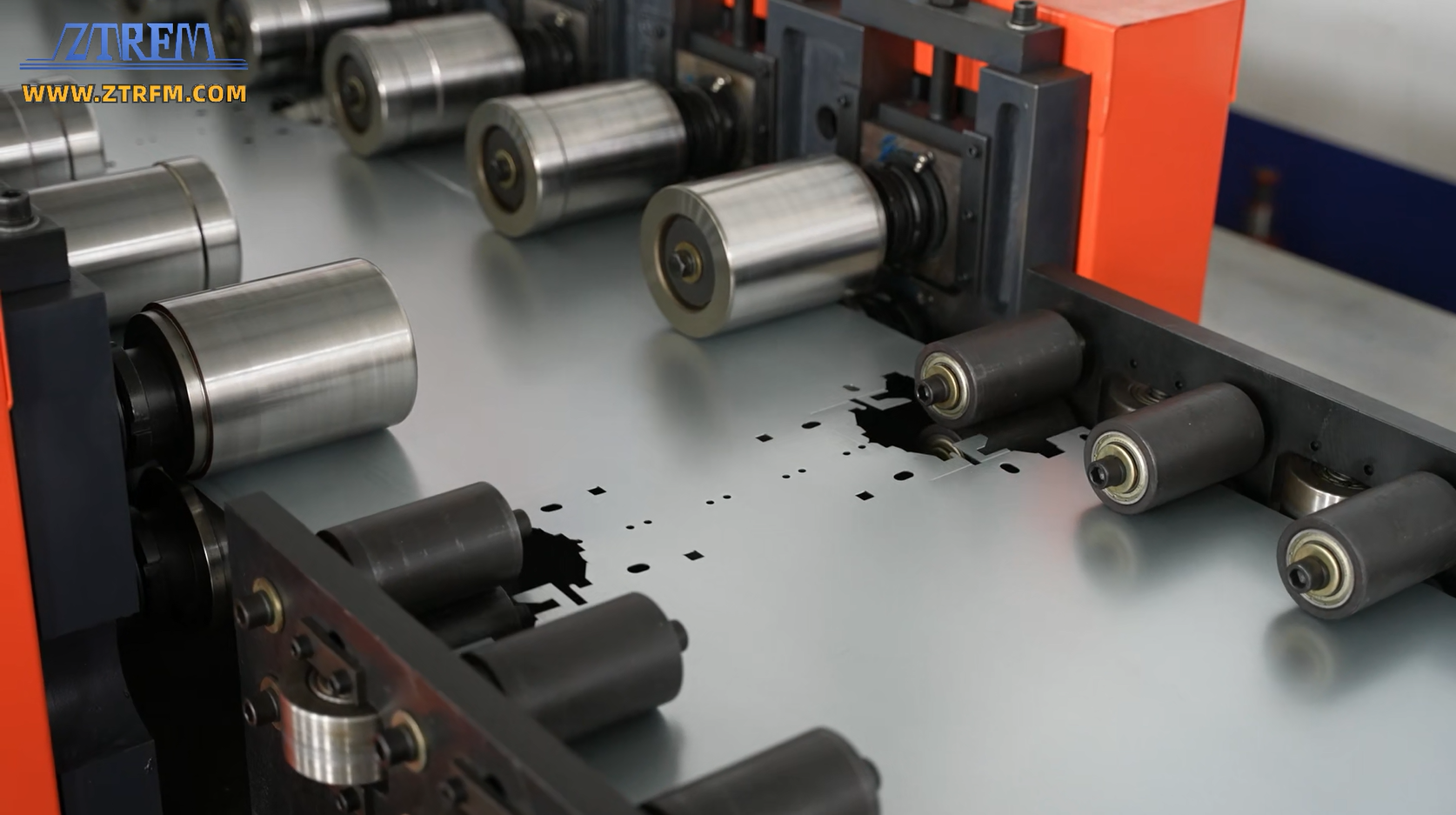

The forming section uses 36 sets of rollers mounted on 45# steel spindles with gear transmission for stable and reliable forming performance.
| Component | Specification |
|---|---|
| Uncoiler | 8 Ton Load Capacity |
| Coil Inner Diameter | 450–550 mm |
| Uncoiling Width | 1000 mm |
| Uncoiler System | Hydraulic Tensioning + Electric Unwinding |
| Leveling Material Width | 1000 mm |
| Material Thickness | 0.8 mm |
| Leveling Speed | 15 m/min |
| Correction Rollers | 7 Upper + 6 Lower |
| Front Punching | 3 Stations / 3 Mold Bases / 5 Mold Sets |
| Front Punching Width | Max. 1000 mm |
| Front Punching Speed | 15–30 m/min |
| Roll Forming Rollers | 36 Sets |
| Spindle Material | 45# Steel |
| Transmission | Gear Transmission |
| Post Punching | 4 Stations / 4 Mold Bases |
| Post Punching Control | Servo Control |
| Post Punching Width | Max. 1000 mm |
| Additional Functions | Head & Tail Turning / Flanging |

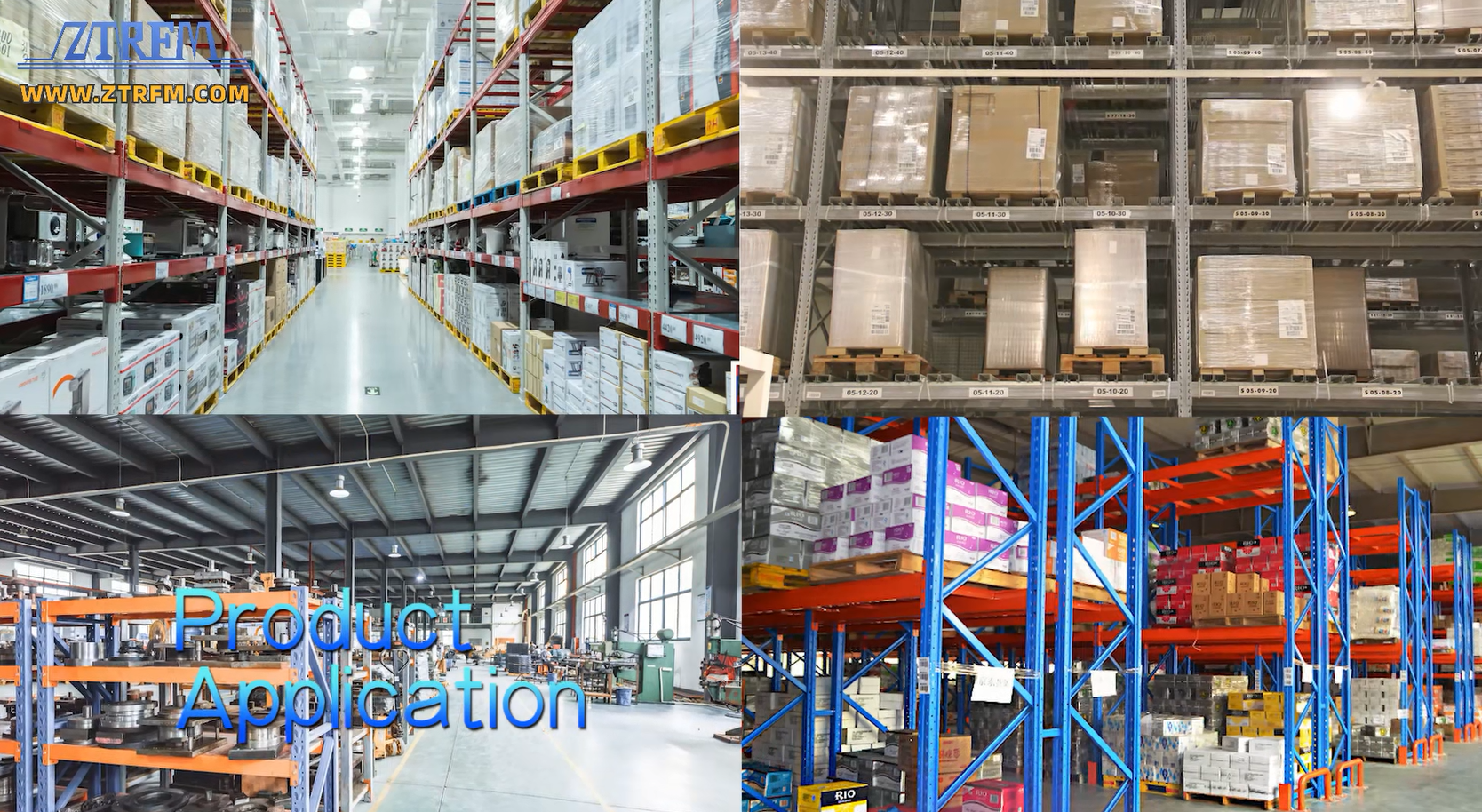

The Metal Shelf Pallets Roll Forming Equipment is suitable for manufacturers serving logistics, warehousing and industrial storage applications. The production line is designed for efficient manufacturing of metal shelf pallet components used for handling and organizing heavy goods.
Production of metal pallet components for warehouse storage systems.
Suitable for pallet components used in logistics and material handling.
Designed for heavy-duty industrial storage applications.
Designed for stable operation in continuous industrial production.
Servo-controlled punching and multi-stage forming help achieve consistent component accuracy.
Coil feeding, leveling, punching, forming and post-punching are integrated into one production line.
Multi-station processing helps reduce manual operations and improves overall production efficiency.
The equipment is designed for convenient operation, maintenance and long-term industrial use.
We can provide tailored roll forming solutions according to your pallet profile, material requirements, punching pattern, production capacity and other project specifications.
